Abstract
A GISbased model framework, designed as a raster module for the Open Source software GRASS, was developed for simulating the mobilization and motion of debris flows triggered by rainfall. Designed for study areas up to few square kilometres, the tool combines deterministic and empirical model components for infiltration and surface runoff, detachment and sediment transport, slope stability, debris flow mobilization, and travel distance and deposition. The model framework was applied to selected study areas along the international road from Mendoza (Argentina) to Central Chile. The input parameters were investigated at the local scale. The model was run for a number of rainfall scenarios and evaluated using field observations and historical archives in combination with meteorological data. The sensitivity of the model to a set of key parameters was tested. The major scope of the paper is to highlight the capabilities of the model—and of this type of models in general—as well as its limitations and possible solutions.
Similar content being viewed by others
Avoid common mistakes on your manuscript.
1 Introduction
Debris flows are rapid mass movements of water and debris representing a considerable hazard when interfering with people, buildings, or infrastructures. They are often triggered by heavy or prolonged rainfall or by extreme snow melt. Mobilization of debris flow material often occurs due to translational or rotational failure of saturated or undercut slopes or due to entrainment of regolith by surface runoff or by the debris flow itself. Various models exist for simulating the involved subprocesses, e.g. particle entrainment, regolith hydrology, slope stability, or debris flow motion. More integrated GISbased approaches as attempted for example by Burton and Bathurst (1998) or by Wichmann (2006) are extremely valuable for a quick assessment of debris flow hazard as a response to defined meteorological and hydrological conditions. The present paper describes a method for integrated modelling of debris flows (from triggering to deposition) based on the software GRASS GIS. As an Open Source GIS package with focus on raster processing, GRASS facilitates model development, distribution, and evaluation: the program code is freely accessible and new modules may be added by anybody. Therefore, the entire scientific community has the chance to contribute to the evaluation of the model and the further development of the program code. The present paper focuses on the assessment of the potentials and limitations of the model—and of this type of models in general—and on its sensitivity to certain key input parameters. For this purpose, various combinations of parameter settings were evaluated using six small catchments in the Central Andes (Argentina and Chile).
2 Background
2.1 Debris flows: landslides or runoff?
At first glance, the term debris flow does not always refer to exactly the same process. Some authors rather consider it as landslide with a fluidlike motion (Burton and Bathurst 1998; Corominas et al. 2003; Moreiras 2004a, b), others consider it as runoff with very high sediment concentration (Rickenmann 1999; O’Brien 2003). However, these two approaches are not necessarily contradictory—they rather depend on whether the observer has a geotechnical or a hydrological background. As stated by Rickenmann (1999), debris flows are phenomena intermediate between landslides and runoff. Many debris flow events in the real world share features of both types of processes, but most of them have a clear tendency to the one or the other. Some authors distinguish between debris flows on slopes originating from landslides and debris flows in channels mobilized in or near to the stream bed (Wichmann 2006). Process chains coupling landslides, runoff, and debris flows are common.
2.2 Modelling of debris flows
Integrated simulation models for debris flows require the inclusion of model components for all relevant subprocesses, whereby the most important are slope stability, detachment by surface runoff (both of them including hydraulic triggers), and debris flow motion. The following review focuses on methods applicable in combination with Geographic Information Systems (GIS).
2.2.1 Slope stability
The basic concept of slope stability modelling is the factor of safety, or factor of stability, FOS, in its most simple formulation:
Values of FOS < 1 indicate unstable conditions. The socalled infinite slope stability model assumes a plane, infinite slope, and a plane slip surface parallel to the slope surface. These conditions are never met in reality but are a reasonable approximation for shallow slope failures. Strictly spoken, the infinite slope stability model works for cohesionless regolith only. Various authors have applied this method in combination with GIS, like Burton and Bathurst (1998) or Xie et al. (2004), or coupled to a probabilistic approach, i.e. SINMAP (Pack et al. 1998). The infinite slope stability model is often coupled to a hydraulic model: seepage forces on the one hand and the change of effective stress due to pore water pressure on the other hand play a prominent role when regarding slope stability (Wilkinson et al. 2002; Xie et al. 2004).
2.2.2 Detachment and sediment transport
Surface runoff exerts a flow shear stress τ (N m^{−2}) on the underlying regolith:
where ρ (kg m^{−3}) is the flow density, g (m s^{−2}) is the gravitational acceleration, R (m) is the hydraulic radius, and S (m m^{−1}) is the hydraulic energy gradient. Excess shear stress can be used for computing the detachment capacity D _{c} (kg m^{−2} s^{−1}) as follows (Knapen et al. 2007):
where K _{c} (kg^{1−b} s^{2b−1} m^{b−2}) is the concentrated flow regolith erodibility, τ_{cr} (Pa) is the critical shear stress, and b is an exponent. All these parameters have to be derived empirically. Analogous approaches exist for other flow variables, particularly stream power.
The sediment concentration of a flow decreases the flow’s capability to detach more regolith, probably due to reduced turbulence (Knapen et al. 2007). Some approaches do exist to account for this effect, for example
where D _{r} (kg m^{−2} s^{−1}) is the detachment rate, q _{s} is the sediment load, and T _{c} is the transport capacity. If D _{r} is negative, deposition of the transported sediment starts.
Various authors have suggested predominantly or fully empirical sediment transport equations, for example Schoklitsch (1962), Yalin (1963), Yang (1973), Bagnold (1980), Low (1989), Govers (1990), Rickenmann (1990), or Abrahams et al. (2001). The Rickenmann (1990) equation—only including bedload—is best suited for relatively steep channels and high load (Hessel and Jetten 2007).
2.2.3 Debris flow motion
The motion of debris flows shows properties different from the flow of clear water, requiring specialized and complex methods to be modelled in a fully deterministic way (Savage and Hutter 1989; Hungr 1995; Iverson 1997). Chau and Lo (2004) modified the model of Takahashi et al. (1992) in order to model flow path and deposition of debris flows threatening the Leung King Estate (Hong Kong, China), based on a GIS. Implementation of the SavageHutter theory into GIS is a challenge because of nonrectangular coordinate systems used (Mergili et al. 2008).
Due to these difficulties, more simple models—with due limitations—were developed, particularly in combination with GIS. Table 1 summarizes the three major categories of models for the motion and deposition of debris flow material.
3 Study areas

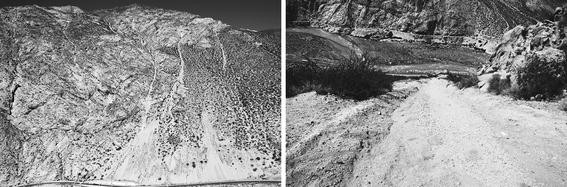

Six small catchments along the international TransAndean road corridor from Mendoza (West Central Argentina) to Central Chile were selected as study areas for the present paper (Fig. 1). The major geometric characteristics of all the study areas and estimated debris flow volumes are summarized in Table 2. Volumes include the estimated apparent quantity of regolith removed from the area by debris flow processes. The broad ranges of volumes are primarily related to uncertain depths.
Four study areas are located in the Mendoza valley separating the Precordillera and the Cordillera Frontal at a place called Guido, about 100 km W of Mendoza and 25 km SE of Uspallata. The climate is arid with a mean annual precipitation of 200 mm, occurring primarily as heavy rainstorms during summer. A large granitic body has produced systems of steep slopes of weathered material, making the area highly susceptible to debris flows (Fig. 2). Several events have been reported in the past (Moreiras 2004a, b, 2005). Quantitative data are available in terms of debris volume removed from the road (Espejo 1996; Table 3).
Two study areas are located on the Chilean side of the Cordillera Principal. Debris flow activity is well documented for both areas. Also here, the main source of quantitative data were reports specifying the debris volume removed from the international road (Hauser 2000a, b, 2005; see Table 3). Quebrada del Ferrocarril represents a system of gullies draining directly onto the road near to Portillo, frequently producing debris flows connected to rapid snow melt. Farther down, close to the village of Guardia Vieja, a mass of till has repeatedly shown aggressive responses to heavy or prolonged rainfall events, particularly during El Niño periods. The climate has a mediterranean character with a mean annual precipitation of 500–600 mm. In the El Niño year 1987, almost 1,800 mm were recorded at the Río Blanco meteorological station. A period of 6 days with more than 450 mm precipitation triggered a flow of debris and mud blocking the international road (see Table 3).
Unfortunately, no longterm records about debris flows exist in the area. All the volumes specified in Table 3 refer to saturated debris deposits removed shortly after the events.
4 Materials and methods
4.1 Data and parameters
Table 4 summarizes the data and parameters used for the study.
4.1.1 Imagery
Aerial photographs (scale 1:20,000 and 1:60,000) and SPOT satellite imagery (cell size: 2.5 m) were obtained, and digital pictures were taken in all study areas. Orthophotographs were generated from the imagery.
4.1.2 Elevation and relief
Highresolution (5 m) digital elevation models (DEMs) for the study areas were created by stereomatching of aerial imagery, of digital photographs taken from the opposite slope (Mergili 2007), and of SPOT satellite imagery. The DEMs derived from the different sources were combined in order to make use of the dataset with the best quality for each part of each study area. GPS records in combination with an ASTER DEM were used in places where stereomatching failed.
4.1.3 Regolith
Samples were extracted from critical areas in gullies, from the sites of shallow slope failures, from steep slopes, and from debris flow deposits.
All samples were extracted from the upper part of the regolith, directly under the frequently occurring shallow cover of coarse gravel. Grain size distribution and the corresponding texture classes were determined for all the samples in a geotechnical laboratory (Fig. 3). Cohesion c (N m^{−2}) and angle of internal friction φ were measured with drained triaxial tests for some of the samples. Hydraulic parameters were derived, using published relationships with texture class (Rawls et al. 1983; Carsel and Parrish 1988): residual water content θ_{r} and saturated water content θ_{s} (both in per cent of volume), hydraulic conductivity for the Green–Ampt model K (m s^{−1}), and matric suction at the wetting front ψ (m). Samples with similar properties were aggregated to regolith classes. Class averages of all the parameters were used in the model except for c and φ, where the pairs leading to the most unstable conditions are shown in Table 5. Basic values of the Manning coefficient n _{man} were assigned to each class according to Arcement and Schneider (2000). Due to lacking spatially distributed information on the vertical structure of the regolith in the study areas, one single layer of infinite depth was assumed.
4.1.4 Land cover and surface
The spatial distribution of the land cover classes in the study areas was mapped using aerial images, digital photographs, and field surveys. Characteristic values of interception capacity, rooting depth, vegetation surcharge for n _{man}, and root cohesion were assigned to each class according to values from the literature (Arcement and Schneider 2000; Braud et al. 2001; Schmidt et al. 2001; Bathurst 2002). The published values for most of the parameters scattered over a wide range. n _{man} was determined randomly, constrained by the maxima and minima for each land cover class. For the other values, the averages were applied.
Independently from the land cover classes, two hydrological surface classes HSC were distinguished for each study area, regarding runoff behaviour:

HSC = 1 includes all cells containing a large, clearly recognizable flow channel. For each cell, the width of this flow channel was defined, based on orthophotographs and field studies;

HSC = 2 includes cells where slopes are dissected by several small, more or less parallel channels on a subcell scale (where runoff concentrates quickly after its initiation), surface runoff occurs as unconcentrated overland flow, or no surface runoff occurs at all. Spatially distributed average channel densities were assigned to the cells of this class and expressed as ratio of the total cell size.
The purpose of the hydrological surface classes and also their definition is closely related to the raster resolution. Let us assume that the model is run with a resolution of 10 m.
First, let us imagine that the terrain forms several small flow channels on subcell scale, which—altogether—occupy 20 per cent of the length of each contour line. This would mean that surface runoff would only occur on 20 per cent of the cell, or a width of 2 m. Assuming the water to flow over the entire cell would lead to a misestimation of flow depth and, as a consequence, flow velocity, infiltration, etc. Therefore, a ratio of flow width to cell width is defined (in the above example 0.2), based on field studies and imagery interpretation, and water is only allowed to flow over the portion of the cell defined by this ratio. Such a raster cell would assume HSC = 2. With unconcentrated overland flow (no recognizable channels), the ratio would be 1.0.
Second, let us imagine a flow channel with a width of 15 m. Again, just working with the cell size would be inappropriate. Such larger flow channels are usually well defined by flow accumulation in the GIS. Therefore, with the presence of such channels, the channel width (in m) is assigned to each cell along the flow path and these cells are assigned HSC = 1, whilst the adjacent cells (which also contain parts of the channel) are HSC = 2. Very wide channels (more than two times the cell size) are also assigned HSC = 2 with a ratio of 1.0.
In summary, the HSC concept helps to reduce the influence of the cell size on the model results. With a very fine spatial resolution (cell size smaller than the width of the narrowest flow channel), the definition of HSC would become obsolete.
4.1.5 Historical data
Published literature (Hauser 2000a) and official reports (Espejo 1996; Hauser 2000b, 2005) were used for model evaluation. They denote efforts and costs for reestablishing transit after debris flows interfering with the international road. These documents include information on the quantities of debris deposited on the road (see Table 3).
4.1.6 Meteorological data
Data on precipitation in the study areas were required for simulating historical or worstcase events. Since no meteorological stations are located in the study areas themselves, the stations Guido and Río Blanco (between 2 and 10 km away from the study areas) had to be used. Precipitation data were available on a daily basis. Breaking down daily precipitation P (mm) into short time intervals was done by assuming different scenarios, based on qualitative information and the known climatic characteristics of the areas. The scenarios were described by duration d _{p} (hours) and maximum intensity i _{p} (mm per hour):
Transition periods d _{p,t} were assumed at the start and the end of the events.
4.2 The model framework r.debrisflow
4.2.1 General model layout
A model framework for the integrated simulation of debris flows triggered by shortduration, highintensity rainfall events was developed. The tool—named r.debrisflow—was designed as a raster module for the Open Source GIS software GRASS, based on the programming language C. It was kept relatively simple in its first version presented here, but was also designed in a way allowing to be extended with more sophisticated modules in the future.
r.debrisflow combines physically based, deterministic model components and components based on empiricalstatistical relationships. It couples a hydraulic model, a slope stability model, a sediment transport model, and a model for debris flow motion (Fig. 4). Simulations are run for a userdefined number of time steps. The slope stability model and the model for debris flow motion, depending on the output of the other components, are run at the end of the last time step.
4.2.2 Hydraulic model components
Rainfall is retained by the vegetation as interception until the interception capacity is reached. The excess rainfall is added to the water table in the regolith as effective rainfall.
Potential evapotranspiration is set to zero as the model is designed primarily for short and intense rainfall events where evapotranspiration is rather negligible.
The Green and Ampt (1911) approach is used for computing infiltration and saturated depth, assuming a wetting front as interface between saturated (above) and unsaturated regolith (below) moving downwards (Fig. 5). Infiltration capacity f (m s^{−1}) is expressed as
where d _{0} (m) is the depth of the wetting front before infiltration, and R _{0} (m) is the flow depth of the surface water before infiltration. K (m s^{−1}) and ψ (m) are parameters estimated from the grain size class (see Table 5). According to Erickson and Stefan (2007), the values of saturated hydraulic conductivity K _{s} provided by Rawls et al. (1983) are divided by 2 to be applied to the Green–Ampt model in order to account for the unsaturated flow. Equation 6 is derived from Darcy’s law. In contrast to some other applications of the Green–Ampt approach, the influence of R _{0} on the pressure head is not neglected. If R _{0} > f Δt, infiltration is limited by infiltration capacity, and the residual water contributes to surface runoff. The depth of the new wetting front d (m) is computed as
where Δθ (m^{3} m^{−3}) is the moisture deficit of the regolith, and Δt is the time step length. The remaining flow depth R (m) follows the relationship
If R _{0} ≤ f Δt, all water infiltrates:
and R = 0. The Green–Ampt approach, in a strict sense, was developed for horizontal surfaces, but is also applied for slopes. Chen and Young (2006) showed that on slopes ≤ 45°, the effect of slope angle is negligible, compared with other sources of inaccuracies. Slopeparallel seepage is neglected in the hydraulic model. For the present study, infiltration is set to zero for bedrock surfaces and all the surface water is considered as surface runoff there. This simplification was required due to the lack of data on the degree of fissuring and related infiltration patterns.
Infiltration is computed separately for regolith below flow channels and in between flow channels. This means that for cells with HSC = 2, two independent infiltration rasters are computed: one applicable for the part where surface runoff occurs (defined by the channel density), and another for the remaining part.
After infiltration, the remaining surface water of the depth R is assumed to concentrate in the flow channels immediately and to run off superficially. Water discharge per unit width q (m^{2} s^{−1}) is approximated using Manning’s equation:
where v _{f} (m s^{−1}) is the runoff velocity, α is the local slope angle in degrees, and n _{man} is the Manning coefficient representing surface roughness. Surface runoff is computed in different ways for the hydrological surface classes:

HSC = 1 (defined channel): the water is routed through the channel with only one possible downward direction from each cell;

HSC = 2 (slope with numerous small channels or no channels at all): the water is routed downwards assuming the defined channel densities on a subcell scale and a random walk weighted for slope angle.
The length of one time step Δt (s) is defined as
where d _{cell} (m) is the cell size and v _{max} (m s^{−1}) is the maximum flow velocity over the entire area. The constant a is a safety factor ≤ 1 to assure numerical stability (CFL condition). It was set to 0.5. Too short time steps would unnecessarily increase the computing time.
4.2.3 Sediment transport model
If the actual sediment load of surface runoff is below the transport capacity, regolith from the bed is eroded, whilst sediment is deposited in the reverse case. This point of view neglects possible surface armouring, the effects of which are planned to be included in the future development of the model.
Only bedload is considered for the computation of sediment transport and the evolution of debris flows. Runoff is considered to follow (10) below a certain threshold of sediment concentration (see Sect. 4.2.5); at higher sediment concentration it is considered as debris flow.
The Rickenmann (1990) equation is used in the model for estimating sediment transport because it is best suited for relatively steep channels and high sediment concentrations:
where q _{b} (m^{2} s^{−1}) is the volumetric bedload transport per unit width, s is the ratio of grain density to fluid density, D _{90} and D _{30} (m) are the grain sizes where 90% and 30% per weight, respectively, are finer, q (m^{2} s^{−1}) is the fluid discharge per unit width, and α (degree) is the local slope angle. q _{cr} (m^{2} s^{−1}) is the threshold discharge for sediment transport:
where D _{50} (m) is the median grain size, and g (m s^{−2}) is the gravitational acceleration. Erosion (detachment of regolith) or deposition d _{w} (m), depth of bedload l (m), and sediment concentration C (m^{3} m^{−3}) are then derived:
where l _{0} (m) is the initial depth of bedload and v _{l} (m s^{−1}) is the bedload velocity. The dimensionless calibration parameter ST was introduced for constraining the rate of detachment and deposition (see Sect. 6.3). Negative values of d _{w} (14) indicate detachment, positive values (15) indicate deposition. All the sediment deposited is considered as saturated, and the depth of the wetting front below the flow channel is corrected for detachment and deposition.
4.2.4 Slope stability model

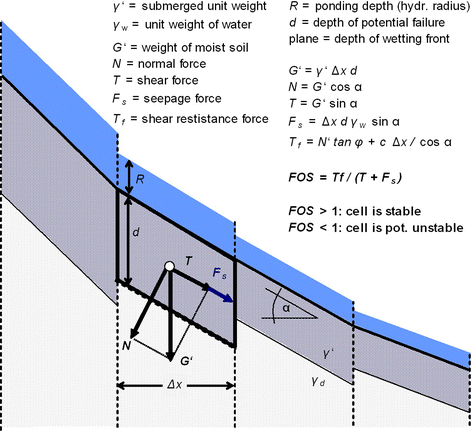

It is presumed that slope failures only occur at the wetting front. The infinite slope stability model is employed for the calculation (Fig. 6), assuming a slopeparallel flow that exerts a destabilizing seepage force. As discussed above, the infiltration model only includes vertical water flow within the regolith. Assuming slopeparallel flow at the end of the event is therefore a worstcase assumption which is met when the saturated zone is underlain by an impermeable layer (for example bedrock). The dimensionless factor of safety FOS is stated as
where T _{f} is the shear resistance force of the regolith, T is the shear force, and F _{s} is the seepage force (all in N; see Fig. 6). The shear resistance force is derived from Coulomb’s law, and the shear force from a simple mechanical relationship:
where φ is the angle of internal friction, c (N m^{−2}) is the cohesion (cohesion of the regolith c _{s} plus root cohesion c _{r}), Δx (m) is the width of the considered slope segment in downslope direction, and α (degree) is the slope angle. γ′ (N m^{−3}) is the specific weight of saturated regolith, including buoyancy:
where γ_{d} is the specific weight of dry regolith, γ_{w} is the specific weight of water (both in N m^{−2}), and θ_{s} (m^{3} m^{−3}) is the saturated volumetric water content. The seepage force exerted by the water in the regolith is stated as
The forces exerted by the surface water R (m) are neglected in the model. Dry and cohesionless regoliths (F _{s} = 0; c = 0; γ′ = γ_{d}) are stable when α < φ, and unstable when α > φ.
4.2.5 Debris flow motion and deposition
O’Brien (2003) stated that debris flows are characteristic at a sediment concentration between C _{min} = 0.45 and C _{max} = 0.55. The lower threshold is well within the range suggested by other authors, whilst much higher values for the upper threshold, up to C _{max} = 0.90, were reported (see Coussot and Meunier 1996). Sediment concentration C of surface runoff is therefore tested against C _{min} after each time step. If C < C _{min}, the flow continues as surface runoff. If C ≥ C _{min}, the material is retained from sediment load in order to be routed down as debris flow at the end of the last time step. At the same time, patches of failed regolith are considered as potential source areas of debris flows, too.
Before routing the debris flow downwards, the volume and the area of each of those patches are calculated. If one of these values is below a userdefined threshold, the patch is not further considered. The infinite slope stability model used is only valid as long as the unstable areas are large enough to develop quasiplain slip surfaces.
The travel distance is computed using a semideterministic twoparameter friction model developed by Perla et al. (1980), modified by Gamma (2000) and applied by Wichmann (2006) in a rasterbased GIS environment. Since the model is not fully deterministic, a routing algorithm has to be used. It is determined according to the hydrological surface class:

HSC = 1 (defined channel): the debris flow is routed through the channel with only one possible downward direction from each cell. As soon as deposition occurs within a channel, the corresponding cells are considered as HSC = 2 for the remaining simulation;

HSC = 2 (no clearly defined channel): a random walk weighted for downslope angle is applied for routing the debris flow.
Each raster cell defined as onset area of debris flows is passed through the routing procedure as individual mass point. The velocity of the debris flow v (m s^{−1}) is computed for each step (i.e. each raster cell the mass point is passed through) i:
where M/D (m) is the masstodrag ratio, and v _{ i−1} is the debris flow velocity of the previous step. The factor δ_{ i } and the coefficient β_{ i } are derived as follows:
where g is the gravitational acceleration (9.81 m s^{−2} on the earth surface), α_{ i } is the local slope angle, μ is the dimensionless friction coefficient, and L (m) is the length of one cell in slope direction. ∆α_{ i } is the difference between the slope angle of the previous cell and the slope angle of the considered cell, set to zero for convex slopes or channels (Wichmann 2006). For concave slopes, v _{ i−1} is corrected as the flow loses energy:
where the subscript i − 1 stands for the previous step (i.e. the previous upslope cell), and 0 for the original value. Values of M/D = 75 m were applied, following Wichmann (2006). The following relationship for μ was found to be useful for computing the maximum travel distance (Gamma 2000):
where A (km²) is the catchment size for the considered cell. It is assumed that μ would decrease with increasing a because the water content of the debris flow would rise. This relationship was used in r.debrisflow. Following Gamma (2000), the range of values of μ would be restricted to a maximum of μ_{max} = 0.3 and a minimum of μ_{min} = 0.045, overruling (26). Wichmann (2006) suggested to set μ_{min} = 0.15.
The twoparameter friction model does not give information on entrainment and deposition. Simple thresholds of slope and velocity are used for delineating these processes in r.debrisflow. Entrainment (as far down as to the wetting front) is only assumed if both values are above the thresholds, whilst deposition is assumed to take place only if both values are below. Routing continues until the debris flow has stopped. This happens when the square root in (23) becomes undefined.
4.3 Model scenarios and evaluation
4.3.1 Scenarios
A number of rainfall scenarios was assumed for each study area (except Quebrada del Ferrocarril), based on meteorological and historical information (Table 6).
4.3.2 Comparison to observations and reports
Not all the parameters required for running r.debrisflow were fully known. This means that the simulation results had to be validated with data on real debris flows. The sediment volumes deposited on the road calculated by the model were compared with the volumes removed from the international road according to official reports (see Table 3). Furthermore, the distribution of starting areas and deposits of debris flows was compared with landslide scars, flow channels, and the maximum extent of debris flow deposits recognizable in the field, on aerial images, and on published photographs.
4.3.3 Analysis of parameter sensitivity
The parameters determining the occurrence or nonoccurrence of debris flows are often uncertain, particularly regarding their spatial distribution. A careful analysis of parameter sensitivity was therefore conducted for assessing the dependency of debris flow occurrence in the study areas on variations of the key parameters: regolith hydraulic properties, calibration parameters for the sediment transport model, regolith and root cohesion c _{s} and c _{r}, angle of internal friction φ, influence of drainage direction on slope stability, parameters for modelling the motion of debris flows, and spatial resolution (cell size).
5 Results
A detailed discussion of the model results for all of the study areas and all the rainfall scenarios would go beyond the scope of the present paper. Scenario 2 (100 mm in 80 min; see Table 6) for the study area Castillo de Rocas will be presented in detail. Debris flows have repeatedly interfered with the road there in the past and therefore the most reports are available. Furthermore, the model is best applicable to this study area as debris flows start from shallow slope failures and detachment by surface runoff.
The thin black lines in the maps of Figs. 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, and 18 delineate onset and entrainment areas of observed debris flows; the bold black lines indicate observed areas of deposition.
5.1 Infiltration
The infiltration behaviour and the resulting depth of the wetting front are sensitive to a large number of system parameters like prewetting of the soil, field capacity, and hydraulic conductivity, all of which are uncertain. Fig. 7 illustrates the depth of the wetting front for different values of the hydraulic conductivity K, ranging from 0.25 K _{s} to 1.0 K _{s} for Scenario 2. Increased values of K result in a more rapid infiltration of the surface water and therefore a pronounced increase in the depth of the wetting front beneath the flow channels at the base of bedrock slopes, with a lot of surface water available. Due to the steepness of such areas, an increased potential starting volume of debris flows is the consequence. In contrast, the minimum depth of the wetting front (in between flow channels) is limited by water supply and shows a very low sensitivity to variations of K (Fig. 8). The result with 0.5 K _{s} was used for the further calculation, following Erickson and Stefan (2007).
The depth of the wetting front is determined not only by the system parameters and the rainfall sum, but also by rainfall duration. Assuming an event of 100 mm with a duration of 140 min (Scenario 3), the model yielded a deeper wetting front—and therefore a larger volume of regolith prone to instabilities—than for Scenario 2 (Fig. 9).
5.2 Detachment by surface runoff
Since there was no way to compute the velocity of the load v _{l} in a straightforward way, it was defined by the ratio of flow velocity to load velocity v _{f}/v _{l}. Four combinations of v _{f}/v _{l} and ST were tested for Scenario 2. As expected, smaller values of v _{f}/v _{l} (higher load velocity) lead to a more even distribution of entrainment along the flow path, whilst larger values of v _{f}/v _{l} (lower load velocity) result in more pronounced entrainment in the upper portion of the flow path (Fig. 10): with lower load velocities, the potential load depth is larger than with a higher load velocity and the same load discharge, but the flow becomes saturated sooner.
Varying the calibration factor for detachment capacity ST also led to the expected outcome: with higher values of ST, the flow soon becomes saturated and much less detachment occurs in the lower portion of the flow channels.
For all four parameter combinations, detachment was predicted predominantly in flow channels and at the base of bedrock outcrops (for the reasons explained above). Observed debris flows onset areas were concentrated particularly in those zones. However, the model results should rather be considered as qualitative information due to the limitations of the Rickenmann (1990) model for such an application and lacking direct reference data (see Sect. 6.3). Most of the major simulated starting areas of debris flows coincided with those identified as mechanically unstable (Fig. 11; see Fig. 13). Therefore, only the latter were considered for debris flow motion since their modelled distribution could be justified in a much better way.
5.3 Slope stability

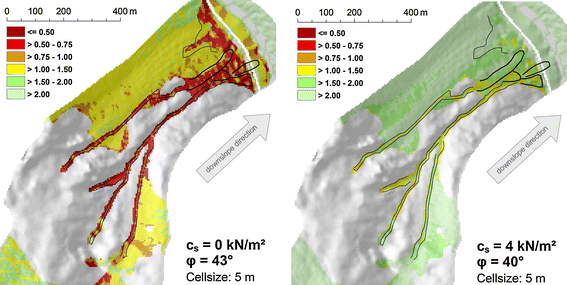

The geotechnical analysis of the samples extracted from the granitic regolith in the study area Castillo de Rocas yielded values of φ between 36.2° and 43°, and c _{s} between 0 and 23 kN m^{−2}. As c _{s} and φ derived from one single triaxial test have to be treated as a pair and not as separate values, the slope stability model was run with each of the four derived pairs, in addition to regularly varying each of the values.
This analysis showed a tremendous sensitivity of the model results particularly to cohesion. As to be expected for shallow instabilities prevailing in the study area, also moderate cohesion values (4 kN m^{−2}) led to a drastic reduction of the potentially unstable areas, compared to noncohesive regolith, also with lower values of φ (Figs. 12, 13, 14). When applying the pairs c _{s} = 10 kN m^{−2}; φ = 39.5° and c _{s} = 23 kN m^{−2}; φ = 36.2°, no slope failures were simulated at all.
As the unfavourable conditions are of more interest for the present study and as variations of the parameters are rather supposed to be finescaled (meaning that unfavourable conditions occur in each small patch of slope and govern its stability), the pair with c _{s} = 0 kN m^{−2} and φ = 43° was further applied in the model. Areas with FOS < 1 are mainly concentrated in steep channels and directly upslope from the road, corresponding well to field observations (see Figs. 12, 13).

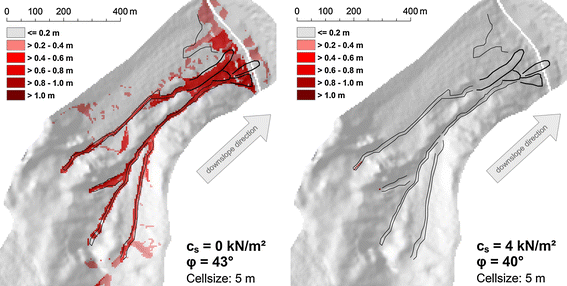

For the cohesionless regolith in the study area, the depth of the wetting front does only influence depth, but not the spatial distribution of potentially unstable areas unless another regolith layer comes into action or rooting depth is exceeded.

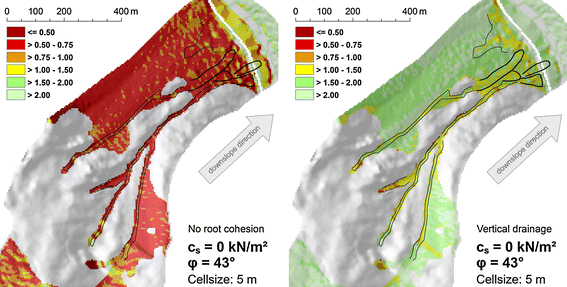

Two further tests of parameter sensitivity for slope stability were conducted (Fig. 15):

Omitting root cohesion had a significant effect on slope stability—almost the entire regolith slopes were identified as unstable. Vegetation obviously inhibits the onset of debris flow processes, but on the other hand also establishes better in undisturbed areas;

The direction of water movement in the regolith turned out to be important, too: with vertical drainage, the slopes are much more stable than with the standard slopeparallel water movement in the regolith.
5.4 Debris flow motion

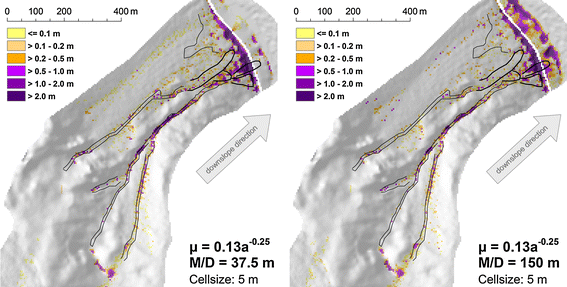

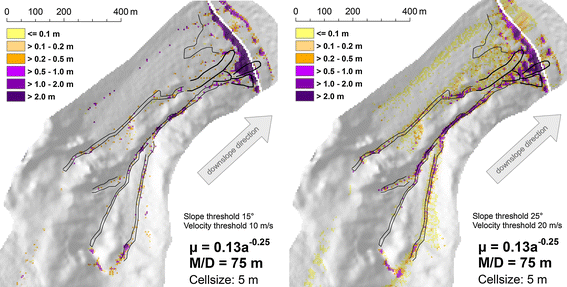

Various combinations of μ, M/D, and slope and velocity thresholds for entrainment and deposition were tested in order to determine the set of parameters reproducing the observed patterns in the best way.
The lower part of the study area Castillo de Rocas is crossed by a road, characterized by a very small slope angle, whilst the slopes directly upwards show slope angles up to 30° or more. Downslope from the road, the slope is steep again down to the valley bottom. These characteristics clearly govern the patterns of debris flow deposition suggested by the simulation: except for some patches in the flow channels, two clearly defined domains of deposition are visible—one of them on or directly adjacent to the road, the other one where the slope merges with the valley bottom. The relative importance of the two deposits shifts depending on the combination of parameters used (Figs. 16, 17, 18). In reality, most of the material from past debris flows was deposited on or directly adjacent to the road. With increasing μ, the simulated debris flow volume deposited on the road steadily decreases from 4,490 m³ (μ = 0.05) to 2,800 m³ (μ = 0.3): with higher bed friction, more material would already be deposited farther upslope.
The best fit with the observed travel distance of most of the material was found with the parameters μ and M/D proposed by Wichmann (2006), with μ as a function of the catchment area (see Eq. 26), and with thresholds of 20° (slope) and 15 m s^{−1} (velocity) for entrainment and deposition. With these parameters, 2,760 m³ of debris were predicted to deposit on the road. Assuming M/D = 37.5 yielded a value of 2,240 m³, doubling M/D to 150 yielded 4,380 m³. A sensitive response was also observed when varying the slope and velocity thresholds for entrainment and deposition. With 25° and 20 m s^{−1}, much of the material was deposited farther upslope and only 1,530 m³ on the road, whilst with 15° and 10 m s^{−1}, 6,750 m³ of debris were deposited on the road, according to the simulation.
It turned out hard to reproduce the observed patterns of deposition in a satisfactory way:

part of the deposits was removed directly after the event in order to reestablish traffic on the road, so that the reference data are incomplete;

this type of model does not represent the process in a fully deterministic manner, so that it is only possible to reproduce one single parameter of interest, e.g. travel distance, rather than to fit the simulation to all observed debris flow characteristics. This aspect is also the reason for the fact that the modelled velocities were rather too high, exceeding 20 m s^{−1}.
5.5 Sensitivity of the model to cell size
Within the range of 5–10 m, the infiltration model, the surface runoff model, and the slope stability model are not very sensitive to variations of cell size (Fig. 19; Table 7). Also with 20 m cell size, the key output parameters remain within the same magnitude, supporting the applied concept of hydrological surface classes.
The sediment transport model reacts sensitive to a change from 5 to 10 m cell size: errors caused by moderate topographic smoothing multiply by numerous feedback effects. Whilst the debris flow motion model in general turned out to be relatively robust against changes of cell size, the predicted deposit on the road is highly sensitive. This is mainly due to the limited width of the road, which is not properly represented when applying a cell size of 10 or 20 m.
According to Wichmann (2006), the applied type of debris flow motion model is not very sensitive to cell size until 25 m. A further reduction of spatial resolution is supposed to smooth out important topographic features, negatively affecting the quality of the results of all model components.
5.6 Comparison with reports and field observations
Table 8 provides a comparison of the modelled debris flow starting volumes and deposits to the reference volumes. In all cases, simulated and reported values correspond in their order of magnitude. However, it was not possible to confirm an increase of debris flow volume with increasing rainfall. For the Guido area, a 600 m³ deposit on the road was reported for a 40 mm rainfall event, whilst 15,000 m³ were reported for a 9.2 mm rainfall event a few weeks earlier (Espejo 1996). This may reflect the smallscale patterns of precipitation in and around the study areas as well as the influence of available unstable material (much may have been removed during the first event). However, it also illustrates the virtual impossibility to perform spatiotemporal predictions with this type of model. Much more, approaching worstcase scenarios is a realistic goal.
For the study area Guardia Vieja, the spatial patterns of slope failure were not predicted in a satisfactory way. This is not surprising because the instabilities there were rather deepseated rotational, caused by longer rainfall events (several hours to days), so that neither the Green–Ampt approach nor the infinite slope stability model were well applicable. For Quebrada del Ferrocarril, only debris flow motion was computed with defined starting areas since debris flows there were predominantly triggered by rapid snow melt and specific circumstances (Hauser 2000b). Most of the debris flows in the study area Quebrada del Ferrocarril were simulated to cease close to their starting areas when using μ_{min} = 0.15 according to Wichmann (2006). When following Gamma (2000) and setting μ_{min} = 0.045, as well as reducing the slope threshold for entrainment and deposition, the model results corresponded much better to the reference information. This may indicate a higher water content of the flows.
Also for the remaining study areas, μ as well as the thresholds for entrainment and deposition had to be calibrated in order to match the simulated travel distance with the field observations. Table 9 illustrates the values applied.
6 Discussion
6.1 General aspects
In general, the observations and historical records for the study areas were reconstructed well by the model, the limitations are discussed below. The prediction of the response to specific rainfall events and the derivation of rainfall thresholds are particularly problematic due to the model used for water flow in the regolith (saturation of the uppermost regolith layer also with minor rainfall events) and, specifically for the study areas used, lacking correlation between magnitude of reported events and corresponding rainfall data. The suitability of the model—and of this type of models in general—for Class A predictions (such predictions made before the event without model calibration by direct reference data, Lambe 1973) turned out to be very limited. Specific issues related to each model component and possible solutions are briefly discussed below.
6.2 Infiltration model
Water movement in the regolith was modelled in a plausible way without calibration, but the possibilities for direct validation were limited. Unsurprisingly, the infiltration model reacts highly sensitively to the soil hydraulic parameters. Soil hydraulic conductivity K is of particular interest as significantly different values appear in the literature for one and the same class of regolith (Rawls et al. 1983; Carsel and Parrish 1988) and there is disagreement whether to use saturated hydraulic conductivity K _{s} or not (Xie et al. 2004; Erickson and Stefan 2007) when employing the Green–Ampt model. Furthermore, the spatial distribution of soil classes is often finescaled, but—as in the present study—lumped values have to be used for entire slopes due to lacking information at a higher level of detail. Considering all these problems, it is possible only to provide a range of realistic depths of the wetting front.
The response of the model to variations of K is not linear. With higher hydraulic conductivity, surface water flow moving from upslope bedrock onto the regolithcovered slope infiltrates faster, so that the flow does not reach as far down as with lower values of K. Therefore, areas with deeper wetting front despite lower K exist at some distance downslope or downstream of rock outcrops (see Fig. 7).
The hydraulic status of the soil at the beginning of the triggering event is an additional source of uncertainty: prewetting significantly changes the infiltration and runoff behaviour.
6.3 Sediment transport model
It turned out that the straightforward implementation of an adequate sediment transport algorithm was not possible. The Rickenmann (1990) approach appears best suitable for the conditions in the study areas (Hessel and Jetten 2007), but its usefulness in a dynamic model is limited by the following serious problems:

the velocity of the bedload transport does not equal the velocity of the water flow. This fact does not matter when only the bedload transport capacity is considered, but it does when routing the bedload downstream and dynamically computing potential detachment and deposition on a pixel base. The ratio of water velocity to bedload velocity is hardly known.

the approach does not provide any information on possible rates of detachment and deposition, only about a dynamic equilibrium. This complex of problems could be attacked by combining the Rickenmann algorithm with detachment algorithms (see Sect. 2.2.2 for references), but a careful calibration of the parameters with real data would be needed.
Furthermore, the approach was developed and calibrated for channels ≤ 20° and reacts very sensitive to variations of the slope (Hessel and Jetten 2007), so that more experimental work would be required to make it better applicable to the catchments used in the present study. The disregard of suspended load may lead to additional inaccuracies.
6.4 Slope stability model
In general, domains with lower computed values of FOS corresponded well to areas where onset areas of debris flows were observed. The limiting factor for the success of such simulations, however, is the lack of knowledge on the spatial distribution of the parameters governing slope stability. The results of the geotechnical analyses performed in the present study illustrate the huge variation of the parameters even in areas with rather homogeneous regolith. However, under such conditions, the variations are rather supposed to occur in a smallscale pattern. Therefore, it appears acceptable to use the most unfavourable set of values for deriving worstcase scenarios. However, a better understanding of the spatial distribution of the key parameters—including the vertical structure of the regolith (depth, impermeable layers, prewetting, etc.)—would be required for reducing the uncertainties. In addition, highresolution imagery and DEM information from directly before and after the event would be extremely helpful to better constrain starting areas and involved volumes.
The model turned out unsuccessful in areas with prevailing rotational slope failures, particularly in the study area Guardia Vieja. Algorithms required to model rotational failures differ substantially from the infinite slope stability concept. Several models are applied by geotechnicians (e.g. SchneiderMuntau and Fellin 2005), but GISbased approaches are rare due to the nontrivial implementation of appropriate algorithms and iteration procedures as well as due to the problems with 3D processes in 2D raster systems. Xie et al. (2003, 2006) criticized the concentration on the infinite slope stability concept in slope stability modelling and introduced a GISbased model for rotational failures. Mergili and Fellin (2009) implemented a model for rotational failures based on GRASS GIS which shall be included in r.debrisflow in the future.
Another source of uncertainty is the issue of process interactions. In many cases it is not trivial to decide whether a debris flow did actually start from slope failure (FOS < 1) or from detachment—in some of the study areas presented, there is good reason to assume that both processes were involved, i.e. by the interaction of powerful surface runoff with slopes on the verge of failure (FOS ≈ 1). More research is needed in order to better understand such interactions.
6.5 Debris flow motion and deposition
For the study area Castillo de Rocas, the travel distance, but not the shape of the deposit of past debris flows, was successfully simulated using the parameters M/D and μ suggested by Wichmann (2006). For the other study areas, μ had to be calibrated in order to bring the computed travel distances in line with the observations (see Table 9). Simulating the areas of entrainment and deposition in a realistic way required an even higher degree of calibration and failed for the study area Castillo de Rocas (see Sect. 5.4 for an explanation). This means that such model approaches have only a very limited suitability for Class A predictions. A comprehensive set of parameter values suitable for different types of debris flows over different topographies and with different volumes would be needed, requiring extensive field observations.
A further problem of those semideterministic approaches is that they actually consider mass points, disregarding the volume of the entire flow. Increased volumes can only be accounted for indirectly by increasing M/D.
Future work shall be directed towards an improved parameterization on the one hand, and the inclusion of a physically based model on the other hand. The latter shall also be able to predict entrainment as well as energies and impact forces. Mergili et al. (2008) have produced a prototype of a GRASS GIS implementation of the Savage and Hutter (1989) model for simple topographies.
6.6 Conclusions
The present paper deals with the simulation of debris flows on the small catchment scale. Different techniques for modelling a variety of relevant processes were combined in a model framework realized in GRASS GIS. The goal was to reconstruct past debris flows in selected small catchments and to evaluate the potentials and limitations of the model components. GRASS GIS appeared highly suitable for this task as its modular structure allows for the implementation of complex algorithms due to the support of the C programming language.
Modelling of processes related to the onset of debris flows (particularly infiltration and slope failure) is rather limited by the available data. Despite extensive field visits, sampling, and laboratory analyses, considerable uncertainties with the governing parameters and—in particular—their spatial distribution became apparent. The modelling techniques existing for such processes appear appropriate in general, but are sensitive to the uncertain data. Systematic approaches for tackling uncertainties exist (Bathurst et al. 2004, 2005), e.g. the GLUE (General Likelihood Uncertainty Estimation) approach proposed by Beven and Binley (1992) or blind validation (Ewen and Parkin 1996). However, their application would require more reference data, particularly on the systeminternal parameters (e.g. water status of the slope).
Simulation of dynamic processes like sediment transport, the propagation of debris flows, or entrainment, or of process interactions, is also limited by the available modelling techniques. Simple approaches are not suitable for Class A predictions and often require complex parameters hard to determine. The present study has shown that the travel distance may be well estimated using semideterministic approaches, whilst fully deterministic models would be required for deriving also velocities and impact energies. The choice of the appropriate model therefore strongly depends on the desired information.
References
Abrahams AD, Li G, Krishnan C, Atkinson JF (2001) A sediment transport equation for interrill overland flow on rough surfaces. Earth Surf Process Landf 26:1443–1459
Arcement GJ, Schneider VR (2000) Guide for selecting Manning’s roughness coefficients for natural channels and flood plains. USGS Watersupply Paper 2339
Bagnold RA (1980) An empirical correlation of bedload transport rates in flumes and natural rivers. Proc R Soc Lond Ser A. Containing Papers of a Mathematical and Physical Character 372
Bathurst J (2002) DAMOCLES. Debrisfall assessment in mountain catchments for local endusers. Detailed Report of Contractor for Fifth Progress Meeting. University of Newcastle upon Tyne, UK. http://damocles.irpi.cnr.it/docs/November2002/NewcastleNovember2002.pdf
Bathurst JC, Ewen J, Parkin G, O’Connell PE, Cooper JD (2004) Validation of catchment models for predicting landuse and climate change impacts. 3. Blind validation for internal and outlet responses. J Hydrol 287:74–94
Bathurst JC, Moretti G, ElHames A, MoavenHashemi A, Burton A (2005) Scenario modelling of basinscale, shallow landslide sediment yield, Valsassina, Italian Southern Alps. Nat Hazards Earth Syst Sci 5:189–202
Beven K, Binley A (1992) The future of distributed models: model calibration and uncertainty prediction. Hydrol Process 6:279–298
Braud I, Vich AIJ, Zuluaga J, Fornero L, Pedrani A (2001) Vegetation influence on runoff and sediment yield in the Andes region: observation and modelling. J Hydrol 254:124–144
Burton A, Bathurst JC (1998) Physically based modelling of shallow landslide sediment yield at a catchment scale. Environ Geol 35:89–99
Carsel RF, Parrish RS (1988) Developing joint probability distributions of soil water retention characteristics. Water Resour Res 24:755–769
Chau KT, Lo KH (2004) Hazard assessment of debris flows for Leung King Estate of Hong Kong by incorporating GIS with numerical simulations. Nat Hazards Earth Syst Sci 4:103–116
Chen L, Young MH (2006) Green–Ampt infiltration model for sloping surfaces. Water Resour Res 42:W07420. doi:10.1029/2005WR004468
Corominas J, Copons R, Vilaplana JM, Altamir J, Amigó J (2003) Integrated landslide susceptibility analysis and hazard assessment in the principality of Andorra. Nat Hazards 30:421–435
Coussot P, Meunier M (1996) Recognition, classification and mechanical description of debris flows. Earth Sci Rev 40:209–227
Erickson T, Stefan HG (2007) Groundwater recharge from a changing landscape. Project Report No. 490, St. Anthony Falls Laboratory, University of Minnesota
Espejo J (1996) Unpublished reports about mass movements interfering with the international road from Mendoza to Central Chile (in Spanish)
Ewen J, Parkin G (1996) Validation of catchment models for predicting landuse and climate change impacts. 1. Method. J Hydrol 175:583–594
Gamma P (2000) dfwalk—Ein MurgangSimulationsprogramm zur Gefahrenzonierung. Geographica Bernensia G66 (in German)
Govers G (1990) Empirical relationships for transport capacity of overland flow. IAHS Publ 189:45–63
Green WH, Ampt GA (1911) Studies on soil physics. J Agric Sci 4:1–24
Hauser A (2000a) Remociones en masa en Chile (versión actualizada). Servicio Nacional de Geología y Minería, Subdirección Nacional de Geología, Boletín No. 59, Santiago de Chile (in Spanish)
Hauser A (2000b) Flujos detríticos en segmento del Camino Internacional a Argentina, sector Juncal—Paso Los Libertadores: Causas, efectos, medidas de control. Report of the Servicio Nacional de Geología y Minería, Subdirección Nacional de Geología, Santiago de Chile (in Spanish)
Hauser A (2005) Evaluación de vulnerabilidad y propuesta de procedimientos para el control de flujos detríticos o aluvionales en segmento JuncalPortillo, del Camino Internacional a la República Argentina. Report of the Servicio Nacional de Geología y Minería, Subdirección Nacional de Geología, Santiago de Chile (in Spanish)
Hessel R, Jetten V (2007) Suitability of transport equations in modelling soil erosion for a small Loess Plateau catchment. Eng Geol 91:56–71
Hungr O (1995) A model for the runout analysis of rapid flow slides, debris flows, and avalanches. Can Geotechnol J 32:610–623
Iverson RM (1997) The physics of debris flows. Rev Geophys 35:245–296
Jarvis A, Reuter HI, Nelson A, Guevara E (2008) Holefilled seamless SRTM data V4. International Centre for Tropical Agriculture (CIAT), available from http://www.srtm.csi.cgiar.org
Knapen A, Poesen J, Govers C, Gyssels G, Nachtergaele J (2007) Resistance of soils to concentrated flow erosion: a review. Earth Sci Rev 80:75–109
Lambe TW (1973) Predictions in soil engineering. Géotechnique 23(2):149–202
Low HS (1989) Effect of sediment density on bedload transport. J Hydraul Eng 115:124–138
Mergili M (2007) Stereo matching of terrestrial digital photographs—an alternative for the generation of highresolution DEMs in situations of poor data availability? In: Car A, Griesebner G, Strobl J (eds) Geospatial crossroads @ GI_Forum—Proceedings of the 1st Geoinformatics Forum Salzburg, pp 110–119
Mergili M, Fellin W (2009) Slope stability and geographic information systems: an advanced model versus the infinite slope stability approach. In: Proceedings of the international conference “mitigation of natural hazards and risks—georisk 2009”, Moscow, 21 May 2009, pp 119–124
Mergili M, Schratz K, Thalhammer M, Fellin W, Ostermann A (2008) An open source model for the simulation of granular flows: first results with GRASS GIS and needs for further research. In: Academic Proceedings of the 2008 free and open source software for geospatial (FOSS4G) conference, 29 Sept–3 Oct, Cape Town, pp 231–238
Moreiras SM (2004a) Landslide incidence zonation in the Rio Mendoza Valley, Mendoza Province, Argentina. Earth Surf Process Landf 29:255–266
Moreiras SM (2004b) Landslide susceptibility zonation in the Rio Mendoza Valley, Argentina. Geomorphology 66:345–357
Moreiras SM (2005) Climatic effect of ENSO associated with landslide occurrence in the Central Andes, Mendoza Province, Argentina. Landslides 2:53–59
O’Brien JS (2003) FLO2D users’ manual version 2003.06, July 2003. FLO2D Software Inc., Nutrioso
Pack RT, Tarboton DG, Goodwin CN (1998) The SINMAP approach to terrain stability mapping. Paper Submitted to 8th Congress of the International Association of Engineering Geology, Vancouver
Perla R, Cheng TT, McClung DM (1980) A twoparameter model of snow avalanche motion. J Glaciol 26:197–207
Rawls WJ, Brakensiek DL, Miller N (1983) Green–Ampt infiltration parameters from soil data. J of Hydr Eng 109:62–70
Rickenmann D (1990) Bedload transport capacity of slurry flows at steep slopes. Mitteilungen der Versuchsanstalt für Wasserbau, Hydrologie und Glaziologie, ETH Zürich 103
Rickenmann D (1999) Empirical relationships for debris flows. Nat Hazards 19:47–77
Savage SB, Hutter K (1989) The motion of a finite mass of granular material down a rough incline. J Fluid Mech 199:177–215
Schmidt KM, Roering JJ, Stock JD, Dietrich WE, Montgomery DR, Schaub T (2001) The variability of root cohesion as an influence on shallow landslide susceptibility in the Oregon Coast Range. Can Geotechnol J 38:995–1024
SchneiderMuntau B, Fellin W (2005) Fallstudie Mure Nals—Untersuchung des Muranbruchs mittels Standsicherheitsberechnung. Österreichische Ingenieur und Architektenzeitschrift 150:42–45 (in German)
Schoklitsch A (1962) Handbuch des Wasserbaues, 3rd edn. Springer, Vienna (in German)
Takahashi T, Nakagawa H, Harada T, Yamashiki Y (1992) Routing debris flows with particle segregation. J Hydrol Res 118:1490–1507
Vandre BC (1985) Rudd Creek debris flow. In: Bowles DS (ed) Delineation of landslide, flashflood, and debris flow hazards in Utah. Utah Water Research Laboratory, Utah State University, Logan
Wichmann V (2006) Modellierung geomorphologischer Prozesse in einem alpinen Einzugsgebiet. Abgrenzung und Klassifizierung der Wirkungsräume von Sturzprozessen und Muren mit einem GIS. Eichstätter Geographische Arbeiten 15 (in German)
Wilkinson PL, Anderson MG, Lloyd DM (2002) An integrated hydrological model for raininduced landslide prediction. Earth Surf Process Landf 27:1285–1297
Xie M, Esaki T, Zhou G, Mitani Y (2003) Threedimensional stability evaluation of landslides and a sliding process simulation using a new geographic information systems component. Environ Geol 43:503–512
Xie M, Esaki T, Cai M (2004) A timespace based approach for mapping rainfallinduced shallow landslide hazard. Environ Geol 46:840–850
Xie M, Esaki T, Qiu C, Wang C (2006) Geographical information systembased computational implementation and application of spatial threedimensional slope stability analysis. Comput Geotech 33:260–274
Yalin MS (1963) An expression for bedload transportation. J Hydraul Div Proc Am Soc Civ Eng 89:221–250
Yang CT (1973) Incipient motion and sediment transport. J Hydraul Div Proc Am Soc Civ Eng 99:1679–1703
Acknowledgments
The study was funded by the Tyrolean Science Funds, the University of Innsbruck, and the Government of Upper Austria. Special thanks go to J. Espejo and A. Hauser for making available substantial reference data.
Open Access
This article is distributed under the terms of the Creative Commons Attribution Noncommercial License which permits any noncommercial use, distribution, and reproduction in any medium, provided the original author(s) and source are credited.
Author information
Authors and Affiliations
Corresponding author
Rights and permissions
Open Access This is an open access article distributed under the terms of the Creative Commons Attribution Noncommercial License (https://creativecommons.org/licenses/bync/2.0), which permits any noncommercial use, distribution, and reproduction in any medium, provided the original author(s) and source are credited.
About this article
Cite this article
Mergili, M., Fellin, W., Moreiras, S.M. et al. Simulation of debris flows in the Central Andes based on Open Source GIS: possibilities, limitations, and parameter sensitivity. Nat Hazards 61, 1051–1081 (2012). https://doi.org/10.1007/s1106901199657
Received:
Accepted:
Published:
Issue Date:
DOI: https://doi.org/10.1007/s1106901199657
