Introduction

A trans-radial approach (TRA) is being used worldwide in both emergency and elective procedures of cardiac catheterization and percutaneous coronary intervention (PCI). Several factors contribute to explaining this trend, including patient comfort, early mobilization, and a significant reduction in a hospital stays. when compared to the transfemoral approach, TRA reduced major bleeding and all-cause mortality [1, 2]. Radial artery spasm (RAS) is still an important limitation of TRA. Previous studies reported incidence of RAS was 14.7% [3]. Identification of RAS predictors, despite proposed vasodilators and different available sheaths and catheters, is an important issue in patient selection and avoidance of complications, including RAS [4]. Prevention of RAS is more effective than the treatment of spasm, which is why it is so important to know the predictive factors of this event [5].

The increased incidence of radial artery spasm is due to decreased nitric oxide release as well as a reduced endothelium-derived hyperpolarizing factor [6].

Nitric oxide (NO) is synthesized by the endothelial nitric oxide synthase (eNOS), which is a product of the (eNOS) gene. The Glu298Asp polymorphism in the exon-7 of the eNOS gene has been investigated to determine the relationship of polymorphism to atherosclerosis and coronary artery disease (CAD) [7, 8]. The eNOS (Glu298Asp) gene polymorphisms predispose the patients to arterial spasm [9], but no specific study had been done in correlation with RAS during cardiac catheterization.

Despite the widespread use of TRA, very few studies have focused on the association of risk factors with the occurrence of RAS in cardiac catheterization [10].

This study aims to explore the predicting factors of radial artery spasm and the association of eNOS (Glu298Asp) gene polymorphism with RAS during cardiac catheterization.

Study patients

The present study included 200 Egyptian patients who underwent elective coronary angiography through a trans-radial approach at the cardiology department, Zagazig University Hospitals, Zagazig, Egypt.

The patients were divided into two groups. Patient Group: included 100 patients who had radial spasm (32 males and 68 females, with a mean age of 62 ± 5.5 years). The control group included 100 patients who had no radial artery spasm (64 males and 36 females, with a mean age of 53.6 ± 16.9 years). Patients who had acute coronary syndrome or acute heart failure were excluded from the study.

Methods

All patients were subjected to a complete history taking and a thorough physical examination. Resting 12 lead surface ECG was obtained. Echocardiography was performed using a Hitachi Noblus machine.

Coronary Angiography was performed using Philips Integris 5000, Netherlands. Coronary angiography was done for all patients using the trans-radial approach (right or left). Judkins left or Amplatz left catheters were used for left coronary angiography, and Judkin right, Amplatz right, or 3DRC (William) catheters were used for right coronary angiography provided that all catheters were 6 or 5 French sizes. Local anesthesia of 1.5 ml Xylocaine was administrated 1 inch above the styloid process of radius along the course of the radial artery. The arterial puncture was performed using a 20 Gauge needle. A hydrophilic guide wire was placed into the radial artery and a preloaded ideal hydrophilic sheath (Merit) 6 or 5 French was introduced over it. After insertion of the radial sheath, a cocktail of medication as standard for all patients: 200 µg nitroglycerine and 5000 IU unfractionated heparin. A 100 cm long coronary catheter, preloaded with a 0.035 inch 150 or 260 cm tapered movable core J- wire and in special anatomical loops in the radial artery, we used hydrophilic terumo wire 0.028 260 cm movable core J-wire was advanced through the sheath, and Judkin right, Amplatz right or 3DRC catheters used for right coronary angiography. Then, the catheter was removed and then Judkin left or Amplatz left catheters were used for left coronary angiography. Coronary angiography was performed in multiple projections for adequate analysis of target lesions. If coronary angioplasty was indicated, it was performed in most cases immediately after the diagnostic procedure. After the occurrence of radial artery spasm, if failed to relieve it we shifted to the transfemoral approach to continue the procedure. All those steps were done for the two groups taking into consideration: the access site (right or left) radial artery, number of punctures trials to get the radial artery, size of the radial sheath, number, and size of catheters, procedural time, and presence of radial artery loops. Identification of radial artery spasm which is defined as severe limitation of the catheters movements with or without angiographic confirmation or inability to push or pullback the catheters and if happened we give inside the catheter or the sheath: Another bolus of 200 µg nitroglycerine and 1.25 mg Verapamil.

Laboratory investigation

Five ml of venous blood was collected for each laboratory investigation under aseptic precautions. Serum was separated immediately for estimation of creatinine and lipid profile levels. Plasma was used for the estimation of blood sugar levels.

Isolation of DNA

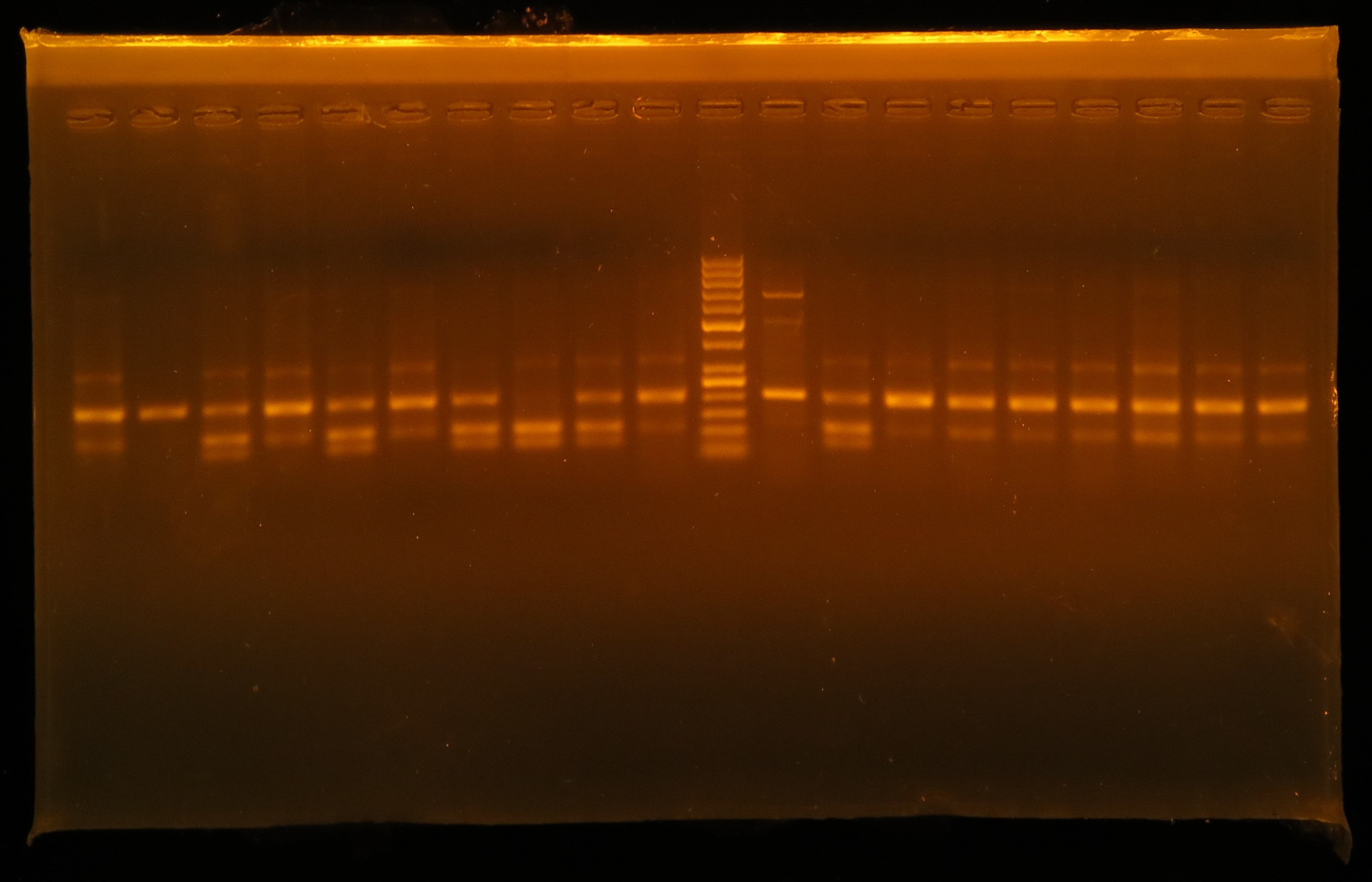

Genomic DNA was extracted from whole blood using a spin column method according to the protocol (QIAamp Blood Kit; Qiagen GmbH, Hilden, Germany). The subjects were genotyped to the Glu298Asp polymorphism (rs1799983) on the eNOS gene by polymerase chain reaction-restriction fragment length polymorphism (PCR-RFLP) as described previously [7]. After digestion with Mbo I enzyme digestion of the 206 bp fragments resulted in fragments that either remained intact (G allele) or were cut into two fragments of 119 bp and 87 bp (T allele). Fragments were analyzed by electrophoresis on 3% agarose gels containing 0.1% ethidium bromide. ( supplementary figure).

Statistical analysis

The statistical analysis was done with the statistical package SPSS version 20. Categorical variables were presented as percentages. Continuous variables were presented by mean ± SD. Comparisons between groups of means were performed using ANOVA. The genetic equilibrium was tested using Hardy-Weinberg. There were no significant deviations from Hardy-Weinberg equilibrium (P > 0.05), suggesting that our sample was representative of the population. Allele and genotype frequencies in RAS patients and controls were compared using a chi-square test. In addition, the odds ratios (ORs) and 95% confidence intervals (CIs) were calculated as a measure of the association of the eNOS polymorphic sites with RAS. Logistic regression was performed. A value of P < 0.05 was considered statistically significant for all tests.

Results

Patients of RAS were older than those of the control group (62.04 vs. 53.56, P = 0.000). Females were more common in the RAS group than in the control group (68% vs. 36%, P = 0.000). Regarding risk factors of atherosclerosis e.g. smoking, diabetes, hypertension, dyslipidemia, and family history they were more common in the RAS group compared to the control group (Table 1).

Table 1 Demographic data and Risk factors distribution between study groups
Full size table

Regarding drug history, nitrates, acetylsalicylic acid, and insulin were less in the RAS group compared to the control group (Table 2).

Table 2 Drug history of the study groups
Full size table

Regarding the coronary intervention procedure (Table 3): Number of punctures: getting arterial access from the first puncture decreases the incidence of radial spasm. Increasing the attempts to get access increases the risk of radial artery spasm. Radial access: radial artery spasm occurred more with right access in comparison to the left access. Size of radial sheath: radial artery spasm was more liable to present with a 6 F sheath in comparison to the usage of a 5 F sheath during the procedure. The size of catheters: radial artery spasm was more liable to happen with 6 F catheters in comparison to 5 F catheters. Radial tortuosity: the presence of the radial artery loops increases the risk of radial artery spasm (60% vs. 20%) in comparison to the patients who have a normal course of the artery. Procedural time: the longer the procedural time was associated with an increase in the risk of developing radial artery spasm.

Table 3 Comparison between the study groups regarding the coronary intervention procedure
Full size table

Regarding echocardiography parameters (Table 4): Our results found that LVH increases the incidence of RAS (80% vs. 16%, P < 0.001) and low EF increases the incidence of RAS.

Table 4 Comparison between the study groups regarding the Echocardiographic Parameters
Full size table

Genotypes and Alleles distribution between study groups (Table 5): Our results showed that the frequencies of TT genotype of eNOS Glu298Asp gene polymorphism were significantly increased in RAS patients compared to control patients (60% versus 12%). Subjects with the TT genotype and T allele were significantly more likely to develop radial artery spasms (OR = 12.5, 4.6, P < 0.001 respectively).

Table 5 Genotypes and Allele distribution in study groups
Full size table

Our results showed that TT genotype of eNOS gene (Glu298Asp) polymorphism, number of punctures, size of the radial sheath, radial tortuosity, and right radial access are independent predictors of radial artery spasm (Table 6).

Table 6 Multivariate Logistic Regression analysis to detect independent predictors of Radial artery spasm Group
Full size table

Discussion

The most important finding of our study is that patients who have TT genotype or T allele of the eNOS gene (Glu298Asp) polymorphism were more likely to develop radial artery spasm during cardiac catheterization (OR = 12.5, 4.6, P < 0.001 respectively). To the best of our knowledge, our study is the first one to demonstrate the association between the eNOS gene (Glu298Asp) polymorphism and the occurrence of RAS during cardiac catheterization.

Previous studies have evaluated coronary artery spasm and eNOS gene polymorphism and concluded that the most important predictive factor for coronary spasm was the Glu298Asp polymorphism of the eNOS gene [11, 12].

Cable et al., [13] found that after adenoviral-mediated eNOS gene transfer to human radial arteries ex vivo, both KCl and prostaglandin F2α-induced contractions were reduced by more than 50% in transduced arteries compared to the controls, suggesting that eNOS gene therapy may exert an important role in the prevention of radial artery graft spasm [14].

Since NO is one of the most important endothelium-derived vasodilators, impaired NO bioavailability plays a crucial role in endothelial dysfunction. eNOS is the predominant isoform of NO synthase and is responsible for the majority of nitric oxide production in the vasculature [15]. The eNOS gene has several single nucleotide polymorphisms reported, one of which is G894T. This polymorphism is a transversion G to T at nucleotide position 894 in exon 7, resulting in a GAG to GAT substitution in exon 7 with the substitution of glutamine by aspartate (Glu298Asp). This variant induces a conformational change that is thought to reduce NOS3 activity and bioavailability [16].

Demographic characteristics and risk factors of patients as predictors of RAS.

Our results showed that older patients were more liable to have RAS than younger ones. This finding supports that of previous studies [17]. This can be explained by aging being associated with endothelial dysfunction [18, 19], oxidative stress in the vasculature is a primary mechanism underlying age-associated reduction in NO bioavailability [19]. Chronic low-grade inflammation has been implicated in age-associated endothelial dysfunction [19]. However, Curtis et al., [20] demonstrated that patients who experienced RAS were younger.

The present study showed that female patients were more liable to have radial artery spasm (68% vs. 32%) in comparison to male patients. This finding goes in concordance with Mercado et al., [10], Jia et al., [21], and Gorgulu et al., [22]. NO production is affected by sex hormones, gender, and age. Estrogen increases eNOS activity [23]. Females are more affected by eNOS Glu298Asp gene polymorphism [24].

Moreover, the radial arteries of women are more sensitive to vasoconstrictors and less sensitive to vasodilators when compared to the radial arteries of men. In addition, women have high sympathetic tone and smaller radial artery lumen which is also a predictor of vasospasm [25]. On the other hand, Tuncez et al., [26] found no significant statistical difference between both gender in developing RAS, this can be explained by a small number of patients who developed RAS in their study, (3 males and 5 females) so there were no sufficient patients to achieve the statistical significance.

The present study showed that hypertensive patients were more liable to develop radial artery spasm (80% vs. 20%) in comparison with the control group (P < 0.001). In agreement with our study, Gorgulu et al., [22] reported that RAS was more common in hypertensive patients (66% vs. 56%, P < 0.009), and Omaygenc et al., [27] found that hypertension was more present in the RAS group compared to no RAS one (78% vs. 61%, P = 0.029).

This can be explained by Hypertension is associated with endothelial dysfunction, accelerated atherosclerosis, accumulation of growth factors and so decrease nitric oxide synthesis which is responsible for maintaining the vasodilatation of the artery [28].

Jia et al., [21] found that hypertension has no effect on developing RAS and this disagreement with our results can be explained by mostly all patients in their study were on ACEIs and ARBs medication and no patients had BB or diuretics. This regimen has a role in improving endothelial dysfunction and NO synthesis.

In our study, we found that diabetic patients were more liable to develop radial artery spasm (52% vs. 32%) in comparison with the control group (P = 0.006).

This can be explained by DM is associated with an increased risk of cardiovascular disease, even in the presence of intensive blood sugar control. Numerous clinical and experimental studies have demonstrated that endothelial dysfunction is closely associated with DM and plays an important role in the progression of atherosclerosis in diabetic patients.

The current study showed that smokers were more liable to develop radial artery spasm (64% vs. 32%, P < 0.001) in comparison with the control group. patients with dyslipidemia were more liable to develop radial artery spasm (84% vs. 48%, P < 0.001) in comparison with the control group.

In concordance with our study, Khan et al., [6] reported that current smokers and patients with dyslipidemia were more liable to develop RAS. Another study demonstrated that the strongest independent predictors of radial occlusion were female sex and active smoking status [29].

This can be explained by smoking as a chronic inflammatory process in which increasing levels of inflammatory markers may induce radial artery spasm. It also increases the sensitivity of alpha-adrenergic receptors which present predominately in the radial artery to the circulating vasoconstrictor materials. Moreover, it has an important role in endothelial dysfunction and hence decreasing the circulating NO which has an important role in maintaining the vasodilatation of the vessels [30].

Coronary intervention procedure through TRA

The present study showed that radial artery spasm occurs more with ≥ 3 punctures in comparison to just one trial to get access to it, right radial access in comparison to the left access, 6 F sheaths in comparison to 5 F sheaths, 6 F catheters in comparison to 5 F catheters. The presence of radial artery loops increases the risk of radial artery spasm (60% vs. 20%). The procedural time: the longer the procedural time the higher the incidence of RAS. The number of punctures, size of the radial sheath, right radial access, and radial tortuosity are independent predictors of RAS in multivariate analysis.

Those findings in our study can be explained by the radial artery being highly innervated by alpha-adrenergic receptors which highly respond to pain and friction and lead to vasoconstriction so, using larger catheters or sheaths 6 F in comparison to 5 F size will lead to induction of spasm. Also, multiple puncture trials to get access will irritate the vessel with the subsequent release of vasoconstrictor molecules and make the artery more liable to develop spasm. The presence of loops in the radial artery makes the passage of traditional catheters more difficult so, shifting to other catheters and different guide wires with the probability to use a lot of techniques with multiple manipulations to straighten the loops will make the artery liable to develop spasm. Furthermore, the longer the procedural time increases the risk of developing spasm by a lot of manipulation and pain that comes from the movement of the catheters. A previous study showed that pain during radial cannulation and longer procedure time was associated with RAS [31]. Moreover, the right radial artery tends to have more kinks than the left radial artery which leads to excessive manipulation by the catheters during advancement and subsequent spasm [6]. Omaygenc et al., [27] reported that more than one puncture attempt and long procedural time increased with the RAS group compared to no RAS one.

In agreement with our study, Jia et al., [21] found that unsuccessful access from the first attempt, large sheath (6Fa and 7 F) and several catheters > 3, and operation time are independent predictors of RAS. The number of catheters used during the operation was not significant in our study and this disagreement can be explained by using larger catheters (6 or 7 F), and also the female sex was the predominant gender of their cases. In concordance with our study, Gorgulu et al., [22] found that procedural duration and fluoroscopy time were statistically longer in patients with spasm, also, increasing the sheath size increased the spasm incidence and the number of catheters used was not significant. On the other hand, they found that the anatomic variations in radial artery like Loops and hypoplastic artery have no significance in developing spasm and this can be explained by changing the access site and not performing trials to overcome these difficulties to cross by different catheters or wires.

Mercado et al., [10] reported that patients with the following clinical parameters: women over 60 years old, current smokers, previous ischemic heart disease, hypertension, 6Fr catheters, and long procedural time, would have 76% chances of having RAS.

Conclusion

The eNOS gene polymorphism is associated with RAS during cardiac catheterization in Egyptians. The eNOS (TT) genotype, number of punctures, size of the radial sheath, right radial access, and tortuosity are independent predictors of RAS during cardiac catheterization.
