The Scent of the Fly
(Z)-4-undecenal (Z4-11Al) is the volatile pheromone produced by females of the vinegar fly Drosophila melanogaster. Female flies emit Z4-11Al for species-specific communication and mate-finding. A sensory panel finds that synthetic Z4-11Al has a characteristic flavour, which can be perceived even at the small amounts produced by a single female fly. Since only females produce Z4-11Al, and not males, we can reliably distinguish between single D. melanogaster males and females, according to their scent. Females release Z4-11Al at 2.4 ng/h and we readily sense 1 ng synthetic Z4-11Al in a glass of wine (0.03 nmol/L), while a tenfold concentration is perceived as a loud off-flavour. This corroborates the observation that a glass of wine is spoilt by a single D. melanogaster fly falling into it, which we here show is caused by Z4-11Al. The biological role of Z4-11Al or structurally related aldehydes in humans and the basis for this semiochemical convergence remains yet unclear.
KeywordsPheromone Semiochemical Odorant Off-flavour Olfaction Wine Drosophila melanogaster
All living things communicate with chemicals. Unlike sounds or sights, semiochemicals interconnect species across the kingdoms, and enable information exchange between animals, plants and microorganisms (Schultz and Appel 2004). A fascinating, recurrent observation is that the same compound may be bioactive in different species and context. Evolutionary convergence may result from the widespread occurrence or even physico-chemical properties facilitating information transmission, but is first of all thought to reflect the biological significance of chemicals, including the underlying biochemical pathways and precursors.
Citrus fruit is a preferred oviposition substrate for the vinegar fly Drosophila melanogaster (Dweck et al. 2013) provided that yeast is present (Becher et al. 2012). Citrus peel and brewer’s yeast both produce linalool (Carrau et al. 2005; Chisholm et al. 2003), which the flies perceive via several odorant receptors (Ors), including DmelOr69a (Lebreton et al. 2017; Münch and Galizia 2016).
Linalool, commonly found in the headspace of foliage, flowers and fruit, is bioactive in many animals. Plant-produced linalool enhances mate-finding in several phytophagous insects, while other species release linalool as a sex pheromone component (Aldrich et al. 1986; Hefetz et al. 1979; Leal et al. 1993; Yang et al. 2004). Herbivory, on the other hand, can upregulate linalool production in plants, which may protect against further infestation (Mithöfer and Boland 2012). The (R) and (S) enantiomers of linalool differentially attract pollinators and herbivores, for feeding and oviposition (Raguso 2016; Reisenman et al. 2010; Saveer et al. 2012), and enantiomeric changes during phenological development modulate our perception of flower aroma (Pragadheesh et al. 2017). In mammals, linalool induces psychopharmalogical effects via glutamate receptors (Elisabetsky et al. 1995; Nakamura et al. 2009), perception via Ors produces a sweet, floral note and makes a prominent contribution to the bouquet of flowers, fruit and wine, where both grape and yeast are a source of linalool (Carrau et al. 2005; Lewinsohn et al. 2001; Swiegers et al. 2005).
The response to food and mate olfactory cues is strongly interconnected in Drosophila (Das et al. 2017; Gorter et al. 2016; Lebreton et al. 2015) and DmelOr69a is also tuned to the newly identified female pheromone (Z)-4-undecenal (Z4-11Al), in addition to food odorants (Lebreton et al. 2017). Curiously, Z4-11Al is also found in citrus essential oil (Chisholm et al. 2003). Unsaturated aldehydes are prominent constituents of a range of food aromas, including fruit, wine, meat and fish (e.g. Cullere et al. 2007; Perez-Cacho and Rouseff 2008; Shi et al. 2013; Varlet et al. 2006; Yang et al. 2008). Moreover, Z4-11Al is an anal gland volatile in the rabbit (Goodrich et al. 1978).
While collecting volatiles from D. melanogaster flies, we discovered that we can reliably distinguish single male from female flies by their scent, which is strongly reminiscent of synthetic Z4-11Al. We then employed a professional sensory panel to verify whether we can indeed discern single flies, and whether the newly discovered pheromone Z4-11Al contributes to the scent of the female fly.
Methods and Materials
Isomeric and chemical purity of synthetic Z4-11Al were 98.6% and > 99.9%, respectively, according to gas chromatography coupled to mass spectrometry (6890 GC and 5975 MS, Agilent Technologies, Santa Clara, CA, USA). Ethanol (redistilled, >99.9% purity; Merck, Darmstadt, Germany) was used as solvent.
Eight members (comprised of two women and six men) of the sensory panel for organoleptic tests for the wine-growing area of Baden evaluated the odor of D. melanogaster and synthetic Z4-11Al. Members of this panel have been trained and selected for the official quality assessment of wines produced in Baden, at the Federal Institute for Viticulture, Freiburg, Germany. Each test comprised three glasses, control and two treatments, which were presented in random order. The panel was asked to score odor intensity, ranging from 1 (weak, silent) to 9 (strong, loud) and to comment on odor quality. The local human subjects committee approved sensory evaluation of Z4-11Al by sniffing. The first test compared the odor from single male and female flies. Flies were kept during 5 min in empty wine tasting glasses (215 ml) and were released shortly before tests. The second test compared a glass impregnated with fly odor and Z4-11Al (10 ng in 10 μl ethanol), which was applied to an empty glass, the solvent was allowed to evaporate during 2 min. Next, 10 ng Z4-11Al or a female fly were added to a glass filled with either water or white wine (dry Pinot blanc, Freiburg 2013, Staatsweinkellerei Freiburg). The fly was removed after 5 min, prior to testing. Finally, 1 or 5 ng Z4-11Al was added to wine.
Odor panel data were analyzed using one-tailed analysis of variance (ANOVA) followed by a Tukey test. Normality was tested using Shapiro-Wilk and homoscedasticity was tested using Levene’s test. All analyses were carried out using SPSS v. 20 (IBM Corp., New York).

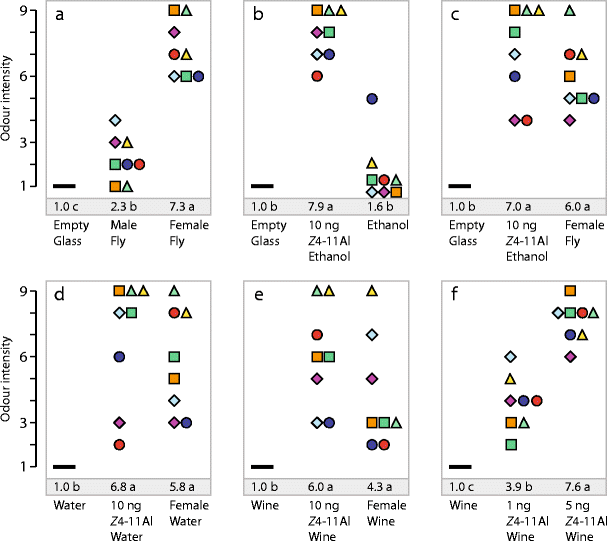

Chemical analysis has shown earlier that Z4-11Al and its precursor, the cuticular hydrocarbon (Z,Z)-7,11-heptacosadiene, are produced by female flies, not by males (Billeter et al. 2009; Lebreton et al. 2017). Our panel tests established that synthetic Z4-11Al has a distinctive odor (Fig. 2b). Moreover, a female fly and 10 ng Z4-11Al were found to be similar, with respect to odor quality and intensity, when presented in an empty glass, in water or wine (Fig. 2c–e). Since 10 ng Z4-11Al was assessed as slightly louder than the odor of a fly, we compared Z4-11Al at 1 ng and 5 ng, showing that as little as 1 ng Z4-11Al in a wine glass (corresponding to ca. 5 ng/L or 0.03 nmol/L at the time of application) was clearly perceptible (Fig. 2f). Even at small amounts, Z4-11Al was perceived as an unpleasant off-flavour.
The detection threshold for Z4-11Al is apparently similar in flies and men, since we clearly sense Z4-11Al released from a single fly (Fig. 2a). Chemical analyses found that D. melanogaster females released Z4-11Al at a rate of 2.4 ng/h and solvent extracts of fly cuticula contained 0.3 ng Z4-11Al/female (Lebreton et al. 2017).
Sensory evaluation confirmed that we sensitively smell Z4-11Al, the female-produced pheromone of the fruit fly D. melanogaster (Lebreton et al. 2017) and that we reliably distinguish single female from male flies. This supports the observation that one fly spoils a glass of wine, after falling into it - provided it is of the female sex. Other fly volatiles may contribute to our perception of fly odor. However, Z4-11Al is the most abundant compound, which is released by females only, other volatiles are found in both sexes (Lebreton et al. 2017).
A straightforward explanation for the convergent perception of Z4-11Al is, however, not at hand. The occurrence of Z4-11Al in nature is incompletely known and its possible role in humans remains unclear. Z4-11Al may merely be reminiscent of other food aldehydes, or it might avert ingestion of fruit that is infested with vinegar flies, which can be contaminated with microbes vectored by flies (Alegbeleye et al. 2018).
A range of mammalian Ors is responsive to aldehydes (e.g. Benbernou et al. 2007; Saito et al. 2009; Nara et al. 2011), including human Or1a1 and Or2w1 (Geithe et al. 2017a,b). Z4-11Al is produced in the anal gland of male wild rabbits and may be involved in territorial marking; the aldehyde was found to affect the heart rate when perceived by other male rabbits (Goodrich et al. 1978). The positional isomer (E)-2-undecenal is a bovid body odor (Gikonyo et al. 2002) and olfactory sensory neurons of ticks tuned to aldehydes afford indirect evidence for aldehyes as vertebrate signals (Steullet and Guerin 1994). A characteristic scent which is reminiscent of tangerine emanates from colonies of crested auklet, a monogamous seabird. Two unsaturated aldehydes, the chain-shortened analog (Z)-4-decenal (Z4-10Al) and (Z)-2-decenal are main odor-active constitutents. In crested auklet, Z4-10Al likely plays a role as an ectoparasite repellent and a signal of mate quality (Douglas et al. 2001; Hagelin et al. 2003; Caro and Balthazart 2010).
Z4-11Al is also part of clementine aroma (Chisholm et al. 2003) and it may play a dual role as social signal and food cue, not only in flies, but also in other animals. The olfactory sense in animals plays a key role during habitat adaptation. Tuning of Ors to habitat cues will create a bias for mate-finding signals that match or are structurally similar to habitat odorants (Endler 1992). This idea yields a tentative scenario for the convergence of semiochemicals. Insects and other animals feed on fruit, containing associated yeasts that facilitate digestion of plant materials, provide nutrients and protection of food from antagonistic microorganisms. Animal-produced compounds sharing structural motifs may have secondarily been adopted as mating signals, via established sensory channels dedicated to habitat and food odorants.
The olfactory system of Drosophila is conveniently accessible to experimental investigation and current research extends beyond the Or ligand repertoire (Münch and Galizia 2016) to neural circuits underlying odor-mediated behavior (Kohl et al. 2013; Auer and Benton 2016; Seki et al. 2017), chemical ecology (Depetris-Chauvin et al. 2015; Mansourian and Stensmyr 2015) and phylogenetic diversification (Shiao et al. 2015; Arguello et al. 2016; Ramasamy et al. 2016). A future challenge is to extend functional, behavioral, ecological and phylogenetic studies to include vertebrates, towards an understanding of the chemical vocabulary that interconnects us with other living things.
We thank the members of the sensory panel (Freiburg, Germany) for evaluating the fly scent and Cyrus Mahmoudi (comgraphix.de, Germany) for sharing a fruit fly photograph. Supported by the Linnaeus initiative "Insect Chemical Ecology, Ethology and Evolution" (Formas, SLU).
- Becher PG, Flick G, Rozpedowska E, Schmidt A, Hagman A, Lebreton S, Larsson MC, Hansson BS, Piskur J, Witzgall P, Bengtsson M (2012) Yeast, not fruit volatiles mediate attraction and development of the fruit fly Drosophila melanogaster. Funct Ecol 26:822–828. https://doi.org/10.1111/j.1365-2435.2012.02006.x CrossRefGoogle Scholar
- Lebreton S, Trona S, Borrero-Echeverry F, Bilz F, Grabe V, Becher PG, Carlsson MA, Nässel DR, Hansson BS, Sachse S, Witzgall P (2015) Feeding regulates sex pheromone attraction and courtship in Drosophila females. Sci Rep 5:13132. https://doi.org/10.1038/srep13132 CrossRefPubMedPubMedCentralGoogle Scholar
- Lebreton S, Borrero-Echeverry F, Gonzalez F, Solum M, Wallin E, Hedenström E, Hansson BS, Gustavsson A-L, Bengtsson M, Birgersson G, Walker WB, Dweck H, Becher PG, Witzgall P (2017) A Drosophila female pheromone elicits species-specific long-range attraction via an olfactory channel with dual specificity for sex and food. BMC Biol 15:88. https://doi.org/10.1186/s12915-017-0427-x CrossRefPubMedPubMedCentralGoogle Scholar
- Lewinsohn E, Schalechet F, Wilkinson J, Matsui K, Tadmor Y, Nam KH, Amar O, Lastochkin E, Larkov O, Ravid U, Hiatt W, Gepstein S, Pichersky E (2001) Enhanced levels of the aroma and flavor compound S-linalool by metabolic engineering of the terpenoid pathway in tomato fruits. Plant Physiol 127:1256–1265. https://doi.org/10.1104/pp.010293 CrossRefPubMedPubMedCentralGoogle Scholar
- Mithöfer A, Boland W (2012) Plant defense against herbivores: chemical aspects. Annu Rev Plant Biol 63:431–450. https://doi.org/10.1146/annurev-arplant-042110-103854 CrossRefPubMedGoogle Scholar
- Pragadheesh VS, Chanotiya CS, Rastogi S, Shasany AK (2017) Scent from Jasminum grandiflorum flowers: investigation of the change in linalool enantiomers at various developmental stages using chemical and molecular methods. Phytochemistry 140:83–94. https://doi.org/10.1016/j.phytochem.2017.04.018 CrossRefPubMedGoogle Scholar
- Ramasamy S, Ometto L, Crava CM, Revadi S, Kaur R, Horner DS, Pisani D, Dekker T, Anfora G, Rota-Stabelli O (2016) The evolution of olfactory gene families in Drosophila and the genomic basis of chemical-ecological adaptation in Drosophila suzukii. Gen Biol Evol 8:2297–2311. https://doi.org/10.1093/gbe/evw160 CrossRefGoogle Scholar
- Saveer AM, Kromann S, Birgerson G, Bengtsson M, Lindblom T, Balkenius A, Hansson BS, Witzgall P, Becher PG, Ignell R (2012) Floral to green: mating switches moth olfactory coding and preference. Proc R Soc B 279:2314–2322. https://doi.org/10.1098/rspb.2011.2710 CrossRefPubMedPubMedCentralGoogle Scholar
- Shi X, Zhang X, Song S, Tan C, Jia C, Xia S (2013) Identification of characteristic flavour precursors from enzymatic hydrolysis-mild thermal oxidation tallow by descriptive sensory analysis and gas chromatography-olfactometry and partial least squares regression. J Chromatogr B 913:69–76. https://doi.org/10.1016/j.jchromb.2012.11.032 CrossRefGoogle Scholar
- Shiao MS, Chang JM, Fan WL, Lu MY, Notredame C, Fang S, Kondo R, Li WH (2015) Expression divergence of chemosensory genes between Drosophila sechellia and its sibling species and its implications for host shift. Gen Biol Evolution 7:2843–2858. https://doi.org/10.1093/gbe/evv183 CrossRefGoogle Scholar
- Steullet P, Guerin PM (1994) Identification of vertebrate volatiles stimulating olfactory receptors on tarsus I of the tick Amblyomma variegatum Fabricius (Ixodidae). 1. Receptors within the Haller's organ capsule. J Comp Physiol A 174:27–38. https://doi.org/10.1007/BF00192003 CrossRefPubMedGoogle Scholar
- Swiegers JH, Bartowsky EJ, Henschke PA, Pretorius IS (2005) Yeast and bacterial modulation of wine aroma and flavour. Austral J Grape Wine Res 11:139–173. https://doi.org/10.1111/j.1755-0238.2005.tb00285.x CrossRefGoogle Scholar
- Yang Z, Bengtsson M, Witzgall P (2004) Host plant volatiles synergize response to sex pheromone in codling moth, Cydia pomonella. J Chem Ecol 30:619–629. https://doi.org/10.1023/B:JOEC.0000018633.94002.af CrossRefPubMedGoogle Scholar
