Introduction

Semiconducting transition metal dichalcogenides (TMDs) have attracted growing interest over the last decade due to the unique physical properties they exhibit when reduced from a bulk crystal to a monolayer [1,2,3]. In bulk form, the transition metal disulphides and diselenides (MoS2, WS2, WSe2 and MoSe2) are indirect semiconductors with a valance band maximum located at the Γ point, whereas in monolayer form they possess direct band gaps with both the conduction band minimum and valence band maximum at the K point [4]. Monolayer tungsten disulphide (WS2) is one of the most widely investigated members of the family of semiconducting Group VI TMDs due to its direct band gap of 2 eV [5], very high carrier mobility [6] and superior optical quality [7,8,9] in comparison with its molybdenum-based counterparts. Potential applications of WS2 range from light-emitting diodes (LEDs) [10, 11], photodetectors [12,13,14], valley-electronics [15, 16] and field-effect transistors [17,18,19]. Achieving high-quality large-area monolayer WS2 films remains a major challenge. If this material is to make the transition from proof-of-principle laboratory research to industrial applications, sustainable growth methods must be developed that produce large-area films on an industrial scale, without sacrificing the material quality.

Chemical vapour deposition (CVD) is the technique of choice for the growth of large-area WS2 films due to its compatibility with both monolayer deposition and industrial scalability. Over the last decade, major efforts have been devoted worldwide to developing various CVD approaches for monolayer WS2 growth. Solid powder tungsten oxide (WO3) has been extensively studied as a tungsten CVD growth precursor [8, 20, 21] with very promising results. WO3 has been chosen primarily because of its low toxicity when compared to the organic and halide precursors, as well as the effective replacement of O by S in the CVD reaction [22]. WS2 crystals grown by this method have been shown to form with high crystallinity [21], excellent optical properties, e.g. photoluminescence linewidths comparable to pristine exfoliated WS2 monolayer flakes [7, 20, 23], and reasonable carrier mobilities [20]. However, powder-based CVD methods are challenging to scale up to large-area industrial production levels since they usually represent ‘single shot’ processes. The random nature of seeding and nucleation on common growth substrates also typically leads to large individual WS2 domains [24, 25] rather than the uniform layers that are ideally required. In addition to solid powder precursors, there has also been a lot of interest in gas-source CVD of WS2 films [26,27,28,29]. The greatest advantage with this approach is that gas flow rates can be precisely controlled using mass flow controllers (MFCs), allowing for far greater reproducibility and much greater flexibility in the choice of tungsten precursor [30]. One common example of the latter is tungsten hexacarbonyl, W(CO)6, a hexacarbonyl metal precursor that is stable in air, it is a solid at room temperature and decomposes at temperatures between 600 and 900 °C in the presence of H2 [31,32,33]. Using W(CO)6 as a precursor Kang et al. have reported the growth of continuous monolayer WS2 films with grain sizes of ~ 1 µm on 4-inch fused silica substrates that exhibited carrier mobilities of 18 cm2/V-s [34]. However, the reported growth times of up to 26 h were very long and the diethyl sulphide (DES) sulphur source used has been demonstrated to lead to carbon contamination of the films [35]. The latter gives rise to partial quenching of the WS2 photoluminescence (PL) and can also detrimentally affect its electronic properties [27, 35].

Tungsten halide precursors have also been widely investigated [26, 29, 36,37,38] due to their relatively low decomposition temperatures and the absence of hydrocarbon reaction products which could incorporate as impurities. In this paper, we describe investigations of the growth of WS2 on c-plane sapphire using the metal halide WCl6 as the tungsten source in a cold-wall CVD reactor. We employ argon (Ar) as the WCl6 carrier gas and hydrogen sulphide (H2S) as the sulphur source. There are several reasons why we have chosen WCl6 as our W precursor. Firstly, unlike a metal-organic precursor such as tungsten hexacarbonyl (W(CO)6), WCl6 and H2S cannot create any hydrocarbon reaction products that could lead to carbon incorporation in the WS2 films. Carbon contamination is known to partially quench the photoluminescence and lead to the growth of poor-stoichiometry WS2 which is more susceptible to oxidation [27]. Secondly, metal halide precursors have been used by the microelectronics industry for decades [39,40,41] and have high enough vapour pressures at reasonable temperatures to be employed in a CVD reactor. On the downside, WCl6 decomposition produces hydrogen chloride (HCl), and WCl6 itself is an aggressive oxidant, so correct and safe containment is needed. This containment is also necessary to prevent exposure to skin and the eyes as WCl6 can cause skin corrosion and eye damage, as well as to prevent inhalation as WCl6 can cause specific organ toxicity. The HCl by-product is removed via the chamber outflow system. In practice, we selected WCl6 over tungsten hexafluoride (WF6) as the HF reaction product is far more corrosive than the HCl released during growth from WCl6. HCl is also much more volatile than HF at typical growth temperatures resulting in negligible chloride contamination of our films (see Supplementary materials).

All process gases flowing into our cold-wall CVD reactor could be precisely controlled via mass-flow controllers, allowing systematic studies to be performed in order to optimise gas flow rates and pressures as well as process temperatures and times. We have also investigated how a post-growth hydrogen sulphide anneal affects the optical quality of the as-grown WS2 films. Using wafer delivery through a load lock, we achieve total growth process times of approximately 40 min, from loading to unloading. The load lock also allows us to keep the growth chamber under vacuum and the wafer stage close to its growth temperature. Finally, we demonstrate that our films are easy to transfer from the sapphire growth substrate to a target substrate, such as Si/SiO2, using a polystyrene supporting membrane and release in water.

Material and methods

The synthesis of WS2 was carried out via gas-phase chemical vapour deposition in an Oxford Instruments Nanofab cold-wall CVD reactor using WCl6 and H2S as the W and S sources, respectively. A schematic of the main components of the growth system can be seen in Fig. 1. The WCl6 precursor was kept at 90 °C in a stainless-steel bubbler to establish a sufficiently high vapour pressure and transported to the reaction chamber with Ar carrier gas. We also incorporate a small amount of H2 to promote WS2 growth. Firstly, it has been reported that hydrogen can act as a chemical etchant which leads to a decrease in nucleation density [42, 43]. A lower nucleation density can lead to larger domain sizes and less grain boundaries, increasing the material quality. Secondly, and crucially, the addition of hydrogen during synthesis accelerates the efficient reduction of the tungsten precursor WCl6 that has an oxidation state of + 6 and needs to be in a + 4 state to form WS2. Hydrogen aids this reduction process and thus promotes the conversion of the tungsten precursor to WS2 [44].

Figure 1
figure 1

Schematic of the Oxford Instruments Nanofab CVD reactor used for WS2 monolayer synthesis. MFCs are the mass flow controllers used to control the gas flow rates

Full size image

In practice, our process was operated at a growth temperature of 600 °C and a total growth pressure of 4.5 Torr. The H2 flow was kept constant at 10sccm during all growths, whereas the H2S flow was varied between them to investigate its role, e.g. in the formation of sulphur vacancies in the WS2 films.

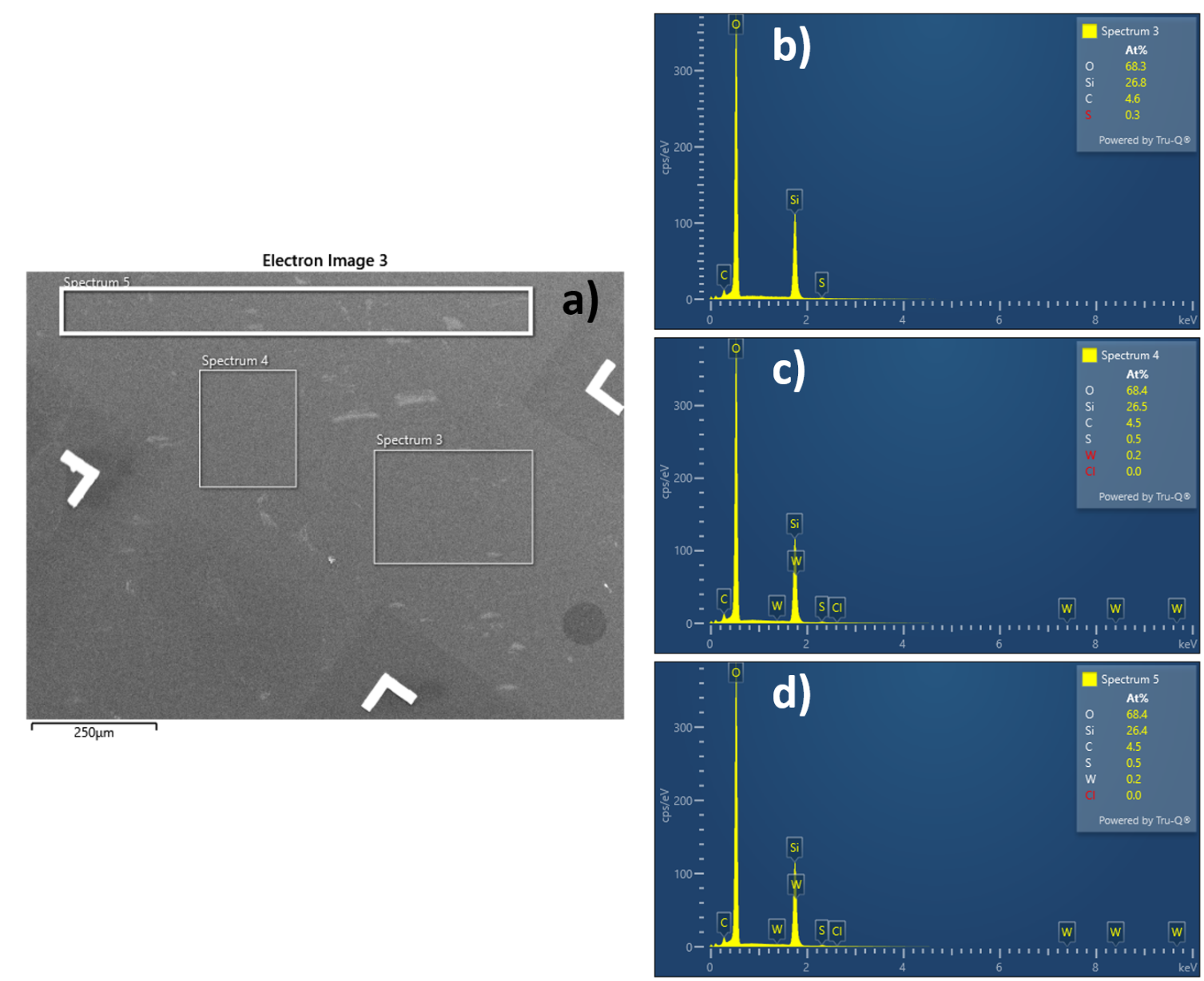

C-plane (0001) surface orientation sapphire wafers were the substrates of choice for the synthesis of WS2 monolayer films, although growth on Si/SiO2 has also been successfully achieved. Sapphire was used due to its atomically flat surface which leads to a lower nucleation density and thus a higher-quality growth. The crystal lattice of sapphire (4.785 Å) is also ~ 50% larger than WS2 (3.153 Å), which allows for the formation of a 3:2 superstructure of WS2. This commensurability of the sapphire lattice with the WS2 lattice allows for Van der Waals interactions to control the orientation of the WS2 film [45]. This preferential orientation leads to a reduction in the number of grain boundaries and an overall increase in film quality [45].

The primary process optimisation revolved around investigating the effect of a post-growth H2S anneal, and how different flow rates of this gas affected the final WS2 film quality. Raman and photoluminescence (PL) spectroscopy were used to characterise the optical quality of the WS2 while atomic force microscopy (AFM) was used to measure its thickness. All Raman and PL measurements were made using a Renishaw inVia microscope at room temperature and under ambient atmospheric conditions with an excitation wavelength of 532 nm.

Results and discussion

Successful growth on a 2-inch C-plane sapphire substrate was performed at 600 °C for 15 min in a 4.5 Torr total pressure with Ar, H2S and H2 flow rates of 100, 10 and 10sccm, respectively. The Raman spectrum from a typical sample grown under these conditions is shown in Fig. 2a.

Figure 2
figure 2

a Typical Raman spectrum (normalised to the A1g peak) of a WS2 film grown with 100sccm Ar, 10sccm H2S, and 10sccm H2. The peaks have been distinguished by Lorentzian fitting to show how each Raman mode contributes to the overall spectrum, b weak PL spectrum observed from a WS2 growth with no post-growth anneal

Full size image

In Fig. 2a, we observe the three main WS2 peaks of interest, the E12g, A1g and 2LA(M) [46]. The in-plane phonon mode E12g and the out-of-plane phonon mode A1g peaks are first-order Raman modes, whereas the 2LA(M) is a second-order Raman mode that is activated by disorder [46]. It is reported in the literature that these three Raman peaks will shift as the layer thickness is reduced [23, 46,47,48]. The A1g peak redshifts, whereas the 2LA and E12g peaks slightly blue shift, and Berkdemir et al. demonstrate that a separation between the A1g and E12g of 62 cm−1 is indicative of a WS2 monolayer [46, 48,49,50]. For the spectrum of Fig. 2a, we extract the A1g peak position to be 418.4 cm−1 and the E12g peak position to be 356.2 cm−1, yielding a peak separation of 62.2 cm−1, in good agreement with this estimate for monolayer films. AFM measurements also confirmed that this was a monolayer film which we would expect to have a direct band gap and exhibit strong photoluminescence [8, 20, 23, 49]. However, in practice, we only observed a very weak PL signal as shown in Fig. 2b. For comparison, high-quality monolayer samples produced by mechanical exfoliation typically exhibit a PL signal with a narrow full width at half maximum (40-60 meV) [20, 51] centred on ~ 2.0 eV. This observation could be attributed to a sulphur deficiency in the films deposited under these process conditions. This conclusion is supported by reports from both chemical vapour transport (CVT) crystal growth of TMDs and CVD growth utilising W(CO)6 as the W source [8, 20, 52]. In the case of CVT growth, studies have shown that the materials suffer from a natural chalcogen deficiency due to the volatility of the chalcogen atoms [53, 54]. To alleviate this, CVT-produced TMDs are deliberately grown with a stoichiometric ratio greater than 2:1 (chalcogen: metal). Similarly, sulphur vacancies are frequently observed in CVD-grown TMDs [55]. It is generally accepted that these defects introduce charge traps and accelerate electron–hole recombination, and ab initio quantum dynamics calculations by Li et al. have specifically implicated sulphur vacancies as being responsible for accelerating non-radiative charge carrier recombination [56].

Several works have reported that a post-growth anneal in a sulphur atmosphere can lead to an increase in the optical quality of MoS2 and WS2 thin films [7, 47, 57]. With this in mind, we have performed additional growth runs that incorporated a post-growth H2S anneal with flow rates ranging from 10 to 40 sccm. All growths were performed at 600 °C and a total pressure of 4.5 Torr. Annealing was carried out at 600 °C and a total pressure of 4.5 Torr and lasted for 15 min. The anneal immediately followed the growth stage whereby the H2 and Ar were switched off and the H2S continued to flow. The parameters during the initial growth stage are the same as those described above.

Upon examining the Raman spectra for the growth runs shown in Fig. 3a, we find that the A1g and E12g peak separations remained constant for all films at ~ 62 cm−1, indicating that all the locations where the WS2 films were measured represent monolayers [46]. However, clear patterns emerge in Fig. 3a and b which provide evidence for a change in material quality when the H2S flow rate is varied. We can extract several key figures-of-merit from the Raman spectra of Fig. 3a by fitting multiple Lorentzian functions to isolate each peak of interest [46]. These are the full width at half maximum (FWHM) values of the 2LA, E12g and A1g peaks and the A1g/2LA and A1g/E12g peak intensity ratios. We find that the ratio of the 2LA and A1g (A1g/2LA) peak heights initially decreases as the H2S flow rate during the anneal is increased from 10 to 20sccm and then increases again up to 40sccm, as shown in Fig. 4a. This trend is also clearly visible in the A1g/E12g ratio on the same figure.

Figure 3
figure 3

a Raman spectra of the four annealing tests (10sccm, 20sccm, 30sccm, 40sccm H2S). Lorentzian functions have been fitted to the peaks to extract the contribution of each Raman mode, b PL spectra of the four annealing tests. Gaussian functions have been fitted to the PL peaks to extract the excitonic and trionic contributions to the overall PL spectra. Both the Raman and PL spectra are normalised to the A1g peak

Full size image
Figure 4
figure 4

a Peak intensity ratios b and FWHM values extracted from the Raman spectra of Fig. 3a. From the exhibited trends we infer that the optimal films are grown at H2S flow rates close to 20sccm during the annealing phase

Full size image

In our case both E12g and A1g Raman peak separations and AFM measurements confirm that the regions of WS2 that were measured are of monolayer thickness and the same substrate (sapphire) and laser wavelength (532 nm) is used throughout all measurements, allowing us to exclude possible changes in film thickness. These changes in peak ratio are also correlated with changes in the FWHMs of the three peaks of interest as shown in Fig. 4b. Across all growth runs, the peak FWHM remained close to 8.0 cm−1 but reached its lowest value of 7.90 cm−1 at the 10sccm and 20sccm H2S flow rates. However, the FWHMs of the E12g and the A1g peaks were lower in the 20sccm H2S sample, suggesting an improvement in crystalline quality when compared to samples without a post-growth anneal [52, 58,59,60,61]. We also find that increasing the H2S flow rate to 30sccm and 40sccm during the anneal has a detrimental effect on the E12g and A1g FWHMs. A possible cause of this could be the formation of defects caused by etching due to the increased amount of hydrogen. This observation suggests that annealing conditions, if not carefully chosen, can result in poorer quality of the resulting WS2.

Using tip-enhanced resonance Raman scattering (TERS), Chanwoo Lee et. al. [62] have shown that both the 2LA(M) and the A1g Raman peaks depend on the density of structural defects in WS2, specifically the number of sulphur vacancies (VS). They observe a red shift of the A1g peak with increasing VS as well as a broadening of its FWHM due to the asymmetric D peak splitting off on the low-energy side. The 2LA(M) peak is also found to reduce in intensity with increasing density of sulphur vacancies. We believe we observe the same trend in the films that we assign to be of a lesser quality. In their paper, Chanwoo Lee et al. [62] show that there is an anti-correlation between the amplitude of the D peak (which grows with defect density) and the A1g peak. They also show that the amplitudes of the 2LA(M) and A1g are correlated, though are unable to determine the functional form of the relationship between them. Our observed decrease in the A1g FWHM as we quench sulphur vacancies under optimum annealing conditions is fully consistent with this scenario.

Figure 3b shows the results of a study of the PL as a function of H2S flow to determine optimal annealing conditions.

One direct measure of the crystalline quality of WS2 is the full width at half-maximum (FWHM) of the PL exciton peaks [50]. To investigate this, we fit Gaussian curves to the PL data of Fig. 3b which allows us to individually quantify the exciton and trion contributions and calculate their peak ratios. These are displayed in Fig. 5 and mirror the changes observed in the Raman spectra. Firstly, the exciton/trion intensity ratio (Fig. 5a) reflects the same trend as the A1g/2LA peak intensity ratios shown in Fig. 4a, rising to a maximum for a 20sccm H2S anneal and falling again at higher H2S flow rates. The normalised amplitude of both exciton and trion peaks increases at 20sccm reflecting an overall reduction in non-radiative recombination which we attribute to a reduction in the density of S vacancies [20, 55, 56, 63]. The observation that the peak ratio is a maximum after a 20sccm H2S anneal also indicates a suppression of the trion peak relative to the exciton PL peak, suggesting an additional decrease in the extrinsic electron density [8, 20, 63, 64]. Further evidence for an increase in the crystalline quality comes from the extracted exciton PL FWHM values shown in Fig. 5b and again the lowest FWHM is measured in the sample annealed in 20sccm H2S. A lower PL FWHM is associated with an increase in material quality. As the FWHM increases, this indicates the emergence of some form of disorder in the material e.g. sulphur vacancies [50, 65, 66]. From this, we can infer that a 20sccm H2S anneal leads to a higher crystalline quality.

Figure 5
figure 5

a PL exciton/trion peak ratios and b FWHM extracted from the PL data of Fig. 3b. This behaviour mirrors the trend seen in Fig. 4 and provides further confirmation that the 20sccm H2S flow represents the optimum annealing conditions. Data for as-grown samples without an anneal have not been included here because their PL was completely dominated by the signal from the sapphire substrate

Full size image

Based on the results of other published studies of the CVD growth and computational studies of MoS2 [42, 56, 57, 67, 68] and WS2 [63, 69] we believe that these PL intensity changes are associated with two competing processes. Firstly, as stated previously, the initial non-annealed sample almost certainly contains a high density of sulphur vacancies which facilitate non-radiative carrier recombination rather than the desired radiative recombination [56, 57, 63, 67,68,69]. The very large increase in PL intensity observed upon post-growth H2S annealing suggests that it is quenching these sulphur vacancies by reconstruction of the as-grown layers, leading to much-improved material crystallinity. This picture is supported by the enhancements observed in the Raman peak ratios (c.f., Fig. 4a). In contrast, H2S flow rates during annealing above 20sccm appear to be having a detrimental effect on both the Raman and PL spectra. This is most likely due to a second competing factor relating to the high abundance of H2 [43]. At high temperatures, H2S molecules readily dissociate to create a sulphur and hydrogen atmosphere. Hence, when the H2S flowrate is increased above the apparent optimum of 20sccm there is now too much H2 present, and the density of vacancy and other defects begins to increase again. Xiao et al. performed an in-depth study of the effects of hydrogen on MoS2 atomic layers [42] and found that with increasing H2 concentration, the energetically active H atoms were chemisorbed on the unstable S sites. This chemisorption leads to a breaking of the Mo-S bonds at high temperature and thus a desulphurisation of the film. In TEM measurements on the same samples, they were able to observe circle-like defects that they identified as being sulphur vacancies. In practice, the microstructural damage caused to our films at high H2S flow rates may originate from both desulphurisation as well as an oxidation-etching effect mediated by a greater presence of H2 in the atmosphere [42, 43, 70].

Our best films exhibit an exciton FWHM of 51 ± 2 meV. When compared to WS2 grown via powder-based methods [7, 20] and MOCVD [71], our FWHM is located at the upper end of values quoted in literature, which is to be expected. The advantage of WCl6 compared to the powder-based method is much better scalability, and the advantage over the MOCVD films is the much shorter deposition time. FWHM values for films grown on sapphire substrates from a W(CO)6 precursor range from 27 to 65 meV [27, 34, 70,71,72], and span 21-68 meV when WO3 powder is used as a precursor [7, 20, 23, 73,74,75]. Our FWHM value is an improvement on values (67 meV) reported by Park et al. [26] who also employed gas-phase CVD with a WCl6 precursor. Finally, comparing the FWHM for our best films to those grown from the tungsten halide WF6 (exciton FWHM in the range 48–83 meV) [37, 38, 76] we find that our values fall closer to the lower end of reported values, with the added advantage that by using WCl6 we eliminate the production of the much more corrosive reaction product, HF. Table S1 in supplementary materials presents a comprehensive comparison of key PL figures-of-merit for a range of different WS2 growth methods and precursors.

For WS2 to become a viable material for large-scale electronic and optoelectronic applications, it must be produced with high quality and uniformity on a suitably large scale [77, 78]. In Fig. 6, we show large-area Raman and PL maps of our optimal WS2 films grown on C-plane sapphire to illustrate the homogeneous coverage our growth method can achieve. Figure 6a is a map of the A1g Raman peak position. As we can see, the peak position remains constant at 418 ± 0.5 cm−1 across a vast majority of the 2-inch sample, indicating complete coverage and large-scale uniformity. Figure 6b is a map of the PL intensity and again shows a very uniform intensity over most of the sample, indicating a high level of optical uniformity. The drop-off in PL intensity near the edge of the sample is attributed to damage incurred during dicing and polishing of the wafer, leading to a much higher density of nucleation sites and more disordered or even amorphous areas of film in these regions. Figure 6c and 6d are maps of the A1g FWHM and the exciton PL FWHM, respectively, that further show that we have a achieved a uniform film of WS2.

Figure 6
figure 6

a Map of the A1g Raman peak position of WS2 deposited on a 2-inch sapphire wafer indicating a high degree of uniformity across the sample, b Map of the PL intensity across the sample. The PL intensity remains uniform over most of the sample, c Map of the A1g FWHM. This complements the A1g peak position, also showing a high degree of uniformity across the sample, d Map of the exciton PL FWHM which further indicates a uniform WS2 film

Full size image

Figure 7a displays a photograph of a typical WS2 monolayer grown on a 2-inch sapphire wafer by our gas-phase CVD process at 600C and a total gas pressure of 4.5 Torr followed by an optimised 15-min H2S anneal. The WS2 film thickness was measured by AFM at the small scratch on the surface shown in the AFM image, Fig. 7b. The topographic line scan along the direction indicated in Fig. 7 reveals a film thickness of ~ 1.1 nm, consistent with the presence of a monolayer film [20, 21, 43].

Figure 7
figure 7

a Optical micrograph of a 2-inch sapphire wafer coated with a WS2 grown using our optimised process, b AFM image of a small scratch in the WS2 film which allows a determination of the film thickness, c topographic scan along the line indicated in b showing a thickness of ~ 1.1 nm

Full size image

In addition to being able to grow over large areas, it is also ideal to be able to transfer the WS2 from sapphire to a Si/SiO2 substrate in order to fabricate functional electronic and optoelectronic devices [79]. To achieve this, we have used the surface energy-assisted transfer process first described by Gurarslan et al. [79] which is shown diagrammatically in Fig. 8a. This method combines the benefits of a simple transfer protocol without harsh alkaline chemicals such as KOH, which can lead to film degradation [80]. The sample chosen for transfer was first spin-coated with a uniform layer of polystyrene (PS) dissolved in toluene at 3000 rpm for 60 s, followed immediately by a 15-min bake at 90˚C to harden the PS coating and promote adhesion. A few drops of deionised (DI) water were then dripped on top of the sample which was poked around the edges with a scalpel to create small perforations that allowed water to seep underneath the PS layer. As the sapphire substrate is hydrophilic and the WS2 hydrophobic [79], the water spread rapidly across the sapphire and delaminated the WS2 film. Once it was floating freely in the water the film could be picked up with tweezers and placed onto a target substrate, as illustrated in Fig. 8b. The target substrate used was an n+-Si/SiO2 wafer with a 300 nm thick oxide layer. The corner of a paper tissue was used to remove most of the water under the WS2 film before it was baked at 80 °C for 1 h to remove most of the residual moisture. A second bake for 30 min at 150 °C was then performed to spread the polymer and remove any remaining water. Finally, the PS layer was removed by soaking the sample in toluene for 1 h. A great advantage of this method is that after cleaning and annealing the sapphire substrate can be reused after transfer. This process is illustrated schematically in Fig. 8a, and an optical image of the film on the n+-Si/SiO2 chip post-transfer is shown in Fig. 8c.

Figure 8
figure 8

a Schematic diagram of the transfer protocol used for a WS2 monolayer film grown on a sapphire substrate (adapted from Gurarslan et al. [78]). b The WS2 film and PS layer when first transferred from the sapphire growth substrate to the Si/SiO2 target substrate. c The WS2 film post-baking to remove water and post-toluene soak to remove the PS layer

Full size image

Optical characterisation of the transferred films shows that their quality is well preserved, and that the transfer process has no detectable detrimental effect on the material. Figure 9a shows Raman spectra, normalised to the A1g peak, of a film before and after transfer onto Si/SiO2 exhibiting only a few very minor differences. Figure 9b shows the results of fitting Lorentzian peaks to these data revealing that there is actually a slight reduction in the FWHM of the 2LA peak from 7.90 to 7.80 cm−1, which could be related to the release of strain after transfer [79, 81]. This interpretation is corroborated by a more careful analysis of the FWHM of the 325 cm−1 Raman mode which was reduced by 42% from 17.12 cm−1 before transfer to 9.92 cm−1 afterwards. This effect has previously been observed by Dadgar et al. where they applied an external strain of 2.85% and observed a FWHM increase of 9.47% in the 325 cm−1 Raman peak [81]. Strain in the WS2 film can arise due to the difference in the thermal expansion coefficients of the WS2 and the sapphire substrate [23, 82]. When the sample cools to room temperature post-growth, the substrate and the film contract at different rates, leading to tensile strain in the WS2 monolayer [23]. This is generally quite inhomogeneous across the sample leading to a distribution of bond lengths and a broadening of associated Raman phonon modes [81]. The FWHM values for the E12g and A1g Raman peaks are experimentally indistinguishable in the pre-transferred and post-transferred WS2 providing further evidence that the film quality is preserved.

Figure 9
figure 9

a Comparative Raman spectra (normalised to the A1g peak) and b Lorentzian fits of the Raman spectra to extract the individual Raman peak contributions of the WS2 monolayer pre- and post-transfer. Both a and b are normalised to the A1g Raman mode. c Comparative PL spectra and d Gaussian fits of the PL spectra (normalised to the PL peak maximum) to extract the excitonic and trionic contributions

Full size image

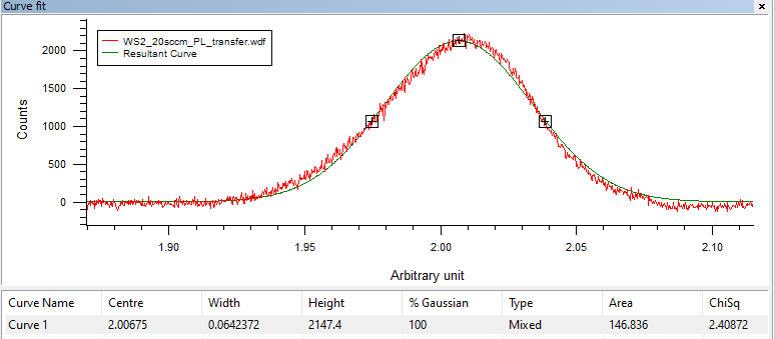

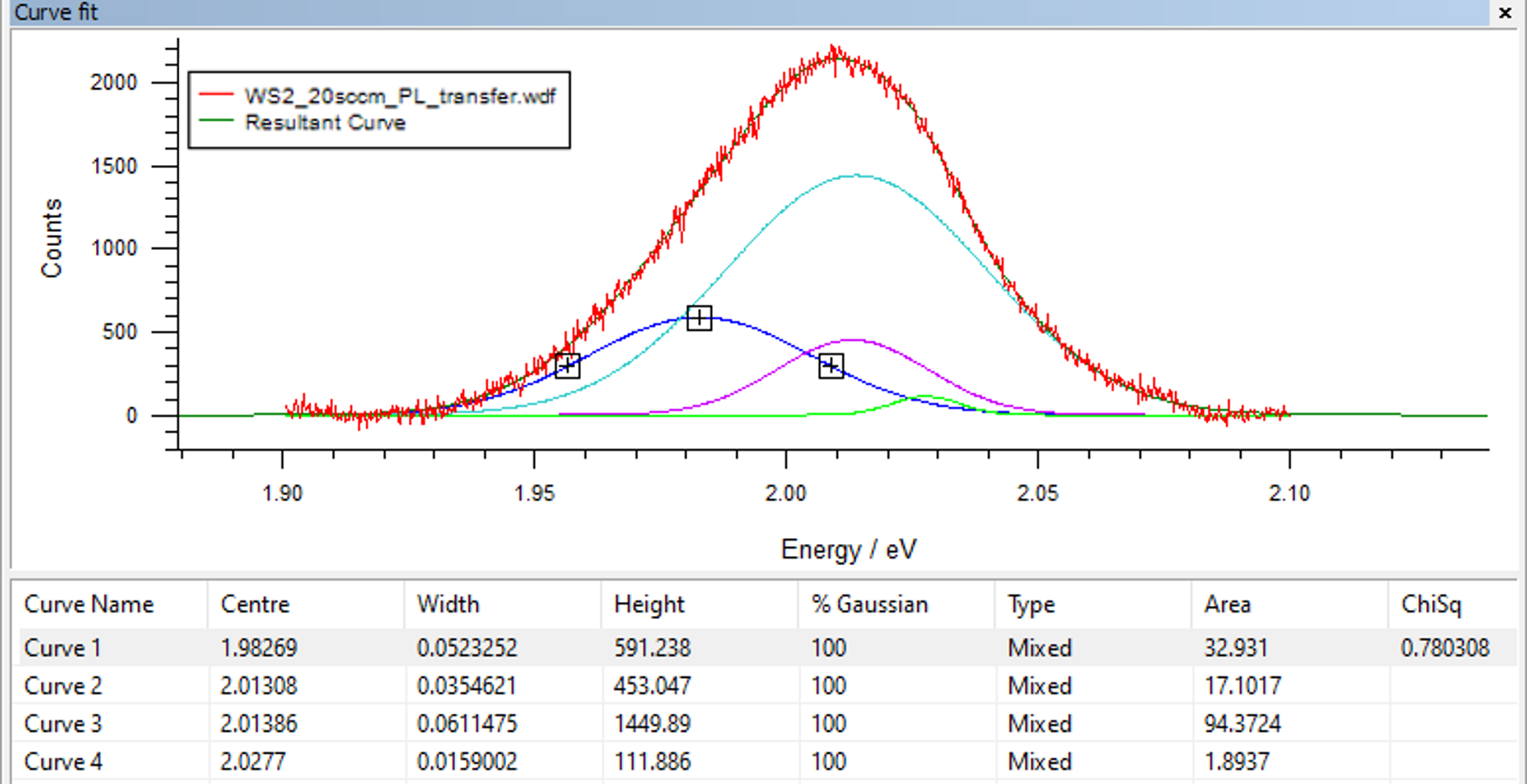

In Fig. 9c the PL spectra of the pre- and post-transferred WS2 have been superimposed (plotted as absolute PL intensities) to show that there is minimal change in peak position, but an increase in peak intensity on the Si/SiO2 substrate. The latter is attributed to substrate enhancement effects [79, 83, 84]. In Fig. 9d Gaussian fitting has been used to separate the PL spectra into exciton and trion components. The exciton peak positions for the pre- and post-transferred WS2 film remain the same at 2.015 eV, while its FWHM narrows very slightly from 51 meV pre-transfer to 50 meV post-transfer.

As sapphire is an insulator it cannot be used to realise a back-gate electrode when fabricating electronic devices due to the absence of a gate dielectric e.g. SiO2. Top gated devices using ionic liquids have been demonstrated by Ponomarev et al. [85], but these are not scalable to industrial production methods as the ionic liquid is applied by hand. However, we have shown that our CVD-grown WS2 is easy to transfer from the sapphire growth substrate to an Si/SiO2 target substrate using a polystyrene support layer. Moreover, both Raman and PL measurements on transferred films show no sign of degradation; indeed, a small reduction of the FWHM of the 325 cm−1 Raman peak shows a slight narrowing, possibly due to the relaxation of stress incorporated during growth.

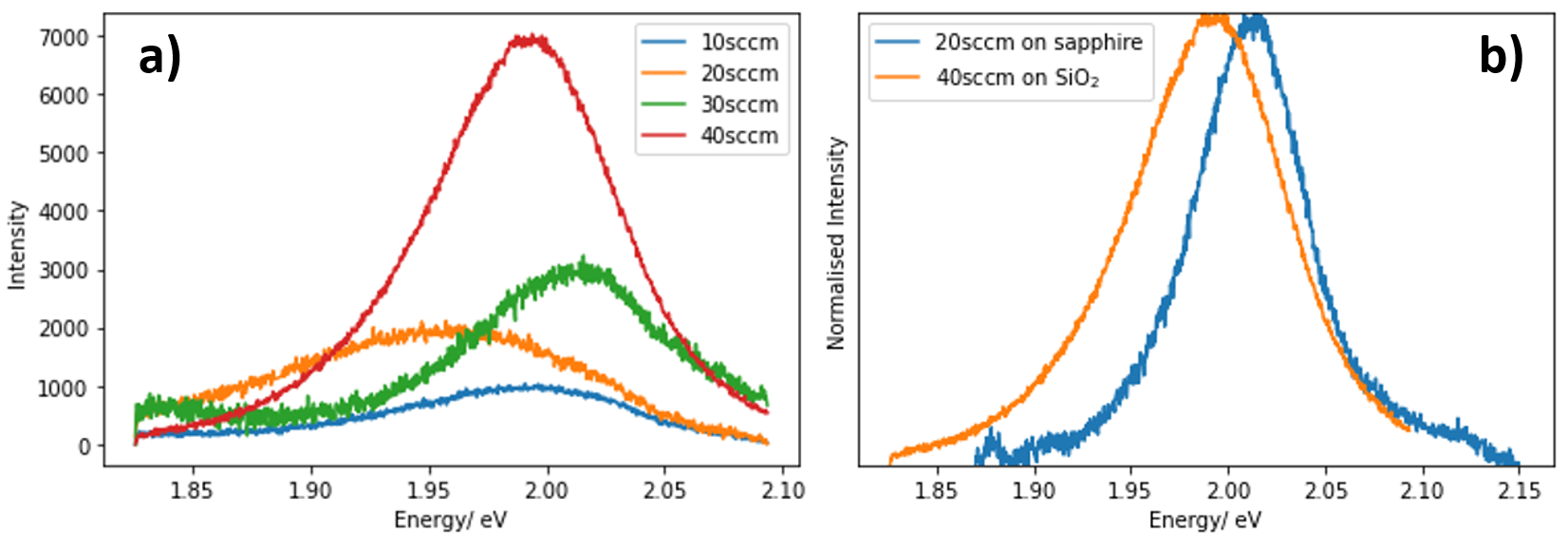

Finally, we believe that these advances in the rapid turnaround, large-area synthesis of monolayer WS2 can enable future developments in high-yield fabrication processes for devices such as narrow-channel transistors [86, 87] and more advanced van der Waals heterostructure multi-quantum-well (MQW) light-emitting diodes, such as those demonstrated by Withers et al. [88]. Our CVD WS2 recipe could also potentially be combined with established MoS2 and graphene recipes to grow van der Waals heterostructures in-situ which would mean that only one transfer step would be needed onto a suitable substrate. In addition, we have shown that our optimised CVD growth recipe for WS2 also works on Si/SiO2 substrates eliminating the need for transfer altogether. However, these WS2 films exhibit significantly worse optical quality (See supplementary materials, Fig. S2).

Conclusions

In conclusion, we have developed a protocol for growing uniform, large-area monolayer WS2 films using a commercial cold-wall gas-phase CVD reactor with a WCl6 precursor. Exploiting our precise control over gas flow rates, we have systematically investigated the influence that post-growth annealing in different H2S flow rates has on the quality of the WS2 layers. For an optimal H2S flow rate of 20sccm these studies reveal a dramatic improvement in the optical quality of our films as characterised by Raman and PL spectroscopy. Our optimally annealed material is comparable in quality with that produced by other CVD approaches reported in the literature, exhibiting intense PL exciton emission peaks centred on 2.01 ± 0.01 eV with full width at half maximum of 51 ± 2 meV. Finally, we have demonstrated that we can easily transfer our films from the sapphire growth substrate to target Si/SiO2 substrates using a polystyrene support layer. Post-transfer Raman and PL measurements reveal no degradation in the film optical quality and show evidence of the relaxation of stress that has been incorporated during growth. Our approach is promising for future industrial-scale production of monolayer WS2 for applications in photovoltaics, photodetectors and transistors.
