Abstract

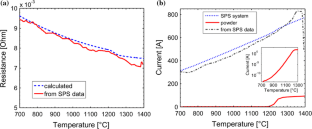

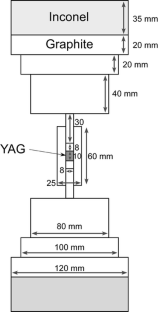

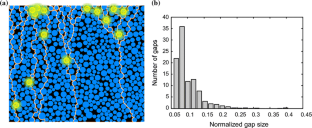

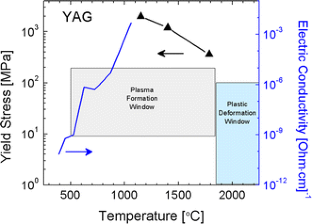

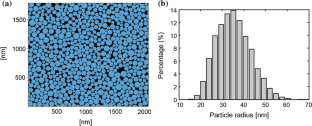

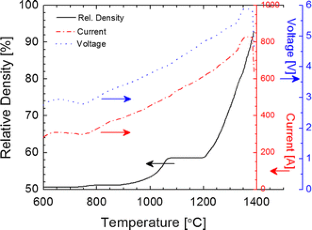

The conditions for spark discharge and plasma formation in non-conducting ceramic granular compacts subjected to spark plasma sintering (SPS) were analyzed. The SPS plungers-die-powder assembly was modeled, whereby a compact of spherical YAG nanoparticles was considered. Electric resistance of the simulated SPS assembly versus temperature was comparable to that of the experimental SPS system. The conditions for particle surface charging and discharge were determined with respect to the applied current, the SPS temperature, and duration. Sudden increase in the electric current through the simulated granular compact was observed around 1200 °C, confirming the percolative nature of the current. This finding is in agreement with the experimental densification start at 1250 °C. Moreover, the electric current percolation was simulated by passing a DC current through a modeled granular compact box, comprised of resistors and capacitors which resembled the particle’s surface resistivity and the inter-particle gaps, respectively. Spark discharge and plasma formation depend on connectivity within the granular compact and cease with the formation of a close-packed system.
Similar content being viewed by others
References
Guillon O, Gonzalez-Julian J, Dargatz B, Kessel T, Schierning G, Rathel J, Herrmann M (2014) Field-assisted sintering technology/spark plasma sintering: mechanisms, materials, and technology developments. Adv Eng Mater 16:830–849
McWilliams B, Yu J, Zavaliagos A (2015) Fully couples thermal-electric simulation of electric field assisted sintering of net-shape compacts. J Mater Sci 50:519–530. doi:10.1007/s10853-014-8463-1
Anselmi-Tamburini U, Gennari S, Garay JE, Munir ZA (2005) Fundamental investigations on the spark plasma sintering/synthesis process II. Modeling of current and temperature distributions. Mater Sci Eng A 394(1):139–148
Vanmeensel K, Laptev A, Vleugels J, Van der Biest O (2005) Modelling of the temperature distribution during field assisted sintering. Acta Mater 53:4379–4388
Gurt-Santanach J, Estournès C, Weibel A, Chevallier G, Bley V, Laurent Ch, Peigney A (2011) Influence of pulse current during spark plasma sintering evidenced on reactive alumina–hematite powders. J Eur Ceram Soc 31:2247–2254
Bates JL, Gamier JE (1981) Electrical conductivity of MgAl2O4 and Y2Al5O12. J Am Ceram Soc 64:C138–C141
Chaim R (2013) Electric field effects during spark plasma sintering of ceramic nanoparticles. J Mater Sci 48:502–510. doi:10.1007/s10853-012-6764-9
Marder R, Estournès C, Chevallier G, Chaim R (2014) Plasma in spark plasma sintering of ceramic particle compacts. Scripta Mater 82:57–60
Marder R, Estournès C, Chevallier G, Chaim R (2015) Spark and plasma in spark plasma sintering of rigid ceramic nanoparticles: a model system of YAG. J Eur Ceram Soc 35:211–218
Zhang ZH, Wang FC, Wang L, Li SK, Shen MW, Osamu S (2008) Microstructural characteristics of large-scale ultrafine-grained copper. Mater Charac 59:329–333
Saunders T, Grasso S, Reece MJ (2015) Plasma formation during electric discharge (50 v) through conductive powder compacts. J Eur Ceram Soc 35:871–877
Zhang Z, Liu Z, Lu J, Shen X, Wang F, Wang Y (2014) The sintering mechanism in spark plasma sintering—proof of the occurrence of spark discharge. Script Mater 81:56–59
Saunders T, Grasso S, Reece MJ (2015) Plasma formation during electric discharge (50 V) through conductive powder compacts. J Eur Ceram Soc 35:871–877
Takuma T (1991) Field behavior at a triple junction in composite dielectric arrangements. IEEE Trans Dielectr Electr Insul 26:500–509
Takuma T, Kawamoto T, Fujinami H (1982) Effect of conduction on field behavior near singular points in composite medium arrangements. IEEE Trans Dielectr Electr Insul El-17 3:269–275
Tokita M (1993) Trends in advanced SPS spark plasma sintering systems and technology. J Powder Technol Japan 30:790–804
Meyer S, Song C, Jin Y, Wang K, Makse H (2010) Jamming in two-dimensional packings. Phys A 389:5137–5144
Soille P (1994) Generalized geodesy via geodesic time. Pattern Recogn Lett 15:1235–1240
Pavia A, Durand L, Ajustron F, Bley V, Chevallier G, Peigney A, Estournès C (2013) Electro-thermal measurements and finite element method simulations of a spark plasma sintering device. J Mater Process Tech 213:1327–1336
Molénat G, Durand L, Galy J, Couret A (2010) Temperature control in spark plasma sintering: an FEM approach. J Metal 2010:1–9
Ye Y, Li X, Hu K, Lai Y, Li Y (2013) The influence of premolding load on the electrical behavior in the initial stage of electric current activated sintering of carbonyl iron powders. J Appl Phys 113:214902
Timsit RS (1999) Electrical contact resistance: properties of stationary interfaces. IEEE Trans Compon Packag Technol 22:85–98
German RM (2014) Coordination number changes during powder densification. Powder Technol 253:368–376
Anselmi-Tamburini U, Gennari S, Garay JE, Munir ZA (2005) Fundamental investigations on the spark plasma sintering/synthesis process. Mater Sci Eng A 394:139–148
Chaim R (2007) Densification mechanisms in spark plasma sintering of nanocrystalline ceramics. Mater Sci Eng, A 443:25–32
Lekner J (2011) Capacitance coefficients of two spheres. J Electrostat 69:11–14
Acknowledgements
R. Marder acknowledges the support of the fellowship from the Women in Science program of the Israel Ministry of Science and Technology.
Author information
Authors and Affiliations
Corresponding author
Rights and permissions
About this article
Cite this article
Marder, R., Estournès, C., Chevallier, G. et al. Numerical model for sparking and plasma formation during spark plasma sintering of ceramic compacts. J Mater Sci 50, 4636–4645 (2015). https://doi.org/10.1007/s10853-015-9015-z
Received:
Accepted:
Published:
Issue Date:
DOI: https://doi.org/10.1007/s10853-015-9015-z
