1 Introduction

Atrial fibrillation (AF) ablation is an increasingly widely used treatment for patients with symptomatic AF refractory to antiarrhythmic drug therapy [1, 2]. Studies reporting on AF ablation techniques [35], outcomes [611], complications [12], and a variety of new technologies for performing AF ablations are continuously published. These procedures can be lengthy, involve numerous physician and non-physician personnel, and are performed in expensive electrophysiology laboratories, employing a wide variety of specialized technologies. Little information is currently available on the cost of the equipment utilized to perform AF ablations. These procedures require mapping equipment, mapping catheters, robotic [13, 14] and/or manual catheter manipulation, and a variety of ablation catheters utilizing radiofrequency (RF), laser, and ultrasound energy sources for tissue heating and cryoablation for tissue cooling. Our study examines the cost of special equipment and catheters used to perform AF ablations with particular emphasis on the array of equipment choices available to physicians and their impact on AF ablation costs. Although we examine the costs of several specific ablation equipment scenarios, the details of each scenario is not as important as the concept that physicians have a wide range of choices for performing AF ablation with a wide range of costs.

2 Methods

We obtained list prices in US$ from manufacturers of equipment commonly utilized to perform AF ablations in the US. We assumed a standard electrophysiology laboratory was in place including fluoroscopy, external defibrillators, intravenous infusion pumps, oxygen saturation monitors, equipment to measure activated clotting times, echocardiography machines with transesophageal echocardiography probes, and equipment for multichannel recording and stimulation. We did not include the facility and overhead costs, the cost of post-ablation monitoring, personnel costs, or physician reimbursment, as these would be expected to be relatively independent of the equipment utilized to perform the AF ablation. Cost analysis was performed by Dr. Winkle.

2.1 Capital equipment

We examined the costs of a three-dimensional (3D) electroanatomical mapping system: Biosense Webster’s (Diamond Barr, CA, USA) Carto™ 3 and St. Jude Medical’s (St. Paul, MN, USA) EnSite Velocity™ system. We estimated the cost of special capital equipment required for intracardiac echocardiography (ICE) to facilitate transseptal puncture and the cost of RF generators and irrigation pumps for RF ablation catheters and RF transseptal needles. Maintenance contract costs were included assuming a 5-year life for non-navigation capital equipment.

2.2 Disposable catheters and cables

We examined the list price for open and closed irrigated-tip RF ablation catheters including those with unidirectional or bidirectional steering mechanisms, those with technology required for the Biosense Webster Carto™ 3 mapping system and for the Stereotaxis (St. Louis, MO, USA) NIROBE® Remote Magnetic Navigation System (MNS). We obtained list prices for coronary sinus (CS) duodecapolar catheters, circular mapping catheters for confirming pulmonary vein (PV) isolation with both fixed- and variable-diameter circles, and for standard transseptal needles and the Baylis (Montreal, QC, Canada) NRG™ RF needle. We included the cost of cables for the ablating catheters and disposable patches for the 3D mapping systems.

2.3 Costs comparison of open irrigated-tip RF ablation catheters

We compared cost differences for the lowest- and highest-cost open irrigated-tip RF ablation catheters and the associated cables and patches for the two dominant brands, Biosense Webster and St. Jude Medical.

2.4 Magnetic navigation equipment

The cost of an installed Stereotaxis NIROBE® Remote MNS including maintenance contracts was determined assuming a 6-year magnet life. This cost did not include structural room changes required for installation. We included the cost of disposable driving mechanisms for the MNS.

2.5 Cryoablation

The cost of the Medtronic (Minneapolis, MN, USA) CryoConsole unit including maintenance contracts was determined using a 5-year lifespan. We included the cost of the disposable Arctic Front® cryoablation balloon catheters, cables, FlexCath® sheaths, the Achieve™ circular mapping catheter, and the Freezor® MAX linear cryoablation catheter for touch-up ablation.

2.6 Ablation scenarios

We evaluated several common clinical scenarios for physician equipment choices for AF ablation:

  1. 1.

    Open irrigated-tip RF ablation;

  2. 2.

    Magnetic robotic navigation RF ablation;

  3. 3.

    Balloon cryoablation without touch-up;

  4. 4.

    Balloon cryoablation with linear cryoablation or open irrigated-tip RF touch-up.

For each scenario, the lowest and highest costs of equipment choices were estimated. For all scenarios, we assumed the use of ICE for transseptal puncture, a duodecapolar CS catheter, a circular mapping catheter to verify PV isolation, and a 3D mapping system (except cryoballoon ablation without touch-up). For scenario 1, open irrigated-tip RF ablation, we did not include the small capital cost of the mapping system as these are available in most EP labs and are used frequently for other non-AF ablations. We assumed no resterilization of mapping or ablation catheters, ten reuses of passive recording cables for mapping catheters, and no reuse of active RF carrying cables. Cable reprocessing costs were not included nor were costs of RF generators or irrigation pumps as these were relatively equal across ablation systems and represented a small incremental cost/case.

3 Results

3.1 Medicare reimbursement for AF ablation

Uncomplicated AF ablations are billed under DRG 251 with an average reimbursement of $10,338 [15].

3.2 Costs of capital equipment, reusables, and disposables

Table 1 shows the cost of special capital equipment for AF ablation. The 5-year cost for the mapping systems/maintenance contracts is $375,000 for the Biosense Webster Carto™ 3 and $495,000 for the St. Jude EnSite Velocity™. Phased array ICE catheters use standard ultrasound machines; however, the rotational ultrasound catheter (Ultra ICE™, Boston Scientific, Natick, MA, USA) requires a special machine (iLab®) with a 5-year cost of $131,400. The 5-year cost ranged from $33,000–$67,000 for RF generators and $12,000–$19,000 for irrigation pumps.

Table 1 Cost of capital equipment including initial cost and 5-year maintenance contract costs in US$

The cost of ablation and mapping catheters and their respective cables and patches are listed in Table 2 along with the costs of ICE catheters and transseptal needles and sheaths. The cost of unidirectional open irrigated-tip catheters ranged from $1,500–$2,800. Bidirectional catheters were more expensive ranging from $1,700–$3,000. Catheters compatible with the St. Jude Ensite Velocity™ system ranged from $1,500–$1,900, and the special navigation catheters required by Carto™ 3 cost $2,800–$3,000. Ablation cables ranged from $170–$400. The navigation patches from Biosense Webster were $420, and those from St. Jude were $1,045. The Medtronic Arctic Front® cryoballoon cost $6,500. Its cable and umbilical cable cost $215 and $145. The Freezor® MAX focal cryoablation catheter cost $3,095. The MNS requires special navigation catheters and a disposable catheter advancement system costing $1,200. Unidirectional CS catheters cost from $1,150–$1,200 and the Boston Scientific (Blazer® DX-20) bidirectional duodecapolar catheter was slightly more expensive at $1,400.

Table 2 Cost of catheters including required cables, patches, and robotic drive units in US$

Circular mapping catheters had more variation in cost. Fixed-diameter circular decapolar catheters ranged from $1,200–$1,540. Fixed-diameter circular duodecapolar catheters ranged from $1,400–$1,700 with all cables costing $250. Variable diameter circular decapolar and duodecapolar catheters ranged from $1,700–$1,800, and the cables cost $110–$250. The MNS requires a circular catheter advancement system costing $250. The cryoballoon utilizes a “through-the-balloon” circular mapping catheter (Achieve™) costing $1,500 which can only be used with the cryoballoon and requires a $250 cable.

The lowest cost ICE is the Boston Scientific Ultra ICE™ rotational catheter costing $1,050. The most expensive are the phased-array catheters costing $2,640–$2,800. Although the rotational ICE catheter costs $1,590 less than the phased array, it requires a separate ultrasound processor (iLab®) at a 5-year cost of $131,400; therefore, it takes 82.6 cases to begin saving on each rotational ICE catheter.

Transseptal needle costs range from $175 for standard needles to $495 for the Baylis NRG™ RF needle which requires a $150 cable. Non-steerable transseptal sheaths from range from $175–$225. The steerable St. Jude Agilis™ sheath costs $999. Cryoablation catheters require special FlexCath® steerable sheaths costing $1,200–$1,800.

The total cost for short sheaths, IV tubing, air filters, needles, syringes, defibrillation pads, and IV infusion materials is $434.90 and were not included in the following ablation scenarios as they are roughly the same for all.

3.3 Cost comparison of open irrigated-tip RF ablation catheters

Figure 1 shows the highest- and lowest-cost RF ablation catheters from St. Jude and Biosense Webster. The lowest-cost St. Jude RF ablation catheter including cables and navigation patches is the Cool Path™ unidirectional catheter costing $2,840. The lowest-cost Biosense Webster navigation RF ablation catheter with cables and navigation patches is the ThermoCool® unidirectional catheter which costs $870 more at $3,710. Because the St. Jude EnSite Velocity™ mapping system costs $84,500 more to purchase than the Carto™ 3, it requires 97.1 cases to begin saving with the Cool Path™ compared with the ThermoCool®. The most expensive St. Jude ablation catheter is the Saffire BLU™ bidirectional catheter, which costs $3,215 with cables and navigation patches and is $695 less than Biosense Webster’s ThermoCool® bidirectional catheter with associated cables and navigation patches. Due to the higher cost of the St. Jude EnSite Velocity™ mapping system, it requires 121.6 cases to begin saving the $695 with the Saffire BLU™ ablation catheter.

Fig. 1
figure 1

Highest and lowest estimated cost of RF open irrigated-tip ablation catheters from St. Jude and Biosense Webster

3.4 Estimated equipment costs for RF ablation

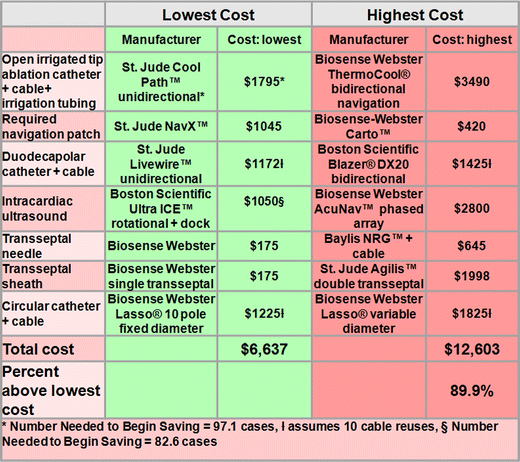

Figure 2 shows the lowest and highest hypothetical cost scenarios for open irrigated-tip RF ablation. The lowest-cost scenario is $6,637,and the highest is $12,603 which is 89.9 % more expensive than the lowest-cost RF equipment.

Fig. 2
figure 2

Lowest and highest estimated cost of equipment for performing open irrigated-tip RF ablation

3.5 Cost of magnetic navigation equipment

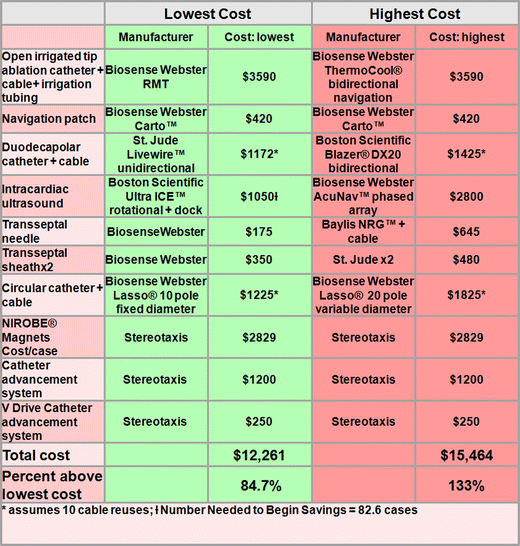

The manufacturer’s list price for the Stereotaxis NIROBE® Robotic MNS is $2,875,000 with an annual maintenance contract of $104,000 per year for a total 6-year cost of $3,395,000. Assuming 200 cases/year, the robotic MNS costs $2,829 per case. It requires a disposable $1,200/case ablation catheter advancement system and $250/case circular mapping catheter drive. Figure 3 shows the lowest and highest cost projections for an RF ablation using MNS. The system requires special catheters which cost $3,590 including cables and irrigation tubing and can only utilize the Carto™ 3 mapping system. The lowest- and highest-cost scenarios for a MNS ablation are $12,261and $15,464. These costs for MNS ablation are 84.7 and 133 % higher than the lowest-cost RF equipment.

Fig. 3
figure 3

Lowest and highest estimated equipment costs for performing RF AF ablation using Stereotaxis NIROBE® Remote Magnetic Navigation System

3.6 Cost of cryoballoon ablation without touch-up

Figure 4(a) shows the cost of the Medtronic Arctic Front® cryoablation balloon system assuming PVs are completely isolated by the balloon requiring no additional touch-up or mapping system. We assumed a 5-year lifespan for the CryoConsole and 200 cases/year. The lowest-cost scenario includes the use of a single cryoballoon, a steerable FlexCath® sheath with the Achieve™ circular catheter, a St. Jude Livewire™ unidirectional duodecapolar CS catheter, a rotational ultrasound, and a standard transseptal needle for a total cost of $12,847. The highest-cost cryoballoon scenario without touch-up includes the addition of the AcuNav™ phased array ICE and the Baylis NRG™ RF needle for transseptal puncture for a total cost of $15,320. These lowest and highest projected costs range from 93.6 % to 131 % above the lowest cost for RF ablation.

Fig. 4
figure 4

(a) Lowest and highest estimated equipment costs for performing AF balloon cryoablation without touch-up or 3D mapping system. (b) Lowest and highest estimated equipment costs for performing AF balloon cryoablation with RF touch-up requiring 3D mapping system

3.7 Cryoballoon ablation with focal cryoablation touch-up and/or RF touch-up

The costs of a cryoballoon ablation with focal cryoablation touch-up for the lowest- or highest-cost scenarios is similar to that for the balloon only ablation but requires the addition of a Freezor® MAX focal cryoablation catheter for $3,095. The lowest cost estimate requires repeated removal of the cryoballoon and insertion of the focal ablation catheter through the same sheath. The highest-cost estimate assumes the addition of a variable-diameter circular mapping catheter used independently of the cryoballoon through a steerable sheath. The total lowest and highest costs of $15,942 and $22,284 were 140 % and 236 % higher than the lowest-cost RF ablation.

Figure 4(b) shows the costs of the lowest and highest cryoballoon ablation assuming RF is needed for additional focal-segmental isolation of PVs or to make any additional lines/lesions. These costs are the same as for isolated cryoballoon ablation but require the added cost of open irrigated-tip RF catheters and cables. The lowest-cost scenario assumes that one repeatedly exchanges the cryoballoon and Achieve™ mapping catheter with the RF ablation catheter through the cryoballoon sheath. The highest-cost scenario includes the use of a mapping system, 20-pole variable-diameter circular catheter, and additional steerable sheath placed in the left atrium. The lowest and highest estimated costs of cryoballoon ablation with RF touch up range from $15,667–$22,054, amounting to 136 % to 232 % above the lowest cost for RF ablation.

4 Discussion

These simulated cost scenarios demonstrate that, depending upon the ablation equipment combination used, the cost of the special equipment to perform an AF ablation ranges from $6,637–$22,054. The difference in cost of the special equipment required for AF ablation is largely driven by physician choice. The average age of our patients at Sequoia Hospital undergoing AF ablation is now 64.3 ± 10 years [11], indicating that approximately half of our patients will have Medicare as their primary insurance. For Medicare patients, whose average reimbursment is $10,338 [15], the financial long-term sustainability of an AF ablation program would be challenging using anything but a variation of our lowest-priced RF ablation scenarios. Since we have only described a small part of the actual AF ablation costs, the addition of personnel costs, cath lab costs, floor monitoring, post-ablation care, and facility overhead would make it difficult to break-even at our lowest-priced equipment costs. This suggests that current Medicare reimbursement for AF ablation may be far below the cost of performing this procedure and may need upward adjustment in the future. DRG 251 is for “percutaneous cardiovascular procedure without coronary artery stent,” an old angioplasty code, and does not reflect the complexity and costs associated with AF ablation. There is little scientific evidence suggesting that the equipment utilized in our more expensive ablation scenarios is safer or more efficacious than less expensive scenarios. Although phased-array ICE, bidirectional RF ablation catheters, steerable transseptal sheaths, MNS, and cryoballoons are often perceived as important for performing successful RF AF ablation, these choices are largely the physician’s personal preferences. Physicians performing AF ablations may have different skill sets and need to be given some latitude regarding which tools work best in their hands. For example, at Sequoia Hospital, we generally follow an equipment scenario close to the one for the lowest-cost RF ablation costs. However, we routinely use the Baylis NRG™ RF transseptal needle which adds $470 to the costs, since we have shown this needle to be both safer in terms of fewer tamponades and more efficacious with regard to more successful and faster septal crossing than using the standard transseptal needle [16]. We generally prefer a bidirectional RF ablation catheter and a variable rather than fixed-diameter circular catheter to verify PV isolation. Our total list price equipment cost is $7,968, which is 20 % above the lowest-cost scenario for RF ablation. In Europe, many physicians do not use ICE for transseptal puncture due to cost considerations. There is little evidence that robotic MNS perform better or more safely than manual catheter manipulation. In one study which randomized patients to manual catheter manipulation or to MNS ablation, patient radiation exposure and procedural times were higher with MNS, and there was no difference in 1-year outcomes [12]. Although cryoballoon technology is considerably more expensive than RF technology, there is little evidence to suggest increased efficacy or safety for cryoablation. A recent literature review indicated the single-procedure cryoablation AF-free rates at 1 year ranged from 69.9 to 76.7 % for paroxysmal AF and 41.9 to 48.4 % for persistent AF [17]. These numbers are similar to outcomes from a number of centers using RF energy [611].

Given the large variation in cost of equipment for performing AF ablations, more expensive technologies will need to prove superiority to existing less expensive technologies with regard to long-term efficacy and/or patient safety. In order to make the most cost-effective equipment choices, physicians need considerably more studies randomizing patients to various ablation equipment types to better determine comparative safety and efficacy. In the coming era of severe healthcare cost constraints, being “noninferior” will not be sufficient if costs are significantly higher. Evaluation and adoption of new technologies should consider cost-effectiveness in addition to efficacy and safety. As physicians partner with hospitals, either through employment or single payment reimbursement schemes, the cost of equipment utilized will become increasingly as important to the physicians as it may be to their hospitals.

4.1 Limitations

We assumed a large amount of equipment was already in place and did not include any personnel or hospital costs for continued patient care following the ablation procedure. These costs would considerably increase the total cost of an ablation procedure beyond those we have considered. For our analysis, we used list prices, and it could, at times, be surprisingly difficult to obtain these numbers. The manufacturers who provided our list price data indicated that they routinely give approximately a 20 % contractual discount to high-volume users. We could not include these discounts in our analysis as they can vary widely from center to center, and all of the hospital-manufacturer pricing contracts are confidential. We also assumed 200 cases per year for our magnetic robotic navigation system. If this caseload is not achieved, the costs of this technology would be considerably higher than our scenarios suggest. We did not do a formal cost/benefit analysis as there are little data in the literature from which to derive comparative benefit data, and any analysis would require so many assumptions that the conclusions would be of limited value. We also did not consider reuse of diagnostic catheters and the phased-array ultrasound catheter. Catheter reuse can also lower the equipment costs and should be considered by physicians when feasible to reduce equipment costs. It was hard to factor reuse into our analysis, as informal polls of AF ablation centers found a great variation in catheters reused and the number of times reused. Since it is not feasible to reuse irrigated-tip ablation catheters or cryoballoons, reuse of any item other than the phased-array ultrasound catheter should have only a small impact on our overall equipment cost analysis. Finally, we realize many physicians might use slightly different catheters combinations (i.e., decapolar or quadripolar CS) than we chose for our scenarios and that these choices might alter the equipment cost analysis.

5 Conclusions

Physicians have many choices of AF ablation equipment. These equipment costs for the scenarios we evaluated ranged from $6,637 to $22,284 per case. The specifics of each catheter combination we chose are not as important as the concept that ablationists should begin to critically look at their own equipment costs and try to determine if they believe the benefits to using them outweigh the additional costs. More expensive technology should markedly increase procedural efficacy and/or patient safety to justify the increase in procedural equipment costs.
