Abstract
Dielectric response of Ba0.95Pb0.05TiO3 ceramics doped with 0.1 and 1 wt.% of Co2O3, synthesized by conventional high-temperature method, was studied in wide temperature and frequency range. The temperature dependences of the real and the imaginary parts of dielectric permittivity of the ceramics were compared with those of BaTiO3 and Ba0.95Pb0.05TiO3. The addition of Co3+ ions results in a broadening of dielectric anomalies related to the transition to paraelectric cubic phase, and the structural transition between the tetragonal and the orthorhombic phases. At low temperatures (125–200 K) the dielectric absorption of Co-doped Ba0.95Pb0.05TiO3 ceramics was found to exhibit relaxor-like properties. The dielectric response has been found to contain the contributions characteristic of fluctuations of the polar nanoregion boundaries and reorientations of the dipole moments between allowed directions in the nanoregions in the rhombohedral and the orthorhombic phases. The behavior speaks in favor of ordering of polar defects in the host lattice of Ba0.95Pb0.05TiO3 in a form polar nanoregions.
Similar content being viewed by others
Avoid common mistakes on your manuscript.
1 Introduction
BaTiO3 (BT) is a classic ferroelectric which has found wide application in the electronic industry. BT ceramics is commonly used in ceramic capacitors, piezoelectric sensors or actuators as well as resistive switching elements [1–3]. The compound can exist in four phases with cubic (above 398 K), tetragonal (between 398 and 281 K), orthorhombic (between 281 and 202 K), and rhombohedral (below 202 K) crystal structure [4, 5]. All of the phases, except the cubic one, exhibit ferroelectric properties.
The structure and the dielectric properties of BT have been extensively studied for more than half a century in order to increase the dielectric permittivity and to suppress the losses [6, 7]. Nowadays the research concentrated on temperature–stable dielectrics are intensely developed [8]. Pure BT is characterized by large variations in dielectric permittivity and dielectric losses related to the structural phase transitions. In order to avoid these disadvantages, doping of pure ceramics is used. BT is known to form solid solutions with PbTiO3 (PT) and an upward shift of the temperature of the tetragonal-cubic phase transition is observed with an increase of Pb content in (1 − x)BaTiO3 − xPbTiO3 solid solutions [9–13]. XAFS studies by Lebedev at al. [13] indicated a displacement of Pb atoms from the A lattice site in the ABO3 perovskite structure by ~0.15 Å and a strong distortion of the oxygen environment as the main factors responsible for the appearance of ferroelectricity in the temperature range above ~400 K, that is the Curie point of pure BaTiO3 [14–17]. According to the literature data [4] the temperatures of the transitions from tetragonal to orthorombic and from orthorhombic to rhombohedral phases are lowered due to an addition of the Pb ions resulting in a broadening of the dielectric anomaly in the vicinity of room temperature.
Dielectric properties of the ceramics belonging to the BaTiO3 family can be influenced by doping with the transition–metal ions. It has been found that ions with the valences smaller than 4 substituting the Ti sites exhibit acceptor character with charge deficiency compensated by doubly ionized oxygen vacancies [1, 18]. Among the 3d elements Co is known to influence the elastic and the dielectric properties of the BaTiO3—based ceramics [2, 19, 20]. The addition of Co dopant up to 1 at.% results in an attenuation of mechanical losses and a smoothing of the elastic modulus anomaly [2]. The decrease of mechanical losses in the orthorhombic phase is associated with the fixing of the domain wall positions by Co3+ acceptor ions. Dielectric measurement by H. J. Hagemann and H. Ihrig [1] showed the lowering of the Curie point with the content of Co dopants up to 2 mol %.
The aim of this paper is to characterize the effect of Co—doping on the dielectric response of Ba0.95Pb0.05TiO3 solid solution with very low tetragonality (1-c/a) and to compare the response with those of the undoped ceramics and the BaTiO3 ceramics. We explore the impact of doping a material to modify the electrical properties, i.e. the relationship between the chemical and electrical properties. This relationship can be either in a good agreement with beneficial mechanical properties as pointed out in [2] or it can be coupled with lower piezoelectric activity [21]. The study of adjusting a given property can be easy adopted to the control of the another one. BT—based ceramics with 5 % PT and 0.1 % as well as 1 % Co2O3 doping can be very interesting from the application point of view because of the ability of a flattening the dielectric permittivity–temperature characteristic by the Co ions and a shift of the phase transition temperatures by the Pb dopants. Co3+ acceptor ions are incorporated into the Ti4+-lattice site because of their similar ionic radii and oxygen vacancies are generated in order to compensate the valence. The resultant acceptor–oxygen vacancy dipoles in highly polarizable lattice can form either polar nanoregions (PNRs) like in ferroelectric relaxors [22–24] or can result in an internal bias which is formally equivalent to the energy difference of the dipolar defects between the accessible directions of the spontaneous polarization and affects the dielectric response [25–27]. Due to high polarizability of the ABO3 lattice the dipolar defects polarize the neighboring part of the lattice forming the polar nanoregions the size of which is determined by temperature –dependent correlation length of the host. For low defect concentration each polar nanoregion can be treated as a noninteracting polar object characterized by a single relaxation time. At higher defect concentrations the PNRs can interact leading to more complex relaxational behavior apparent in so called ferroelectric relaxors as La substituted PbZr1-xTixO3 family or PbMg1/3Nb2/3O3 and PbSc1/2Nb1/2O3 families. The relaxor-like behavior is characterized by broad and highly dispersive dielectric anomaly [22–24].
Here we present the results of detailed studies of the dielectric response of Co2O3 doped Ba0.95Pb0.05 ceramics to search for an influence of introduced defects on the equilibrium between the short—and the long range interactions in the host lattice. The material was characterized by X-ray diffraction (XRD) and differential scanning calorimetry (DSC).
2 Experimental
2.1 Preparation of the samples
BT—based ceramics with 5 at.% of Pb and 0.1 wt.% as well as 1 wt.% of Co2O3 were prepared by standard high temperature dry sintering method. Chemicals from Aldrich: Co2O3 (purity 99.5 %), BaCO3 (99.5 %), PbO (99.0 %) and TiO2 (99.5 %) were used. The BaCO3 and TiO2 powder were weighed in accordance to chemical formula stoichiometry to obtain BaTiO3 ceramics. The BPT and BPTC ceramics were also prepared in accordance to the presumed nominal compositions. The components were mixed in ethanol and homogenized in an agate ball-mill for 24 h. After drying at 400 K, they were calcined for 2 h at the temperature of 1,493 K. Then the calcined powders were grinded, pressed under the pressure of 15 MPa at room temperature in form of pellets in diameter of 8 mm, and sintered for 2 h at 1,593 K, at ambient air. The samples were cooled in the oven from sintering temperature to room temperature for 6 h. EDX (Bruker - Quantax) studies of fractured BPTC samples show that the Pb amount lies in the range from (5.38 ± 0.22) to (7.79 ± 0.28) wt.%. The samples in form of discs, thickness d = 1 mm and diameter ϕ = 8 mm, were cut off for dielectric measurements. The discs were covered with gold sputtered electrodes.
2.2 XRD studies
X-ray powder diffraction studies of the Ba0.95Pb0.05TiO3 and Ba0.95Pb0.05TiO3 + 0.1%Co2O3 ceramics were performed on the laboratory Huber imaging plate Guinier camera G670 with CuK α1 radiation. The crystal structure of Ba0.95Pb0.05TiO3 + 0.1%Co2O3 and Ba0.95Pb0.05TiO3 was determined from high-resolution powder diffraction with synchrotron radiation in the temperature range 298–1,173 K. Corresponding in situ high-temperature diffraction experiments were performed with powder diffractometer at the B2 beamline of synchrotron laboratory HASYLAB/DESY [28]. The program package WinCSD [29] was used in all crystallographic calculations.
2.3 DSC measurements
DSC measurements were carried out using a DSC 822e Mettler Toledo apparatus, equipped with liquid nitrogen cooling option (Cryofab). The sample of studied material was hermetically sealed in an aluminum crucible and measured in temperature range from 123 K to 723 K at a heating rate of 10 K/min. The empty pan was used as a reference sample. The experiments were repeated twice to confirm the results.
2.4 Dielectric measurements
Dielectric response of the ceramic samples was studied using an Alpha-A High Performance Frequency Analyzer (Novocontrol GmbH) combined with Quatro Cryosystem for the temperature control. The sample with gold sputtered electrodes was fixed between two additional external electrodes in a sample holder and placed into a cryostat. The measurements were performed in the temperature range from 125 K to 525 K on heating at a rate of 1 K/min. The frequency varied from 1 Hz to 1 MHz at the oscillation voltage of 1 V. The measured dielectric permittivity data were collected and evaluated by WinDETA impedance analysis software and a WinFit V 3.2. program.
3 Results and discussion

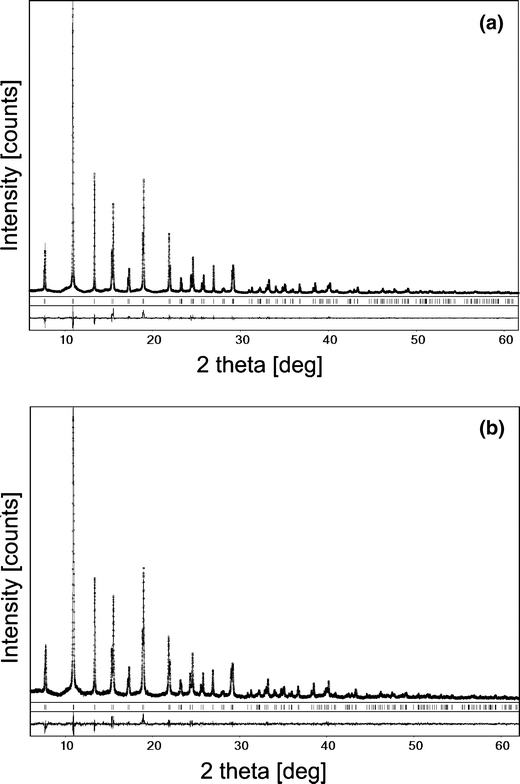

X-ray powder diffraction studies of the BPT and BPTC specimens at RT revealed tetragonal perovskite structure, similar to that of pure BT. Figure 1 shows the X-ray synchrotron powder diffraction patterns and the results of full profile Rietveld refinement obtained for both specimens. The final values of structural parameters are presented in Table 1. Besides the lattice parameters, the atomic coordinates and anisotropic displacement parameters of atoms were refined.
Examination of diffraction patterns of BPTC and BPT collected at the elevated temperatures shows that tetragonal deformation decreases with increasing temperature and completely vanishes at the temperatures higher than 453 K and 473 K for BPTC and BPT, respectively (Fig. 2). The patterns collected above this temperature show pure cubic perovskite structure. Accordingly, crystal structure parameters of the tetragonal and cubic phases of both samples have been refined in space groups P4mm and \( Pm\overline{3}m \), respectively. Detailed examination of the diffraction patterns of BPTC collected in the vicinities of the transition temperature revealed a coexistence of both tetragonal and cubic phases in the temperature range 383 K–423 K (inset in Fig. 2), which proves the 1st-order discontinuous character of the phase transition in BPTC. Similar behaviour was also observed for the BPT crystal.
Simultaneous two-phase Rietveld refinement performed in space groups P4mm and \( Pm\overline{3}m \) confirms a coexistence of tetragonal and cubic perovskite phases in the vicinities of the transition temperatures. According to the data obtained, the amount of the tetragonal phase in BPTC decreases from 90.0 wt.% at 383 K to 20.5 wt.% at 423 K, whereas the content of the cubic phase simultaneously increases.
Figure 3 demonstrates the change in relative amounts of both perovskite phases in BPTC and BPT at the phase transitions. From these plots the temperatures of the phase transitions (the temperatures at which the amounts of tetragonal and cubic phases are equal) can be estimated as 410 K and 442 K, respectively.

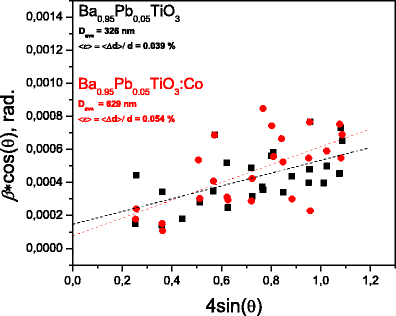

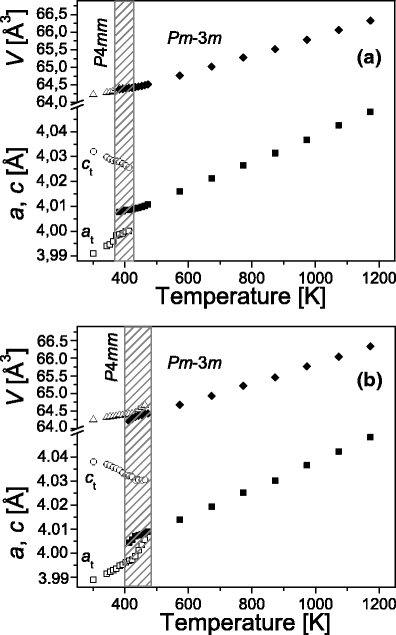

Temperature dependence of the lattice parameters and cell volumes of tetragonal and cubic modifications of BPTC and BPT illustrating the first-order structural phase transition are presented in Fig. 4. The microstructural parameters of BPT and BPTC samples (average grain size Dave and microstrains parameters <ε> = <Δd>/d) were obtained from the analysis of the broadening of X-ray powder diffraction maxima by Williamson-Hall analysis, which allows to separate the effect of size and strain broadening due to their different dependence on the scattering angle. For the BPT and BPTC (0.1 %) samples the X-ray synchrotron powder diffraction data were collected at beamline B2 synchrotron laboratory HASYLAB/DESY and the LaB6 external standard was used for determination of instrumental broadening of the diffraction maxima. Graphical results of Williamson-Hall analysis of the microstructure of BPT and BPTC samples are presented in Fig. 5. The analysis of angular dependence of the line with (HWFM) shows that the samples are characterized by similar microstructure parameters. The average grain size was assessed to be of several hundred nm, and the average microstrains parameters <ε> are between 0.04 and 0.05 %.
Figure 6 shows an example of the scanning electron microscope (SEM) image of a fracture of BPTC (0.1 %) sample. One can observe individual grains of average sizes of several hundred nm and their agglomerates.

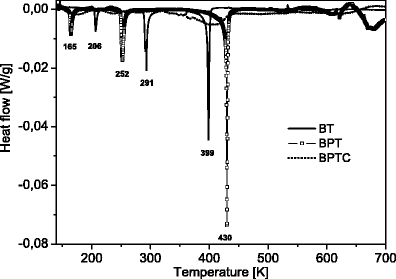

The results of DSC measurements (Fig. 7) sustain the 1st-order discontinuous character of the Curie phase transition in BPT. At 430 K, one can observe a sharp peak, shifted by about 30 K towards higher temperatures in comparison with that of the BT sample. Both structural transitions: between the tetragonal and the orthorhombic phases as well as from the orthorhombic phase to the rhombohedral one in BPT are lowered by ~40 K. In the case of BPTC, all phase transitions were found to be diffused.
The enthalpy ΔH related to particular transitions in BT and BPT can be evaluated from the excess specific heat capacity using the following equation [30]:
The values of ΔH calculated for BT and BPT are summarized in Table 2.

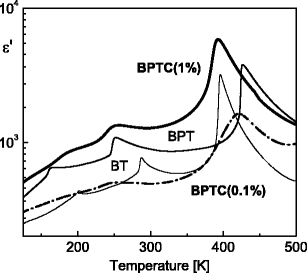

Figure 8 shows temperature variation of the real part of the permittivity measured at the frequency of 1 kHz for BT, BPT and BPTC ceramics. One can observe a shift of T c towards higher temperatures by about 30 K in the case of BPT in comparison with that of BT. The result coincides with those of our DSC studies. The addition of Co3+ ions results in a broadening of the dielectric anomaly and a downward shift of the Curie point. In the case of 0.1 % doping with Co2O3 the Curie temperature appears to be shifted by ~5.5 K and the dielectric anomaly is considerably lower than that of BPT ceramics. BPTC doped with 1 % of Co2O3 shows a huge dielectric anomaly shifted downwards by ~34 K with respect to that of BPT. The effect confirms the observation by H. J Hagemann and H. Ihrig [1] for BaTiO3 polycrystal doped with Co3+.
All investigated materials do not obey the Curie-Weiss law above T C (Fig. 9). The temperature range ΔT cm in which the deviation appears was estimated as the difference in the temperature at which the experimental point diverges from the Curie-Weiss law and the temperature of minimum of 1/ε′. The accuracy of the ΔT cm estimation we assess as ±0.2 K. This behavior points to the mechanism of the paraelectric-ferroelectric transition composed of two contributions: the displacive and the order—disorder one. In the barium titanate the central Ti ions jump between eight equivalent <111> off-center sites inside the oxygen octahedra [31]. Fast hopping of Ti ions coexists with slow 90° flipping of displacive soft mode induced tetragonal nanodomains in the paraelectric phase [32]. As a consequence, polar clusters appear and grow when approaching the phase transition from the high temperature side. A lot of experimental methods was used to evidence both displacive and order—disorder character of the mechanism of conducting the Curie phase transition. The measurements of temperature dependence of the birefringence revealed the Δn magnitude of the order of 10−5 up to about 30 K above Tc due to the presence of polar clusters [33, 34]. NMR observation of the first order satellites in 47Ti and 49Ti spectra in the cubic phase of BaTiO3 showed the presence of nonzero quadrupole coupling at the Ti sites [35, 36] pointing to a combined displacive and order—disorder mechanism of the Curie transition. The existence of polar clusters in the paraelectric phase influences also the electrostrictive properties of BaTiO3 because of the nonzero value of squared polarization P 2 despite the fact that the remnant polarization is not measurable [37]. Brillouin light scattering studies [38, 39] showed anomalous changes of acoustic phonons accompanied by the appearance of quasielastic central peak on approaching Tc in the paraelectric phase. Moreover, many theoretical works based on the first-principle calculations and polarizability model [40–42] have been done to explain the deviation from Curie-Weiss behavior due to the complex dynamics of the transition.
The dielectric permittivity-temperature characteristic of BPTC shows the highest deviation degree from the Curie-Weiss law measured as ΔT cm = T dev − T m [43], where T dev denotes the temperature above which 1/ε′ starts to obey the Curie-Weiss law. However the lowest deviation can be noticed for BPT. Probably, the origin of this effect is higher tetragonality (c/a = 1.012) observed for PBT by the XRD study (Table 1) in comparison with that of BT(c/a = 1.011) [44, 45] and BPTC(1 %) (c/a = 1.010). The deviations ΔT cm determined on the basis of the 1/ε′ dependence on temperature at the frequency of 100 kHz shown in Fig. 9 are: 25.9 K, 12.9 K, 41.5 K and 48.9 K for BT, BPT, BPTC(0.1 %) and BPTC(1 %), respectively.
As seen in Fig. 8 the dielectric anomalies associated with structural transitions: from the tetragonal to the orthorhombic and from the orthorhombic to the rhombohedral phases are also influenced by doping of BT with Pb2+ and Co3+ cations. For the BPT one can observe a shift of the anomalies by about 40 K towards lower temperatures. However, the doping of BPT with Co3+ cations results in diffuseness of the anomaly related to the transition between the tetragonal and the orthorhombic phases. The transition from the orthorhombic phase to the rhombohedral one was not observed in the investigated temperature and frequency ranges.

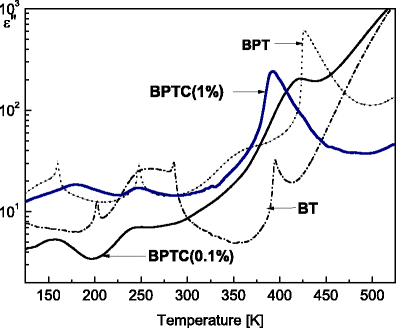

Temperature dependences of the imaginary parts of dielectric permittivity ε″ shown in Fig. 10 enable further explanation of the effect of dopants on the dielectric properties of BPTC. For BPT one can observe the maxima of dielectric permittivity ε″ bellow the Curie transition. The maxima are related to the contribution of domain wall motion to the dielectric response. The characteristic features of this process are the following: 1) it can appear only in the ferroelectric phase; 2) the relaxation frequency is strongly temperature dependent only very close to T C and far below it approaches a value which is sample dependent; 3) the strength is strongly dependent on the quality of the material so in the case of high defect concentration it can vanish entirely [46]. In the ceramics studied, the defects can be located on the domain walls and pin their motion in the external electric field [47]. After doping with Co3+ cations, i.e. for BPTC one should notice the reduction of dielectric losses attributed to the domain wall motion in the orthorhombic phase. These results are in a good agreement with that obtained from the mechanical results published in [2]. We can confirm the remarks by Hardtl [48] that acceptor dopants ions fix the domain wall position.

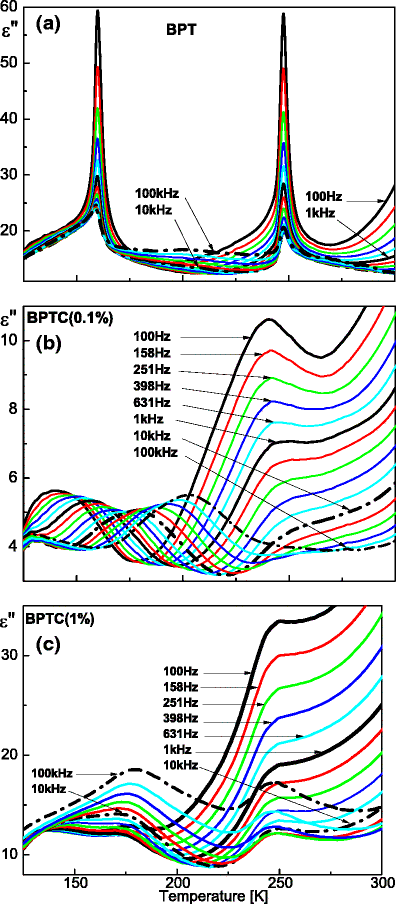

The situation appears to be more complicated for Co3+ doped PBT ceramics in the low-temperature region as shown in Fig. 11. The phase transition from the rhombohedral to the orthorhombic structure apparent as ε″(f, T) anomaly at ~160 K for Ba0.95Pb0.05TiO3 disappears for cobalt doped ceramic and in the same temperature range relaxor-like relaxation processes are observed. In the case of BPTC(0.1 %) samples the maximum values of the imaginary part of dielectric permittivity ε″ max decrease with increasing frequency in the window 100 Hz ≤ f ≤ 6 kHz whereas at higher frequencies an increase in ε″ max is observed and at 100 kHz its maximum appears at T ε″max ≈ 203 K. According to the theory of the dielectric response of ferroelectric relaxors [49, 50], which considers the behavior of ε′ max and ε″ max with increasing frequency, i) in the case when ε′ max decreases and ε″ max increases with increasing frequency the main contribution to the dielectric response is due to flipping of the dipole moments between allowed directions in the polar nanoregions (PNRs), ii) whereas a decrease in ε′ max and ε″ max with increasing frequency is related to the contribution of fluctuations of the boundaries of PNRs. Thus we would like to relate the dielectric response observed in the frequency range 100 Hz–6 kHz to be due mainly to the contribution of fluctuations of PNR boundaries, whereas that apparent in the frequency range 10 kHz–100 kHz to the response of the dipole moments in the dynamic polar nanoregions. The contribution of the fluctuations of the boundaries of PNRs in BPTC(1 %) is visible in the frequency window 100 Hz–1 kHz only and above 1 kHz the contribution of dipole moments flipping between allowed <111> cub directions in PNRs dominates in ε″(f, T) behavior with T ε″max ≈ 180 K at 100 kHz.
The transition from the phase with the orthorhombic structure to that with the tetragonal symmetry appears as a narrow ε″ peak at ~247.5 K in pure Ba0.95Pb0.05TiO3 ceramics which in Co3+ doped ceramics becomes considerably broadened. In BPTC(1 %) samples at frequencies higher than ~10 kHz an additional contribution to the dielectric absorption, most probably due to the dipole moments flipping between allowed <110>cub directions, can be distinguished. We did not determine the activation energies E a of the processes because the measurements were done in a narrow frequency window (2–3 frequency decades) and the results of fitting to Vogel-Fulcher equation would be loaded with a great error.

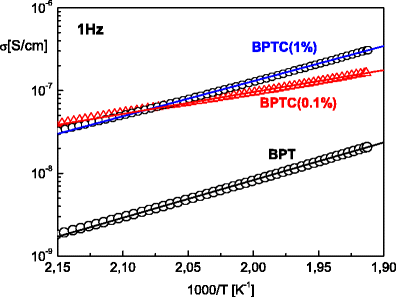

To characterize the effect of Co3+ doping on the high temperature electric properties of BPTC ceramics we show in Fig. 12 Arrhenius plots of electric conductivity of the ceramic samples measured at the frequency of 1 Hz in the temperature range 465 K–525 K. Doping results in an increase in the conductivity by more than one order of magnitude due to oxygen vacancies introduced to compensate the Co3+ valence at the B-site of the perovskite lattice. The activation energies of the oxygen vacancies migration were assessed to amount to (0.90 ± 0.05) eV, (0.84 ± 0.05) eV and (0.052 ± 0.05) eV, respectively for BPT, BPTC(1 %) and BPTC(0.1 %) ceramics. The activation energy of free oxygen vacancy migration in ferroelectric perovskite oxides has been reported to be of 0.8–1 eV [51, 52] thus we can relate the high-temperature electric conduction determined for BPT and BPTC(1 %) ceramics to the process of oxygen vacancies migration. As the distribution of the oxygen vacancies in the lattice has been considered in the tetragonal phase of the ferroelectric perovskites only [26, 50, 52] it is hard to discuss the lowering of the activation energy for BPTC(0.1 %) since the energy landscape of oxygen and probably also Pb vacancies is uncertain.
4 Conclusions
A new ceramic material (BPTC) was proposed for applications in the electronic industry and its dielectric properties were investigated. The experiment confirmed that the content of Pb2+ ions substituting the Ba2+ ions in A—site is very useful tool to control the Curie temperature. From the application point of view it is very promising the effect of reduction of high dielectric losses related to the structural phase transition in BPTC due to doping with Co3+ ions. It should be mentioned that Pb2+ and Co3+ doping of BaTiO3 results in a diffusiveness and broadening of the ferroelectric—paraelectric phase transition. Moreover, we found that BPTC exhibits relaxor-like behavior in the low-temperature range, from 125 to 225 K which speaks in favour of the polar nanoregions, originating from the presence of Co3+ acceptor-oxygen vacancy dipoles in highly polarizable lattice, to be responsible for the modification of the physical properties. Moreover, the dielectric relaxation processes apparent in the rhombohedral and the orthorhombic phases of Co-doped BPT ceramics enabled to distinguish the contribution to the dielectric response of fluctuations of polar nanoregion boundaries and that of dipole moments reorientation between the allowed directions in the polar nanoregions. As the Co-doping has been reported to decrease the mechanical losses and to smooth the elastic modulus anomaly in BT based ceramics [2] we believe to open the discussion on the effect of a well defined polar heterogeneity at the nanoscale in oxide perovskites on the anomalies of physical properties at the structural phase transitions.
References
H.J. Hagemann, H. Ihring, Valence change and phase stability of 3d-doped BaTiO3 annealed in oxygen and hydrogen. Phys. Rev. B 20, 3871–3878 (1979)
B.L. Cheng, M. Gabbay, W. Jr Duffy, G. Fantozzi, Mechanical loss and Young’s modulus associated with phase transitions in barium titanate based ceramics. J. Mater. Sci. 31, 4951–4955 (1996)
K. Uchino, Ferroelectric Devices (Marcell Dekker, Inc., New York - Basel, 2000), pp. 105–118
Landolt-Börnstein, Numerical Data and Functional Relationships in Science and Technology, Vol. III/16a (Springer, Berlin, 1981), p. 421
Y.L. Li, L.E. Cross, L.Q. Chen, A phenomenological thermodynamic potential for BaTiO3 single crystals. J. Appl. Phys. 98, 064101-1-4 (2005)
R.F. Blunt, W.F. Love, The dielectric properties of Barium Titanate at low temperatures. Phys. Rev. 76, 1202–1204 (1949)
G. Arlt, D. Hennings, G. de With, Dielectric properties of fine–grained barium titanate ceramics. J. Appl. Phys. 58, 1619–1625 (1985)
H. Kishi, Y. Okino, M. Honda, Y. Iguchi, M. Imaeda, Y. Takahashi, H. Ohsato, T. Okuda, The effect of MgO and rare-earth oxide on formation behavior of core-shell structure in BaTiO3. Jpn. J. Appl. Phys. 36, 5954–5957 (1997)
J.F. Meng, B.K. Rai, R.S. Katiyar, G.T. Zou, Study of visible emission and phase transition in nanocrystalline A(1-x)A′xTiO3 systems. Phys. Lett. A 229, 254–258 (1997)
A.V. Myasoedov, S.R. Syrtsov, Positive temperature coefficient of resistance in the lead-containing ceramic barium titanate. Tech. Phys. 42, 1097–1098 (1997)
I.V. Lisnevskaya, I.A. Bobrova, E.A. Bikyashev, T.G. Lupeiko, Interfacial reactions and properties of Y3Fe5O12/Ba1 –x Pb x TiO3 composites. Inorg. Mater. 42, 1147–1151 (2006)
J. Brančin, L. Medveckỳ, Influence of mechanical activation of precursors on the structure and properties of donor doped Ba0.95Pb0.05TiO3 ceramics. J. Mater. Sci. Lett. 21, 55–59 (2002)
A.I. Lebedev, I.A. Sluchinskaya, A. Erko, A.A. Veligzhanin, A.A. Chernyshov, XAFS studies of the local environment of Pb impurity atoms in barium, strontium, and calcium titanates. Phys. Solid State 51, 991–997 (2009)
Landolt-Börnstein, Numerical Data and Functional Relationship in Science and Technology, Vol. III/28a (Springer, Berlin - Heidelberg, 1990), p. 228
J.H. Kim, S.H. Yoon, Y.H. Han, Effects of Y2O3 addition on electrical conductivity and dielectric properties of Ba-excess BaTiO3. J. Eur. Ceram. Soc. 27, 1113–1116 (2007)
Y. Park, H.G. Kim, The microstructure analysis of cerium – modified Barium Titanate having core-shell structured grains. Ceram. Int. 23, 329–336 (1997)
H. Takeda, H. Harinaka, T. Shiosaki, M.A. Zubair, C. Leach, R. Freer, T. Hoshina, T. Tsurumi, Fabrication and positive temperature coefficient of resistivity properties of semiconducting ceramics based on the BaTiO3–(Bi1/2K1/2)TiO3 system. J. Eur. Ceram. Soc. 30, 555–559 (2010)
R.A. Serway, W. Berlinger, K.A. Müller, R.W. Collins, Electron paramagnetic resonance of three manganese centers in reduced SrTi03. Phys. Rev. B 16, 4761–4768 (1977)
W. Li, J. Qi, Y. Wang, L. Li, Z. Gui, Doping behaviors of Nb2O5 and Co2O3 in temperature stable BaTiO3-based ceramics. Mat. Lett. 57, 1–5 (2002)
Q. Li, J. Qi, Y. Wang, Z. Gui, L. Li, Improvement of temperature-stable BaTiO3-based dielectrics by addition of Li2CO3 and Co2O3. J. Eur. Ceram. Soc. 21, 2217–2220 (2001)
S. Zhang, J.B. Lim, H.J. Lee, T.R. Shrout, Characterization of hard piezoelectric lead-free ceramics. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 56, 1523–1527 (2009)
L.E. Cross, Relaxor ferroelectrics: an over view. Ferroelectrics 151, 305–320 (1994)
A.A. Bokov, Z.-G. Ye, Recent progress in relaxor ferroelectrics with perovskite structure. J. Mater. Sci. 41, 31–52 (2006)
G.A. Samara, The relaxational properties of compositionally disordered ABO3 perovskites. J. Phys. Condens. Matter 15, R367–R411 (2003)
M.E. Lines, A.M. Glass, Principle and application of ferroelectric and related materials (Clarendon, Oxford, 1977)
G. Arlt, H. Neumann, Internal bias in ferroelectric ceramics: origin and time dependence. Ferroelectrics 87, 109–120 (1988)
R. Bujakiewicz-Korońska, A. Kalvane, Y. Zhydachevskii, B. Garbarz-Glos, W. Śmiga, L. Vasylechko, J. Czerwiec, A. Suchocki, A. Kamińska, W. Piekarczyk, Physical Properties of Ba0.95Pb0.05TiO3+0.1%Co2O3. Ferroelectrics 436, 62–71 (2012)
M.C. Baehtz, H. Ehrenberg, H. Fuess, The synchrotron powder diffractometer at beamline B2 at HASYLAB/DESY: status and capabilities. J. Synchrotron Radiat. 11, 328–334 (2004)
L.G. Akselrud, P.Y. Zavalij, Y. Grin, V.K. Pecharsky, B. Baumgartner, E. Wölfel, Use of the CSD programme package for structure determination from powder data. Mater. Sci. Forum 133, 335–340 (1993)
G.W.H. Höhne, W.F. Hemminger, H.-J. Flammersheim, Differential Scanning Calorimetry (Springer, Berlin Heidelberg, 2003), p. 140
R. Pirc, R. Blinc, Off-center Ti model of barium titanate. Phys. Rev. B 70, 134107-1-8 (2004)
A. Bussmann-Holder, H. Beige, G. Völkel, Precursor effects, broken local symmetry, and coexistence of order–disorder and displacive dynamics in perovskite ferroelectrics. Phys. Rev. B 79, 184111-1-6 (2009)
A. Ziębińska, D. Rytz, K. Szot, M. Górny, K. Roleder, Birefringence above Tc in single crystals of barium titanate. J. Phys. Condens. Matter 20, 142202-1-5 (2008)
M. Takagi, T. Ishidate, Anomalous birefringence of cubic BaTiO3. Solid State Commun. 113, 423–426 (2000)
B. Zalar, V.V. Laguta, R. Blinc, NMR evidence for the coexistence of order–disorder and displacive components in Barium Titanate. Phys. Rev. Lett. 90, 037601-1-4 (2003)
B. Zalar, A. Lebar, J. Seliger, R. Blinc, NMR study of disorder in BaTiO3 and SrTiO3. Phys. Rev. B 71, 064107-1-12 (2005)
K. Wieczorek, A. Ziębińska, Z. Ujma, K. Szot, M. Górny, I. Franke, J. Koperski, S. Soszyński, K. Roleder, Electrostictive and piezoelectric effect in BaTiO3 and PbZrO3. Ferroelectrics 336, 61–67 (2006)
J.H. Ko, S. Kojima, T.Y. Koo, J.H. Jung, C.J. Won, N.J. Hur, Elastic softening and central peaks in BaTiO3 single crystals above the cubic-tetragonal phase-transition temperature. Appl. Phys. Lett. 93, 102905-1-3 (2008)
J.H. Ko, T.H. Kim, K. Roleder, D. Rytz, S. Kojima, Precursor dynamics in the ferroelectric phase transition of barium titanate single crystals studied by Brillouin light scattering. Phys. Rev. B 84, 094123-1-9 (2011)
R. Migoni, H. Bilz, D. Bäuerle, Origin of raman scattering and ferroelectricity in oxid perovskites. Phys. Rev. Lett. 37, 1155–1158 (1976)
I. Ponomareva, L. Bellaiche, T. Ostapchuk, J. Hlinka, J. Petzelt, Terahertz dielectric response of cubic BaTiO3. Phys. Rev. B 77, 012102-1-4 (2008)
H. Bilz, G. Benedek, A. Bussmann-Holder, Theory of ferroelectricity: the polarizability model. Phys. Rev. B 35, 4840–4849 (1987)
J. Suchanicz, G. Stopa, K. Konieczny, D. Wcislo, M. Dziubaniuk, J. Rymarczyk, Uniaxial pressure effect on the dielectric properties of the BaTiO3 single crystals. Ferroelectrics 366, 3–10 (2008)
H.D. Megaw, Crystal structure of double oxides of the perovskite type. Proc. Phys. Soc. 58, 133–152 (1946)
Y. Yoshimura, M. Morioka, A. Kojima, N. Tokunaga, T. Koganezawa, K. Tozaki, Reinterpretation of the unit cell evolution of BaTiO3. Phys. Lett. A 367, 394–401 (2007)
C. Pawlaczyk, Domain wall dielectric response in the phase transition region in some ferroelectric. Ferroelectrics 140, 127–132 (1993)
K. Carl, K.H. Hardtl, Electrical after-effects in Pb(Ti,Zr)O3 ceramics. Ferroelectrics 17, 473–486 (1978)
K.H. Hardtl, Electrical and mechanical losses in ferroelectric ceramics. Ceram. Int. 8, 121–127 (1982)
A.A. Bokov, Z.-G. Ye, Low-frequency dielectric spectroscopy of the relaxor ferroelectric Pb(Mg1/3Nb2/3)O3-PbTiO3. Phys. Rev. B 65, 144112-1-10 (2002)
A.A. Bokov, Z.-G. Ye, Dielectric relaxation in relaxor ferroelectrics. J. Adv. Diel. 2, 1241010-1-24 (2012)
C.H. Park, Microscopic study on migration of oxygen vacancy in ferroelectric perovskite oxide. J. Phys. Soc. 42, S1420–S1424 (2003)
P. Erhart, R.-A. Eichel, P. Träskelin, K. Albe, Association of oxygen vacancies with impurity metal ions in lead titanate. Phys. Rev. B 76, 174116-1-12 (2007)
