With advancements in crystallographic technology and the increasing wealth of information populating structural databases, there is an increasing need for prediction tools based on spatial information that will support the characterization of proteins and protein–ligand interactions. Herein, a new web service is presented termed amino acid frequency around ligand (AFAL) for determining amino acids type and frequencies surrounding ligands within proteins deposited in the Protein Data Bank and for assessing the atoms and atom-ligand distances involved in each interaction (availability: http://structuralbio.utalca.cl/AFAL/index.html). AFAL allows the user to define a wide variety of filtering criteria (protein family, source organism, resolution, sequence redundancy and distance) in order to uncover trends and evolutionary differences in amino acid preferences that define interactions with particular ligands. Results obtained from AFAL provide valuable statistical information about amino acids that may be responsible for establishing particular ligand–protein interactions. The analysis will enable investigators to compare ligand-binding sites of different proteins and to uncover general as well as specific interaction patterns from existing data. Such patterns can be used subsequently to predict ligand binding in proteins that currently have no structural information and to refine the interpretation of existing protein models. The application of AFAL is illustrated by the analysis of proteins interacting with adenosine-5′-triphosphate.
Many proteins require small molecular ligands or cofactors in order to fulfill their specific biological roles. These ligands include a large number of small organic biomolecules, such as adenosine-5′-triphosphate (ATP) or heme as well as inorganic ions and molecules, for example transition metal ions including Fe2+/3+ Cu+/2+ or Zn2+ . Such ligands can be loosely or tightly bound to the protein and participate directly or indirectly in catalysis. Protein ligand interactions are highly diverse with respect to fold and coordination environment . A wide variety of chemical groups, including carboxyl, imidazol, indol, thiol, thioeter, hydroxil moeties, etc., participate in the coordination of diverse ligands through different amino acid residues and motifs. Understanding the structural and dynamical aspects of their binding is essential for the overall comprehension of the structure and function of proteins.
The study of the specific interaction of a protein with its ligand is an active research field because of the implications this has in the overall understanding of the structure and function of proteins, and in particular in the fast-growing area of structure based drug design . A number of free applications, tools and services have been posted on the web [4, 5] that aim to predict and characterize protein–ligand interaction through their binding affinity and energetics. Sophisticated tools like 3D structure–activity relationships (3D QSAR) link experimental and theoretical data to predict such interactions [6, 7]. Furthermore, molecular simulation and docking  and molecular interaction fields  have also proven very useful in the area of structure-based drug design.
In today’s research environment, a wealth of experimental and theoretical structural data is available. There are currently 96,980 macromolecular structures stored in the RSCB Protein Data Bank (PDB, January 2014), 70,908 of which correspond to proteins that contain ligands (small molecules) as part of their structures and which belong to diverse organisms including Escherichia coli (17.4 %), Thermus thermophilus (18.3 %), Haloarcula marismortui (10.9 %), Saccharomyces cerevisiae (8.4 %), Bos taurus (9.7 %), Homo sapiens (9.1 %), and others [10–12].
Ligands in the PDB currently encompass 16,447 different chemical components, ranging from single atoms (e.g. Na+) to complex pyrrolic rings (e.g. heme) and non-standard polymers [10, 13]. This makes the information stored in the PDB a very important source for data mining and analysis.
Other web accessible resources such as SuperLigands , Ligand Expo  and the IMB Jena image library of biological macromolecules  retrieve additional information on small molecules found in the PDB and help to identify ligands that are likely to bind a given protein structure. However, neither prediction nor interpretation of these interactions is straightforward. In the absence of additional resources for the retrieval of spatial information, this massive amount of highly sophisticated data simply represents a catalogue of the interactions of individual proteins with individual ligands, and does not contribute directly to an understanding of protein and ligand functions nor to the underlying rules that govern such interactions.
Several studies have been carried out that analyze amino acid preferences at ligand binding sites [17, 18]. General trends have emerged from these studies, such as an enrichment of Gly, Ser, Arg and Tyr in binding sites that correlate to the role of these amino acids in secondary and tertiary structure formation . Similarities in the amino acid environment at certain binding site has also been evaluated from an evolutionary perspective [19, 20]. Comprehensive analysis of well-defined structural motifs of ligand-binding sites has revealed that most structural motifs are confined within single protein families or superfamilies and are associated with particular ligands . No method applied so far to the exhaustive all-against-all comparison of ligand-binding sites found in PDB has been effective in deriving insights into the nature of the interactions, based possibly on structural (fold) as well as evolutionary (phylogenetic) constrains. Therefore, alternative tools for the analysis of the interactions between proteins and their ligands across protein families and phylogenetic backgrounds are required.
By integrating conventional data mining techniques with structural biology analysis tools the amino acid frequency around ligand (AFAL) application analyzes the protein structures stored in PDB and identifies the amino acids and atoms involved in the interaction with any ligand (e.g. drug molecules, co-factors, etc.). AFAL displays the protein–ligand interaction atomic distances and calculates the frequency of the amino acids that surround a particular ligand and the frequency of the atomic interactions per residue. Identification of the most likely pattern of residues implicated in the binding of given ligand, independently of fold and phylogenetic background, can be useful not only to derive insights into the nature and evolution of specific protein–ligand interactions and the understanding of molecular and atomic level interaction mechanisms but also in applied studies related to drug design or modification of functional groups in proteins of biotechnological interest.

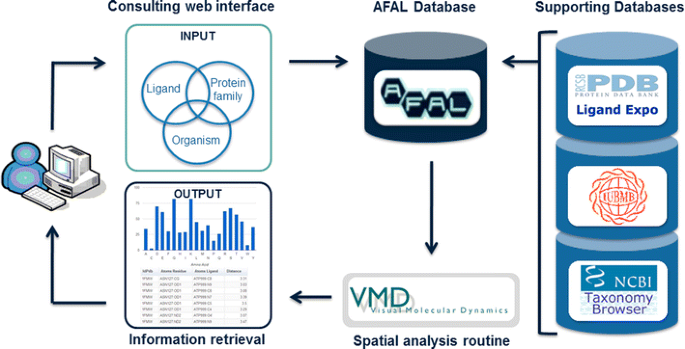

AFAL has been compiled using pre-existing and publically available resources and software packages (Fig. 1) such as the PDB database [10–12], its Ligand Expo Search feature , the IUBMB Enzyme Nomenclature Database , the NCBI Taxonomy Database  and the VMD software . The AFAL web service consists of three major components, the AFAL Database, the Consultation web interface and the Spatial analysis routine (Fig. 1), described in detail bellow.
The AFAL database
A local database was created to facilitate quick access to the structural data stored in PDB and to adequately classify the information to be retrieved in each search according to user selected filters. The database was built using a MySQL engine version 14.14. To populate the database and to classify the PDB files, multiple scripts programmed in Perl language were generated. More than 90,000 files from PDB were accordingly classified into proteins with a ligand, proteins without ligand, type of ligand, protein family, organism and crystal resolution. The local database also stores the results of each new query consulted. This facilitates the access for new users to pre-calculated amino acid frequencies around commonly consulted ligands. The AFAL database is automatically updated every month to include actualized PDB files in every new search.
Consulting web interface
The web interface, created in html and php, provides the user with a friendly and easy to use form for entering query data and selecting the filtering parameters (Fig. 2). A search is initiated with the selection of the ligand of interest. The user may choose the ligand from a pre-established menu or by entering the ligand name according to the three-letter code used in PDB. To facilitate this step, AFAL redirects the ligand three-letter code search towards the PDB Ligand Expo Feature . Other filtering parameters can be left in their default options at this stage, but the result produced will be very general and all encompassing. The user may then narrow down the search to uncover preferences or tendencies in the usage of certain residues in the coordination of a given ligand using adequate filtering criteria. The options available in this version of AFAL are a protein-family filter and a species-filter, which restrict the analysis to a particular group of proteins (e.g. Kinases) or a particular source organism (e.g. Homo sapiens). Both filters have customized menus, using a list of pre-defined protein families or organisms. If the protein family or source organism is not in the list, the user can type in the respective name(s) using the IUBMB Enzyme nomenclature database link and/or the NCBI taxonomy database link. Since many of the structures in the PDB database are highly similar or even identical, a further filter avoids biasing of the results towards multiple counting of interactions by culling protein sequences in PDB by sequence identity using PISCES . The default sequence-identity cut-off to remove highly similar proteins from the data set has been set at 30 % sequence identity. The user may select or deselect this option at choice. In addition, the user may further restrict the search space by selecting the crystallographic resolution of the target proteins and by setting a cut-off value for the protein–ligand screening distance. The default value is set at 3.5 Å, a distance at which both covalent and strong electrostatic interactions occur .
Spatial analysis routine
To identify the amino acids and atoms that surround a given ligand AFAL makes use of the spatial analysis functions of the VMD software . Using a script programmed in Tcl language  hundreds or thousands of protein structures (PDB files) that meet the filtering criteria set by the user and selected via the AFAL database can be automatically analyzed. The powerful module of VMD, atom selection method, guides the search of the atoms in the protein under analysis found at a given distance from the ligand of interest within the spherical radius defined by the user. All residues within this radius can be recovered from the PBD fitting the filtering criteria together with the closest atom to the ligand and their interaction distances, trough a drop-down menu and accompanying table.
The AFAL output consists of a frequency table and an accompanying interactive histogram (Fig. 3). All amino acids occurring around a certain ligand, inside of the spherical radius distance set for any given protein structure selected according to filtering criteria defined by the user are scored for presence or absence. Occurrence of a residue is then expressed as a percentage value of the total of PDB structures analyzed in a given interrogation. Results are tabulated in a spreadsheet, graphed and displayed in a web page. The link generated is sent to the user by e-mail within a few minutes. Preexisting calculations stored in the AFAL database are also displayed on screen immediately. Two kinds of tables are produced. The first lists the PDB files selected based on the users filtering criteria and displays the amino acid residues involved in the interaction with the ligand. The second table details the atoms involved in the interaction with the ligand and the interaction distances for all PDB files involved in the analysis (Fig. 3). This information is very useful for the characterization of the interaction microenvironment of any given ligand. This information can be downloaded by the user for further in-house analyses.
The AFAL service is freely available for noncommercial use at http://structuralbio.utalca.cl/AFAL/index.html. AFAL is supported by Center of Bioinformatics from the University of Talca and will be constantly updated and maintained to ensure reliable operation even when some of the underlying tools are changing.
Utility and discussion
ATP-binding proteins as test case
To demonstrate the utility of AFAL to identify amino acids relevant in the coordination of particular ligands, a well characterized protein–ligand interaction was chosen as an example. ATP has essential roles in all forms of life. Characterization of the interaction of this molecule with specific amino acids is of great importance for understanding enzymatic mechanisms and for drug design. The ATP molecule is composed of an adenine base linked to three phosphate groups via a ribose. When bound to proteins, one or more magnesium ions are often found in coordination with the negatively charged phosphate groups. ATP is a multifunctional nucleotide used for many biochemical reactions that require energy via hydrolysis of the γ-phosphoester bond  and participates in many cellular processes including cell signaling via phosphorylation of proteins , transport through the ABC transporters , DNA repair by DNA binding proteins  and is the main substrate in signal transduction pathways by kinases .
Several studies have been carried out to characterize the amino acids involved in recognition of the phosphate groups and the adenine moiety. Recognition of phosphate groups requires the consensus sequence of GXXXXGKT(S), with serine substituting threonine in some cases . This motif is more popularly known as the Walker motif or P-loop  (Fig. 4a). In turn, adenine–protein interactions depend on the adenine base capacity to establish hydrogen bonds, π–π stacking interactions and cation–π interactions. Aromatic amino acid Phe, Tyr and Trp are involved in the π–π stacking interactions forming the A-loop (aromatic loop) motif while positively charged residues Lys and Arg are responsible for the cation–π interactions [28, 30].
In the November 2013 PDB release, there were 768 ATP-binding protein entries interacting with different protein families in a range of distances, the most common of which are the Transferases with 268 proteins (enzymes transferring a group, for example, phosphorus-containing groups) and Ligases with 104 proteins (enzymes that catalyze the joining of two molecules with concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate) . These ATP-binding proteins use different ways of binding the phosphoryl moieties as well as the adenine base, but the most common sequence and structural motif for binding ATP is the Walker motif. AFAL was used to uncover trends in the amino acid preferences of ATP binding pockets by assessing the relative frequency of occurrence of each amino acid around ATP at 3.5 Å in all or in certain groups of ATP-binding proteins. To ascertain if the trends uncovered by AFAL are meaningful the reader is referred to the reference table and accompanying chart in the frequently asked questions section of the AFAL web page (http://structuralbio.utalca.cl/AFAL/faq.html) showing overall frequencies of occurrence of each amino acid in proteins in general and/or in particular protein families (Table S1).
As shown in Fig. 4b, Gly (84 %), Lys (83 %), Arg (62 %), Ser (67 %) and Thr (57 %) are one the most frequently occurring amino acids identified by the AFAL algorithm that surround ATP in the available ATP-binding proteins from PDB (Fig. 4b) and in different source organisms (Fig. 4c–e). These are typically present in the P-loop motif (Fig. 4a; Table S2). Narrowing down the search to specific protein families (Fig. 4b), additional tendencies in the use of certain residues for the coordination of ATP emerge. It can be concluded that AFAL correctly identifies the three conserved residues (Gly, Thr, Ser) that define the P-loop motif described for the Transferase family and is in agreement with previously described trends for binding site in general . The occurrence of the positively charged residues Arg and Lys, potentially involved in adenine–protein cation–π interactions [28, 35, 36], was also observed (Table S3). The analysis of the proteins belonging to the Ligase family shows a similar tendency, although an increased occurrence of Arg over P-loop motif residues suggests that adenine–protein cation–π interactions are present in this protein family.
Table 1 lists the observed interactions of the phosphates of ATP with amino acid residues of the Walker motif and provides information regarding the frequency of these interactions in the PDB and the average distance of the interactions between the respective amino acid residues and one of the phosphates of the ATP molecule. Gly interacts principally with the β-phosphate of ATP, Lys with the β-phosphate and γ-phosphate, Thr with all three phosphates almost equally but showing a slight preference for the γ-phosphate and Ser with the γ-phosphate. The observed distances of these interactions descends from 3.4 Å for Gly to 3.27 Å for Ser. These findings are in agreement with previous studies [34, 37] and validate the utility of AFAL for analysis of protein–ligand interaction patterns. In addition, these results demonstrate the power of AFAL to find novel amino acid–ligand interactions.
A reference table that summarizes the most common contact types made by the amino acid and the most common functional groups from ligand atoms included for comparative purposes in supplementary Table S3 and is also available for on-site consultation by interested users at the bottom of the AFAL results page.
Additional examples of the use of AFAL are provided in the web site.
AFAL offers an automated solution for the analysis of interactions between proteins and their ligands across protein families and phylogenetic backgrounds using crystallographic data stored in the PDB database. The results obtained from AFAL provide valuable statistical information about the amino acids, atoms and distances that may be responsible for establishing any particular ligand–protein interaction, helping to compare the ligand-binding sites of different proteins and to uncover general as well as specific interaction patterns from existing data. It is anticipated that AFAL will provide an excellent opportunity to extract valuable information on the evolution of protein–ligand interactions and help suggest functions for unknown proteins containing potential ligand binding sites.
Harding MM (2004) The architecture of metal coordination groups in proteins. Acta Crystallogr D Biol Crystallogr 60(Pt 5):849–859
Kahraman A, Morris RJ, Laskowski RA, Thornton JM (2007) Shape variation in protein binding pockets and their ligands. J Mol Biol 368(1):283–301
Brylinski M, Skolnick J (2010) Comprehensive structural and functional characterization of the human kinome by protein structure modeling and ligand virtual screening. J Chem Inf Model 50(10):1839–1854
Mobley DL, Dill KA (2009) Binding of small-molecule ligands to proteins: “What You See” is not always “What You Get”. Structure 17(4):489–498
Villoutreix BO, Renault N, Lagorce D, Sperandio O, Montes M, Miteva MA (2007) Free resources to assist structure-based virtual ligand screening experiments. Curr Protein Pept Sci 8(4):381–411
Chayan A, Coop A, Polli Jr JE ADM (2011) Recent advances in ligand-based drug design: relevance and utility of the conformationally sampled pharmacophore approach. Curr Comput Aided Drug Des 7(1):10–22
Tinberg CE, Khare SD, Dou J, Doyle L, Nelson JW, Schena A et al (2013) Computational design of ligand-binding proteins with high affinity and selectivity. Nature 501(7466):212–216
Plewczynski D, Łaźniewski M, Augustyniak R, Ginalski K (2011) Can we trust docking results? Evaluation of seven commonly used programs on PDBbind database. J Comput Chem 32(4):742–755
Lin Y, Yoo S, Sanchez R (2012) SiteComp: a server for ligand binding site analysis in protein structures. Bioinformatics 28(8):1172–1173
Rose PW, Beran B, Bi C, Bluhm WF, Dimitropoulos D, Goodsell DS et al (2011) The RCSB Protein Data Bank: redesigned web site and web services. Nucleic Acids Res 39(Database issue):D392–D401
Berman H, Henrick K, Nakamura H, Markley JL (2007) The worldwide Protein Data Bank (wwPDB): ensuring a single, uniform archive of PDB data. Nucleic Acids Res 35(Database issue):D301–D303
Berman HM, Westbrook J, Feng Z, Gilliland G, Bhat TN, Weissig H et al (2000) The protein data bank. Nucleic Acids Res 28(1):235–242
Shin J-M, Cho D-H (2005) PDB-Ligand: a ligand database based on PDB for the automated and customized classification of ligand-binding structures. Nucleic Acids Res 33(Database issue):D238–D241
Michalsky E, Dunkel M, Goede A, Preissner R (2005) SuperLigands—a database of ligand structures derived from the Protein Data Bank. BMC Bioinf 6:122
Feng Z, Chen L, Maddula H, Akcan O, Oughtred R, Berman HM, Westbrook J (2004) Ligand Depot: a data warehouse for ligands bound to macromolecules. Bioinformatics 20(13):2153–2155
Reichert J, Sühnel J (2002) The IMB Jena Image Library of biological macromolecules: 2002 update. Nucleic Acids Res 30(1):253–254
Villar HO, Kauvar LM (1994) Amino acid preferences at protein binding sites. FEBS Lett 349(1):125–130
Villar HO, Koehler RT (2000) Amino acid preferences of small, naturally occurring polypeptides. Biopolymers 53(3):226–232
Doolittle RF (1989) Similar amino acid sequences revisited. Trends Biochem Sci 14(7):244–245
Russell F, Doolittle F, Da-Fei F (1990)  Nearest neighbor procedure for relating progressively aligned amino acid sequences. Methods Enzymol 183:659–669
Kinjo AR, Nakamura H (2009) Comprehensive structural classification of ligand-binding motifs in proteins. Structure 17(2):234–246
Enzyme Nomenclature (1992) Nomenclature Committee of the International Union of Biochemistry and Molecular Biology, London. http://www.chem.qmul.ac.uk/iubmb/enzyme/. Accessed 20 April 2014
Benson DA, Karsch-Mizrachi I, Lipman DJ, Ostell J, Sayers EW (2009) GenBank. Nucleic Acids Res 37(Database issue):D26–D31
Humphrey W, Dalke A, Schulten K (1996) VMD: visual molecular dynamics. J Mol Graph 14(1):33–38
Wang G, Dunbrack RL (2003) PISCES: a protein sequence culling server. Bioinformatics 19(12):1589–1591
Leach AR (2001) Molecular modelling: principles and applications. 2nd edn. Prentice Hall, Essex
Ousterhout JK (1994) Tcl and the Tk Toolkit. 1st edn. Addison-Wesley Professional Computing Series, Reading
Mao L, Wang Y, Liu Y, Hu X (2004) Molecular determinants for ATP-binding in proteins: a data mining and quantum chemical analysis. J Mol Biol 336(3):787–807
Cheek S, Ginalski K, Zhang H, Grishin NV (2005) A comprehensive update of the sequence and structure classification of kinases. BMC Struct Biol 5:6
Ambudkar SV, Kim I-W, Xia D, Sauna ZE (2006) The A-loop, a novel conserved aromatic acid subdomain upstream of the Walker A motif in ABC transporters, is critical for ATP binding. FEBS Lett 580(4):1049–1055
Bugreeva IP, Bugreev DV, Nevinsky GA (2005) Formation of nucleoprotein RecA filament on single-stranded DNA. Analysis by stepwise increase in ligand complexity. FEBS J 272(11):2734–2745
Hardie DG, Hawley SA (2001) AMP-activated protein kinase: the energy charge hypothesis revisited. BioEssays 23(12):1112–1119
Walker JE, Saraste M, Runswick MJ, Gay NJ (1982) Distantly related sequences in the alpha- and beta-subunits of ATP synthase, myosin, kinases and other ATP-requiring enzymes and a common nucleotide binding fold. EMBO J 1(8):945–951
Ramakrishnan C, Dani VS, Ramasarma T (2002) A conformational analysis of Walker motif A [GXXXXGKT (S)] in nucleotide-binding and other proteins The sequence GXXXXGKT/S, popularly known as Walker motif A, is widely believed to be the site for binding nucleotides in many proteins. Examination. Prot Eng 15(10):783–798
Dougherty DA (2013) The cation–π interaction. Acc Chem Res 46(4):885–893
Zacharias N, Dougherty DA (2002) Cation-pi interactions in ligand recognition and catalysis. Trends Pharmacol Sci 23(6):281–287
Galinier A, Lavergne J-P, Geourjon C, Fieulaine S, Nessler S, Jault J-M (2002) A new family of phosphotransferases with a P-loop motif. J Biol Chem 277(13):11362–11367
Oldham ML, Khare D, Quiocho Fa, Davidson AL, Chen J (2007) Crystal structure of a catalytic intermediate of the maltose transporter. Nature 450(7169):515–521
Stierand K, Maass PC, Rarey M (2006) Molecular complexes at a glance: automated generation of two-dimensional complex diagrams. Bioinformatics 22(14):1710–1716
The authors wish to thank the anonymous reviewers, and Dr. Jaime Henriquez, Alejandro Valdes, Melisa Alegría, Osvaldo Yañez, Wladimir Morales, Daniel Aguayo, Raúl Arias and Francisco Correa for many valuable scientific discussions. Funding is gratefully acknowledged from FONDECYT Grants (Fondo Nacional de Desarrollo Científico y Tecnológico) 1140048 and 1130683, CONICYT Grant (Comisión Nacional de Investigación Científica y Tecnológica) Basal CCTE PFB16 and a Santander Mobility Grant for collaboration with Durham University.
