Steady-shear and viscoelastic properties of cellulose nanofibril–nanoclay dispersions

Abstract

We have investigated the steady-shear and viscoelastic properties of composite dispersions of cellulose nanofibrils (CNFs) with medium or high charge density and two different nanoclays, viz. rod-like sepiolite or plate-like bentonite. Aqueous dispersions of CNFs with medium charge density displayed significantly lower steady-state viscosity and storage modulus but higher gelation threshold compared with CNFs with high charge density. Dynamic light scattering (DLS) results showed that the apparent hydrodynamic radius of bentonite particles increased when CNFs were added, implying that CNFs adsorbed onto the amphoteric edges of the plate-like bentonite particles. The sepiolite network in CNF–sepiolite dispersions was relatively unaffected by addition of small amounts of CNFs, and DLS showed that the hydrodynamic radius of sepiolite did not change when CNFs were added. Addition of CNFs at concentrations above the gelation threshold resulted in drastic decrease of the steady-shear viscosity of the sepiolite dispersion, suggesting that the sepiolite network disintegrates and the rod-like clay particles are aligned also at low shear rate. The relative change in the rheological properties of the clay-based dispersions was always greater on addition of CNFs with high compared with medium charge density. This study provides insight into how the rheology of CNF–nanoclay dispersions depends on both the nanoclay morphology and the interactions between the nanoclay and nanocellulose particles, being of relevance to processing of nanocellulose–clay composites.

Introduction

Cellulose nanofibrils (CNFs), extracted from wood, marine animals, and bacteria, are a sustainable nanomaterial that combines high specific stiffness, high surface area, low density, optical transparency, and flexible surface chemistry (Klemm et al. 2011; Moon et al. 2011; Usov et al. 2015). Among a variety of mechanical and chemical approaches (Moon et al. 2011; Pääkkö et al. 2007), 2,2,6,6-tetramethyl-1-piperidinyl-1-oxyl (TEMPO)-mediated oxidation is a recently developed and already widely used route to prepare colloidally stable CNFs (Isogai et al. 2011; Saito et al. 2006). CNFs and other forms of nanocellulose are of interest for use in a wide range of applications, e.g., as additives in food, cosmetics, and paints, and as rheology modifiers (Klemm et al. 2011). CNFs can also be used to produce strong and transparent nanopapers (Henriksson et al. 2008), flexible filaments (Hakansson et al. 2014; Iwamoto et al. 2011), lightweight foams (Gordeyeva et al. 2016; Wicklein et al. 2016), and hydrogels (Klemm et al. 2011; Munier et al. 2016).

It is clear that successful production of CNF-based composite materials relies on the ability to process and assemble CNF-based aqueous dispersions (Abdul Khalil et al. 2012; Siró and Plackett 2010). Previous work has shown that aqueous dispersions of slender and kinked CNFs display non-Newtonian rheological behavior characterized by shear thinning and pronounced viscoelastic behavior at concentrations above the gelation threshold (de Kort et al. 2016; Jowkarderis and van de Ven 2015; Martoia et al. 2016). Recent studies have investigated the effects of pulp source (Tanaka et al. 2016), fibril dimension and concentration (Agoda-Tandjawa et al. 2010), mechanical treatments (Pääkkö et al. 2007), ionic strength (Dong et al. 2013), pH (Fall et al. 2013), as well as addition of amphiphilic molecules (Quennouz et al. 2016) on the rheology of CNF dispersions. Additionally, CNFs can also assist in preparation of homogeneous dispersions of a variety of fillers and pigments, such as carbon nanotubes (Hamedi et al. 2014), reduced graphene oxide (Duan et al. 2016), TiO2 (Schütz et al. 2012), and CaCO3 (Lourenço et al. 2016) nanoparticles.

Nanoclays (Bailey et al. 2015) are commonly used as an additive in CNF-based composite materials to improve, e.g., their mechanical properties (Gabr et al. 2013; Wang et al. 2014) or fire retardancy (Liu et al. 2011; Wicklein et al. 2015), and to tailor the selectivity and flux of membranes (Zheng et al. 2014). Notably, it has been shown that CNF–bentonite dispersions display properties suitable for use as drilling fluids (Li et al. 2015). However, comprehensive studies on the steady-shear and viscoelastic properties of such CNF–nanoclay dispersions are rare, and previous rheological studies have mainly focused on dispersions of plate-like nanoclays and moderately charged or uncharged nanocellulose particles (Abend and Lagaly 2000; Li et al. 2015; Ming et al. 2016; Nechyporchuk et al. 2014).

In this study, we evaluated the steady-shear and viscoelastic properties of aqueous dispersions of plate-like bentonite or rod-like sepiolite clay nanoparticles together with CNFs with moderate or high charge density. The effect of the CNF content on the viscosity under shear and the storage modulus at quiescent conditions of the nanoclay dispersions is found to be related to the interactions between the CNFs and the different types of clay particle.

Experimental procedures

Materials

Never-dried sulfite softwood pulp (Domsjö dissolving pulp, 60/40 spruce/pine, Sweden) was the cellulose source. Sodium hypochlorite (Alfa Aesar), 2,2,6,6-tetramethyl-1-piperidinyloxy free radical (TEMPO, ≥98 %, Alfa Aesar), sodium hydroxide (≥99.2 %, VWR Chemicals), sodium bromide (BioUltra, ≥99.5 %, Sigma Aldrich), (3-aminopropyl)triethoxysilane (Sigma Aldrich, 99 %), sodium bentonite, and sepiolite (Sigma Aldrich) were used as received.

Preparation of CNF dispersions

Cellulose nanofibrils were prepared using the method developed by Saito et al. (2006). Oxidized pulp was washed with deionized water (DI) water until the conductivity of the filtrate was below 5 µS. After diluting to 1.0 wt%, the pulp dispersion was disintegrated using a high-pressure (1600 bar) microfluidizer (M-110EH, Microfluidics) with 200- and 100-µm-wide chambers connected in series for eight times. The charge density (carboxyl groups per gram of pulp) was characterized by conductometric titration (Fall et al. 2011) with relative error below 5 %. CNFs with medium (649 ± 34 µmol/g, MCNFs) and high charge density (1030 ± 38 µmol/g, HCNFs) were prepared.

Aqueous dispersions with CNF concentration of 0.1, 0.25, 0.5, 0.75, and 1.0 wt% were prepared by dilution of stock dispersion, agitated using an ULTRA-TURRAX (IKA), and degassed by vacuum before each measurement.

Preparation of CNF–nanoclay dispersions

Sodium bentonite and sepiolite were purified by dialysis in flowing DI water for 3 days until the pH stabilized at around 6.8. Aqueous clay dispersions with concentration of 4.0 wt% were prepared by mixing purified clay with DI water, followed by 10 days of continuous agitation at 500 rpm using an IKA magnetic stirrer. Composite dispersions were prepared by mixing CNF and nanoclay dispersions to obtain dispersions with nanoclay concentration of 2.0 wt% (with respect to the aqueous phase) and CNF concentration of 0.1, 0.25, and 0.5 wt% (also with respect to the aqueous phase). The solid contents of the CNF–nanoclay dispersions are summarized in Table S1. The composite dispersions (at pH 6.8) were agitated using an ULTRA-TURRAX (IKA T25) and degassed by vacuum before measurements.

Characterization

The diameter and length distribution of the CNFs were characterized by atomic force microscopy (AFM, tapping mode, Veeco Multimode V, USA). CNFs were deposited on mica substrates coated with (3-aminopropyl)triethoxysilane. The morphology of sepiolite and bentonite was also characterized by AFM. The dimensions (height and length) of the CNFs were determined by analysis of AFM images of approximate 300 fibrils using NanoScope Analysis and ImageJ software. The average and distribution of fibril length were calculated using a previously reported method (Tanaka et al. 2014).

The optical transparency of the CNF aqueous dispersions was characterized using an ultraviolet/visible/near infrared (UV/VIS/NIR) spectrophotometer (Lambda 19, PerkinElmer) in quartz cuvettes.

Rheological measurements were performed at 25 °C using a Physica MCR 301 rheometer (Anton Paar) equipped with a smooth cone-on-plate geometry (CP25-2-SN7617, diameter 25 mm, 2° nominal angle, gap height 0.5 mm). To minimize evaporation during measurements, we used an evaporation blocker and a thin layer of low-density mineral oil spread on the periphery of the samples. Steady-shear measurements were performed from 0.1 to 1000 s−1. Oscillatory frequency sweeps were performed at angular frequency from 0.1 to 60 rad s−1 with 5 % strain, which is within the linear viscoelastic regime.

Digital photographs of tilted dispersions in glass vials (diameter 12 mm, height 32 mm) were taken after 180 s. The dispersions were allowed to equilibrate in nontilted position overnight prior to the measurements.

Dynamic light scattering measurements were performed using a Zetasizer Nano ZS (Malvern Instruments Ltd., UK), equipped with a 530-nm laser and backscatter detector (at angle of 173°). Normalized intensity correlation curves and particle size data were averaged from 10 to 20 measurements. The dynamic light scattering measurements were performed on CNF–nanoclay and nanoclay dispersions that had been diluted 20 times from the dispersions used in rheology tests.

The zeta potential of nanoclays in aqueous dispersion at different pH was determined from an average of 10 measurements of 30 runs each, also with a Zetasizer Nano ZS (Malvern Instruments Ltd., UK).

Results and discussion

We prepared CNFs with medium and high charge density by TEMPO-mediated oxidation and high-pressure homogenization, and characterized their dimensions by atomic force microscopy (AFM) (Fig. 1). The CNFs displayed well-defined fibril diameter of 2.35 ± 0.77 and 2.30 ± 0.65 nm for MCNFs and HCNFs, respectively, in correspondence with previous studies (Gordeyeva et al. 2016). The average and distribution of the length of both types of fibril are summarized in Fig. S1 and Table S2.

Fig. 1
figure 1

AFM images of a MCNFs and b HCNFs

Figure 2 shows that dispersions of HCNFs at concentrations above 0.25 wt% could form self-standing hydrogels that did not flow when tilted by 90°, while the critical gelation concentration was 0.5 wt% for the MCNFs with lower charge density. Hence, the gelation threshold (where the material changes from a solution to a hydrogel) of the aqueous CNF dispersions depends on both the charge density of the fibrils and their concentration. UV/VIS measurements (Fig. S2) showed that the HCNF dispersions had higher optical transparency than the MCNF dispersions at the same concentration, suggesting that the formed contained fewer light-scattering aggregates and were more defibrillated. Strong repulsion between the electric double layers of the HCNFs thus promotes homogeneous distribution of the nanofibrils with low gelation threshold.

Fig. 2
figure 2

Digital photographs of 90° tilted vials of CNF aqueous dispersions (MCNFs and HCNFs with charge density of 649 ± 34 and 1030 ± 38 µmol/g, respectively) at concentration of 0.1, 0.25, 0.5, 0.75, and 1.0 wt%

Figure 3 displays the typical shear-thinning behavior of CNF dispersions. The dispersions showed a constant level of the degree of shear thinning, characterized by the slope of the log–log shear curves, over a shear rate range spanning at least two decades, when the CNF concentration was equal to or above the gelation threshold, i.e., 0.5 wt% for MCNFs or 0.25 wt% for HCNFs, whereas the shear thinning seemed to be discontinuous at low concentration (0.1 wt%). We found that the HCNF dispersions always displayed substantially higher viscosity than the MCNF dispersions; the viscosity at 10 s−1 was about 2.5 times higher for HCNF compared with MCNF dispersion at concentration of 0.5 wt%. This effect is probably related to the higher effective volume of the CNFs with high compared with medium charge density (Blakeney 1966; Johansson et al. 2011; Mazeau 2011). The more pronounced shear-thinning behavior of MCNF compared with HCNF dispersions could originate from shear-induced breakup of flocculated fibrils. Indeed, the lower optical transmittance of MCNF compared with HCNF dispersions in Fig. S2 corroborates that a fraction of the MCNFs may be slightly flocculated.

Fig. 3
figure 3

Steady-shear and viscoelastic measurements of CNF dispersions with concentration of 0.1, 0.25, 0.5, 0.75, and 1.0 wt%: viscosity as function of shear rate for a MCNF and b HCNF dispersions, and frequency sweep (at 5 % strain) for c MCNF and d HCNF dispersions (storage modulus G′, loss modulus G″)

The shear stress was always larger than the estimated yield stress (Dimic-Misic et al. 2013) above shear rate of 0.02 s−1 (Fig. S3), which suggests that wall slip was insignificant. Oscillatory viscoelastic measurements showed that both HCNF and MCNF dispersions were viscoelastic above the gelation threshold (Nechyporchuk et al. 2015; Quennouz et al. 2016).

We characterized the pH-dependent electrokinetic properties of bentonite and sepiolite, as shown in Fig. 4a. Bentonite was more negatively charged than sepiolite, with zeta potential at pH 6.8 of −28 and −18 mV, respectively. The negative surface charge of both bentonite and sepiolite originates primarily from isomorphic substitutions of Si4+. Such substitution in bentonite is commonly by Al3+ and Fe3+, while substitution and slow leaching of Mg2+ is responsible for the negative charge of sepiolite (Cinar et al. 2009; Luckham and Rossi 1999; Sabah et al. 2007). Bentonite is a plate-like clay with negatively charged faces and amphoteric edges dominated by Al–OH groups (Bailey et al. 2015; Ruiz-Hitzky et al. 2013). Figure S4 displays the morphology and particle size of both bentonite and sepiolite. Figure 4b shows that the viscosity of aqueous dispersions of plate-like bentonite was lower compared with dispersions of rod-like sepiolite. The difference in the rheological properties is related to both the morphology and colloidal stability. The stronger shear-thinning properties of sepiolite compared with bentonite dispersions suggests that the more weakly charged rod-like sepiolite particles form a stronger three-dimensional (3D) network compared with the more highly charged, plate-like bentonite particles.

Fig. 4
figure 4

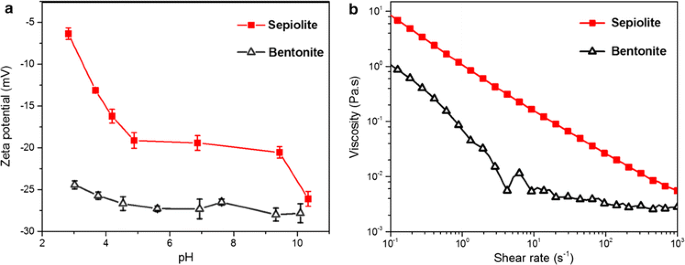

Characterization of bentonite and sepiolite: a zeta potential and b steady-shear curves of aqueous clay dispersions (2.0 wt%) at pH 6.8

Figure 5 shows that addition of HCNFs could substantially delay the sedimentation of both bentonite and sepiolite, thus resulting in composite dispersions with long-term stability. As shown in Fig. 6, both HCNF–bentonite and HCNF–sepiolite dispersions displayed pseudoplastic behavior over the investigated shear rate range. Figure 6a, c shows that the viscosity and G′ value of the HCNF–bentonite dispersions increased with the HCNF concentration. In contrast, Fig. 6b, d shows that the viscosity of the HCNF–sepiolite dispersions was substantially higher at HCNF content of only 0.1 wt% (8.6 Pa.s) compared with 0.25 wt% (1.3 Pa.s) or 0.5 wt% (4.1 Pa.s) at 10 s−1, and G′ decreased from 1105 to 133 Pa when the HCNF content was increased from 0.1 to 0.25 wt%. The HCNF-based composite dispersions always displayed higher viscosity and G′ value than the MCNF-based composite dispersions (Figs. S5, S6), similar to the CNF dispersions.

Fig. 5
figure 5

Digital photographs of HCNF–nanoclay dispersions 10 days after preparation (2.0 wt% nanoclay with 0.1, 0.25, or 0.5 wt% HCNFs)

Fig. 6
figure 6

Steady-shear and viscoelastic properties of HCNF–clay dispersions with different HCNF concentrations (0.1, 0.25, and 0.5 wt%): viscosity as function of shear rate for composite dispersions of HCNFs and a bentonite, b sepiolite; frequency sweep (5 % strain) of HCNFs and c bentonite and d sepiolite composite dispersions, all at constant nanoclay concentration of 2.0 wt%

The relative viscosity (normalized to the viscosity of the continuous medium, i.e., water) of nanoclay dispersions and the corresponding viscosity ratio of the HCNF–nanoclay dispersions (normalized to the viscosity of the HCNF dispersions) are presented in Table 1. The relative viscosity of the nanoclay dispersions at high shear was 3.4 and 7.9 for the 2 wt% bentonite and sepiolite dispersions, respectively. The viscosity ratio of the HCNF–bentonite dispersions (3.2–3.6) was very similar to the relative viscosity (3.4) of the bentonite dispersions at high shear rate. The relative viscosity at high shear rate was significantly higher for the rod-like sepiolite (7.9). The viscosity ratio of the HCNF–bentonite dispersions at HCNF concentration of 0.25 wt% and above was between 1 and 4 at shear rate of 1 s−1 or above.

Table 1 Relative viscosity of 2.0 wt% nanoclay dispersions and viscosity ratio of HCNF–nanoclay dispersions and nanoclay dispersions

The viscosity ratio of the HCNF–sepiolite dispersion was more than 100 times higher on addition of 0.1 wt% HCNFs compared with addition of 0.25 or 0.5 wt% CNFs. In fact, the viscosity ratio of the HCNF–sepiolite (0.1 wt%) dispersion was slightly higher than the relative viscosity of the sepiolite dispersion at shear rate of 10 s−1, which suggests that the sepiolite network in the dispersion was relatively unaffected by addition of this low content of HCNFs. The significant decrease of the viscosity ratio when adding more HCNFs (0.25 or 0.5 wt%) into the sepiolite dispersion indicates that addition of HCNFs at concentrations above the gelation threshold can promote breakup of the sepiolite network and assist in alignment of the rod-like clay particles under shear.

We also measured the time–intensity correlation function (TCF) of nanoclay dispersions with and without HCNFs. Figure 7 shows that the TCF curve for sepiolite was unaffected by addition of HCNFs, whereas the TCF curve for the bentonite dispersion shifted to longer decay times after addition of HCNFs. The TCF is related to the apparent hydrodynamic radius (particle diffusivity), which suggests that HCNFs adsorb onto the bentonite particles (Ferse et al. 2008). Indeed, previous work has shown that cellulose nanoparticles and cellulose-based polymers can be used to disperse clays in water (Ming et al. 2016; Sjöberg et al. 1999).

Fig. 7
figure 7

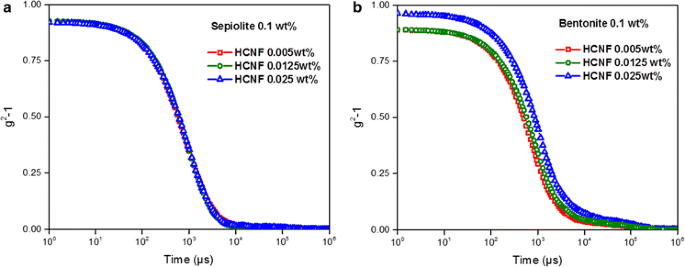

Normalized autocorrelation function curves for diluted sepiolite (a) and bentonite (b) dispersions with varying HCNF concentrations

Figure 8 shows a schematic illustration of the interactions and shear-dependent microstructure of composite dispersions of CNF and bentonite or sepiolite.

Fig. 8
figure 8

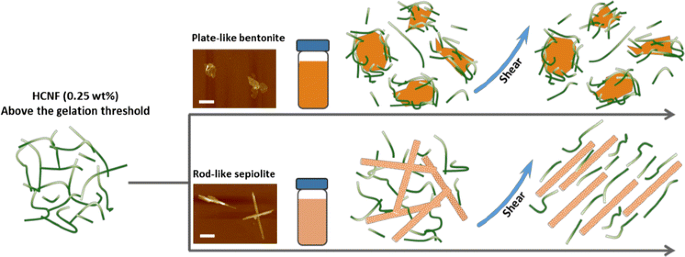

Schematic of microstructure of CNF–nanoclay aqueous dispersions at quiescent conditions and under shear (scale bar in AFM images is 500 nm)

Conclusions

Composite dispersions of CNFs and two different nanoclays, i.e., plate-like bentonite and rod-like sepiolite, displayed complex rheological behavior that depended on both the morphology of the clay particles and the interactions between the nanoclay and CNF particles at quiescent conditions and under shear. Dispersions of CNF displayed a gelation threshold and rheological properties that depended on the charge density. The lower gelation threshold, higher viscosity, and higher storage modulus of aqueous dispersions of CNFs with high compared with medium charge density were found to be related to the larger effective volume fraction and higher degree of defibrillation or dispersion. The more pronounced shear-thinning behavior of 2 wt% aqueous dispersions of sepiolite compared with bentonite suggests that the more weakly charged rod-like sepiolite particles form a stronger 3D network compared with the more highly charged, plate-like bentonite particles. Rheological studies on composite dispersions of CNFs and nanoclays suggested that the sepiolite network was relatively unaffected by addition of small amounts of CNFs, but addition of CNFs at concentrations above the gelation threshold promoted breakup of the sepiolite network and assisted in alignment of the rod-like clay particles also at low shear rate. The rheological properties of CNF–bentonite dispersions was less affected by addition of increasing amounts of CNFs compared with CNF–sepiolite dispersions. Dynamic light scattering (DLS) results showed that the CNFs adsorbs onto bentonite, resulting in an increase of the apparent hydrodynamic radius, while the DLS response of sepiolite was unaffected by addition of CNFs. We have shown that the complex rheological properties of CNF–nanoclay dispersions are influenced by the surface charge of the CNFs, the morphology of the clay, and the interactions between the CNFs and nanoclay.
