Abstract
The net impact of greenhouse gas emissions from degraded peatland environments on national Inventories and subsequent mitigation of such emissions has only been seriously considered within the last decade. Data on greenhouse gas emissions from special cases of peatland degradation, such as eroding peatlands, are particularly scarce. Here, we report the first eddy covariance-based monitoring of carbon dioxide (CO2) emissions from an eroding Atlantic blanket bog. The CO2 budget across the period July 2018–November 2019 was 147 (± 9) g C m−2. For an annual budget that contained proportionally more of the extreme 2018 drought and heat wave, cumulative CO2 emissions were nearly double (191 g C m−2) of that of an annual period without drought (106 g C m−2), suggesting that direct CO2 emissions from eroded peatlands are at risk of increasing with projected changes in temperatures and precipitation due to global climate change. The results of this study are consistent with chamber-based and modelling studies that suggest degraded blanket bogs to be a net source of CO2 to the atmosphere, and provide baseline data against which to assess future peatland restoration efforts in this region.
Similar content being viewed by others
Explore related subjects
Find the latest articles, discoveries, and news in related topics.Avoid common mistakes on your manuscript.
Introduction
Peatlands are the world’s most effective terrestrial carbon store, with around 600 Gt (15–30% of the world’s soil carbon) stored, despite such ecosystems only occupying around 3% of the terrestrial land area (Limpens et al. 2008; Yu 2012; Leifeld and Menichetti 2018). Peatlands in their intact states that are still located within suitable bioclimatic envelopes accumulate and store carbon because photosynthetic uptake of C exceeds the losses via respiration and anaerobic decomposition (e.g., Waddington et al. 2015). Degradation by direct human disturbance, such as drainage, grazing and land use conversion, as well as the influence of climate change, can switch peatlands from net sink to net sources of C. Globally, peatlands turned from a net carbon sink to a net source around the 1960s, due to extensive drainage and land use conversion, particularly in Europe and South-East Asia (Leifeld et al. 2019). Expert assessments compiled by Loisel et al. (2021) assert that the combined effects of land use and climate change-driven changes in global temperature, precipitation patterns and fire risk will result in even stronger impacts on peatland carbon stocks in the near (to 2100) and far (2100–2300) future. Cumulative emissions from drained peatlands are estimated to have reached 80 ± 20 Pg CO2e in 2015 (Leifeld et al. 2019), with further increases due to continued drainage of peatlands in many areas of the world. This may lead to total peatland emissions of up to 249 ± 38 Pg by 2100 (Leifeld et al. 2019). Moreover, global warming is likely to reach 1.5 °C between 2030 and 2052 if it continues to increase at the current rate (IPCC 2018) which, together with projected changes to precipitation patterns (e.g., Giorgi et al. 2019), make the fate of this vast global peatland C stock highly uncertain.
Peatland restoration has been recognised as a cost-effective way to mitigate CO2 emissions alongside improving the intrinsic value of these threatened habitats (Paustian et al. 2016). Leifeld and Menichetti (2018) used the 2013 IPCC Wetland Supplement default (Tier 1) emission factors combined with a bespoke global mapping effort of the various IPCC land use categories on peat soils to arrive at an estimate of 0.31–3.38 Gt CO2-equivalent of emissions per annum from the world’s peatlands, with much of it stemming from CO2. Further refinement of this estimate is clearly required, particularly for the less intensively managed peatland categories where emission factors carry very high uncertainties. Peat erosion, in particular, is difficult to allocate to a specific IPCC land use category and is often excluded from broad land cover mapping efforts. Peat erosion occurs around the world (e.g., Yunker et al. 1991; Wilson et al. 1993; Pastukhov and Kaverin 2016; Selkirk and Saffigna 2018), although the literature on erosion rates and resulting C losses is heavily dominated by studies from the UK and Ireland (e.g., Bradshaw and McGee 1988; Birnie 1993; Carling et al. 1997; Bragg and Tallis 2001; Evans and Warburton 2007; Tomlinson 2009; Evans and Lindsay, 2010). Consequently, the scale of peat erosion across the world has not been quantified, and even estimates for the UK and Ireland are frequently reliant on outdated and spatially poorly resolved data sources. An estimate of the proportion of eroded peat for the UK suggested a figure of around 11% (3283 km2) of the total area to be affected by significant erosion, with the proportion for Scotland likely to be around 14% (2732 km2; Evans et al. 2017).
The cause of peat erosion is not always clear. While erosive processes in peatlands are driven by the action of wind and rain (sometimes combined with direct initiation through peat instability), human impacts via fire management, overgrazing, drainage can initiate erosion (Parry et al. 2014). In mountain areas, tree removal on the lower slopes of a catchment can also be a contributing factor in initiating erosion in the peatlands in the upper part. There is considerable discussion amongst the scientific community as to the degree to which historic human land use has been the direct cause of erosion with evidence of impacts ranging from a view that initiation largely predates major anthropogenic impacts, although some effects of early deforestation may have contributed (e.g., Ellis and Tallis 2001) to alignment with increased human activities from the mid-to late 1700s (Stevenson et al. 1990, Tallis, 1998).
Peat erosion contributes to direct losses of carbon via losses of particulate matter. In addition, erosion gullies divert water and thus constitute a form of drainage that may affect plant photosynthetic responses and soil respiration. While direct C losses from eroding peatlands through particulate and dissolved organic carbon in fluvial and windborne erosion paths have understandably received much scientific attention, less is known about the direct gaseous emissions from these carbon dense ecosystems. Existing data on GHG emissions from eroded peatlands stem entirely from chamber-based studies (McNamara et al. 2008; Clay et al. 2011; Worrall et al. 2011; Dixon et al. 2014; Gatis et al. 2019), which require careful inclusion of the many different components of erosion features in the landscape and upscaling. Without robust understanding of the current emissions from eroded peatland ecosystems, the cost effectiveness of restoration work through gully blocking, reprofiling and re-vegetation of bare areas cannot be determined, and neither can overall GHG abatement potential be estimated from such activities.
Here, for the first time, CO2 fluxes measured using the eddy covariance (EC) technique are presented for an eroding oceanic blanket bog located in the Cairngorms, Scotland. Our objectives for this study were to: (1) quantify the magnitude of the net ecosystem exchange (NEE) of carbon dioxide (CO2); (2) explore effects of short-term variation in local climate on CO2 fluxes; and (3) set the quantitative baseline against which the abatement potential of future restoration management can be evaluated.
Methods
Site location, description, and climate
The study took place on a large high-altitude plateau blanket bog in the eastern part of the Cairngorms National Park, Scotland, UK (56.93° N, − 3.16° E, 642 m asl). The climate at the site is maritime temperate montane and is located on the edge of Köppen-Geiger class Dfc (cold, no dry season, cold summer, as per Beck et al. 2018). The nearest long-term UK Met Office station is Braemar (57.006 N, − 3.396° E, 327 m amsl) which is 10 km NE of the site. Braemar station has a mean annual (1981–2010) maximum and minimum air temperature and precipitation of 10.7 °C, 3 °C and 932 mm year−1, respectively. The long-term mean annual temperature (1981–2010) was 6.73 °C, with observations showing a significant warming trend over the 1959–2020 period. The wider Cairngorms area experiences significant snowfall, and between 30 to more than 60 snow days each year, although a significant decline in snow days and snow depth has been observed over recent decades (Rivington and Spencer 2020), especially at higher altitudes. Snowfall in the region in recent years has been generally sporadic, rather than providing a single snow-covered period. It is not possible to provide estimates at the site prior to the monitoring period, but they are likely to fall on the lower end of the range. Peat erosion is widespread (Fig. 1, SI Fig. 1) and bare peat gullies vary between 0.5 and 3 m in their depth and 2 to > 10 m in their width. The surface area occupied by bare peat in erosion features was mapped using high resolution aerial photography (25 cm resolution, GetMapping) dated 2019 and further by high resolution LiDAR (12 cm horizontal, 3 cm vertical) in November 2020. Ground control locations of vegetated and bare peat areas exceeding a minimum area of 5 m2 were collected with a handheld GPS (Garmin Etrex, locational accuracy 3 m). Supervised classification analysis, using the ground control point locations, was carried out using the semi-automated classification plug-in (Congedo, 2016) in QGIS version 2.18.4.
Peat depth ranges from < 0.2 to > 2 m across a neighbouring area in the catchment similar in slope and aspect to the flux tower footprint, based on a 100 m grid-based survey (Peatland Action data, S. Corcoran, Cairngorms National Park Authority, pers. Comm.) which sampled gullies as well as vegetated peat. It is not possible to estimate average peat depth in the gullies versus vegetated areas from these data as the data did not include attributes to differentiate these terrain types and the positional accuracy of the GPS used is insufficient to assess this through overlays with aerial photography. The peat depths in the wider catchment area are largely similar, with a few notably deeper points of up to 6 m. The peat pH was between 3.1 and 3.4. Water levels were unknown prior to this study. Vegetation composition is typical of eastern Scotland elevated blanket bog [largely Calluna vulgaris—Eriophorum vaginatum blanket mire, described as M19 as per the British National Vegetation Classification (NVC; Rodwell 1991)], with a mean canopy height of 0.25 m. The wider landscape is predominantly managed for red deer (Cervus elaphus) and red grouse (Lagopus lagopus), with some managed burning (muirburn) applied occasionally, though none within the 2 km2 area surrounding the site within the monitoring period reported on in this work. Other grazing animals are mountain hare (Lepus timidus) and occasional roe deer (Capreolus capreolus).
Eddy covariance measurements
Sensible and latent heat fluxes (LE and H, respectively) and NEE were monitored using an enclosed path EC system. The EC system combined a Windmaster (Gill Instruments Ltd. Lymington, UK) sonic anemometer at 3.2 m above the peatland surface for the components of atmospheric turbulence (u, v, w; m s−1) and sonic temperature (Tsonic; °C), with an LI-7200 enclosed path H2O/CO2 gas analyser (Li-COR Biosciences, Lincoln, Nebraska, USA L) to measure atmospheric mass density of vapor (g H2O m−3) and CO2 (mg CO2 m−3) as well as barometric pressure (Pair; kPa). The horizontal separation between the sonic anemometer and the Li-7200 was 0.1 m. The length of LI-7200 inlet tube was 1.0 m, optimised for measurements of CO2 mass density over H2O (e.g., LI-7200 RS instruction manual, Li-COR 2015). Air temperature (Ta; °C) and relative humidity (RH; %) were measured at 2 m above the peatland surface using a Rotronic Hygroclip (HC2-S3, Rotronics, Darlaston, Wednesbury, UK). EC sensors were sampled and logged at 20 Hz using a CR3000 Micrologger (Campbell Scientific Inc., Logan Utah). The system was installed on a fully vegetated piece of land as the surfaces of the bare peat gullies tend to move during the winter months due to frost heaving. The available fetch in the prevailing wind direction (SW) was > 1000 m, in all wind directions except N where a cliff edge limits the fetch to ca. 400 m. Canopy height (0.25 m) was assumed to be static throughout the year; the vegetation is semi-evergreen with light to locally moderate deer grazing pressure.
A range of micrometeorological measurements were carried out on the same mast as the EC data collection. Net radiation (Rnet; W m−2) and its incoming and outgoing short‐ and long‐wave components (SWin, SWout, LWin, and LWout, respectively; W m−2) were measured above the canopy (2.06 m above the peatland surface) using an SN500 Net Radiometer (Apogee Instruments Inc. Logan, Utah, USA). PAR was measured at 2.25 m using a SKP215 Quantum Sensor (Skye Instruments, UK). Soil physical parameters were measured close to the EC mast (within a radius of 5 m). Soil heat fluxes (G; W m−2) were monitored using two HFP01SC soil heat flux (Hukseflux BV, BV, Delft, The Netherlands) plates installed at 0.03 m below the surface. Soil temperature (Tsoil; °C) was measured at a depth of 2, 5, 10, 20 and 50 cm below the peatland surface using an STP01 soil temperature profile (Campbell Scientific Inc., Logan, Utah, USA). Soil volumetric water content (VWC; m2) and additional soil temperature measurements were made using four Digital Time Domain Transmissometry (TDT) probes (TDT Soil Water Content sensor, Acclima, Idaho, USA) installed vertically at 5, 10, 15 and 20 cm depth. Precipitation was measured using a SBS500 unheated tipping bucket rain gauge (P; 0.2 mm sensitivity; Environmental Measurements Ltd, Newcastle, UK) installed in an open area free of any obstruction. Water table depth was measured using a CS451 pressure sensor (Campbell Scientific Inc., Logan, Utah, USA) installed in a 32 mm diameter PVC well with alternating 3 mm holes at 50 mm distance on four rows along the profile). The aforementioned sensors were scanned at 0.1 Hz and logged as 30‐min means (sums for precipitation). An additional three wells were installed on vegetated ground within 20 m of the mast (1 m capacitance water level loggers, Odyssey, New Zealand) starting autumn 2019, and a further four standalone water level loggers were installed in dipwells approximately 1 m away from gully edges next to two pairs of gullies in the wider eroded catchment in spring 2020.
EC data handling
Thirty‐minute flux densities (hereafter fluxes) of sensible and latent heat (LE and H) and net ecosystem CO2 exchange (NEE) were computed from the raw EC data using EddyPRO® Flux Calculation Software (v 7.0.6; LI‐COR Biosciences, Lincoln, Nebraska; Fratini and Mauder 2014). Raw EC data were screened for statistical outliers (Mauder et al. 2013) and other physically implausible values (Vickers and Mahrt 1997). Sonic anemometer data were rotated using a two‐dimensional coordinate rotation procedure (Wilczak et al. 2001) and corrected for imperfect cosine response (Nakai and Shimoyama 2012). A planar rotation was also tested but did not provide significant improvements. No boost bug correction was required for the Windmaster deployed at the site (firmware version 2329.700.01). Time lags between the vertical wind speed and concentration measurements were removed using a cross‐correlation procedure. Uncorrected fluxes were calculated as the mean covariance between the vertical wind speed (w) and the respective atmospheric scalar using 30‐min block averages (Baldocchi 2003). Fluxes were corrected for high (Moncrieff et al. 1997) and low frequency cospectral attenuation (Moncrieff et al. 2004). H fluxes were corrected for the influence of atmospheric humidity (Schotanus et al. 1983). LE, then CO2, fluxes were adjusted for fluctuations in atmospheric density (Webb et al. 1980). Random uncertainties for 30‐min flux observations related to sampling error were estimated as standard deviations derived from a variance of covariance approach (Finkelstein and Sims 2001). CO2 storage was assumed negligible at the low observation height and NEE was assumed equal to the turbulent CO2 flux. The micrometeorological sign convention is adopted where positive values represent fluxes from ecosystem to atmosphere and negatives describe the opposite state.
Quality control (QC) procedures were applied to ensure only high-quality turbulent flux data were retained for analysis. Thirty‐minute flux data were screened for statistical outliers using the median absolute deviation approach (Sachs 2013) following recommendations in Papale et al. (2006). Fluxes were also excluded when: the results of the stationarity (steady‐state) test result deviated by more than 100% (Foken et al. 2004); and when fluxes were outside the range − 200 < H > 450 W m−2, − 50 < NEE > 30 μmol CO2 m2, and − 50 < LE > 300 W m−2. Periods of low turbulent mixing were identified using a friction velocity (u*) threshold approach (Papale et al. 2006; Reichstein et al. 2016), and CO2 fluxes were excluded when u* < 0.17 m s−1. A 2D footprint model was also calculated as per Kljun et al. (2015). Overall energy balance closure (EBC; SI Fig. 2) for the system was 0.8, which is within the range attained for EC sites globally (Leuning et al. 2012; Stoy et al. 2005; Wilson et al. 2002), and acknowledging that the length of the inlet tube of the Li-7200 was optimised for CO2 flux measurements.
Gap‐filling of flux data and the partitioning of NEE into estimates of gross ecosystem production (GEP) and total ecosystem respiration were performed using the REddyProc Package version 0.8‐2/r14 (Reichstein et al. 2016) for the R statistical Language (R Core Team 2017). Data gap‐filling of H, LE, and NEE was performed using the marginal distribution sampling (MDS) approach (Reichstein et al. 2005). To enable annual sums to be computed, gaps in air temperature were gap‐filled using interpolation of observations from the Braemar station (57.011, − 3.396, 327 m asl). Details of the MDS and flux partitioning algorithms have been described in detail and evaluated elsewhere (Desai et al. 2008; Moffat et al. 2007; Papale et al. 2006; Reichstein et al. 2005) and are not repeated here. Standard night-time-based flux partitioning was used, although we note that this approach has been questioned recently for peatland ecosystems by Järveoja et al. (2020). Gaps in prognostic micrometeorological variables (SWin, Tair) required for MDS gap‐filling were filled using observations obtained at Braemar. Tair was used as the driving temperature for flux partitioning as a number of data gaps were present in the Tsoil record. Uncertainty for individual gap‐filled fluxes was estimated as the standard deviation of the observations averaged to fill data gaps (Reichstein et al. 2016). No uncertainties were estimated for GEP and TER as the partitioned CO2 fluxes represent modelled quantities. During the time period of monitoring, no wildfires occurred, and as grazing pressure could not be determined, we assume that NEE equals NEP.
Light and night-time respiration response analyses
NEE during the growing season (April–October) was used to parameterise a modified Michaelis–Menten equation as a function of incoming short-wave radiation (SWin), using:
where α (µmol CO2 J−1) is the ecosystem quantum yield, GPP900 (µmol CO2 m−2 s−1) is the rate of photosynthesis when SWin is 900 W m−2 and Rm (µmol CO2 m−2 s−1) is the mean ecosystem respiration rate (Carrara et al. 2003; Falge et al. 2001). We also fitted an exponential temperature response model (Lloyd and Taylor 1994) using the night-time NEE (assumed to be equivalent to ecosystem respiration), and evaluated the residuals against water table depth as per the expectation that the site would conform to findings of others that peatland nocturnal respiration is driven primarily by temperature and water table (e.g., Laine et al. 2007).
Results
Spatial representativeness
The flux footprint (predominantly into the South-westerly direction) included the area affected by erosion at all times (Fig. 1), but spring observations in particular included less of the eroded area and more of the fully vegetated surface closest to the tower location. The classification analysis of the wider unrestored area surrounding the flux tower footprint returned proportions of 83.9% vegetated ground, 15.3% bare peat in erosion gullies (in 2 dimensions, i.e., not taking into account gully sides) and 0.8% standing water bodies. The footprint captured a visually representative area of the wider eroded catchment (7 km2, based on a 5 m DTM water shed model, SI Fig. 1). Mean x peak and 90% of the footprint were 46.7 and 128.1 m at night, and 46.2 and 126.5 m during daytime, respectively. The maximum 90% of the x footprint was 1414 m at night and 770 m during daytime.
Environmental conditions
Environmental conditions at the Balmoral station are shown in Fig. 2. The mean annual air temperature at the Balmoral station during the monitoring period was approximately 1.1 °C cooler than the nearest long term weather station at Braemar (y = 0.9223x − 1.1195, r2 = 0.87), however the relationship breaks down at the cold end due to the mountain plateau versus valley bottom locations of the two respective stations (influence of e.g., temperature inversions). There is also significantly more precipitation at Balmoral than at Braemar, however we did not quantify the difference because the rain gauge at our station is not heated and therefore likely to underreport, or at least have a temporal mismatch, during snowfall periods.
Based on long-term observations from the nearby Braemar weather station (SI Fig. 3), 2018 was ranked 22nd for total annual precipitation out of 60 years of observation (1961–2020), and also followed the 5th driest year (2017) within that record. Relative to the most recent 30-year average period (1981–2010), 2018 was characterised by much lower-than-average precipitation for the first half of the year but heavy rainfall during November (SI Fig. 3). 2018 had a relatively cool start to the year, followed by an abrupt change to an extreme heat wave for the months May to July, peaking at 3.7 °C above the 1981–2010 maximum temperature during June. This was followed by relatively average temperatures during the autumn period and a slightly warmer than average winter 2018–2019. In the biomet data series from our higher altitude site, these unusual conditions were reflected in the water table dynamics, which displayed a much lower water table depth between July and November 2018 than in the other 2 years (Fig. 2). The year 2019, in contrast, was at the wetter end of the range, occupying rank 49 out of 60 years of observation (1961–2020) for Braemar, with 6 months of higher-than-average precipitation, mostly during the first half of the year. The only deviations in minimum or maximum air temperature occurred during the winter periods. In the data from our monitoring site, this is evident in a period of high air and soil temperatures in February 2019 compared with the other 2 years of observations.
We observed only a brief period of water table drawdown during late April 2019 (Fig. 2). 2020 was another year with higher-than-average spring and summer air temperatures at Braemar, as well as a milder than average early winter. Precipitation records at Braemar also show a sustained drought between March and June 2020, followed by higher-than-average summer rainfall and another short drought in September (SI Fig. 3). At our higher altitude site, water table depth records suggest significant drought between April and September 2020 and some short periods of higher-than-average air and soil temperatures in the same timeframe, compared with the other years of observation (Fig. 2).
Data capture
Data capture over the monitoring period up to 14th of November 2019 resulted in 91% coverage in flux observations. Biomet data capture was between 92 and 97% except for long wave radiation (79%) due to a faulty sensor, and snow depth (88%, Fig. 2). All data between the 14th of November to the 27th of December 2019 were unfortunately lost due to a major power supply issue. During the same time, peatland restoration activities were carried out in nearby areas, which produced wind-blown peat particles that entered the gas analyser, and which severely affected the spectral response seen in data from the Li-7200RS. Due to COVID travel restrictions at this time, it was not possible to fix this issue until August 2020 and hence NEE and LE data until mid-August 2020 had to be discarded. Biomet data capture continued during this time and was 88–91% except for shortwave (88%) and longwave (76%) radiation components. Remaining observations for the period July 2018 until November 2020 following QC were 35% (CO2), 19% (LE), 61% (H), 80% (Rg), 87% (Tair), 87% (Tsoil) and 82% (VPD) (Fig. 2).
Seasonal/diurnal patterns and light/night-time temperature response of CO2 fluxes
In general, net ecosystem exchange of CO2 (NEE) was positive, except for daytime periods between May and October (SI Fig. 4). The range of NEE was − 14.06 to 13.90 μmol m−2 s−1, with maximum net uptake from the atmosphere during daylight hours in the months of July and August and maximum emissions to the atmosphere during nocturnal periods during autumn, early winter and early spring. The 2018 drought resulted in a slight decrease in net uptake during daylight hours and slightly higher nocturnal net emissions compared with the other 2 years of observations. Due to the altitude of the site and hence frequent cloud cover, maximum modelled partitioned GEP varied significantly between years, with maxima occurring between July and September (Fig. 3). Occasional spikes in emissions were observed in winter periods, corresponding to periods following partial or complete snow cover within the footprint. Modelled Reco was noticeable higher during 2018 than 2019, as was GPP during the main growing season (Fig. 3). 2018 was a drought year, with nearly twice as much precipitation during the autumn of 2019 compared with 2018, after an early summer period of warmer than normal air temperatures in 2018 (Fig. 3). These circumstances resulted in a significantly lower summer water table in 2018 than in 2019 and 2020, lasting into the next year (Fig. 2, plotted as annual values in SI Fig. 4).
Modelled parameters for the NEE light response over the summer periods within the 18 months of data capture (Table 1) were roughly in line with other published parameters for peatland ecosystems with semi-natural vegetation cover (e.g., Pelletier et al. 2015). Due to the relatively uniform distribution of the gullies amongst the landscape within the footprint (Fig. 1) we were unable to build separate models for partial footprints that may have contained differential proportions of eroded surface area. Mean GPPmax over summer periods within the 28-month monitoring period was 7.65 µmol m−2 s−1, α was 0.031 µmol CO2 J−1, and the mean respiration rate Rm was 1.68 µmol CO2 m−2 s−1. Monthly values are given in Table 1.
The temperature response of nocturnal NEE showed only a very weak correlation with air or soil temperature, and similarly, very weak correlation of the residuals of the temperature-NEE response when analysed against water table depth dynamics (not shown). We attempted further data analysis by omitting periods with and immediately after snow fall or extreme cold snap periods (which are highly episodic in nature and often interspersed with periods of milder weather, and in some years occurring as late as mid-May). Snow of any significant depth tends to only accumulate in the gullies, which are also prone to significant frost heave. Omitting periods with or subsequent to snowfall did not improve temperature response fits. We also tried omitting data from nights with fewer than 7 available half-hours of night-time NEE (e.g., Helbig et al. 2019), as well as choosing soil temperature instead of air temperature, however neither of these improved the model fit.
Net ecosystem carbon dioxide balance
Overall, periods of net CO2 uptake from the atmosphere were limited to summer periods between late June and late August (Fig. 3), and even during this time, daily fluxes were frequently small net emissions to the atmosphere. Overall, the site was a net source of carbon dioxide of 147 g (± 9) CO2-C m−2 during the 18-month period of July 2018 to November 2019 (Fig. 3). Annual C balances calculated using a moving window for all 365 days intervals within this period ranged between 106 and 191 g CO2-C m−2 year−1. Higher annual C balances were obtained in cumulative 365-day budgets that included the end of the summer 2018 drought, while during 365-day periods with starting dates closer to November 2018, the site was a lower net source of CO2. Finally, we assumed that any additional biomass offtake term through grazing would be negligible, due to the low density of grazing animals and lack of significant browsing damage, however we do not have data to allow us to verify this.
Discussion
Observed net ecosystem exchange (NEE) of carbon dioxide in context of other reported values
This is the first report of carbon dioxide (CO2) fluxes, measured using the eddy covariance technique, in an eroded mountain peatland ecosystem. The magnitude of instantaneous CO2 fluxes and the light use response at this eroded blanket bog is within the range of previously reported figures for degraded peatlands in the temperate zone (e.g., Lafleur et al. 2003). Specific observations of CO2 fluxes from eroded peatlands are very sparse, based on chamber measurements, and either report only summer fluxes or suffer from significant data gaps over winter months due to the challenges of accessing mountain environments and carrying out manual measurements of carbon dioxide flux during snow cover. Our study represents the first publication of carbon dioxide emissions from eroded peatland that includes all of the landscape elements and at least one period of near complete winter fluxes, and suggests that net losses are generally higher than in previous, chamber-based or mapping-based, reports (Table 2).
Overall, the reported CO2 fluxes from this eroded blanket bog fall into the lower end of the same range as reported for the IPCC Wetland Supplement for temperate peat extraction sites, i.e., sites where all vegetation has been removed: the Tier 1 emission factor is 280 (110–420) g C m−2 year−1 (95% CI in brackets, IPCC 2014). Wilson et al. (2015) subsequently reported lower Tier 2 emission factors of 170 (± 47) g C m−2 year−1 for industrially extracted, entirely bare, sites and 164 (± 44) g C m−2 year−1 for domestic peat extraction sites. The high emissions from this site, where only ~ 15% of the surface was occupied by bare peat, are therefore concerning. The approach taken for inclusion of peatland emissions in UK Inventory reporting (Evans et al. 2017), due to the paucity of data from eroded peatland at the time, was to produce a weighted average emission factor for eroded peatlands, comprising calculated Tier 2 emission factors for slightly modified, semi-natural peatland and extracted, bare, peat surfaces. This approach resulted in much lower estimated CO2 emissions for eroded peatland (20 g C m−2 with a 95% confidence interval of − 10 to 60) than the results of this study suggest. It is therefore likely that direct carbon dioxide emissions from eroded peatlands in the UK are underestimated in the current UK Emissions Inventory submission. Finally, although no prescribed burning or wildfires occurred within the footprint during the years of monitoring, for a complete C budget we would also require information on the net methane fluxes to or from the atmosphere and any net losses via aquatic routes. The latter are likely to be substantial as there is evidence of ongoing erosion after rainfall events, but data on this are not available at present for the site. To the best of our knowledge, no direct observations on methane losses from eroding peatlands exist. Although Worrall et al. (2009) report a full C budget for their site, methane fluxes were estimated using an empirical relationship with water table depth. The UK GHG Inventory methodology (Evans et al. 2017) calculates net losses from eroding peatlands on the basis of a proportional flux from bare peat areas (for which the data mostly stem from cutover sites) and heather-dominated blanket bog; and uses values of 18.8 and 19.3 g C m−2 year−1, for DOC and POC lost off site via the aquatic route, respectively, based on the data synthesis of Evans et al. (2015).
Effects of short-term variation in local climate on CO2 fluxes
In a recent synthesis of GHG fluxes from peatlands, and to which this work contributed with a shorter time series of the data presented here, Evans et al. (2021) concluded that water table depth was the highest explanatory factor of net ecosystem exchange of carbon dioxide over the medium term and thus peatland rewetting could contribute significantly to efforts to reduce emissions from degraded peatlands. Water table depth monitoring at the Balmoral site only began in early August 2018 and hence we can only calculate the corresponding NEE for the moving window period from this point onwards. For the first 365-day window (4th August 2018–2019), the annual loss of CO2 was 175 g C m−2 at a mean annual water table depth of − 10.15 cm. For the latest possible 365-day window (14th November 2018–2019), the site lost 106 g C m−2 of CO2 at a corresponding mean annual water table depth of − 8.97 cm. However, as water table depth monitoring in this phase was only carried out in the direct vicinity of the instrumentation, it is likely that the mean annual water table depths are not applicable to the wider footprint. Indeed, additional monitoring results within the wider footprint, once the full complement of loggers was installed in spring 2020, show that there was a significant water level drawdown on vegetated areas adjacent to bare peat gullies during summer months (Fig. 4). The true annual mean water table depth is therefore likely to be significantly lower. Additional measurements will be required to shed further light on the likely true water table dynamics at this site, potentially in conjunction with footprint-wide hindcasting into the monitoring period reported on in this work, using modelled water table dynamics from the reported relationship between peatland water table dynamics with synthetic aperture radar C-band backscatter (e.g., Bechtold et al. 2018; Lees et al. 2021).
Atypical observations
Some atypical observations in our study system do warrant discussion and further evaluation. In contrast to published observations of relationships of night-time NEE with temperature in natural, degraded and rewetted peatlands (e.g., Herbst et al. 2013, Laine et al. 2007; Helbig et al. 2019), we were unable to find a satisfactory fit to an exponential Lloyd–Taylor model, using either air or soil temperature, nor by omitting periods during or immediately following snowfall or potential frost-heave, or by omitting nights with fewer than seven observations. We hypothesize that the most likely cause of these observations is sensor mismatch of the air/soil temperature probes and the pressure transducer (for water table depth) relative to the wider footprint, as these are placed in the area immediately surrounding the installation, which is fully vegetated and, on average, displays a more stable and higher water table than gullied areas within the footprint (Fig. 4). It is therefore possible that the reason for our inability to model night-time respiration is that respiration in the gully systems and vegetated areas are subject to temporally divergent dynamics. Gatis et al. (2019) reported, using chamber-based measurements over two growing seasons in an eroded blanket bog peatland, that both photosynthetic CO2 uptake and ecosystem respiration were lower in the eroded areas (peat pans) than in the vegetated areas (in their case, the hagged remnant areas of blanked bog surface). As the distribution of gullies within the footprint was relatively uniform amongst the prevalent wind directions, we were unable to partition the contribution of gullies versus vegetated areas akin to e.g., Pelletier et al. (2015). Gullies also act as short-term water bodies during periods of high precipitation, as well as a reservoir of snow for up to several weeks after snowmelt on the vegetated ground, so it is likely that there is a higher degree of insulation during such periods, whereas the ground heat flux during periods when the bare (black) surface is exposed is likely to be higher than on vegetated peat (e.g., Price et al. 1998). Future planned improvements to the site through additional instrumentation in a representative gully close to the existing system will hopefully allow us to better explain the observed temperature responses in this ecosystem.
In around 5% of the partitioned fluxes, we also observed some spurious and relatively large, positive, modelled GPP values after partitioning the NEE using the standard night-time method (Reichstein et al. 2005). These were largely observed in the January–April 2019 period (removed for visual clarity from Fig. 3, but available in the deposited dataset). During this period, several rapid freeze–thaw cycles occurred, combined with short-lived periods of snowfall (Fig. 2). The standard night-time partitioning method does not cope well with fast changing ecosystem responses such as rapid freeze–thaw cycles, due to the 15-day averaging period. More complex ways of modelling the partitioning of NEE, such as the dual source model of Wohlfahrt and Galvagno (2017), or the artificial neural network approach of Tramontana et al. (2021), may produce better results and also take into account recent findings of differential diel patterns of peatland ecosystem respiration (Järveoja et al. 2020). The data series for this publication was however jusrelatively limited in duration and therefore we did not attempt more complex partitioning methods at this stage.
Finally, peatland restoration work (gully reprofiling, ground smoothing, mowing for donor mulching material) was carried out during the monitoring period, although this did not extend into the footprint. It is possible that some minor interference from this work is occasionally included in our measurements, although we excluded any data where spectral responses clearly indicated loss of high-frequency data. There will be no further restoration activities in the 500 m radius surrounding the fetch and hence future data will shed further light on whether the difficulties in modelling the night-time temperatures were in relation to disturbances caused by nearby movement of soil.
Abatement potential with restoration management
In contrast to the substantial emissions in the eroded state observed here and reported to a lesser degree previously, carbon dioxide fluxes from hydrologically intact or near-intact peatlands are generally reported to be strongly net negative to the atmosphere, i.e., carbon sinks (for blanket bog e.g., Levy and Gray 2015; Helfter et al. 2015; Sottocornola and Kiely 2005, 2010). Our findings therefore support an argument for restoration of this eroded site. The most convincing example of the benefits of rewetting to date stems from Canadian peatland studies of long-term experiments by Nugent et al. (2019), Lee et al. (2017) and Strack and Zuback (2013). In a blanket bog context, Hambley et al. (2019) show net CO2 flux, monitored by eddy covariance, from former forestry-converted sites returning to similar values to that of a nearby undisturbed low altitude blanket bog. Wilson et al. (2016) and Renou-Wilson et al. (2019) similarly show significant mitigation of carbon dioxide emissions following rewetting of former peat extraction sites.
The likely impacts of a ‘do nothing’ scenario as opposed to restoration of this and other eroded blanket peatlands in the global context of climatic change demands further consideration. It is presently unclear whether erosion can be stabilised or reversed (Harris and Baird 2019; Milner et al. 2020). In addition, restoration of upland and mountain peatland locations carries a not inconsiderable cost due to the limited accessibility in space and time. On the other hand, current scenarios for the UK include both an increased frequency and severity of extreme rainfall events (Lowe et al. 2018) as well as summer droughts and potentially higher incidence of wildfires (Perry et al. 2022). Widespread drying of European peatlands over the last 200 years, as a consequence of compound factors such as drainage or other management in combination with climatic changes, has been demonstrated by Swindles et al. (2019) using testate amoeba records. Heavy rain events have been documented to lead to new peat erosion (e.g., Hulme and Blyth 2017) and hence direct carbon losses, leaving the newly eroded peat surface exposed to other forces that could cause additional wind-blown and wind-driven rain erosion (Foulds and Warburton 2007) and increased on-site gaseous emissions (Evans et al. 2006; Gallego-Sala and Prentice 2013). Indeed, observations on this site suggested significant impact of the Storm Frank intense rainfall (29–30 December 2015) around the area of what is currently the flux tower footprint. There were also negative impacts on restoration work on a nearby location, where the rainfall washed out nearly all of a thin mulch of vegetation that had been laid onto bare peat areas in an initial restoration effort (Peatland Action data, S. Corcoran, Cairngorms National Park Authority, pers. Comm.). Using a peat erosion model (PESERA-PEAT) with seven different global climate models, Li et al. (2017) found that erosion rates for many Northern peatlands may increase by the 2080s.
The pre-restoration state of our monitored eroded mountain blanket bog is that of a significant net CO2 source to the atmosphere and annual carbon budgets that contained more of the 2018 drought period were nearly twice as high as budgets that included a period of more average climatic conditions. If our findings are representative of the wider state of eroded peatlands across the UK, such areas cover 3283 km2 in the UK (Evans et al. 2017) and thus may presently be considerable contributors to the UKs net CO2 emissions from peatlands and the land use (LULUCF) sector generally. This work therefore contributes to a growing body of evidence that current total peatland emissions across Europe are largely characterised by the significant emissions from degraded areas, which completely overrides any remaining sequestration potential from undamaged peatland areas (Leifeld and Menichetti 2018), and thereby strengthens calls for mitigation of their carbon emissions. Future discussions and prioritisation of restoration activities, however, also need to interrogate the carbon benefits of restoration of eroded upland peatlands against the significant fossil fuel emission cost of restoration. At present, restoration of such eroded peatlands is still at early stages, with few sites that have been rewetted more than a handful of years ago, and so the carbon benefits of restoration can also not yet be assessed.
Data availability
The annual budget of a shorter, daily, timeseries of this site was used in a recent synthesis publication (Evans et al. 2021). The 30-min processed data for this manuscript are available from the UK Environmental Information Data Centre (EIDC), with the identifier: https://doi.org/10.5285/a65f6241-bfc3-430a-ae93-ccb7c63c1a53.
References
Baldocchi D (2003) Assessing the eddy covariance technique for evaluating carbon dioxide exchange rates of ecosystems: past, present and future. Glob Change Biol 9(4):479–492. https://doi.org/10.1046/j.1365-2486.2003.00629.x
Bechtold M, Schlaffer S, Toemeyer B, De Lannoy G (2018) Inferring water table depth dynamics from ENVISAT-ASAR C-band backscatter over a range of peatlands from deeply-drained to natural conditions. Remote Sens 10(4):536. https://doi.org/10.3390/rs10040536
Beck H, Zimmermann N, McVicar T, Vergopolan N, Berg A, Wood EF (2018) Present and future Köppen-Geiger climate classification maps at 1-km resolution. Sci Data 5:180214. https://doi.org/10.1038/sdata.2018.214
Birnie RV (1993) Erosion rates on bare peat surfaces in Shetland. Scott Geogr Mag 109(1):12–17. https://doi.org/10.1080/00369229318736871
Bradshaw R, McGee E (1988) The extent and time-course of mountain blanket peat erosion in Ireland. New Phytol 108:219–224. https://doi.org/10.1111/j.1469-8137.1988.tb03699.x
Bragg O, Tallis JH (2001) The sensitivity of peat-covered upland landscapes. CATENA 42:345–360. https://doi.org/10.1016/S0341-8162(00)00146-6
Carling PA, Glaister MS, Flintham TP (1997) The erodibility of upland soils and the design of preafforestation drainage networks in the United Kingdom. Hydrol Process 11(15):1963–1980. https://doi.org/10.1002/(SICI)1099-1085(199712)11:15%3C1963::AID-HYP542%3E3.0.CO;2-M
Carrara A, Kowalski AS, Neirynck J, Janssens IA, Yuste JC, Ceulemans R (2003) Net ecosystem CO2 exchange of mixed forest in Belgium over 5 years. Agric For Meteorol 119(3–4):209–227. https://doi.org/10.1016/S0168-1923(03)00120-5
Clay GD, Worrall F, Rose R (2010) Carbon budgets of an upland blanket bog managed by prescribed fire. J Geophys Res 115:G04037. https://doi.org/10.1029/2010JG001331
Clay GD, Dixon S, Evans MG, Rowson JG, Worrall F et al (2011) Carbon dioxide fluxes and DOC concentrations of eroding blanket peat gullies. Earth Surf Process Landf 37:562–571. https://doi.org/10.1002/esp.3193
Congedo L (2016) Semi-automatic classification plugin documentation. https://doi.org/10.13140/RG.2.2.29474.02242/1
Desai AR, Richardson AD, Moffat AM, Kattge J, Hollinger DY, Barr A, Falge E, Noormets A, Papale D, Reichstein M, Stauch VJ (2008) Cross-site evaluation of eddy covariance GPP and RE decomposition techniques. Agric For Meteorol 148(6–7):821–838. https://doi.org/10.1016/j.agrformet.2007.11.012
Dixon SD, Qassim SM, Rowson JG et al (2014) Restoration effects on water table depths and CO2 fluxes from climatically marginal blanket bog. Biogeochemistry 118:159–176. https://doi.org/10.1007/s10533-013-9915-4
Ellis CJ, Tallis JH (2001) Climatic control of peat erosion in a North Wales blanket mire. New Phytol 152:313–324
Evans M, Lindsay J (2010) Impact of gully erosion on carbon sequestration in blanket peatlands. Clim Res 45:31–41. https://doi.org/10.3354/cr00887
Evans M, Warburton J (2007) Geomorphology of upland peat: erosion, form and landscape change. Blackwell Publishing Ltd, Oxford
Evans M, Warburton J, Yang J et al (2006) Eroding blanket peat catchments: global and local implications of upland organic sediment budgets. Geomorphology 79:45–57. https://doi.org/10.1016/j.geomorph.2005.09.015
Evans CD, Renou-Wilson F, Strack M (2015) The role of waterborne carbon in the greenhouse gas balance of drained and re-wetted peatlands. Aquat Sci 78(3):573–590. https://doi.org/10.1007/s00027-015-0447-y
Evans C, Artz R, Moxley J, Smyth M-A, Taylor E, Archer N, Burden A, Williamson J, Donnelly D, Thomson A, Buys G, Malcolm H, Wilson D, Renou-Wilson F, Potts J (2017) Implementation of an emission inventory for UK peatlands. Report to the Department for Business, Energy and Industrial Strategy, Centre for Ecology and Hydrology, Bangor. 88pp. Available at https://naei.beis.gov.uk/reports/reports?report_id=980
Evans CD, Peacock M, Baird AJ, Artz RRE, Burden A et al (2021) Overriding water table control on managed peatland greenhouse gas emissions. Nature 593:548–552. https://doi.org/10.1038/s41586-021-03523-1
Falge E, Baldocchi D, Olson R et al (2001) Gap filling strategies for defensible annual sums of net ecosystem exchange. Agric For Meteorol 107:43–69. https://doi.org/10.1016/S0168-1923(00)00225-2
Finkelstein PL, Sims PF (2001) Sampling error in eddy correlation flux measurements. J Geophys Res 106(D4):3503. https://doi.org/10.1029/2000JD900731
Foken T, Göckede M, Mauder M, Mahrt L, Amiro B, Munger W (2004) Post-field data quality control. In: Lee X, Massman W, Law B (eds) Handbook of micrometeorology. Kluwer Academic Publishers, Dordrecht, pp 181–208
Foulds SA, Warburton J (2007) Wind erosion of blanket peat during a short period of surface desiccation (North Pennines, Northern England). Earth Surf Process Landf 32:481–488. https://doi.org/10.1002/esp.1422
Fratini G, Mauder M (2014) Towards a consistent eddy-covariance processing: an intercomparison of EddyPro and TK3. Atmos Meas Tech 7(7):2273–2281
Gallego-Sala AV, Prentice IC (2013) Blanket bog biome endangered by climate change. Nat Clim Change 3:152–155. https://doi.org/10.1038/nclimate1672
Gatis N, Benaud P, Ashe J, Luscombe DJ, Grand-Clement E, Hartley IP, Anderson K, Brazier RE (2019) Assessing the impact of peat erosion on growing season CO2 fluxes by comparing erosional peat pans and surrounding vegetated haggs. Wetl Ecol Manag 27:187–205. https://doi.org/10.1007/s11273-019-09652-9
Giorgi F, Raffaele F, Coppola E (2019) The response of precipitation characteristics to global warming from climate projections. Earth Syst Dynam 10:73–89. https://doi.org/10.5194/esd-10-73-2019
Hambley G, Andersen R, Levy P, Saunders M, Cowie N, Teh YA, Hill T (2019) Net ecosystem exchange from two formerly afforested peatlands undergoing restoration in the Flow Country of northern Scotland. Mires Peat 23:1–14. https://doi.org/10.19189/MaP.2018.DW.346
Harris A, Baird AJ (2019) Microtopographic drivers of vegetation patterning in blanket peatlands recovering from erosion. Ecosystems 22:1035–1054. https://doi.org/10.1007/s10021-018-0321-6
Helbig M, Humphreys ER, Todd A (2019) Contrasting temperature sensitivity of CO2 exchange in peatlands of the Hudson Bay lowlands, Canada. JGR Biogeosci 124:2126–2143. https://doi.org/10.1029/2019JG005090
Helfter C, Campbell C, Dinsmore KJ, Drewer J, Coyle M, Anderson M, Skiba U, Nemitz E, Billett MF, Sutton MA (2015) Drivers of long-term variability in CO2 net ecosystem exchange in a temperate peatland. Biogeosciences 12:1799–1811. https://doi.org/10.5194/bg-12-1799-2015
Herbst M, Friborg T, Schelde K, Jensen R, Ringgaard R, Vasquez V, Thomsen AG, Soegaard H (2013) Climate and site management as driving factors for the atmospheric greenhouse gas exchange of a restored wetland. Biogeosciences 10:39–52. https://doi.org/10.5194/bg-10-39-2013
Hulme PD, Blyth AW (2017) Observations on the erosion of blanket peat in Yell, Shetland. Geogr Ann Ser B 67:1985. https://doi.org/10.1080/04353676.1985.11880135
IPCC (2014) 2013 supplement to the 2006 IPCC guidelines for National Greenhouse Gas Inventories: wetlands. In: Hiraishi T, Krug T, Tanabe K, Srivastava N, Baasansuren J, Fukuda M, Troxler TG (eds). IPCC, Switzerland. https://www.ipcc.ch/site/assets/uploads/2018/03/Wetlands_Supplement_Entire_Report.pdf
IPCC (2018) Special report: global warming of 1.5 °C. https://www.ipcc.ch/sr15/
Järveoja J, Nilson MB, Crill PM, Peichl M (2020) Bimodal diel pattern in peatland ecosystem respiration rebuts uniform temperature response. Nat Commun 11:4255. https://doi.org/10.1038/s41467-020-18027-1
Kljun N, Calanca P, Rotach MW, Schmid HP (2015) A simple two-dimensional parameterisation for Flux Footprint Prediction (FFP). Geosci Model Dev 8:3695–3713. https://doi.org/10.5194/gmd-8-3695-2015
Lafleur PM, Roulet NT, Bubier JL, Frolking S, Moore TR (2003) Interannual variability in the peatland-atmosphere carbon dioxide exchange at an ombrotrophic bog. Glob Biogeochem Cycles 17:1036. https://doi.org/10.1029/2002GB001983
Laine A, Byrne KA, Kiely G, Tuittila E-S (2007) Patterns in vegetation and CO2 dynamics along a water level gradient in a lowland blanket bog. Ecosystems 10:890–905. https://doi.org/10.1007/s10021-007-9067-2
Lee S-C, Christen A, Black AT, Johnson MS, Jassal RS, Ketler R, Nesic Z, Merkens M (2017) Annual greenhouse gas budget for a bog ecosystem undergoing restoration by rewetting. Biogeosciences 14:2799–2814. https://doi.org/10.5194/bg-14-2799-2017
Lees KJ, Artz RRE, Chandler D, Aspinall T, Boulton CA, Buxton J, Cowie NR, Lenton TM (2021) Using remote sensing to assess peatland resilience by estimating soil surface moisture and drought recovery. Sci Total Environ 761:143312. https://doi.org/10.1016/j.scitotenv.2020.143312
Leifeld J, Menichetti L (2018) The underappreciated potential of peatlands in global climate change mitigation strategies. Nat Commun 9:1071. https://doi.org/10.1038/s41467-018-03406-6
Leifeld J, Wüst-Galley C, Page S et al (2019) Intact and managed peatland soils as a source and sink of GHGs from 1850 to 2100. Nat Clim Change 9:945–947. https://doi.org/10.1038/s41558-019-0615-5
Leuning R, Gorsel EV, Massman WJ, Isaac PR (2012) Reflections on the surface energy imbalance problem. Agric For Meteorol 156:65–74. https://doi.org/10.1016/j.agrformet.2011.12.002
Levy PE, Gray A (2015) Greenhouse gas balance of a semi-natural peatbog in northern Scotland. Environ Res Lett. https://doi.org/10.1088/1748-9326/10/9/094019
Li P, Holden J, Irvine B, Mu X et al (2017) Erosion of Northern Hemisphere blanket peatlands under 21st-century climate change. Geophys Res Lett 44:3615–3623. https://doi.org/10.1002/2017GL072590
Li-COR (2015) Li-7200 RS enclosed CO2/H2O analyser, Instruction Manual. Li-COR Biosciences, Lincoln, Nebraska. Available at https://licor.app.boxenterprise.net/s/k8b90wiwdhietarx04qd
Limpens J, Berendse F, Blodau C, Canadell JG, Freeman C, Holden J, Roulet N, Rydin H, Schaepman-Strub G (2008) Peatlands and the carbon cycle: from local processes to global implications—a synthesis. Biogeosciences 5:1475–1491. https://doi.org/10.5194/bg-5-1475-2008
Lloyd J, Taylor JA (1994) On the temperature dependence of soil respiration. Funct Ecol 8:315–323. https://doi.org/10.2307/2389824
Loisel J, Gallego-Sala AV, Amesbury MJ et al (2021) Expert assessment of future vulnerability of the global peatland carbon sink. Nat Clim Change 11:70–77. https://doi.org/10.1038/s41558-020-00944-0
Lowe JA, Bernie D, Bett P, Bricheno L et al. (2018) UKCP18 national climate projections. Met Office Hadley Centre, Exeter. https://www.metoffice.gov.uk/research/approach/collaboration/ukcp/index
Mauder M, Cuntz M, Drüe C, Graf A, Rebmann C, Schmid HP, Schmidt M, Steinbrecher R (2013) A strategy for quality and uncertainty assessment of long-term eddy-covariance measurements. Agric For Meteorol 169:122–135. https://doi.org/10.1016/j.agrformet.2012.09.006
McNamara NP, Plant T, Oakley S, Ward S, Wood C, Ostle N (2008) Gully hotspot contribution to landscape methane (CH4) and carbon dioxide (CO2) fluxes in a northern peatland. Sci Total Environ 404:354–360. https://doi.org/10.1016/j.scitotenv.2008.03.015
Milner AM, Baird AJ, Green SM, Swindles GT, Young DM, Sanderson NK, Timmins MSI, Gałka M (2020) A regime shift from erosion to carbon accumulation in a temperate northern peatland. J Ecol 109:125–138. https://doi.org/10.1111/1365-2745.13453
Moffat AM, Papale D, Reichstein M, Hollinger DY, Richardson AD, Barr AG, Beckstein C, Braswell BH, Churkina G, Desai AR, Falge E, Gove JH, Heimann M, Hui D, Jarvis AJ, Kattge J, Noormets A, Stauch VJ (2007) Comprehensive comparison of gap-filling techniques for eddy covariance net carbon fluxes. Agric For Meteorol 147(3–4):209–232. https://doi.org/10.1016/j.agrformet.2007.08.011
Moncrieff JB, Massheder JM, de Bruin H, Elbers J, Friborg T, Heusinkveld B, Kabat P, Scott S, Soegaard H, Verhoef A (1997) A system to measure surface fluxes of momentum, sensible heat, water vapour and carbon dioxide. J Hydrol 188–189:589–611. https://doi.org/10.1016/S0022-1694(96)03194-0
Moncrieff JB, Clement R, Finnigan J, Meyers T (2004) Averaging, detrending and filtering of eddy covariance time series. In: Lee X, Massman WJ, Law BE (eds) Handbook of micrometeorology: a guide for surface flux measurements. Kluwer Academic, Dordrecht, pp 7–31
Nakai T, Shimoyama K (2012) Ultrasonic anemometer angle of attack errors under turbulent conditions. Agric For Meterol 162–163:14–26. https://doi.org/10.1016/j.agrformet.2012.04.004
Nugent KA, Strachan IB, Roulet NT, Strack M, Frolking S, Helbig M (2019) Prompt active restoration of peatlands substantially reduces climate impact. Environ Res Lett 14:12403. https://doi.org/10.1088/1748-9326/ab56e6
Papale D, Reichstein M, Aubinet M, Canfora E, Bernhofer C, Kutsch W, Longdoz B, Rambal S, Valentini R, Vesala T, Yakir D (2006) Towards a standardized processing of Net Ecosystem Exchange measured with eddy covariance technique: algorithms and uncertainty estimation. Biogeosciences 3(4):571–583. https://doi.org/10.5194/bg-3-571-2006
Parry LE, Holden J, Chapman PJ (2014) Restoration of blanket peatlands. J Environ Manag 133:193–205. https://doi.org/10.1016/j.jenvman.2013.11.033
Pastukhov AV, Kaverin DA (2016) Ecological state of peat plateaus in northeastern European Russia. Russ J Ecol 47:125–132. https://doi.org/10.1134/S1067413616010100
Paustian K, Lehmann J, Ogle S, Reay D, Robertson P, Smith P (2016) Climate-smart soils. Nature 532:49–57. https://doi.org/10.1038/nature17174
Pelletier L, Strachan IB, Roulet NT et al (2015) Effect of open water pools on ecosystem scale surface-atmosphere carbon dioxide exchange in a boreal peatland. Biogeochemistry 124:291–304. https://doi.org/10.1007/s10533-015-0098-z
Perry MC, Vanvye E, Betts RA, Palin EJ (2022) Past and future trends in fire weather for the UK. Nat Hazards Earth Syst Sci 22:559–575. https://doi.org/10.5194/nhess-22-559-2022
Price J, Rochefort L, Quinty F (1998) Energy and moisture considerations on cutover peatlands: surface microtopography, mulch cover and Sphagnum regeneration. Ecol Eng 10:293–312. https://doi.org/10.1016/S0925-8574(98)00046-9
R Core Team (2017) R: a language and environment for statistical computing. R Foundation for Statistical Computing, Vienna. https://www.R-project.org/
Reichstein M, Falge E, Baldocchi D, Papale D, Aubinet M, Berbigier P, Bernhofer C, Buchmann N, Gilmanov T, Granier A, Grünwald T, Havránková K, Ilvesniemi H, Janous D, Knohl A, Laurila T, Lohila A, Loustau D, Matteucci G, Meyers T, Miglietta F, Ourcival J-M, Pumpanen J, Rambal S, Rotenberg E, Sanz M, Tenhunen J, Seufert G, Vaccari F, Vesala T, Yakir D, Valentini R (2005) On the separation of net ecosystem exchange into assimilation and ecosystem respiration: review and improved algorithm. Glob Change Biol 11:1424–1439. https://doi.org/10.1111/j.1365-2486.2005.001002.x
Reichstein M, Moffat AM, Wutzler T, Sickel K (2016) REddyProc: data processing and plotting utilities of (half-) hourly eddy-covariance measurements. https://r-forge.r-project.org/projects/reddyproc/
Renou-Wilson F, Moser G, Fallon D, Farrell CA, Müller C, Wilson D (2019) Rewetting degraded peatlands for climate and biodiversity benefits: results from two raised bogs. Ecol Eng 127:547–560. https://doi.org/10.1016/j.ecoleng.2018.02.014
Rivington M, Spencer M (2020) Snow cover and climate change on Cairngorm Mountain: a report for the Cairngorms National Park Authority. The James Hutton Institute, Aberdeen. Available at https://cairngorms.co.uk/wp-content/uploads/2020/07/Snow-cover-and-climate-change-on-Cairngorm-Report-v3-3-6-20-with-appendix.pdf
Rodwell JS (ed) (1991) British plant communities: volume 2, mires and heaths. Joint Nature Conservation Council, Cambridge University Press, Cambridge
Sachs L (2013) Angewandte Statistik—Anwendung statistischer Methoden. Springer, Berlin. https://doi.org/10.2307/2533881
Schotanus P, Nieuwstadt FTM, Bruin DE (1983) Temperature measurement with a sonic anemometer and its application to heat and moisture fluxes. Bound Layer Meteorol 26:81–93. https://doi.org/10.1007/BF00164332
Selkirk JM, Saffigna LR (2018) Wind and water erosion of a peat and sand area on subantarctic Macquarie Island. Arct Antarct Alp Res 31:1999. https://doi.org/10.1080/15230430.1999.12003326
Sottocornola M, Kiely G (2005) An Atlantic blanket bog is a modest CO2 sink. Geophys Res Lett 32:L23804. https://doi.org/10.1029/2005GL024731
Sottocornola M, Kiely G (2010) Hydro-meteorological controls on the CO2 exchange variation in an Irish blanket bog. Agric For Meteorol 150:287–297. https://doi.org/10.1016/j.agrformet.2009.11.013
Stevenson AC, Jones VJ, Battarbee RW (1990) The cause of peat erosion: a palaeolimnological approach. New Phytol 114:727–735. https://doi.org/10.1111/j.1469-8137.1990.tb00445.x
Stoy PC, Katul GG, Siqueira MBS, Juang JY, McCarthy HR, Kim HS, Oishi C, Oren R (2005) Variability in net ecosystem exchange from hourly to inter-annual time scales at adjacent pine and hardwood forests: a wavelet analysis. Tree Physiol 25(7):887–902. https://doi.org/10.1093/treephys/25.7.887
Strack M, Zuback YCA (2013) Annual carbon balance of a peatland 10 yr following restoration. Biogeosciences 10:2885–2896. https://doi.org/10.5194/bg-10-2885-2013
Swindles GT, Morris PJ, Mullan DJ et al (2019) Widespread drying of European peatlands in recent centuries. Nat Geosci 12:922–928. https://doi.org/10.1038/s41561-019-0462-z
Tallis JH (1998) Growth and degradation of British and Irish blanket mires. Environ Rev 6:2. https://doi.org/10.1139/a98-006
Tomlinson RW (2009) The erosion of peat in the uplands of Northern Ireland. Ir Geogr 14:1981. https://doi.org/10.1016/j.agrformet.2012.04.004
Tramontana G, Migliavacca M, Jung M, Reichstein M, Keenan TF, Camps-Valls G, Ogee J, Verreist J, Papale D (2021) Partitioning net carbon dioxide fluxes into photosynthesis and respiration using neural networks. Glob Change Biol 26:5235–5253. https://doi.org/10.1111/gcb.15203
Vickers D, Mahrt L (1997) Quality control and flux sampling problems for tower and aircraft data. J Atmos Ocean Technol 14(3):512–526. https://doi.org/10.1175/1520-0426(1997)014%3c0512:QCAFSP%3e2.0.CO;2
Waddington JM, Morris PJ, Kettridge N, Granath G, Thompson DK, Moore PA (2015) Hydrological feedbacks in northern peatlands. Ecohydrology 8(1):113–127. https://doi.org/10.1002/eco.1493
Webb EK, Pearman GI, Leuning R (1980) Correction of flux measurements for density effects due to heat and water vapour transfer. Q J R Meteorol Soc 106(447):85–100. https://doi.org/10.1002/qj.49710644707
Wilczak JM, Oncley SP, Stage SA (2001) Sonic anemometer tilt correction algorithms. Bound Layer Meteorol 99(1):127–150. https://doi.org/10.1023/A:1018966204465
Wilson P, Clark R, McAdam JH, Cooper EA (1993) Soil erosion in the Falkland Islands: an assessment. Appl Geogr 13:329–352. https://doi.org/10.1016/0143-6228(93)90036
Wilson K, Goldstein A, Falge E, Aubinet M, Baldocchi D, Berbigier P, Bernhofer C, Ceulemans R, Dolman H, Field C, Grelle A, Ibrom A, Law BE, Kowalski A, Meyers T, Moncrieff J, Monson R, Oechel W, Tenhunen J, Valentini R, Verma S (2002) Energy balance closure at FLUXNET sites. Agric For Meteorol 113(1–4):223–243. https://doi.org/10.1016/S0168-1923(02)00109-0
Wilson D, Dixon SD, Artz RRE, Smith TEL, Evans CD, Owen HJF, Archer E, Renou-Wilson F (2015) Derivation of greenhouse gas emission factors for peatlands managed for extraction in the Republic of Ireland and the United Kingdom. Biogeosciences 12:5291–5308. https://doi.org/10.5194/bg-12-5291-2015
Wilson D, Farrell CA, Fallon D, Moser M, Müller C, Renou-Wilson F (2016) Multiyear greenhouse gas balances at a rewetted temperate peatland. Glob Change Biol 22:4080–4095. https://doi.org/10.1111/gcb.13325
Wohlfahrt G, Galvagno M (2017) Revisiting the choice of the driving temperature for eddy covariance CO2 flux partitioning. Agric For Meteorol 237–238:135–142. https://doi.org/10.1016/j.agrformet.2017.02.012
Worrall F, Burt TP, Rowson JG, Warburton J, Adamson JK (2009) The multi-annual carbon budget of a peat-covered catchment. Sci Total Environ 407:4084–4094. https://doi.org/10.1016/j.scitotenv.2009.03.008
Worrall F, Rowson JG, Evans MG, Pawson R, Daniels S, Bonn A (2011) Carbon fluxes from eroding peatlands—the carbon benefit of revegetation following wildfire. Earth Surf Process Landf 36:01487–01498. https://doi.org/10.1002/esp.2174
Yu ZC (2012) Northern peatland carbon stocks and dynamics: a review. Biogeosciences 9:4071–4085. https://doi.org/10.5194/bg-9-4071-2012
Yunker MB, Macdonald RW, Fowler BR, Cretney WJ, Dallimore SR, McLaughlin FA et al (1991) Geochemistry and fluxes of hydrocarbons to the Beaufort Sea shelf: a multivariate comparison of fluvial inputs and coastal erosion of peat using principal components analysis. Geochim Cosmochim Acta 55:255–273. https://doi.org/10.1016/0016-7037(91)90416-3
Acknowledgements
We are grateful to Balmoral Estate for access permissions and logistic aid with site instrumentation and maintenance, Dr Ben Winterbourn for assistance in establishing the field site and Stephen Corcoran at the Cairngorms National Park Authority for access to restoration site boundary data, peat depth measurements, wider site observations and critical comments on an earlier version of this manuscript. Dr Jonathan Ball kindly provided guidance on image classification. We thank two anonymous reviewers whose comments greatly improved this manuscript.
Funding
RA, GDS and MC were part supported for this project by the Rural & Environment Science and Analytical Division of the Scottish Government (Strategic Research Programme 2016–2021), with RA providing additional, unfunded, time. RM was supported by the Natural Environment Research Council Award Number NE/R016429/1 as part of the UK-SCAPE programme delivering National Capability. We gratefully acknowledge NatureScot Peatland Action funding for the initial acquisition of the eddy covariance equipment.
Author information
Authors and Affiliations
Contributions
RA and RM were responsible for experiment design, GDS and MC carried out site maintenance, RA, MC and RM shared data processing and analysis elements, RA led the writing of this manuscript, with contributions from all co-authors.
Corresponding author
Ethics declarations
Conflict of interest
There are no competing interests to declare. None of the authors received direct remuneration for any advisory roles undertaken or had any financial or non-financial interests in organisations that may be affected by the results of this study.
Additional information
Responsible Editor: Brian Branfireun.
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Supplementary Information
Below is the link to the electronic supplementary material.

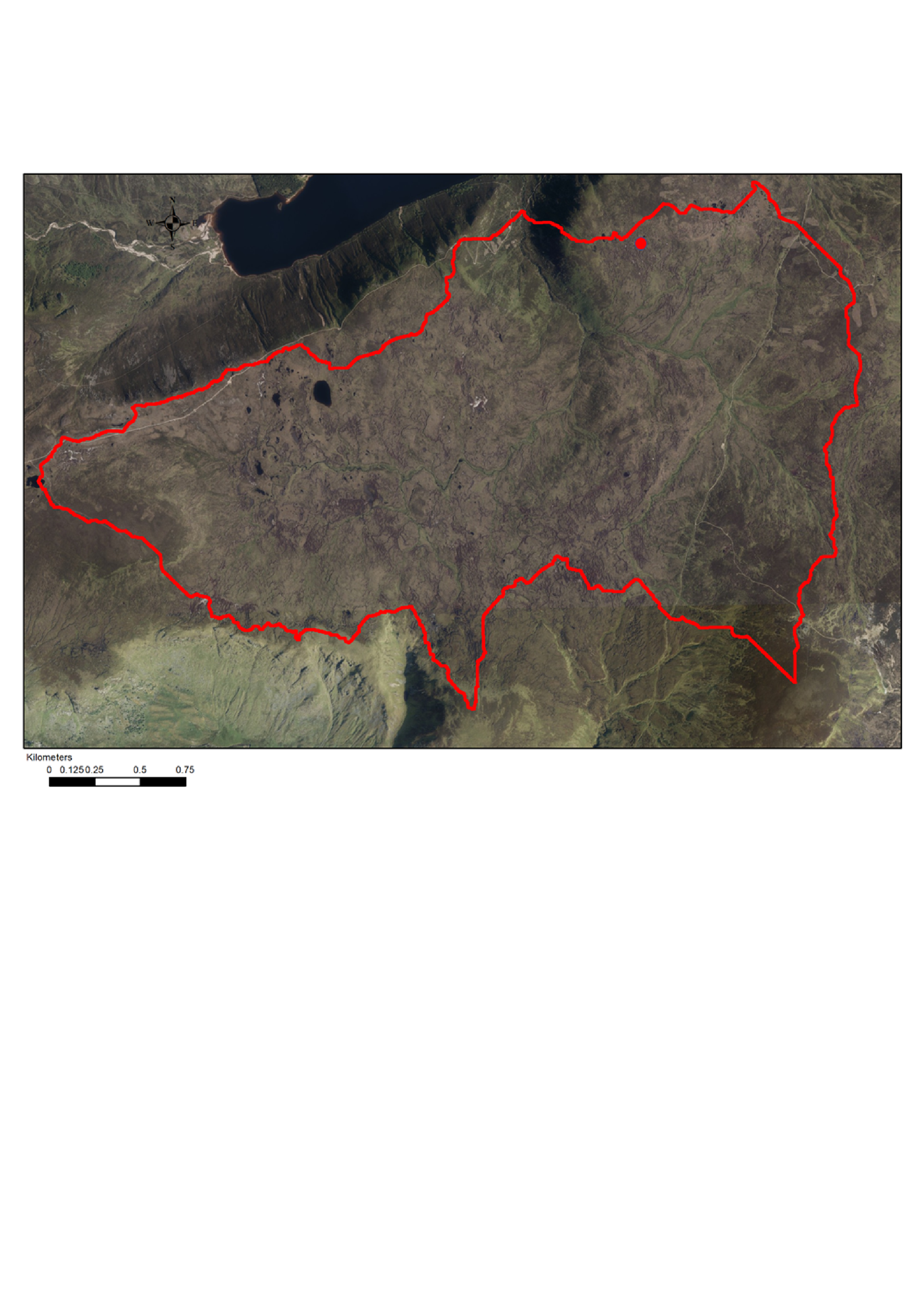

Supplementary file1 (PNG 2413 KB)— SI Figure 1. Getmapping aerial imagery excerpt (95% of the coverage from 2019, 5% coverage at southern end from 2020) showing the wider catchment area (7 km2) within which the monitoring equipment (red circle) is located. The watershed model used 5 m DTM from the Ordnance Survey.

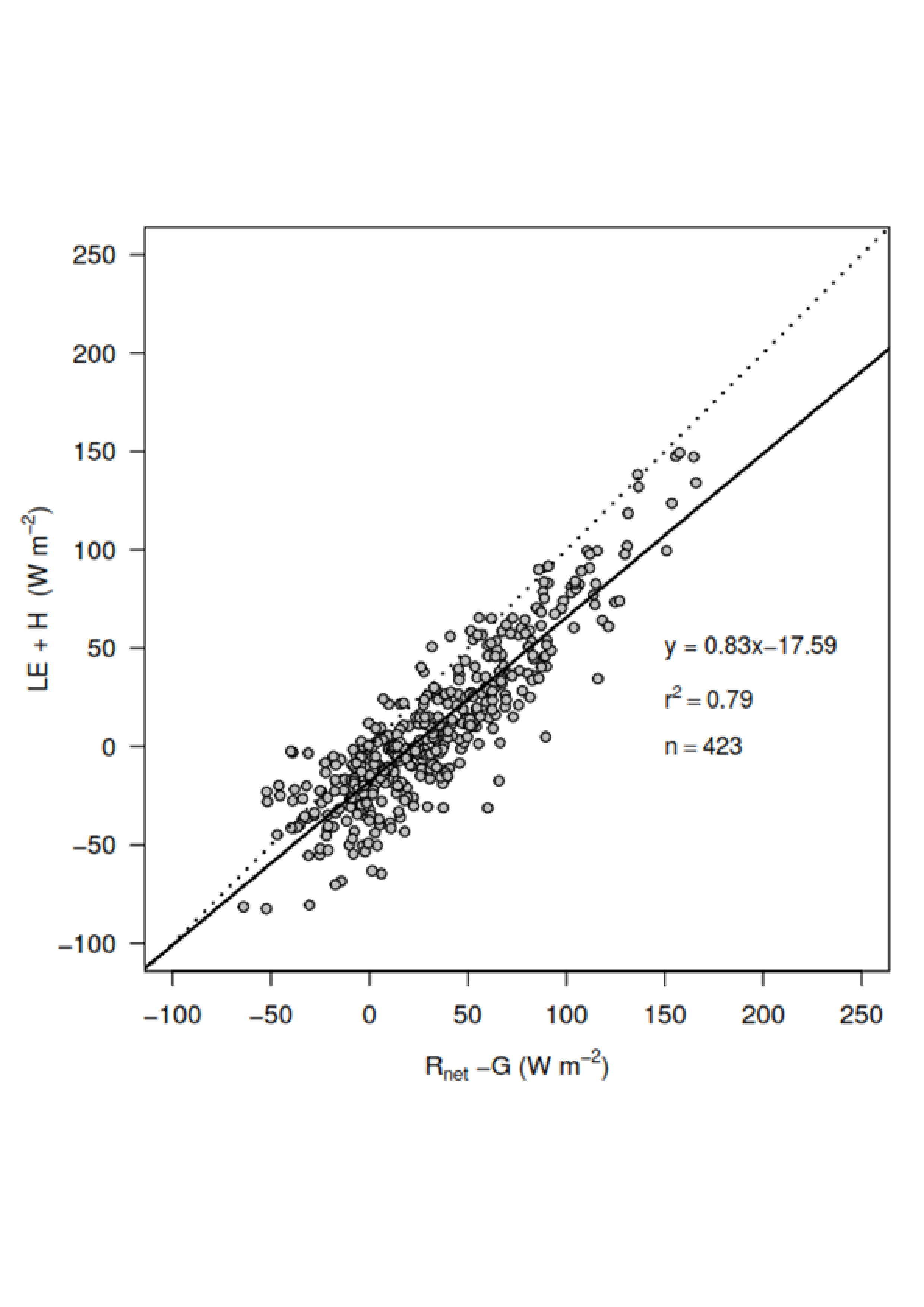

Supplementary file2 (PNG 171 KB)—SI Figure 2. Energy balance closure at the eroded peatland location, using daily sums to include storage terms. The regression equation, determination coefficient (r2), and number of data points (n) are shown. Data include all 30‐min flux observations that have passed quality control for 30‐min periods when all energy balance terms were available. The solid black line shows the linear regression. The dashed line shows the 1:1 linear relationship. The EBC based on half-hourly data was y = 0.64x − 11.8, r2 = 0.71, using 22807 observations (not shown).
Supplementary file3 (PNG 255 KB)—SI Figure 3. Monthly average of daily maximum (upper), and minimum (middle) air temperature as well as monthly sum of precipitation (lower) at the nearby Braemar weather station, for the observation years compared with the 1981–2010 average.

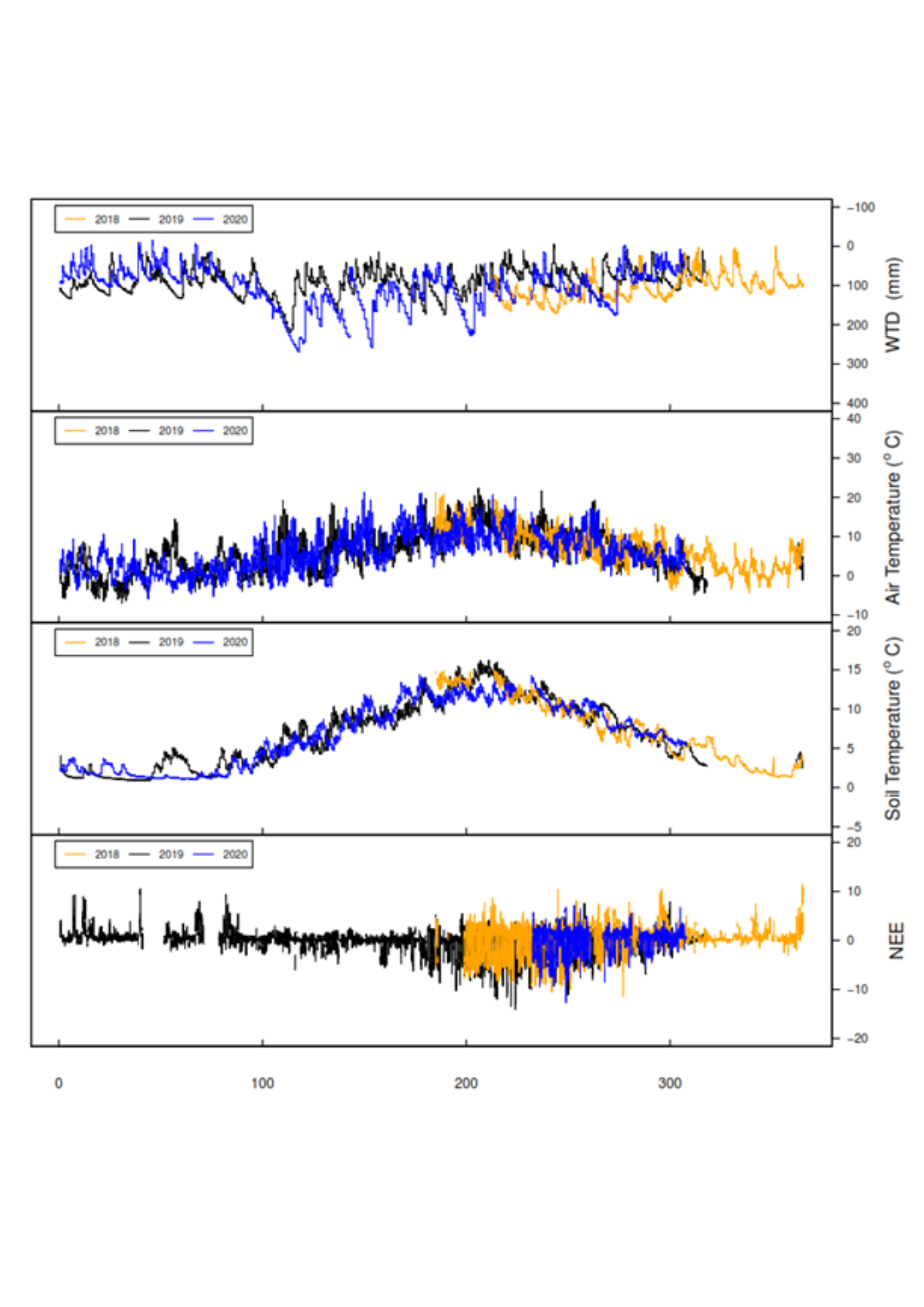

Supplementary file4 (PNG 2459 KB)—SI Figure 4. Year-on-year comparison of measured WTD, air and soil temperature, and NEE, at Balmoral. X-axis depicts Day of Year.
