Repurposed FDA-approved drugs targeting genes influencing aging can extend lifespan and healthspan in rotifers
- 1.7k Downloads
Pharmaceutical interventions can slow aging in animals, and have advantages because their dose can be tightly regulated and the timing of the intervention can be closely controlled. They also may complement environmental interventions like caloric restriction by acting additively. A fertile source for therapies slowing aging is FDA approved drugs whose safety has been investigated. Because drugs bind to several protein targets, they cause multiple effects, many of which have not been characterized. It is possible that some of the side effects of drugs prescribed for one therapy may have benefits in retarding aging. We used computationally guided drug screening for prioritizing drug targets to produce a short list of candidate compounds for in vivo testing. We applied the virtual ligand screening approach FINDSITEcomb for screening potential anti-aging protein targets against FDA approved drugs listed in DrugBank. A short list of 31 promising compounds was screened using a multi-tiered approach with rotifers as an animal model of aging. Primary and secondary survival screens and cohort life table experiments identified four drugs capable of extending rotifer lifespan by 8–42%. Exposures to 1 µM erythromycin, 5 µM carglumic acid, 3 µM capecitabine, and 1 µM ivermectin, extended rotifer lifespan without significant effect on reproduction. Some drugs also extended healthspan, as estimated by mitochondria activity and mobility (swimming speed). Our most promising result is that rotifer lifespan was extended by 7–8.9% even when treatment was started in middle age.
KeywordsAging Re-purposing drugs Rotifera Lifespan Healthspan Aging genes
Because of the infirmities associated with human aging, there continues to be great interest in interventions that can mitigate the process. Of the three approaches, genetic manipulation continues to make important contributions to the scientific understanding of the mechanisms of aging, whereas environmental and pharmacological interventions offer the most promise for practical benefits. Little is known about how pharmaceutical interventions slow aging in animals, but they have advantages because their dose can be tightly regulated and the timing of the intervention can be closely controlled. Pharmacological interventions also may complement environmental interventions like caloric restriction by acting additively.
A fertile field to search for therapies that can slow aging is the pool of FDA approved drugs whose safety has been thoroughly investigated (Armanios et al. 2015). All drugs bind to several protein targets causing multiple effects (Zhou et al. 2015), many of which have not been biologically characterized. It is possible that some of the side effects of drugs prescribed for one type of therapy may have benefits in slowing aging. The field of re-purposing approved drugs for other therapies is rapidly growing (Ashburn and Thor 2004; Pantziarka et al. 2014).
Some metabolic pathways are known to be key in aging like insulin/IGF-1 signaling involved in nutrient sensing and metabolic regulation. For a variety of reasons, drug development has targeted many proteins in this pathway as therapy for a diversity of diseases. However, there has been little systematic drug development aimed at aging therapy. Moreover, there could be other metabolic pathways not yet associated with aging that respond to pharmacological intervention with existing approved drugs.
With more than 5000 drugs in commercial use, it would be quite difficult to test all of these experimentally for aging benefits using in vivo animal models. An alternative is to use computationally guided drug screening for prioritizing drug targets (Snell et al. 2016; Calvert et al. 2016; Ziehm et al. 2017). This would produce a short list of candidate compounds that could then be subjected to the power of in vivo testing with animals. This is one of the most promising strategies for identifying pharmacological interventions that can safely slow aging and extend human lifespan and healthspan.
In this paper we have emphasized testing for effects vs biochemical mechanisms. Our priority has been to screen as many drugs as quickly as possible for major beneficial effects slowing aging. Once a small pool of such compounds has been identified, then a concerted effort can be mounted to understand the biochemical mechanisms underlying the therapeutic effects.
We apply the virtual ligand screening approach FINDSITEcomb (Zhou and Skolnick 2013) for screening potential aging-related protein targets against FDA approved drugs listed in DrugBank (Wishart et al. 2006) to identify drugs with the potential to slow aging. FINDSITEcomb has advantages over traditional ligand based approaches in that it does not require a known set of ligands for the target. It is also advantageous to traditional structure-based docking methods because it does not require high-resolution target structures and screens a compound library much faster; and more importantly has much better enrichment factor. FINDSITEcomb generates a short list of FDA drugs that potentially bind to aging-related protein targets of an animal model. This short list of promising compounds was screened using a multi-tiered approach with rotifers as an animal model of aging. Rotifers have several advantages as experimental animal models for investigating the biology of aging (Snell 2014; Snell et al. 2014a, b). Among these are a short life cycle so that cohort life table experiments can be completed within 3 weeks, the ability to clone females via parthenogenetic reproduction, the possibility of performing experimental evolution in chemostats, and the identification in rotifer transcriptomes of many genes implicated in aging and their homology to similar genes in mammals.
In this paper, we screened a short list of drug candidates with the potential to extend lifespan using in vivo animal experiments with primary and secondary survival screens followed by cohort life tables. We also screened drugs for their ability to extend healthspan by using proxies for mitochondrial activity and swimming speed (mobility) during the aging process. We found a few drugs capable of extending both lifespan and healthspan and then tested them for additive or synergistic effects in combined exposures. In addition to the beneficial effects of life-long therapy of some drugs, we demonstrated retarded aging effects in a few cases even when drug therapy was initiated in midlife, a phenomenon that many consider the holy grail of aging therapy.
Materials and methods
Computational screening of putative aging proteins and FDA-approved drugs
Flow chart of drug screening
Subsequently, FINDSITEcomb was applied to screen the 94 proteins against all DrugBank drugs (including FDA approved & experimental drugs) plus the ZINC8 molecules clustered at Tanimoto Coefficient (TC) 0.8 as background (Irwin and Shoichet 2005). FINDSITEcomb takes the protein amino acid sequence as input and builds a structural model using a threading approach. The pockets of each target protein were detected in their models, and subsequently were compared to the ligand-binding pockets found in PDB structures (Bernstein et al. 1977) and to the pockets of the structural models of the proteins from the ChEMBL (Gaulton et al. 2012) and DrugBank (Wishart et al. 2006) libraries. Pockets with the most significant similarity to the target pockets were selected and their corresponding binding ligands were used as template ligands. These template ligands were then utilized as seed ligands for virtual screening against the compound library with a fingerprint comparison method (Nikolova and Jaworska 2003).
Summary of drugs screened
Experimental design and treatments
Experiments were performed with the rotifer species Brachionus manjavacas (Russian strain), which was cultivated in 15ppt salinity, and fed the green alga Tetraselmis suecica, as described in Snell et al. (2016). All treatments were applied by dissolving the drugs in water and adding them to the rotifer medium. When DMSO was used as a solvent to assist drug solubility, the controls also contained an identical concentration of DMSO. DMSO concentration was kept below 0.2% for all treatments, a concentration shown in many trials to have no effect on rotifer lifespan or reproduction.

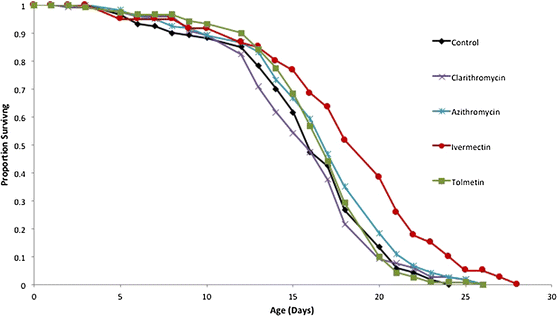

Full cohort life table and survival screen experiments were conducted following the methods detailed in Snell et al. (2016). Life table experiments were performed with a cohort of 120 neonate rotifers in each treatment, 5 per well in a 24-well plate. Each well contained 6 × 105 cells/mL T. suecica in 15 ppt artificial seawater (ASW), drug treatments, and 20 μM 5-fluoro-2-deoxyuridine (5-FU or FDU) which prevents hatching of asexual eggs (Snell et al. 2012). Plates were incubated at 22 °C and scored daily for mortality. In experiments where drug treatments were delayed, the rotifers were transferred to new plates with fresh medium containing the appropriate drug treatments on Day 9.

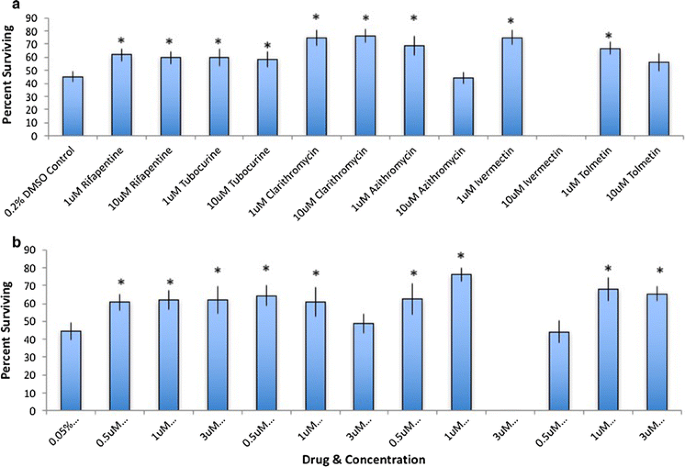

Survival screens were conducted with a cohort of 84 rotifer neonates per treatment, 7 per well in 12 wells of a 24-well plate. These rotifers were maintained identically as in the life table experiments. Five μL 5-FU (1 mg/mL) was added to each well on days 2, 4, and 6 to prevent egg hatching, and T. suecica food was replenished on day 6. These plates were incubated at 28 °C, and the number of live animals was counted on day 10. Survival was scored as the average percent surviving in each well on day 10. All drugs were tested in primary survival screens at both 1 and 5 μM concentrations. Drugs that enhanced survival in primary screens were tested in a secondary survival screen at three concentrations (ranging from 0.5 to 10 μM) chosen based on the results of the primary screen.
Assessment of rotifer healthspan
Drugs were tested for their ability to extend rotifer healthspan by analyzing reproductive rates, mitochondrial activity, and swimming speed using the methods described in Snell et al. (2016).

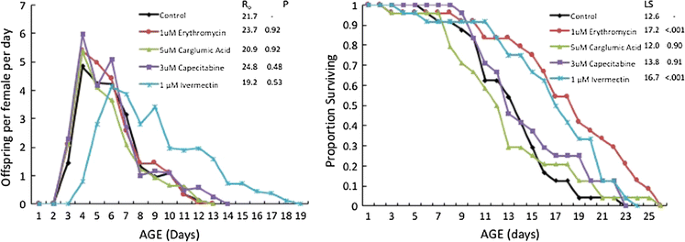

Reproductive life table experiments were conducted as described above with the exception of using a cohort of 24 rotifer hatchlings per treatment, one per well in a 24-well plate, and no 5-FU in the medium to allow normal egg hatching. Offspring were counted and removed each day, and intrinsic population growth rate (r) was calculated for each treatment.

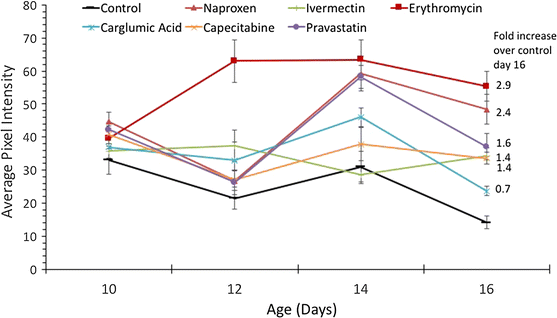

Mitochondrial activity was estimated using MitoTracker® Red (Invitrogen). Rotifers were incubated with drug treatments, the alga T. suecica, 15 ppt ASW, and 20 μM 5-FU at 22 °C for 4 days. They were then rinsed and incubated with 5 μM MitoTracker® Red in the dark for 30 min. After rinsing again, rotifers were anesthetized with club soda, fixed with formalin, and imaged on a Zeiss Imager Z1 microscope. Images were taken at ×200 magnification with an Alexa 568 nm filter, and average pixel intensity was measured using ImageJ. In experiments where drug treatments were delayed, rotifers were transferred into the drug treatments on day 9 and stained and imaged on days 10, 12, 14 and 16. MitoTracker requires active mitochondria to yield a fluorescent product; mitochondria in dead rotifers do not fluoresce (Snell et al. 2014b). However, MitoTracker should only be regarded as imprecise measure of mitochondrial activity as compared to other measures of mitochondrial metabolism (Brand and Nicholls 2011).
To measure swimming speed, rotifers were first incubated with drug treatments, T. suecica, 15ppt ASW, and 20 μM 5-FU at 22 °C for 10 days. On day 10, 15 rotifers from each treatment were transferred to a microscope slide in 12 μL ASW. Video of swimming behavior was recorded for 30 s using a PixeLink camera on a stereomicroscope at ×10 magnification. Swimming speed was then calculated for 10 rotifers from each treatment using the Tracker Video Analysis and Modeling Tool program (http://physlets.org/tracker/). In experiments where drug treatments were delayed, rotifers were transferred into the drug treatments on day 9 and videos were taken and analyzed on days 10, 12, 14, and 16.
Survival screens and healthspan assessments (average reproduction per female, swimming speed, MitoTracker® Red fluorescence) were analyzed using an ANOVA with Dunnett’s test comparing treatments to control. Life table experiments were analyzed by using the JMP Pro 12 (SAS Institute) reliability and survival analysis with Wilcoxon’s test to compare survival curves.
The flow diagram in Table 1 illustrates the rationale for selecting drugs to test for their effects on aging. Our models identified 31 drugs with favorable binding patterns to be experimentally screened for lifespan extension. Most of these drugs had never been implicated in any effects on aging. A list of these drugs, their mechanisms of action, medical use, and therapeutic dose is shown in Table 2.
Swimming speed is another endpoint that is a useful estimate of rotifer health, and serves as a mobility proxy. B. manjavacas females swim continuously throughout their life, initially at an average of 0.84 mm/s as juveniles, increasing to 1.23 mm/s at age 2 days, followed by a decline back to 0.86 mm by age 4 days (Snell et al. 2016). Near death, rotifers stop swimming, fall to the bottom, and remain immobile until they die. Exposure to certain drugs might mitigate this decline in swimming speed with age. Among the drugs tested, only continuous treatment with 5 µM carglumic acid yielded significantly higher swimming speed at age 10 days than control (Fig. 4b).
We investigated whether combinations of the top candidate drugs might improve survival to older age classes more than single drug exposure. We exposed B. manjavacas females from birth to age 10 days to six single drugs and recorded survival. Exposure to 1 µM ivermectin, 1 µM naproxen, 1 µM erythromycin, 5 µM carglumic acid, or 0.5 µM pravastatin, all improved survival 25–39% over control. We compared this result with 15 two-way combinations of drugs, and in only two cases did we observe enhanced survival over control, and in four cases survival was considerably worse than control. However, neither of these two cases produced better survival than the single drug treatments, demonstrating the absence of additive or synergistic drug effects.
The significance of these results is that they demonstrate that coupling computation to experimentation can quickly identify new drug candidates with the potential to slow aging. Exploring the pool of FDA approved drugs significantly shortens drug development cycles because the safety of these compounds in humans is already established (Ashburn and Thor 2004). Most drugs bind to multiple targets (Zhou et al. 2015), so there is a strong possibility that they have undiscovered binding partners beyond their licensed targets. Thus, the pool of FDA approved drugs is likely to be rich with new targets for novel aging therapies.
The power of combining computational and experimental approaches in drug discovery using model animals has been demonstrated by Snell et al. (2016). These authors identified several drug candidates by screening three rotifer proteins for binding partners from a compound library consisting of DrugBank drugs, including 1347 FDA approved, non-nutraceutical molecules. Using survival screens, cohort life tables, analysis of swimming speed and mitochondria activity, they found three drugs, naproxen, fludarabine, and hydralazine, that extended rotifer lifespan or healthspan or both. This work was proof-of-principle of the computational model and the rotifer experimental system. This approach was expanded in the current paper where we have systematically screened proteins from most aging related genes in the GenAge database for their binding to FDA approved drugs. Identifying the top 1% of binders and removing those with high toxicity (KI > 0) using the FINDSITEcombalgorithm (about 600 drugs), we eventually experimentally tested 31 drugs using our rotifer experimental system. From these, five drugs (ivermectin, erythromycin, capecitabine, carglumic acid, and pravastatin) demonstrated the ability to extended lifespan or healthspan or both in a variety of experiments. Only erythromycin and pravastatin have been implicated previously as drugs with aging benefits. Consequently, this work has identified promising new drug candidates and their approximate therapeutic doses for testing in vertebrate models of aging.
Another research group (Ziehm et al. 2017) has taken a similar approach, but using a different computational model to generate a short list of aging drug candidates. They identified 15 top ranked drugs each for Drosophila melanogaster and Caenorhabditis elegans that they predicted would modulate aging. However, none of the drugs on their list match our top five candidates. This is likely due to the fact that our FINDSITEcomb is a more general method that uses not only the PDB library, but also considers the CHEMBL library, whereas the method by Ziehm et al. is specific for Drosophila melanogaster and Caenorhabditis elegans and only focused on drug-like molecules present in PDB structures. Nevertheless, FINDSITEcomb also identified the same four FDA approved drugs as top ranked in the work by Ziehm et al.: DB01254(Dasatinib), DB00619(Imatinib), DB00398(Sorafenib) and DB04868(Nilotinib). However, all these kinase inhibitors were approved as cancer drugs and have serious side effects, which make them unlikely candidates for aging therapies. By comparison, one key advantage of our approach is that we applied our side-effect assessment using the killing index and eliminated these drugs from further experimental tests. However, it should be noted that Dasatinib is considered one of the first senolytic drugs and is currently being considered as a candidate for clinical trials (Kirkland and Tchkonia 2017).
Another important difference in our work is that we verified our computational predictions with in vivo animal experiments with rotifers. Ziehm et al. (2017) provided no direct experimental validation of their predictions. A further complication of using C. elegans for drug screening is that the worms are fed E. coli bacteria, which could metabolize the drugs before they affect C. elegans. In contrast, our experimental rotifer, B. manjavacas, is fed a diet of marine microalgae which are not as highly adapted to metabolize drugs as human gut bacteria like E. coli.
Like all invertebrates, including Caenorhabditis elegans and Drosophila melanogaster, there are limitations using rotifers as model animals to screen for drugs capable of slowing aging. Species-specific differences in drug metabolism may produce false positives or negatives for lifespan extension. Because rotifers are aquatic animals, this may cause special bioavailability problems for drug delivery. For these reasons, the drugs that we have identified as producing lifespan and healthspan extension in this study should be regarded as a working hypothesis until confirmed in a mammalian model.
An advantage of using FDA approved drugs is that their mechanisms of action are usually known. For example, ivermectin is highly efficacious against a variety of parasitic infections in animals (Laing et al. 2017). It is known for blocking of glutamate-gated chloride channels in parasitic nematodes, inhibiting motility, feeding and reproduction. Although this is ivermectin’s licensed application, at micromolar concentrations it is known to bind to a wider range of ligand-gated channels, including GABA, glycine, histamine, and nicotinic acetylcholinesterase receptors (Wolstenholme and Rogers 2005). In mammals, ivermectin has been shown to bind to the ligand binding domain of the farnesoid X receptor in mice, decreasing serum glucose and cholesterol levels (Jin et al. 2013). Ivermectin also inhibits proliferation and induces apoptosis in several human cancer cells (Melotti et al. 2014). Overdoses of ivermectin in humans cause cardiotoxicity, neurotoxicity, and adverse effects in the gastrointestinal tract (Yang 2012). Because of this promiscuity in binding partners, it is perhaps not surprising that ivermectin also affects metabolic pathways modulating aging in rotifers.
Erythromycin is another drug with interesting effects on rotifer lifespan and healthspan. It is a 14-membered ring macrolide used to treat chronic inflammatory diseases. In addition, erythromycin has been shown to slow aging in yeast (Holbrook and Menninger 2002). The Saccharomyces cerevisiae strain K65-3D grown in 16 g/mL erythromycin had a mean life span that was 27% longer than untreated yeast cells. Although this result was intriguing, there have been no follow-up studies and no demonstration of similar effects in animals until our work with rotifers reported a 37% increase in mean lifespan.
Snell et al. (2016) reported that rotifers treated with 1 µM naproxen had a 14% longer mean lifespan than controls. Naproxen is a nonsteroidal anti-inflammatory drug (NSAID) for relieving pain, fever, swelling, and stiffness that is a nonselective COX inhibitor. These authors hypothesized that naproxen effects were manifested through an anti-inflammatory mechanism.
The cancer drug capecitabine is used in chemotherapy to treat breast, gastric and colorectal cancer. Capecitabine is metabolised to 5-fluoro-2-deoxyuridine (5-FU), which in turn is a thymidylate synthetase inhibitor (Shimma et al. 2000). Inhibition of this enzyme reduces the synthesis of thymidine monophosphate, which is the active form of thymidine required for the de novo synthesis of DNA. The drug 5-FU has been used extensively in rotifer life table experiments to inhibit hatching of eggs, which eliminates the necessity of removing offspring from maternal females. Offspring removal considerably increases the effort required to perform rotifer life table experiments. In describing the use of 5-FU, Snell et al. (2012) reported a consistent 20% extension of mean lifespan in their experiments, but were unable to provide an explanation. We did not observe such a lifespan extension for capecitabine in our life table experiments, but it yielded lifespan benefits in primary and secondary survival screens and improved mitochondrial function in older age classes.
Pravastatin acts as a lipoprotein-lowering drug by binding to the active site and inhibiting the function of the enzyme hydroxymethylglutaryl-CoA (HMG-CoA) reductase. This helps prevent age-related cardiovascular disease. A combination of statins, including pravastatin, inhibited both farnesylation and geranylgeranylation of progerin and prelamin A in a mouse model of premature aging (Varela et al. 2008). This markedly slowed aging by retarding growth, weight loss, hair loss and bone defects, resulting in substantial lifespan extension. The drug carglumic acid is used to treat hyperammonanemia in patients with N-acetylglutamate synthase deficiency, but has no reported effect on aging processes.
One of the most important results of this work is identifying drugs that heretofore have not been implicated as candidates for aging therapy. As exciting as this prospect is, perhaps more promising is the observation that drug therapy can be initiated in midlife and still produce aging benefits. A drug may produce highly desirable aging benefits, but if therapy needs to be initiated at birth and continued throughout the lifespan, few people are going to comply with this therapeutic regime. However, if therapy can begin at midlife, patients are much more likely to comply. Four of the drugs that we tested, ivermectin, erythromycin, capecitabine, and pravastatin, all produced significant lifespan extension (7–8.9%) when started at age 9 days, about midway through the average rotifer lifespan. These same drugs plus naproxen also improved mitochondrial function in older age classes, 1.4–2.9-fold over control. In addition, midlife treatment with erythromycin, capecitabine, carglumic acid, and pravastatin improved swimming performance in some older age classes, compared to control. Together these results are quite encouraging because they demonstrate that proper doses of particular drugs can provide lifespan and healthspan benefits to animals, even if therapy begins in midlife.
Our results have identified drugs that are strong candidates for aging therapy and demonstrated their efficacy in an in vivo rotifer model. The next step in the development of these compounds for human therapy is to test them in mammals, explore a range of therapeutic doses, and the optimal timing of drug delivery. If these trials are successful, this should provide a strong indication of their likely success in human patients.
We are grateful for the support of the National Institute of Aging, Grant R01 AG037960-02. We also express our appreciation for the technical assistance provided by Emma Siegfried, Nancy Park, and Jamie Rogers. The computational aspects of this work were partially supported by NIH Grant R35GM118039 and a gift from the Mann family.
Project was conceived by TW Snell and J Skolnick. FINDSITEcomb modeling was performed by H Zhou and M Gao. Rotifer experiments were executed by RK Johnston and AB Matthews. Writing was done by TW Snell and RK Johnston.
