Systemic sclerosis (SSc) is an idiopathic systemic autoimmune disease characterized by an ongoing cutaneous and visceral fibrosis, vasculopathy and immunologic abnormalities [1]. It is a rare disease: There are almost 1200 new cases each year, with approx. 20,000 people living with the condition in the UK [2]. However, numbers will increase by 25% over the next 20 years due to the predicted growth and ageing of the population [2].

SSc can be either limited cutaneous (lcSSc) with skin involvement mainly limited to the hands and face, or diffuse cutaneous (dcSSc) with skin involvement proximal to the elbows and knees [3].

Blood vessels are directly affected by SSc and this has important ramifications on the quality of life (QoL) of patients. These vascular complications may progress to digital ulceration (DU) (approx. 55%); [4], gangrene and digital amputation [5]. DU in turn leads to hand function loss [6], and it is estimated that ≥ 50% of people with SSc have low or poor work ability [7]. SSc has the highest case-specific mortality and morbidity of any rheumatic disease with survival rates from diagnosis to 10 years being at 63% [8]. An important consideration when assessing the disease burden is that no cure exists. Pharmacotherapy (i.e. calcium channel blockers, phosphodiesterase inhibitors, prostacyclin analogs) is the main management option for this population: However, short-term (oedema, headaches, heart palpitations, dizziness and constipation) and long-term (heart dysfunction, increased cardiovascular risk) treatment side effects are frequent and should also be considered when deciding treatment plans. Therefore, alternative approaches with less side effects and cost implications are warranted.

A recent study from our research team [9] revealed that high-intensity interval training (HIIT) can improve microvascular function in the digital area of people with SSc. Considering the importance of a healthy skin microcirculation in avoiding digital ulcers, our findings suggest that there is an urgent need for further work in the field. Likewise, resistance training (RT) alone has shown significant improvements in the function of the vasculature [10], while a combination of aerobic and RT have shown both in the past [11] and recently [12] to significantly improve the vascular function and the microcirculation. However, the overall number of studies that have investigated the effects of RT on vasculature indicates remain. Moreover, to our knowledge the feasibility of implementing an exercise based on HIIT and RT as an adjunct therapy to standard pharmacotherapy is yet to be examined in people with SSc. In an era of limited financial and human resources, such a study will be important prior to the assessment of the clinical- and cost-effectiveness of the intervention in a large cohort.

Therefore, by applying a mixed-methods approach, this study investigated the feasibility of exercise to be performed by people with SSc using an established upper-limb HIIT protocol (arm cranking) and RT. This was assessed through adherence, compliance and attrition rates, exploration of enjoyment levels, assessment of exercise tolerance, number of adverse events and exploration of individual experiences. We also report on rates of screening, eligibility, and recruitment.

Materials and methods


We recruited thirty-two people (29 women, 3 men) with lcSSc, defined as per the American College of Rheumatology and European league against rheumatism criteria [13]. Eligible participants (Table 1) were recruited from the Rheumatology Department of the Royal Hallamshire Hospital in Sheffield and provided written consent to participate. The London - West London & GTAC NHS Research Ethics Committee (REC reference: 16/LO/0811) approved the protocol (IRAS project ID: 68096) and the study complies with the Declaration of Helsinki. Patients were randomly allocated (block randomisation) between the exercise (n = 16) and control (n = 16) groups. The randomisation was performed by an independent statistician. The allocated group was announced to both the principal investigator and the participant after the completion of the baseline measurements. All the pre- and post-intervention tests were performed at the same time of the day to minimize intra-day variability. An extensive methods section for our study has been published elsewhere [14]. A set of microvascular assessments was also undertaken but will be reported separately.

Table 1 Eligibility criteria

The study has been registered in (NCT number): NCT03058887. This work was conducted under a PhD program, supported by the National Centre of Sport and Exercise in Medicine and the Sheffield Teaching Hospital NHS FT [15].

Exercise programme

The exercise group undertook twice-weekly supervised exercise sessions at three different sport venues: the (a) Centre of Sport and Exercise Science at Sheffield Hallam University, (b) Graves and (c) Concord sport centres in Sheffield.

High-intensity interval training

Each session started with a 5-min warm-up on an arm crank (involving light aerobic exercise and gentle range of motion exercises). This was followed by HIIT for 30 s at 100% of PPO interspersed by 30-s passive recovery for a total of 30 min. At the end of the session, patients undertook a 5-min cool-down period, involving lower- and upper-limb light-intensity aerobic exercise and light stretching. Patients were wearing heart rate monitors throughout the exercise sessions. Heart rate and RPE, and affect (see below) were assessed at regular intervals throughout the supervised exercise session.

Resistance training

With respect to the RT, patients performed five upper body exercises in a circuit row for three circles interspersed by 2–3 min. In between the exercises, 10 to 20 s were allowed for a safe movement from one exercise to the other. The intensity was kept to 10 maximum repetitions and weight adjustments were done to compensate for any strength improvements during the exercise intervention. The intensity was monitored using Borg’s scale [16] 6–20 point. The five RT exercises were as follows: (1) chest press with dumbbells on a 30° inclined bench, (2) arms lateral raise with dumbbells in a seated position, (3) biceps curl with dumbbells, (4) triceps extension on the pulley from a standing position and (5) handgrip dynamometer.


Reported baseline assessments undertaken at baseline included anthropometry, functional ability and quality of life. Thereafter, patients were randomly allocated to two groups (exercise and control group). The exercise group (HIIT and RT) performed a 12-week exercise programme whereas the control group did not perform the exercise programme. Both groups were followed up after a 12-week (3 months) and 24-week (6 months) period performing the same measurements as conducted at baseline.

To support the successful participation of our participants, we used our “six pillars of adherence” framework (based upon “social support”, “education”, “reachability”, “small groups intervention implementation”, “reminders” and “simplicity”), which we have used previously with excellent results in lifestyle interventions (i.e. over 90% of retention and 79% of completion); [17, 18].

Study outcomes

Feasibility and acceptability outcomes

Recruitment rates were measured as rate of invited participants who were eligible and consenting. Acceptability of allocation was assessed by assessing the attrition rates and comparing the two groups and examining reasons for dropout. Suitability of measurement procedures was assessed by outcome completion rates and reasons for missing data. Attrition rate was defined as discontinuation of intervention and loss to follow-up measurement for all conditions. The acceptability of the exercise programme was evaluated by using session attendance and compliance data and participants’ feedback via one-to-one semi-structured interviews conducted with a subgroup of participants after the 3-month follow-up visit. Moreover, we assessed as measures for the acceptability of exercise, the participants’ enjoyment levels, intentions of engagement to exercise and task-self efficacy after the end of the exercise session at several time points during the exercise intervention. We also monitored the rate of perceived exertion and affect throughout each exercise session so as to document important information about the acceptability of exercise. The safety of exercise was assessed by exploring reasons for dropout from the exercise programme and the number and type of adverse events that occurred during the exercise intervention.

Quality of life

The EQ-5D-5L was the main outcome used to assess the patients’ QoL pre- and post-exercise intervention. The EQ-5D-5L is a generic measure of health state by considering five key dimensions of daily living (mobility, self-care, ability to undertake usual activities, pain, anxiety/depression) [19]. Participants were asked to describe their level of health on each dimension using one of five levels: no problems, slight problems, moderate problems, severe problems and extreme problems. Patients were also asked to rate their life satisfaction on a scale of zero to ten as well as to rate the RP pain during the last couple of weeks on a one to five ascending grading: not at all, slightly, moderately, severely and extremely. Digital ulcers and hospitalization for iloprost infusion and amputations were also recorded.

Functional ability test

The functional ability was assessed through a six-minute walking test (6MWT). Although the 6MWT lacks organ specificity in SSc, it can provide a valuable outcome parameter and thus, is suggested as a regular assessment in this clinical condition [5]. Patients were instructed to walk as far as possible back and forth on a 10-m corridor for 6 min. They were also instructed to slow down, stop and/or rest as necessary if they got out of breath or became exhausted, but to resume walking as soon as they felt able to. The laps and the total walking distance were recorded on a worksheet.

Exercise tolerance

The exercise tolerance of HIIT was assessed through measures that interpreted participants’ perception regarding the exercise intensity [16], the affect (Supplementary material Appendix A), the exercise task self-efficacy (Supplementary material Appendix B), the intentions (Supplementary material Appendix C) and the enjoyment (Supplementary material Appendix D). The above data was collected at the first and last exercise session each month in order to examine several time points during the exercise intervention. Specifically, the questionnaires were repeated at the 1st, 8th, 16th and 24th exercise sessions. The individual questionnaires and the time points that were incorporated during the exercise session are described in Jung et al. [20].


Semi-structured interviews were conducted by AM in a randomised purposive sample of 12 patients from exercise (n = 6) and control (n = 6) group. The interviews were all held at the Sheffield Hallam University. HC and AM developed a semi-structured interview guide, which acted as a trigger and a motivation for further conversation. The interview guide was piloted in interview 1 and only minor changes were subsequently made. The guide is presented in Table 2. Each interview ended with the interviewer asking the patient if they wanted to make any additional comments not explored via the interview guide.

Table 2 Interview guide

The interviews lasted between 15 and 20 min and were digitally recorded. The interviewer (AM) transcribed the recordings.


The participant’s stature was measured using a Hite-Rite Precision Mechanical Stadiometer. Body weight (kg), body mass index (BMI), fat mass (kg) and lean body mass (kg) segmented in upper and lower limbs were assessed by using bio-electrical impedance analysis (In Body 720, Seoul, Korea). Participants’ demographic characteristics are illustrated in Table 3.

Table 3 Demographic data (means ± SD)

Overall data analysis

We used rates of eligibility, recruitment, attrition, outcome completion, exercise adherence and adverse events to assess the feasibility and acceptability of the intervention. Enjoyment levels and intentions for exercise, as well as task self-efficacy of exercise are also presented. Individual’s experiences relative to the feasibility and acceptability of exercise are reported. Frequency counts and percentages were provided for categorical data. Continuous variables were summarized with descriptive statistics. All data analysis was conducted at the end of data collection, using SPSS software (version 23, IBM SPSS, New York, USA). Data are presented as mean ± SD. Interviews were analysed using framework analysis [21]. Analysis was aimed at describing the individual’s experience of exercise, searching for common, recurrent patterns and also identifying an understanding of participant experiences that might explain the feasibility and acceptability of exercise. The coding framework that was used for the interview analysis is of a deductive approach, framing the analysis within a priori topic guide, yet data were borne out of original transcripts from the interviews [22].

The sample size calculation for our study estimated the critical metrics needed to assess the feasibility of conducting the definitive study, with sufficient precision [14]. The critical metrics are the consent rate (i.e. the proportion of eligible patients who consented to participate and be randomised), improvement in QoL as well as compliance with treatment, and attrition rates. Fifteen patients in each group (n = 30 in total) provided a sufficiently precise (within 15 percentage points for a 90% confidence interval) estimate of the proportion willing to be randomised, assuming 35% intention to be randomised.


Recruitment rates

Figure 1 shows the flow of participants through the trial. Recruitment took place between January 2016 and December 2017. Of 459 people with SSc screened for participation, 220 met eligibility criteria and 118 were invited. From those invited, 32 were recruited (3 men and 29 women), giving eligibility and recruitment rates of 47.9% and 27.1% respectively.

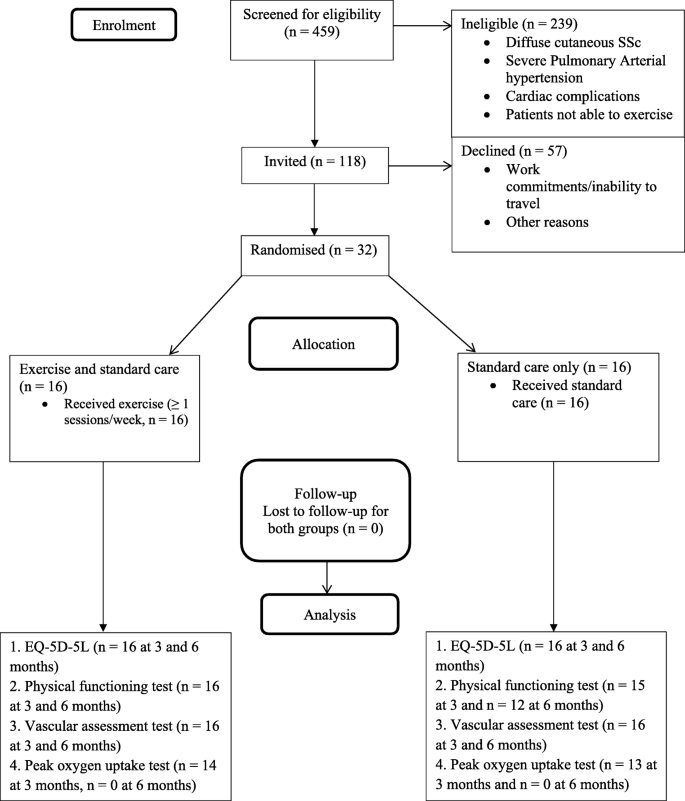

Fig. 1
figure 1

Flow of participants through the trial

Feasibility of exercise

Compliance to the twice weekly, 12-week exercise programme was 92.6% with no dropouts. The average percentage of peak HR (% HRpeak) for the aerobic part of the training was 89.6% ± 4.5. The average RPE and affect during both the aerobic and resistance exercise was 13 ± 1 (“somewhat hard”) and 3 ± 1 (“good”), respectively. The average value for the physical activity enjoyment scale was 103 ± 10 out of 119 (highest score). The mean values for the intention to engage in exercise twice and thrice per week were 6.4 ± 1 (likely) and 5.3 ± 2 (slightly likely) out of 7 (very likely). The individuals’ confidence to participate in the study’s exercise protocol for once and twice per week was 95% and 80% for three times per week out of 100%. No exercise-related complications were reported.

Interview findings - quality of life

The interview findings are presented in Table 4. QoL improved significantly in several domains for the exercise group: More specifically, it appeared to have better life satisfaction (9.25 ± 0.9), less difficulty to perform the usual activities (1.63 ± 0.7), less anxiety (1.06 ± 0.3), and less Raynaud’s phenomenon-accompanied pain (2.19 ± 1) than the control group, following the exercise intervention. Benefits were maintained 6 months after baseline as well (Table 5).

Table 4 Interview main findings
Table 5 Quality of life outcomes

Digital ulcers

The exercise group did not present any digital ulcers (DUs) throughout the 6-month period of the study whereas the control group presented five incidents (32% of the control group) of DUs and four hospitalisations for iloprost infusion.


This is a feasibility study, an important step prior to the assessment of the clinical- and cost-effectiveness of the intervention in a large cohort. The results of our primary outcomes (e.g. feasibility and acceptability outcomes, quality of life, exercise tolerability and interviews) support the progression to a definitive, multi-centre trial with a larger cohort of people with SSc.

Feasibility outcomes and individuals’ experiences of exercise intervention

Evidently, the high rates of compliance and retainment to the implemented exercise programme (92.6%) is an encouraging sign of the acceptability of our novel intervention, aiming at people with SSc. Participants appeared to enjoy the exercise sessions and were motivated to adhere to the exercise programme. Supervised exercise was considered by most of our participants as a safe and educating approach, allowing our participants to gain a greater degree of confidence in exercising, opening the way for self-managing their sessions in the future. Therefore, it could be suggested that supervised exercise can be a key element for a definitive exercise programme. This is in agreement with findings from other similar, supervised exercise programmes in groups with vascular clinical manifestations (e.g. venous leg ulcers; 18). In contrast, unsupervised home-based exercise programmes in people with idiopathic pulmonary fibrosis demonstrated significantly low levels of exercise attendance and limited improvement [23,24,25].

The exercise programme stressed the cardiovascular system moderately (aver. HRpeak = 89.6%) and thus, the RPE was also relatively low (13 “somewhat hard”, Borg scale) and the mean affect was reported as good throughout the whole exercise session (+ 3 “good”). The average enjoyment score of the exercise sessions was also high (103 ± 10). From a physiological perspective, the enjoyment of the exercise could be explained by the low levels of lactic acid production that a short HIIT protocol is able to induce [9, 25, 26]. Moreover, the participants did state that they enjoyed the exercise sessions attributing this feeling to the supervised training, to the welcoming environment and to the tangible improvements in their breathing and fitness status (Theme 2). Another important finding is the high score in the task-self efficacy questionnaire of 95% and 80% for two and three bouts per week, respectively. This shows the feasibility of our exercise protocol and the possibility to increase the training dose (three times per week) giving that it might induce greater improvements.

Participants’ intentions towards engaging in our exercise protocol twice and thrice per week were positive throughout the exercise programme. Participants responded that it would be likely for them to engage in our exercise protocol at least twice per week (6.4 ± 1) and slight likely to engage at least three times per week (5.3 ± 2). Moreover, participants’ perspective for exercise is that it contributes to the overall wellbeing by improving the fitness and social status, mental health and forms a positive approach towards life in general (Theme 2).

It is important to note that none of the participants mentioned exercise sessions’ duration as a barrier, which further highlights the feasibility of our exercise protocol to be implemented in people with SSc. The main two barriers were venue accessibility and weather (Theme 3). Participants can find it very challenging to travel to central exercise locations from the city outskirts: This is a significant barrier which requires strong motivation to sustain study participation. In our study, we offered a community-based programme across several sites, minimising travelling time for participants. This would be important feature for future interventions. Weather constituted another key barrier for our participants: Nevertheless, a short travelling time would increase the possibility of participation (Theme 3). In our study, we attempted to overcome participation barriers, by offering also a high number of available time slots to accommodate participants’ preferences and fit with their daily schedule. Thus, the high rates in attendance and engagement can be attributed to the short travelling time to exercises venues and the wide range of the exercise sessions’ availability. The same approach should be followed in a future, definitive trial as well.

Quality of life

People with SSc’ QoL is adversely affected by RP attacks which induce numbness, pain and restrict individuals from performing their daily activities. An RP attack may last up to several hours and the most people with SSc in our study reported that they are unable to perform their activities unless they perceive blood flow that comes back to normal (Theme 1). The RP symptoms such as very cold hands or hand disfigurement can affect the social life in people with SSc acting as a psychosocial burden/anxiety (Theme 1).

The current study’s QoL findings indicate that life satisfaction and RP-related pain were improved significantly in the exercise HIIT group compared with the control group, which aligns with the findings of our previous pilot trial [9]. Moreover, people with SSc that took part in our exercise intervention had less anxiety and were more readily able to perform their usual activities compared with the control group. Noticeably, these positive findings for the exercise group were maintained 3 months after the completion of the exercise intervention compared with the control group. Therefore, our exercise protocol seems capable of improving QoL in this patient group.

Clinical outcome

Our study demonstrated that a combined exercise programme is feasible to be implemented in people with SSc. In addition to that, we observed a beneficial effect of exercise on DUs which negatively affect QoL in people with SSc. Specifically, 32% of the control group developed DUs and most of them required hospitalisation to heal, whereas the exercise group had no incidents of DUs, even 3 months after the cessation of the exercise programme.

DUs are common in SSc and approximately half of patients reporting a history of DUs [4, 27,28,29] and ~ 10% presenting current DU [4, 30]. Often, DUs are presented early in the disease [27]. Patients with a shorter duration between the first and the second DUs (especially if the second is within 2 years) have an increased (yearly) DU burden [27]. About one- and two-thirds of people with SSc develop recurrent DUs [27, 28, 31]. DUs often involve both hands with multiple fingers [6, 27] and DUs per episode [27, 31]. The healing of DUs is often slow, specifically if there is underlying calcinosis, and can be related to underlying bone infection [32].

The indicated clinical benefits of the proposed exercise intervention, in relation to DU occurrence, strengthen the suggestion that there is a need for a multi-centre clinical trial which would assess its effectiveness on DUs and other clinical components.


Our findings suggest that an exercise programme combining HIIT and RT was feasible for people with SSc, resulting in high adherence and low attrition rates, high enjoyment levels and intentions for future exercise engagement. Our participants felt comfortable and capable of performing our protocol without experiencing any adverse events.

Based on our study findings, we would recommend that such a programme would be better delivered in the community: this is definitely the patients’ preference as it would eliminate one of the main barriers to exercise participation, which is the travelling time and transportation.

We also believe that the addition of another exercise session per week (three times/week) would induce greater results. However, a community-based programme needs to be pragmatic and thus, two times per week is the recommended feasible training frequency as our study indicated.

Finally, it was also very encouraging to see that our intervention elicited improvements in QoL, supporting also the prevention of clinical manifestations such as digital ulcers. This will need to be proven in a definitive trial, which is the next logical step, in this line of research.


We only included people with limited cutaneous systemic sclerosis. In this population, changes in skin thickness are little over time, when compared with diffuse cutaneous systemic sclerosis [33]. Thus, and as it is a common practice in the UK national healthcare system clinics to assess the modified Rodnan skin score only in patients with dcSSc, this measurement was not collected and included for the purposes of this study. However, considering the clinical facts [33], we do not feel that this choice has affected our findings or conclusions.
