Solute-removal enhancement caused by local convective flow in a hemodialyzer

Journal of Artificial Organs volume 15, pages 305–310 (2012)Cite this article

Abstract

Filtration, namely, convective mass transport through a hemodialysis membrane, has recently been utilized in maintenance hemodialysis to enhance the removal of high-molecular-weight uremic toxins. However, it has been practically impossible to estimate the clearance of solutes from hemodialyzers operated at predetermined net filtration rates, even if the mass-transfer parameters of the membrane are obtainable. Here, we discuss the effect of convective flow on the solute-removal performance of a hemodialyzer. The velocity and concentration profiles in the hemodialyzer were formulated on the basis of transport phenomena and obtained using the finite element method with commercially available software. The concentration profile obtained under conditions whereby local convective flow occurred through the membrane and the net filtration rate was negligible was measurably different from that obtained under conditions of no local convective flow. The result was a large discrepancy in the clearances obtained, indicating that local convective flow through a high-performance membrane cannot be ignored when estimating the solute-removal performance of a hemodialyzer containing such membranes or in designing the membrane and hemodialyzer—even if the hemodialyzer is operated at a net filtration rate of zero. The enhancement of clearance due to filtration, which had been discussed qualitatively elsewhere, was also quantified in relation to net filtration rate.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1

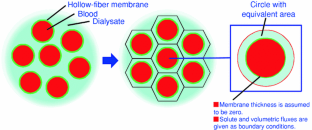

Fig. 2

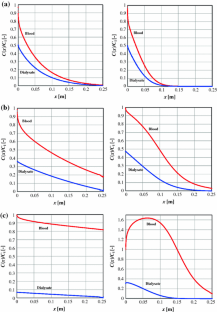

Fig. 3

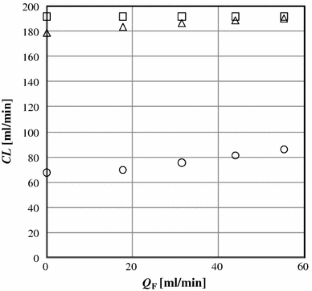

Fig. 4

Abbreviations

A k :

Porosity (–)

C :

Concentration of the solute in the medium (mol/m3)

C*:

Averaged concentration of the solute in the membrane (mol/m3)

ΔC :

Difference in concentration of the solute between the membrane surfaces (mol/m3)

CL:

Clearance (ml/min)

D :

Diffusion coefficient in the medium (m2/s)

J s :

Solute flux [mol/(m2 s)]

J V :

Volumetric flux (m/s)

k M :

Solute permeability (m/s)

L p :

Water permeability [m/(Pa s)]

ΔP :

Transmembrane pressure (Pa)

Q :

Flow rate (ml/min)

Q F :

Net filtration rate (ml/min)

R :

Radial position (m)

r p :

Pore radius (m)

u :

Vector velocity (m/s)

x :

Distance from the inlet of the blood channel (m)

Δx :

Membrane thickness (m)

α :

Constant defined by Eq. (5) (–)

π :

Osmotic pressure (Pa)

σ :

Reflection coefficient (–)

τ :

Tortuosity (–)

B:

Blood channel

D:

Dialysate channel

I:

At the inlet

o:

At the inlet

References

  1. Michaels AS. Operating parameters and performance criteria for hemodialyzer and other membrane-separation devices. Trans Am Soc Artif Intern Organs. 1966;12:387–92.

    PubMed  CAS  Google Scholar

  2. Sakai K. Determination of pore size and pore size distribution: 2. Dialysis membrane. J Membr Sci. 1994;96:91–130.

    Article  CAS  Google Scholar

  3. Colton CK, Lowrie EG. Hemodialysis: physical principles and technical considerations. In: Brenner BM, Rector Jr FC, editors. The kidney. 2nd ed. Philadelphia: WB Saunders; 1981. p. 2425–89.

    Google Scholar

  4. Weryńskis A. Evaluation of the impact of ultrafiltration on dialyzer clearance. Artif Organs. 1979;3:140–2.

    Google Scholar

  5. Waniewski J, Weryńskis A, Ahrenholz P, Lucjanek P, Judycki W, Esther G. Theoretical basis and experimental verification of the impact of ultrafiltration on dialyzer clearance. Artif Organs. 1991;15:70–7.

    PubMed  Article  CAS  Google Scholar

  6. Galach M, Ciechanowska A, Sabalińska S, Waniewski J, Wójcicki J, Weryńskis A. Impact of convective transport on dialyzer clearance. J Artif Organs. 2003;6:42–8.

    PubMed  Article  CAS  Google Scholar

  7. Ofsthun NJ, Zydney AL. Importance of convection in artificial kidney treatment. In: Maeda K, Shinzato T, editors. Effective hemofiltration: new methods. Basel: Karger; 1994. p. 53–70.

    Google Scholar

  8. Ronco C, Orlandini G, Brendolan A, Lupi A, La Greca G. Enhancement of convective transport by internal filtration in a modified experimental hemodialyzer. Kidney Int. 1998;54:979–85.

    PubMed  Article  CAS  Google Scholar

  9. Kedem O, Katchalsky A. Thermodynamic analysis of the permeability of biological membranes to non-electrolytes. Biochim Biophys Acta. 1958;27:229–47.

    PubMed  Article  CAS  Google Scholar

  10. Kedem O, Katchalsky A. A physical interpretation of the phenomenological coefficients of membrane permeability. J Gen Physiol. 1961;45:143–79.

    PubMed  Article  CAS  Google Scholar

  11. Kanamori T. Study on solute removal of hemodialyzer based on transport phenomena (in Japanese). PhD thesis. Tokyo: Waseda University; 1994.

  12. Sugiura S, Kanamori T. Comparison of substance supply in static and perfusion cultures based on mass transport phenomena. Biochem Eng J. 2011;57:69–74. doi:10.1016/j.bej.2011.08.010.

Download references

Author information

Affiliations

  1. Drug Assay Device Team, Research Center for Stem Cell Engineering, National Institute of Advanced Industrial Science and Technology (AIST), Central 5, 1-1-1 Higashi, Tsukuba, Ibaraki, 305-8565, Japan

    Toshiyuki Kanamori & Kensaku Mizoguchi

Authors
  1. Toshiyuki Kanamori
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Kensaku Mizoguchi
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Toshiyuki Kanamori.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Kanamori, T., Mizoguchi, K. Solute-removal enhancement caused by local convective flow in a hemodialyzer. J Artif Organs 15, 305–310 (2012). https://doi.org/10.1007/s10047-012-0639-3

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10047-012-0639-3

Keywords

  • Boundary layer
  • Transport phenomena
  • Kedem–Katchalsky equations
  • Finite element method
  • Tortuous pore model
