Abstract
Methods to determine the recharge elevation of groundwater using the altitude effect of δD and δ18O have been extensively applied in hydrogeological investigations. The secondary parameter d-excess has also been used as a groundwater tracer. In this study, to examine the usefulness of these tracers along with 17O-excess, ~160 groundwater samples were collected from a humid region at the foot of Mt. Fuji, Japan. The sampling area covered 40 × 45 km, with most sampling sites located below 1,000 m above sea level. The relatively low elevation and small scale of the basin allowed for examination of the elevation-dependence of groundwater isotopes. Using high-precision isotope analyses, a low lapse rate but clear elevation-dependence in spring waters was observed for d-excess (0.18‰·100 m−1). The recharge elevation determined by d-excess correlated with those by δD and δ18O, indicating that d-excess has high potential as a groundwater tracer for the determination of recharge elevation. On the other hand, 17O-excess in groundwater held small spatial variation, with an average of 25 per meg in the horizontal direction and a lapse rate of 0.6 per meg·100 m−1. The low lapse rate compared to the analysis error inhibits its usefulness as a tracer. The fact that the recharge elevation determined by δD, δ18O, and d-excess were similar indicates that the combination of these tracers could increase the reliability of the results.
Résumé
Les méthodes pour déterminer l’altitude de recharge des aquifères en utilisant l’effet d’altitude de δD et δ18O ont beaucoup été utilisées dans les études hydrogéologiques. Le paramètre secondaire, l’excès en deutérium, a également été utilisé comme traceur hydrogéologique. Dans cette étude, l’utilité de ces traceurs en plus de l’excès en 17O a été examinée à partir d’environ 160 échantillons d’eau souterraine collectés dans la région humide au pied du Mont-Fuji au Japon. La zone d’échantillonnage couvre une surface de 40 × 45 km avec la plupart des sites échantillonnés à une altitude de moins de 1000 m au-dessus du niveau de la mer. La relative faible altitude et la petite taille du bassin permettent l’étude de la dépendance des isotopes des eaux souterraines à l’altitude. A partir d’une analyse isotopique de haute précision, un faible gradient vertical mais avec une nette dépendance à l’altitude pour les eaux des sources ont été observés pour l’excès en deutérium (0.18‰·100 m-1). L'élévation de la recharge déterminée par l’excès en deutérium est corrélée avec celle estimée par δD et δ18O, indiquant que l’excès en deutérium a un fort potentiel comme traceur des eaux souterraines pour la détermination de l'élévation de la recharge. D’autre part, l’excès en 17O dans les eaux souterraines est peu variable spatialement, avec une moyenne de 25 partie par million horizontalement et un gradient vertical de 0.6 ppm.100 m-1. Le faible gradient vertical comparé à l’erreur analytique empêche son utilisation comme traceur. Le fait que l’altitude de la recharge déterminée par δD, δ18O, et l’excès en deutérium sont similaires, indique que la combinaison de ces traceurs pourrait augmenter la fiabilité des résultats.
Resumen
Los métodos para determinar la zona de recarga de las aguas subterráneas utilizando el efecto de altitud a través de δD y δ18O han sido ampliamente aplicados en investigaciones hidrogeológicas. El parámetro secundario exceso-d también se ha utilizado como trazador de aguas subterráneas. En este estudio, para examinar la utilidad de estos trazadores, junto con el exceso de 17O, se recogieron ~160 muestras de agua subterránea en una región húmeda al pie del monte Fuji, Japón. La zona de muestreo abarcaba 40 × 45 km, y la mayoría de los lugares de muestreo estaban situados por debajo de los 1,000 m sobre el nivel del mar. La elevación relativamente baja y la pequeña escala de la cuenca permitieron examinar la dependencia de la elevación en los isótopos de las aguas subterráneas. Utilizando análisis isotópicos de alta precisión, se observó una baja tasa de crecimiento, pero una clara dependencia de la elevación en las aguas de manantial para excesos-d (0.18‰·100 m-1). La estimación de la recarga determinada por el exceso-d se correlacionó con las de δD y δ18O, indicando que el exceso-d tiene un alto potencial como trazador de aguas subterráneas para la determinación de la recarga. Por otra parte, el exceso de 17O en el agua subterránea tuvo una pequeña variación espacial, con una media de 25 por meg en la dirección horizontal y una tasa de crecimiento de 0.6 por meg·100 m-1. La baja tasa de crecimiento comparada con el error de análisis inhibe su utilidad como trazador. El hecho de que la elevación de la recarga determinada por δD, δ18O y exceso-d fuera similar indica que la combinación de estos trazadores podría aumentar la fiabilidad de los resultados.
摘要
利用 δD 和 δ18O 的高程效应确定地下水补给高度的方法已广泛应用于水文地质调查。第二参数 d盈余也被用作地下水示踪剂。在本研究中,为了研究这些示踪剂以及 17O 盈余的实用性,从日本富士山脚下的湿润区采集了约 160 个地下水样本。采样面积40×45 km,大部分采样点位于海拔1, 000 m以下。盆地的相对低海拔和小尺度方便研究地下水同位素的海拔依赖性。使用高精度同位素分析,在泉群中观察到d-盈余(0.18‰·100 m-1)的低递减率但明显的海拔依赖性。d盈余确定的补给高程与δD 和 δ18O 相关,表明d盈余作为地下水示踪剂确定补给高程的潜力很大。另一方面,地下水中17O 盈余具有较小的空间变化,水平方向平均为25/meg,递减率为0.6/meg·100 m-1。与分析误差相比,低递减率抑制了它作为示踪剂的用途。由 δD、δ18O 和 d盈余确定的补给高程相似的事实表明,这些示踪剂的组合可以提高结果的可靠性。
Resumo
Métodos para determinar a altitude da recarga de águas subterrâneas usando o efeito de altitude no δD e δ18O têm sido amplamente aplicados em investigações hidrogeológicas. O parâmetro secundário d-excesso também foi usado como traçador de águas subterrâneas. Neste estudo, para examinar a utilidade desses marcadores, juntamente com o excesso de 17O, ~160 amostras de água subterrânea foram coletadas de uma região úmida no sopé do Monte Fuji, no Japão. A área de amostragem cobriu 40 × 45 km, com a maioria dos locais de amostragem localizados abaixo de 1,000 m acima do nível do mar. A altitude relativamente baixa e a pequena escala da bacia permitiram o exame da dependência da elevação dos isótopos das águas subterrâneas. Usando análises isotópica de alta precisão, uma baixa taxa de lapso, mas com clara dependência de elevação em águas de nascente foi observada para d-excesso (0.18‰·100 m-1). A altitude da recarga determinada pelo d-excesso correlacionou-se com as de δD e δ18O, indicando que o d-excesso tem alto potencial como traçador de águas subterrâneas para a determinação altitude de recarga. Por outro lado, o excesso de 17O nas águas subterrâneas apresentou pequena variação espacial, com uma média de 25 per meg na direção horizontal e uma taxa de lapso de 0.6 per meg·100 m-1. A baixa taxa de lapso em comparação com o erro de análise inibe sua utilidade como traçador. O fato de a elevação de recarga determinada por δD, δ18O e d-excesso serem semelhantes indica que a combinação desses traçadores poderia aumentar a confiabilidade dos resultados.
Similar content being viewed by others
Avoid common mistakes on your manuscript.
Introduction
Deuterium and oxygen-18 in water have been commonly employed as natural tracers to estimate the origin, age, history, and flow path of groundwater (Clark and Fritz 1997; Mazor 1997; Kendall and McDonnell 1998; Mook 2001; Yamanaka 2020). In particular, the isotope altitude effect (i.e., elevation effect), a phenomenon in which precipitation becomes isotopically lighter at higher elevations, has been useful for determining the groundwater recharge elevation as summarized by Jasechko (2019). The altitude effect is produced by: (1) rain-out from vapor orographically lifted or Rayleigh distillation with different condensation temperatures with temperature lapse rate (≈0.6 °C · 100 m−1), and (2) evaporation from raindrops (Friedman et al. 1962; Moser and Stichler 1974; Clark and Fritz 1997; Kendall and McDonell 1998; Gonfiantini et al. 2001; Mook 2001; Yamanaka 2020). This effect has been observed across many areas, ranging from −0.6 to −0.1‰ · 100 m−1 for δ18O (Siegenthaler 1979; Yurtsever and Gat 1981; Mazor 1997; Machida 2000; Mook 2001; Yamanaka et al. 2016) and changes depending on the direction of the slope against the wind direction (e.g., Scholl et al. 1996; Machida 2005; Yasuhara et al. 2007).
On the other hand, one of the secondary parameters, d-excess, also has been used as a groundwater tracer in several areas (Cruz-Sun Julian et al. 1992; Paar et al. 2019). d-excess was defined by Dansgaard (1964) according to Eqs. (1) and (2):
where R is the ratio of heavy to light isotopes: (18O/16O) for 18O; (2H /1H) for deuterium; and the SMOW is the reference, standard mean ocean water (Craig 1961a). From this definition, the d-excess of the Global Meteoric Water Line (GMWL: δD = 8δ18O + 10, as defined in Craig 1961b) is the y-intercept (10), and reflects a kinetic isotopic fractionation process when water vapor is formed from the ocean, whereas the slope reflects the Rayleigh process when precipitation is formed from vapor. When the humidity is low (≤50%), the vapor is strongly depleted of δ18O compared to that of the ocean, and the produced precipitation contains high d-excess; however, at a humidity of ~85%, the precipitation plots are very close to the GMWL (Clark and Fritz 1997).
The d-excess also tends to increase with elevation, but the lapse rate is different by region, as well as δD and δ18O. A drastic change in d-excess with elevation was produced by the mixing of the local orographic cloud (for precipitation in Italy, ~0.6‰ · 100 m−1, Liotta et al. 2006) and by the mixing of water derived from different seasons (for surface water in Tibetan Plateau, ~2.2‰ · 100 m−1; Dong et al. 2018). Without such mixings, the evaporation of raindrops below the cloud base causes its elevation-dependence in arid and semiarid regions (Ehhalt et al. 1963; Gat 1971; Gat and Dansgaard 1972; Clark and Fritz 1997). Additionally, some researchers have reported that d-excess in the precipitation or river water change with elevation in more humid areas—for example, Cruz-San Julian et al. (1992) observed individual precipitation with a lapse rate of ~0.5‰ · 100 m−1 in coastal areas in eastern Spain. Gonfiantini et al. (2001) observed a lapse rate of ~0.1‰ · 100 m−1 for monthly precipitation observed in Cameroon and Bolivia, located in tropical regions, whereas Liebminger et al. (2006) compiled precipitation data for ~30 years across 12 stations in Austria with relative humidity (RH) of 87% and found elevation changes in d-excess (lapse rate of 0.36‰ · 100 m−1). Bershaw et al. (2012) showed a lapse rate of ~0.3‰ · 100 m−1 using the data obtained by Garzione et al. (2000), who collected stream waters in tributaries of the Kali Gandhaki River, Himalaya. Wakiyama et al. (2013) revealed lapse rates ranging from 0.16 to 0.32‰ · 100 m−1 in precipitation in central Japan, while Bershaw et al. (2020) found a lapse rate of ~0.23–0.24‰ · 100 m−1 along the moist, windward side (RH > 75%) of the stream waters from the Olympic Mountains, Oregon, United States. In particular, Gonfiantini et al. (2001) and Bershaw et al. (2012) emphasized that such change could be produced by rain-out, using the Rayleigh condensation model. The current consensus would be that the elevation dependence of d-excess is produced by two mechanisms, the rain-out and evaporation, and the lapse rates range from 0.1 to 0.5‰ · 100 m−1 in the humid regions unless there is mixing with other sources. The contribution of the two mechanisms is still unknown, and may be important because the same phenomenon can occur in many areas on Earth. Although the lapse rate of d-excess is sometimes only 0.1‰ · 100 m−1, it may be a useful tracer to determine recharge elevation even in small-scale basins by using high-precision analyses.
Alternatively, the precision of δ17O measurement has continued to improve (Steig et al. 2014), often represented by an index called 17O-excess rather than the δ value itself (Barkan and Luz 2007). In the field of hydrogeology, the δ value is generally expressed by multiplying the right side by 1000 (as in Eq. 2); accordingly, 17O-excess is expressed by:
Corresponding to the GMWL for the δ17O-δ18O relationship, Luz and Barkan (2010) proposed the following straight line from 52 global water samples:
That is, natural waters maintain a linear relationship between ln(10−3δ17O + 1) and ln(10−3δ18O + 1), with a slope (0.528) resulting from the assumption that vapor condensation occurs in the Rayleigh process (Barkan and Luz 2007). The 17O-excess throughout water circulation is assumed to be stable during the phase change under equilibrium, but it changes under a nonequilibrium evaporation process. The characteristics are similar to d-excess, where the latter is affected by both temperature and RH (even in equilibrium), but 17O-excess is solely sensitive to RH during evaporation (Barkan and Luz 2007).
Hydrological studies using 17O include analyses of Antarctic ice cores (Landais et al. 2008, 2012), assessing the relationship between 17O-excess in oceanic water vapor and RH (Uemura et al. 2010), and an examination of the global distribution of 17O-excess in natural waters (Luz and Barkan 2010). Recently, some researchers have also focused on the relationship between d-excess and 17O-excess to examine the evaporation of water. Landais et al. (2010) analyzed precipitation samples in West Africa, revealing a relationship between d-excess and 17O-excess with RH. The ratio of change in 17O-excess:d-excess was ~1 per meg · ‰−1, and evaporation from raindrops was a key process for controlling the d-excess and 17O-excess in precipitation. Li et al. (2015) demonstrated a national-scale map of 17O-excess in precipitation over the US (using tap water as a proxy), finding that the 17O-excess was highly latitude-dependent at the continental scale, and high correlation among 17O-excess, d-excess, and average annual precipitation near the Gulf of Mexico, likely due to evaporation. Their observed change in 17O-excess with respect to d-excess was ~4.0 per meg · ‰−1 near the Gulf of Mexico. Tsuchihara et al. (2016) found a seasonal fluctuation of 17O-excess in precipitation positively correlated to d-excess in Ibaraki Prefecture, Japan. Since it is common that the d-excess in precipitation decreased to ~5‰ in the summer and increased to ~30‰ in winter within the Japanese mainland (Tanoue et al. 2013; Ichiyanagi and Tanoue 2016), Tsuchihara et al. (2016) attributed it to seasonal changes of water vapor origins. In addition, there was a positive relationship between d-excess and 17O-excess in the evaporated rice paddy water, with a ratio of change of 1.2 per meg · ‰−1. The average value of 17O-excess in the shallow groundwater (n = 52) was 26 per meg. That is, the relationship between d-excess and 17O-excess in natural waters has been reported to range from 1 to 4 per meg · ‰−1 by previous studies.
Although hydrological d-excess and 17O-excess studies using high-precision analyses are underway, local-scale research remains insufficient; in particular, to the best of the authors’ knowledge, no studies have discussed their groundwater spatial distributions for a basin with a scale of several 10s of kilometers in humid regions. In this study, these distributions were clarified, and their potential as groundwater tracers to determine the recharge elevation was examined. For this purpose, Mt. Fuji and its surroundings (Japan) were selected as the research area (Fig. 1), in part for its extensive historical use in hydrogeological research to aid in the interpretation of the data obtained from this study.
Materials and Methods
Research area
The total research area covers ~40 × 45 km2, 100 km west–southwest of Tokyo in Japan (Fig. 1), and contains Mt. Fuji (peak elevation, 3,776 m). The area was subdivided into seven sections: N, E, H, SE, SW, W, and F (further details are provided in the next section). According to the seven weather stations located within the subsections, the average annual rainfall ranged from 915 to 2,845 mm for 1976–2020 (Table 1; Japan Meteorological Agency 2021), with the maximum recorded at Gotenba (E), and minimums at Lake Kawaguchi (N) and Mishima (H; 915 and 1,011 mm · y−1, respectively). There are no precipitation data for the summit of Mt. Fuji as the winds are too strong for reliable measurements, although the heaviest rains occur during the rainy and typhoon seasons (June–September), where ~60–70% of the annual precipitation occurs within the summer. Humidity data were obtained at two stations with the least rainfall: Lake Kawaguchi (N) and Mishima (H) (average RH = 72%).
The research area further includes Mt. Ashitaka and Hakone distinct. The most recent eruption of Mt. Fuji occurred 300 years ago, whereby the mountain body was covered by permeable, volcanic ejecta. Due to surface geology, there are no ephemeral rivers except in the lower part of the mountain body. Mt. Ashitaka and Hakone began erupting ~0.40 and 0.65 Ma, respectively, with the former terminating its activity ~0.1 Ma, and the latter still presently experiencing minor eruptions (Yui and Fujii 1989; Nagai and Takahashi 2008). Accordingly, the geology of Mt. Fuji, Mt. Ashitaka, and Hakone is characterized by Quaternary volcanoes.
There are two particularly important studies discussing the spatial distributions of δD and δ18O in natural waters across the research area, Nakai et al. (1995) and Yasuhara et al. (1997). The reproducibilities of the δD and δ18O analyses were ±1.5 and ±0.1‰, respectively (Nakai et al. 1995), and for δD it was ±1.5‰, with no mention of δ18O by Yasuhara et al. (1997). The Nakai et al. 1995 research project collected a total of 128 groundwater samples and found that the δ18O ranged from −12.2 to −7.0‰. Light and heavy δ were obtained in the N and SE areas, respectively, and this phenomenon was attributed to the difference in elevation (i.e., the altitude effect, where the elevation of the N area is higher than all others; Fig. 1). They also noticed a negative linear correlation between δ18O and d-excess in the well water of the SE area. Ultimately, they derived a slope of 5.6 for the δ18O–δD relationship. Yasuhara et al. (1997, 2007) measured isotope components for 60 groundwater samples, which maintained a slope of 8, and an intercept of 13.5, with an estimated lapse rate of −2‰ · 100 m−1 for δD (Ono et al. 2018). Groundwater with light δ was found in the N area, which was attributed to the “rain shadow effect” (Scholl et al. 1996) caused when moist vapor coming from the windward side moves leeward of the mountain body, losing the water vapor under the Rayleigh process. From the estimated wind flow lines in the entire research area during heavy rainfall (Kizawa et al. 1969), two predominant movements of vapor flow are considered: water vapor brought from the south which moved mainly to area W, and partly to area E. The other vapor comes from the east, passing through the north of Hakone, bringing much precipitation to area E, and moving to area N. Accordingly, the light δ recorded in groundwater for the N area was due to higher elevation and water vapor movement.
All models of groundwater flow in area SW revealed “layers”, where deep and shallow groundwater are recharged at high and low elevations, respectively (Nakai et al. 1995; Yasuhara et al. 1997, 2007; Ono et al. 2018). Horizontally, the groundwater recharged at Mt. Ashitaka and Mt. Fuji is distinguished by the NO3− concentrations (Shikazono et al. 2014) and δ values (Ono et al. 2018). In addition, Ono et al. (2018) identified groundwater mixed with the inflow of the Fuji River, flowing west from Fuji City, by low vanadium concentration. Accordingly, the hydrogeology in the SW area has been well characterized and is a primary reason why the SW area was selected for focused discussion later.
Division of research area
Figure 1 shows the groundwater sampling points (spring and well). As mentioned earlier, the isotopic composition of precipitation in Mt. Fuji changed depending on slope and elevation. The research area was thus divided into seven areas: north (N), east (E), southeast (SE), southwest (SW), west (W), Hakone (H), and the Fuji River (F). The N–E, N–W, and E–SE boundaries are topographical divides. The SE and H areas are bordered by the Kise River. In area H, there were two types of groundwater: one is the groundwater flowing from Hakone (Ueno et al. 1998 and the other is Mishima Springs (including Nos. 10 and 11 in Fig. 1). Mishima Springs has an estimated total discharge of 1.7 × 106 m3 · day−1 that passes through the Mishima Lava, and originating at an elevation of 1,700 m in the E area (Ochiai and Kawasaki 1970). Accordingly, the groundwater in the H area must be largely influenced by external regions. The SE–SW boundary is determined based on the differences in recharge area, where the groundwater can be clearly identified by the NO3− and δ values (see section ‘Research area’). The groundwater on the SE side is presumed to be recharged on Mt. Ashitaka, and the SW side is recharged on Mt. Fuji. The SW–F boundary is a curved line reflecting the difference in their sources. Some groundwater in area F is mixed with the recharged water from the Fuji River (as identified by the low vanadium concentrations; Ono et al. 2018), whereas the other parts of area F are recharged in the western hills of the Fuji River. The W–SW boundary is based on the topography and water-table map shown by Ono et al. (2018).
Measurements
Groundwater samples were collected using 100-ml polyethylene bottles after filtering using a 0.45-μm filter and sealed tightly to prevent evaporation (Ono et al. 2016, 2018) and stored in a refrigerator. Ono et al. (2016) collected groundwater twice in different years and confirmed that there were no major annual changes in δD and δ18O except in several well waters. A linear relation was observed between δD and δ18O across the 2 years, maintaining a slope of 1.000 and 0.998, respectively, with intercepts of 0 and coefficients of determination (R2) equal to 1.000; thus, the isotope compositions in the spring and most well waters of the research area did not show any annual changes, and can be regarded as representatives.
Oxygen and hydrogen stable isotopic compositions (δ17O, δ18O, and δD) were measured using a liquid water isotope analyzer (L2140-i, Picarro, USA) that employs a cavity ring-down spectrometer. VSMOW-2, GISP, and SLAP2 provided by the International Atomic Energy Agency (Martin and Gröning 2009; Wise and Watters 2012) were used as standard solutions, and all δ values in this study were normalized on the VSMOW-SLAP scale (Schoenemann et al. 2013). The precision of δ17O and 17O-excess analyses, including the long-term drift, were checked over multiple months via repeated measurements of the GISP, revealing an 17O-excess of 22 ± 9 per meg, agreeing well with previously published data, and indicative of data reliability (Table 2).
Measurements of the isotopes were carried out during 2016–2017. A total of 12 measurements for each water sample were conducted for enhanced precision—analytical data are presented in Table S1 of the electronic supplementary material (ESM). The average analytical errors (1σ) for δD, δ18O, d-excess, and 17O-excess were 0.24, 0.05, and 0.3‰, and 10 per meg, respectively, indicating an ability to discuss d-excess with an accuracy <1‰.
Results
Relationship between δD, δ18O, d-excess and 17O-excess

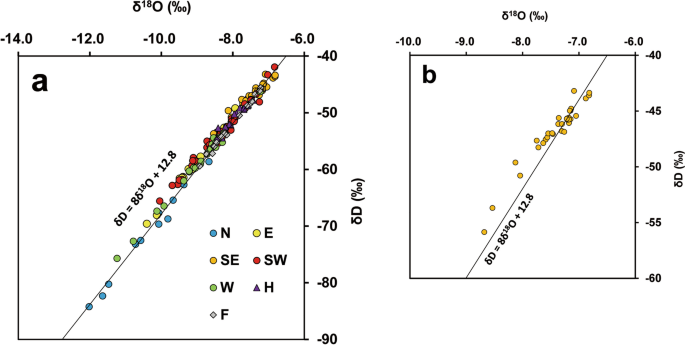

Figure 2 and Table 3 show the relationship between δ18O and δD in groundwater (spring and well), classified by area. For all data, δD ranged from −84.2 to −41.9‰, and δ18O from −12.02 to −6.82‰, which is close to those of Nakai et al. (1995). Regressing all data, the relationship between δ18O and δD is portrayed in Eq. (5):
Regressing all data using a straight line with the slope of 8,
Equation (6) is consistent with the results of Yasuhara et al. (2007), who found a d-excess in groundwater of 13.5. This research reveals that area N maintains relatively lighter δD (Nakai et al. 1995; Yasuhara et al. 2007) and lower d-excess compared to others. In addition, it was confirmed that the SE area groundwater held heavier δD and δ18O (Yasuhara et al. 2007), and a gentle slope of δ18O–δD (Nakai et al. 1995).

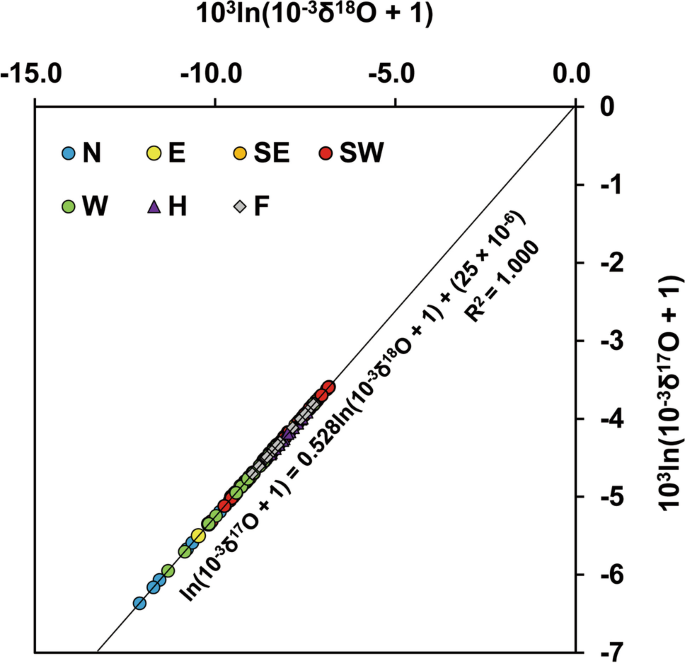

Figure 3 shows the linear relationship between 103 ln(10−3δ18O + 1) vs. 103 ln(10−3δ17O + 1) in groundwater, regardless of the area examined. Considering the GMWL, Eq. (4), as shown by Luz and Barkan (2010), and approximating their linear relationship with a slope of 0.528, Eq. (7) is revealed:
The intercept, 25 per meg, is <33 per meg of the GMWL, and closer to the average obtained in shallow groundwater in Ibaraki, Japan (26 per meg; Tsuchihara et al. 2016).
In the present research, although δD, δ17O, δ18O, and the second-order parameters (d-excess and 17O-excess) were analyzed and calculated, only the relationships between δD, d-excess, and 17O-excess will be examined hereafter, since both δ17O and δ18O were well correlated with δD (Figs. 2 and 3). Regarding δD and d-excess (Fig. 4; Table 4), a negative correlation was observed in the SE, SW, W, and H areas, all of which maintained gentle slopes on the δ18O–δD plot (Table 3); whereas no correlation was observed in the N, E, and F areas. From Table 4, the relationship between δD and 17O-excess has R2 < 0.05 for all areas except F. Because the groundwater in area F includes those mixed with the Fuji River (see section ‘Division of research area’), the higher coefficient of determination is potentially erroneous, and it was concluded that δD and 17O-excess do not correlate. For the relationship between d-excess and 17O-excess, some R2 values show the range 0.18–0.21 in areas N, E, and H, but the correlation was hardly observed, taking the analytical error of 17O-excess into consideration (1σ = 10 per meg; Fig. 4b; Table 4).
Spatial distributions of δD, d-excess, and 17O-excess

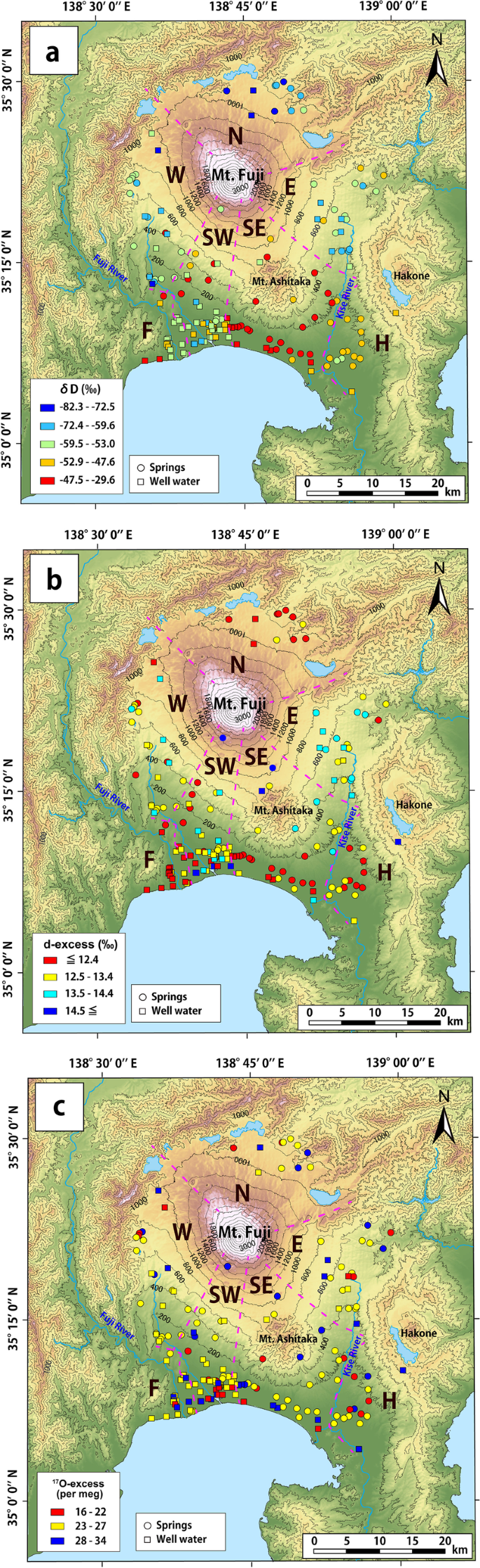

Figure 5a–c shows the spatial distributions of δD, d-excess, and 17O-excess in the groundwater, and Table 5 shows the averages for each area. In Fig. 5a, δD is the heaviest in the SE area and lightest in N, tendencies that are consistent with those of Nakai et al. (1995) and Yasuhara et al. (1997, 2007). The δD in the SE area was distinct from the adjacent E, SW, and H areas. In general, at similar basin scales (10 km), the isotopic compositions of groundwater often vary spatially, but such strong divisions are rare; therefore, it was expected that the SE area has a unique background with a heavier δ value. In Fig. 5b, the d-excess spans a range of only several ‰, with no distinct spatial variation except in area N. The low d-excess was distributed in the N area and at low elevations along the coastline; whereas higher d-excess values were found in the E and W areas, and other locations at high elevations (except for N). Thus, both elevation and slope directions appear related to d-excess. Regarding the 17O-excess (Fig. 5c), most groundwater ranged from 23 to 27 per meg across all samples (average 25 per meg with 1σ ± 3 per meg). Almost no spatial variation was observed, but it appeared to be large at high elevations.
Altitude effects of δD, d-excess, and 17O-excess

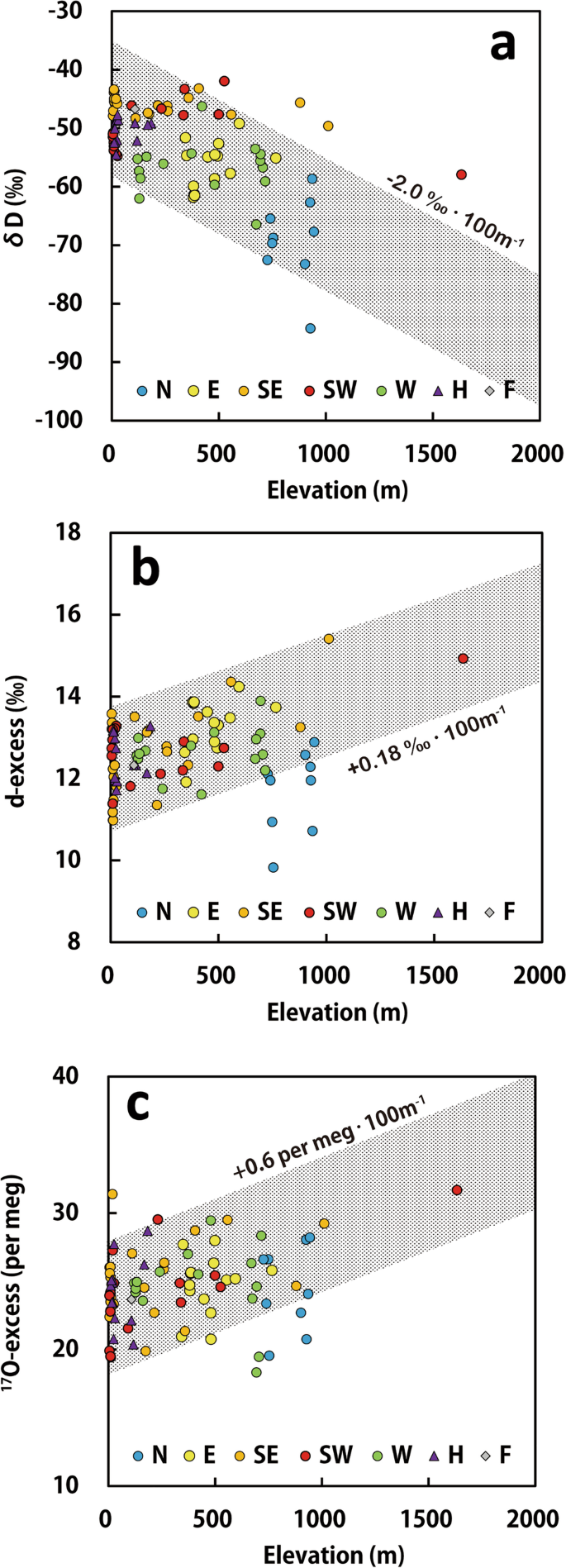

Figure 6a–c shows the relationship between δD, d-excess, 17O-excess, and elevation in spring water. Regarding the relationship between δD and elevation (Fig. 6a), most springs were found in the region with a lapse rate of −2.0‰ · 100 m−1, which was similar to that obtained by Yasuhara et al. (1997) and Ono et al. (2018). This altitude effect can be seen across the entire area, not within areas. Figure 6b shows the relationship between d-excess and elevation, where the observed range of the former was small, although the altitude effect was still observed in each area, except for N. Accordingly, the altitude effect of d-excess was more prominent than that of δD, and can be estimated as 0.18‰ · 100 m−1, which was within the range of 0.1–0.5‰ · 100 m−1 usually found in humid regions (see section ‘Introduction’). Figure 6c shows the relationship between 17O-excess and elevation, where No. 1, located at the highest elevation in the SW area, had a large 17O-excess. Except for part of N and W areas, the elevational dependence was visible, at a lapse rate of 0.6 per meg · 100 m−1, within the range of results observed on the windward side of the NW Pacific mountains in the US (0.1 and 2.3 per meg · 100 m−1; Bershaw et al. 2020). For the N area (and part of W), the plotted values appear as outliers from the overall tendency, and this is true for the relationship between d-excess and elevation as well.
Discussion
Isotopic compositions of area N
The δD in the N area was significantly lighter than elsewhere (Fig. 5a), revealing a similar tendency to those found by Nakai et al. (1995) and Yasuhara et al. (2007), who proposed a conceptual model for the trajectory of water vapor masses during heavy rain. The vapor-derived precipitation in the N area came mainly from area E, following heavy rains. Under the Rayleigh conditions, 17O-excess should not change, depending on the degree of the rain-out progress. This vapor movement is therefore consistent with the results here, where there is nearly the same groundwater 17O-excess in the E and N areas (Fig. 5c); however, Table 5 shows that the d-excess in the N area changed by >1‰ from area E, and the relationships between d-excess–elevation, and 17O-excess–elevation, of spring water were outliers from the overall tendencies (Fig. 6b,c). There are several possible explanations for these phenomena: they may be related to the great change of the source of air mass in area N or the difference in the contribution of summer and winter precipitation to recharge water (Liotta et al. 2006; Dong et al. 2018). Alternatively, evaporation might affect the d-excess since the amount of precipitation at Lake Kawaguchi in the N area is small, but noticeable evaporation could not be identified from the 7.9 slope of the δ18O–δD plots (Table 3). Overall, the reasons for this phenomenon remain unclear, and may possibly relate to the lower number of samples in area N compared to other areas. More research is thus needed to examine the isotopic compositions of groundwater there.
Evaporation effect and the gentle slope in δD–δ18O

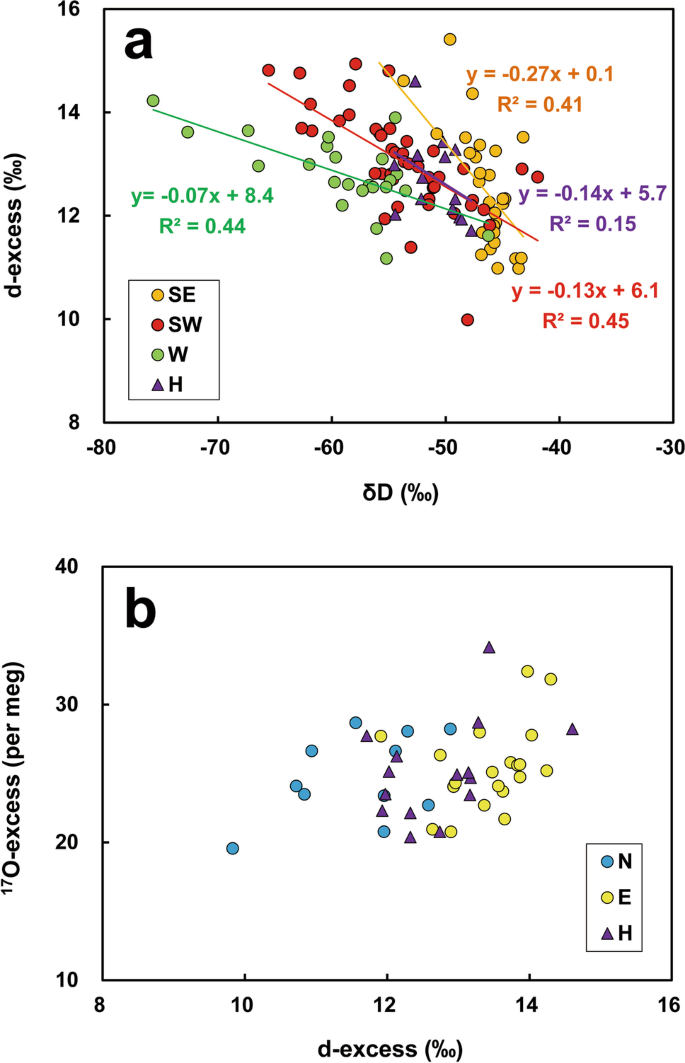

From Table 4 and Fig. 4, the areas with high R2 between δD and d-excess maintained a gentle slope of the δ18O–δD relationship (SE, SW, W, and H areas). Notably, the climate in the gently sloped SE area has high temperatures and low precipitation (close to Mishima City, Table 1), while the E area, which experiences high precipitation, does not show this tendency. Using Henning’s formula and meteorological data (Table 1; Morimoto et al. 2013), the lifted condensation level around Mt. Fuji was estimated to be ~700 m asl; thus, the elevations of most springs were lower than the average cloud base in the SE area. Considering the studies conducted in humid regions (Crzu-San Julian et al. 1992; Liebminger et al. 2006; Wakiyama et al. 2013; Bershaw et al. 2020), the influence of evaporation would affect the δD, d-excess, and 17O-excess in groundwater.
Calculations according to Gonfiantini (1986) were performed to quantitatively evaluate the maximum influence of evaporation on each parameter in the SE area (ESM). Assuming No. 1 (δD = −49.6‰, δ18O = −8.13‰, and d-excess = 15.4‰), and No. 25 (δD = −43.6‰, δ18O = −6.82‰, d-excess = 11.0‰) are given as the initial and final water states, respectively, ~6% of evaporation from the whole water body was necessary to produce a change of 4.4‰ in d-excess. For comparison, the calculation by Liebminger et al. (2006) showed that a 1% evaporation caused a change of 1‰ in d-excess under their local climatic conditions. Overall, because only a small amount of evaporation is required for the transition from the initial to final water, it seems a likely process from both qualitative and quantitative aspects. The influence of evaporation on 17O-excess can be calculated in the same way. As a result, 6% of evaporation should cause only a change of 7 per meg in 17O-excess, which is estimated to be the maximum change found here but less than the analytical error. The preceding calculations consistently explained why the heavy δ value and low d-excess in groundwater were distributed in the SE area, but 17O-excess had a small spatial distribution (Fig. 5a–c) and revealed little correlation between d-excess and 17O-excess (Fig. 4b,d; Table 4). Thus, the isotopic properties depend largely on the area. Therefore, it is necessary to analyze isotope properties within the area to determine the recharge area by using them as tracers.
Determination of recharge elevation using water temperature, δD, δ18O, d-excess, and 17O-excess
Ono et al. (2018) estimated the recharge elevations for five well waters (Table 6) located on a survey line in the SW area by using the recharge line, which is produced by δD in small spring water assumed to be equal to that in the recharge water shown by Yasuhara et al. (1997). In this section, the recharge elevations will be calculated in the same way, but using not only δD but also water temperature, δ18O, d-excess, and 17O-excess as tracers. Seven springs discharging perched water, located in the SW area (Nos. 1, 3, 4, 5, 6, 8, and 13), are assumed to represent recharge water. For groundwater temperature, the averaged data obtained by Ono et al. (2018) were used. The lapse rates were fixed as follows: the water temperature was set to −0.6 °C · 100 m−1, which is the local lapse rate in the research area (Japan Meteorological Agency 2021), and δD and δ18O were set to −2‰ · 100 m−1 and −0.24‰ · 100 m−1, which were reported by Yasuhara et al. (1997) and Yasuhara et al. (2007). The lapse rates for d-excess and 17O-excess were given as 0.18‰ · 100 m−1 and 0.6 per meg · 100 m−1, respectively (from Fig. 6).

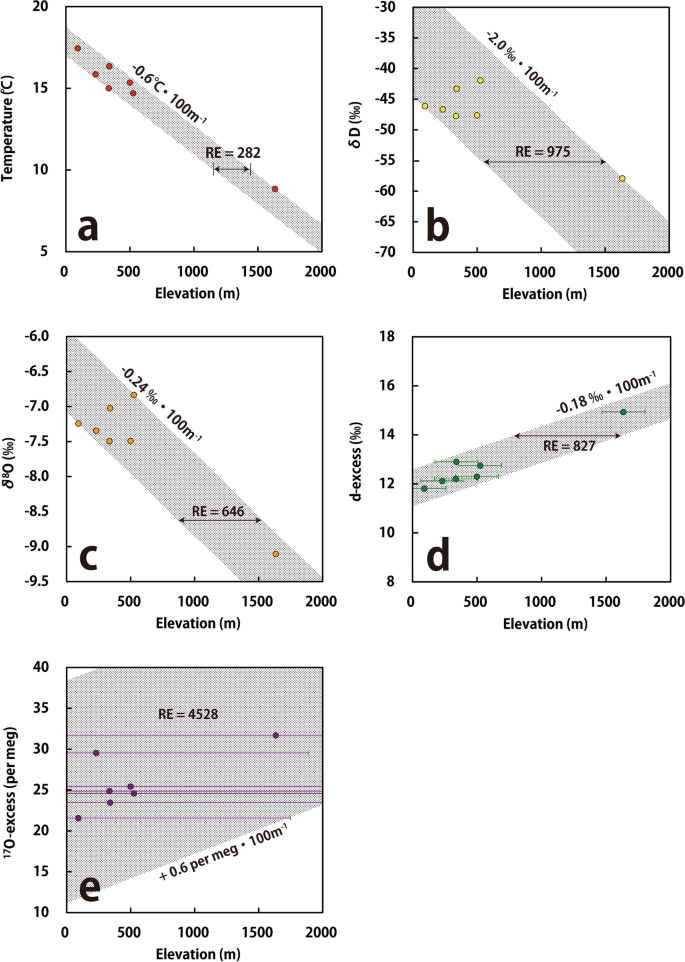

The relationship between water temperature and isotope properties was plotted within a range with a lapse rate, since they vary with respect to the elevation. Taking the analytical error into consideration, the possible recharge elevation (the range between upper and lower limits of recharge elevation) became the “RE” in Fig. 7. As a result, the range of RE for water temperature became 282 m, and 975 m for δD, 646 m for δ18O, 827 m for d-excess, and 4,528 m for 17O-excess. It should be noted that water temperature seems to have a small RE, but its seasonal fluctuation was not considered; nevertheless, a maximum 5 °C change was observed in these springs by Ono et al. (2018).

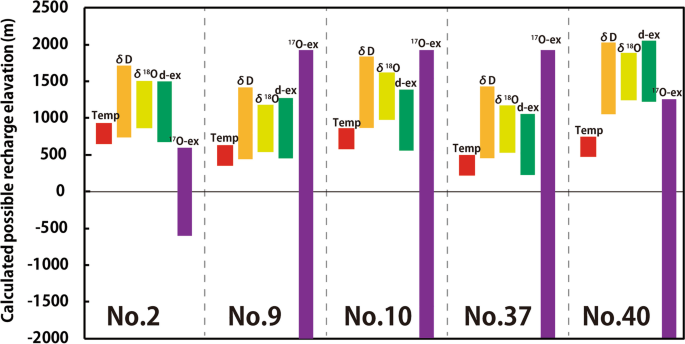

Figure 8 shows the upper and lower limits of the recharge elevations of the five wells in Table 6 calculated from the RE in Fig. 7. Considering the altitude effects of δD (−2.0‰ · 100 m−1) and δ18O (−0.24‰ · 100 m−1), the effect of analytical errors for δD (0.24‰) and δ18O (0.05‰) can cause 12 and 21 m of the changes in recharge elevations, respectively. Therefore, analytical errors for δD and δ18O were unlikely to have caused the increase of RE. The δD and δ18O do not change linearly with respect to elevation but have their own variabilities (Fig. 7); these variabilities might be due to the difference in recharge area in springs, local meteorological conditions, or degree of evaporation, which is also influenced by the permeability and vegetation on land surfaces (Gat 1971). On the other hand, d-excess seems to have small variability, but a relatively low lapse rate results in great RE (827 m) in Fig. 8. Although 17O-excess seems to depend on the elevation (Fig. 6), it is difficult to apply it as a tracer, especially in a small basin because of its large analytical error (1σ = 10 per meg). It is, however, expected that it will become a useful tracer in the future by improving the analytical accuracy. In this way, the recharge elevations determined by δD, δ18O, and d-excess are similar (Fig. 8), which indicates the usefulness of these tracers, including d-excess.
The average recharge elevation (the midpoint of upper and lower limits of recharge elevation in Fig. 8) for all well waters located in the SW area (29 points: see the ESM) were calculated using water temperature, δD, δ18O, and d-excess, and compared with each other (Fig. 9). The relationship between the recharge elevations obtained by δD and δ18O forms almost one straight line (Fig. 9a), and the recharge elevation is slightly higher in δD in the low elevation. On the other hand, the plots vary, but correlations were found in δD–d-excess (Fig. 9b) and δD–water temperature (Fig. 9c). From the relationship between temperature and d-excess, a positive relationship can be seen, and the recharge elevations calculated by temperature were lower than those by d-excess (Fig. 9d). In this way, the recharge elevation calculated by the tracer increases in the order of δD > δ18O > d-excess > temperature. The recharge elevation calculated from temperature could have become the lowest due to the geothermal gradient in the volcanic area, which raises the groundwater temperature or due to insufficient data on seasonal fluctuation. The reason for the difference in recharge elevations between δD, δ18O, and d-excess is unknown; the overlap among different tracers is an important indicator for determining the groundwater protection zones.
Conclusion
The purpose of the present study was to examine the spatial changes in stable isotopes, including d-excess and 17O-excess in groundwater in a small-scale basin, and examine their usefulness to determine the recharge elevation of groundwater. For this, ~160 groundwater samples (spring and well water) were collected from slopes with different aspects at the foot of Mt. Fuji, the highest mountain in Japan. The research area maintains a humid climate with >70% RH, and 900–2,800 mm · year−1 of precipitation, covering an area of 40 × 45 km in which most springs and wells are distributed below 1,000 m (m asl).
The high-precision isotope analyses revealed the distinct characteristics of δD and d-excess in groundwater in each area. In area N, the leeward side of the wind direction was characterized by light δD and low d-excess, which was an outlier from the overall tendencies of the elevation relationship. Areas SE, SW, W, and H were characterized by a <8 slope of the δ18O–δD plot and a high correlation between δD and d-excess, both of which supported the evaporation effect. Although the research area is relatively small, isotope properties were different.
Accordingly, the SW area was selected for examining the usefulness of d-excess and 17O-excess to determine the recharge elevations. While the d-excess had clear elevation dependency (0.18‰ · 100 m−1), the 17O-excess in most groundwater was ~25 per meg with a lapse rate of 0.6 per meg · 100 m−1. The recharge elevation determined by d-excess was similar to those obtained from δD and δ18O, indicating that d-excess can be used as a tracer in a small basin. The low lapse rate compared to the analysis error (1σ = 10 per meg) of 17O-excess inhibits its usefulness as a tracer. The combination of δD, δ18O, and d-excess can increase the reliability of the results obtained through this method. However, the reason for the difference in recharge elevations determined by different tracers could not be clarified by the present study. To enhance the isotopic tracer method, it is necessary to carry out more studies, including the application of other tracers and more intensive and long-term observation regarding groundwater.
