Delineation of spring recharge zones using environmental isotopes to support climate-resilient interventions in two mountainous catchments in Far-Western Nepal

Abstract

Though springs are the primary source of water for communities in the mid-hills of Nepal, an in-depth scientific understanding of spring systems is missing, preventing the design of effective climate-resilient interventions for long-term sustainability of springs. This study marks the first attempt to combine environmental isotopes analysis with hydrometric and hydrogeological measurements to identify dominant recharge zones for springs in two mountainous catchments—Banlek and Shikarpur—in Far-Western Nepal. In total, 422 water samples collected from rainfall, springs and streams between March 2016 and March 2017 were analyzed for their isotopic composition (δ¹⁸O and δD). Isotopic composition of rainwater shows seasonality, suggesting that different sources of water vapor cause rains in monsoon and in dry season. Rainfall responses of individual springs were used to identify connections to unconfined and deeper groundwater strata. The isotopic composition of springs in the two catchments ranges from −9.55 to −8.06‰ for δ¹⁸O and −67.58 to −53.51‰ for δD. The isotopic signature of the spring sources falls close to the local meteoric water line for the corresponding season, indicating strong rainfall contribution to springs. Altitudinal isotopic gradients suggest mean recharge elevation of 2,600–2,700 m asl for springs in Shikarpur, which lies beyond the surface-water catchment, and a recharge elevation of 1,000–1,100 m asl for Banlek, which partially extends beyond the surface-water catchment. The demarcated recharge zones will be used by government agencies to implement recharge interventions to increase the resiliency and reliability of springs in Far-Western Nepal.

Résumé

Bien que les sources constituent la principale source d’alimentation en eau pour les communautés situées au milieu des collines du Népal, il manque une compréhension scientifique approfondie du fonctionnement des sources, ce qui empêche de concevoir des interventions résilientes efficaces face au changement climatique, pour assurer la pérennité des sources. Cette étude marque la première tentative de combiner l’analyse des isotopes environnementaux et les mesures hydrométriques et hydrogéologiques pour identifier les zones de recharge dominantes des sources de deux bassins versants montagneux—Banlek et Shikarpur—dans l’Extrême-ouest du Népal. Au total, 422 échantillons d’eau prélevés dans les pluies, les sources et les cours d’eau entre mars 2016 et mars 2017 ont été analysés en fonction de leur composition isotopique (δ¹⁸O et δD). La composition isotopique de l’eau de pluie montre une saisonnalité, ce qui suggère que des sources différentes de vapeur d’eau provoquent les pluies en mousson et en saison sèche. Les réponses des sources individuelles aux épisodes pluvieux ont été utilisées pour identifier les connexions à des aquifères libres ou profonds. La composition isotopique des sources dans les deux bassins versants varie de –9.55 à –8.06‰ pour δ¹⁸O et –67.58 à –53.51‰ pour δD. La signature isotopique des sources des émergences est proche de la droite météorique locale pour la saison correspondante, ce qui indique une forte contribution des pluies aux sources. Les gradients isotopiques altitudinaux suggèrent une altitude moyenne de recharge comprise entre 2,600 et 2,700 m (au-dessus du niveau de la mer (anm)) pour les sources de Shikarpur, qui se trouvent au-delà du bassin versant des eaux de surface, et une altitude de recharge de 1,000–1,100 m (anm) pour Banlek, qui s’étend partiellement au-delà du bassin versant. Les zones de recharge délimitées seront utilisées par les agences gouvernementales pour mettre en œuvre des interventions de recharge afin d’accroître la résilience et la durabilité des sources dans l’Extrême-ouest du Népal.

Resumen

Aunque los manantiales son la principal fuente de agua para las comunidades de las serranías medias de Nepal, falta un conocimiento científico profundo de los sistemas de los manantiales, lo que impide el diseño de intervenciones eficaces y resilientes al clima para la sostenibilidad a largo plazo de los manantiales. Este estudio marca el primer intento de combinar el análisis de isótopos ambientales con mediciones hidrométricas e hidrogeológicas para identificar las zonas dominantes de recarga de manantiales en dos cuencas montañosas—Banlek y Shikarpur—en el extremo oeste de Nepal. Se analizaron un total de 422 muestras de agua recolectadas de lluvias, manantiales y arroyos entre marzo de 2016 y marzo de 2017 para determinar su composición isotópica (δ¹⁸O and δD). La composición isotópica del agua de lluvia muestra estacionalidad, lo que sugiere que diferentes fuentes de vapor de agua causan lluvias en el monzón y en la estación seca. Las respuestas de las precipitaciones en los manantiales individuales se utilizaron para identificar conexiones con estratos de agua subterránea no confinados y más profundos. La composición isotópica de los manantiales de las dos cuencas va de –9.55 a –8.06‰ para δ¹⁸O y de –67.58 a –53.51‰ para δD. La firma isotópica de las fuentes de manantiales cae cerca de la línea de agua meteórica local para la estación correspondiente, lo que indica una fuerte contribución de las lluvias a los manantiales. Los gradientes isotópicos altitudinales sugieren una elevación media de la recarga de 2,600–2,700 msnm para los manantiales de Shikarpur, que se encuentra más allá de la cuenca de aguas superficiales, y una elevación de recarga de 1,000–1,100 msnm para Banlek, que se extiende parcialmente más allá de la cuenca. Las zonas de recarga demarcadas serán utilizadas por los organismos gubernamentales para llevar a cabo intervenciones de recarga a fin de aumentar la confiabilidad y la resiliencia de los manantiales en Far-Western Nepal.

摘要

虽然泉水是尼泊尔中山地区社区的主要水源, 但缺乏泉水系统的深入科学认识, 也就无法设计出保证泉水利用的长期可持续性的有效的气候适应性应对措施。本研究首次尝试结合环境同位素分析与水文和水文地质测量来确定尼泊尔西部的两个山区流域(Banlek和Shikarpur)泉水主要补给区。在2016年3月至2017年3月期间从降雨、泉水和河流中共收集到422个水样, 分析了同位素组成(δ¹⁸O和δD)。雨水的同位素组成具有季节性特征, 表明不同的水汽来源会引起季风和旱季降雨。应用单个泉水的降雨响应来识别与潜水和更深层地下水的联系。两个流域的泉水同位素组成δ¹⁸O为–9.55至–8.06‰, δD为–67.58 –53.51‰。泉水来源的同位素特征与该季节的当地大气降水线相近, 表明降雨对泉水的贡献很大。同位素海拔梯度表明Shikarpur的泉水平均补给高度为2,600至2,700米, 这位于地表水流域以外; Banlek的补给高度为1,000至1,100米, 部分延伸到流域以外。政府机构将使用划定的补给区来制定补给应对措施, 以提高尼泊尔西部地区的泉水利用的适应性和可靠性。

Resumo

Embora as nascentes sejam a principal fonte de água para as comunidades nas colinas do Nepal, está faltando uma compreensão científica aprofundada dos sistemas de nascentes, impedindo o planejamento de intervenções climatologicamente resiliêntes para a sustentabilidade de nascentes a longo prazo. Este estudo marca a primeira tentativa para combinar análise de isótopos ambientais com medições hidrométricas e hidrogeológicas para identificar as zonas de recarga dominantes em duas bacias montanhosas—Banlek e Shikarpur—no Extremo Oeste do Nepal. No total, 422 amostras de água de chuva, nascentes e rios coletadas entre março de 2016 e março de 2017 foram analisadas para determinar a composição isotópica (δ¹⁸O e δD). A composição isotópica da chuva mostrou sazonalidade, sugerindo que diferentes fontes de vapor causam chuvas nas monções e no período seco. Respostas da precipitação em nascentes individuais foram usada para identificar conexões entre camadas de água subterrânea não confinados e mais profundos. A composição isotópica das nascentes das duas bacias variou de –9.55 a –8.05‰ para δ¹⁸O e –67.58 a –53.51‰ para δD. As assinaturas isotópicas das fontes das nascentes apresentam-se perto da reta meteórica local para a estação correspondente, indicando forte contribuição da precipitação para as nascentes. Os gradientes isotópicos da altitude sugerem uma elevação média da recarga de 2,600–2,700 m para nascentes em Shikarpur, que fica além da bacia hidrográfica, e uma elevação de recarga de 1,000—1,100 m acima do nível do mar para Banlek, que se estende parcialmente além da bacia. As zonas de recarga demarcadas serão usadas por agências governamentais para implementar intervenções de recarga para aumentar a resiliência e a confiabilidade das nascentes no Extremo Oeste do Nepal.

Introduction

Two-thirds of the global population are experiencing severe water scarcity at least 1 month of each year (Mekonnen and Hoekstra 2016), which is expected to be further aggravated by increasing demands and impacts of climate change (Palmer et al. 2008; Oki et al. 2014). Nepal has consistently ranked as one the most climate vulnerable countries globally because of increasing vulnerability to biophysical hazards and low capacity of local systems to absorb climate-induced shocks. The climate vulnerability exacerbates the condition of 25% of the people living below the poverty line and 66% of the population directly dependent on agriculture for sustenance (IDS-Nepal et al. 2014). Climate-change induced increase in temperature and uncertainties in precipitation are expected to have a direct bearing on water availability for agriculture and livelihood through changes in evapotranspiration, recharge magnitudes and discharge regimes. Water security is an imperative driver to achieve sustainable development, ensure economic sustenance and increase the climate resilience of rural vulnerable communities in Nepal, in which utilization of spring sources play a vital part (WECS 2011).

A climate vulnerability assessment for watersheds across Nepal identified the mid-hills in Western Nepal as the most vulnerable region within the country (Siddiqui et al. 2012). The mid-hills—elevation 1,000–2,500 m above sea level (asl)—in Nepal account for 45% of the total population, of which over 80% depend on agriculture and livestock for their livelihood (Dixit and Khadka 2013). The mean annual precipitation in Far-Western Nepal region is 1,921 mm, signifying adequate water resources availability; however, 80% of the annual rainfall arrives during the monsoon (June–September), leading to water scarcity in the drier months (October–May). Especially in Western Nepal, the inter-annual and seasonal climate variability is considered as the main determinant of food production, market access and commodity pricing (UNWFP 2014). Hence, for 80% of rural communities perched on hilltops far from river sources, springs are the primary source of water for sustaining domestic, agriculture and livestock water demands (Tambe et al. 2012; Sharma et al. 2016).

Decline in spring discharge has been reported in parts of India and in the Nepalese mid-hills due to increased water demand from changes in demographics, land use changes associated with agriculture and deforestation, and rainfall variability induced by climate change (Valdiya and Bartarya 1989; Negi and Joshi 1996; Negi and Joshi 2002; Merz et al. 2003; Tambe et al. 2012). As springs remain the main source of water for domestic and agricultural purposes, especially in dry periods, protecting their source areas and introducing interventions to manage them is critical for ensuring water and livelihood security in the region. However, data and knowledge of local meteorology, hydrology, geology, and surface-water/groundwater dynamics, imperative to designing climate resilient interventions for spring management, are scarce for the Nepalese mid-hills. The lack of understanding of fundamental processes governing springs in the hydrogeologically complex and ungauged Himalayan catchments is a key reason for limited impact, or even failure, of watershed interventions (Sharma et al. 2000; Government of Sikkim 2014; Vashisht 2008).

Identifying dominant spring recharge zones is a prerequisite for successful management and augmentation of springs through a suite of potential interventions such as infiltration structures (ponds and trenches) and land management activities to sustain water availability and reliability (Kresic and Bonacci 2010). Depending on the objectives and scale of the intended study, appropriate choice of physical, tracer and numerical modeling-based methods can be used to delineate and estimate groundwater recharge (Scanlon et al. 2002; Chowdhury et al. 2010; Chinnasamy and Prathapar 2016). The combination of geophysical investigations, hydro-geochemistry and naturally existing tracers—the environmental isotopes (²H, ¹⁸O and ³H)—can provide critical insights into the spatial distribution of groundwater aquifers and their recharge areas (Clark and Fritz 1997). To understand the groundwater recharge dynamics in data-scarce, small, ungauged mountain catchments, tracers (natural and artificial) and geophysical methods have been widely used to identify groundwater residence time and to locate recharge zones (Stimson et al. 1993; Mathieu and Bariac 1996; Chinnasamy and Prathapar 2016). The environmental isotopes of oxygen and hydrogen isotopes (δ¹⁸O and δD) have been used to determine recharge mechanisms, trace the origin of spring systems, and estimate residence time of groundwater in the Himalayan region (Jeelani et al. 2010). The δ¹⁸O and δD isotopic composition of rain samples collected at different altitudes and latitudes along the hillslope exhibit different isotopic signatures, which contribute to the creation of a local meteoric water line (LMLW; Gat 1971; Clark and Fritz 1997; Price and Swart 2006; Fontes et al. 1967; Jeelani et al. 2010; Kumar et al. 2010a; Fetter 2001). Dominant recharge elevations contributing to spring flow can be identified by relating the isotopic signature of spring sources to altitudinal gradient for δ¹⁸O and δD in rainfall and comparing to that LMLW. Evaporation and mixing of recharged water with groundwater from various sources can, however, affect the isotopic signature of springs leading to its departure from the LMWL (O’Driscoll et al. 2005).

A sizeable number of stable isotope applications for spring hydrology have been carried out on the Indian side of the Western Himalayan range (Jeelani et al. 2010, 2015, 2017; Shah et al. 2017). Kumar et al. (2010a) also analyze the stable isotopic ratios in precipitation for India while Kumar et al. (2010b) investigated the isotopic characteristics of precipitation in the Kumaon Himalayas located close to the India-Nepal border in the West. Previous environmental isotope studies within Nepal focused on estimating the relative contribution of various water sources to the stream, but have not been applied for delineation of spring recharge areas (Ramesh and Sarin 1992; Garzione et al. 2000; Racoviteanu et al. 2013). More recently, Wilson (2015) and Florea et al. (2017) characterize isotopic compositions in surface and groundwater in Langtang (central) and Everest (eastern) regions of Nepal; however, to the authors’ knowledge, this study is the first isotopic analysis conducted with a specific focus on spring systems in Far-Western Nepal.

This study utilizes stable isotopes of δ¹⁸O and δD in rainfall, springs and stream water to delineate spring recharge zones to support the design of evidence-based climate resilient interventions in two mountainous catchments (Banlek and Shikarpur) located in Far-Western Nepal. This study is a part of the Government of Nepal’s Building Climate Resilience of Watersheds in Mountain Eco-Regions (BCRWME) project under its Strategic Program for Climate Resilience, which aims to build climate resiliency of vulnerable mountain communities. The BCRWME project, led by the Department of Forest and Soil Conservation (DFSC), previously Department of Soil Conservation and Watershed Management (DSCWM), is implementing watershed management interventions to sustain spring water availability in many mountain watersheds in Far-Western Nepal, under changing climate conditions. The isotope-based recharge zone delineation will form the basis for gauging the suitability and siting of potential interventions such as afforestation, on-farm conservation, infiltration trenches, recharge ponds, small storage tanks, bioengineering, gully protection, and social fencing, to sustain springs and provide food and livelihood security to these mountain communities.

Materials and methods

Study area

Two pilot springsheds (Fig. 1a,b)—Shikarpur and Banlek, within the West Seti River basin—were chosen from 108 sites under the BCRWME project to use environmental isotopes for spring recharge zone delineation. Key characteristics of these two catchments are presented in Table 1. Around 75 households in Shikarpur use three springs for domestic and agriculture purposes, and for operating a 3-kW micro-hydropower plant (Okwany and Khadka 2016). In Banlek, there are two well-defined channels with four springs primarily used for drinking purposes and for livestock and irrigation on the rare occasion when excess water is available (Okwany and Khadka 2016). The slope largely faces northeast and east, with aspect ranging from 23 to 113° (with 0° being north, 180° being south), which indicates that most runoff will head in that direction.

Fig. 1

a Location of the two pilot springsheds in South Asia, b Shikarpur and c Banlek in Far-Western Nepal showing the catchment boundary, and isotope sampling sites. Springs are numbered and denoted in relation to their catchments. SS Shikarpur spring; BS Banlek spring

Table 1 Key characteristics of two pilot catchments in Far Western Nepal

Hydrogeology

For Shikarpur and Banlek, site specific geological data are not available. Based on information obtained from the regional geological map, the field visits and expert judgement, the local hydrogeology of these two springsheds is described. A base map of 1:50,000 scale was first prepared using a topographic map published by the Survey Department, Nepal, Topo Sheet no. 2980 15B for Banlek area and Topo Sheet no. 2980 11B for Shikharpur. A geological traverse was carried out along the stream, road cut sections and foot trials to obtain geological and hydrogeological information like rock and soil type, dip strike measurement of discontinuities, weathering conditions, geological structures and occurrence and nature of springs. The hydrogeology of the two pilot springsheds is presented in Fig. 2a,c) along with the geological cross section across the selected transect Fig. 2b,d).

Fig. 2

Hydrogeological setting. a Shikarpur geological map, b Cross section profile of Shikarpur along AA′ transect, c Banlek geological map and d cross sectional profile of Banlek along BB′ intersect. Both catchments contain weathered quartzite and phyllite formation dominating the subsurface stratum. Note that thickness of formations are not to scale

Shikarpur

The geology in Shikarpur consists of fine-grained gray limestone from Lakherpata Formation overlaying calcareous quartzite and dolomitic limestone from Syanga Formation. In the upper slopes, the limestone appears highly fractured and crushed, and in some areas, small caves are visible indicating karst topography with subsurface caverns. The limestones have three joint sets and random fractures forming wedge shape blocks. The joints are close spaced and have smooth to rough surfaces. The attitude of the bedding plane has SW–NE strike with NW dipping at 24–41°. This formation is correlated with the Lakharpata Formation of the regional geological map of Far-Western Nepal. The southern part of the study area consists of quartzite and phyllite. The quartzite observed along the road cut section is medium to thickly foliated, highly fractured and moderately weathered, and gray colored. Chlorides, quartz and feldspar dominate the mineral composition of the rock. Dark gray to purple colored phyllite and phyllitic slates are also present within the quartzite with three joint sets and random fractures forming wedge shape blocks. The joints are close spaced and have smooth to rough surfaces. The foliation plane has a SW–NE strike with NW dipping at 10–30°. This quartzite and phyllite are correlated with the Syanga Formation of the geological map of Far Western Nepal. Colluvial deposits, composed of angular fragments of quartzite, limestone and phyllite, are very widely disturbed within the watershed area along the lower part of the slope and form the unconfined stratum in the area. Most of the joint sets in the Shikarpur Springshed have continuous close to tight joints, rough and irregular surfaces, and show a high degree of intersection of discontinuities.

Banlek

Similar to Shikarpur, colluvial deposits are widely distributed within the Banlek springshed area (Fig. 2c,d). These deposits are composed of angular fragments of quartzite and phyllite with angular fragments. At the middle part of the catchment area, an old landslide was observed also containing the same colluvial deposits. The geology consists of metasedimentary rocks of grey colored, medium to coarse grained, highly fractured quartzite and thinly bedded undulated phyllite. The bedrocks are mostly exposed along the stream cut section, road cut section and at some cultivated areas of contoured terrace. The joints are closely spaced and have smooth to rough surfaces. The bedding plane has NW–SE strike with 38–68° SW dipping. Banlek area is situated in the north of the Main Boundary Thrust which lies about 25 km south from the study area. Foliation structures in quartzite and phyllite are distinct and common in the investigated site. Foliation controls the general geography of the area. The thickness of the foliation varies from thin (<10 cm) to thick (>1 m). The foliation plane in the area is dipping towards the south to south-west, with dip amount varying from 45 to 78°. Some quartz veins are also observed along the foliation planes. In both catchments, rock exposures show a high degree of intersection and discontinuities which determines the degree of anisotropy of groundwater flow in the fracture network, as such a high degree of interconnection facilitates smooth and uniform groundwater flow.

Hydro-meteorological measurements

Two automatic weather stations were installed in October 2015 to capture site-specific weather phenomena consisting of rainfall, temperature, relative humidity, solar radiation, and wind speed. The automatic rain gauge in the Banlek catchment malfunctioned during the 2016 observation period resulting in reliable observations only from Jan 2017. Meanwhile, the observations in Shikarpur are available from November 2015 till November 2017. Two v-notch weirs were installed, one in each catchment in April 2016 to estimate discharge based on water level recorded above the v-notch using an automatic pressure sensor. The automatic measurements were collected at sub-daily timescales and aggregated to daily averages. Spring sources are additionally measured manually once every morning using the time-volume method.

Isotope sampling

Water samples from three springs, two streams, and rainfall at four elevations were collected from Shikarpur, while similarly, a sample from four springs, one stream, two points in West Seti River and rainfall at three elevations were collected in Banlek. The isotope sampling locations are shown in Fig. 1. During the monsoon season (June–September), samples from springs and streams were collected weekly while during dry season, comprising the winter and summer months (October–May), samples were collected fortnightly. Rainfall water samples or snow samples were collected for all events greater than 5 mm. Note that Western Nepal is known to also receive rains in the winter (Bookhagen and Burbank 2010). The water sample collection and lab analysis of isotopic compositions were conducted from August 2015 to March 2017. In total, 422 water samples were collected and analyzed for δ¹⁸O and δD by Dual Inlet Isotope Ratio Mass Spectrometer (Isoprime with Masslynx software Ver. 4.0) at the Stable Isotope Laboratory (Nuclear lab) at National Institute of Hydrology in Roorkee, India. The stable isotope composition  of oxygen and hydrogen are reported using conventional delta (δ) notation (Craig 1961), δ¹⁸O and δD in per mil (‰) relative to Vienna Standard Mean Ocean Water, VSMOW (Gonfiantini 1981). The precision of the measurement of δ¹⁸O and δD was ±0.1 and ± 1.0‰, respectively. Deuterium excess, d-excess, (Dansgaard 1964) was calculated using the standard equation:

$$ \mathrm{d}-\mathrm{excess}=\updelta \mathrm{D}-8{\updelta}^{18}\mathrm{O} $$

(1)

Results

Rainfall patterns and the effect on spring flows

Daily rainfall magnitude and spring flow observed in the two study catchments are presented in Fig. 3a (Shikarpur) and Fig. 3b (Banlek). The total observed rainfall from January to August 2017 was 2,025 mm in Shikarpur and 925 mm in Banlek (Fig. 3a,b). During the 2017 observation period, the total rainfall observed in Shikarpur was twice that of the Banlek catchment. The contribution of the monsoon, driven by the winds from the Bay of Bengal, to the total rainfall in 2017 stands at 81% in Shikarpur (1,781 mm) and 74.3% in Banlek catchments (688 mm). In 2016, the Southwest monsoon contribution in Shikarpur catchment was 1,778 mm, which is 83.7% of the total annual rainfall received. The maximum 1-day precipitation observed in Shikarpur is 128.6 mm and Banlek is 79.8 mm. While the observation period covers 2 years in Shikarpur and less than a year in Banlek, it is evident from the 2017 data that both catchments exhibit different rainfall patterns owing to micro-climates fueled by local convective and orographic interactions common in the Himalayan region.

Fig. 3

Observed daily rainfall and spring discharge in a Shikarpur and b Banlek

Mean daily discharge of 182, 176 and 51 L/min were observed in the three Shikarpur springs between November 2015 and 2017. In Banlek, the observed daily mean discharge estimated over the same observation period was 5, 6.6 and 7 L/min. Shikarpur is located in a larger mountain range with twice as much rainfall as Banlek, resulting in such higher magnitude of spring flows. Out of the three springs monitored in Shikarpur catchment, two springs (SS-1 and SS-2) respond quickly to rainfall events, while the response from the spring SS-3 was relatively lower (Fig. 3a). Similarly, spring BS-2 and BS-3 in Banlek catchment show quick responses to rainfall events. The relatively stable nature of spring hydrographs in BS-1 and BS-4 in Banlek, and SS-3 in Shikarpur, indicates a year-round contribution from stable groundwater sources. The spring hydrographs shown in Fig. 3 indicate that the onset of increase in spring flows coincides with the occurrence of the Southwest monsoon. The rising limb of spring hydrographs in Shikarpur occurs during the first week of July, while it was observed to occur during late August/early September in Banlek. Discharge in Banlek declined significantly in 2017 and field observations confirmed that the site was facing a drought with a decline in rainfall as well as spring flows throughout the catchment.

Based on the time difference in measured rainfall peak and observed peak flow in spring flows, 10 days was estimated as an approximate time taken for the rainfall response to appear in the springs in Shikarpur. Owing to limited rainfall data in Banlek catchment, residence time was not estimated; however, considering the smaller catchment size, moderate slopes, and more infiltration-related hydrogeological characteristics, it is likely that the mean residence time will be less than 10 days for springs fed by rainfall recharge. These hydrometric observations in springs in Banlek and Shikarpur indicate that BS-2, BS-3, SS-1, and SS-2 derive water from unconfined groundwater sources with larger recharge areas, which explains the immediate response to rainfall events. The remaining springs did not show such response to rainfall events, indicating that these springs are possibly fed by deeper groundwater sources with longer residence time or with smaller recharge areas. Identifying the nature of springs and the key hydrogeologic drivers has a direct bearing on design of climate resilient interventions.

Intra and inter-seasonal variations of δ¹⁸O and δD in rainfall and springs

A summary of δ¹⁸O and δD composition of the rainfall and spring water samples in the two catchments is presented in Table 2. The rainfall samples collected in two seasons, monsoon (June–September) and dry season (October–May), showed two distinct isotopic signatures. In Shikarpur, intra-seasonal variations of δ¹⁸O in Southwest monsoon rainfall samples, standard deviation (SD) = 2.66, were substantially lower than the variations observed in winter season samples (SD = 6). In the case of measured δD, this phenomenon is reversed with dry season samples showing lower intra-seasonal variations (SD = 3.96) compared to Southwest monsoon rainfall events (SD = 31). In Banlek, seasonal variations for both δ¹⁸O and δD were pronounced during the Southwest monsoon season compared to dry season samples. The Southwest monsoon rainfall samples collected in Shikarpur are more depleted of heavier isotopes (mean δ¹⁸O: −11.54 and δD: −82.64‰) than the samples from Banlek, which is reasonable, as the latter is located at lower elevation (δ¹⁸O: −9.17 and δD: −66.47‰). However, the isotopic composition observations from winter rainfall samples do not follow the same elevation-dependent isotopic depletion trend.

Table 2 Summary of stable isotope analysis (δ¹⁸O and δD) from the two catchments (Shikarpur and Banlek). For Shikarpur, samples were collected from March 2016 to March 2017 and for Banlek from August 2015 to September 2016

The isotopic composition of seven springs in the two catchments exhibits similar magnitude of δ¹⁸O (−9.5 to −8.9‰) and δD (−67 to −56‰) within a narrow range. The maximum standard deviation of 0.25‰ was observed in SS-2 in Shikarpur and the variations of δ¹⁸O in other springs were less than 0.18‰, whereas in case of δD composition among the springs, the variations are less than 1.8‰. The strong inter-seasonal variations in isotopic composition observed in rainfall samples were not reflected in the spring observations in both catchments. There is loss of seasonal variations during infiltration through the unsaturated zone (Clark and Fritz 1997).

In the Shikarpur catchment, the onset of monsoon caused a visible spike in isotopic composition of rainfall samples (from nearly −14 to −6‰ for δ¹⁸O and −104 to −42‰ for δD in the secondary axis for Fig. 4), which is still lower than the 1.45 for δ¹⁸O and 32.47 for δD measured during dry season months. The enrichment peak caused by the onset of monsoon subsided rapidly within the span of 17 days. The spring water samples were also enriched in heavier isotopes during Southwest monsoon months (July–August); however, the higher enrichment of heavier isotopes observed in dry season rainfall samples was not reflected in spring samples that appear depleted. In Shikarpur catchment, the lowest values in the spring water samples were observed during the months of April–May. The absolute values of isotopic composition observed in Banlek follow a similar profile to that of Shikarpur, but the absence of measurements during the in-between months forms a poor basis to derive any inference on specific trends from the intermittent time series data. More continuous sampling is needed in Banlek to deduce intra and inter-seasonal trends in the isotopic composition of the rainfall and spring water especially because the relatively lower number of rain events in Banlek limited the number of rainfall samples that could be gathered.

Fig. 4

Temporal variation of δ¹⁸O (a–b), δD (c–d) and d-excess (e–f) in rainfall and springs in Shikarpur and Banlek catchment. Rainfall samples are plotted in the secondary y-axis. The values are aggregated at the catchment scale by averaging rainfall and spring samples for each catchment

LMWL

A linear relationship between δ¹⁸O and δD for the rainfall samples was used to derive the LMWL for Shikarpur and Banlek catchments (Fig. 5 and Eqs. 2 and 3).

$$ \mathrm{Shikarpur}\ \mathrm{LMWL}:\updelta \mathrm{D}=8.4803\;{\updelta}^{18}\mathrm{O}+15.573 $$

(2)

$$ \mathrm{Banlek}\ \mathrm{LMWL}:\updelta \mathrm{D}=7.6372\ {\updelta}^{18}\mathrm{O}+4.1226 $$

(3)

Fig. 5

Comparison of the local meteoric water line (LWML) derived from isotope composition data for rainfall with the global meteoric water line (GWML; from Craig 1961; Rozanski and Araguas-Araguas 1993) for: a–b. All rainfall samples for Shikarpur and Banlek catchment, respectively, and c–d Southwest Monsoon samples in Shikarpur and Banlek, respectively

The LWML for the two catchments were compared with the global meteoric water line (GMWL) (Craig 1961; Rozanski and Araguas-Araguas 1993) given by

$$ \mathrm{GMWL}:\updelta \mathrm{D}=8.17\ {\updelta}^{18}\mathrm{O}+10.35 $$

(4)

The slope and intercept of the Shikarpur LMWL are in close agreement with the GMWL, while the Banlek LWML significantly differs in both slope and intercept. In addition, the distinct isotopic signature of winter rainfall events in Shikarpur located at higher elevation compared to Banlek is clearly evident from Fig. 5a. The rainfall events recorded in Shikarpur during winter season showed significant enrichment of both δ¹⁸O and δD isotopes. A low number of rainfall events recorded in Banlek did not show the observed seasonality in Shikarpur isotopic signature in monsoon and dry season (Fig. 5b,d). Due to this, a separate LMWL was created for Southwest monsoon (July 2016 to October 2016) for both catchments. The resultant Shikarpur and Banlek LMWLs for Southwest monsoon follow GMWL with a slope of 8.1746 and intercept of 11.703 for Shikarpur (Fig. 5b), and slope of 8.177 and intercept of 8.9882 for Banlek (Fig. 5d). The resultant values of the LMWL are however different to the LMWL from the nearest International Atomic Energy Agency’s (IAEA) Global Network of Isotopes in Precipitation (GNIP) station in New Delhi, India (Datta et al. 1991), given by

$$ \mathrm{D}\mathrm{elhi}\ \mathrm{LMWL}:\updelta \mathrm{D}=6.8\ {\updelta}^{18}\mathrm{O}+0.7 $$

(5)

The significance of evaporation effects on the isotopic ratio of rainwater in low-altitude semi-arid conditions prevalent in Delhi could explain the significant difference between LMWL derived for Delhi and Western Nepal catchments in this study (Eqs. 1, 2 and 4). This reiterates the complex association between δ¹⁸O and δD in samples derived from the monsoonal rainfall events and the impact of local effects on isotopic compositions. The isotopic signature of springs in Banlek and Shikarpur catchments lie close to the LMWL of respective catchments (Fig. 6), indicating strong rainfall contribution to infiltration. Even the isotopic signature of springs SS-3, BS-1 and BS-4, which show lower and delayed response to the rainfall events compared to other spring sources in both the catchments, lies closer to the respective LWML.

Fig. 6

Comparison of isotope composition for water samples from springs with the LWML derived from all rainfall samples in a Shikarpur and b Banlek

Deuterium excess

Deuterium excess (d-excess) estimated from rainfall samples serves as a tool to trace the water vapor source region even across continents, including the nature of the air mass and meteorological conditions at the vapor source regions (Gat et al. 1994). The global mean value of d-excess is approximately +10‰ (Froehlich et al. 2002; Rozanski and Araguas-Araguas 1993). In this study, the d-excess ranged between 7.44 and 22.97‰ in Shikarpur and 7.76 and 14.01‰ in Banlek during the sampling period (Table 3; Fig. 7). Lower temperature and humidity values in the water vapor source region for rainfall may yield such large d-excess values. Evidence of such rainfall sourced from western disturbances contributing to spring recharge in the Western Himalayas has been found in previous studies (Jeelani et al. 2015, 2017).

Table 3 The monthly average δ¹⁸O, δD and d-excess values of precipitation in the study area at different attitudes

Fig. 7

Monthly averaged d-excess values of precipitation samples collected in Shikarpur in 2016 and 2017

The d-excess in both catchments also exhibits strong seasonal and altitudinal variation. The d-excess in rainfall was 60 and 71% higher during the dry season compared to the samples from the monsoon season in Shikarpur and Banlek respectively. Except for the sampling period of July and August 2016, the lowest elevation of rainfall sampling (1,954 m) in Shikarpur provided the highest d-excess values. In the case of Banlek, no definite trends emerge in the monsoon season. The lowest elevation rainfall sample site of 733 m provides the highest d-excess value (14.23‰) in January 2017; however, in Banlek, the dry season rain events were only observed in the month of January 2017. Due to the lower altitude of Banlek compared to Shikarpur, it is envisaged that the difference in seasonal d-excess values will be higher during later months in the dry season. In Shikarpur, rainfall in the summer month of March 2017 showed the highest d-excess in the range of 19.98‰ followed by 16.18‰ in February 2017 and 14‰ in January 2017, while in contrast, d-excess estimated in the monsoon months between June and October 2016 were nearly half, ranging from 8.13 to 10.93‰. Such large variations in d-excess for the dry season rainfall events have previously been attributed to the water vapor for the rain being derived from possible inland sources (Kumar et al. 2010a).

Secondary evaporation is another factor affecting the d-excess estimates, particularly in low altitude zones (Jeelani et al. 2017). During the monsoon, relatively low temperature and relative humidity inhibit the secondary evaporation effect, thus resulting in lower d-excess values. Although secondary evaporation is lower in the winter months in the dry season, different source areas of water vapor other than the Indian Ocean resulting in rainfall events during this season leads to higher d-excess. However, the highest d-excess values observed during the summer months in the dry season are a result of a combination of rainfall source areas originating from conventional monsoon source—the Bay of Bengal and the effect of secondary evaporation.

Altitude effects

Monthly isotopic gradients were calculated for Shikarpur and Banlek catchments to estimate altitude effects and to aid in delineating recharge areas of springs under investigation. Variations of δ¹⁸O, δD and d-excess in rainfall samples at multiple elevations were aggregated to monthly scale (Table 2). There is depletion of heavy isotopes of oxygen δ¹⁸O and hydrogen δD with increase in altitude observed in Shikarpur for all months under consideration. The decrease in isotopic ratios was not consistent across the elevation zones in both study catchments; moreover, in Shikarpur, the sampling location at 2,243 m, located on the northeast facing side of the hill, has different isotopic composition than the sampling locations at 2,364, 2,063 and 1,954 m on the Southwest face of the hill. In Banlek, rainfall samples collected at 733 m showed more depleted isotopic composition than the samples collected at 808 and 936 m. An average isotopic gradient of −0.25‰/100 m for δ¹⁸O and −1.73‰ /100 m for δD was estimated for Shikarpur, and −0.12‰/100 m for δ¹⁸O and −1.5‰/100 m for δD for the Banlek catchment. The average monthly variations of altitude-induced effects on δ¹⁸O and δD composition across all rainfall samples are shown in Fig. 8. In the case of Shikarpur, the rate of decrease in the isotopic composition is more prominent in September and least in October 2016. In Banlek, the rate of δD decrease with altitude is prominent in September, similar to the findings in Shikarpur, but δ¹⁸O altitudinal effects were pronounced in July and less variable in August 2016.

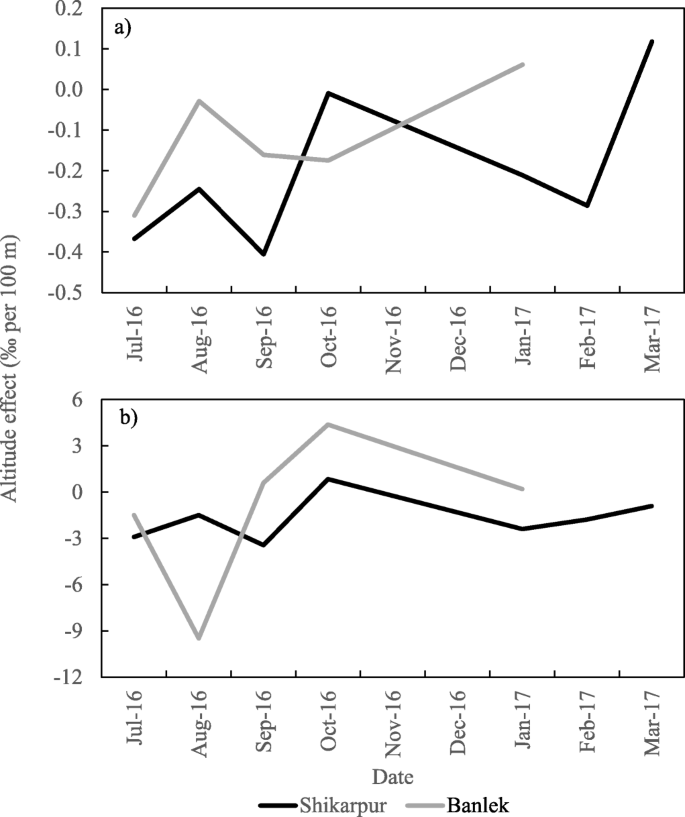

Fig. 8

Monthly variations in the rate of change in a δ¹⁸O and b δD composition with altitude (‰ per 100 m) across all rainfall samples

Delineation of spring recharge elevations in the study catchments

The estimated altitudinal gradient for δ¹⁸O and δD in rainfall has been used to delineate the recharge areas of aquifers (Longinelli and Selmo 2003) feeding the spring system in Shikarpur and Banlek catchments. The altitude-effect estimates are a vital tool to delineate spring recharge areas in both study catchments because of the steep slopes. The recharge elevations for Shikarpur and Banlek springs were estimated from the Shuttle Radar Topography Mission (STRM) 30-m digital elevation model (DEM) using the linear relationship summarized in Table 4. Figure 10 visualizes the extent of suitable recharge zones to implement climate-resilient recharge interventions in the catchments to augment spring flow. The estimated mean recharge elevation ranges for springs SS-1 and SS-2 in Shikarpur fed by unconfined groundwater sources are 2,600–2,700 m (Fig. 9a–b). Similarly, for unconfined groundwater-fed springs, BS-2 and BS-3 in Banlek, the recharge elevation range is 1,000–1,100 m asl (Fig. 9c–d). The estimated recharge elevation range for spring SS-3 in Shikarpur is 2,720–2,760 m asl, which is higher than the maximum elevation of 2,681 m asl within the catchment.

Table 4 Recharge elevations for springs in Shikarpur and Banlek based on the altitudinal gradient of isotopic compositions

Fig. 9

Weighted mean δ¹⁸Oand δD values of rainfall vs altitude showing the estimated mean recharge elevations of springs in a–b Shikarpur and c–d Banlek catchments. Triangles indicate springs and circles indicate rainfall samples

Fig. 10

Location of estimated recharge zones and planned interventions a) Shikarpur and b) Banlek

All estimated recharge zones are located at elevations higher than that of the rainfall sampling locations. Such values reiterates the findings from a hydrometric analysis that the spring source SS-3 possibly emerges from discontinuities in the limestone formation or from the contact of the phyllite and the karstic limestone in the form of a spring, and the pathways have longer residence times. The difference in dominant water sources contributing to spring discharge also explains the difference in isotopic composition between SS-3 and springs SS-1 and SS-2. Similarly, recharge zones estimated from δD data for Banlek catchment provided unreasonable values for all the springs, indicating a need for more sampling. By combining insights from the hydrometric and isotope analysis, it was decided that the isotopic sampling extent within the springsheds was not sufficient to demarcate the recharge zone range estimates of springs BS-1 and BS-4 fed by discontinuities in quartzite and phyllite formations in Banlek, and, spring SS-3 from the limestone and phyllite formations in Shikarpur. Surveys to gather additional hydro-geological information on sub-surface connectivity in these two pilot sites were recommended to DFSC for further assessment.

It is also possible that the recharge areas for these springs lie in higher areas beyond the immediate catchment, but connected to the same mountain range. Especially in Shikarpur, karst topography can support such long-range subsurface aquifer connectivity. To narrow down the dominant process supplementing spring flow, further detailed hydrogeological mapping of the headwater catchments in Shikarpur is necessary.

The estimated mean recharge elevation zones for springs in Shikarpur catchment (~2,600–2,700 m) is located in the same mountain range but 2.3 km east of springs SS-1 and SS-2, far from the immediate catchment. In contrast, the estimated recharge elevation zones overlap with the planned interventions in Banlek catchment. Interventions such as social fencing, piped diversion, and plantation are proposed for Shikarpur, while afforestation, grazing management, gully protection, on-farm conservation measures, recharge ponds, and source protection are proposed for spring management in Banlek. The estimated elevation range in the two study catchments will support the ranking of planned climate resilient interventions under the BCRWME project. Detailed hydrogeological characterization of estimated recharge elevation range in both the catchments will provide additional information needed to prioritize the location for planned interventions.

Discussion

Precipitation from Southwest monsoon dominates both the catchments. Precipitation in dry season, including snow events, is more common in Shikarpur than Banlek, where rainfall is the only form of precipitation. This rainfall variation is attributed to the difference in topography and orographic effects governing the two small catchments located 21 km apart with 1,300 m mean elevation difference. Numerous studies have addressed the altitudinal effect on frequency, intensity and magnitude of rainfall events in the Hindu Kush Himalayas (Bookhagen and Burbank 2010; Palazzi et al. 2013). Specifically, the orographic effect of precipitation in upper, middle and lower Western Himalayan ranges results in significant differences in rainfall patterns with altitude across the region (Singh et al. 1995; Singh and Kumar 1997).

All springs in Banlek and Shikarpur considered in this study are contact springs, which arise at the interface between two strata when the permeability of the lower stratum is relatively lower than that of the top stratum allowing water to flow horizontally and emerge at an outlet (Okwany and Khadka 2016). The three Shikarpur springs (SS-1, SS-2, and SS-3; Fig. 1a) emerge between the limestone and underlying quartzite and phyllite formations. With an inclination towards the south, the upper limestone forms the aquifer system for springs. The upper limestone has well developed joint sets and various caves. The water infiltrating through the limestone initially flows along the inclination of the rock towards the SW and emerges along the contact of the phyllite and the karstic limestone in the form of springs. Banlek spring-1 (BS-1; Fig. 1b) similarly originates in the basal slopes near the contact of colluvium soil and fractured quartzite. Springs BS-2 and BS-3 located at the toe end of the colluvium deposits, and BS-4 located further upstream, are a result of the contact between the unconsolidated porous colluvium deposits and the relatively less porous bedrock layer.

Recharge from rainfall events contributes significantly to springs SS-1, SS-2, BS-1, which is evident from their fast response indicating direct recharge from colluvial deposits made of angular fragments of quartzite and phyllite in Banlek, and, of limestone and phyllite in Shikarpur. Apparent lack of rainfall response in the remaining springs signifies sources possibly arising out of discontinuities in the limestone formation in Shikarpur and heavily weathered quartzite formations in Banlek. Deeper groundwater aquifers, connected through fissures and fractures, were observed in the hydrogeological survey. Seasonal variations in the isotopic composition of rainfall in both catchments indicate that maximum enriched rainfall events occurred during dry season, consistent with previous studies in the Himalayan region, which have indicated different water vapor sources of monsoon and dry season rain (Kumar et al. 2010b). The derived LMWL for rainfall in Shikarpur and Banlek follows close resemblance to studies conducted in similar climatic and physiographic region in the Western Himalayas (Bartarya et al. 1995; Ramesh and Sarin 1992). The isotopic signature of the springs in Shikarpur and Banlek are located close to catchment LMWL, indicating the contribution of recharge fed from rainfall.

The altitude effect of −0.25‰ for δ¹⁸O estimated for springs in Shikarpur is significantly lower than values reported in other studies in Western Himalayan range (−0.36‰, Kumar et al. 2010b; −0.38‰, Ramesh and Sarin 1992; −0.5‰, Navada et al. 1986); however, the Banlek altitude effect of −0.12‰/100 m for δ¹⁸O agrees with estimates by Bartarya et al. 1995 (−0.14‰). The altitude effect of −0.2 to 1.1‰/100 m for δ¹⁸O has been observed in other mountainous locations around the world (Kumar et al. 2010b), providing validity to the estimates for Shikarpur. The LWML for the two catchments closely resembles the GWML and LWML in similar areas, and suggests that the isotopic compositions are reasonable estimates despite the inherent uncertainties. It can also be inferred from Fig. 8 that the altitudinal effects do not show strong seasonality and are dominated by the source, amount and trajectory of the air mass bringing the precipitation (Jeelani et al. 2010).

Difficult terrain impeding access to the spring source location, sampling points located some distance away from spring sources with potential mixing of surface runoff, and the piped nature of spring systems for domestic use, may impart potential sources of error into the samples collected for isotopic assessment. Thus, the sampling locations are located downstream of the spring source, which increases the possibility of change in isotopic signature due to evaporation/condensation, oxidation or mixing with surface runoff. Limited rainfall data in Banlek due to instrumentation failure made it harder to discern patterns and identify dependencies between spring flow and rainfall during isotope sampling. While it is useful to expand isotopic sampling to include higher elevations outside the drainage divide, the expensive nature of isotope analysis limit the number of samples.

The hydrogeological survey of Banlek and Shikarpur lend further evidence to the delineated recharge zones. The recharge zones in Banlek fall within the rich porous colluvium deposits with gentler slopes conducive for infiltration as they increase residence time. In Shikarpur, springs are located at higher elevations on a steep slope, where the dominant recharge mechanism is through fissures and fractures and not through the unconfined aquifer; thus, the isotope-based elevation zones at the ridges of the hill far from the Shikarpur appear justified for recharging springs originating in surface water divides and subsurface fractures and fissures. In addition, springs SS-1, SS-2, BS-2, and BS-3 are contact springs lying at relatively porous upper geological layers forming the unconfined stratum. Springs SS-3 and BS-1, identified as potentially fed by deeper aquifers, lie in basal areas dominated by underlying relatively impervious phyllite and quartzite layers in Shikarpur and bedrock in Banlek respectively. Spring BS-4 in Banlek, located at the end of porous colluvium soil deposited by a previous landslide, should ideally be highly sensitive to rainfall, but such rainfall response is absent in flow measurements.

The spring recharge zonation clearly signifies the difference in the surface water and subsurface divide even in a small headwater mountainous catchment like Shikarpur. Similar to Banlek, springs in Shikarpur showing fast response to the rainfall and located within the demarcated springshed boundary, are easier to augment using planned interventions. The identified recharge zone for Shikarpur, extending beyond the surface-water catchment, suggests that recharge interventions for water augmentation must be implemented beyond the current pilot area. These recharge zones, transcending the local village boundary in which the spring system is located, pose practical challenges in implementation and maintenance of the recharge interventions. Such practical considerations imply that recharge interventions are better suited in Banlek. Other proposed interventions such as piped diversions and focus on increasing water-use efficiency is recommended for Shikarpur. Field knowledge needs to be combined with evidence-based recharge zones identified using isotopes for the success of chosen interventions.

Conclusion

The spring recharge areas in two mountainous catchments located in Far-Western Nepal, Shikarpur and Banlek, were delineated by comparing the isotopic ratios of δ¹⁸O and δD in precipitation with springs. Based on the observed rainfall responses in the spring flow measurements, sample sites were categorized into groups fed by unconfined groundwater (SS-1, SS-2, BS-2, and B-3) and the other sites by perennial groundwater sources or recharge locations farther away (SS-3, BS-1, and BS-4). The isotopic composition of rainfall from multiple elevations in the two catchments indicated distinct seasonal patterns with higher enriched values observed during the dry season months. Such seasonality confirms with other studies that the source of water vapor for rainfall in monsoon and dry season is different. The isotopic signature of springs did not show apparent spatiotemporal variations observed in the rainfall events, but values located close to the LMWL indicate a dominant contribution from rainfall. The isotopic signatures of rainfall and spring samples are comparable to previous studies.

The recharge elevation range of 1,000–1,100 m asl for springs in Banlek, falling within the catchment boundary, and 2,600–2,700 m asl for springs in Shikarpur, were estimated. It was observed that, unlike in Banlek, the recharge zone for springs in Shikarpur lies outside the surface-water catchment boundary, necessitating conservation measures beyond the demarcated drainage boundary. In Banlek, the small and gentle sloped topographic plateau located upstream of the springs supports the recharge elevation zones identified by the isotope analysis. The demarcated recharge zones will support the BCRWME project to prioritize interventions based on their scientific and practical viability to suit site-specific conditions; furthermore, categorizing springs fed by the unconfined aquifer in each catchment can assist in augmenting recharge with climate-resilient interventions. Of the proposed interventions for Shikarpur, piped diversion may be a better investment. For Banlek, afforestation, grazing management, gully protection, on-farm conservations and recharge ponds should be concentrated in identified recharge zones. For the first time, this isotopic study provided an evidence base to derive quantitative information on spring recharge areas in small mountainous catchments in Far-Western Nepal region. This successful pilot study will be scaled up by the DFSC in future iterations of the project to delineate spring recharge zones and design interventions to build resiliency in springs.
