Abstract
Given the structural similarities of the viral enzymes of different coronaviruses (CoVs), we investigated the potency of the anti-SARS-CoV-2 agents boceprevir and GC376 for counteracting seasonal coronavirus infections. In contrast to previous findings that both boceprevir and GC376 are potent inhibitors of the main protease (Mpro) of SARS-CoV-2, we found that GC376 is much more effective than boceprevir in inhibiting SARS-CoV-2 and three seasonal CoVs (NL63, 229E, and OC43) in cell culture models. However, these results are discordant with a molecular docking analysis that suggested comparable affinity of boceprevir and GC376 for the different Mpro enzymes of the four CoVs. Collectively, our results support future development of GC376 but not boceprevir (although it is an FDA-approved antiviral medication) as a pan-coronavirus antiviral agent. Furthermore, we caution against overinterpretation of in silico data when developing antiviral therapies.
Avoid common mistakes on your manuscript.
There are seven types of coronaviruses (CoVs) that are known to infect humans, including three highly pathogenic viruses – MERS-CoV, SARS-CoV-1, and SARS-CoV-2 – and four seasonal CoVs – NL63, 229E, OC43, and HKU1 – that usually, but not always, cause mild and self-limiting respiratory tract infections [1, 2]. Because of the ongoing COVID-19 pandemic, enormous efforts are being devoted to the quest for potent antiviral agents against SARS-CoV-2. One effective approach in this regard is targeting virus-encoded enzymes. The 5′-terminal region of human CoVs encodes the nonstructural proteins of these viruses, which include a 3-chymotrypsin-like protease (3CL or main protease), a papain-like protease (PLpro), a helicase, an RNA-dependent RNA polymerase (RdRp), an exoribonuclease and endoribonuclease, a methyl transferase, and several accessary proteins [3]. The main protease (Mpro) and PLpro are responsible for processing viral polypeptides, and Mpro has therefore become an appealing target for anti-SARS-CoV-2 drug development [4].
Through molecular docking and subsequent experimental validation, boceprevir and GC376 have recently been identified as potent inhibitors of SARS-CoV-2 Mpro [5, 6]. Boceprevir is a direct-acting antiviral medication that was approved by the FDA in 2011 for treatment hepatitis C virus (HCV) infection. It has been used extensively in the clinic and shows excellent anti-HCV efficacy with a favorable safety profile [5]. Thus, repurposing boceprevir for treating COVID-19 is relatively straightforward. In contrast, GC376 is a pre-clinical compound that has been shown to be effective against the coronavirus feline infectious peritonitis virus [7]. Thus, the development of GC376-based anti-SARS-CoV-2 therapy would require relatively extensive pre-clinical and clinical investigations, of its efficacy and safety.
Because of the structural similarities of the viral enzymes of different coronaviruses, we decided to explore the potential usefulness of established anti-SARS-CoV-2 agents for the treatment of seasonal coronavirus infections. Globally, seasonal coronaviruses cause approximately 5% of the several billion upper respiratory infections that occur each year and hence constitute an important health concern [2]. Furthermore, a subset of patients infected with a seasonal coronavirus can develop pneumonia [8], which can sometimes be fatal in vulnerable populations [9]. Among the four seasonal coronaviruses, NL63 is particularly interesting because it is the only seasonal coronavirus that, like SARS-CoV-1 and SARS-CoV-2, utilizes cellular angiotensin-converting enzyme 2 (ACE2) as its receptor for entry into its target cell [10]. NL63 was first isolated from a 7-month-old child suffering from bronchiolitis and conjunctivitis in the Netherlands [11]. We first evaluated the antiviral effect of a series of concentrations (0.1-300 μM) of boceprevir and GC376 in different cell models infected with NL63 (Fig. 1 and Supplementary Fig. S1). Unexpectedly, boceprevir and GC376 exhibited different levels of antiviral potency against NL63, although both inhibited viral replication in a dose-dependent manner in all of the cell models tested. The EC50 value of boceprevir was 36.31 μM, and that of GC376 was 0.7013 μM (Fig. 1A and B). When the potential therapeutic window for treating NL63 infection was calculated, we observed that the ratio of cytotoxic to antiviral activity was 17-fold higher for GC376 than for boceprevir (Fig. 1A and B; Supplementary Fig. S2A-F). Accordingly, the inhibitory effect of GC376 and boceprevir was significantly different for drug concentrations of 0.1, 1, 10, 30, and 100 μM (P < 0.01). For instance, treatment with 1 μM boceprevir had almost no antiviral effect in the Caco-2 cell model (a successful model system for studying drug effects on viral infection [12]), whereas treatment with 1 μM GC376 resulted in a 50% decrease in viral RNA levels (Fig. 1C). After 48-hours of drug treatment, supernatant samples from infected Caco-2 cells were collected, and the viral titer was determined using a TCID50 assay. We found that GC376, but not boceprevir, significantly reduces the viral titer of NL63 (Fig. 1D and E). This difference in antiviral potency was confirmed by quantifying secreted NL63 genomic RNA for 5 days from infected cells treated with 30 μM boceprevir or 1 μM GC376 (Fig. 1F and Supplementary Fig. S3).

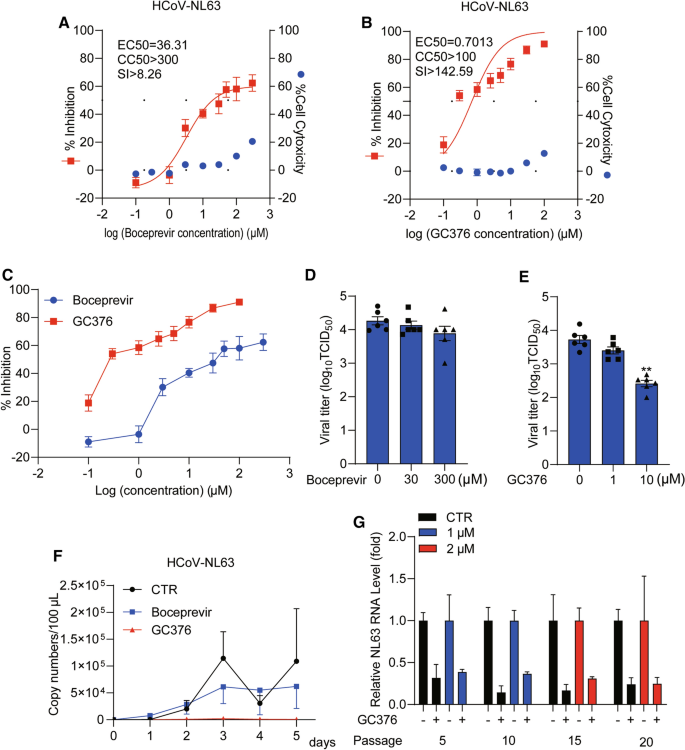

Given the potent antiviral potency of GC376, we investigated the possible emergence of viral resistance following long-term treatment by serial passage of NL63 in the presence of increasing concentrations of GC376 and found that, after 20 passages, NL63 remained sensitive to GC376 treatment (Fig. 1G). These results are in accordance with previous findings that GC376 does not easily develop resistance and that the feline coronavirus 3CLpro has a high genetic barrier for selecting resistance against GC376 [13]. Of note, if Mpro inhibitors such as GC376 finally reach the clinic for treating coronavirus patients, it will be important to monitor the potential emergence of Mpro mutations, which may affect clinical response and treatment strategies.
Combination treatment is often used to enhance antiviral efficacy and to prevent the development of drug resistance in clinical applications. Remdesivir, the targeting viral RdRp, is the only FDA-approved antiviral drug for treating hospitalized COVID-19 patients [14]. Interferon alpha (IFN-α), a widely used antiviral drug, activates the host antiviral immune response [15] and has been clinically evaluated for treating COVID-19 patients [16]. We tested the combined effects of GC376 with remdesivir and GC376 with IFN-α by mathematical modeling using Synergy Finder [17]. Synergistic effects were observed with Loewe synergy scores of 17.509 ± 9.38 and 15.554 ± 11.84, respectively (Supplementary Fig. S4A-D). These antivirals were found to have little cytotoxicity in the host cells at the concentrations tested (Supplementary Fig. S4E).

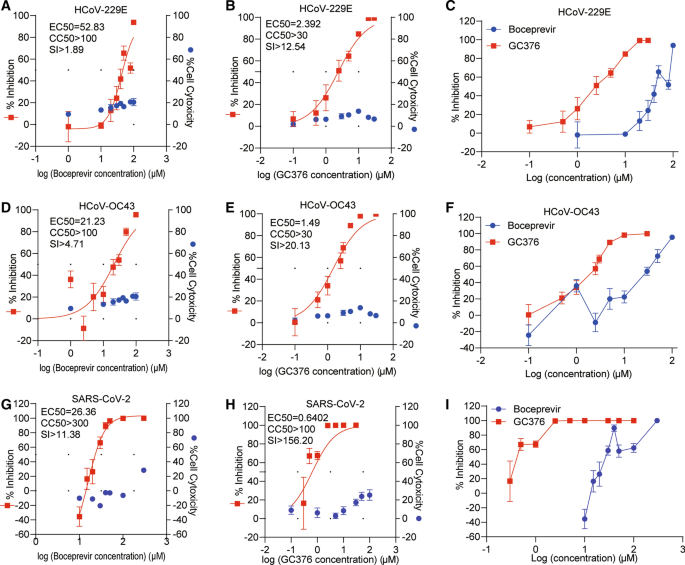

Next, we investigated whether the difference in antiviral potency between boceprevir and GC376 would be observed with other coronaviruses. To this end, we used the human A549 lung cell line as an infection model for the seasonal coronaviruses 229E and OC43, and the Calu3 lung cell line was used for SARS-CoV-2 (Fig. 2 and Supplementary Fig. S5). Although dose-dependent inhibition of infection was observed with both agents, in accordance with the findings with NL63 (Fig. 1), GC376 was found to be much more potent against the other three human coronaviruses (Fig. 2 and Supplementary Fig. S5). The EC50 values for GC376 were below 3 μM for all three viruses, whereas for boceprevir they were all above 20 μM. Correspondingly, the selective indices for GC376 were much larger than those of boceprevir. For instance, in the SARS-CoV-2 model, the selective index of GC376 was over 150 but that of boceprevir was only about 10 (Fig. 2, Supplementary Fig. S2G-J, and Supplementary Fig. S5). Considering the global concerns about emerging SARS-CoV-2 variants, the delta variant in particular, we evaluated the antiviral effect of boceprevir and GC376 in Calu3 cells infected with the SARS-CoV-2 B.1.617.2 Delta variant. Consistent with the previous experiments, GC376 showed much more potent antiviral activity than boceprevir (Supplementary Fig. S6). Collectively, our results obtained using cell culture models demonstrate that GC376 is a much more potent inhibitor of different human coronaviruses than boceprevir.

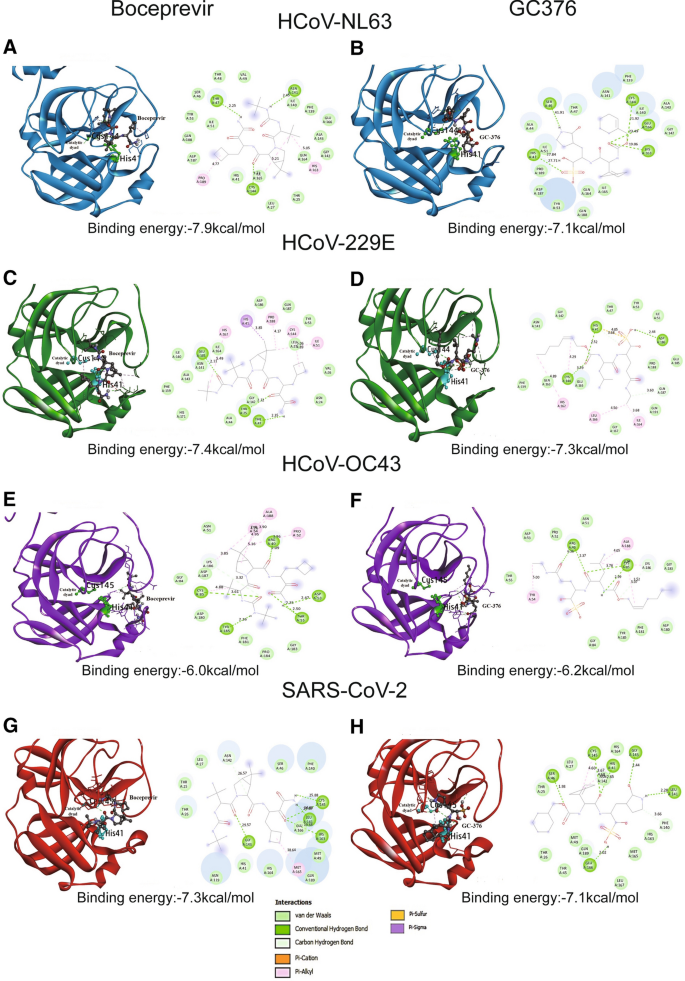

Previously, boceprevir and GC376 were both predicted to be potent inhibitors of the SARS-CoV-2 Mpro by in silico docking analysis [5, 6]. We therefore performed a molecular docking simulation for these two agents using molecular models of the Mpro proteins of the coronaviruses NL63, 229E, OC43, and SARS-CoV-2. We used existing crystal structures of Mpro to model the ones for which experimentally determined structures are not yet available (see detailed methods in the supplementary file) (Fig. 3 and Supplementary Fig. S7). Based on their docking scores, boceprevir and GC376 were predicted to have similar binding affinity for each of the four coronavirus Mpro (Fig. 3). We suggest two possible explanations for the disparity observed between molecular docking and cell culture experiments. First, although the binding energy (Fig. 3) is comparable, the binding modes of boceprevir and GC376 might be very different in relation to antiviral activity. As shown in Fig. 3, there are clearly different patterns for the two drugs with respect to the drug-interacting regions, the numbers and positions of hydrogen bonds predicted to form, and the van der Waals interactions expected. However, it is not known how these different interaction patterns might result in the functional differences in antiviral activity between boceprevir and GC376 observed in our in vitro experimentation. Second, both agents could have similar ability to inhibit Mpro, but GC376 might have additional antiviral properties that are yet unknown.
In summary, although molecular docking predicted similar affinity of boceprevir and GC376 towards the Mpro enzymes of different coronaviruses, their actual antiviral activity in cell culture models differed. Our results, which partially contradict previous findings, support future development of GC376 but not boceprevir as a pan-coronavirus antiviral agent. We are currently unable to explain the mechanism underlying the disparities between the molecular docking and cell culture results, but we urge caution in the interpretation of in silico data when developing antiviral therapies.
References
Ma Z, Liu J, Pan Q (2020) Overwhelming COVID-19 clinical trials: call for prospective meta-analyses. Trends Pharmacol Sci 41:501–503
Li P, Liu J, Ma Z, Bramer WM, Peppelenbosch MP, Pan Q (2020) Estimating global epidemiology of low-pathogenic human coronaviruses in relation to the COVID-19 context. J Infect Dis 222:695–696
Chen Y, Liu Q, Guo D (2020) Emerging coronaviruses: genome structure, replication, and pathogenesis. J Med Virol 92:418–423
Kneller DW, Phillips G, O’Neill HM, Jedrzejczak R, Stols L, Langan P, Joachimiak A, Coates L, Kovalevsky A (2020) Structural plasticity of SARS-CoV-2 3CL M(pro) active site cavity revealed by room temperature X-ray crystallography. Nat Commun 11:3202
Fu L, Ye F, Feng Y, Yu F, Wang Q, Wu Y, Zhao C, Sun H, Huang B, Niu P, Song H, Shi Y, Li X, Tan W, Qi J, Gao GF (2020) Both boceprevir and GC376 efficaciously inhibit SARS-CoV-2 by targeting its main protease. Nat Commun 11:4417
Ma C, Sacco MD, Hurst B, Townsend JA, Hu Y, Szeto T, Zhang X, Tarbet B, Marty MT, Chen Y, Wang J (2020) Boceprevir, GC-376, and calpain inhibitors II, XII inhibit SARS-CoV-2 viral replication by targeting the viral main protease. Cell Res 30:678–692
Kim Y, Lovell S, Tiew KC, Mandadapu SR, Alliston KR, Battaile KP, Groutas WC, Chang KO (2012) Broad-spectrum antivirals against 3C or 3C-like proteases of picornaviruses, noroviruses, and coronaviruses. J Virol 86:11754–11762
Li P, Ikram A, Peppelenbosch MP, Ma Z, Pan Q (2021) Systematically mapping clinical features of infections with classical endemic human coronaviruses. Clin Infect Dis 73:554–555
Veiga A, Martins LG, Riediger I, Mazetto A, Debur MDC, Gregianini TS (2021) More than just a common cold: endemic coronaviruses OC43, HKU1, NL63, and 229E associated with severe acute respiratory infection and fatality cases among healthy adults. J Med Virol 93:1002–1007
Hofmann H, Pyrc K, van der Hoek L, Geier M, Berkhout B, Pohlmann S (2005) Human coronavirus NL63 employs the severe acute respiratory syndrome coronavirus receptor for cellular entry. Proc Natl Acad Sci USA 102:7988–7993
van der Hoek L, Pyrc K, Jebbink MF, Vermeulen-Oost W, Berkhout RJ, Wolthers KC, Wertheim-van Dillen PM, Kaandorp J, Spaargaren J, Berkhout B (2004) Identification of a new human coronavirus. Nat Med 10:368–373
Chen S, Ding S, Yin Y, Xu L, Li P, Peppelenbosch MP, Pan Q, Wang W (2019) Suppression of pyrimidine biosynthesis by targeting DHODH enzyme robustly inhibits rotavirus replication. Antivir Res 167:35–44
Perera KD, Rathnayake AD, Liu H, Pedersen NC, Groutas WC, Chang KO, Kim Y (2019) Characterization of amino acid substitutions in feline coronavirus 3C-like protease from a cat with feline infectious peritonitis treated with a protease inhibitor. Vet Microbiol 237:108398
Beigel JH, Tomashek KM, Dodd LE, Mehta AK, Zingman BS, Kalil AC, Hohmann E, Chu HY, Luetkemeyer A, Kline S, Lopez de Castilla D, Finberg RW, Dierberg K, Tapson V, Hsieh L, Patterson TF, Paredes R, Sweeney DA, Short WR, Touloumi G, Lye DC, Ohmagari N, Oh MD, Ruiz-Palacios GM, Benfield T, Fatkenheuer G, Kortepeter MG, Atmar RL, Creech CB, Lundgren J, Babiker AG, Pett S, Neaton JD, Burgess TH, Bonnett T, Green M, Makowski M, Osinusi A, Nayak S, Lane HC, Members A-SG (2020) Remdesivir for the treatment of Covid-19—final report. N Engl J Med 383:1813–1826
Wang W, Xu L, Su J, Peppelenbosch MP, Pan Q (2017) Transcriptional regulation of antiviral interferon-stimulated genes. Trends Microbiol 25:573–584
Trouillet-Assant S, Viel S, Gaymard A, Pons S, Richard JC, Perret M, Villard M, Brengel-Pesce K, Lina B, Mezidi M, Bitker L, Belot A, group CHS, (2020) Type I IFN immunoprofiling in COVID-19 patients. J Allergy Clin Immunol 146:206–208 (e202)
Ianevski A, Giri AK, Aittokallio T (2020) SynergyFinder 2.0: visual analytics of multi-drug combination synergies. Nucleic Acids Res 48:W488–W493
