International Journal of Biometeorology

, Volume 61, Issue 11, pp 2009–2019 | Cite as

Mitigation of pedestrian heat stress using parasols in a humid subtropical region

  • Shinichi WatanabeEmail author
  • Jin Ishii
Original article

Abstract

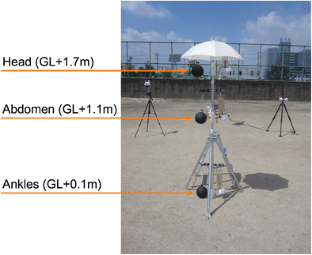

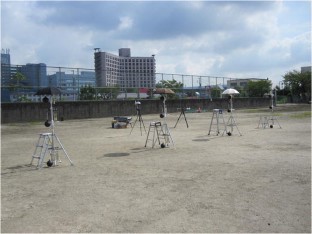

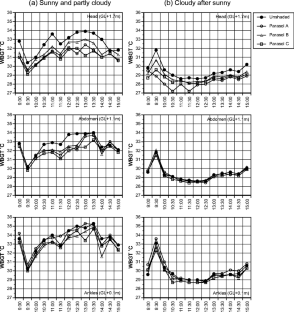

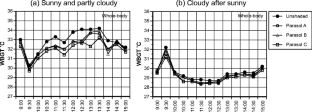

Concerns over heat illness have been an increasing social problem in humid subtropical regions. One measure for avoiding excessive heat stress in hot outdoor environments is the use of parasols or umbrellas. The advantage of parasols is that they are a mobile and inexpensive way to provide personal shade outdoors. The objectives of this study were to compare the wet-bulb globe temperature (WBGT) under parasols and at an unshaded point as a reference, and to quantify the reduction in WBGT from the use of parasols in a humid subtropical region. Measurements using three parasols of different colors and materials were conducted at the athletics field at Daido University, Nagoya, Japan, between 9:00 and 15:00 Japan Standard Time in August 2015. The WBGT was obtained at heights of 0.1 m (ankles), 1.1 m (abdomen), and 1.7 m (head) above ground, according to the measurement procedure described in ISO 7243. On a sunny and partly cloudy day, the use of a parasol lowered the average globe temperature by up to 6.2 °C, through blocking direct solar radiation. The average reduction in WBGT by the parasol was found to be 1.8 °C at head level in sunny conditions with solar radiation of over 800 W/m2. The reduction in WBGT at head level by the use of parasols in sunny conditions was greater than that in cloudy conditions. However, although parasols can reduce WBGT at the head level of the user regardless of solar radiation, they cannot reduce it at the level of the abdomen or ankles.

Keywords

Parasol Umbrella WBGT Heat stress Thermal comfort

Notes

Acknowledgments

This work was supported by JSPS KAKENHI Grant Number 25350085. The authors would like to thank Ms. Mana Kawashima and Ms. Kana Inuzuka for conducting a series of measurements and observations.

References

  1. Andreou E (2013) Thermal comfort in outdoor spaces and urban canyon microclimate. Renew Energy 55:182–188. doi: 10.1016/j.renene.2012.12.040 CrossRefGoogle Scholar
  2. Asayama M (2009) Guideline for the prevention of heat disorder in Japan. Glob Environ Res 13(1):19–25Google Scholar
  3. Égerházi LA, Kovács A, Unger J (2013) Application of microclimate modelling and onsite survey in planning practice related to an urban micro-environment. Advances in Meteorology 2013 Article ID 251586. doi: 10.1155/2013/251586
  4. Fire and Disaster Management Agency (2015) Ambulance report of heat disorders in 2015 (in Japanese). http://www.fdma.go.jp/neuter/topics/houdou/h27/10/271016_houdou_1.pdf. Accessed 22 Nov 2016
  5. Hoppe P (1999) The physiological equivalent temperature—a universal index for the biometeorological assessment of the thermal environment. Int J Biometeorol 43(2):71–75CrossRefGoogle Scholar
  6. Hwang RL, Lin TP (2007) Thermal comfort requirements for occupants of semi-outdoor and outdoor environments in hot-humid regions. Archit Sci Rev 50(4):357–364CrossRefGoogle Scholar
  7. ISO 7243 (1989) Hot environments—estimation of the heat stress on working man, based on the WBGT-index (wet bulb globe temperature)Google Scholar
  8. Jendritzky G, de Dear R, Havenith G (2012) UTCI—why another thermal index? Int J Biometeorol 56(3):421–428. doi: 10.1007/s00484-011-0513-7 CrossRefGoogle Scholar
  9. Johansson E (2006) Influence of urban geometry on outdoor thermal comfort in a hot dry climate: a study in Fez, Morocco. Build Environ 41(10):1326–1338. doi: 10.1016/j.buildenv.2005.05.022 CrossRefGoogle Scholar
  10. Johansson E, Emmanuel R (2006) The influence of urban design on outdoor thermal comfort in the hot, humid city of Colombo, Sri Lanka. Int J Biometeorol 51(2):119–133. doi: 10.1007/s00484-006-0047-6 CrossRefGoogle Scholar
  11. Jojima E, Sueki T, Baba N (2007) UV ray and thermal ray protection properties of parasols. Bulletin of Human Life Sciences, Jissen Women’s University 44:126–131 (in Japanese)Google Scholar
  12. Kuno T, Hori Y, Kobashi M, Watanabe S, Ishii J (2013) Measurement of short- and long-wave radiation flux under various parasols. Proceedings of the 37th Symposium on Human-Environment Systems pp. 53–56 (in Japanese)Google Scholar
  13. Lin TP (2009) Thermal perception, adaptation and attendance in a public square in hot and humid regions. Build Environ 44(10):2017–2026. doi: 10.1016/j.buildenv.2009.02.004 CrossRefGoogle Scholar
  14. Lin TP, Tsai KT, Hwang RL, Matzarakis A (2012) Quantification of the effect of thermal indices and sky view factor on park attendance. Landsc Urban Plan 107(2):137–146. doi: 10.1016/j.landurbplan.2012.05.011 CrossRefGoogle Scholar
  15. Lin TP, Tsai KT, Liao CC, Huang YC (2013) Effects of thermal comfort and adaptation on park attendance regarding different shading levels and activity types. Build Environ 59:599–611. doi: 10.1016/j.buildenv.2012.10.005 CrossRefGoogle Scholar
  16. Makaremi N, Salleh E, Jaafar MZ, Ghaffarian Hoseini A (2012) Thermal comfort conditions of shaded outdoor spaces in hot and humid climate of Malaysia. Build Environ 48:7–14. doi: 10.1016/j.buildenv.2011.07.024 CrossRefGoogle Scholar
  17. Martinelli L, Lin TP, Matzarakis A (2015) Assessment of the influence of daily shadings pattern on human thermal comfort and attendance in Rome during summer period. Build Environ 92:30–38. doi: 10.1016/j.buildenv.2015.04.013 CrossRefGoogle Scholar
  18. Middel A, Selover N, Hagen B, Chhetri N (2016) Impact of shade on outdoor thermal comfort—a seasonal field study in Tempe, Arizona. Int J Biometeorol 60(12):1849–1861. doi: 10.1007/s00484-016-1172-5 CrossRefGoogle Scholar
  19. Ministry of the Environment (2014) Heat disorders health guidance manual (in Japanese). http://www.wbgt.env.go.jp/pdf/envman/full.pdf. Accessed 22 Nov 2016
  20. Nagano K, Horikoshi T (2011a) Development of outdoor thermal index indicating universal and separate effects on human thermal comfort. Int J Biometeorol 55(2):219–227. doi: 10.1007/s00484-010-0327-z CrossRefGoogle Scholar
  21. Nagano K, Horikoshi T (2011b) New index indicating the universal and separate effects on human comfort under outdoor and non-uniform thermal conditions. Energy Build 43(7):1694–1701. doi: 10.1016/j.enbuild.2011.03.012 CrossRefGoogle Scholar
  22. Nikolopoulou M, Lykoudis S (2007) Use of outdoor spaces and microclimate in a Mediterranean urban area. Build Environ 42(10):3691–3707. doi: 10.1016/j.buildenv.2006.09.008 CrossRefGoogle Scholar
  23. Obyn S, Van Moeseke G, Virgo V (2015) Thermal performance of shelter modelling: improvement of temporary structures. Energy Build 89:170–182. doi: 10.1016/j.enbuild.2014.12.035 CrossRefGoogle Scholar
  24. Pickup J, de Dear R (2000) An Outdoor Thermal Comfort Index (OUT-SET*)—part I—the model and its assumptions, biometeorology and urban climatology at the turn of the millennium, 279–283. WCASP 50: WMO/TD No. 1026.Google Scholar
  25. Sugiura M, Oda K, Watanabe S, Ishii J (2014) Evaluation of outdoor thermal environment with parasols by the subjects. Proceedings of the 38th Symposium on Human-Environment Systems, pp. 111–114 (in Japanese)Google Scholar
  26. Thorsson S, Lindqvist M, Lindqvist S (2004) Thermal bioclimatic conditions and patterns of behaviour in an urban park in Göteborg, Sweden. Int J Biometeorol 48(3):149–156. doi: 10.1007/s00484-003-0189-8 CrossRefGoogle Scholar
  27. Utrillas MP, Martínez Lozano JA, Nunez M (2010) Ultraviolet radiation protection by a beach umbrella. Photochem Photobiol 86(2):449–456. doi: 10.1111/j.1751-1097.2009.00677.x CrossRefGoogle Scholar
  28. Watanabe S, Ishii J (2016) Effect of outdoor thermal environment on pedestrians’ behavior selecting a shaded area in a humid subtropical region. Build Environ 95:32–41. doi: 10.1016/j.buildenv.2015.09.015 CrossRefGoogle Scholar
  29. Yaglou P, Minard D (1957) Control of heat casualties at military training centers. AMA Arch Ind Health 16:302–316Google Scholar
  30. Yang W, Wong NH, Jusuf SK (2013) Thermal comfort in outdoor urban spaces in Singapore. Build Environ 59:426–435. doi: 10.1016/j.buildenv.2012.09.008 CrossRefGoogle Scholar
  31. Zacharias J, Stathopoulos T, Wu H (2001) Microclimate and downtown open space activity. Environ Behav 33(2):296–315CrossRefGoogle Scholar

Copyright information

© ISB 2017

Authors and Affiliations

  1. 1.Department of ArchitectureDaido UniversityNagoyaJapan
  2. 2.Department of ArchitectureMeijo UniversityNagoyaJapan
