Introduction

Juvenile-onset systemic lupus erythematosus (JSLE) is a life-threatening multi-system autoimmune disease that displays a more aggressive course than adult onset SLE [1–3]. More renal manifestations occur in childhood, with up to 80 % of JSLE patients developing lupus nephritis (LN) within the first 5 years from diagnosis [1, 4–9]. LN is characterised by a relapsing and remitting course, requiring close surveillance and prompt treatment to prevent renal damage. Worldwide, the 5-year renal survival rate in children with LN has been shown to vary between 44 and 94 % [10–13].

Renal histology is the gold standard for diagnosing and predicating renal prognosis in LN, but only provides a snapshot of a discrete area of the kidney and is rarely repeated for monitoring purposes due to its invasive nature [14, 15]. Composite disease activity scores, such as the British Isles Lupus Assessment Group (BILAG) score or the Systemic Lupus Erythematosus Disease Activity Index (SELENA SLEDAI), and a number of traditional clinical biomarkers can be used to assess JSLE disease activity; however their role in monitoring LN within the clinic is limited [16–19].

Over recent years, numerous individual novel urinary biomarkers have been investigated for monitoring LN disease activity. These have outperformed both traditional and novel serum biomarkers, including monocyte chemoattractant protein-1 (MCP-1), neutrophil gelatinase associated lipocalin 1 (NGAL), vascular cell adhesion molecule-1 (VCAM-1) and tumour necrosis-like weak inducer of apoptosis (TWEAK) [20–26]. Using a proteomic approach, urinary transferrin (TF), ceruloplasmin, lipocalin-type prostaglandin D synthase (LPGDS), alpha-1-acid glycoprotein (AGP), albumin and albumin fragments have been shown to differentiate between children with active LN and no LN [27]. When assessed longitudinally, LPGDS, AGP and TF levels were all elevated up to 3 months before the LN flare [27].

No individual urine biomarker has achieved an ‘excellent’ predictive value [area under the receiver operating characteristic (ROC) curve (AUC) > 0.9] to date. Combining urinary biomarkers in a ‘biomarker panel’ has been shown to improve the ability to predict renal function loss in a combined paediatric/adult SLE cohort with LN [28] and relate to LN histological features [29] and activity [30].

This study therefore aimed to build on previous work [22, 25–27, 31–33] by exploring the most promising candidate urinary biomarkers to date used in combination, namely VCAM-1, MCP-1, NGAL, ceruloplasmin, TF, LPGDS and AGP in a paediatric cohort from the UK (UK JSLE Cohort Study), to assess which novel biomarker combinations can improve the identification of active LN. Since the JSLE phenotype and disease severity varies by ethnicity and race [2, 4, 34], we sought to confirm our results in a validation cohort from the USA [Einstein Lupus Cohort (ELC)] [35] in order to identify a urinary biomarker panel which is internationally applicable. Such a transatlantic comparison of a biomarker panel provides considerable strength to this study and the validation of this panel.

Methods

Patients

This study was based on two cross-sectional JSLE cohorts: the exploratory UK JSLE Cohort [1], which included all recruited patients from Alder Hey Children’s NHS Foundation Trust, Liverpool, and Great Ormond Street NHS Hospital for Children, London, UK. The validation cohort included ELC patients who were followed regularly at lupus clinics at the Children’s Hospital at Montefiore, Bronx, NY, USA [35]. In both cohorts, urine samples were collected during routine clinical care together with detailed demographic data, self-reported ethnicity/race data, clinical laboratory results and medication information. Disease activity data were determined using the BILAG2004 disease activity score [36, 37]. Eligible patients were diagnosed with JSLE prior to 16 years of age and met four or more of the revised American College of Rheumatology (ACR) SLE classification criteria [38]. Patients were excluded if they had a urinary tract infection or if no urine samples had been collected.

Renal disease activity classification

Patients were categorised according to the renal domain of the BILAG2004 disease activity score, defined as follows: BILAG2004 grade A/B: severe, moderate disease respectively; grade D, inactive disease but previous system involvement; grade E, system has never been involved [37]. The composite renal BILAG score consists of six items, including proteinuria [defined in terms of urine dipstick or urine protein/albumin-to-creatinine ratio (UACR) or 24-h protein levels], deteriorating renal function [based on plasma creatinine (Cr) and glomerular filtration rate (GFR)], presence of active urinary sediment, hypertension, nephrotic syndrome and histological evidence of active nephritis in the previous 3 months, with different test score cut-offs relating to the different disease activity categories. In both cohorts, all patients with active LN had biopsy-proven LN during their disease course. Renal disease activity was therefore defined as having a renal BILAG2004 score of A or B with previous histological confirmation of LN. Non-LN was defined by a renal BILAG2004 score of D or E. This study sought to identify biomarkers that differentiate between the binary outcome of active versus no LN, therefore renal BILAG2004 C patients (where a patient had mild or improving renal disease) were excluded.

Urine sample selection

In Cohort 1, when more than one patient’s urine sample had been collected, urine biomarkers were quantified in a single sample for inclusion within this study (cross-sectional approach). A sample from a patient with active LN (active-LN sample) was chosen for inclusion where available in order to allow as many patients with active LN as possible to contribute to the study. If a patient contributed a sample that was inactive for LN (inactive-LN sample), then the first sample collected with adequate aliquots for quantification of the whole biomarker panel was included. In Cohort 2, 23/30 study patients had an active-LN sample available and 14/30 had and inactive-LN (non-LN) sample available. Urine biomarker levels were quantified in all samples, however, 16 of these active-LN and all 14 non-LN samples contributed to the cross-sectional analysis in order to provide similar patient numbers per group. The other seven active-LN samples were subsequently included in analyses comparing urine biomarker concentrations in biopsy versus renal BILAG-defined active LN.

Extra-renal disease activity classification

To allow assessment of biomarker levels according to whether extra-renal JSLE disease activity was present or not, patients were subdivided further as having ‘any active extra-renal involvement’ if they had a BILAG2004 of A or B in any of the remaining domains (constitutional, mucocutaneous, neuropsychiatric, musculoskeletal, cardiorespiratory, gastrointestinal, ophthalmic or haematological) or ‘no extra-renal involvement’ if they had a BILAG2004 score of D or E in all extra-renal domains. Biomarker levels were therefore compared in active/non-LN patients with and without extra-renal involvement.

Laboratory techniques

Urine dipstick and/or microscopy and culture excluded infection. Samples were centrifuged at 2000 rpm for 10 min. Aliquots of the urine supernatant were made and stored at −80 °C until analysis. Pre-coated enzyme-linked immunosorbent assay (ELISA) kits were used to quantify urinary ceruloplasmin (Assaypro, St Charles, MO), TF (GenWay, San Diego, CA), LPGDS (BioVendor, Brno, Czech Republic), AGP and MCP-1 (R&D Systems Ltd., Minneapolis, MN). An R&D systems duo-kit (R&D Systems Ltd.) was used to quantify urinary VCAM-1 following internal validation (95 % spike recovery, 104 % linearity of dilution, co-efficients of inter/intra-assay variability 5.1 and 7.5 %, respectively). The ceruloplasmin, LPGDS, MCP-1 and AGP assays are commercially validated for use in urine and were used in accordance with the respective manufacturer’s instructions. Urinary NGAL and Cr concentrations were measured using Abbott Architect assays (Abbott Laboratories, Dallas, TX). All biomarker results were standardised for urinary Cr concentration and presented in units per milligram Cr (mgCr).

Statistical analysis

Summary statistics for demographics (age at diagnosis, current age, gender, ethnicity), baseline clinical data (medication use and laboratory parameters) and biomarker data (ceruloplasmin, TF, LPGDS, MCP-1, VCAM-1, AGP and NGAL) were provided in terms of median values and interquartile ranges (IQR). Univariate logistic regression (quantitative data) and Pearson’s Chi-square test (binary data) were used to assess for differences in demographic and clinical factors between different patient groups. Due to the number of factors explored, a Bonferroni adjustment was applied to account for multiple testing (16 comparisons per cohort).

Mann–Whitney U tests with Bonferroni adjustments were used to compare biomarker concentrations between active-LN and non-LN patients (7 comparisons). Correlation between the individual urine biomarkers was assessed using Spearman’s rank correlation tests. The grading of correlation co-efficients (r) can vary, but for the purposes of this study 0.2–0.3 = weak/little correlation, 0.3–0.7 = moderate correlation and 0.7–1.0 = strong correlation [39]. A binary logistic regression model was fitted to assess for association between a combination of biomarkers and LN status (outcome: active-LN active = 1; non-LN JSLE = 0). All novel biomarkers (log-transformed) were included in an initial model and the ‘stepAIC’ function in R [40] applied to select a final model. This function compares models based on all possible combinations of biomarkers and chooses the model with the minimum Akaike information criterion (AIC) value. The AIC is a measure of the relative quality of a model relative to each of the other models, with a lower value meaning better quality. The AUC for the final model was calculated. Each of the remaining novel biomarkers was then added back into the final model in turn (step-wise), in order of statistical significance according to the original model including all novel biomarkers, and the AUC for each updated model calculated. This procedure allowed exploration of the effect of each biomarker on the model’s AUC, as well as an assessment of which combination of biomarkers led to the optimal AUC. This final process was repeated in the ELC validation cohort in order to determine whether the findings could be replicated. The data were then pooled to identify the optimal combined model. AUC values of 1.0–0.9, 0.9–0.8, 0.8–0.7, 0.7–0.6 and 0.6–0.5 were considered to be excellent, good, fair, poor and fail, respectively [41].

To assess the renal specificity of the urine biomarkers and whether biomarker levels vary according to whether extra-renal JSLE disease activity is present, biomarker levels in patients with ‘any active extra-renal involvement’ were compared to those with ‘no extra-renal involvement’ (Mann–Whitney U tests with a Bonferroni adjustment for the 7 biomarkers examined). Similarly, when comparing urinary biomarker levels in patients where a diagnosis of LN was made on the basis of recent renal biopsy results versus BILAG-defined nephritis alone, Bonferroni-adjusted Mann–Whitney U tests were also used. The ability of traditional biomarkers to identify active LN was investigated using binary logistic regression models for each/a combination of biomarkers (log-transformed) and LN status, and the AUC calculated.

Data analysis was undertaken using the Statistics Package for Social Sciences (SPSS; IBM Corp., Armonk, NY) version 21.0 and R version 3.1.1 [40]. Graphical illustrations were generated using GraphPad Prism version 6.0 (Graphpad Software, San Diego, CA). Where Bonferroni adjustment was made to account for multiple testing, the Bonferroni corrected p value, p c, is reported.

Results

Cohort 1—exploratory cohort (UK JSLE Cohort Study)

Clinical and demographic data

The UK JSLE Study cohort consisted of 61 patients with JSLE, of whom 15 (25 %) were classed as JSLE with active LN (2/15 renal BILAG score = A, 13/15 = B) and 46 (75 %) as JSLE with inactive LN (non-LN; 27/46 renal BILAG score = D, 19/46 = E). Active and non-LN JSLE patients had a median age of 15.8 [IQR 14.8–17.1] and 15.4 [IQR 13.8–17.5] years, respectively, with disease duration of 2.8 [IQR 0.7–3.9] and 2.4 [IQR 0.8–4.8] years at the time of biomarker analysis. Females comprised 86.7 % of the active-LN patients and 62.5 % of the non-LN patients. There was no difference in ethnicity between patient groups. All JSLE patients had a median of five ACR classification criteria at diagnosis [IQR 4–7]. All active-LN patients had biopsy-proven LN during their disease course, with the majority having International Society of Nephrology/Renal Pathology Society 2003 (ISN/RPS) class III (59 %) or IV (27 %) LN. Class II (7 %) and mixed class II/V (7 %) LN was seen in the remaining patients (see Table 1).

Table 1 Clinical, demographic and laboratory measurements at the time of urinary biomarker quantification
Full size table

Compared to non-LN patients, more active-LN patients had received rituximab (p c < 0.05), but the use of other medications did not differ significantly between the patient groups. Of the laboratory parameters investigated, the UACR and erythrocyte sedimentation rate (ESR) were significantly higher in the active-LN patients (all p c < 0.05) (see Table 1).

Novel urinary biomarkers

Figure 1 depicts the distribution of novel urinary biomarker concentrations standardised to urinary Cr in patients with active LN and no LN. Patients with active LN had significantly higher urinary concentrations of AGP, ceruloplasmin, VCAM-1, MCP-1 and LPGDS than non-LN patients [all p c < 0.05; see Fig. 1 and Electronic Supplementary Material (ESM) 1]. Urinary TF and NGAL concentrations did not differ significantly between the patient groups (p c = 0.06 and 1.0, respectively; see Fig. 1 and ESM 1). LPGDS and AGP were strongly correlated (r = 0.71). All other biomarker combinations were moderately correlated (r = 0.3–0.7) except for LPGDS + TF and MCP-1 + TF, which were weakly correlated (r < 0.3; see ESM 2 for further details).

Fig. 1
figure 1

Distribution of biomarker concentrations in active-/non-lupus nephritis (LN) patients with juvenile-onset systemic lupus erythematosus (JSLE) from Cohorts 1 (UK JSLE Cohort) and 2 [Einstein Lupus Cohort (ELC)]. Horizontal line Median value for each group. Mann–Whitney U tests were used to compare the distribution of biomarker concentrations between patient groups within each cohort. A Bonferroni adjustment was applied to account for multiple testing. Corrected p values (p c ) are reported. Vascular cell adhesion molecule-1 (VCAM-1) biomarker data were not available from one active-LN patient from Cohort 1; neutrophil gelatinase-associated lipocalin (NGAL) data were not available from three active-LN and 15 non-LN patients from Cohort 1. AGP Alpha-1-acid glycoprotein, CP ceruloplasmin, LPGDS lipocalin-like prostaglandin D synthase, TF transferrin, MCP-1 monocyte chemoattractant protein 1, Cr creatinine. See section Urine sample selection for definition of active-/non-LN

Full size image

Urine biomarker levels did not differ between non-LN patients who had previous LN (renal-BILAG score D) and those with no previous renal involvement (renal-BILAG score E; all p c > 0.05). Similarly, there was no difference between patients with severe or moderate active LN (renal-BILAG score A/B, respectively; all p c > 0.05; see ESM 3). There was also no significant difference in urinary biomarker levels depending on the presence or absence of extra-renal involvement (see Fig. 2).

Fig. 2
figure 2

Urine biomarker concentrations in active-/non- lupus nephritis (LN) patients with/without extra-renal juvenile-onset systemic lupus erythematosus (JSLE) activity. Biomarker concentrations were standardised to urinary creatinine and expressed as median values. Horizontal line Median value for each group. Mann–Whitney U tests were used to compare biomarker concentrations between patient groups. A Bonferroni adjustment was applied to account for multiple testing. Corrected p values (p c ) are reported. Vascular cell adhesion molecule-1 (VCAM-1) measurement is missing from one patient; neutrophil gelatinase-associated lipocalin (NGAL) data were not available from three active-LN and 15 non-LN patients

Full size image

On fitting a binary logistic regression model including all novel biomarkers and subsequently applying the ‘stepAIC’ function in R [40], the final model included both AGP and ceruoplasmin (see Table 2). The AUC for this final model was 0.88. On addition of LPGDS, the AUC increased to 0.90, increasing further to 0.92 upon the addition of TF. The addition of VCAM-1 and MCP-1 into the model, however, did not increase the AUC (see Table 3).

Table 2 Binary logistic regression models initially including all biomarkers and after variable selection for Cohort 1
Full size table
Table 3 Effect on the area under the receiver operating characteristic curve of adding biomarkers to the regression model in Cohort 1 and 2 separately or together
Full size table

Cohort 2—validation cohort (Einstein Lupus Cohort)

Clinical and demographic data

The validation cohort consisted of 30 JSLE patients of whom 16 (53 %) were classed as active-LN (11/16 renal BILAG score = A, 5/16 = B) and 14 (47 %) were classified as non-LN JSLE patients (6/16 renal BILAG score = D, 8/16 = E). Active- and non-LN JSLE patients had a median age of 15 and 18 years, respectively, with a respective disease duration of 3.1 and 1.7 years at the time of biomarker analysis. Females constituted 100 % of the active-LN patients and 71 % of the non-LN patients. Both JSLE patient groups had a median of five ACR classification criteria at diagnosis. ELC patients were largely African/African American (53 %) and Hispanic (43 %), whereas UK JSLE Cohort patients were predominatly Caucasian (41 %) and Indian (23 %). All active-LN patients had biopsy-proven LN during their disease course, with the ISN/RPS 2003 classes as follows; class III = 19 %, class IV = 19 %, class V = 31 %, mixed class III/V = 31 %. Both groups of patients had a median of five ACR classification criteria at diagnosis. Active-LN and non-LN patients differed significantly in terms of their UACR and use of angiotensin-converting enzyme inhibitors (ACEi)/angiotensin 2 blockers (AT2) (both p < 0.05, see Table 1).

Novel urine biomarkers

Figure 1 shows the distribution of novel urinary biomarker concentrations in Cohort 2, relative to Cohort 1 patients. Patients with active LN had significantly higher urinary concentrations of AGP, ceruloplasmin, LPGDS, TF, MCP-1 and VCAM-1 than non-LN patients (all p c < 0.05). NGAL levels did not differ between patient groups in either cohort (p c = 1.0). Ceruloplasmin and MCP-1, AGP, TF were all strongly correlated. LPGDS was also strongly correlated with AGP and VCAM-1. AGP was strongly correlated with VCAM-1 and TF (all r > 0.7). All other biomarker combinations were moderately correlated (r = 0.3–0.7; see ESM 2 for further details).

A binary logistic regression model was fitted with Cohort 2 data, adding the data on each variable in a stepwise manner one at a time in the same order as was done for Cohort 1. The model including AGP, ceruoplasmin, LPGDS and TF again produced the optimal AUC (0.991). As a combination of biomarkers led to excellent identification of active LN in both cohorts, AUCs were also calculated for both cohort datasets combined (see Table 3). A combined Cohort 1 and Cohort 2 model, including AGP, ceruoplasmin, LPGDS and TF, again gave excellent AUC (0.949); however adding VCAM-1 slightly improved the AUC further (0.952). The ROC generated by this optimal Cohort 1 and 2 model is shown in Fig. 3.

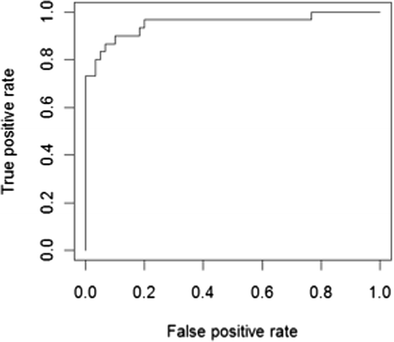

Fig. 3
figure 3

The receiver operating characteristic (ROC) cure generated from the optimal binary logistic regression model when data from both cohorts were combined. Optimal model includes Alpha-1-acid glycoprotein (AGP), ceruloplasmin, lipocalin-like prostaglandin D synthase (LPGDS), transferrin (TF) and vascular cell adhesion molecule-1 (VCAM-1) [area under the ROC curve (AUC) 0.952]

Full size image

Urine biomarker concentrations in biopsy versus renal BILAG-defined active LN

Urine biomarker levels from 12 samples from Cohort 2 patients which were taken at the time of or within 6 weeks of renal biopsy were compared with those of 11 patient samples with a current composite renal BILAG score-based diagnosis of active LN (but a previous history of having had biopsy-defined active LN). Urinary AGP, ceruloplasmin, LPGDS, TF, MCP-1 and VCAM-1 levels did not differ significantly between the two groups of active-LN patients (all p c = 1.0; see Fig. 4). Urine samples from Cohort 1 patients were not available close to the time of renal biopsy; therefore, comparable groups were not available for inclusion in these analyses. The study was underpowered to assess for differences in any of the urinary biomarkers according to ISN/RPS 2003 subclass.

Fig. 4
figure 4

Urine biomarker concentrations in Cohort 2 patients with LN and no recent biopsy (BILAG-defined active LN; n = 11) versus patients with biopsy-defined active LN (n = 12). Closed symbols Median, Whiskers interquartile range. British Isles Lupus Assessment Group (BILAG), lupus nephritis (LN)

Full size image

Ability of traditional biomarkers to identify active LN

Traditional biomarkers which do not contribute to the composite renal BILAG score were assessed for their ability to identify active LN. ESR was the best traditional biomarker, with a fair AUC of 0.796 (ESR was only measured routinely within cohort 1). Complement component 3 (C3) and double-stranded DNA showed a poor ability to identify active LN in both cohorts (AUC from 0.617 to 0.645). C4 performed the worst, with an AUC of 0.593 and 0.482 in Cohort 1 and 2, respectively. Inclusion of all traditional biomarkers together in a regression model did not improve the AUC. Addition of ESR, the best traditional biomarker, to the optimal UK novel biomarker combination, including AGP, LPGDS, TF and ceruloplasmin, did not improve the AUC further (AUC 0.910; see TableI4).

Table 4 Area under the ROC curve values corresponding to the ability of traditional biomarkers to identify active lupus nephritis alone and in combination with novel biomarkers
Full size table

Discussion

To optimise effective management of LN, readily available and easily measured biomarkers are urgently needed within clinical practice. Early diagnosis and prompt treatment of LN can improve long-term renal survival [18]. The invasive nature of renal biopsy limits its clinical utility, especially in childhood. By simultaneously measuring urinary AGP, ceruloplasmin, VCAM-1, TF, LPGDS, MCP-1 and NGAL at a single patient visit in two ethnically diverse cohorts of JSLE patients, the aim of this study was to derive and internationally validate a biomarker panel which could improve identification of active LN, over and above individual biomarkers. Across both cohorts we have demonstrated an optimal urine biomarker combination that includes AGP, ceruoplasmin, LPGDS and TF with excellent AUC values for active LN identification (AUC 0.920 and 0.991 for Cohorts 1 and 2, respectively). Furthermore, the presence of extra-renal disease activity does not appear to influence the accuracy of this panel of urine biomarkers. This is therefore the first LN urine biomarker panel study to include a exploratory and validation cohort, providing a firm foundation for future development of a clinical urine biomarker panel test.

Previous studies complementing our work have focussed on identifying biomarker combinations reflective of LN histological subtypes in patients with biopsy-proven LN. Brunner et al. investigated 28 childhood-onset and 48 adult-onset SLE patients, assessing biomarker combinations differentiating biopsy-defined activity, chronicity or membranous LN in samples taken within 2 months of biopsy. The best predictive ability detected by these authors was for LN activity, when MCP-1, AGP, ceruloplasmin and the urine protein-to-creatinine ratio were considered together (AUC 0.850) [29]. Within the UK JSLE Cohort and the ELC, we have demonstrated stronger AUC values (0.920 and 0.991, respectively) for the identification of active LN with the combination of urinary AGP, ceruloplasmin, LPGDS and TF. This result supports the importance of a combination approach to urinary biomarkers in LN, in these JSLE cohorts. In our present study, when the results from both the UK Cohort and ELC are pooled, VCAM-1 adds to the diagnostic ability of the above biomarker panel, indicating that further investigation of the role of VCAM-1 in combination with other biomarkers for discriminating active LN in children is required. The UK JSLE Cohort consisted of predominately Caucasian and Indian patients, whereas the ELC cohort comprised mainly African American and Hispanic patients. Notably, African and African American patients often have more severe kidney involvement in SLE [4, 34, 42]. Interestingly, within our study the optimal biomarker panel performed even better in the validation ELC than in the exploratory UK JSLE Cohort.

More recently, Brunner et al. have looked at additional biomarkers in samples taken at the time of biopsy from 47 children with ISN/RPS class II–V LN [30]. These authors demonstrated that NGAL, MCP-1, ceruloplasmin, adiponectin, hematopexin and kidney injury molecule-1 were the best predictors of LN activity status as assessed by the National Institute for Health Activity Index (NIH-AI), leading them to propose a biomarker-based Renal Activity Index for Lupus (RAIL) algorithm [30]. Our current study examined a sub-set of these markers for their ability to identify BILAG-defined active LN rather than NIH-AI status. The promising results of Brunner et al. [30] require further validation in larger prospective, multi-ethnic cohorts. In contrast to the markers validated in our current study, it remains unclear whether the biomarkers proposed by Brunner et al. [30] would be able to differentiate patients with active LN from those with inactive LN, as all patients in the their study had definite biopsy-defined LN.

Our data demonstrate the key utility of urinary biomarkers in monitoring LN. We have demonstrated and validated an excellent panel of biomarkers which differentiate JSLE patients with active LN and no current LN. As discussed above, Brunner et al. [30] have also proposed a distinct biomarker panel which accurately correlates with NIH-AI status. A large international prospective study or clinical trial is therefore warranted. This would longitudinally assess the biomarkers validated in the current study for initial identification of active LN, followed by assessment of LN severity using the additional markers included in the RAIL as a proxy for histological changes. An international collaborative study will most probably be needed to be sufficiently powered given the multiplicity of biomarkers studied, distinct kidney biopsy features seen and the ethnic differences seen in JSLE severity.

In our current study we could not demonstrate a significant difference in urinary NGAL levels between those patients with active LN and those with non-LN in either the UK Cohort Study or the ELC. This is in contrast with previous work which has shown NGAL to be highly sensitive/specific for the identification of biopsy-proven LN in children [26]. These results may be explained by differences in the timing of the sample and the outcome measures used. Urinary NGAL has previously been shown to be a useful predictor of impending flare in both the UK JSLE Cohort [26] and in an adult SLE study of the ELC which included a University College London validation cohort [43]. Kiani et al. were also unable to detect an association between urinary NGAL and LN in a prospective study that included 107 adult SLE patients [44]. These observations may be due to urinary NGAL levels peaking before flares and then receding before the event becomes clinically detectable [45]. Urinary NGAL has also been demonstrated as a marker of renal damage in LN [46], which may also explain why patients with a history of biopsy-proven LN have higher urinary NGAL levels. These observations suggest that NGAL requires further testing longitudinally as part of a urine biomarker panel despite the results seen in the current study, as it may able to predict active nephritis and inactive nephritis occurrence.

It is interesting to consider the origin and renal specificity of the novel biomarkers. AGP belongs to the immunocalin family, a group of immunomodulatory binding proteins. It is mainly produced by the liver but has also been reported in other cell types (macrophages [47], endothelial cells [48] and monocytes [49]). In active LN, increased production of AGP as part of the acute phase response, coupled with AGP production by cells infiltrating the kidney, may be responsible for the high urinary levels demonstrated. TF and ceruloplasmin are plasma proteins, primarily responsible for carrying iron and copper, respectively. Differing from albumin in terms of their molecular radii and isoelectric points, urinary ceruloplasmin and TF have been shown to predict the onset of microalbuminuria in diabetic nephropathy [50]. LPGDS, a member of the lipocalin superfamily responsible for prostaglandin D2 production, is similar to albumin in terms of chemical properties, but it is much smaller [51]. In type-2 diabetes, urinary LPGDS has been shown to increase in the early stages of kidney injury [52]. Urinary VCAM-1 levels have previously been shown to be higher than blood levels, suggesting that the inflamed kidney may represent an important source of urinary VCAM-1 [33].

Certain limitations of our study warrant recognition and should be addressed in future work. As our definition of active LN was based on the composite renal BILAG score, calculated from proteinuria, GFR, blood pressure, active urine sediment, plasma creatinine and recent biopsy findings, we could not directly compare such traditional markers with the novel urinary biomarkers studied. Due to the cross-sectional nature of this study we are unable to comment on the relationship of such biomarkers with other stages of the fluctuating LN disease course (e.g. prediction of flare/remission). Validation in a larger, longitudinal, prospectively collected study is therefore necessary, including children and young people with the full range of mild, severe and inactive disease phenotypes from a range of patient cohorts (including Asian and African cohorts). With further prospective validation, it may become apparent that fewer biomarkers together can produce acceptable accuracy for active LN identification (e.g. AGP and ceruloplasmin) due to the level of correlation seen between biomarkers (especially for Cohort 2). This would potentially make it a simpler point-of-care testing device for biomarker quantification. Concurrent investigation of the role of such biomarkers in vitro or in LN mouse models will also help to improve understand of LN pathophysiology.

Conclusions

Patients with JSLE have significant renal involvement and the potential to develop irreversible renal damage as the result of LN relapses that are either unrecognised, not identified early enough or not treated sufficiently [4, 53]. This study has demonstrated and validated a renal-specific excellent novel urine biomarker panel for the recognition of active LN in two ethnically diverse JSLE populations, thereby providing considerable strength to these findings. Further validation in larger, longitudinal, prospectively collected studies is required to define biomarker profiles that predict LN relapses and response to treatment. It is anticipated that a future urinary biomarker point-of-care testing device will help to improve the renal outcomes for JSLE patients through biomarker-led renal monitoring in routine clinical practice.
