Intracellular thermometry with fluorescent sensors for thermal biology

Open Access
Invited Review
  • 631 Downloads

Abstract

Temperature influences the activities of living organisms at various levels. Cells not only detect environmental temperature changes through their unique temperature-sensitive molecular machineries but also muster an appropriate response to the temperature change to maintain their inherent functions. Despite the fundamental involvement of temperature in physiological phenomena, the mechanism by which cells produce and use heat is largely unknown. Recently, fluorescent thermosensors that function as thermometers in live cells have attracted much attention in biology. These new tools, made of various temperature-sensitive molecules, have allowed for intracellular thermometry at the single-cell level. Intriguing spatiotemporal temperature variations, including organelle-specific thermogenesis, have been revealed with these fluorescent thermosensors, which suggest an intrinsic connection between temperature and cell functions. Moreover, fluorescent thermosensors have shown that intracellular temperature changes at the microscopic level are largely different from those assumed for a water environment at the macroscopic level. Thus, the employment of fluorescent thermosensors will uncover novel mechanisms of intracellular temperature-assisted physiological functions.

Keywords

Fluorescent thermometer Intracellular temperature Thermometry Thermogenesis Fluorescent sensor

Introduction

Temperature is a fundamental physical quantity that is involved in all life activities. Needless to say, physiological functions are regulated by temperature at the molecular level for live animals. Temperature governs biochemical reactions in molecules as it defines their state and dynamics. At the cellular level, for instance, heat shock responses serve as a system to adapt to temperature changes of outer environments [40, 78]. To regulate the body temperature in live animals, thermogenesis is critical. It is widely accepted that rodents have brown adipose tissues (BATs) that produce heat to maintain the body temperature [7]. Recently, PET imaging has enabled visualization that this tissue also exists in adult humans [51]. Medical studies have revealed an enhanced heat production in cancers [33, 49], localized infections [64, 83], febrile seizures [14], and malignant hyperthermia [61]. Despite the fundamental involvement of temperature in life systems, little is known about the molecular mechanism regarding the expression of temperature-related physiological functions. It is easily imagined that spontaneous or adaptive thermogenesis work as the heat source for these functions, although we are still not able to answer even this simple question.

Cells possess various systems to detect environmental temperature changes. Adaptive alteration of gene expression through heat shock response and stress granule formation has been classically known [21, 59]. Moreover, several kinds of ion channels, including transient receptor potential (TRP) channels, are activated in a temperature-dependent manner [48, 80]. These functions propagate information regarding a temperature change in outer environments or plasma membranes into the interior of cells as electrical signals. Interestingly, a part of the TRP channels are expressed deep inside of the brain, which suggests that these channels are capable of sensing the changes in temperature inside of brain tissues. In drosophila, temperature-regulated behavior is closely linked to the rates of mitochondrial oxidative metabolism in cells [69]. These facts may reflect the existence of a temperature variation at the cellular level inside animal bodies which participates in physiological functions.

To shed light on this unexplored field, new tools to visualize intracellular thermal changes in live cells or animals are highly desired. Among the possible approaches, the fluorescence measurement is a powerful method to visualize various intracellular events. Actually, many kinds of intracellular fluorescent thermosensors have been recently developed, some of which are able to visualize subcellular thermal changes (Fig. 1 and Table 1). In this review article, we describe the fluorescent thermometers that have enabled intracellular thermometry, and how they have contributed to the observation of organelle-related heat production.
Fig. 1

Schematic drawing of intracellular thermometry with fluorescent thermosensors

Table 1

Fluorescent thermosensors used for intracellular thermometry

Section

Year

Technique

Application

Ref.

Material

Sensor name

Detection

Introduction method

Resolution (°C)

Sensitivity (%/°C)

Cell type

Localization

Observed thermogenesis

Small organic compounds

1998

Metal complex

Eu-TTA

Phosphorescence intensity

Liposome

N/A

N/A

CHO

Cell membrane

Endogenous

[87]

2007

Metal complex

Eu-TTA within micropipette

Fluorescence intensity

Physical contact of micropipette

N/A

2.7

HeLa

N/A

Chemically-induced

[66]

2014

Metal complex

Eu-TTA, rhodamine 101

Fluorescence intensity ratio

Internalization

0.5

N/A

HeLa

N/A

Chemically-induced

[68]

2014

Organic compound

ER thermoyellow

Fluorescence intensity

Internalization

0.4

3.9

HeLa, differentiated myoblast, NIH3T3, Chang, brown adipose

ER

Chemically-induced

[2]

2015

Organic compound

Mito-RTP

Fluorescence intensity ratio

Internalization

0.6

2.7

HeLa

Mitochondria

Chemically-induced

[25]

2015

Organic compound

Mito thermoyellow

Fluorescence intensity

Internalization

0.3

2.0–2.8

HeLa, differentiated myoblast, mESC, NIH3T3, Chang, brown adipose

Mitochondria

Chemically-induced

[3]

Synthetic polymer

2009

Polyacrylamide polymer

NIPAM-DBD (nanogel, FNT)

Fluorescence intensity

Microinjection

0.29–0.50

N/A

COS7

Cytoplasm

Chemically-induced

[20]

2011

Polymeric micelle

ICG/Pluronic F-127/PEI micelle

Fluorescence intensity

Internalization

N/A

N/A

A431

N/A

N/A

[9]

2011

Polymer dots (Pdots)

Pdot-RhB

Fluorescence intensity ratio

Internalization

N/A

N/A

HeLa

N/A

N/A

[86]

2011

Polymeric micelle

HMA/Pluronic P85/TRITC micelle

Fluorescence intensity ratio

Internalization

N/A

N/A

HeLa

Cytoplasm

N/A

[16]

2012

Polyacrylamide polymer

PNIPAm-MAn-AMC

Fluorescence intensity

Internalization

N/A

N/A

MDCK

Cytoplasm

N/A

[56]

2012

Polyacrylamide polymer

NNPAM-DBD (FPT)

Fluorescence lifetime/Fluorescence intensity

Microinjection

0.18–0.58

N/A

COS7, HeLa

N/A

Endogenous and chemically-induced

[52]

2013

Polyacrylamide polymer

Cationic NNPAM-DBD

Fluorescence lifetime

Internalization

0.09–0.78

N/A

Yeast, MOLT-4, HEK293T

N/A

N/A

[74]

2014

Polyacrylamide polymer

PNIPAm/NBD/RhBAM

Fluorescence intensity ratio

Internalization

0.3–0.5

N/A

HeLa

N/A

Chemically-induced

[57]

2015

Polyacrylamide polymer

PNIPAm/NBD/NSVB/TfAuNCs

Fluorescence intensity ratio

Internalization

0.3–0.5

N/A

HeLa

N/A

Chemically-induced

[58]

2015

Polyacrylamide polymer

Cationic NNPAM/DBThD/BODIPY

Fluorescence intensity ratio

Internalization

0.01–0.25

N/A

MOLT-4, HEK293T

N/A

N/A

[76]

2015

Polyacrylamide polymer

PNIPAM/CMA, PNIPAM/NBDAE, PNIPAM/RhBEA

Fluorescence intensity ratio (FRET)

Internalization

N/A

N/A

HepG2

Cytoplasm

Chemically-induced

[27]

2015

Polyacrylamide polymer

Cationic NNPAM/DBThD

Fluorescence lifetime

Internalization

0.05–0.54

N/A

HeLa, COS7, NIH3T3

N/A

Endogenous and chemically-induced

[24]

2017

Polyacrylamide polymer

PNIPAM/BODIPY

Fluorescence intensity/Fluorescence lifetime

Internalization

N/A

N/A

BHK

N/A

N/A

[18]

Fluorescent protein

2011

Protein and fluorescent dye system

C12FDG

Fluorescence intensity

Transformation, gene knock-in

0.7

N/A

E. coli

N/A

Exogenous

[45]

2012

Fluorescent protein

GFP

Fluorescence anisotropy

Transfection

0.4

0.4

HeLa, U-87 MG

Cytoplasm

Exogenous

[12]

2013

Fluorescent protein

GFP

Fluorescence anisotropy

Gene knock-in

0.8

1.4

C. elegans

Cytoplasm

Exogenous

[13]

2013

Fluorescent protein

tsGFP

Fluorescence intensity ratio

Transfection, viral infection

0.5

N/A

HeLa, brown adipocyte, differentiated myotube

Cytoplasm, ER, mitochondria, plasma membrane

Endogenous

[35]

2017

Fluorescent protein

gTEMP

Fluorescence intensity ratio

Transfection, gene knock-in, mRNA injection

0.4

2.6

HeLa, medaka

Cytoplasm, nucleus, mitochondria

Endogenous and chemically-induced

[50]

Inorganic materials

2010

Nano particle

NaYF4: Er3+, Yb3+ NPs

Fluorescence intensity ratio

Internalization

N/A

N/A

HeLa

N/A

Exogenous

[79]

2010

Quantum dot

CdSe-QD

Fluorescence wavelength shift

Internalization

N/A

0.025

HeLa

N/A

Exogenous

[42]

2011

Quantum dot

Quantum dot (QD655)

Photoluminescence spectral shifts

Endocytosis

N/A

0.016

HeLa, NIH3T3

N/A

Chemically-induced

[84]

2012

Quantum dot

Quantum dot-quantum rods (QD-QRs)

Photoluminescence ratio

Cationic polymer-based incorporation

0.1

2.4

HeLa, NIH3T3

N/A

Exogenous

[1]

2013

Quantum dot

CdSe-QD

Photoluminescence spectral shifts

Internalization

N/A

0.016

lymphocytes

N/A

Exogenous

[22]

2013

Quantum dot

CdSe-QD

Fluorescence spectral shift

Internalization

N/A

0.025

HeLa

N/A

Exogenous

[43]

2013

Gold nanocluster

Au nanocluster

Fluorescence lifetime

Internalization

0.3–0.5

N/A

HeLa

N/A

Exogenous

[63]

2013

Nanodiamond

Nanodiamonds nitrogen-vacancy center

Normalized fluorescence

Nanowire-assisted delivery

0.044

N/A

Fibroblast WS1

N/A

Exogenous

[38]

2017

Nanodiamond

Gold nanorod-fluorescent nanodiamond hybrid

Normalized fluorescence

Internalization

N/A

N/A

HEK293T

N/A

Exogenous

[72]

2014

Silica nanoparticle

Ru(bpy)32+ doped silica nanoparticle

Luminescence intensity

Internalization

N/A

1.26

HepG2

N/A

Exogenous

[85]

2015

Metal nanocluster

Cu nanocluster

Photoluminescence intensity

Internalization

N/A

N/A

MC3T3-E1

N/A

Exogenous

[82]

2015

Quantum dot

Polymer encapsulated quantum dot

Photoluminescence

Internalization

0.43

1.6

HepG2

N/A

Exogenous

[41]

2016

Quantum dot

Quantum dot (QD655)

Fluorescence intensity ratio

Endocytosis

0.098

6.2

SH-SY5Y

N/A

Chemically-induced

[70]

2016

Fluorescent up-converting particle

NaYF4:Er3+, Yb3+ nanoparticle

Fluorescence intensity ratio

N/A (Cell surrounding)

N/A

1.6

HeLa

N/A

Exogenous

[60]

Others

1998

Infrared thermography

Infrared camera

Thermal radiation

N/A (Remote monitoring)

Yeast, adipocyte

N/A

Endogenous and chemically-induced

[54]

2011

Thermocouple

Pt-W thermocouple

Thermoelectricity

Insertion

U251

N/A

Chemically-induced

[81]

2012

Resonant thermal sensor

Si resonator

Resonant frequency of the resonator

Physical contact

Brown fat cell

N/A

Endogenous

[30]

2013

Photoacoustic imaging contrast reagent

Iron oxide micro-particle

Photoacoustic thermometry

Internalization

HeLa

N/A

Exogenous

[17]

2014

Microcantilever

Bimaterial microcantilever

Microcantilever displacement

Physical contact

Brown adipocyte

N/A

Endogenous

[62]

Fluorescent thermometers

Fluorescent small organic compounds

Eu-TTA

One of the earliest reports on the visualization of intracellular thermogenesis was accomplished by a thermosensitive fluorescent dye, Europium (III) thenoyltrifluoroacetonate trihydrate (Eu-TTA) (Fig. 2a) [87]. The fluorescence intensity of Eu-TTA decreases in response to an increase of the temperature, which makes it possible to monitor the temperature change in a CHO cell membrane. This probe successfully imaged the intracellular heat waves evoked by the metabotropic m1-muscarinic receptor stimulation. However, this technique is substantially affected by pH, which is a limitation for monitoring bona fide intracellular temperature change.

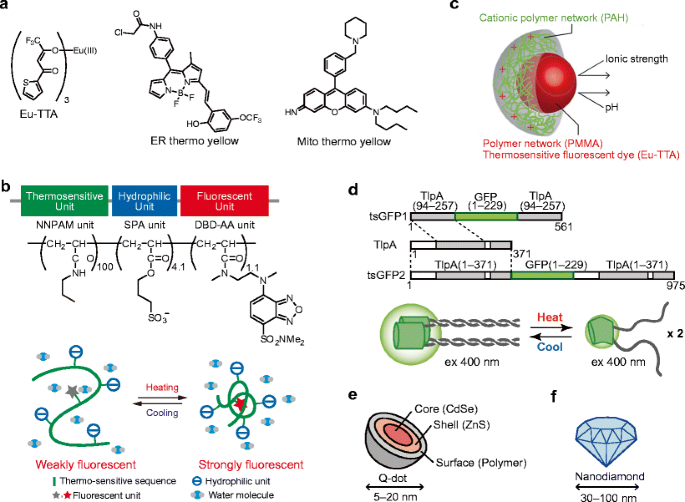

Fig. 2

Schematic representation of fluorescent thermosensors for live single or subcellular cell thermometry. a Chemical structures of Eu-TTA, ER thermo yellow and Mito thermo yellow. b Schematic drawing of FPT. Upper; chemical structure of FPT. NNPAM, poly-N-n-propylacrylamide. SPA, 3-sulfopropyl acrylate. DBA-AA, N-{2-[(7-N,N-dimethylaminosulfonyl)-2,1,3-benzoxadiazol-4-yl](methyl)amino}ethyl-N-methylacrylamide. Lower; functional diagram of FPT in an aqueous medium. This figure is reproduced from Fig. 1 in [52]. c Schematic drawing of dye-embedded synthetic polymer nanothermometer. This figure is reproduced from Fig. 1 in [53] with permission. Copyright 2012, the Royal Society of Chemistry. d Schematic drawing of tsGFP. Upper; Design of tsGFPs. The gray bar indicates coiled-coil regions of TlpA. Lower; a schematic representation of the tandem formation of coiled-coil structure and temperature dependent fluorescence changes of tsGFP. This figure is reproduced from Fig. 1 in [35]. e, f Schematic drawing of quantum dots in e and fluorescent nanodiamonds in f

To overcome this drawback, Suzuki et al. developed a microthermometer consisting of a glass micropipette filled with Eu-TTA [66]. Using this thermometer, they demonstrated a time delay in the heat production of a single HeLa cell directly in contact with the glass micropipette, following ionomycin-induced Ca2+ influx from the extracellular space. This time delay was inversely proportional to the extracellular Ca2+ concentration, and the increase in temperature was suppressed when the activity of Ca2+-ATPases was blocked. However, this technique only monitored the temperature from outside of the cellular membrane.

Organelle-targeted small molecules

Recently, small-molecule fluorescent thermometers that target an intracellular organelle have been developed. To enable visualization of the temperature in the ER, a small organic molecule fluorescent thermometer, termed ER thermo yellow, has been reported (Fig. 2a) [2]. ER thermo yellow has a high sensitivity (3.9%/°C) and stains the target organelle evenly, which enables the monitoring of intracellular temperature gradients generated by external heat sources in various cell types.

A small-molecule fluorescent thermometer targeting mitochondria has been developed by several groups. Arai et al. reported Mito thermo yellow, which successfully monitors the mitochondrial temperature gradient generated by exogenous heating in various cells (Fig. 2a) [3]. A mitochondria-targeting ratiometric temperature probe, Mito-RTP has been reported by Homma et al. [25]. The fluorescence intensity of Rhodamine B decreases linearly with elevated temperature, while the fluorescence intensity of the CS NIR dye is stable at various temperatures. In the Mito-RTP, these two fluorophores are coupled at each end of the linker to provide a ratiometric property that is suitable for the selective determination of the mitochondrial temperature.

These recent studies indicate that small chemical probes have the potential to monitor the temperature at the intracellular organelle level.

Synthetic polymer-based thermosensors

Polyacrylamides: thermo-sensitive polymers

Polyacrylamides, such as poly-N-Isopropylacrylamide (NIPAM) or poly-N-n-proplylacrylamide (NNPAM), are well-known for their structural changes in response to changes in temperature [55], which is why they have opened a door to the development of molecular thermometers. A unique characteristic of the temperature sensitivity of polyacrylamides is the phase transition, which enables a sharp response to a temperature change. Furthermore, the range of temperature can be adjustable by synthesizing a block copolymer containing more than one polymer having a different temperature sensitivity. For example, the response of fluorescent polymeric thermometers having various kinds and ratios of acrylamide derivative (N-n-propylacrylamide, N-isopropylacrylamide, and/or N-isopropylmethacrylamide) differed from one another in their sensitive temperature ranges between 20 and 49 °C [75]. The modifications that can improve the sensor (thermosensing) properties include an addition of hydrophilic unit and/or fluorescence unit; however, the incorporation of too much of these will deteriorate the response to temperature change. Uchiyama S et al. have developed highly sensitive fluorescent polymeric thermometers (FPTs) by combining NIPAM and NNPAM with a water-sensitive fluorophore, such as benzofurazans [77]. We have established FPTs that can be applied to living cells through an addition of a hydrophilic unit and the optimization of the unit composition (i.e., thermosensitive, fluorescent and hydrophilic units) (Fig. 2b). In 2009, the first demonstration of intracellular thermometry was performed using a fluorescent nanogel thermometer (FNT) that contained a cross-linker unit [20]. The nanometer-sized gelation of the FNT minimalized the interaction of the fluorescent unit with cellular components and maximized the fluorescent response to the temperature-dependent structural change. By measuring the total fluorescence intensity of the FNT microinjected into COS7 cells, we have demonstrated tracking the average temperature inside of single living cells. FNT-based intracellular thermometry on apoptotic cells and mitochondrial uncoupler-treated cells showed a significant intracellular temperature increase (0.3–1.8 °C for 2 h in apoptosis and 0.45 °C for 30 min after uncoupling), which uncovered the existence of a temperature variation inside of single living cells for the first time. In contrast to the prominent sensitivity and ability to track the temperature by using FNT, the dot-like distribution of intracellular FNT hinders the measurement of the temperature distribution in single cells. This challenge motivated us to develop a novel FPT that evenly distributes inside of cells. We then applied FPT to fluorescence-lifetime imaging microscopy (FLIM) to visualize the temperature distribution inside single living COS7 cells, which revealed the inhomogeneous temperature distribution in single steady-state cells [52]. In particular, the intracellular temperature gradient relating organelles, such as the nucleus, mitochondria (in part), and centrosome, have attracted significant attention in biology because these results strongly suggest the intrinsic relation of the intracellular temperature with cell functions. Furthermore, Uchiyama and Qiao have introduced a novel functional unit to the acrylamide-based thermometer to improve the sensor properties [24, 57, 58, 76]. For example, the introduction of a cation unit realized cell-permeable FPT that does not require microinjection into cells [24], and two kinds of fluorescence units enable ratiometric detection of the temperature [57, 76].

Temperature-sensitive dye-embedded synthetic polymers

As described in “Fluorescent small organic compounds” section, the weakness of Eu-TTA was the pH sensitivity. To overcome this drawback, Oyama et al. designed fluorescent nanoparticles, termed “nanothermometers,” in which Eu-TTA as a temperature-sensitive dye was embedded in a poly(methyl methacrylate) (PMMA) network (Fig. 2c) [53]. They employed the polymer network to protect the dye from the changes in pH and ionic strength. The nanothermometers spontaneously entered living HeLa cells, and visualized the temperature rise induced by laser irradiation. This was further improved with the introduction of an Eu-TTA-based ratiometric nanothermometer (RNT) [68]. Both the Eu-TTA, as the thermo-sensitive fluorophore, and Rhodamine 101, as a reference, were embedded in a polymeric particle to protect the fluorophores from intracellular conditions. The ratiometric measurement at single RNT spots was independent of the displacement of the RNT along the Z-axis. Therefore, the temperature could be determined at the location of each RNT under an optical microscope regardless of the dynamic movement of the living cells. As a demonstration of the spot-by-spot intracellular thermometry, the temperature changes at individual RNT spots in a single cell were monitored, where the Ca2+ increase was induced by the Ca2+ ionophore. The temperature increase was different for different spots, which suggested a heterogeneous heat production in the cell.

These diverse approaches of thermal detection using fluorescent polymers contribute to the detection of localized themogenenesis regarding the nucleus [52] and vesicle trafficking [53], and the thermometry in various cell species such as brown adipose tissue cells [23] and yeast cells [74] are described in the “Intracellular temperature dynamics” section in more detail.

Fluorescent protein-based thermometers

Engineered fluorescent proteins are also used for monitoring the intracellular temperature. One example is the use of the green fluorescent protein (GFP). Donner et al. reported the use of GFP as a thermal nanoprobe suited for intracellular temperature mapping by monitoring the fluorescence polarization anisotropy [12]. This method was tested in HeLa or U-87 MG cells transfected with GFP by monitoring the fluorescence response to heat generated by photo-thermal heating of gold nanorods surrounding the cells. Furthermore, they also demonstrated intracellular temperature mapping in an in vivo model using C. elegans stably expressing GFP in neurons by the local photoheating of gold nanoparticles [13]. Although these reports indicate the applicability of GFP as a genetically encoded thermosensor, the insufficient fluorescence changes of GFP only yielded a low signal-to-noise ratio.

As an alternative method overcoming this limitation, we have developed genetically encoded GFP-based thermosensors (thermosensing GFPs: tsGFPs) that enable visualization of thermogenesis in discrete organelles within living cells (Fig. 2d) [35]. tsGFPs consist of the fluorophore-forming region of GFP inserted between tandem repeats of the coiled-coil region of the TlpA protein, an autoregulatory repressor protein in Salmonella that senses temperature changes [28]. The thermosensing capability is derived from a rapid and reversible structural transition from a parallel coiled-coil dimer to two unfolded monomers at around 37 °C. The excitation peaks at 400 and 480 nm of GFP (emission: 510 nm) represent the neutral and anionic forms of the GFP chromophore [73], and the fluorescence (ex400/ex480) ratio is largely dependent on the protein structure [10]. In tsGFPs, a temperature elevation increases the magnitude of the 480 nm peak and decreases that of the 400 nm peak, which results in a sigmoidal change in the fluorescence ratio across the temperature-sensing range of TlpA. This temperature dependent fluorescence change is reversible, and the temperature-sensing range of tsGFPs can be controlled by selecting the appropriate coiled-coils of TlpA. In addition, tsGFP was fused to specific organelle-targeting sequences to express tsGFPs in the plasma membrane, endoplasmic reticulum (ER), and mitochondria.

Nakano et al. have reported a genetically encoded ratiometric fluorescent temperature indicator, gTEMP, by using two fluorescent proteins, namely Sirius and mT-Sapphire with different temperature sensitivities [50]. The function mechanism of gTEMP lies in the ratiometric detection of thermo-sensitive Sirius fluorescence (425 nm) and thermo-insensitive Sapphire fluorescence (509 nm) with an excitation of 360 nm. This strategy enabled a fast tracking of the temperature change with a time resolution of 50 ms. This method was used to observe the spatiotemporal temperature change between the cytoplasm and the nucleus in cells, and quantified thermogenesis from the mitochondrial matrix in a single living cell. Moreover, the temperature in a living medaka embryo was monitored for 15 h and showed the feasibility of in vivo thermometry in living species.

Overall, genetically encoded fluorescent thermosensors can be expressed in cells or live animals non-invasively and are explicitly targeted to defined organelles by attaching the localization signal sequences to monitor subcellular thermal changes in these organelles.

Inorganic materials

Quantum dots

Quantum dots (QD), semiconductor nanoparticles that emit fluorescence, have been applied to measure the temperature in living cells (Fig. 2e [47]. The luminescence properties of QDs undergo temperature-dependent optical changes, such as a red-shift of the photoluminescence peak and decrease of the fluorescence intensity upon heating. Maestro et al. reported the use of two-photon excitation of QD to observe the sharp response of the emission intensity decrease when applying an artificial heat source in HeLa cells [42]. Yang et al. used streptavidin-coated QD of CdSe/ZnS introduced into NIH/3T3 cells to observe a change in the emission peak of 0.057 nm/°C when cells were heated from 17.3 to 47.2 °C [84]. QD-based intracellular thermometry in NIH/3 T3 cells demonstrated a 2 °C increase in response to Ca2+ elevation upon ionomycin treatment. More recently, the change in the fluorescence wavelength of QDs loaded in neuronal SH-SY5Y cells showed a temperature increase in chemically uncoupling mitochondria [70].

Nanodiamonds

Nitrogen-vacancy centers (NVCs) in nanodiamonds, a fluorescent nanoparticle with unique optical characteristics, have attracted high expectation for sensing various physical parameters (Fig. 2f). An optically detected magnetic resonance (ODMR) spectrum of nitrogen-vacancy spins in nanodiamonds changes according to the temperature, which allows measurement of the local temperature in living cells [26]. Kusco et al. introduced NVCs into a human embryonic fibroblast to measure the local temperature change, which was dependent of the distance from a gold nanoparticles-assisted artificial heat source [38]. Tsai et al. developed a nanohybrid of gold nanorod-fluorescent nanodiamond as a combined nanoheater/nanothermometer to investigate the local temperature required for hyperthermia on the membrane nanotubes in HEK293T cells and found an interesting gap in the damage threshold between local and global heating [72].

Inorganic nanoparticles

Some inorganic fluorescent nanoparticles are also available for intracellular thermometry. The functions of these nanothermometers depend on a unique temperature sensitivity of their luminescence properties. Lanthanide-doped fluorescent nanoparticles, composed of rare earth elements, undergo near-infrared (NIR) light excitation and emit visible light by up-conversion. The temperature dependency of this multiphoton process can be used to measure the temperature. Jaque and Sole et al. have demonstrated the intracellular thermometry by using lanthanide-doped fluorescent nanoparticles in living cells and observed a gold nanorods-activated temperature change in living HeLa cells [32]. Other nanoparticles with thermo-responsive luminescent agents, such as Ru(bpy)32+ [85], gold nanoclusters [63], and copper clusters [82], have also been shown to function as nanothermometers in living cells.

Even though the use of these fluorescent nanoparticles has been limited to single-point measurements of the local temperature using external stimuli in single cells, the remarkable photo-stability and the low-interactivity of these thermosensors with intracellular components will deepen and expand the range of intracellular thermometric investigations.

Other technology not relying on fluorescence

Several other techniques not relying on fluorescence as the output signal have also been developed. Although these methods are not the focus of this review, we would like to briefly introduce these technologies.

Infrared thermography

In an earlier study, conventional thermographic detection of mitochondria-related cellular thermogenesis was reported. By observing thermal radiation from mass of cells in a dish with infrared thermography, Paulik et al. observed thermogenesis from yeasts and adipocytes upon mitochondrial stimulation (FCCP treatment and UCP expression) with 0.002 °C sensitivity [54]. This result indicates the feasibility of measuring intracellular thermogenesis outside of cells.

Photoacoustic microscopy

Gao et al. reported a novel single-cell photoacoustic thermometric method for intracellular thermosensing [17]. This unique technique detects ultrasound signals induced by light absorption. By measuring the photoacoustic signal generated by iron oxide micro-particles loaded into HeLa cells, they observed the intracellular temperature during photo-thermal heating. This method offers a high sensitivity (0.2 °C) and high spatial (diffraction limited level) and temporal (3 s) resolution of the single-cell thermometry.

Metal thermal sensors for single cells

Inomata et al. have developed novel ultrasensitive resonant thermal sensors, which are applicable in detecting thermogenesis at single-cell level [30]. These micrometer-sized sensors possess high heat conductance, which enables the detection of a temperature change even outside of the cells. The temperature resolution of this type of thermal sensors is as small as 79 μK. The biggest advantage of this method is the ability to measure the temperature change of single cells without introducing any molecules into the cells. They also demonstrated chemically-induced thermogenesis in BAT cells using a bimaterial microcantilever and a resonant thermal sensor surrounded by vacuum in a microfluidic chip [31, 62].

Intracellular temperature dynamics

Mitochondria

Heat generation in living organisms is not uniform, but instead, mainly occurs in specific tissues such as BAT and skeletal muscle. Especially, brown adipocytes in BAT have been well studied, and mitochondria in brown adipocytes are known to be involved in thermogenesis [7]. Thus, thermogenesis in mitochondria has also been a focus for visualizing intracellular thermal changes not only in brown adipocytes but also in other cells.

In brown adipocytes, uncoupling protein 1 (UCP1), which is selectively expressed in brown adipocytes, cancels the proton gradient of the mitochondrial membrane, resulting in heat generation instead of ATP production [15, 44]. As a model of proton gradient cancelation, chemical uncoupler CCCP (carbonyl cyanide 3-chloro-phenylhydrazone) or FCCP (carbonyl cyanide 4-(trifluoromethoxy)phenylhydrazone) are widely used in various cell lines [54, 71]. In our observations, tsGFP1-mito, the genetically encoded thermosensor specifically targeted to the mitochondria, clearly revealed the temperature increase induced by CCCP (Fig. 3a, b) [35]. We have also reported that both FNT and FPT captured the temperature rise in COS7 cells induced by FCCP, and the change in temperature was estimated to be ~ 0.45 to 1.02 °C [20, 52]. Quantum dots were also used to visualize the heat production in the mitochondria of SH-SY5Y cells by CCCP [70]. In addition, Mito thermo yellow, a mitochondria-targeted small molecular probe, was successfully demonstrated to monitor the intracellular temperature gradient generated by exogenous heating in various cells, such as HeLa, C2C12 and brown adipocytes [3].
Fig. 3

tsGFP1-mito revealed mitochondrial thermogenesis. a, b Fluorescent responses to 10 μM CCCP in HeLa cells transfected with mitochondrial tsGFP1-mito (in a) or cytosolic tsGFP (in b). Left; averaged time courses. Right; maximal ratio changes (Δratio(ex400/ex480)) after CCCP application. ***P < 0.001 by Student’s t test. NS not significant. c Pseudocolor confocal images of ratio(ex405/ex488) in tsGFP1-mito-expressing HeLa cells before and after CCCP treatment revealed thermal heterogeneity in mitochondria. Scale bars indicate 10 μm (whole image) and 3 μm (inset). This figure is reproduced from Fig. 4 in [35]

Stimulation of a β3-adrenoreceptor, such as by norepinephrine, is known to be a physiological stimulus for activating UCP1 to induce heat generation in brown adipocytes [7]. tsGFP1-mito successfully captured norepinephrine-induced endogenous thermogenesis in brown adipocytes [35]. FPT also revealed the intracellular temperature elevation (~ 1.29 °C) in brown adipocytes upon β 3-adrenoreceptor selective agonist treatment [52]. Interestingly, an ASK1 deficiency, which leads to impaired metabolic responses including UCP1 expression in BAT and oxygen consumption of mice, resulted in restricted thermogenesis in brown adipocytes (~ 0.52 °C) [23]. This result proved the causal correlation between intracellular thermogenesis and the metabolic response of individuals.

Notably, tsGFP1-mito has revealed a heterogeneity in the distribution of the temperature among mitochondria in HeLa cells (Fig. 3c) [35]. A subpopulation of mitochondria expressing tsGFP1-mito showed a prominent increase of the CCCP-induced thermogenesis, whereas in a different subpopulation, only a subtle thermal change was detected. To further investigate the apparent thermal heterogeneity among mitochondria, tsGFP1-mito in HeLa cells was simultaneously imaged using JC-1, a dye visualizing a high mitochondrial membrane potential [65], or ATeam, a genetically encoded ATP sensor [29]. This investigation revealed that the temperature is high in the subpopulation of mitochondria where the membrane potential is high, and that the ATP level positively correlates with the membrane potential. Thus, we concluded that constitutive thermogenesis occurs through the respiratory chain or oxidative phosphorylation in a subpopulation of mitochondria in HeLa cells. To the best of our knowledge, this is one of the first examples to directly confirm the correlation between intracellular thermogenesis and organelle function.

Endoplasmic reticulum (ER)

In addition to brown adipose tissues, skeletal muscles have been reported to be a main source of heat in many birds and animals [4]. However, whether muscles act as heat-generating organs remains controversial [8]. A mechanism has been proposed to relate thermogenesis to reactions involving ATP turnover, such as the maintenance of a Ca2+ gradient mediated by the sarco-endoplasmic reticulum Ca2+-ATPase (SERCA) pump [46], which pumps Ca2+ from the cytosol into the sarcoplasmic reticulum lumen using energy derived from ATP hydrolysis [11].

To directly evaluate the thermogenesis from ER in skeletal muscle myotubes, tsGFP1-ER was expressed in myotubes differentiated from myogenic C2C12 cells [35]. In tsGFP1-ER-expressing differentiated C2C12 myotubes, application of cyclopiazonic acid, a reversible inhibitor of SERCA, showed the decrease of the temperature. In contrast, this phenomenon was not observed in control C2C12 myotubes expressing GFP-ER or in undifferentiated C2C12 cells expressing tsGFP1-ER. Notably, in differentiated myotubes, the expression of SERCA1, which is the only active subtype in the fast muscles, was increased. Thus, the observation by tsGFP1-ER clearly supports the existence of thermogenesis in myotubes which is mediated by the Ca2+-ATPase activity of SERCA1.

An ER-targeted small-molecule thermosensor, ER thermo yellow, has demonstrated the ability to monitor intracellular temperature gradients generated by external heat sources in various cell types [2]. This sensor was tested to monitor the heat production by intracellular Ca2+ changes in HeLa cells and revealed the dynamics of heat production in real time at a subcellular level. Thus, these organelle-specific thermometers will be powerful tools to clarify the controversial debate regarding the thermogenesis in ER in muscles.

Nucleus

The nucleus possesses central roles in cell functions and is uniquely characterized by the nuclear membrane of lipid bilayers, extremely complicated structure and highly active biochemical reactions including transcription.

FLIM using a polymer-based thermosensor, FPT, has revealed that the nucleus of COS7 and HeLa cells showed a higher temperature than the cytoplasm through temperature mapping inside the cells (Fig. 4) [52]. The temperature in the nucleus of the steady-state living cells turned out to be significantly higher than that in the cytoplasm with an average difference of 0.96 °C. Interestingly, this temperature gap between the nucleus and the cytoplasm was dependent on the cell cycle: the nucleus shows a higher temperature in the G1 phase just after cell division, while this temperature difference disappears in the S/G2 phase just before cell division. This phenomenon can be explained by the variation of the cytoplasmic temperature. In fact, an earlier study on the calorimetric detection from the mass of cells showed a G2-phase specific intensive thermogenesis. In the G2 phase, the metabolic activity of cells increases because cells must prepare the cellular mass, such as lipids and proteins, ahead of cell division. In contrast, the temperature in the nucleus remains relatively constant.

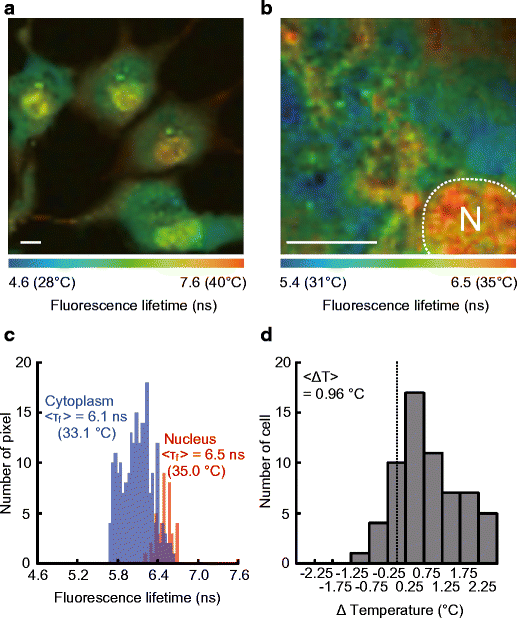

Fig. 4

The higher temperature in the nucleus of COS7 cells observed with FPT. a Fluorescence lifetime image of FPT. Scale bar indicates 10 μm. b The temperature distribution in the local area of cell. N represents the location of the nucleus. Scale bar indicates 10 μm. c Higher temperature in the nucleus. Histograms of the fluorescence lifetime in the nucleus and in the cytoplasm in a representative cell (the leftmost cell in a). d Histogram of the temperature difference between the nucleus and the cytoplasm (n = 62 cells). ΔTemperature was calculated by subtracting the average temperature of the cytoplasm from that of the nucleus. <ΔT> represents an average of the histogram. This figure is reproduced from Figures 4 and 6 in [52]

The nuclear temperature was also investigated by using the nucleus-targeted fluorescent protein thermometer gTEMP [50]. The fluorescence ratio obtained in the steady-state HeLa cell nucleus was significantly lower than that in the cytoplasm, which suggested that the nucleus had higher temperature by couple of degrees. The difference in the absolute value of the temperature gap between this result (2.9 °C) and that observed by FPT (0.96 °C) might originate from the different fine distribution of the thermometers and/or an error in the calibration, which calls for a detailed assessment in the future. Nonetheless, the fact that two methods having totally different detection principles displayed a higher temperature in the nucleus highlighted the likeliness for the thermogenic property of this organelle.

The search for the origin of nuclear heat production has just begun. The dominant chemical reactions in the nucleus, which include transcription and RNA processing, in association with various highly organized structures may be clues to uncover the mechanism of thermodynamics in the nucleus.

Cytoskeletons (microtubule)

It is suggested that cytoskeletons, which support the principal organelles and create intracellular structures, contribute to the intracellular thermal variations.

We have shown the temperature of a centrosome, the main microtubule organizing center, is higher than the surrounding area in COS7 and HeLa cells [52]. The cell event/reaction relating to this temperature gradient near the centrosome with considerable cell-to-cell variations has yet to be elucidated, and the cause of thermogenesis at the centrosome remains an open question. Centrosome-related biochemical reactions, such as hydrolysis of tubulin-GTP, ATP-driven motion of motor proteins, and phosphorylation/dephosphorylation of centrosomal proteins by kinase/phosphatase, may be heat sources at this organelle.

It has been revealed that microtubule-related transport is highly influenced by temperature change. The transport of cellular components along microtubules accelerates when they are heated both in solution [34] and in living HeLa cells [53]. This temperature dependency arises from the ATPase activity of motor proteins. This suggests that the activity of microtubule-bound motor proteins and maybe other microtubule-associating proteins in general is influenced by the temperature change inside of cells. Taking into consideration that the thermogenic organelles, such as mitochondria and ER, are directly associating with microtubules in cells, the thermal properties of microtubules are an excellent target for investigating the relation between intracellular heat production and cell functions. This might involve the heat capacity of microtubule-bound components and/or the use of heat in microtubule-dependent transport.

Validation of thermal changes visualized by thermosensors

Recently, a critical issue has been raised by Baffou et al. regarding the rise of ΔT in temperature T observed in single cells, which questioned the subcellular thermal heterogeneities described above [5]. They have argued that the value of ΔT for the whole cell should be much smaller than the observed value (a few degrees) based on the equation:
$$ \Delta T=\frac{P}{\kappa L} $$
(1)
where the temperature of a continuous medium of thermal conductivity κ on the surface of a heat source of characteristic dimension L and power P is ΔT higher than that at a point infinitely far from the heat source. Equation (1) is obtained from the macroscopic heat diffusion equation for continua:
$$ c{\partial}_tT\left(\mathbf{r},t\right)-\kappa {\nabla}^2T\left(\mathbf{r},t\right)=p\left(\mathbf{r},t\right) $$
(2)
where c is the volumetric heat capacity and p(r,t) is the heat source density as a function of position r and time t.

Baffou et al. estimated that the temperature increase would be in the order of 10−5 K within a single-cell from Eq. (1), which is based on the assumption of the heat source size (10 μm) and previously reported heat production (100 pW) from a cell. Taking further into consideration that the actual heat production occurs transiently within an intracellular organelle, they have subsequently calculated that the energy required to increase the temperature 1 K over a volume of 1 μm3 during 1 s would be 1 μJ, which is still one or two orders of magnitude higher than the energy produced by the total glucose amount contained within a whole cell.

We noticed that the values of the parameters used in their calculation of ΔT need to be reconsidered: Baffou et al. assumed that the medium surrounding the heat source is a homogenous and continuous water solution and employed only a single value of κ = 1. As is easily imagined, however, the interior of a cell is completely different from this condition. The κ value for proteins, which are localized in high concentrations in cells, is reported to be 0.1–0.2 Wm−1 K−1 ([39]); and the typical size of the heat source, for example mitochondria, is less than 100 nm (for details, see Ref. [36]).

More importantly, we question the applicability of the macroscopic heat diffusion Eq. (2) in an intracellular space. Equation (2) assumes that the local equilibrium is preserved at every “point” (in a macroscopic sense) in the surrounding medium under consideration. However, the fluctuation of thermodynamic quantities is significant and violates the prerequisite of “homogeneity” in “small (< 1 μm)” systems [37]. In fact, the size of the heat sources, namely protein complexes and intracellular organelles, are only 10–100 nm, in which thermal equilibrium is not fitted. Additionally, several heat sources, as well as exothermic or endothermic reactions, exist in a discontinuous manner in cells. Therefore, the assumption that the heat diffusion equation is applicable to intracellular environments should be challenged, which is more critical when considering the calculation in the aforementioned argument. To understand the thermal dynamics inside of cells, we need to chemically assess the intracellular heat sources and their thermal interaction with intracellular molecules and to develop a theory for mesoscopic non-equilibrium thermodynamics, which are all indispensable open questions in this field.

Experimental evidence strongly supports our view presented above. A number of thermometric methods, which have distinctive temperature-responding chemistry, have shown an increase of ~ 1 °C in the intracellular temperature, which presents the most decisive evidence of this phenomena. In particular, in our observations, tsGFP1-mito or tsGFP1-ER clearly revealed the significant temperature increase, in contrast to tsGFP1 expressed throughout the cytosol [35]. This difference between tsGFP1 constructs supports the view that the generated heat was transferred directly to organelle-targeted tsGFP1s in the same compartment, but reached the cytosolic tsGFP1 only after being diffused, which indicated a non-equilibrium state of intracellular local heat in cell. This is also the case in the observation of the higher temperature of the nucleus compared with the cytosol, which was visualized using a polymer-based thermosensor, FPT, by our group [52]. These results clearly indicate that it is critical to assess the effects of different subcellular compartments through precise evaluation using thermosensors targeted specifically to the respective organelles.

As just mentioned, heat generation in living organisms is not uniform, instead it occurs in specific tissues including brown adipocytes and skeletal muscles. Experimental evidence, which was demonstrated by non-fluorescent thermosensors, completely contradict Baffou et al.’s proposal that the temperature increases of a few degrees is achieved only by the collective effects of the 1013–1014 cells comprising our whole body. To name a few, the heat produced has been visualized in single brown adipocytes using a bimaterial micro cantilever and in masses (105 cells) of differentiated adipocytes using infrared thermography (IRT) [54]. These methods of thermal detection outside of cells revealed a ~ 1 °C higher temperature in brown adipose tissue compared with its surroundings. IRT also showed a temperature heterogeneity at sub-millimeter ranges in kidneys [19]. The fact that various detection methods, inside or outside of cells, are able to capture intracellular heat production at both the cellular and the tissue level strongly supports our conclusion that the heat sufficient to raise the intracellular temperature by a few degrees is actually being produced in cells (see also [6, 67] for detailed discussion).

Discussion and conclusions

In this review article, we describe the fluorescent thermometers that have allowed for intracellular thermometry, and how they have contributed to the observation of organelle-related heat production. Interesting spatiotemporal variation of local temperature in single cells, revealed by imaging with fluorescent thermometers, indicates their capability for providing a new perspective of physiological phenomena through intracellular temperature variation.

It is highly beneficial for thermal biologists that various fluorescent thermosensors having distinct principles are available as it enables diversified intracellular thermometry. An important insight into the temperature-sensing mechanism can be obtained from fluorescent thermometers; the common functional principle of FPT and tsGFP that has revealed organelle- and/or cell functions-related temperature variation is the phase transition. FPT and tsGFP use the temperature-dependent phase transition of polyacrylamide and TlpA, respectively, in their sharp response to heat produced in single cells. Taking into an account that endogenous macromolecules, such as ion channels and RNAs, sense any physiological temperature change in cells, the non-linear response (i.e., the aforementioned sharp response) to a temperature change of these macromolecules are highly advantageous in perceiving the temperature change inside of cellular environments. In addition to organic polymer-based or genetically encoded fluorescent thermosensors, inorganic nanoparticles thermosensors such as fluorescent nanodiamonds, quantum dots, and up-conversion fluorescent nanoparticles, have been developed; the remarkable photo-stability and low-interactivity with intracellular components allow for long-duration monitoring, and multi-modal measurements, of intracellular temperature and thereby contribute to future biological and physiological applications. Moreover, small molecule-based fluorescent thermosensors possess the remarkable ability of cellular uptake, enabling the realization of minimally invasive and broad thermometric applications.

In the future, the applications of fluorescent thermometers will drastically expand in all fields of life science. In particular, intracellular thermometry of three-dimensional cells in vivo, and cells of various species, including poikilothermic animals, homeothermic animals and plants, will be essential in this field. Nevertheless, some barriers still remain to be overcome to achieve this progress. Intracellular thermometry in vivo (including plants) would require a genetically introducible fluorescent thermometer with longer wavelengths. An adjustment or extension of the range of temperature response will be necessary because most phase transition-assisted thermometers react to a limited range of temperatures.

In conclusion, the emerging techniques of fluorescent thermometers have just started to uncover the mysteries of physiological phenomena such as the thermal heterogeneity. Further investigation into the sensing and use of intracellular heat in physiological phenomena will reveal the mechanism of thermal signaling, in which the conformational changes of proteins or enhancement of enzymatic activities by a local temperature change might play a role in signal transduction. Thermal biology based on an intracellular temperature variation detected by fluorescent thermometers will make considerable contributions toward revolutionary understandings of the principles of intracellular thermal dynamics in the near future.

Notes

Funding information

This work was supported by a Grant-in-Aid for Scientific Research on Innovative Areas “Thermal Biology” (15H05931) from the JSPS of Japan, PRESTO (Design and Control of Cellular Functions) of Japan Science and Technology Agency, and the Takeda Science Foundation to KO.

References

  1. 1.
    Albers AE, Chan EM, McBride PM, Ajo-Franklin CM, Cohen BE, Helms BA (2012) Dual-emitting quantum dot/quantum rod-based nanothermometers with enhanced response and sensitivity in live cells. J Am Chem Soc 134(23):9565–9568.  https://doi.org/10.1021/ja302290e CrossRefPubMedGoogle Scholar
  2. 2.
    Arai S, Lee SC, Zhai D, Suzuki M, Chang YT (2014) A molecular fluorescent probe for targeted visualization of temperature at the endoplasmic reticulum. Sci Rep 4(1):6701.  https://doi.org/10.1038/srep06701 CrossRefPubMedPubMedCentralGoogle Scholar
  3. 3.
    Arai S, Suzuki M, Park SJ, Yoo JS, Wang L, Kang NY, Ha HH, Chang YT (2015) Mitochondria-targeted fluorescent thermometer monitors intracellular temperature gradient. Chem Commun (Camb) 51(38):8044–8047.  https://doi.org/10.1039/c5cc01088h CrossRefGoogle Scholar
  4. 4.
    Arruda AP, Ketzer LA, Nigro M, Galina A, Carvalho DP, de Meis L (2008) Cold tolerance in hypothyroid rabbits: role of skeletal muscle mitochondria and sarcoplasmic reticulum Ca2+ ATPase isoform 1 heat production. Endocrinology 149(12):6262–6271.  https://doi.org/10.1210/en.2008-0564 CrossRefPubMedGoogle Scholar
  5. 5.
    Baffou G, Rigneault H, Marguet D, Jullien L (2014) A critique of methods for temperature imaging in single cells. Nat Methods 11(9):899–901.  https://doi.org/10.1038/nmeth.3073 CrossRefPubMedGoogle Scholar
  6. 6.
    Baffou G, Rigneault H, Marguet D, Jullien L (2015) Reply to: “validating subcellular thermal changes revealed by fluorescent thermosensors” and “the 10(5) gap issue between calculation and measurement in single-cell thermometry”. Nat Methods 12(9):803.  https://doi.org/10.1038/nmeth.3552 CrossRefPubMedGoogle Scholar
  7. 7.
    Cannon B, Nedergaard J (2004) Brown adipose tissue: function and physiological significance. Physiol Rev 84(1):277–359.  https://doi.org/10.1152/physrev.00015.2003 CrossRefPubMedGoogle Scholar
  8. 8.
    Cannon B, Nedergaard J (2011) Nonshivering thermogenesis and its adequate measurement in metabolic studies. J Exp Biol 214(2):242–253.  https://doi.org/10.1242/jeb.050989 CrossRefPubMedGoogle Scholar
  9. 9.
    Chen Y, Li X (2011) Near-infrared fluorescent nanocapsules with reversible response to thermal/pH modulation for optical imaging. Biomacromolecules 12(12):4367–4372.  https://doi.org/10.1021/bm201350d CrossRefPubMedGoogle Scholar
  10. 10.
    De Angelis DA, Miesenbock G, Zemelman BV, Rothman JE (1998) PRIM: proximity imaging of green fluorescent protein-tagged polypeptides. Proc Natl Acad Sci U S A 95(21):12312–12316.  https://doi.org/10.1073/pnas.95.21.12312 CrossRefPubMedPubMedCentralGoogle Scholar
  11. 11.
    de Meis L (2001) Uncoupled ATPase activity and heat production by the sarcoplasmic reticulum Ca2+-ATPase. Regul ATP J Biol Chem 276(27):25078–25087.  https://doi.org/10.1074/jbc.M103318200 CrossRefGoogle Scholar
  12. 12.
    Donner JS, Thompson SA, Kreuzer MP, Baffou G, Quidant R (2012) Mapping intracellular temperature using green fluorescent protein. Nano Lett 12(4):2107–2111.  https://doi.org/10.1021/nl300389y CrossRefPubMedGoogle Scholar
  13. 13.
    Donner JS, Thompson SA, Alonso-Ortega C, Morales J, Rico LG, Santos SI, Quidant R (2013) Imaging of plasmonic heating in a living organism. ACS Nano 7(10):8666–8672.  https://doi.org/10.1021/nn403659n CrossRefPubMedGoogle Scholar
  14. 14.
    Dube CM, Brewster AL, Richichil C, Zha Q, Baram TZ (2007) Fever, febrile seizures and epilepsy. Trends Neurosci 30(10):490–496.  https://doi.org/10.1016/j.tins.2007.07.006 CrossRefPubMedPubMedCentralGoogle Scholar
  15. 15.
    Enerback S, Jacobsson A, Simpson EM, Guerra C, Yamashita H, Harper ME, Kozak LP (1997) Mice lacking mitochondrial uncoupling protein are cold-sensitive but not obese. Nature 387(6628):90–94.  https://doi.org/10.1038/387090a0 CrossRefPubMedGoogle Scholar
  16. 16.
    Li F, Westphal A, Marcelis A, Sudhölter E, Stuart M, Leermakers F (2011) Thermally sensitive dual fluorescent polymeric micelles for probing cell properties. Soft Matter 7:11211–11215.  https://doi.org/10.1039/C1SM06597A CrossRefGoogle Scholar
  17. 17.
    Gao L, Wang L, Li C, Liu Y, Ke H, Zhang C, Wang LV (2013) Single-cell photoacoustic thermometry. J Biomed Opt 18(2):26003.  https://doi.org/10.1117/1.JBO.18.2.026003 CrossRefPubMedGoogle Scholar
  18. 18.
    Gong DY, Cao T, Han SC, Zhu XT, Iqbal A, Liu WS, Qin WW, Guo HC (2017) Fluorescence enhancement thermoresponsive polymer luminescent sensors based on BODIPY for intracellular temperature. Sensors Actuators B Chem 252:577–583.  https://doi.org/10.1016/j.snb.2017.06.041 CrossRefGoogle Scholar
  19. 19.
    Gorbach AM, Wang H, Elster E (2008) Thermal oscillations in rat kidneys: an infrared imaging study. Philos Trans A Math Phys Eng Sci 366(1880):3633–3647.  https://doi.org/10.1098/rsta.2008.0117 CrossRefPubMedPubMedCentralGoogle Scholar
  20. 20.
    Gota C, Okabe K, Funatsu T, Harada Y, Uchiyama S (2009) Hydrophilic fluorescent nanogel thermometer for intracellular thermometry. J Am Chem Soc 131(8):2766–2767.  https://doi.org/10.1021/ja807714j CrossRefPubMedGoogle Scholar
  21. 21.
    Grousl T, Ivanov P, Frydlova I, Vasicova P, Janda F, Vojtova J, Malinska K, Malcova I, Novakova L, Janoskova D, Valasek L, Hasek J (2009) Robust heat shock induces eIF2alpha-phosphorylation-independent assembly of stress granules containing eIF3 and 40S ribosomal subunits in budding yeast, Saccharomyces cerevisiae. J Cell Sci 122(12):2078–2088.  https://doi.org/10.1242/jcs.045104 CrossRefPubMedGoogle Scholar
  22. 22.
    Haro-Gonzalez P, Ramsay WT, Martinez Maestro L, del Rosal B, Santacruz-Gomez K, Iglesias-de la Cruz Mdel C, Sanz-Rodriguez F, Chooi JY, Rodriguez Sevilla P, Bettinelli M, Choudhury D, Kar AK, Sole JG, Jaque D, Paterson L (2013) Quantum dot-based thermal spectroscopy and imaging of optically trapped microspheres and single cells. Small 9(12):2162–2170.  https://doi.org/10.1002/smll.201201740 CrossRefPubMedGoogle Scholar
  23. 23.
    Hattori K, Naguro I, Okabe K, Funatsu T, Furutani S, Takeda K, Ichijo H (2016) ASK1 signalling regulates brown and beige adipocyte function. Nat Commun 7:11158.  https://doi.org/10.1038/ncomms11158 CrossRefPubMedPubMedCentralGoogle Scholar
  24. 24.
    Hayashi T, Fukuda N, Uchiyama S, Inada N (2015) A cell-permeable fluorescent polymeric thermometer for intracellular temperature mapping in mammalian cell lines. PLoS One 10(2):e0117677.  https://doi.org/10.1371/journal.pone.0117677 CrossRefPubMedPubMedCentralGoogle Scholar
  25. 25.
    Homma M, Takei Y, Murata A, Inoue T, Takeoka S (2015) A ratiometric fluorescent molecular probe for visualization of mitochondrial temperature in living cells. Chem Commun (Camb) 51(28):6194–6197.  https://doi.org/10.1039/c4cc10349a CrossRefGoogle Scholar
  26. 26.
    Hsiao WW, Hui YY, Tsai PC, Chang HC (2016) Fluorescent Nanodiamond: a versatile tool for long-term cell tracking, super-resolution imaging, and nanoscale temperature sensing. Acc Chem Res 49(3):400–407.  https://doi.org/10.1021/acs.accounts.5b00484 CrossRefPubMedGoogle Scholar
  27. 27.
    Hu X, Li Y, Liu T, Zhang G, Liu S (2015) Intracellular cascade FRET for temperature imaging of living cells with polymeric ratiometric fluorescent thermometers. ACS Appl Mater Interfaces 7(28):15551–15560.  https://doi.org/10.1021/acsami.5b04025 CrossRefPubMedGoogle Scholar
  28. 28.
    Hurme R, Berndt KD, Namork E, Rhen M (1996) DNA binding exerted by a bacterial gene regulator with an extensive coiled-coil domain. J Biol Chem 271(21):12626–12631.  https://doi.org/10.1074/jbc.271.21.12626 CrossRefPubMedGoogle Scholar
  29. 29.
    Imamura H, Nhat KP, Togawa H, Saito K, Iino R, Kato-Yamada Y, Nagai T, Noji H (2009) Visualization of ATP levels inside single living cells with fluorescence resonance energy transfer-based genetically encoded indicators. Proc Natl Acad Sci U S A 106(37):15651–15656.  https://doi.org/10.1073/pnas.0904764106 CrossRefPubMedPubMedCentralGoogle Scholar
  30. 30.
    Inomata N, Toda M, Sato M, Ishijima A, Ono T (2012) Pico calorimeter for detection of heat produced in an individual brown fat cell. Appl Phys Lett 100(15):154104–154107.  https://doi.org/10.1063/1.3701720 CrossRefGoogle Scholar
  31. 31.
    Inomata N, Toda M, Ono T (2016) Highly sensitive thermometer using a vacuum-packed Si resonator in a microfluidic chip for the thermal measurement of single cells. Lab Chip 16(18):3597–3603.  https://doi.org/10.1039/c6lc00949b CrossRefPubMedGoogle Scholar
  32. 32.
    Jaque D, Rosal BD, Rodriguez EM, Maestro LM, Haro-Gonzalez P, Sole JG (2014) Fluorescent nanothermometers for intracellular thermal sensing. Nanomedicine (Lond) 9(7):1047–1062.  https://doi.org/10.2217/nnm.14.59 CrossRefGoogle Scholar
  33. 33.
    Karnebogen M, Singer D, Kallerhoff M, Ringert RH (1993) Microcalorimetric investigations on isolated tumorous and nontumorous tissue samples. Thermochim Acta 229:147–155.  https://doi.org/10.1016/0040-6031(93)80322-2 CrossRefGoogle Scholar
  34. 34.
    Kawaguchi K, Ishiwata S (2000) Temperature dependence of force, velocity, and processivity of single kinesin molecules. Biochem Biophys Res Commun 272(3):895–899.  https://doi.org/10.1006/bbrc.2000.2856 CrossRefPubMedGoogle Scholar
  35. 35.
    Kiyonaka S, Kajimoto T, Sakaguchi R, Shinmi D, Omatsu-Kanbe M, Matsuura H, Imamura H, Yoshizaki T, Hamachi I, Morii T, Mori Y (2013) Genetically encoded fluorescent thermosensors visualize subcellular thermoregulation in living cells. Nat Methods 10(12):1232–1238.  https://doi.org/10.1038/nmeth.2690 CrossRefPubMedGoogle Scholar
  36. 36.
    Kiyonaka S, Sakaguchi R, Hamachi I, Morii T, Yoshizaki T, Mori Y (2015) Validating subcellular thermal changes revealed by fluorescent thermosensors. Nat Methods 12(9):801–802.  https://doi.org/10.1038/nmeth.3548 CrossRefPubMedGoogle Scholar
  37. 37.
    Kondepudi D, Prigogine I (1998) Modern thermodynamics: from heat engines to dissipative structures. Wiley, New York, pp 333–350Google Scholar
  38. 38.
    Kucsko G, Maurer PC, Yao NY, Kubo M, Noh HJ, Lo PK, Park H, Lukin MD (2013) Nanometre-scale thermometry in a living cell. Nature 500(7460):54–58.  https://doi.org/10.1038/nature12373 CrossRefPubMedPubMedCentralGoogle Scholar
  39. 39.
    Lervik A, Bresme F, Kjelstrup S, Bedeaux D, Miguel Rubi J (2010) Heat transfer in protein-water interfaces. Phys Chem Chem Phys 12(7):1610–1617.  https://doi.org/10.1039/b918607g CrossRefPubMedGoogle Scholar
  40. 40.
    Lindquist S (1986) The heat-shock response. Annu Rev Biochem 55(1):1151–1191.  https://doi.org/10.1146/annurev.bi.55.070186.005443 CrossRefPubMedGoogle Scholar
  41. 41.
    Liu H, Fan Y, Wang J, Song Z, Shi H, Han R, Sha Y, Jiang Y (2015) Intracellular temperature sensing: an ultra-bright luminescent Nanothermometer with non-sensitivity to pH and ionic strength. Sci Rep 5:14879.  https://doi.org/10.1038/srep14879 CrossRefPubMedPubMedCentralGoogle Scholar
  42. 42.
    Maestro LM, Rodriguez EM, Rodriguez FS, la Cruz MC, Juarranz A, Naccache R, Vetrone F, Jaque D, Capobianco JA, Sole JG (2010) CdSe quantum dots for two-photon fluorescence thermal imaging. Nano Lett 10(12):5109–5115.  https://doi.org/10.1021/nl1036098 CrossRefPubMedGoogle Scholar
  43. 43.
    Maestro LM, Haro-Gonzalez P, Iglesias-de la Cruz MC, Sanz-Rodriguez F, Juarranz A, Sole JG, Jaque D (2013) Fluorescent nanothermometers provide controlled plasmonic-mediated intracellular hyperthermia. Nanomedicine (Lond) 8(3):379–388.  https://doi.org/10.2217/nnm.12.122 CrossRefGoogle Scholar
  44. 44.
    Matthias A, Ohlson KB, Fredriksson JM, Jacobsson A, Nedergaard J, Cannon B (2000) Thermogenic responses in brown fat cells are fully UCP1-dependent. UCP2 or UCP3 do not substitute for UCP1 in adrenergically or fatty scid-induced thermogenesis. J Biol Chem 275(33):25073–25081.  https://doi.org/10.1074/jbc.M000547200 CrossRefPubMedGoogle Scholar
  45. 45.
    McCabe KM, Lacherndo EJ, Albino-Flores I, Sheehan E, Hernandez M (2011) LacI(Ts)-regulated expression as an in situ intracellular biomolecular thermometer. Appl Environ Microbiol 77(9):2863–2868.  https://doi.org/10.1128/AEM.01915-10 CrossRefPubMedPubMedCentralGoogle Scholar
  46. 46.
    Meis L, Arruda AP, Carvalho DP (2005) Role of sarco/endoplasmic reticulum Ca2+-ATPase in thermogenesis. Biosci Rep 25(3-4):181–190.  https://doi.org/10.1007/s10540-005-2884-7 CrossRefPubMedGoogle Scholar
  47. 47.
    Michalet X, Pinaud FF, Bentolila LA, Tsay JM, Doose S, Li JJ, Sundaresan G, Wu AM, Gambhir SS, Weiss S (2005) Quantum dots for live cells, in vivo imaging, and diagnostics. Science 307(5709):538–544.  https://doi.org/10.1126/science.1104274 CrossRefPubMedPubMedCentralGoogle Scholar
  48. 48.
    Montell C, Caterina MJ (2007) Thermoregulation: channels that are cool to the core. Curr Biol 17(20):R885–R887.  https://doi.org/10.1016/j.cub.2007.08.016 CrossRefPubMedGoogle Scholar
  49. 49.
    Monti M, Brandt L, Ikomikumm J, Olsson H (1986) Microcalorimetric investigation of cell-metabolism in tumor-cells from patients with non-Hodgkin lymphoma (Nhl). Scand J Haematol 36(4):353–357CrossRefPubMedGoogle Scholar
  50. 50.
    Nakano M, Arai Y, Kotera I, Okabe K, Kamei Y, Nagai T (2017) Genetically encoded ratiometric fluorescent thermometer with wide range and rapid response. PLoS One 12(2):e0172344.  https://doi.org/10.1371/journal.pone.0172344 CrossRefPubMedPubMedCentralGoogle Scholar
  51. 51.
    Nedergaard J, Bengtsson T, Cannon B (2007) Unexpected evidence for active brown adipose tissue in adult humans. Am J Physiol Endocrinol Metab 293(2):E444–E452.  https://doi.org/10.1152/ajpendo.00691.2006 CrossRefPubMedGoogle Scholar
  52. 52.
    Okabe K, Inada N, Gota C, Harada Y, Funatsu T, Uchiyama S (2012) Intracellular temperature mapping with a fluorescent polymeric thermometer and fluorescence lifetime imaging microscopy. Nat Commun 3:705.  https://doi.org/10.1038/ncomms1714 CrossRefPubMedPubMedCentralGoogle Scholar
  53. 53.
    Oyama K, Takabayashi M, Takei Y, Arai S, Takeoka S, Ishiwata S, Suzuki M (2012) Walking nanothermometers: spatiotemporal temperature measurement of transported acidic organelles in single living cells. Lab Chip 12(9):1591–1593.  https://doi.org/10.1039/c2lc00014h CrossRefPubMedGoogle Scholar
  54. 54.
    Paulik MA, Buckholz RG, Lancaster ME, Dallas WS, Hull-Ryde EA, Weiel JE, Lenhard JM (1998) Development of infrared imaging to measure thermogenesis in cell culture: thermogenic effects of uncoupling protein-2, troglitazone, and beta-adrenoceptor agonists. Pharm Res 15(6):944–949.  https://doi.org/10.1023/A:1011993019385 CrossRefPubMedGoogle Scholar
  55. 55.
    Pelton R (2000) Temperature-sensitive aqueous microgels. Adv Colloid Interf Sci 85(1):1–33.  https://doi.org/10.1016/S0001-8686(99)00023-8 CrossRefGoogle Scholar
  56. 56.
    Qiao J, Qi L, Shen Y, Zhao LZ, Qi C, Shangguan DH, Mao LQ, Chen Y (2012) Thermal responsive fluorescent block copolymer for intracellular temperature sensing. J Mater Chem 22(23):11543–11549.  https://doi.org/10.1039/c2jm31093g CrossRefGoogle Scholar
  57. 57.
    Qiao J, Chen CF, Qi L, Liu MR, Dong P, Jiang Q, Yang XZ, Mu XY, Mao LQ (2014) Intracellular temperature sensing by a ratiometric fluorescent polymer thermometer. J Mater Chem B 2(43):7544–7550.  https://doi.org/10.1039/c4tb01154f CrossRefGoogle Scholar
  58. 58.
    Qiao J, Hwang YH, Chen CF, Qi L, Dong P, Mu XY, Kim DP (2015) Ratiometric fluorescent polymeric thermometer for thermogenesis investigation in living cells. Anal Chem 87(20):10535–10541.  https://doi.org/10.1021/acs.analchem.5b02791 CrossRefPubMedGoogle Scholar
  59. 59.
    Richter K, Haslbeck M, Buchner J (2010) The heat shock response: life on the verge of death. Mol Cell 40(2):253–266.  https://doi.org/10.1016/j.molcel.2010.10.006 CrossRefPubMedGoogle Scholar
  60. 60.
    Rodriguez-Sevilla P, Zhang Y, Haro-Gonzalez P, Sanz-Rodriguez F, Jaque F, Sole JG, Liu X, Jaque D (2016) Thermal scanning at the cellular level by an optically trapped upconverting fluorescent particle. Adv Mater 28(12):2421–2426.  https://doi.org/10.1002/adma.201505020 CrossRefPubMedGoogle Scholar
  61. 61.
    Rosenberg H, Pollock N, Schiemann A, Bulger T, Stowell K (2015) Malignant hyperthermia: a review. Orphanet J Rare Dis 10(1).  https://doi.org/10.1186/s13023-015-0310-1
  62. 62.
    Sato MK, Toda M, Inomata N, Maruyama H, Okamatsu-Ogura Y, Arai F, Ono T, Ishijima A, Inoue Y (2014) Temperature changes in brown adipocytes detected with a bimaterial microcantilever. Biophys J 106(11):2458–2464.  https://doi.org/10.1016/j.bpj.2014.04.044 CrossRefPubMedPubMedCentralGoogle Scholar
  63. 63.
    Shang L, Stockmar F, Azadfar N, Nienhaus GU (2013) Intracellular thermometry by using fluorescent gold nanoclusters. Angew Chem Int Ed Engl 52(42):11154–11157.  https://doi.org/10.1002/anie.201306366 CrossRefPubMedGoogle Scholar
  64. 64.
    Singh IS, Hasday JD (2013) Fever, hyperthermia and the heat shock response. Int J Hyperth 29(5):423–435.  https://doi.org/10.3109/02656736.2013.808766 CrossRefGoogle Scholar
  65. 65.
    Smiley ST, Reers M, Mottola-Hartshorn C, Lin M, Chen A, Smith TW, Steele GD Jr, Chen LB (1991) Intracellular heterogeneity in mitochondrial membrane potentials revealed by a J-aggregate-forming lipophilic cation JC-1. Proc Natl Acad Sci U S A 88(9):3671–3675.  https://doi.org/10.1073/pnas.88.9.3671 CrossRefPubMedPubMedCentralGoogle Scholar
  66. 66.
    Suzuki M, Tseeb V, Oyama K, Ishiwata S (2007) Microscopic detection of thermogenesis in a single HeLa cell. Biophys J 92(6):L46–L48.  https://doi.org/10.1529/biophysj.106.098673 CrossRefPubMedPubMedCentralGoogle Scholar
  67. 67.
    Suzuki M, Zeeb V, Arai S, Oyama K, Ishiwata S (2015) The 10(5) gap issue between calculation and measurement in single-cell thermometry. Nat Methods 12(9):802–803.  https://doi.org/10.1038/nmeth.3551 CrossRefPubMedGoogle Scholar
  68. 68.
    Takei Y, Arai S, Murata A, Takabayashi M, Oyama K, Ishiwata S, Takeoka S, Suzuki M (2014) A nanoparticle-based ratiometric and self-calibrated fluorescent thermometer for single living cells. ACS Nano 8(1):198–206.  https://doi.org/10.1021/nn405456e CrossRefPubMedGoogle Scholar
  69. 69.
    Takeuchi K, Nakano Y, Kato U, Kaneda M, Aizu M, Awano W, Yonemura S, Kiyonaka S, Mori Y, Yamamoto D, Umeda M (2009) Changes in temperature preferences and energy homeostasis in dystroglycan mutants. Science 323(5922):1740–1743.  https://doi.org/10.1126/science.1165712 CrossRefPubMedGoogle Scholar
  70. 70.
    Tanimoto R, Hiraiwa T, Nakai Y, Shindo Y, Oka K, Hiroi N, Funahashi A (2016) Detection of temperature difference in neuronal cells. Sci Rep 6(1):22071.  https://doi.org/10.1038/srep22071 CrossRefPubMedPubMedCentralGoogle Scholar
  71. 71.
    Terada H (1981) The interaction of highly active uncouplers with mitochondria. Biochim Biophys Acta 639(3-4):225–242.  https://doi.org/10.1016/0304-4173(81)90011-2 CrossRefPubMedGoogle Scholar
  72. 72.
    Tsai PC, Epperla CP, Huang JS, Chen OY, Wu CC, Chang HC (2017) Measuring nanoscale thermostability of cell membranes with single gold-diamond nanohybrids. Angew Chem Int Ed Engl 56(11):3025–3030.  https://doi.org/10.1002/anie.201700357 CrossRefPubMedGoogle Scholar
  73. 73.
    Tsien RY (1998) The green fluorescent protein. Annu Rev Biochem 67(1):509–544.  https://doi.org/10.1146/annurev.biochem.67.1.509 CrossRefPubMedGoogle Scholar
  74. 74.
    Tsuji T, Yoshida S, Yoshida A, Uchiyama S (2013) Cationic fluorescent polymeric thermometers with the ability to enter yeast and mammalian cells for practical intracellular temperature measurements. Anal Chem 85(20):9815–9823.  https://doi.org/10.1021/ac402128f CrossRefPubMedGoogle Scholar
  75. 75.
    Uchiyama S, Matsumura Y, de Silva AP, Iwai K (2004) Modulation of the sensitive temperature range of fluorescent molecular thermometers based on thermoresponsive polymers. Anal Chem 76(6):1793–1798.  https://doi.org/10.1021/ac035248w CrossRefPubMedGoogle Scholar
  76. 76.
    Uchiyama S, Tsuji T, Ikado K, Yoshida A, Kawamoto K, Hayashi T, Inada N (2015) A cationic fluorescent polymeric thermometer for the ratiometric sensing of intracellular temperature. Analyst 140(13):4498–4506.  https://doi.org/10.1039/c5an00420a CrossRefPubMedGoogle Scholar
  77. 77.
    Uchiyama S, Gota C, Tsuji T, Inada N (2017) Intracellular temperature measurements with fluorescent polymeric thermometers. Chem Commun (Camb) 53(80):10976–10992.  https://doi.org/10.1039/c7cc06203f CrossRefGoogle Scholar
  78. 78.
    Velichko AK, Markova EN, Petrova NV, Razin SV, Kantidze OL (2013) Mechanisms of heat shock response in mammals. Cell Mol Life Sci 70(22):4229–4241.  https://doi.org/10.1007/s00018-013-1348-7 CrossRefPubMedGoogle Scholar
  79. 79.
    Vetrone F, Naccache R, Zamarron A, Juarranz de la Fuente A, Sanz-Rodriguez F, Martinez Maestro L, Martin Rodriguez E, Jaque D, Garcia Sole J, Capobianco JA (2010) Temperature sensing using fluorescent nanothermometers. ACS Nano 4(6):3254–3258.  https://doi.org/10.1021/nn100244a CrossRefPubMedGoogle Scholar
  80. 80.
    Voets T, Talavera K, Owsianik G, Nilius B (2005) Sensing with TRP channels. Nat Chem Biol 1(2):85–92.  https://doi.org/10.1038/nchembio0705-85 CrossRefPubMedGoogle Scholar
  81. 81.
    Wang C, Xu R, Tian W, Jiang X, Cui Z, Wang M, Sun H, Fang K, Gu N (2011) Determining intracellular temperature at single-cell level by a novel thermocouple method. Cell Res 21(10):1517–1519.  https://doi.org/10.1038/cr.2011.117 CrossRefPubMedPubMedCentralGoogle Scholar
  82. 82.
    Wang C, Ling L, Yao YG, Song QJ (2015) One-step synthesis of fluorescent smart thermo-responsive copper clusters: a potential nanothermometer in living cells. Nano Res 8(6):1975–1986.  https://doi.org/10.1007/s12274-015-0707-0 CrossRefGoogle Scholar
  83. 83.
    Waterman NG, Goldberg L, Appel T (1969) Tissue temperatures in localized pyogenic infections. Am J Surg 118:31.  https://doi.org/10.1016/0002-9610(69)90090-7 CrossRefPubMedGoogle Scholar
  84. 84.
    Yang JM, Yang H, Lin L (2011) Quantum dot nano thermometers reveal heterogeneous local thermogenesis in living cells. ACS Nano 5(6):5067–5071.  https://doi.org/10.1021/nn201142f CrossRefPubMedGoogle Scholar
  85. 85.
    Yang L, Peng HS, Ding H, You FT, Hou LL, Teng F (2014) Luminescent Ru(bpy)(3) (2+)-doped silica nanoparticles for imaging of intracellular temperature. Microchim Acta 181(7-8):743–749.  https://doi.org/10.1007/s00604-013-1092-6 CrossRefGoogle Scholar
  86. 86.
    Ye F, Wu C, Jin Y, Chan YH, Zhang X, Chiu DT (2011) Ratiometric temperature sensing with semiconducting polymer dots. J Am Chem Soc 133(21):8146–8149.  https://doi.org/10.1021/ja202945g CrossRefPubMedPubMedCentralGoogle Scholar
  87. 87.
    Zohar O, Ikeda M, Shinagawa H, Inoue H, Nakamura H, Elbaum D, Alkon DL, Yoshioka T (1998) Thermal imaging of receptor-activated heat production in single cells. Biophys J 74(1):82–89.  https://doi.org/10.1016/S0006-3495(98)77769-0 CrossRefPubMedPubMedCentralGoogle Scholar

Copyright information

© The Author(s) 2018

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors and Affiliations

  1. 1.Graduate School of Pharmaceutical SciencesThe University of TokyoTokyoJapan
  2. 2.JST, PRESTOSaitamaJapan
  3. 3.World Premier International Research Initiative-Institute for Integrated Cell-Material SciencesKyoto UniversityKyotoJapan
  4. 4.Department of Synthetic Chemistry and Biological Chemistry, Graduate School of EngineeringKyoto UniversityKyotoJapan

Personalised recommendations
