Three decades ago, it was first demonstrated in humans that training at the same time for both strength and endurance results in less adaptation of skeletal muscles compared to training for either one alone, a phenomenon known as the concurrent training effect (Hickson 1980). Generally, resistance exercise leads to an increase in muscle mass (hypertrophy), whereas endurance exercise is associated with increased oxidative metabolism (mitochondrial and capillary density, oxidative enzymes) and no hypertrophy. Why do muscles have limited capacity to increase strength (i.e., fiber size) and endurance capacity (i.e., oxidative metabolism) at the same time? To clarify the relationship between the regulation of fiber size and oxidative metabolism, the present review will focus on the potential cellular and molecular mechanisms underlying the size differences in high and low oxidative muscle fibers. The results and concepts presented in this review are not only relevant to cell and molecular biologists with interest in muscle physiology, but also to the fields of sports and rehabilitation medicine where they are important for understanding physiological limitations in performance (e.g., in patients suffering from chronic diseases) and can be helpful in developing strategies to improve performance.

Virtually, all vertebrate body movements are generated by coordinated activity of skeletal muscles with varying contractile properties, which are governed by the muscle phenotype. Muscle phenotype is the result of interaction between genotype and external influences on muscle fibers and is largely defined by the number of muscle fibers, the fiber cross-sectional area, the number of sarcomeres in series, the muscle fiber type distribution and muscle architecture. Muscle fiber types are generally distinguished according to the predominantly expressed isoform of myosin heavy chain (MyHC), which are referred to as type I, IIA, IIX and IIB. Muscle fibers have the ability to adapt their phenotype and modify MyHC-type, architecture and their size in response to changes in internal or external environment (Pette and Staron 2001).

The maximum rates of oxygen consumption (VO2max) per volume unit and the cross-sectional areas of striated myocytes from different vertebrates vary over a 100-fold range. Muscle fibers with a high oxidative capacity are relatively small compared to fibers with a low oxidative capacity (Van Der Laarse et al. 1998), pointing to an inverse relationship between fiber cross-sectional area and VO2max (Fig. 1). A Hill-type model for oxygen diffusion (Hill 1965) predicts that the maximum value of the product, cross-sectional area × oxygen consumption, is limited by the extracellular oxygen tension as given by:

$$ {\text{CSA}}\; V{\text{O}}_{{2{ \max }}} \le 4\pi \;\alpha_{\text{M}} D{\text{O}}_{2} \;P{\text{O}}_{2}, $$

where VO2max is the maximum rate of oxygen consumption in (nmol mm−3 s−1), CSA is the cross-sectional area of the myocyte (in mm2), α M is the solubility of oxygen in muscle (in mM mmHg−1), DO2 is the diffusion coefficient for oxygen in sarcoplasm (in mm2 s−1), and PO2 (in mmHg) equals the interstitial oxygen tension. If the value of the left-hand term of the equation is larger than that of the right-hand term, an anoxic core in the muscle cell will develop when the cell is maximally activated, causing a reduction in the rate of oxidative ATP production. Thus, any increase in either CSA or VO2max (or both) would require a proportional increase in extracellular PO2 above the value at which the core of the cell becomes anoxic at the maximum rate of oxygen consumption (PO2crit). Experimental determination of α M × DO2 (Krogh’s diffusion coefficient) at VO2max (van der Laarse et al. 2005) validated the Hill model and allowed estimating that striated muscle cells are evolved to function at their maximum rate of oxygen consumption at an extracellular PO2 of about 14 mmHg.

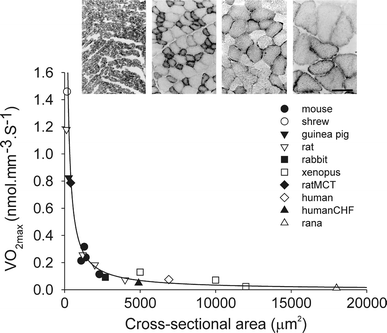

Fig. 1
figure 1

Maximum rate of oxygen consumption (VO2max in nmol mm−3 s−1) of muscle preparations at physiological temperature from various species plotted against the cross-sectional area (in μm2) of the muscle cells in the preparation. A hyperbola was fitted through all data points. The fit hardly deviates from the Hill-type diffusion model shown in the text and is described by the function VO2max = constant CSA−1. The value of the constant is calculated as the mean of the products VO2max and CSA for each muscle fiber type and approximates 0.4 pmol mm−1 s−1. Inset cross sections stained for succinate dehydrogenase activity. From left to right: right ventricular wall of normal rat myocardium, rat extensor digitorum longus muscle, human vastus lateralis muscle, iliofibularis muscle of Xenopus laevis; scale bar 100 μm. ratMCT right ventricular rat cardiomyocytes of a monocrotaline-induced pulmonary hypertensive rat, humanCHF vastus lateralis muscle of human chronic heart failure patients. Figure adapted from (Bekedam et al. 2003; Van Der Laarse et al. 1998)

It is worth noting that, on one hand, VO2max is proportional to succinate dehydrogenase (SDH) activity (Bekedam et al. 2003; Des Tombe et al. 2002; van der Laarse et al. 1989) or oxoglutarate dehydrogenase activity (Blomstrand et al. 1997) and consequently to the number of mitochondria (Hoppeler and Billeter 1991; Reichmann et al. 1991), while several studies consistently showed that muscle fibers with a relatively large cross-sectional area had low SDH activities and vice versa (e.g., Kayar and Banchero 1987; Rivero et al. 1999; Smith and Ovalle 1973). These last results, however, are not normalized for optical density per time unit, fiber volume and physiological temperature.

The relationship between cross-sectional area and mitochondrial density implies that a muscle fiber can hypertrophy (and become stronger) at the expense of its maximum steady state power per fiber volume (i.e., endurance capacity). To prevent a decline in maximum steady state power, oxygen supply to the mitochondria should be improved, for instance by:

  1. 1.

    increasing oxygen transport to the muscle fiber, e.g., by increasing myoglobin, capillary density, hematocrit or a combination of these (Des Tombe et al. 2002; Hickson and Rosenkoetter 1981; van Beek-Harmsen et al. 2004)

  2. 2.

    reducing the diffusion distance for oxygen to the mitochondria by relocating the mitochondria to the sarcolemma (Deveci et al. 2001; Hardy et al. 2009). However, this would imply large radial gradients of (phosphoryl)creatine, Pi and ΔG ATP, which can be expected to have functional consequences.

Although it may be feasible to increase mitochondrial density while fiber size remains similar or even increases, these adaptations are associated with an increase in the number of capillaries per fiber, hence increase in capacity for oxygen supply (Bigard et al. 1991; Desplanches et al. 1996; Deveci et al. 2001; Green et al. 1999). However, to be able to extract oxygen from the blood and to prevent an anoxic core, PO2crit of muscle fibers must be lower than end capillary PO2, which equals 15–20 mmHg in exercising humans (Calbet et al. 2009). This is close to the calculated PO2crit. Increasing PO2crit to a value approaching end capillary PO2 would require an exponential increase in the number of capillaries per muscle fiber to prevent hypoxic cores, which, to the best of our knowledge, has not been reported. Therefore, the smaller size of high oxidative muscle fibers can be considered an evolutionary design constraint.

It should be realized that the classification of types based on MyHC (I, IIA, IIX and IIB) does not necessarily correlate with the oxidative capacity of the muscle fiber. In general, type IIB/IIX fibers have a relatively low oxidative capacity and a large fiber size compared to type I fibers. However, when comparing the oxidative capacity and fiber size between type IIA and type I fibers, literature shows less distinctive results. For example in men, it appears that type I fibers have relatively small CSA compared to type IIA fibers (~5,000 vs. ~7,000 μm2), while their oxidative capacity (as determined by SDH) is significantly higher (Gregory et al. 2001). Also, Bekedam et al. (2003) showed that human type I fibers showed smaller CSA and significantly higher SDH activities compared to type II fibers (all isoforms). However, in women, type I fibers are often larger than type IIA fibers; in rat skeletal muscle, it has been shown that type I fibers show similar or even larger CSA compared to type IIA fibers, while their SDH activities are significantly lower (Nakatani et al. 1999; Simoneau and Bouchard 1989; Wust et al. 2009). Thus, it may well be that type I fibers are larger than type IIA fibers and may be capable of hypertrophy under various conditions and training regimes (e.g., Alway et al. 1988; Andersen et al. 2008; Ianuzzo et al. 1989). However, though the differences in size and oxidative capacity between type I and IIA fibers may be too small to detect experimentally in humans, we hypothesize, based on the data in Fig. 1, that the larger type I fibers would have relatively low oxidative capacities compared to the IIA fibers. Based on the current literature, it is generally safe to conclude that both type I and IIA fibers have a relatively large oxidative capacity and small fiber size compared to type IIB/IIX fibers. In addition, these data also strengthen the observation from Fig. 1 that the fiber size (and not necessarily the fiber type) is related to its oxidative capacity.

The central question addressed in this review is: why do high oxidative muscle fibers remain relatively small compared to low oxidative muscle fibers? To gain insight into the regulation of fiber size and the oxidative metabolism and to reveal the gaps in the current knowledge, we will give a quantitative inventory of fiber type-related differences in the structures and systems involved in synthesis and degradation of muscle protein, as well as an overview of the molecular pathways responsible for hypertrophy and oxidative metabolism and of the way in which way these pathways interact.

Fiber type-related differences in the machinery for protein turnover

In skeletal muscle, there is continuous turnover of proteins, and the balance between protein synthesis and degradation (human cellular protein turnover: ~0.8 g kg body weight−1 day−1 (Paddon-Jones and Rasmussen 2009) determines how the functional parameters change, i.e., whether contractile or mitochondrial protein is gained or lost. Muscle protein synthesis involves both the genetic expression of contractile and mitochondrial proteins themselves and the expression and activation of co-factors controlling expression of these proteins. The expression of contractile and mitochondrial proteins is controlled by both the mitochondrial and the nuclear genome. The synthesis machinery comprises several major cellular components. The availability of messenger RNA (mRNA), transfer RNA (tRNA) and ribosomal RNA (rRNA), as well as their initiation and elongation, are important in determining the rate of synthesis. At the transcriptional level, the concentration of mRNAs for particular proteins is determined by the myonuclear and/or the mitochondrial density and the transcription factors required for promoter activity. While at the translational level, the number of ribosomes (i.e., rRNA) and the availability and the state of activation of initiation and elongation factors control the rate of translation of mRNA into protein (Bolster et al. 2003).

Myonuclei and satellite cells

Since muscle fibers are multinucleated cells, each myonucleus controls transcription and consequent protein synthesis of a limited amount of cytoplasm. In mammalian as well as amphibian muscle fibers, the number of myonuclei is positively related to the cross-sectional area of the fibers (Allen et al. 1995; Jaspers et al. 2006). Comparison of myonuclear numbers in high and low oxidative fibers has shown that high oxidative fibers contain more myonuclei per mm fiber length, per cross-sectional area and consequently per volume cytoplasm (Burleigh 1977; Schmalbruch and Hellhammer 1977; Tseng et al. 1994). In mammals, the myonuclear density is around 40 per nanoliter cytoplasm in high oxidative fibers and around 20 per nanoliter in low oxidative fibers (Tseng et al. 1994). In contrast, amphibian muscle shows about two to three times lower myonuclear density (Jaspers et al. 2006), which corresponds well with differences in physiological temperature and a protein turnover rate that is about threefold higher in mammalian muscle (Sayegh and Lajtha 1989). Several studies have demonstrated that muscle hypertrophy is associated with, and dependent on, the addition of newly formed myonuclei, whereas muscle atrophy and disease appear to be associated with loss of myonuclei. Together, these data suggest that the myonuclear domain is differentially regulated in high versus low oxidative fibers and that the number of myonuclei per fiber may be important in maintaining size-related differences between fibers.

Based on the idea that each nucleus can only supply a limited amount of cytoplasm with the necessary gene transcripts, addition of myonuclei seems a prerequisite for muscle fiber hypertrophy. As myonuclei lack the ability of mitosis, nuclear accretion stems from a pool of normally quiescent satellite cells that can be induced to differentiate and proliferate and subsequently to fuse with existing myofibers. Although the debate regarding the requirement of satellite cells for myonuclear accretion is ongoing, there are indications that hypertrophy of rat and human muscle fibers by more than 25% is accompanied by the addition of myonuclei (McCarthy and Esser 2007a; O’Connor and Pavlath 2007; Petrella et al. 2006). This supports the necessary role of myonuclei in the induction of hypertrophy. In the heart, the number of nuclei does not increase during hypertrophy. The limited adaptability of cardiomyocytes to overload may partially underlie the development of chronic heart failure occurring at 14 nuclei per nanoliter in rats (Des Tombe et al. 2002). During postnatal development, growth of the satellite cell population in skeletal muscle is associated with an increased rate of nuclear accretion and appears to be twofold higher in high than in low oxidative fibers (Lagord et al. 1998; Moss and Leblond 1971). In adult rats, in the predominantly high oxidative soleus muscle, 12% of the myonuclei belong to satellite cells, whereas in the low oxidative extensor digitorum longus muscle (EDL), the fraction is only 4% (Schultz et al. 2006). In summary, in various vertebrate species, the high oxidative skeletal muscle fibers show higher densities of myonuclei and larger populations of satellite cells compared to low oxidative fibers. Moreover, the rate of nuclear accretion seems higher in high oxidative fibers. Such higher myonuclear density indicates that the high oxidative fibers may have a relatively larger potential for transcription.

Mitochondrial DNA

Mammalian mitochondrial DNA (mtDNA) contains a limited number of genes, which include those encoding 13 polypeptides that are essential for energy production via oxidative phosphorylation, and 22 tRNA and 2 rRNA genes. The mtDNA can replicate independently of nuclear DNA (nDNA), but as in muscle cells the nDNA controls the expression of all other mitochondrial and myofibrillar proteins, and mitochondrial synthesis requires the cooperation of both the nuclear and mitochondrial genomes (Hood 2001).

Few studies are available on the physiological regulation of mitochondrial protein synthesis skeletal muscle and in myocardium (Hock and Kralli 2009). In mammalian striated muscle, the concentrations of mtDNA, mtmRNA and mtrRNA all vary in direct proportion to changes in oxidative capacity. This, combined with the observation that mitochondrial density is also proportional to the oxidative capacity, both in vitro and in vivo, indicates that the expression of mitochondrial genes in striated muscle is proportional to their copy number (Hoppeler and Billeter 1991; van der Laarse et al. 1989; Williams 1986). Based on these findings, it can be concluded that both myonuclear and mitochondrial density are important for maintaining synthesis of proteins associated with oxidative metabolism. Since high oxidative fibers show higher densities of myonuclei and mitochondria, and mitochondrial biogenesis requires both mitochondrial and nuclear DNA, their capacity for mitochondrial protein synthesis is higher compared to the low oxidative fibers.


Transcriptional control of myofibrillar protein primarily depends on the abundance and kinetic properties of RNA polymerases, RNAses and the role of transcriptional co-factors that modulate availability of RNA for translation. Together, these properties determine the amount of available mRNA of specific genes in the cell.

It is currently unknown whether transcription rates of RNA polymerases or RNAses differ between fiber types. Biochemically measured transcription rates are in the range of 1.0–4.3 kilobases min−1 and have been suggested to be gene dependent (Darzacq et al. 2007). In human muscle tissue homogenates, an abundance of type I MyHC mRNA, compared to total MyHC mRNA, is associated with high protein synthesis rates, whereas abundance of type IIA MyHC mRNA is associated with low protein synthesis rates (Toth and Tchernof 2006). Several studies showed that the rate of amino acid uptake was two- to threefold higher in high than in low oxidative muscles (Goldberg 1967; Hood and Terjung 1987). Quantitative analysis of RNA gene-bound and unbound fractions of RNA polymerase II showed that ~75% of the polymerases were free and diffusing, whereas the remaining 25% were immobile and suggested to be engaged in transcription (Kimura et al. 2002). As only a quarter of the polymerase capacity is engaged in transcription at a given time, this may suggest that the size of the RNA polymerase pool does not limit transcriptional capacity.

Quantifying mRNA levels of structural muscle protein in different fiber types requires accurate normalization, which is usually done relative to housekeeping genes necessary for basic cellular function (e.g., β-actin, GAPDH and 18S rRNA). Apparently, expression levels of these housekeeping genes can vary depending on the experimental model, species, pathological condition (e.g., Bas et al. 2004; Plomgaard et al. 2006) and the type of muscle (Fig. 2; see supplementary section I for methods). To our knowledge, very little comparative data are available regarding gene transcription in high and low oxidative muscle fibers. Using in situ hybridizations, it has been shown in rat muscle fibers that the amount of MyHC mRNA per microgram total RNA did not differ between fiber types (Habets et al. 1999). However, the total RNA content in high oxidative type I fibers was twofold higher compared to IIA fibers and five- to sixfold higher than IIB fibers with the lowest oxidative capacity. As a consequence, the MyHC mRNA content was substantially higher in high compared to low oxidative fibers. Thus far, fiber type-specific α-skeletal actin levels have not been reported. Using a quantitative PCR technique, we have quantified that predominantly high and low oxidative muscles contain different levels of 18S rRNA and α-skeletal actin mRNA (Fig. 2). Total RNA per microgram muscle tissue is 2.3-fold higher in the high oxidative soleus compared to the low oxidative EDL (Fig. 2a). The fraction of 18S rRNA and α-skeletal actin mRNA on the total RNA is similar in both muscles (Fig. 2b). However, taking into account normalization per microgram muscle tissue, the 18S rRNA and α-actin mRNA levels are 2.1 and 2.3-fold higher, respectively, in soleus compared to EDL (Fig. 2c). Within Xenopus iliofibularis muscles, we found positive correlations (r 2 = 0.71 and r 2 = 0.54, p < 0.0001) between mitochondrial density and α-actin expression (Suppl. Fig. 1, see supplementary section II for methods), which also indicates that within a muscle high oxidative muscle fibers contain higher α-actin expression compared to low oxidative fibers.

Fig. 2
figure 2

Differences in mRNA concentrations of glyceralde-3 phosphate dehydrogenase (GAPDH), 18S RNA, α-skeletal actin (α-sk actin), muscle ring finger-1 (MuRF1) and muscle atrophy F-box (MAFbx) in high oxidative rat soleus (SO) and low oxidative extensor digitorum longus (EDL) muscles (n = 6) (for methods see supplementary section I). a Total RNA (μg) normalized to muscle tissue weight (mg) showed that SO contains 2.3-fold more total RNA per milligram muscle tissue compared to EDL (p < 0.001). b mRNA normalized to total RNA relative to EDL. No differences between SO and EDL were found for any marker, except for GAPDH that showed 2.7-fold lower expression in SO (p < 0.001). c mRNA normalized to muscle tissue weight relative to EDL. GAPDH showed no significant difference between SO and EDL, whereas 18S RNA (2.1-fold), α-sk actin (2.3-fold), MuRF1 (2.1-fold) and MAFbx (1.8-fold) were all higher in SO (p < 0.05). Asterisks indicate significant difference compared to EDL. Systematic comparison of oxidative capacity and fiber cross-sectional area (CSA) from various hind limb muscles in the rat (Armstrong and Phelps 1984) show that SO predominantly (~90%) consists of slow contracting fibers with high oxidative capacity, whereas EDL contains largely (~60%) fast contracting glycolytic fibers with the lowest oxidative capacity. Within EDL, the high oxidative fibers show significantly smaller CSA than low oxidative fibers and also high oxidative fibers in SO show smaller CSA compared to the low oxidative fibers in EDL (Armstrong and Phelps 1984; Nakatani et al. 1999). Based on these observations and the data from Figs. 1 and 2, it can be concluded that high oxidative fibers are generally smaller and also contain more 18S RNA, α-sk actin-, MuRF1- and MAFbx-mRNA, compared to low oxidative fibers. The literature on rat SO and EDL fiber type composition does not unambiguously show that high oxidative fibers have smaller CSA compared to low oxidative fibers (Deveci et al. 2001; Kupa et al. 1995; Torrejais et al. 1999). The inconsistencies in CSA data of the latter studies compared to other studies with a more systematic approach (Armstrong and Phelps 1984; Nakatani et al. 1999) may be related to age, gender, muscle region or the effect of treatment. In addition, the differences in CSA between high and low oxidative fibers were not always tested for statistical significance. This impairs comparison of these studies, largely because classification of the muscle fiber type highly depends on the reaction intensity of the staining in different fiber cross sections and therefore may yield considerable variation in the estimation of fiber populations

The 2.3-fold higher total RNA content in the high oxidative rat soleus compared to the low oxidative EDL (Fig. 2a) corresponds well with the study of Habets et al. (1999), which showed two to sixfold higher total RNA content in high compared to low oxidative fibers. It appears that high oxidative fibers contain substantially more total RNA, higher MyHC, α-actin mRNA as well as about twofold higher myonuclear densities compared to low oxidative fibers. Based on these observations, it may be hypothesized that the myonuclear density largely contributes to the availability of mRNA in high and low oxidative fibers. Further analysis needs to be done to test this hypothesis.


About 80–85% of the cellular RNA is ribosomal, and in human and rat heart muscle it has been shown that the rRNA content reflects the number of ribosomes (Millward et al. 1973; Razeghi et al. 2006). Assuming that the stability of mRNA, ribosomes and polysomes are similar in high and low oxidative fibers, the higher total RNA content in the rat high oxidative soleus muscle compared to the low oxidative EDL (Fig. 2a; Habets et al. 1999) implies that high oxidative fibers have a higher capacity to synthesize protein.

In addition to the amount of ribosomes, the availability and state of activation (i.e., state of phosphorylation) of initiation and elongation factors and their binding proteins can also be differentially regulated in fiber types. Habets et al. (1999) showed that eukaryotic elongation factor (eEF)-1α expression was higher in high oxidative fibers. For other factors affecting the rate of translation initiation and elongation, only indirect information is available from experiments studying the fiber type-specific expression and activation of these factors in response to various exercise protocols (see “Mechanical loading”).

Co-factors affecting protein synthesis

Transcription rate and stability of mRNA are also regulated by various co-factors that either enhance or inhibit the expression of muscle genes. For example, recently discovered microRNAs (miRNAs) negatively regulate protein synthesis by targeting mRNA for degradation thereby inhibiting transcription, or by blocking mRNA binding sites and subsequently inhibiting translation (Bartel 2004). Thus far, four skeletal muscle-specific miRNAs (miRNA-1, -133, -206, and -208) have been shown to be involved in proliferation and differentiation of myoblasts (Chen et al. 2006), cardiac function and hypertrophy (Sempere et al. 2004). Differential expression in low and high oxidative muscles was found for miRNA-206, which was sevenfold higher in the high oxidative soleus compared to the low oxidative plantaris, whereas expression levels of other miRNAs were similar in these muscles (McCarthy and Esser 2007b). These results indicate that miRNAs can be differentially regulated in high and low oxidative fibers. Whether miRNA-206 and other miRNAs indeed have a fiber type-specific function and whether they have a role in regulating mRNA levels during fiber size adaptation require further investigation.

Fiber type–fiber size paradox

Taken together, high oxidative fibers have a larger potential for transcription (i.e., satellite cells, myonuclei, mitochondria and mRNA) compared to low oxidative fibers. Also, these fibers show a relatively large total ribosomal protein content. This indicates that high oxidative fibers possess a larger capacity for protein synthesis, which seems paradoxical since these fibers remain relatively small. However, this apparent paradox may not be a quantitative one, as there is a discrepancy in mass of large myofibrillar proteins and much smaller oxidative proteins. On the other hand, several factors involved in translation initiation and elongation are differentially expressed and activated in high and low oxidative fibers. This could suggest that one or more of these components of the synthesis machinery are less responsive to contractile activity in high oxidative fibers, thereby reducing translational efficiency and limiting the capacity to synthesize myofibrillar protein. Alternatively, if translational efficiency or the function of other components of the synthesis machinery is not impaired, then the protein synthesis rate is likely to be balanced by a high rate of protein degradation resulting in a higher turnover rate in the high oxidative fibers. The latter would imply a larger capacity of the machinery for protein degradation in high oxidative fibers.

Fiber type-related differences in machinery for protein degradation

The rate of protein degradation in skeletal muscle is largely controlled by oxidative stress and three proteolytic enzymatic pathways: (1) the lysosomal system; (2) calcium-mediated proteases such as caspases and calpains; (3) the ubiquitin–proteasome system (Powers et al. 2007). In addition, expression and activation of several co-factors lead to enhanced or decreased activity of the catalytic enzymes. The susceptibility of proteins to degradation may also depend on conformational stability of the protein, which is determined by factors such as the intracellular temperature, reactive oxygen species, cellular energy status and pH. Modulation of protein degradation rate affects the rate of protein turnover and largely determines whether contractile protein is gained or lost. As a consequence, an increase in the rate of catabolism at a constant rate of protein synthesis results in muscle atrophy.

Lysosomal proteolysis

During muscle atrophy, lysosomal cathepsins have been suggested to be involved in initial breakdown of sarcolemmal proteins such as channels and receptors. Subsequent ubiquitination of these proteins make them target for lysosomal systems, thereby reducing their contribution to protein synthesis. In vitro, cathepsins appear responsible for breaking down myofibrillar protein (Dufour et al. 1989; Mayer 2000). Although assessing the role of lysosomal proteolysis is strenuous as it requires massive inhibition of all types of lysosomal proteases, increased activities of cathepsin have been shown in soleus and extensor digitorum muscles from hind limb-suspended rats with higher concentrations being found in the soleus (Goldspink et al. 1986). Others have also reported that high oxidative fibers of rat contain higher levels of cathepsin than low oxidative fibers suggesting a higher potential for degradation in these fibers (Kominami et al. 1985). These results are consistent with the observation that cathepsins are present in high levels in tissues with high protein turnover (Bechet et al. 2005).

Calcium-dependent proteolysis

Ca2+-dependent proteases such as calpains and caspases are involved in breaking down cytoskeletal and myofibrillar proteins. Calpain isoforms (e.g., μ-calpain and m-calpain) can be activated by different concentrations of cytoplasmic calcium and are mainly known for cleaving cytoskeletal proteins that anchor the myofibrillar proteins, such as nebulin and titin (Goll et al. 2003). Many caspases have been identified of which several are important in muscle degradation (see for review Powers et al. 2007). In skeletal muscle, caspases are particularly involved in myonuclear apoptosis and degradation of the actin–myosin complex. During conditions of disuse, calpains and caspases are up-regulated and inhibition of calpains results in attenuation of the atrophy. As a result of the activity of caspases and calpains, monomeric actin and myosin proteins become available for degradation by the proteasome (Du et al. 2004; Taillandier et al. 1996) (see below).

It is unknown whether a fiber type-specific response in calcium-mediated proteolysis exists. However, intracellular calcium concentrations [Ca2+]i are generally high in cardiac myocytes and high oxidative skeletal muscle fibers (Batkai et al. 1999; Dibb et al. 2007). As high [Ca2+]i are associated with increased calpain and caspase activity, we hypothesize higher activities of caspases and calpains in high compared to low oxidative fibers, which would imply a higher rate of cytoskeletal protein degradation in these high oxidative myocytes.

Proteasome-mediated proteolysis

The ubiquitin–proteasome system is responsible for breakdown of the majority of myofibrillar proteins and is both ATP and ubiquitin dependent (Taillandier et al. 1996). In the process of ubiquitination, proteins are marked for degradation by three classes of enzymes, known as E1 (activating), E2 (conjugating) and E3 (ligating), after which the proteasome degrades the ubiquitin substrates. During various conditions of disuse, such as denervation, unloading, hind limb suspension and fasting, the expression of two muscle-specific ubiquitin-ligases, muscle atrophy F-box (MAFbx/atrogin-1) and muscle ring finger (MuRF), was found to be up-regulated. Inhibition of either one resulted in attenuation of atrophy (Bodine et al. 2001a). MAFbx and MuRF are controlled by the Forkhead box transcription factors O (FOXO) subfamily of transcription factors and the nuclear factor kappa-B (NF-κB) (Nordquist et al. 2007; Sandri et al. 2004). MAFbx and MuRF contribute to atrophy by up-regulation of proteasome components and by inhibition of transcription of slow-type structural muscle genes and translation (see also ‘FOXO–E3 ligase–proteasome pathway’ and ‘NF-κB pathway’).

To our knowledge, there are no experimental data available on fiber type-specific expression of ubiquitin-ligases or proteasome components. We quantified both MAFbx and MuRF mRNA expression relative to total RNA and found no difference between high oxidative soleus and low oxidative EDL (Fig. 2b). However, as the soleus contains 2.3-fold more total RNA per muscle tissue weight (Fig. 2a), expression levels of MAFbx and MuRF are significantly higher (1.8- and 2.1-fold, respectively) compared to EDL (Fig. 2c). In contrast, FOXO1 mRNA expression was found to be lower in high oxidative mouse soleus compared to the low oxidative gastrocnemius, tibialis anterior and quadriceps muscles (Allen and Unterman 2007). In vivo, FOXO1 inhibits expression of high oxidative fiber-related genes and the function of oxidative metabolism-enhancing factors (Kamei et al. 2004). In addition, skeletal muscles of FOXO1 over-expressing mice had fewer type I fibers as well as smaller type I and type II fibers (all isoforms) (Kamei et al. 2004).

Oxidative stress-mediated proteolysis

Classical in vitro experiments have shown that 2–5% of total oxygen becomes a superoxide or free radical (Boveris and Chance 1973). This may overestimate in vivo rates of oxidant production as assessment of ROS production from different sites in mitochondria indicated that upper estimates of proportion of the electron flow giving rise to superoxide was only 0.15% (St-Pierre et al. 2002). Despite the controversy on estimating the proportion of free radicals in vivo (Jackson et al. 2007; Murphy 2009), mitochondria can be considered the major source of free radicals since electron transport accounts for ~85% of the oxygen consumed by the cell (Challoner 1968). Under normal physiological conditions (i.e., normal PO2 levels), a variety of reactive oxygen species (ROS) and reactive nitrogen species (RNS) are produced in skeletal muscle fibers, which play a critical role in the adaptation of muscle (for review see Jackson et al. 2007; Powers et al. 2007). At normal PO2 levels, ROS promote adaptation and survival in many cell types. However, under conditions of oxidative stress (i.e., hypoxia or hyperoxia), ROS production increases and induces myonuclear apoptosis in vivo and in vitro (Duranteau et al. 1998). High levels of ROS (e.g., as a result of exercise or reperfusion injury) activate caspases via Ca2+ release from the sarcoplasmatic reticulum and also induce mitochondrial permeability transition followed by cytochrome c release, which leads to myonuclear apoptosis and myofibrillar degeneration (Garrido et al. 2006; Primeau et al. 2002). In addition, ROS are also involved in regulating Ca2+-meditated proteolysis (through calpain activation) and increased proteasome activity through NF-κB and the E3 ligases (Powers et al. 2007).

In relation to exercise, many studies have shown elevated ROS production, which is assumed to be associated with the increased oxygen consumption that occurs with elevated mitochondrial activity (Herrero and Barja 1997; Malinska et al. 2009; Powers et al. 1999). However, exercise also induces antioxidant production and structural changes of the mitochondria, which have been related to a reduction in free radical concentration (Anderson and Neufer 2006; Leeuwenburgh et al. 1997; Molnar et al. 2006). Recently, it has been suggested that the production of ROS and antioxidant scavengers may be tightly regulated by an internal control mechanism, involving uncoupling proteins and antioxidants (Brand et al. 2004). Such a mechanism would keep ROS concentrations in the cell within a range that is beneficial for cellular survival. To our knowledge, measurements on intracellular ROS generation and scavenging in high and low oxidative fibers have not been undertaken, but the available data for muscle cells indicate that contractile activity increases ROS production two to fourfold (McArdle et al. 2005; Vasilaki et al. 2006). As antioxidant production also increases with exercise, this may indicate that ROS and antioxidant scavengers are both higher in high oxidative fibers compared to low oxidative fibers. As yet the relative differences in ROS concentrations between fiber types and their role in regulating fiber size are not clear. To obtain insight into the contribution of ROS in the fiber type-related regulation of size, future experiments need to determine the concentrations of different types of free radicals and their scavengers in high and low oxidative fibers by systematically assessing the numerous endogenous sites and sources that produce ROS and antioxidants.

Pathways and stimuli regulating protein turnover in different fiber types

From the first part of this review, it becomes evident that high oxidative muscle fibers show a larger potential for protein synthesis and that some components of the degradation machinery are also present in higher quantities compared to low oxidative fibers. This suggests that high oxidative fibers have a relatively high rate of protein turnover, which may limit hypertrophy in these fibers. The machinery for protein turnover is regulated by many different pathways and stimuli. Since muscle fibers have limited capacity to hypertrophy and increase oxidative capacity at the same time, this may imply that competition exists between turnover rates of structural muscle protein (i.e., myofibrillar proteins) and protein involved in metabolism (i.e., mitochondrial proteins). Such competition is likely the result of interactions between signaling pathways either involved in synthesis or breakdown of the structural and metabolic proteins. The stimuli regulating these pathways are related to muscle activity (frequency and firing pattern of action potentials, intracellular calcium), mechanical loading, growth factors, vitamins, binding factors and cytokines and factors associated with cellular energy and oxygen levels, such as hypoxia, redox potential and AMP:ATP ratio.

Signaling pathways involved in muscle protein turnover

Several signaling pathways are known for their role in regulation of muscle fiber size (Suppl. Fig. 2A–E). These pathways control the rate of protein turnover at the level of transcription (calcium/calmodulin pathways; MAP-kinase pathways), translation (PI3K–Akt–mTOR), degradation (FOXO–E3 ligase–proteasome and NF-κB pathway) or a combination of these (AMPK–PGC-1α). The interactions between the pathways (Fig. 3) determine the rates of protein synthesis and degradation and whether contractile or metabolic protein is gained or lost.

Fig. 3
figure 3

Interactions of signaling pathways and their stimuli involved in turnover of structural muscle (i.e., contractile) protein and protein associated with high oxidative metabolism. In response to contractile activity, calcium increases intracellularly through stretch-activated Ca2+ channels and from calcium stores. In addition, growth factors and cytokines are secreted in the extracellular matrix by the muscle fibers where they can bind receptors and activate signaling pathways. The type of contractile activity or mechanical loading combined with the balance between cellular energy (AMP:ATP) and oxygen levels (i.e., ROS production) determine fiber type-specific activation of pathways and thus whether contractile protein is gained or lost (for details see text). AAs amino acids, AMPK AMP-activated protein kinase, bFGF basic fibroblast growth factor, ECM extracellular matrix, FAK focal adhesion kinase, FOXO Forkhead box transcription factors O subfamily, GF + CK growth factors and cytokines, HGF hepatocyte growth factor, IL interleukin, IGF-I insulin-like growth factor-I, MAFbx muscle atrophy F-box, MAPK mitogen-activated protein kinases, MGF mechano-growth factor, mTOR mammalian target of rapamycin, MuRF muscle ring finger, NF-κB nuclear factor kappa-B, PGC-1α peroxisome proliferator-activated receptor γ coactivator-1α, PI3K phosphatidylinositol-3 kinase, PLD phospholipase D, p70S6K 70-kDa ribosomal protein S6 kinase, ROS reactive oxygen species, SC satellite cells, SR sarcoplasmatic reticulum, SRF serum response factor, TNF-α tumor necrosis factor-α, Vps34 vacuolar protein sorting mutant 34

Calcium/calmodulin pathways

Intracellular calcium [Ca2+]i regulates the activity of calcineurin, a serine/threonine phosphatase, and calcium/calmodulin protein kinase (CaMK), both in a calmodulin-dependent way (Klee et al. 1998; Schulman 1993). Activity of calcineurin is enhanced in skeletal muscle in response to sustained low-amplitude oscillations of [Ca2+]i while it remains insensitive to transient high-amplitude oscillations of [Ca2+]i (Dolmetsch et al. 1997). In contrast, CaMKII and CaMKIV respond to physiological high-amplitude Ca2+ signals, which, in skeletal muscle, correspond to Ca2+ levels achieved at stimulation frequencies higher than 30 Hz (Chin 2005). Downstream targets of calcineurin and CaMK (Suppl. Fig. 2A) are myogenic transcription factors, such as nuclear factor of activated T cells (NFAT), myocyte enhancer factor-2 (MEF-2) and serum response factor (SRF) (Davis et al. 2003; Dolmetsch et al. 1997; Wu et al. 2001). Activation of calcineurin and CaMK causes conformational changes of these transcription factors, which either activate them or stimulate translocation from cytoplasm to the nucleus.

Calcineurin has been attributed a fiber type-specific role in inducing fast-to-slow transitions in MyHC isoforms (Chin et al. 1998). In addition, calcineurin regulates a large subset of genes involved in oxidative metabolism (for instance myoglobin) and increased glucose uptake and fatty acid oxidation (Bigard et al. 2000; Chin 2005) (Suppl. Fig. 2A). Both calcineurin and CaMK can increase mitochondrial biogenesis through increased expression of peroxisome proliferator-activated receptor γ co-activator 1α (PGC-1α) (Lin et al. 2002; Wu et al. 2002) (see ‘AMPK–PGC-1α’). However, controversy exists on the role of calcineurin and CaMK in regulating fiber size.

Calcineurin appears to be involved in myonuclear accretion in high, but not in low oxidative fibers (Mitchell et al. 2002). The hypertrophic effects of calcineurin are also indicated by the hypertrophic response of myoblasts in culture while exposed to activated calcineurin (Musaro et al. 1999; Semsarian et al. 1999). Furthermore, inhibition of calcineurin activity during mechanical overload, recovery from disuse atrophy or in muscles from transgenic mice over-expressing insulin-like growth factor-I (IGF-I) showed blocking of the hypertrophic response (Dunn et al. 1999; Mitchell et al. 2002; Musaro et al. 1999; Semsarian et al. 1999). In contrast, other studies using various models of hypertrophy did not show an active role for calcineurin in increasing fiber size in muscles of mice and rats (Bodine et al. 2001b; Musaro et al. 2001; Serrano et al. 2001). Furthermore, mice over-expressing calcineurin showed no evidence for hypertrophy (Naya et al. 2000). Altogether, it appears that calcium/calmodulin-activated pathways are particularly involved in the synthesis of slow-type gene expression and oxidative metabolism. In addition, although activation of calcineurin alone is not sufficient for inducing hypertrophy, it may do so, for example, in combination with other essential pathways mediated by IGF-I (see growth factors).

MAPKinase pathways

The three best characterized subfamilies of mitogen-activated protein kinase (MAPK) signaling are (1) c-Jun N-terminal kinase (JNK); (2) extracellular regulated kinase (ERK); and (3) the 38 kDa stress-activated protein kinase (p38). Activation of MAPK is mediated by a set of three sequential protein kinases that are generally induced by: (1) receptor binding of stimuli (e.g., IGF-I); 2) protein kinase C activation; or (3) by integrin or dystroglycan signaling (Carson and Wei 2000; Florini et al. 1996; Rando 2001; Ruwhof and van der Laarse 2000). Activated MAPK will phosphorylate and activate myogenic and metabolic transcription factors, as well as other kinases that affect downstream signal transduction (Suppl. Fig. 2B). The fiber type-specific functions of ERK, JNK and p38 in muscle are briefly summarized.

The ERK pathway is involved in regulation of protein synthesis, particularly in the induction of slow fiber phenotypes and the up-regulation of genes involved in glucose transport, glyconeogenesis and angiogenesis (Koulmann and Bigard 2006; Murgia et al. 2000). Furthermore, ERK has been shown to reduce proteasome activity, mitochondrial breakdown and myonuclear apoptosis, thereby promoting cellular survival (Powers et al. 2007). In addition, ERK has also been attributed a role in stretch-induced cardiac hypertrophy by increasing c-fos and α-actin expression (Sadoshima and Izumo 1993; Yazaki and Komuro 1992). Although very little data are available on fiber type-specific MAPK expression and/or activity, ERK-1 and ERK-2 concentrations are significantly different in rat soleus and EDL muscles, with more ERK being present in the high oxidative soleus (Atherton et al. 2004; Wretman et al. 2000). This might suggest a fiber type-specific role for ERK. On the other hand, ERK is also critically related to IGF-I-induced hypertrophy in rat plantaris (Haddad and Adams 2004), which is predominantly composed of type II fibers (type IIA: ~40%, type IIB: ~40%; (Armstrong and Phelps 1984). This might also suggest a role for ERK in fiber type-related regulation of size.

Activation of p38 promotes PGC-1α expression and subsequent mitochondrial biogenesis (Akimoto et al. 2005) (Suppl. Fig. 2B). Other downstream targets of p38 are MEF-2, which is involved in slow-type gene expression, and p53 that mediates myonuclear apoptosis (Powers et al. 2007). The p38 MAPK pathway also plays a role in protein degradation by promoting MAFbx expression and activation of NF-κB (Li et al. 2005; Powers et al. 2007; Zhao et al. 1999).

Among the specific targets of JNK are c-jun, c-myc and ATF-2, which are involved in the expression of structural muscle protein (Clerk and Sugden 1997) (Suppl. Fig. 2B). JNK is also active during oxidative stress and mediates myonuclear apoptosis and mitochondrial breakdown (Powers et al. 2007). To our knowledge, there are no data available on fiber type-specific expression of p38 and JNK except in response to various activity protocols (see “Mechanical loading”).

MAPKs differ in their interaction with transcription factors, providing a tool for selectively targeting transcription factors. Although the function of p38 in muscle remains ill defined, the current literature indicates that p38 is involved in high oxidative gene expression and also in proteasome-mediated degradation. JNK induces gene expression of structural muscle proteins and promotes myonuclear apoptosis, whereas ERK mainly has a protective role in promoting cellular survival and stimulating the oxidative metabolism. However, as each MAPK shares targets and functions with many upstream and downstream kinases and transcription factors, specificity of the pathways and their fiber type-specific role are not fully resolved.


A central pathway involved in hypertrophy is regulated at the translational level by the serine/threonine kinase Akt (or PKB). In muscle, Akt is activated by the upstream phosphatidylinositol 3-kinase (PI3K), either induced by receptor binding or by integrin-mediated activation of focal adhesion kinase (FAK), such as in cardiac myocytes (Franchini et al. 2000; Sakamoto et al. 2002) (Fig. 3). PI3K activates Akt, which then has the ability to phosphorylate and change the activity of many signaling molecules. Among these are the mammalian target of rapamycin (mTOR) and glycogen synthase kinase-3β (GSK-3β), which play a crucial role in the regulation of translation (Cross et al. 1995). Akt activates mTOR via phosphorylation and inactivation of tuberous sclerosis complex-2 (TSC-2) (Manning et al. 2002; Potter et al. 2002). Subsequently, mTOR phosphorylates and activates the 70-kDa ribosomal protein S6 kinase (p70S6K), which results in increased translation either directly or indirectly by activating initiation and elongation factors, eIF-2, eIF-4E (through 4E-BP) and eEF-2 (Bodine et al. 2001b; Hornberger et al. 2001) (Suppl. Fig. 2C). In addition, Akt also phosphorylates and inactivates GSK-3β, thereby activating translation via initiation factor eIF-2B (Jefferson et al. 1999). Other functions of Akt comprise the negative regulation of protein degradation by inhibiting FOXO-mediated proteasome activity (Stitt et al. 2004) (see ‘FOXO–E3 ligase–proteasome pathway’). However, Akt has also been associated with up-regulation of the proteasome through activation of NF-κB (see NF-κB pathway) in a PI3K-dependent process (Russell et al. 2008). In addition, Akt functions as negative regulator of the oxidative metabolism by inhibiting AMP-activated protein kinase (AMPK) (Hahn-Windgassen et al. 2005) (see ‘AMPK–PGC-1α’).

Although it is clear that the PI3K–Akt–mTOR pathway plays a crucial role in regulating hypertrophy, the fiber type-specific role of this pathway remains unclear. Akt appears to be differentially regulated in high and low oxidative muscles, as it has been shown that both total and phosphorylated Akt concentrations were substantially higher in rat soleus compared to EDL (Sakamoto et al. 2002). On the other hand, also in rat EDL muscle, it was shown that total p70S6K was sixfold higher than in the soleus (Atherton et al. 2004), but the fraction of the phosphorylated protein was substantially lower in EDL compared to the soleus (27 vs. 64%) (Hornberger et al. 2001). Currently, it is unknown whether high and low oxidative fibers contain similar absolute concentrations of phosphorylated p70S6K; however, it appears that that the low oxidative fibers have a larger potential for increasing the phosphorylation state (i.e., activation) of p70S6K and subsequent translation compared to high oxidative fibers.

FOXO–E3 ligase–proteasome

During various conditions of disuse, FOXO transcription factors up-regulate the expression of ubiquitin-ligases (MAFbx and MuRF), which are associated with increased proteasome activity and protein degradation (Lecker et al. 2004; Sandri et al. 2004; Stitt et al. 2004) (Suppl. Fig. 2D). As mentioned above, in response to hypertrophic stimuli, Akt inhibits protein degradation by phosphorylating FOXO, which results in nuclear exclusion of FOXO and a decreased transcription of FOXO target genes (Sandri et al. 2004). However, during muscle atrophy, MAFbx is up-regulated and prevents the Akt-dependent phosphorylation of FOXO (Schisler 2008). Consequently, FOXO remains located in the nucleus causing enhanced expression of MAFbx and MuRF. The expression of MAFbx further increases in a feed-forward mechanism with FOXO, thereby stimulating protein degradation. In addition, FOXO and ubiquitin-ligases also negatively affect protein synthesis. For example, FOXO has been shown to inhibit mTOR signaling, whereas MAFbx targets eIF-3 for degradation (Suppl. Fig. 2D) thereby attenuating protein translation (Lecker et al. 2004; Southgate et al. 2007). At the transcriptional level, FOXO reduces the expression of calcineurin and transcription factors MEF-2 and NFAT, which may attenuate slow-type gene expression (Kamei et al. 2004; Ni et al. 2006) (Suppl. Fig. 2A, 2D).

FOXO1 expression, normalized to β-actin, in low oxidative mouse muscles is higher compared to the high oxidative soleus muscle (Allen and Unterman 2007). Based on the above-mentioned feed-forward mechanism between FOXO and MAFbx, it can be hypothesized that protein degradation is higher in the low oxidative fibers. However, our results show that both MAFbx and MuRF expression was about twofold higher in high oxidative fibers (Fig. 2c). In addition, it appears that FOXO is not involved in atrophy per se, as FOXO1 and FOXO3a proteins are unaltered in human vastus lateralis after 20 days of unilateral limb suspension (Sakuma et al. 2009). These results suggest that an alternative route besides FOXO exists that is capable of inducing the expression of E3 ligases, MAFbx and MuRF. Altogether, FOXO-mediated E3 ligase-proteasome activity appears to play an important role in reducing the fiber size during disuse, both by increasing the rate of protein degradation and by attenuating the rate of protein synthesis. However, it remains to be investigated in what way FOXO expression changes in response to various training stimuli and whether FOXO is also capable of limiting fiber size in response to hypertrophic stimuli.

NF-κB pathway

The NF-κB family of transcription factors is also involved in proteolysis during muscle atrophy. Specific NF-κB members have been related to atrophy and cachexia in response to disuse and chronic diseases (Jackman and Kandarian 2004). NF-κB is an important transcription factor in disuse atrophy and associated with increased expression of E2 and E3-ligases in mice leg muscles (Cai et al. 2004). However, whether NF-κB directly or indirectly affects the E3-ligases has not been elucidated yet. It is clear that NF-κB induces atrophy (Suppl. Fig. 2D, Fig. 3), but whether this is FOXO dependent also remains to be determined.

In rats, overall nuclear NF-κB (p65) expression was found to be 56% higher in high oxidative soleus compared to the low oxidative superficial vastus lateralis (Phillips and Leeuwenburgh 2005). NF-κB levels in rat soleus muscle were also threefold higher compared to those in EDL (Atherton et al. 2004). In addition, NF-κB showed a tenfold higher activation in soleus of rat after 7 days of unloading, whereas in EDL no change was detected (Hunter et al. 2002). These results indicate a differential expression of NF-κB between fiber types, suggesting that NF-κB-induced E3 ligase-proteasome activity is higher in high oxidative fibers. In addition, high levels of NF-κB signaling have also been associated with reduced myonuclear apoptosis in mice and rats (Phillips and Leeuwenburgh 2005). This effect could be related to the NF-κB-induced inhibition of anti-apoptotic genes (e.g. bcl-2) (Perkins 2000). Altogether, NF-κB appears to play a role in inducing E3 ligase-proteasome activity, particularly in high oxidative fibers and is also involved in regulating myonuclear apoptosis.


AMPK is a highly conserved protein kinase that plays a role in the regulation of many cellular processes. In mammalian adult muscle tissue, AMPK function includes induction of glucose transport, glycogen metabolism, fatty acid oxidation and transcriptional regulation of structural muscle genes (Hardie and Sakamoto 2006).

AMPK controls several processes via the transcriptional co-activator PGC-1α (Suppl. Fig. 2E). PGC-1α, and also functionally similar PGC-1β, are involved in inducing mitochondrial biogenesis and slow-type gene expression via MEF-2 and NFAT (Arany et al. 2007; Garnier et al. 2005; Lelliott et al. 2006; Lin et al. 2002). The regulation of high oxidative gene expression by PGC-1 is mediated by interactions with different isoforms of a family of nuclear hormone receptors, the peroxisome proliferator-activated receptors (PPARs) (Gilde and Van Bilsen 2003). AMPK induces the expression of PGC-1α as well as the activation and expression of PPAR isoforms (Lee et al. 2006; Narkar et al. 2008). AMPK expression appears to be similar in high and low oxidative fibers, while basal AMPK phosphorylation is higher in type IIA fibers compared to type I and IIB fibers (Lee-Young et al. 2009). Concentrations of PGC-1α and PPAR isoforms (β and δ) appear to be higher in high oxidative fibers suggesting that the AMPK–PGC-1α pathway induces a fiber type-specific increase in genes associated with high oxidative metabolism (Lin et al. 2002; Narkar et al. 2008).

Another role of AMPK comprises the inhibition of protein synthesis. It has been well established that AMPK activation suppresses the translation of myofibrillar protein by inhibiting the mTOR–p70S6K pathway via activation of TSC-2 and by phosphorylation and inactivating eEF-2 (Chan and Dyck 2005; Inoki et al. 2003; Mounier et al. 2009). This interaction indicates that AMPK, in addition to being a stimulus of biosynthesis of mitochondria, is an inhibitor of protein synthesis.

Recently, AMPK has also been linked to protein degradation since AMPK activation increases the expression of E3 ligases, MAFbx and MuRF (Krawiec et al. 2007). Several studies have shown that AMPK also activates NF-κB signaling in vitro (Jung et al. 2004; Okayasu et al. 2008). Although AMPK activation also has been related to suppression of NF-κB, presumably through reduced cytokine expression (Li et al. 2007), there are multiple NF-κB family members that are involved in muscle wasting (Hunter et al. 2002). Therefore, the AMPK-induced NF-κB activation may indicate that AMPK signaling increases protein degradation. AMPK may also induce protein degradation through an interaction between PGC-1α and FOXO-mediated protein degradation. Kamei et al. (2004) hypothesized that FOXO inhibits PGC-1α function by binding PGC-1α. However, high expression levels of PGC-1α have also been associated with decreased MAFbx and MuRF protein levels (Sáinz et al. 2009). In addition, Sandri et al. (2006) also showed reasonable data to suggest that PGC-1α inhibits FOXO function. The latter studies raise serious concerns about the role of PGC-1α in protein degradation. Whether AMPK executes its different roles simultaneously in response to its activation remains to be determined, but there are indications that AMPK reduces cell differentiation of myoblasts, thereby reducing hypertrophy, without necessarily accelerating protein degradation (Fulco et al. 2008). This would suggest that other signaling components were also capable of inducing NF-kB-mediated protein degradation. Thus, although there appears to be an interaction between AMPK and NF-κB, clearly more research is necessary to clarify the role of the AMPK–PGC-1α pathway in protein degradation.

In conclusion, AMPK stimulates the oxidative metabolism and slow-type gene expression through PGC-1α and simultaneously attenuates synthesis of protein by inhibiting mTOR and the rate of translation of mRNA. As Akt, which activates mTOR, negatively regulates high oxidative gene expression by inactivating AMPK (see ‘PI3K–Akt–mTOR pathway’), competitive interaction exists between signaling pathways regulating structural and metabolic protein turnover (Fig. 3). This competitive interaction has previously led to the hypothesis that Akt–AMPK serves as a ‘switch’ between pathways inducing a high or a low oxidative phenotype, thereby regulating the muscle fiber size (Atheron et al. 2005; Baar 2006). However, the Akt–mTOR and AMPK interactions may be more complex than suggested by a ‘switch’ mechanism. For example, mTOR activation has been shown to increase mitochondrial gene transcription by interaction with PGC-1α (Cunningham et al. 2007). Also, knockdown of mTOR-binding protein Raptor has been shown to down-regulate genes involved in mitochondrial biogenesis (e.g., PGC-1α) and hyperactivation of Akt, suggesting that mTOR is not only required for hypertrophy but also for regulation of metabolic function (Bentzinger et al. 2008).

Stimuli and the status of activity of fiber type-specific signaling pathways

In vivo, multiple signals or stimuli are received by muscles, which trigger one or more of the above-mentioned signaling pathways involved in the regulation of muscle protein turnover. The key stimuli are all related to the type of contractile activity, ranging from sustained, low force activity (endurance training) to short and high force activity (resistance training). Contractile activity and the associated mechanical loading can activate these pathways either directly or indirectly via changes in [Ca2+]i and the expression of growth factors and cytokines. In addition, changes in cellular energy and oxygen levels, which are affected by contractile activity as well, also regulate activation of signaling pathways specific for high and low oxidative fibers.

Mechanical loading

Mechanical loading is associated with the regulation of muscle mass; however, the cellular and molecular mechanisms that contribute to the transduction of mechanical signals into a hypertrophic response are complex and still a matter of ongoing research. The MAPKinase and the Akt–mTOR pathways play important roles in increasing the rate of protein synthesis in response to mechanical loading (Glass 2005; Ruwhof and van der Laarse 2000), particularly by increased expression of growth factors (see below). Recently, other growth factor-independent mechanisms have been proposed that connect mechanical events at the membrane to the intracellular signaling structure, among which are the stretch-activated channels (SACs) and the integrin-focal adhesion complexes (FACs) (Spangenburg 2009). The inhibition of SACs has been shown to result in attenuation of the Akt–mTOR signaling pathway, reduced hypertrophy and a lack of expected functional adaptations in response to loading (Butterfield and Best 2009; Spangenburg and McBride 2006). It has been hypothesized that the SACs allow the influx of ions such as Ca2+, which affects both protein synthesis and degradation (Yeung et al. 2005) (see “Intracellular calcium”).

The integrin-focal adhesion complexes seem to be involved in conversion of mechanical signals into intracellular signals. In endothelial cells, mechanical loading is associated with the recruitment of proteins to focal adhesion sites underlying the extracellular matrix that particularly contain integrins (Wang et al. 1993). In fibroblasts, clustering of integrins is followed by an increase in phosphorylation and recruitment of several other proteins to the FAC, such as FAK and paxillin (Burridge et al. 1992; Kornberg et al. 1992). For muscle tissue, the precise mechanism that links FAK to the integrins is still unclear, although it has been shown that FAK activation and the expression of FAK and paxillin are increased in response to mechanical loading (Fluck et al. 1999). FAK has also been associated with increased translational signaling, either by inducing Akt–mTOR signaling through PI3K (Xia et al. 2004) or by increasing p70S6K activation through mTOR, independently of Akt (Klossner et al. 2009; Xia et al. 2004). In addition, SRF gene expression, which is both mediated through FAK and the MAPKinases, induces both α-actin and IGF-I expression and appears to be related to hypertrophy in response to mechanical loading (Carson et al. 1996; Charvet et al. 2006; Gineitis and Treisman 2001; Miano et al. 2007; Wei et al. 1998). FAK concentration and its phosphorylation level, as well as paxillin, integrin and SRF concentrations appear to be higher in the high oxidative rat soleus compared to the low oxidative plantaris muscle (Gordon et al. 2001). This suggests that mechanical loading can induce a fiber type-specific increase in protein synthesis that involves both FAK and SRF signaling. However, the relative contribution of FAK and PI3K in mechanical loading-induced activation of the Akt–mTOR pathway remains elusive, as recently it has been shown that mechanical loading can activate Akt–mTOR independent of PI3K (Hornberger et al. 2007). In addition, phospholipase D (PLD) and phosphatidic acid (PA) provide another signaling mechanism to mTOR–p70S6K independent of Akt (Fang et al. 2001; Hornberger et al. 2006). Furthermore, the differential hypertrophic effects of various types of mechanical loading via the mTOR–p70S6K pathway may also depend on the nutritional status, as it has been shown that muscle growth is optimized by combining exercise and the ingestion of amino acids and carbohydrates (Deldicque et al. 2005).

MAPKinases are also differentially expressed and activated in high and low oxidative fibers in response to stretch, contractile activity or metabolic stimuli (Csukly et al. 2002; Wretman et al. 2000). p38 expression appears to be higher in high oxidative fibers, whereas the increase in phosphorylation in response to tetanic stimulation is higher in the low oxidative EDL. For ERK and JNK activities, there is no unambiguous information on fiber type-specific expression in response to mechanical loading (Csukly et al. 2002; Wretman et al. 2000). The fiber type-specific role of the various MAPKinases is not clear, mostly because of the lack of information on changes in total and phosphorylated protein in response to mechanical loading. Recently, inhibition of ERK in myotubes had been shown to decrease their size and protein content, while resistance exercise augmented both p38 and ERK1/2 and p70S6K signaling. Furthermore, inhibition of all three MAPK pathways induced NF-κB activity to a greater extent in the rat soleus compared to the gastrocnemius muscle in vivo (Deldicque et al. 2008; Shi et al. 2009). This suggests that MAPK inhibition induces atrophy via NF-κB in high oxidative muscle activity, but it is also likely that inhibition of MAPKs are involved in atrophy in low oxidative muscles via other stimuli and signaling pathways that enhance protein degradation via the proteasome.

Downstream of Akt–mTOR, at the level of translation, the initiation and elongation of translation of mRNA also appears to be regulated by mechanical loading. In rats, increased phosphorylation levels of eIF-2 as well as eIF-4 and its binding protein (4E-BP1) have been shown in response to endurance exercise associated with a high oxidative phenotype, whereas resistance training, denervation or hind limb unloading, inducing a low oxidative phenotype, de-phosphorylates these initiation factors (Atheron et al. 2005; Hornberger et al. 2001; Thomson et al. 2008). In response to an unloading period, concentrations of phosphorylated eEF-2 in rat soleus showed a 50% decrease compared to those in control muscles, while total eEF-2 remained unchanged. In EDL, no effect was found for unloading on phosphorylated or total amount of eEF-2 (Hornberger et al. 2001). These results indicate that there may be a fiber type-specific regulation in amount and activity of the initiation and elongation factors in response to mechanical loading. In addition, after resistance exercise in human vastus lateralis, p70S6K phosphorylation levels are significantly higher in type II fibers (all isoforms) than in high oxidative type I fibers (Koopman et al. 2006). In rat EDL, total p70S6K was sixfold higher compared to the soleus, whereas the fraction of phosphorylated p70S6K was substantially lower in EDL [27% (EDL) vs. 64% (soleus)] (Hornberger et al. 2001). These data suggest that the low oxidative muscle fibers have a larger potential to phosphorylate p70S6K compared to high oxidative fibers, which has been related to increases in translation initiation and subsequent gain in muscle mass (Baar and Esser 1999).

Growth factors

Among the growth factors that have been discovered to play a role in muscle adaptation, the key regulatory factors are the insulin-like growth factor-I (IGF-I Ea and mechano-growth factor, MGF) (Glass 2003; Goldspink 2005) and the transforming growth factor-β (TGF-β) superfamily member, myostatin (Lee and McPherron 2001; Zimmers et al. 2002). IGF-I is a potent stimulator of myofibrillar protein synthesis via the PI3K–Akt–mTOR pathway, the MAPKinases and the calcineurin–PGC-1α pathway (Bodine et al. 2001b; Haddad and Adams 2004; Semsarian et al. 1999) (Fig. 3). In vitro, IGF-I has been shown to activate calcineurin and vice versa, which suggests that IGF-I acts in a feed-forward loop with calcineurin, thereby promoting gene expression associated with high oxidative metabolism (Alfieri et al. 2007; Musaro et al. 1999; Semsarian et al. 1999). Furthermore, IGF-I Ea induces influx of calcium into the cytoplasm via L-type Ca2+ channels (Delbono et al. 1997) (see “Intracellular calcium”) and is involved in recruitment of satellite cells, either independently or in combination with other growth factors such as basic fibroblast growth factor (bFGF) or hepatocyte growth factor (HGF) and MGF (Allen and Boxhorn 1989; Doumit et al. 1993; Yang and Goldspink 2002). In addition, IGF-I also acts as an inhibitor of degradation via inhibition of the FOXO–E3 ligase–proteasome and attenuating caspases-mediated apoptosis (Bodine et al. 2001b; Dalla Libera et al. 2004). These results suggest that IGF-I signaling is important for mediating increases in the capacity for protein accumulation in response to mechanical loading. However, it appears that other routes besides IGF-I/insulin signaling may also contribute to mechanical load-induced hypertrophy, as it has been shown that hypertrophy is possible without a functional insulin-like growth factor receptor (Spangenburg et al. 2008). These and other studies indicate that the debate on whether IGF-I signaling or other mechanical load-induced routes are the major regulators of increasing fiber size has not been settled yet (Stewart et al. 2009).

Myostatin is a negative regulator of muscle size as it stimulates the expression of the FOXO–E3 ligase–proteasome system and inhibits proliferation of satellite cells (McCroskery et al. 2003; McFarlane et al. 2006) (Fig. 3). Myostatin activates FOXO1, while FOXO1 in turn increases myostatin expression, resulting in a feed-forward loop between myostatin and FOXO and a subsequent increase in protein degradation (Allen and Unterman 2007). In addition, FOXO1 also inhibits IGF-1-mediated satellite cell proliferation (Machida and Booth 2004). However, it has been shown that myostatin over-expression in rat tibialis anterior muscle was unable to alter the activity of proteasome components, and treatment of human skeletal muscle cells with myostatin even resulted in a decrease in the expression of E3 ligases (Amirouche et al. 2008; Trendelenburg et al. 2009). Instead, myostatin was suggested to negatively regulate protein synthesis by inhibition of the Akt–mTOR pathway through inhibition of Akt phosphorylation via phosphorylation of Smad2 and Smad3, and by down-regulating calcineurin signaling as well as the transcription factors MyoD and myogenin (Amirouche et al. 2008; McFarlane et al. 2006; Michel et al. 2007). IGF-I has been shown to block the effects of myostatin on Akt when applied to myoblasts or myotubes, suggesting that IGF-I/Akt signaling is dominant over myostatin-induced activation of Akt (Trendelenburg et al. 2009). Although the actions of myostatin are yet to be completely understood, these data indicate that myostatin negatively regulates muscle size by decreasing Akt-induced protein synthesis as well as by stimulating protein degradation via a FOXO-dependent mechanism. Whether myostatin also affects functional characteristics such as force generation is still under debate (Amthor et al. 2007; Mendias et al. 2006).

Mechanical loading has been shown to up-regulate the expression of different IGF-I isoforms up to 15-fold either alone or in combination with sustained electrical stimulation (Heinemeier et al. 2007; McKoy et al. 1999). In contrast, myostatin expression decreased two- to eightfold in response to different types of contractile activity, the effect being largest during eccentric contractions (Heinemeier et al. 2007). This suggests that mechanical loading is an important stimulus for regulating fiber size, which is mediated through increased expression of IGF-I combined with down-regulation of myostatin. New experimental PCR data in this paper show that, when normalized to total RNA, IGF-I mRNA expression levels showed no differences between high oxidative rat soleus and low oxidative EDL muscles. In contrast, mean myostatin expression levels were 6.5-fold higher in the EDL (Fig. 4a). Because the soleus contains 2.3-fold more total RNA compared to EDL (Fig. 2a), we also normalized IGF-I and myostatin mRNA expression relative to muscle mass. After normalizing in this way, IGF-I mRNA levels were 2.5-fold higher in soleus compared to EDL, whereas myostatin mRNA levels were 2.8-fold higher in the EDL (Fig. 4b). The latter result supports the data of others showing that myostatin, myostatin receptor and FOXO1 mRNA levels were higher in low oxidative muscle fibers (Allen and Unterman 2007; Atherton et al. 2004; Carlson et al. 1999). These data indicate that IGF-I expression is higher in high oxidative fibers, whereas myostatin and FOXO levels are relatively high in low oxidative fibers.

Fig. 4
figure 4

Differences in mRNA concentrations of insulin-like growth factor-I (IGF-1, all isoforms) and myostatin in rat soleus (SO) and extensor digitorum longus (EDL) muscles (n = 6) (for methods see supplementary section I). a mRNA normalized to total RNA relative to EDL. No differences between SO and EDL were found for IGF-1, but myostatin mRNA was 6.5-fold lower in SO (p < 0.001). b mRNA normalized to muscle tissue weight relative to EDL. IGF-1 expression was 2.5-fold higher in SO, whereas myostatin was 2.8-fold lower in SO (p < 0.002). Asterisks indicate significant difference compared to EDL

In addition to mechanical loading-induced expression of local factors, several other components such as albumin, IGF-binding proteins, receptors, cytokines (i.e., TNF-1α, IL-1 and IL-6), calcium and vitamins may modulate the effects of IGF-I and myostatin (Casse et al. 2003; Clemmons 1998; Coletti et al. 2005; Jaspers et al. 2008; Ling et al. 1997; Pfeifer et al. 2002). For example, insulin receptor phosphorylation, insulin receptor substrate (IRS-2) phosphorylation, as well as the downstream PI3K activity were all shown to be significantly higher in the high oxidative soleus compared to EDL (Song et al. 1999). As IGF-I also binds the insulin receptor (Shimizu et al. 1986) and IGF-I expression is higher in high oxidative fibers (Fig. 4b), these results confirm the greater IGF-I binding capacity in high oxidative fibers. These results indicate relatively high expression levels of IGF-I mRNA, its receptor and downstream signaling components in high oxidative muscle fibers, while myostatin expression is low in these fiber types. Whether these differential expression levels implicate related local effects on the producing muscle fiber remains to be determined. Very little is known about the concentrations and activity of growth factors in the vicinity of the sarcolemma. Do the growth factors diffuse and is there a gradient from one fiber to the other? With what affinity do growth factors bind to their receptors or binding proteins that enhance or attenuate their function? There are indications that growth factors bind to the glycosaminoglycans in the heparan sulfates, which may facilitate their activity at their receptor (Roghani et al. 1994). As the growth factors may also have paracrine effects, the higher IGF-I expression in high oxidative fibers may affect high oxidative and also neighboring low oxidative fibers. The magnitude of autocrine and paracrine effects warrants further research. Information is required on expression and activity of the growth factors such as IGF-I and myostatin, as well as on the expression levels of their receptors (IGF-IR and activin receptors), smad proteins and the inhibitory binding proteins (e.g., IGFBP-4, follistatin, myostatin propetide), which may enhance or attenuate the function of these growth factors.


Several cytokines have been reported to play a role in muscle adaptation. Interleukin (IL)-6 is released in muscle tissue in response to sustained exercise and contributes to increased AMPK and calcineurin activity and subsequent high oxidative gene expression (Banzet et al. 2005) (Fig. 3). IL-6 also has been reported to stimulate satellite cell proliferation (Austin and Burgess 1991). In contrast, tumor necrosis factor (TNF)-α, IL-1α and IL-1β promote muscle catabolism (Flores et al. 1989; Zamir et al. 1993). TNF-α stimulates the expression of the ubiquitin-ligase MAFbx via p38 and both TNF-α and IL-1 induce increased ROS production, activation of the NF-κB pathway and subsequent protein loss (Jackman and Kandarian 2004; Li et al. 2005) (Fig. 3). In addition, TNF-α increases myonuclear apoptosis in myotubes and in mouse skeletal muscle, TNF-α appears to inhibit muscle regeneration by inhibiting embryonic MyHC expression (Coletti et al. 2005; Vescovo and Dalla Libera 2006).

In human skeletal muscle, IL-6 expression is relatively high in the high oxidative fibers (Plomgaard et al. 2005). Although no fiber type-specific expression of TNF-α was found in young rats, TNF-α expression increased more with age in the low oxidative rat vastus lateralis muscle compared to the high oxidative soleus. This suggests a fiber type-dependent regulation of TNF-α with age (Phillips and Leeuwenburgh 2005). Based on the reported differences in fiber type-specific expression of cytokines, and the potential role that cytokines play in regulating protein turnover, it is tempting to speculate that cytokines play a role in regulating the fiber type-specific differences in protein turnover. This assumes that fiber type-specific differences in protein turnover exist and can be demonstrated experimentally.

Intracellular calcium

Intracellular calcium concentrations are increased by stimuli such as action potentials, stretch and/or hypoxia (Allen et al. 2005; Eltit et al. 2004; Powers et al. 2007), which release calcium from intracellular stores (sarcoplasmatic reticulum), or by growth factor signaling (e.g. IGF-I, see above). Rises in [Ca2+]i trigger several processes involved in fiber type-specific gene expression (Fig. 3). [Ca2+]i induces transcriptional activation through the calcineurin/CaMK pathways, the MAPK pathways and increased expression of transcription factors c-fos and c-jun, which are members of the immediate early gene family transiently and rapidly activated in many processes ranging from differentiation and cell growth to hypertrophy (Carrasco et al. 2003; Chin et al. 1998; Ruwhof and van der Laarse 2000). In addition, it has also been suggested that the Akt–mTOR pathway is sensitive to [Ca2+]i. Whether this effect of calcium is mediated by mechanical loading or IGF-I is unclear. Several mechanisms are known via which calcium could affect the Akt–mTOR signaling pathway, including vacuolar protein sorting mutant 34 (Vps34) and amino acid exposure (Gulati et al. 2008; MacKenzie et al. 2009). Furthermore, calcium/calcineurin-induced IGF-I expression provides another potential link to Akt–mTOR via PI3K (Alfieri et al. 2007). Protein degradation is also partly controlled by [Ca2+]i as it increases the activity of Ca2+-mediated proteases and the proteasome system (Powers et al. 2007). Although the regulation of [Ca2+]i in heart and skeletal muscle is complex, levels of resting [Ca2+]i appear to be higher in high oxidative fibers (Batkai et al. 1999). This suggests that calcium-induced protein synthesis and degradation are higher in high compared to low oxidative fibers.

Collectively, mechanical stimuli are important regulators of muscle mass, although the mechanisms connecting the mechanical events onto the intracellular signaling structure are complex and warrant further investigation. It may well be that the onset of mechanical load induces both acute and delayed signals regulating protein synthesis and degradation. For example, the acute onset of mechanical loading induces significant and immediate increases in Akt phosphorylation, which returns to baseline within 3 h after cessation of the load (Nader and Esser 2001). Such acute effects in response to mechanical loading may be mediated via integrin-FAK, Ca2+-mediated signaling, Vps34 and/or PLD. In humans IGF-I mRNA expression is up-regulated 2.5 h after a single bout of resistance exercise and persists for 2 days, suggesting that growth factors comprise a mechanism involved in the delayed onset of signaling pathways that control protein synthesis (Greig et al. 2006). Resistance exercise resulted in an immediate (1–4 h) and concurrent up-regulation of markers involved in protein synthesis (mTOR, p70S6K) and protein degradation (MuRF, but not MAFbx) in human muscles (Louis et al. 2007; Mascher et al. 2008). However, the acute response was followed by a delayed (>8 h) decrease in markers for degradation, whereas the markers for protein synthesis were stable (Louis et al. 2007; Mascher et al. 2008). Also, after a longer period of resistance exercise, it was shown that down-regulation of proteolytic markers persisted, whereas synthetic markers were similar compared to pre-exercise (Mascher et al. 2008; Zanchi et al. 2009). In contrast, endurance exercise in humans increased the proteolytic factors MAFbx, MuRF and FOXO directly (1–4 h after exercise), while long-term effects were unclear (Louis et al. 2007). It appears that different exercise protocols result in the selective activation of specific intracellular signaling pathways, which are most likely responsible for a concurrent training effect (see above). It remains to be determined in what way the acute or delayed onset of signaling pathways in response to mechanical load affect the balance between protein synthesis and degradation, and whether such responses are fiber-type specific.

Cellular energy status

The availability of cellular energy (ΔG ATP) is predominantly maintained by mitochondria. It is generally assumed that the ratio between AMP and ATP (AMP:ATP) reflects the energy status of a muscle cell and acts as a major stimulus for AMPK (Hardie and Sakamoto 2006). An increase in AMP:ATP (e.g., caused by contractile activity or hypoxia) leads to robust activation of AMPK, which attenuates the translational signaling, while at the same time gene expression associated with high oxidative metabolism and mitochondrial biogenesis are enhanced and NF-κB–proteasome-mediated degradation is increased (Fig. 3).

In general, mitochondrial proteins turn over with a half-life between 4 and 8 days with half-life being shortest in the high oxidative fibers, although turnover of cytochrome c was higher in the low oxidative fibers (Booth and Holloszy 1977; Hickson and Rosenkoetter 1981; Terjung 1979; Wicks and Hood 1991). Based on these data, it may be speculated that a continuous stimulus for AMPK activation is required to maintain mitochondrial content at an elevated level; otherwise, a loss of oxidative capacity will result. Low cellular energy levels, which are generally induced in response to sustained contractile activity or hypoxia, will activate AMPK. As AMPK simultaneously reduces translational processes while increasing high oxidative gene expression and the rate of protein degradation, a low energy status would be associated with a high rate of protein turnover that limits the potential to increase fiber size.

Cellular oxygen levels

Assuming that the half saturation pressure of myoglobin is 2.75 mmHg (Rossi-Fanelli and Antonini 1958) and 90% of myoglobin is oxygenated at rest (Richardson et al. 2006), it can be estimated that the average muscle fiber PO2 in humans equals 25 mmHg at rest. As mentioned above, an interstitial oxygen tension of about 14 mmHg is required to prevent anoxic cores (and impaired mitochondrial respiration) at the maximum rate of oxygen consumption. Therefore, cellular oxygen levels play a critical role in regulating muscle protein turnover (see oxidative stress-mediated proteolysis, Suppl. Fig. 2D, Fig. 3). Hypoxia increases ROS production and affects mitochondrial oxygen uptake and permeability, which reduces cellular ATP production and activates AMPK. In myotubes, in response to hypoxia, the rate of protein degradation was elevated and the rate of protein synthesis reduced, explaining the atrophic effects of hypoxia (Caron et al. 2009).

The effects of hypoxia on fiber size are at least in part mediated via ROS production, which is likely to exceed antioxidant production during prolonged periods of hypoxia, resulting in an elevated rate of protein degradation (Powers et al. 1999). High oxidative fibers generally consume more oxygen compared to low oxidative fibers and therefore it is assumed that their rates of ROS and antioxidant production are relatively high compared to low oxidative fibers (Malinska et al. 2009; Powers et al. 1999). Because ROS are scavenged by antioxidants, this does not necessarily imply that the ROS concentrations differ between fiber types, although there are indications that specific types of radicals may vary between high and low oxidative fibers (Anderson and Neufer 2006). The specific function of free radicals may also differ between fiber types. An example of this is nitric oxide (NO), a relatively well-studied free radical in muscle. NO is produced by various NO synthase isoforms (NOS), such as neuronal NOS (nNOS) and endothelial NOS (eNOS), which are permanently expressed in skeletal muscle. The data on NOS are conflicting. For example in humans, nNOS protein levels are similar between fiber types, but increase in all fiber types in response to exercise (McConell et al. 2007). Also, higher as well as lower concentrations of nNOS have been reported in high oxidative fibers, depending on the species (e.g., (Frandsen et al. 1996; Kobzik et al. 1994). In addition, the production of NO not only depends on expression levels of NOS, but also on the activity of different isoforms, which can be modulated by calcium and calmodulin (Nathan and Xie 1994). In cachectic mice, muscle NO production and subsequent activation of antioxidant genes were higher in high oxidative muscle fibers, thereby protecting these fibers against muscle wasting (Yu et al. 2008). This suggests that NO leads to increased ROS scavenging and plays a protective role by inhibiting expression of E3 ligases and protein degradation. In addition, NO plays a role in mitochondrial biogenesis as well as in preventing exercise-related membrane damage and breakdown of structural muscle protein, while in myoblasts NO inhibits calpain-mediated proteolysis of cytoskeletal proteins (Koh and Tidball 1999; Nguyen and Tidball 2003; Nisoli et al. 2003). However, NO can also react with superoxide anion to produce the highly toxic peroxynitrite, which is associated with enhanced protein degradation and apoptosis (Ghafourifar and Cadenas 2005). These data show that the role of free radicals, such as NO, in regulating protein turnover remains ambiguous, despite fiber type-specific differences in concentration.

Cellular oxygen supply can be improved by increasing capillarization, hematocrit or myoglobin concentration (Des Tombe et al. 2002; van Beek-Harmsen et al. 2004). The signal transduction mechanisms that regulate oxygen supply have been shown to involve the hypoxia-inducible factor-1 (HIF-1α), which mediates expression of erythropoietin and angiogenic growth factors such as vascular endothelial growth factor (VEGF) (Hirota and Semenza 2006). VEGF up-regulates myoglobin in vivo and in vitro and as a result HIF-1α also improves tissue oxygenation in the absence of improved vascularization (Hirota and Semenza 2006; van Weel et al. 2004). In addition, hypoxia-induced calcium transients have been shown to induce myoglobin expression in mice (Kanatous et al. 2009). Besides facilitation of oxygen transport, oxyhemoglobin and myoglobin act as scavengers for NO (Brandish et al. 1998; Flogel et al. 2001). There is some debate on whether oxyhemoglobin and myoglobin can reduce NO levels partially or completely in vivo (Hazarika et al. 2008; Kreutzer and Jue 2004). However, since NO increases ROS scavenging and subsequent proteasome activity (Yu et al. 2008), it may be hypothesized that a higher oxyhemoglobin/myoglobin concentration is linked to an increased ROS-mediated protein degradation. If so, increasing myoglobin may increase the oxidative capacity, but it also stimulates protein degradation, which limits the fiber size at a constant rate of protein synthesis.

Alternative strategies for improving oxygen supply may include alteration of mitochondrial distribution, for example by relocating the mitochondria to the sarcolemma (Hardy et al. 2009). However, a predominantly subsarcolemmal distribution is associated with large intracellular diffusion distances for metabolites, which would have functional consequences (Kinsey et al. 2007) and may also be associated with pathological features such as muscle weakness and hypotonia (Reid and MacGowan 1998).

In conclusion, hypoxia results in elevated ROS levels and reduced cellular ATP levels, concomitant with an increased degradation and decreased synthesis of muscle protein. Although both ROS and antioxidant production differ between fiber types, the cumulative and relative effects of various ROS concentrations on the regulation of protein turnover in different fiber types are not clear yet. However, it appears that ROS do play a role in hypoxia-induced reduction in fiber size. In addition, it is likely that hypoxia affects fiber size via other fiber type-specific mechanisms that are induced by the low cellular energy status during hypoxia.


Ever since the classical training experiments of Hickson (1980), we know that human skeletal muscles have limited capacity to improve strength and fatigue resistance at the same time. This observation is valid for striated muscle tissue, in general, as an inverse relationship exists between muscle fiber size and its oxidative capacity (Fig. 1). This relationship suggests that striated muscle cells are evolved in such a way that anoxic cores are prevented. The central question addressed in this review is: ‘why do the high oxidative fibers remain small compared to the low oxidative fibers’?

At first sight it appears paradoxical that high oxidative fibers are relatively small, since these fibers have a larger capacity for protein synthesis compared to low oxidative fibers. All major components of the transcription machinery (i.e., satellite cells, myonuclei, mitochondria and mRNA) as well as total ribosomal RNA content are present in higher quantities in high oxidative fibers. This paradox may not be a quantitative one, as there is a discrepancy in mass of large myofibrillar proteins and much smaller oxidative proteins. However, another paradoxical outcome of this review is that IGF-I expression, a potent stimulator of myofibrillar protein synthesis and hypertrophy (Bodine et al. 2001b; Stitt et al. 2004), is also higher in high oxidative muscles, whereas myostatin, an endogenous inhibitor of muscle mass (Lee and McPherron 2001; Zimmers et al. 2002), shows higher expression in low oxidative muscles (Fig. 4).

Several critical stimuli, such as contractile activity, mechanical loading, cellular energy levels and hypoxia, control the activity status of signaling pathways involved in regulating fiber size in high and low oxidative fibers (Fig. 3). The rate of synthesis is largely regulated by the Akt–mTOR pathway, which induces hypertrophy in response to short contractions, mechanical loading and regulation and presence or absence of growth factors such as IGF-I and myostatin, respectively. In contrast, hypoxia and sustained contractile activity, associated with low cellular energy levels, activate Ca2+-calcineurin and AMPK. Both calcineurin and AMPK stimulate oxidative metabolism and slow-type gene expression through PGC-1α, while AMPK simultaneously attenuates protein synthesis by inhibiting mTOR, via activation of TSC-2. Akt activation has been shown to restore cellular energy levels via an increase in glycolysis and oxidative phosphorylation, thereby inactivating AMPK (Gottlob et al. 2001; Hahn-Windgassen et al. 2005). Therefore, the competitive interaction between Akt–mTOR and AMPK acts as a ‘switch’ that controls the synthesis of myofibrillar protein and metabolic protein (Fig. 3) (Atheron et al. 2005; Baar 2006). It has been shown that activation of TSC-2 by AMPK is dominant over Akt-induced inactivation of TSC-2 and leads to inactivation of mTOR (Inoki et al. 2003). This implies that the cellular energy status may be crucial in mediating either a low oxidative phenotype and a large size or a high oxidative phenotype and a small size. However, currently we do not know whether the ‘Akt–AMPK switch’ is sufficient to explain why high oxidative fibers show such limited hypertrophy, largely because mTOR can be activated independently of Akt and mTOR also appears to be required for the regulation of oxidative metabolism (Bentzinger et al. 2008; Cunningham et al. 2007; Fang et al. 2001; Hornberger et al. 2006). In addition, recent experiments on humans showed that, for example, training history and nutritional status (amino acid and carbohydrate ingestion) influence the molecular response to different types of contractile activity (resistance vs. endurance) (Coffey et al. 2006; Deldicque et al. 2008). To link various stimuli to the regulation of fiber size, one needs to know the relative contribution of each pathway involved in myofibrillar protein synthesis and mitochondrial biogenesis in different fiber types. The canonical Akt/mTOR–AMPK switch is merely a mechanism controlling the synthesis of myofibrillar and oxidative protein and may therefore only partly explain the relatively small size of the high oxidative fibers. As the balance between synthesis and degradation determines whether protein is gained or lost, the rate of protein degradation also largely contributes to regulating the fiber size.

Despite the still limited information regarding the regulation of protein degradation in different fiber types, experimental data in this paper show that several components of the degradation machinery (i.e., expression levels of ubiquitin-ligases MAFbx and MuRF, Fig. 2) are about twofold higher in high oxidative fibers. These data support the hypothesis that the high rate of protein degradation in high oxidative fibers is balanced by a high rate of synthesis, thereby creating a steady state protein turnover. However, if the rate of degradation becomes higher (e.g., due to low energy status or high ROS production), such as that in the more oxidative fibers, this would require an increasingly high rate of synthesis to maintain the steady state. Therefore, the relatively high rate of degradation in high oxidative fibers may be an important factor limiting the size of these fibers.

The rate of protein degradation is at least in part regulated by growth factor signaling. IGF-I and myostatin concentrations are differentially regulated in high and low oxidative fibers (Fig. 4), and in response to contractile activity their actions both have a hypertrophic effect. IGF-I stimulates, whereas myostatin inhibits, Akt (Fig. 3); therefore, it can be expected that phosphorylated Akt levels are higher in high oxidative fibers. The single study reporting on total and phosphorylated Akt concentrations in high and low oxidative muscles confirmed that both total and phosphorylated Akt were higher in the high oxidative soleus compared to the low oxidative EDL (Sakamoto et al. 2002). However, Akt phosphorylates FOXO, resulting in translocation of FOXO out of the nucleus and a decreased transcription of FOXO target genes, MAFbx and MuRF. Although there are no quantitative data available on total and phosphorylated FOXO protein concentrations, FOXO mRNA was shown to be higher in low oxidative muscles, when normalized to β-actin (Allen and Unterman 2007). Our data show that high oxidative soleus muscle contains two times more total RNA per microgram muscle tissue compared to the low oxidative EDL (Fig. 2a). We have shown that when normalized per muscle tissue weight, EDL shows twofold higher myostatin expression (Fig. 4b), indicating that myostatin mRNA is higher in low oxidative fibers. Myostatin has been shown to induce expression and nuclear accumulation of FOXO (McFarlane et al. 2006). As FOXO binds and activates the myostatin promoter, it functions in a feed-forward loop with myostatin (Allen and Unterman 2007). These data suggest that myostatin and nuclear FOXO concentrations are higher in the low oxidative fibers. As nuclear localization of FOXO enhances the expression of MAFbx and MuRF (Sandri et al. 2004), higher expression levels of these E3 ligases are expected in low oxidative fibers. We found that when normalized to total RNA, MAFbx and MuRF expression were similar in soleus and EDL muscles (Fig. 2b). However, as the soleus contains about twofold more total RNA compared to EDL, normalizing relative to muscle tissue weight showed that MAFbx and MuRF expression were both about twofold higher in the soleus (Fig. 2c). This indicates that the higher expression of E3 ligases in high oxidative fibers may be due to other signaling routes besides FOXO. The most likely candidates for such alternative routes are the AMPK–NF-κB pathway and the p38 MAPK–NF-κB pathway (Fig. 3). The relatively high levels of NF-κB expression in high oxidative muscles (Atherton et al. 2004; Phillips and Leeuwenburgh 2005) combined with higher expression levels of MAFbx and MuRF in high oxidative muscles (Fig. 2) support this hypothesis.

Considerable progress has been made in elucidating the signaling mechanisms and their interactions that control protein synthesis and degradation in skeletal muscle. In Fig. 5, these interactions are integrated into a model for the regulation of fiber size and oxidative metabolism. In general, sustained low-intensity activity results in a reduced cellular energy status (AMP:ATP), hypoxia, elevated [Ca2+]i and increased IGF-I expression, whereas short bursts of activity and at high-intensity mechanical loads induce transient changes in [Ca2+]i and increased expression of growth factors. These types of contractile activity will induce fiber type-specific signaling pathways that enhance the rates of protein synthesis and degradation, or both. The relative concentrations of structural muscle proteins or metabolic proteins largely depend on the interaction between pathways at the ‘Akt/mTOR–AMPK switch’ (Atheron et al. 2005; Baar 2006). In addition, the regulation of cellular oxygen and energy levels determine the impact of protein degradation on the rate of turnover. Conditions of hypoxia and low energy status induce ROS- and AMPK-mediated NF-κB activity. The subsequent increase in the rate of myofibrillar degradation limits fiber size, which facilitates the restoration of cellular energy status and oxygen tension and prevents hypoxia. In contrast, restoration of cellar energy levels attenuates AMPK activation and subsequently the rate of protein degradation and the capacity to sustain mitochondrial biogenesis and oxidative metabolism via AMPK–PGC1α. However, the oxidative metabolism is also increased by activation of mTOR, which has been related to the significant amounts of energy required for anabolic actions such as protein synthesis (Cunningham et al. 2007). Therefore, it appears that hypoxia and low cellular energy levels reduce the synthesis, while simultaneously increasing the degradation of muscle protein. In contrast, normoxic conditions and high cellular energy levels would facilitate hypertrophy by inducing protein synthesis and by limiting the rate of degradation.

Fig. 5
figure 5

Schematic diagram representing the regulation of muscle fiber size and oxidative metabolism. The type of contractile activity, ranging from sustained low-level activity to short high-level activity, combined with the cellular energy (AMP:ATP) and oxygen (ROS concentration) status determine the rate of synthesis and degradation of both contractile and metabolic protein. The balance between synthesis and degradation reflects the rate of protein turnover and determines whether contractile or metabolic protein is gained or lost, thereby regulating the fiber size. Solid lines are dominant processes in high oxidative fibers, whereas dashed lines are dominant in low oxidative fibers. The plus and minus signs reflect the effects of the different processes (e.g., synthesis, degradation, hypoxia) on fiber size and mitochondrial density (for details see text)

Currently, we are beginning to understand how different types of contractile activity and mechanical loading interact and affect the activation of pathways involved in protein synthesis and degradation. However, the relative contribution of the pathways in high and low oxidative fibers, the effect of nutritional status (e.g., amino acids and carbohydrates) and also the time frames of the responses that convert mechanical events at the sarcolemma onto the intracellular signaling structure are still poorly understood. In addition, it should be realized that an increase in muscle mRNA in response to activity or mechanical load does not necessarily induce` a higher protein production. The relationship between mRNA variation and protein synthesis should be determined systematically in response to various types of activity and mechanical loading: because it appears that timing of both the synthetic and proteolytic response are differently regulated, depending on the type of exercise and duration (Jensen et al. 2009). With this in mind, several potential mechanisms may account for the differences in up-regulation of gene and protein expression involved in the hypertrophic response that need to be confirmed. Growth factors show a delayed induction in response to changes in mechanical loading, whereas growth factor-independent mechanisms, such as signaling via integrin-FAK, Ca2+, amino acids, Vps34 and/or PLD, may be responsible for the early induction of protein synthesis. In our view, the potential mechanisms that can have a major effect on the fiber type-specific regulation of proteolytic factors in response to various types of exercise comprise the AMPK–NF-κB pathway, the p38 MAPK–NF-κB pathway and the Ca2+-mediated proteasome pathway. Understanding the fiber type and timing-related differences in protein synthesis and degradation requires an integrative approach, combining in vitro in situ as well as in vivo studies. Quantitative fiber type differentiating approaches obtain insight into interactions between pathways and the integrated effects of different loading programs and stimuli. For example, ex vivo culture systems of mature muscle fibers (Jaspers 2004; Jaspers et al. 2008) are well defined and can be used for controlled manipulation of growth factors, mechanical loading and oxygen tension, either independently or in combination. Such approaches may uncover interactions between signal transduction routes, which are to be verified in vivo. Furthermore, to assess fiber type-specific absolute total and phosphorylated concentrations of the major signaling molecules involved in muscle protein turnover, quantitative immunohistological methods or in situ hybridizations (van Beek-Harmsen et al. 2004; van Beek-Harmsen and van der Laarse 2005) are required. These methods allow the identification of the activity status of pathways inducing a high or low oxidative phenotype and clarify the impact of the pathways and stimuli on the muscle fiber size.

Perspectives and significance

It is a challenge to optimize training and rehabilitation programs with respect to the functional demands. To design the appropriate training and rehabilitation strategies, one needs to understand the interactions between signaling pathways for myofibrillar protein synthesis, mitochondrial biosynthesis and degradation. Understanding in what way oxygen supply (in terms of increased capillarization, hematocrit and expression of myoglobin) can be improved without compromising the capacity for force production is another challenge. For instance, when both high peak power and high steady state power are required, such as in the final sprint of a cycling stage or a marathon, one would need to design a training strategy inducing large fibers with high capacity for oxygen transport to sustain a high steady state power, as well as large glycogen stores to maintain a high anaerobic power during the sprint. To maintain a certain size, cellular oxygen tension and ROS must be kept within a critical range of beneficial concentrations and cellular energy levels may not be reduced. A small disturbance in oxygen or energy levels, either up or downward, by contractile activity or hypertrophy, will result in adaptation of the fiber size and the oxidative metabolism. Whether a muscle fiber is actually capable of increasing its size and becoming stronger while maintaining endurance capacity depends primarily on: (1) the application of appropriate stimuli (i.e., sustained contractile activity combined with short, powerful mechanical loading) and availability of the machinery and essential substrates (e.g., amino acids) to maintain the rate of muscle protein synthesis; (2) the capacity to increase oxygen transport (e.g., by improving heart and lung function or angiogenesis, hematocrit and myoglobin); and (3) prevention of tissue hypoxia and chronically reduced cellular energy status. For patients suffering from chronic diseases, such as heart failure and COPD, or for sportsmen and women exploring their physical limits, it implies that one must know the status of the above-mentioned determinants to develop an appropriate strategy to improve their performance. Furthermore, quantitative information and sophisticated mathematical models are required to predict the outcome of manipulations of interacting signal transduction routes.
