Abstract
The study deals with a large sand body (spit-bar) attached to the eastern tip of the Robberg Peninsula, Plettenberg Bay, South Africa. To date, the bar has prograded about 8 km beyond the tip of the peninsula. The bar top is predominantly composed of medium sand, the upper slope of fine sand, and the lower slope of fine muddy sand. Stratigraphically, the sedimentology thus documents an upward coarsening, calcareous quartz-arenitic depositional sequence. The spit-bar as a whole forms the eastern end of a sediment compartment that is clearly distinguishable from neighbouring compartments on the basis of its geomorphology, the textural characteristics of the sediment, and the distribution of sediment thicknesses. Aeolian overpass across the peninsula appears to have formed a fan-like sand deposit in its rear, which is perched upon the upper shoreface of the bay as suggested by the bathymetry to the north of the peninsula. It forms an integral part of the sediment body defining the spit-bar. The estimated volume of sand stored in the spit-bar amounts to 5.815 km3, of which 0.22 km3 is contributed by the aeolian overpass sand. The sediment sources of the spit-bar are located up to 100 km to the west, where a number of small rivers supply limited amounts of sediment to the sea and numerous coastal aeolianite ridges in the Wilderness embayment have been subject to erosion after becoming drowned in the course of the postglacial sea-level rise since about 12 ky BP. By contrast, the sediment volume in the adjacent compartment B to the north (Plettenberg Bay), which has been supplied by local rivers, amounts to only 0.127 km3. In a geological context, large sand bodies such as the Robberg spit-bar are excellent exploration models for hydrocarbons (oil and gas).
Similar content being viewed by others
Avoid common mistakes on your manuscript.
Introduction
Headland-attached sand bodies are commonly associated with wind- and swell-driven currents that move sand alongshore until an obstacle, usually in the form of a rocky headland, either prevents or inhibits further transport. In cases where further transport is prevented, all the sediment becomes trapped in large sand bodies attached to the headlands, whereas in others, some of the sand manages to bypass or overpass (by aeolian transport) the headland to continue the alongshore journey. Well-documented case studies are, amongst others, known from Australia (e.g. Field and Roy 1984; Ferland 1990; Roy et al. 1994; Goodwin et al. 2013), South Africa (e.g. Birch 1980; Martin and Flemming 1986; McLachlan et al. 1994; Flemming 1998), Brazil (e.g. Mendoza et al. 2014; Vieira da Silva et al. 2016, 2018), and California (e.g. George et al. 2018). General overviews and modelling studies of headland bypassing and overpassing processes have been provided by Guillou and Chapalain (2011), Ribeiro (2017), Short (2020), and Klein et al. (2020). Such headland-attached sand bodies have to be carefully distinguished from the so-called banner banks (term coined by Cornish 1914), which are headland-detached sand bodies controlled by strong bi-directional tidal currents (e.g. Pingree and Griffiths 1979; Johnson et al. 1982; Signell and Harris 2000; Bastos et al. 2002, 2003; Duffy et al. 2004; Duffy 2006; Li et al. 2014).
Alongshore-transported sediments that are trapped at rocky headlands often form boundaries of the so-called coastal sediment compartments (e.g. Davies 1974; Bray et al. 1995; George et al. 2015; Thom et al. 2018; Goodwin et al. 2020). Several such subaqueous, headland-attached sand-spits have been identified along the south coast of South Africa (Birch 1980; Flemming 1998). The present study deals with the largest of these, where alongshore sediment transport has resulted in the deposition of a huge subaqueous sand body that has prograded up to 8 km beyond Cape Seal, the eastern tip of the Robberg Peninsula, Plettenberg Bay, South Africa (Fig. 1). The investigation formed part of the multidisciplinary Agulhas Bank Studies programme of the former National Research Institute for Oceanology (CSIR), Stellenbosch, South Africa (cf. Schumann et al. 1982a). By integrating oceanographic, marine biological, geological, and geochemical investigations, the study aimed at gaining more comprehensive insights into this region. The main focus of the geoscience sub-programme was to investigate the inner shelf between Mossel Bay and Plettenberg Bay (Fig. 1) by means of detailed sedimentological and geophysical surveys.
The specific aim of this presentation is to provide a comprehensive overview on the topography and shape of the Robberg sand-spit, its surficial sediment composition in relation to the surrounding seabed, its boundaries to other sediment compartments, and the volume of sediment stored in the spit and the adjacent sediment compartment to the north. Furthermore, because of the extraordinary size of sand bodies like the Robberg spit-bar, they are primary targets in the exploration for hydrocarbons (gas, oil).
Physical setting
Geomorphology and geology
The coastline of the study area is dominated by the headland-bay system defined by the Robberg Peninsula (Fig. 1). The peninsula is about 4 km long and rises up to ~ 140 m above sea level. Although the official name of the embayment is Formosa Bay, it is generally referred to as Plettenberg Bay, the name of the town on its shore. The bathymetry of the area clearly outlines the massive submarine sand body (Robberg spit-bar) that extends for more than 8 km to the east from Cape Seal, which represents the eastern tip of the peninsula. The spit-bar reaches a maximum N–S width of ~ 5 km. Within the bay, the seabed slopes rather gently at an average gradient of 1:160 (~ 0.36°), whereas south of the Robberg Peninsula, it steepens to 1:33 (~ 1.74°), and along the SE slope of the spit-bar to as much as 1:13 (~ 4.4°). The slope gradient between the 100- and 150-m isobaths of the Agulhas Bank proper, by contrast, is only about 1:1000 (~ 0.06°).
The onland bedrock geology is predominantly composed of sandstones and quartzites belonging to various formations of the Cape Supergroup (Ordovician) (e.g. Toerien 1976; Carr et al. 2019; cf. also Flemming and Martin 2018), which are locally overlain by conglomerates of the Enon Formation (Late Jurassic–Early Cretaceous) (e.g. Muir et al. 2017). Morphologically, the most prominent is the raised coastal platform which, at the coast, rises steeply from sea level to elevations > 100 m. It fronts the Outeniqua Mountain range that rises to over 1000 m some 20 km inland from Nature’s Valley or 35 km from the Robberg Peninsula (cf. Figure 1 for orientation). Local rivers are deeply incised into this coastal platform, their catchment areas being relatively small due to the proximity of the mountain watershed.
Within Plettenberg Bay, and up to ~ 5 km south from Nature’s Valley, the offshore basement geology consists of Ordovician rocks belonging to the Cape Supergroup. Seaward from there, the basement is composed of strongly folded and block-faulted (horst and graben structures) Upper Cretaceous rocks (Dingle et al. 1983). The transition from Mesozoic to Tertiary (Palaeogene) basement is located about ~ 22 km south of the Robberg Peninsula (Dingle 1971). The surface of the Mesozoic and Tertiary sequences forming the Agulhas Bank proper has been bevelled in the course of numerous subsequent regression/transgression cycles to define the so-called Palaeo-Agulhas Plain (e.g. Cawthra et al. 2019). Whereas incised Palaeo-river valleys on the Agulhas Bank proper were backfilled by fluvial sediments in the course of the Holocene transgression (Dingle and Rogers 1972; Cawthra et al. 2020), the areas between such valleys, up to the onset of the nearshore sediment prism, are mantled by a thin veneer of relict sediment (Rogers 1971; Birch 1980).
An enigmatic geological feature is the so-called Island, a carbonate-cemented aeolianite outcrop, located just south of the central part of the Robber Peninsula (Fig. 1), and which is linked to the peninsula by a sandy tombolo. Optical luminescence dates by Carr et al. (2019) have revealed that the aeolian deposit originally formed in two phases, one from 60 to 45 ka BP, the other from 35 to 30 ka BP. The onset of eroded sands from the aeolianite being blown onto (and hence also across) the peninsula was dated at 10.2 ka BP. Sea level at that time stood about 25 m below the present level (Cooper et al. 2018). It must therefore be anticipated that, from this time onward, sand was being blown across the peninsula to bypass the Cape Seal headland. Notable is that the aeolian sandstream crossing the peninsula is northeast aligned and thus controlled by south-westerly winds (Hellström and Lubke 1993).
Climatology and oceanography
The south coast roughly between Cape Agulhas and East London lies in the year-round rainfall corridor wedged between the winter rainfall region of the Western Cape and the summer rainfall region of the Eastern Cape and continental interior (e.g. Tyson and Preston-Whyte 2000; Chase and Meadows 2007; Truc et al. 2013). Throughout the year, the south coast is dominated by strong south-westerly winds which frequently reach velocities well in excess of 22 knots (40 km/h; cf. Hellström and Lubke 1993). Secondary winds of lower frequency blow from the SE quadrant, while easterly winds are much more infrequent.
As in the case of the wind, the wave climate of the south coast is dominated by ocean swells propagating from the south-western quadrant (e.g. Schumann et al. 1982b). The wave climate on the Agulhas Bank is characterised by periods of 5–14 s, with 10–12 s as the most frequent periods, and average significant wave heights of 2.7–3.0 m (Rossouw 1989; Joubert and van Niekerk 2013). Due to the concurring directions of the dominant winds and ocean swells, locally generated, shorter period wind waves (5–7 s) are often superimposed on the longer period swells (8–14 s), thereby considerably enhancing overall wave power.
The tidal range in Plettenberg Bay reaches almost 2 m at spring tide (Heydorn and Tinley 1980; cf. also Schumann et al. 1982b). As the tidal wave approaches the coast at almost right angles, the tidal current in the open bay is relatively weak. Wave- and wind-driven currents along the coastline up to and past Cape Seal, by contrast, are occasionally strong enough to generate small dunes in the medium-grained sands of the spit-bar, as revealed by eastward dipping crossbeds in box cores (Flemming et al. 1983b). Also prominent are occasional upwelling events off the Robberg Peninsula which are associated with strong easterly wind events (Schumann et al. 1982a).
Materials and methods
Sedimentology

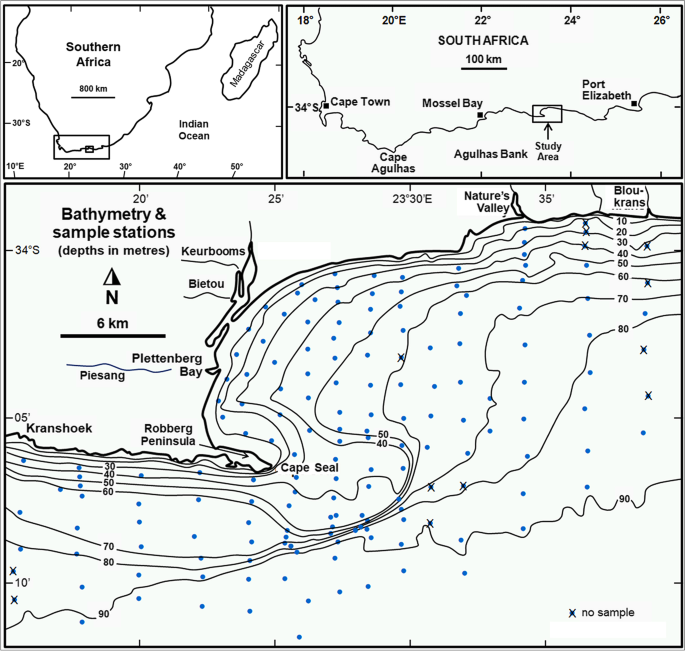

Sediment distribution patterns in the study area were reconstructed on the basis of 146 samples collected in 1982 by means of a Shipek grab sampler (Fig. 1). Sampling positions were fixed by DECCA or radar distance/angle measurements to prominent coastal features (e.g. headlands) and then transferred to a nautical chart. A map showing the numbered sampling stations and their geographic positions can be found in the Electronic Supplementary Material (ESM Table S1). The moist sediment samples were stored in sealed plastic containers.
In the laboratory, the samples were washed through a 63-micron sieve into a bowl using as little fresh water as possible. The turbid water thus generated was decanted into large containers, the procedure being repeated several times until the remaining supernatant water was clear. The containers were left standing undisturbed for several days until the suspended mud had settled out completely. The water was then siphoned off and the settled mud emptied into pre-weighed porcelain bowls, which were placed overnight into an oven for drying at 50 °C. After drying the bowls with the mud were again weighed, the difference in weight being equated to the mud mass. The clean coarse fractions were similarly dried and weighed. The gravel fractions were then separated from the sand by dry sieving through a 2-mm sieve and both fractions thereafter weighed. The corresponding masses of all three fractions (gravel, sand, mud) were in each case added together and expressed as percentages of the total mass.
Grain-size distributions of the sand fractions were determined by settling tube (cf. Flemming and Thum 1978), whereby settling velocities were converted to equivalent settling diameters at 0.1-phi size intervals by application of a computer algorithm based on the experimental results of Gibbs et al. (1971). Textural parameters were calculated by both percentile and moment statistics (cf. ESM Table S2). The maps showing sediment distribution patterns were generated by manual contouring.
Carbonate contents were determined on pre-weighed sand subsamples by treatment with hydrochloric acid, before being washed, dried, and weighed. The difference in weight was equated to the carbonate content, which was then expressed as a weight-percentage. Although the least accurate of several methods for carbonate determination (e.g. Carver 1971), it was considered adequate for the purpose of this study.
Identification of hydraulic populations and progressive mixing between neighbouring populations are based on the pattern originally recognised by Folk and Ward (1957) and later applied by, for example, Folk and Robles (1964) and Flemming (1988, 2015). Mixing trends in the present study were identified on the basis of the relation between mean diameter and sorting. Mixing between two hydraulic populations typically has the form of an inverted v-shaped progression when plotting mean diameter against sorting, whereby the parent populations are normally well-sorted. The sorting then progressively decreases up to the point of equal mixing (e.g. Folk and Ward 1957). Relative sorting (QH) is a dimensionless number value generated by normalizing the grain-size dependence of optimal sorting (also known as elementary sorting QDe) of a sample to unity (QH = 1). This is achieved by dividing the standard deviation (QD) of a grain-size distribution by the elementary sorting of that distribution (QDe) such that QD/QDe = QH (cf. Walger 1962). Flemming (2015) has subsequently shown that elementary sorting values can be as low as QDe = 0.5. The phi-fractions of the sand component are addressed in terms of the Wentworth (1922) classification. The compositional and textural parameters of all samples are listed in ESM Tables S1 and S2.
Geophysics

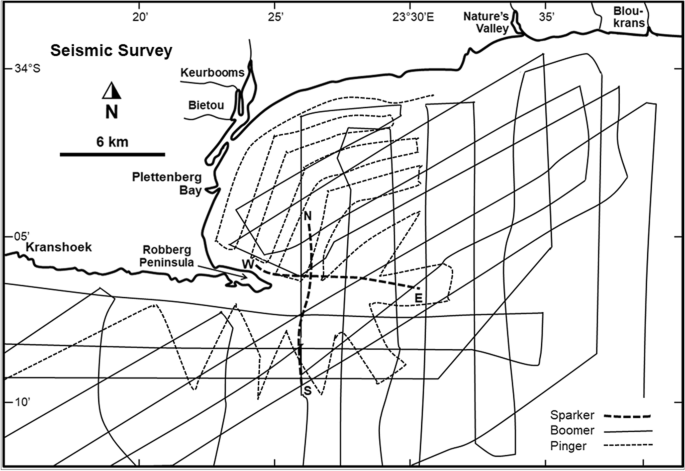

Detailed seismic boomer and pinger surveys were carried out in 1982 (boomer) and 1983 (pinger) (Fig. 2). For navigational security reasons, a safety margin of at least 1 km from the coast was maintained throughout the surveys. Positions were fixed at 15-min intervals by the same procedure as outlined in the sedimentology subsection above. Data acquisition made use of sound sources fed by an EG&G power supply at energy discharges of 100–300 J in the case of the boomer and 50 J in the case of the pinger. The return signals were recorded via an 8-element hydrophone array and processed by a receiver unit with bandpass filter settings of 2500–5000 Hz (boomer) and 4500–6500 Hz (pinger), before being printed on an EPC graphic recorder. The two crossing N–S and W–E sparker profiles (Fig. 2) were extracted from an earlier regional seismic survey (Martin and Flemming 1986). In the absence of precise acoustic velocity data on the local unconsolidated sediment, a factor of 0.8 was used to convert travel time of the seismic signal within the sediment from milliseconds to sediment thickness in metres. This corresponds to a two-way travel time of 1600 m/s. The boomer typically achieved penetrations below the seabed of just over 60 m, the pinger up to 20 m, and the sparker > 100 m. The sparker profiles were selected for illustration because only these reveal the internal sedimentary architecture of the Holocene deposits (Fig. 3a). In the boomer profiles, by contrast, the unconsolidated Holocene sediments are essentially transparent in spite of the seismic signal penetrating down to the rocky basement (Fig. 3b).
On the basis of the seismic surveys, a sediment thickness map was generated by manually interpolating between the closely spaced survey lines (Fig. 2). Based on this, sediment volumes (in m3) were determined by overlaying the map with a 500 × 500-m grid and multiplying the surface area of each cell (250,000 m2) with the sediment thickness estimated for the centre point of that cell. The total number of cells amounted to 1232, which corresponds to an area of 308 km2.
Results
Sedimentology

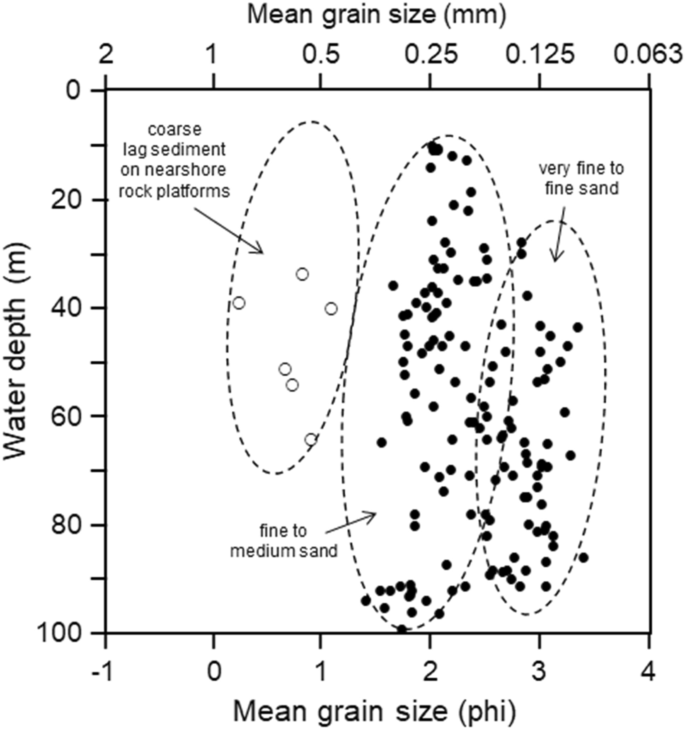

The relationship between mean grain size and water depth is illustrated in Fig. 4. The diagram reveals three sample groups comprised of coarse lag sediments associated with rock outcrops occurring at water depths up to 65 m (NB: rock platforms at water depths shallower than 30 m were not sampled), a medium- to fine-grained sample group spanning water depths from 10–100 m, and an overlapping fine- to very-fine-grained sample group covering water depths from 30–92 m.

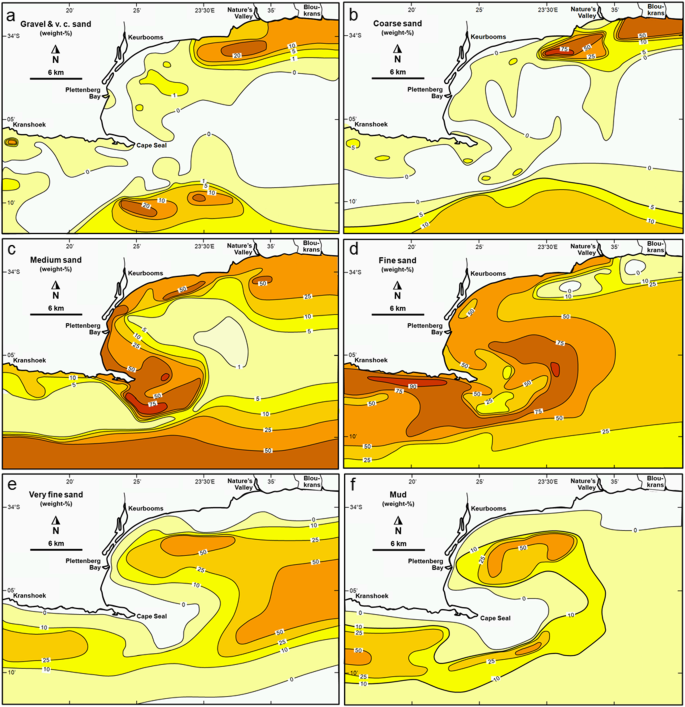

The distribution patterns of individual full-phi size fractions present a remarkably clear picture (Fig. 5). Particularly noteworthy is the partitioning between the gravel + very coarse sand, coarse sand, and medium sand fractions (Fig. 5a–c), on the one hand, and the fine sand, very fine sand, and mud fractions (Fig. 5d–f), on the other. This suggests that the sediments are overall dominated by coarse-grained parent populations on the one side, and fine-grained ones on the other, individual populations overlapping to various degrees in particular areas. Also notable is that the water depth of the ‘mud belt’ seaward of the spit, which is wrapped around the base of the sand-spit and is composed of muddy fine sand (Fig. 5f), occupies a depth range of about 60–90 m, whereas the separate mud depocentre within the bay has a depth range of about 35–65 m. This is a clear reflection of the progressively decreasing wave energy at the seabed towards the rear of the spit. The spatial separation of the depocentres also suggests that the muds have different sources. Thus, the mud forming the belt seaward of the spit must obviously have its source to the west of the study area, whereas the mud within the bay is most likely supplied by the Piesang/Bietou/Keurbooms river system which discharges into the bay (cf. Figure 1). Stratigraphically, the spit-bar thus represents an upward coarsening sediment sequence, ranging from muddy fine sand at the bottom, followed by fine sand that grades into medium sand towards the top.
Based on the bathymetry and the distribution maps of the various sedimentary facies, the study area can be tentatively divided into four sedimentary compartments (A, B, C, D) that are separated by quite distinct boundaries (Fig. 6). Thus, compartment A is composed of sediment transported into the study area from the west, the main sources probably being the coastal aeolianites in the Wilderness embayment (Birch et al. 1978; Flemming et al. 1983a; Cawthra et al. 2014), nearshore bioclastic sediment production, and a fluvial input from small rivers. Compartment B is composed of sediment supplied by the Piesang/Bietou/Keurbooms river system. Compartment C, in turn, defines the Tsitsikamma coastal shelf which receives its sediment essentially from the adjacent hinterland (cf. Flemming and Martin 2018). The seabed of compartment D, which borders on compartments A and C along their offshore boundaries, is composed of relict (i.e. palimpsest) sediments related to the drowned ‘Palaeo-Agulhas Plain’ as defined by Cawthra et al. (2019). The nearshore Holocene sediment prisms of compartments A, B, and C are superimposed on this former Pleistocene land surface.

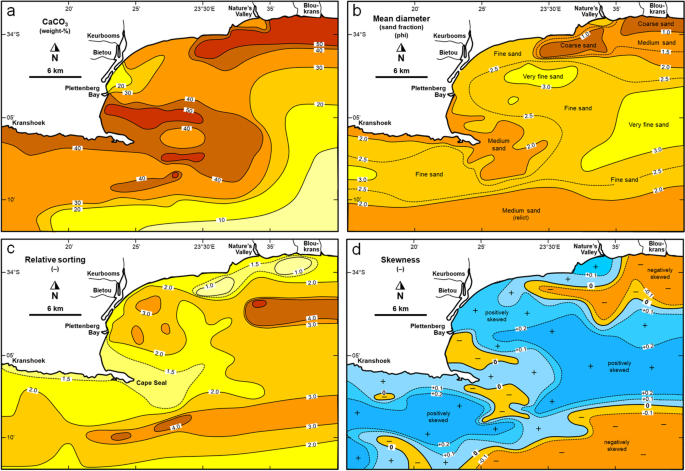

The distribution of carbonate contents (CaCO3), mean diameters, relative sorting, and skewness are illustrated in Fig. 7a–d, respectively. Of these parameters, the mean diameter map (Fig. 7b) reflects the average local sediment composition and is inherently compatible with the compartmentalised subdivision. The skewness map (Fig. 7d), by contrast, highlights the coarser-grained fractions as being predominantly negatively skewed and the finer-grained fractions as being predominantly positively skewed, irrespective of where they occur. Sorting (Fig. 7c), in turn, reflects the degree of mixing/unmixing between coarser-grained and finer-grained populations, progressively poorer sorting generally indicating increasing mixing. The least correlation with any of the sediment facies and textural parameters is observed in the spatial distribution of CaCO3 (Fig. 7a), especially in the central part of the study area. The only exception is the north-eastern nearshore zone which is dominated by lag deposits on rock platforms exposed on the seabed which comprise variable mixtures of siliciclastic and bioclastic coarse-grained sediments.

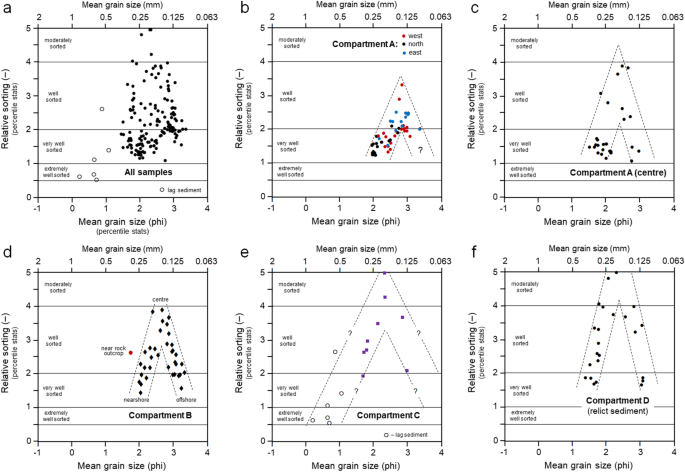

Mixing processes between hydraulic populations are best identified in scatter plots between individual textural parameters, particularly mean grain size vs sorting. When plotting the corresponding parameters of all samples together, the diagram presents a rather complex picture (Fig. 8a). This suggests that potential mixing progressions in different areas have been superimposed on each other, as a result of which individual trends are obscured. To disentangle these, the data were plotted separately for each sediment compartment (Fig. 8b–f). Of these, the mixing trends of sub-compartments A-west, A-north, and A-east were found to be so similar that the data were pooled in a single diagram (Fig. 8b). These are composed of fine-very fine sand, with a well-defined medium-fine sand parent population. Of interest here is that the very-fine-sand population only occurs in mixed form, i.e. it lacks its own spatially defined depocentre within compartment A. This can be explained by the fact that the main source of the sediment in compartment A is in all likelihood the aeolianites in the Wilderness embayment, which are predominantly composed of fine-medium sand. The trend in compartment A-centre, by contrast, differs markedly from the other sub-compartments (Fig. 8c). It is dominated by medium sand (up to 75%) which occupies the wave-swept top of the spit-bar (cf. Figure 5c), and where it is mixed with some fine sand towards the northern edge of the sub-compartment.
The clearest mixing progression, involving a fine-sand and a very-fine-sand population, is seen in the plot of compartment B (Fig. 8d). This compartment is wedged between compartments A and C, the latter having previously been identified as a self-contained compartment (Flemming and Martin 2018). The fine-sand population occupies the shallow-water region off the Bietou/Keurbooms river mouth, whereas the very-fine-sand population dominates the deeper offshore region of that compartment, the two overlapping in the area in between to present the image of a complete mixing progression. The available data provides no evidence for substantial mixing across the boundary between compartments A and B. Although one would expect such boundary mixing to occur, it seems to be spatially so restricted that, in order to be recognised, it would require very closely spaced sampling across the boundary.
The boundary between compartments B and C mostly borders on rock platforms which prevent (or strongly inhibit) mixing in that direction. This is highlighted by the mixing pattern observed in compartment C (Fig. 8e) which clearly bears no resemblance to that in compartment B. The same applies to compartment D (Fig. 8f) which, as pointed out above, is dominated by medium- to coarse-grained relict sediments (Rogers 1971; Birch 1980) and a very-fine-sand drape near its boundary to compartments A and C. This suggests that much of the very-fine-sand population, which was found to be in short supply in compartment A, has been carried eastward across the compartment boundary into compartment D, an interpretation that is supported by the distribution map of very fine sand (Fig. 5e).
Geophysics
Although the seismic energy of the boomer was sufficient to penetrate the greatest thickness of the spit-bar (~ 65 m) down to the Cretaceous bedrock, the sediment body remained essentially transparent. In order to visualise the depositional style, two sparker profiles were extracted from an earlier survey (Martin and Flemming 1986). The two profiles cross each other more or less at right angles (cf. Figure 2), one being oriented N–S (Fig. 9), the other W–E (Fig. 10).
A particular feature of the sparker records is that the internal master bedding reveals a marked change in depositional style more or less in the middle of the sand body. It can be recognised by a distinct unconformity that divides the deposit into two major units. The lower unit is characterised by more or less conformable, low-angle clinoforms, whereas the upper unit appears more chaotic, displaying clinoforms which, in the N–S profile, dip more steeply towards the edges of the spit-bar, both northwards and southwards (Fig. 9), but more uniformly eastwards in the longitudinal profile (Fig. 10). As already indicated by the bathymetry (cf. Figure 1), the spit-bar spreads out in all directions once it clears the tip of the Robberg Peninsula (Cape Seal). In both profiles, the clinoforms steepen towards the outer edges, in particular on the southern and eastern sides of the spit-bar where the slope gradient locally attains 4.4°.
The longitudinal sparker profile commences to the north of the Robberg Peninsula (cf. Figure 2), where it shows eastward dipping clinoforms downlapping in fan-like fashion onto successive beds of the upper unit (Fig. 10). The downlapping clinoforms evidently belong to a fan produced by the deposition of sediment supplied by aeolian overpass from the seaward side of the Robberg Peninsula. The boundary of this fan is morphologically well-defined by the change in isobath orientation within the bay from north–south to west–east (Fig. 11). The fan is apparently in part perched upon upper shoreface sediments of the bay.

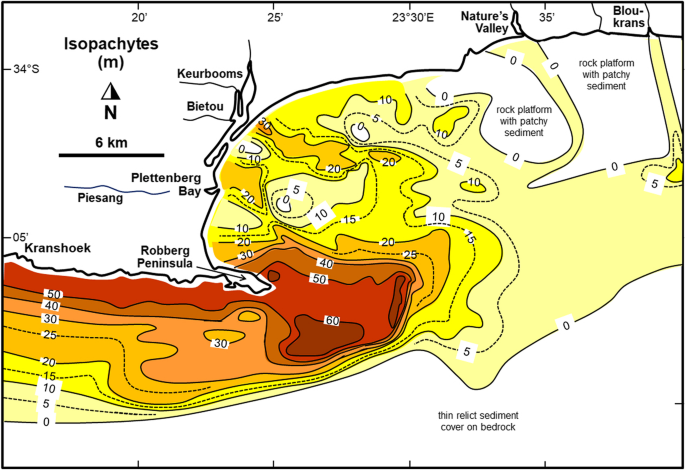

The sediment thickness map in Fig. 12 was used to estimate the sediment volumes stored in compartments A and B. As pointed out in the “Materials and methods” section, total sediment volumes were determined by adding together the volumes of the 725 cells in the case of compartment A (Table 1), and those of the 520 cells in the case of compartment B (Table 2), each cell measuring 500 × 500 m, the surface area thus amounting to 250,000 m2. In this way, the total sediment volume for compartment A was estimated at 5.815 km3, and that for compartment B at 0.127 km3. The distribution pattern of sediment thicknesses by and large lends further support to the correct choice of the boundaries for the proposed sediment compartments. Although the northern boundary is less clearly defined by sediment thicknesses, it must be remembered that the aeolian overpass fan pinches out in all directions. The bathymetry, on the other hand, is very clear in this respect.
Discussion
Sedimentological aspects
Previous studies of headland-attached sand bodies essentially focussed on their morphology, thickness, and associated bypass/overpass processes (cf. Klein et al. 2020, for an overview). However, only a few of these also considered adjacent sediment compartments or were accompanied by such detailed sediment data as presented in the present study. Thus, Cascalho et al. 2014) and McCarroll et al. (2018) observed grain-size sorting in the course of aeolian overpass processes, where the blowout material from the beaches became finer with distance and elevation above sea level. This was partly also associated with particle density sorting (Cascalho et al. 2016; Ribeiro 2017). In the present case, overpassing was (is) not associated with additional grain-size sorting as the aeolian source material was already optimally sorted.
While most previous studies also identified sediment bypassing processes, the data presented in this study does not favour such a mechanism. First of all, the fairly flat top of the spit-bar lies at a depth of around 35 m below sea level and is composed of well-sorted medium sand with mean grain sizes in the range of 1.5–2.0 phi (0.35–0.25 mm). The regional wave climate is evidently responsible for limiting the vertical accretion of the bar, which implies that grain sizes finer than those forming the top of the bar are transported across the bar to be deposited in deeper water on its down-current slopes. This is in agreement with the sediment maps of Fig. 5c, d and Fig. 7b. Hydrodynamic considerations support this interpretation. The wave climate on the Agulhas Bank is dominated by waves of 10–12-s periods and significant heights of ~ 2.5 m, which reach occurrence frequencies of around 30% and 25%, respectively (Rossouw 1989; MacHutchon 2006).
As the waves generally approach the coast from the SW, i.e. oblique to the W–E-aligned coastline of the study area, this generates an eastward directed alongshore current. The wave-induced maximum orbital velocity as a function of the dominant wave period and wave height at a depth of 35 m is ~ 33 cm/s. The wave-induced threshold velocity for 12-s waves at that water depth and a grain size of 0.3 mm (~ 1.74 phi) is ~ 23 cm/s (cf. Clifton 1976; Flemming 2005, and ESM Table 3). This means that the near-bed orbital velocity at the bar top exceeds the threshold velocity by at least 10 cm/s which, augmented by an alongshore current of variable speed, is sufficient to generate wave- and current-generated ripples, and occasionally even small dunes, in the medium-grained sand (Flemming et al. 1983b). At the same time, finer-grained sediment is lifted into intermittent suspension by the passing waves to be progressively displaced eastwards by the longshore current. Upon reaching the edges of the bar, the current velocity reduces sharply due to flow expansion over deeper water and thereby causes the suspended finer-grained sands and mud aggregates to be deposited in deeper water along the lower slope. In this process, some of the very fine sand and mud may be transported across the eastern boundary of compartment A, mainly into compartment D.
Furthermore, due to the water depth at the bar top (35 m), it is inconceivable that sediment is transported around Cape Seal and upward to the beach of the bay. On the contrary, even the aeolian overpass fan, the top of which reaches water depths just under 10 m (Fig. 11), is morphologically so well-defined that, if at all, only very minor amounts of sand will be transported to the beach from that depth to continue its journey northwards along the coast. To test this, the equation of Hallermeier (1978, 1981; cf. also Hamon-Kerivel et al. 2020) for the calculation of closure depth was applied, i.e. the depth for offshore/onshore transport of sediment on the most active part of the shoreface:
where dcl is the closure depth, H is the significant wave height, T the significant wave period, and g the gravitational acceleration. Using the most frequent offshore wave periods for the Plettenberg Bay region (10, 11, and 12 s), and using an unrealistic wave height of 5 m in each case, the corresponding closure depths would be 9.65, 10.2, and 10.5 m. For a more realistic significant storm wave height of 3 m in the rear of the peninsula, the corresponding closure depths would be 6.2, 6.4, and 6.5 m. As the amount of sediment mobilised in this zone decreases exponentially with depth, any material exchange beyond the closure depth becomes insignificant. These results are in good agreement with other recent studies (e.g. Hamon-Kerivel et al. 2020; McCarroll et al. 2021). On account of these considerations, it is discounted that a tangible amount of sediment can bypass the Robberg Peninsula in the form of alongshore transport on the upper shoreface.
Geophysical aspects
Robberg spit-bar

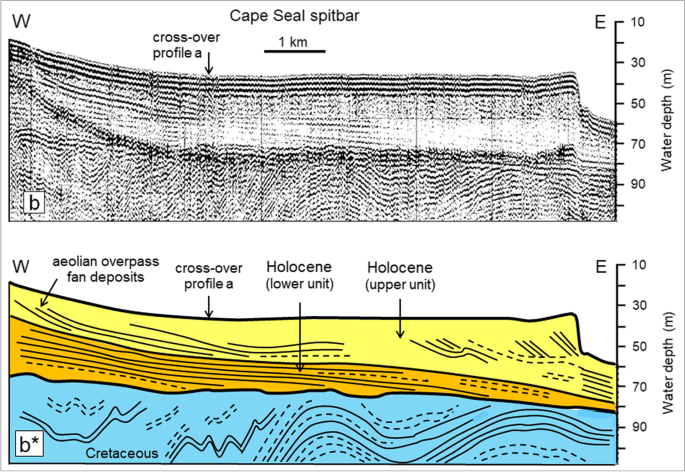

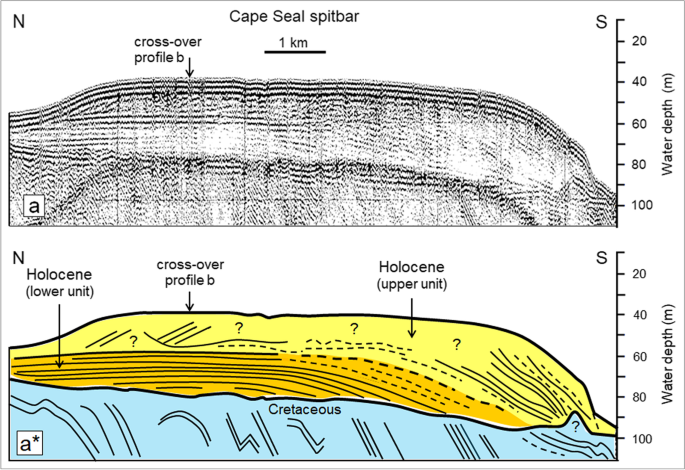

In the seismic cross-sections of Figs. 9 and 10, a marked internal reflector at a depth of about 60 m below the present sea level reveals a distinct change in the depositional style from gradual vertical accretion and progradation (low-gradient clinoforms) to accelerated progradation (more steeply dipping clinoforms). Important to note here is that the two units are not separated by an erosion surface that would be indicative of a time gap. Instead, deposition continued uninterrupted, but with a change in depositional style, which is interpreted as reflecting an increase in sediment supply from the western sources, especially the aeolianites off the Wilderness coast. This would have occurred when sea level stood about 40 m below the present. According to the sea-level curve of Cooper et al. (2018), this would correspond to the end phase of the so-called sea-level slowstand of Pretorius et al. (2016) at about 10.6 ka BP, when sea level rose by ~ 1 m/200 years (cf. also de Lecea et al. 2017; Cooper et al. 2018). Up to that depth only, a small part of the coastal aeolianites occupying the Wilderness embayment was exposed to wave erosion (Martin and Flemming 1986). Shortly after this time marker, the sea-level rise accelerated more than fivefold to ~ 5.7 m/200 years until ~ 10 ka BP, in the course rapidly inundating a much larger part of the coastal aeolianites. The inferred increase in erosion and longshore sediment transport resulted in more rapid progradation and accretion of the spit-bar, which would explain the change in sedimentation style observed in the seismic profiles. According to Carr et al. (2019), aeolian sand overpassing the Robberg Peninsula commenced about 10.2 ka BP and up to the present resulted in the accretion of ~ 0.22 km3 of sand in the perched fan in its rear. The overpass fan is considered to form part of sediment compartment A because its source is also located west of Cape Seal. Together with the spit-bar proper, the overall volume of compartment A amounts to almost 6 km3 of sediment.
Shelf facies models and hydrocarbon exploration
A sedimentary facies has been defined as a body of sediments or sedimentary rock with specific petrophysical properties (geometric shape, sedimentary units, composition and texture of sediments, fossils) which may be distinguished from other sedimentary units based on these properties (e.g. Reading 1978; 1981; Swift and Thorne 1991; Selley 1995; Miall 1999; Swift et al. 1991). A facies is considered to be the response to processes in a specific environment, whether alluvial/fluvial, coastal, shelf, or deep water. Over and above academic interest, mapping the distribution of facies within sedimentary sequences is important in oil and gas exploration, and in the data-loading of geocellular models of producing oil and gas fields.
Continental shelves are affected by sea-level change, and shelf deposits are volumetrically most associated with highstand and transgressive systems tracts (Suter 2006) in seismic and sequence stratigraphic models (Vail et al. 1977; Hart et al. 2017). This is true also of the case considered here, where internal chronostratigraphic data on the Robberg spit-bar is lacking to prove that it is entirely a Holocene depositional product. Three basic models for shelf sediments exist: storm-dominated (Swift and Thorne 1991; Swift et al. 1991), tide-dominated (Dyer and Huntley 1999; Bastos et al. 2003; Li et al. 2014) or geostrophic current-dominated (Flemming 1978; Martin and Flemming 1986; Green et al., this issue), with modern continental shelves being ~ 80% storm-dominated, ~ 17% tide-dominated, and ~ 3% geostrophic current-dominated (Swift 1972).
The Robberg spit-bar lies in a high-energy storm-dominated region, as noted here in the section on climatology and oceanography, and with the Agulhas Current hugging the shelf/slope interface almost 100 km to the south. The feature (Fig. 12) comprises a large volume of medium-to-very-fine sand (Figs. 5 and 7). Sediment distribution supported by seismic images (Figs. 9 and 10) suggests a prograding upwardly coarsening sand body, attached to an older rocky headland, rather than merely associated with headlands as in the case of banner banks (e.g. Dyer and Huntley 1999). Prominent depositional features such as the Robberg spit-bar therefore need to be considered in shelf facies models, and shelf oil exploration models, in particular (Nyberg and Howell 2016).
Conclusions
The findings of this study allow the following main conclusions to be drawn:
-
The study area can be divided into four compartments with little evidence for sediment exchange between them.
-
The most prominent feature is a huge, headland-attached spit-bar which, stratigraphically, is composed of an upward coarsening sediment sequence that ranges from muddy fine sand at the bottom, through fine sand in the middle, to medium sand at the top.
-
The sediment volume in the spit-bar (compartment A) amounts to ~ 6 km3, which stands in sharp contrast to the 0.127 km3 stored in the adjacent shoreface of compartment B.
-
The size and volume of headland-attached spit-bars such as the Robberg example makes them prime exploration targets for hydrocarbons in the rock record.
