Recent reports suggest that nephrogenic systemic fibrosis (NSF) is associated with the administration of gadolinium (Gd)-based contrast agents (GBCAs) and in particular with the stability of the Gd-complex. The aim of this investigation was to compare GBCAs and their potential to trigger NSF. Forty-two healthy male rats received repeated intravenous injections of six different GBCAs at high doses to simulate the exposure seen in patients with severe renal dysfunction. Histopathological and immunohistochemical analysis of the skin was performed, and the concentrations of Gd, zinc and copper were measured in several tissues by inductive coupled plasma atomic emission spectroscopy. Macroscopic and histological skin changes similar to those seen in NSF patients were only observed in rats receiving Omniscan. In addition, very high concentrations of Gd were observed in the animals treated with Omniscan, and, to a lesser extent, in animals treated with OptiMARK. Significantly lower levels of Gd were found after the treatment with ionic linear agents and even less after the treatment with macrocyclic agents. The data in this investigation strongly suggest that the stability of the Gd-complex is a key factor for the development of NSF-like symptoms in this experimental setting.
Nephrogenic systemic fibrosis (NSF) is a rare, but serious disorder that is characterized by fibrosis of the skin and of connective tissues throughout the body .
Although first described in the medical literature in 2000, the first reported case of NSF dates back to 1997Footnote 1 . Since then, the number of reports of NSF has increased with more than 250 reports of NSF filed with regulatory authorities worldwide as of August 2007 . Although the exact etiology of NSF is currently unknown, it is most likely multifactorial and, to date has only been reported in patients with severe renal insufficiency , many of whom were on hemodialysis or peritoneal dialysis . Recent case reports and data from animal experiments suggest an association between NSF and exposure to gadolinium (Gd)-based contrast agents (GBCAs) [6–8], although NSF without prior Gd exposure has also been reported [9, 10].
One theory suggests that the incidence of NSF is correlated to the stability of the various GBCAs . The majority of cases reported to date relate to the use of one agent in particular, gadodiamide (Omniscan®, Gd-DTPA-BMA), however, there are also reports with other agents such as gadoversetamide (OptiMark®, Gd-DTPA-BMEA) and gadopentetate dimeglumine (Magnevist®; Gd-DTPA). Up-to-date information on the number of reported cases for individual contrast agents as well as the regulatory status can be obtained on the websites of regulatory agencies such as the FDA .
In a previous investigation we have established a preclinical dosing regimen simulating the prolonged exposure to GBCAs seen in patients with severe renal impairment . In that investigation a possible association between gadolinium exposure and the occurrence of NSF-like lesions in the investigated rats was established . The aim of the present investigation is to further explore the differences between various marketed Gd-containing contrast agents regarding their potential to trigger NSF-like symptoms using the previously established experimental setting .
Materials and methods
The tested Gd-containing contrast agents are all approved and marketed products and were purchased from their respective manufacturers. The following compounds were tested: Omniscan (gadodiamide, Gd-DTPA-BMA, GE Healthcare), OptiMARK (gadoversetamide, Gd-DTPA-BMEA, Covidien), Magnevist (gadopentetate dimeglumine, Gd-DTPA, Bayer Schering Pharma), MultiHance (gadobenate dimeglumine, Gd-BOPTA, Bracco Diagnostics), Gadovist (gadobutrol, Gd-BT-DO3A, Bayer Schering Pharma) and Dotarem (gadoterate meglumine, Gd-DOTA, Guerbet).Footnote 2
Forty-two Hannover Wistar Rats [CRL:WI (GIx/BRL/HAN)IGS BR] were obtained from Charles River (Sulzfeld, Germany), each weighing between 190 and 240 g. Six animals per group were selected at random and were housed with a 12-h day and night rhythm and were given water and standard diet (ssniff R/M-H from Sniff, Germany) ad libitum. Animals were treated according to the German Law on the Protection of Animals and with permission from the state animal welfare committee.
The investigation used the methodology previously established to simulate the high exposure to Gd-containing contrast agents in patients with severe renal impairment . The formulations were injected into a tail vein daily, five times per week (not on weekends) at a dose of 2.5 mmol Gd/kg body weight over a period of 4 weeks. As the investigation control we used isotonic saline (0.9%) solution (Table 1). The animals were sacrificed 5 days following the last treatment. This time point was chosen on the basis of serum elimination pharmacokinetics of the various compounds to ensure that the administered Gd compounds were completely eliminated from the body.
Macroscopic skin findings, histology and immunohistochemistry
The animals were examined for macroscopic skin changes such as reddening, fur loss, scab formation and ulceration prior to every injection. At the end of the experiment the backs of the animals were shaved for better visualisation of the skin findings.
Immediately after necropsy, three skin probes were used to take skin samples from the back of each animal. The samples were taken from similar areas in each animal. The probes were fixed in 4% neutral buffered formalin. After fixation and routine dehydration, the tissue samples were embedded in paraffin and sectioned for hematoxylin-eosin and immunohistochemical staining. The histopathological reading was performed by two board-certified veterinary histopathologists (JW, FS) in a blinded fashion according to best practice guidelines of the Society of Toxicologic Pathology . In general, structure and classification of the histopathology evaluation followed the logical framework described elsewhere [13, 14]. The severity of the findings was graded using scores from 1 to 5 based on the increases in cellularity (namely increases in fibroblast-like cells, dendritic-like cells and lymphocytes) (1 = minimal, 2 = slight, 3 = moderate, 4 = marked, 5 = massive).
Furthermore we performed CD34 stains of the dermis with the same methodology as described previously .
For the cell count in the skin, paraffin sections were dewaxed, rehydrated and stained with 4′,6-diamidino-2-phenylindole dihydrochloride (DAPI) (Sigma, St. Louis, MO, USA). Three skin samples were taken from each animal; two sections per sample were stained and two regions of interest (ROIs) per section (i.e., 12 ROIs per animal) were counted with the help of a cell-count software programme (Cellprofiler; www.cellprofiler.org). The ROIs were placed in the upper dermis to avoid areas with hair follicles, glands and fat tissue.
Gadolinium, zinc and copper measurements
Measurements of the Gd, Zn and Cu concentrations in the skin (samples taken from the back, next to the histology probes), the liver, and the femur were made by inductive coupled plasma atomic emission spectroscopy (ICP-AES, IRIS Advantage, Thermo) at wavelengths of 342.247, 213.856 and 224.700 nm, respectively . It should be noted that this method cannot distinguish between chelated or unchelated metal ions, in particular chelated or unchelated Gd.
Gadolinium measurements (excluding saline control animals, where no Gd was detected) were tested globally for differences in medians between at least two groups with the non-parametric Kruskal-Wallis test. In case of significance at a two-sided 5% level of significance, pairwise comparisons were performed using the non-parametric multi-comparison Dunn’s test to ensure an experiment-wise two-sided level of significance of 5%.
For the Cu and Zn concentrations, each treatment group was compared with the saline control, and a one-sided 5% level of significance (p ≤ 0.05) was used to assess non-inferiority to saline (Dunnett’s test). The non-inferiority margin was chosen as the mean of the saline group minus three times the standard deviation.
Macroscopic and microscopic findings, histology, and immunohistochemistry
Five days after the 20th injection, macroscopic changes of the skin were observed in four out of six animals in the Omniscan-treated group. (Table 2, Figs. 1 and 2). Those findings included ulceration and crust formation. No macroscopic changes were observed in any of the other treatment groups or in the saline control group (Figs. 1 and 2).
On the histological level, fibrosis, including collagen deposit, loss of the extracellular space, thickening of the dermis and increased cellularity were observed in five out of six animals treated with Omniscan. Furthermore, an increase in the number of CD34-positive cells in the skin of the animals showing fibrosis (animals treated with Omniscan) was observed (data not shown). No histopathological findings of any severity were noted for any of the other investigated agents. Figure 2 shows a representative image from each treatment group.

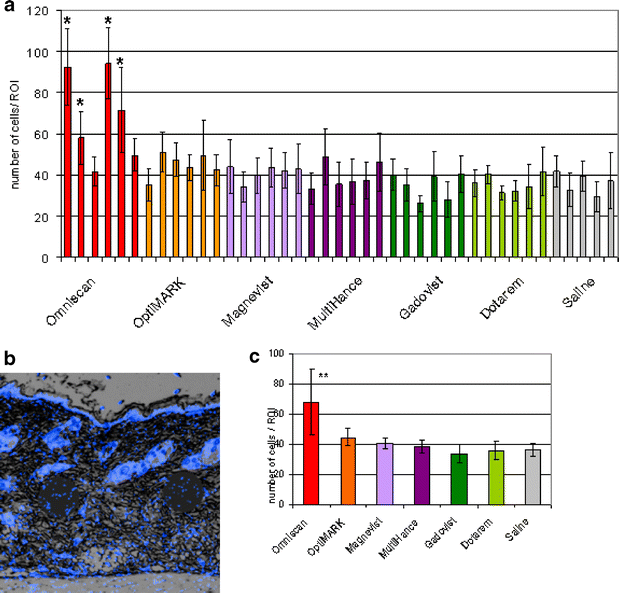

To quantify the increase in cellularity, we counted the numbers of cells in the dermis, excluding the cells associated with hair follicles, fat tissue and glands. We observed an increase in the number of cells in all the Omniscan-treated animals, which showed macroscopic changes of the skin (Fig. 3). No significant differences in cell counts were observed between the animals in the other treatments and the control group.
Gadolinium levels in the skin
Very high Gd concentrations were observed in skin samples from animals treated with Omniscan (1.70 ± 0.24 μmol/g skin) (Fig. 4). The Gd concentration detected in the animals treated with Omniscan was almost 10-fold higher compared with the Gd concentration obtained following the administration of Magnevist and more than 30-fold higher compared to Gd concentrations detected following the administration of Gadovist and Dotarem. A global comparison of median Gd levels showed that the Omniscan treatment group had significantly higher Gd levels than all other treatment groups. A significantly lower Gd level was detected after application of OptiMARK (0.43 ± 0.09 μmol/g skin), which contains twice the amount of excess ligand as compared to Omniscan. The Magnevist (0.18 ± 0.08 μmol/g skin) and MultiHance (0.08 ± 0.01 μmol/g skin) treatment groups also had significantly lower Gd levels than the Omniscan group. Gadolinium levels in the macrocyclic agents Gadovist (0.05 ± 0.01 μmol/g skin) and Dotarem (0.05 ± 0.01 μmol/g skin) treatment groups were the lowest of all investigated agents (Fig. 4).
Gadolinium levels in the liver and femur
In the liver and femur, the highest levels of Gd were again observed following treatment with Omniscan, with significant differences observed between Omniscan and all other treatment groups based on analyses of the median Gd levels (Fig. 5).
Zinc and copper levels in the skin, liver and femur
No significant loss of zinc and copper were observed for any of the treatment or control groups (Fig. 6).
The possible association between the use of Gd-containing contrast agents in magnetic resonance imaging and the development of NSF in patients with severe renal impairment has been widely reported in the medical literature in recent months [6, 11, 16]. We initiated a range of preclinical in vivo studies to investigate this further. In an earlier investigation, a strong correlation was found between the gadolinium concentration in the skin and the development of NSF-like skin lesions in our preclinical setting . The present investigation was performed to compare different marketed extracellular GBCAs in addition to the Magnevist and Omniscan groups already reported in the first publication .
After investigation of different key GBCAs in this setting, NSF-like skin lesions were only found in animals treated with Omniscan. In the skin of patients with NSF the lesions are accompanied by an increase in fibroblast-like cells, dermal macrophages and fibrocytes positive for CD34 and procollagen [17–19]. Additionally, there may be a considerable increase in collagen bundles and, in some cases, deposits of mucin in the skin [20, 21]. Microscopic changes similar to those described in human NSF patients were observed in the rats showing macroscopic skin changes (only animals treated with Omniscan). The development of fibrosis, including increased cellularity and increased cell swelling causing a loss of interstitial space was observed in five out of six animals treated with Omniscan. Furthermore, these changes were accompanied by an increased dermal cell count. We also found an increase in the number of CD34-positive cells in the dermis of those animals showing fibrosis . It is important to note, however, that we observed differences in the histopathology between that reported in human NSF patients and the rats used in our experimental setting. For example, in the rats, we did not see the deep infiltration of the sub-cutis found in human NSF patients. It is possible that this difference is due to the different histology of the skin in rats .
The occurrence of these skin lesions seems to be strongly correlated with high Gd concentrations, particularly in the skin, but also in the liver and the femur, confirming the previous finding , which suggests that there may be a relationship between the release of Gd and the occurrence of the NSF-like lesions.
Stability/inertness characteristics measured in vitro describe the likelihood of Gd release from the Gd-chelate in vitro, which may be a predictor for release of Gd ions in vivo. In our setting we were able to test whether in vitro stability data correlate with Gd concentrations in the skin of the investigated animals.
Regarding their in vitro stability, Gd-containing contrast agents fall into two distinct classes: the linear, open-chain agents and the macrocyclic agents .
Linear complexes differ significantly in their stability, which may be adequately described by the thermodynamic stability constant (log Ktherm, valid at pH = 14) and the conditional stability constant log Kcond (calculated for pH = 7.4). The addition of an ionic charge enhances the stability of the complex, with the ionic linear complexes (e.g. Magnevist and MultiHance) being about 3.5 orders of magnitude (or approximately a factor of 3,000) more stable than the non-ionic linear complexes (Omniscan and OptiMARK) (Table 3, Fig. 7a). To compensate for their lower stability, the non-ionic linear compounds, Omniscan and OptiMark, are formulated with 5 mol% and 10 mol% excess ligand, respectively .
In vitro data demonstrate that macrocyclic Gd chelates are kinetically inert to Gd dissociation compared to linear Gd chelates [24–26] since a substantial activation energy barrier has to be overcome for both the complexation and the de-complexation of marketed macrocyclic agents (Fig. 7b). The reason for this phenomenon is the fact that the macrocyclic ring system is very rigid and additional energy is needed to set the complexed gadolinium free from the sterically hindered (bulky) macrocycle. Therefore the propensity of macrocylic GBCAs to release gadolinium is best described by the kinetic constant (kobs, measured at pH = 1.0 and derived from the dissociation half-life) and not by the thermodynamic stability constants log Ktherm and log Kcond (Table 4) .
In our experimental setting, Omniscan exposure resulted in the highest Gd concentrations of all tested agents, especially in the skin, followed by OptiMARK. As the stability constants of the two agents are similar, this suggests that the difference in Gd concentration is caused by the different amount of excess ligand. We were able to confirm this role of the excess ligand in a separate series of experiments more thoroughly .
Significantly smaller Gd concentrations were measured in the animals treated with the ionic linear agents Magnevist and MultiHance compared to both non-ionic linear agents. As described above, ionic linear agents are characterized by a higher in vitro stability as compared to non-ionic linear agents. The difference in the Gd concentration observed between MultiHance- and Magnevist-treated animals can, however, not be easily explained by differences in in vitro stabilities, as those were very similar (see Table 3). The observation can most likely be explained by the different exposure of the animals to the contrast agents. MultiHance is excreted up to 50% via the hepatobiliary system in rats  causing faster excretion and thereby a lower AUC. This difference compared to the other GBCAs is not seen in humans, where the hepatobiliary excretion of MultiHance accounts only for 0.6–4% . Therefore, the observations regarding the Gd concentration after treatment with MultiHance in the rat model may not be an accurate predictor of the clinical situation.
The lowest Gd concentrations, significantly lower than the Gd concentrations of all linear agents with similar pharmacokinetic clearance, were measured in the animals treated with the macrocyclic Gd chelates Gadovist and Dotarem. Although the kinetic half-lifes measured in vitro at pH 1.0 for Gadovist and Dotarem were not identical (see Table 4), the present investigation found virtually identical, low levels of Gd in the skin. This finding suggests that there are no relevant stability differences of the macrocyclic compounds in vivo as already postulated based on the very long extrapolated dissociation half-life in vitro at pH 7.4 .
Given their high stability, it may be expected that no Gd would be detectable in animals treated with the two tested macrocyclic agents, Gadovist and Dotarem. However, in our experimental setting, Gd was detected with both agents, albeit at significantly lower amounts. The residual Gd could be related to the specifics of the ICP-AES method, which can not distinguish between chelated and unchelated gadolinium. It is possible that some or all of the residual Gd measured in the tissue specimens taken 5 days after the last injection arises from chelated Gd, which will not be retained in the skin but eliminated over time. Of course, the same caveat applies to the Gd concentrations measured after the applications of all other agents in the study. However, we did demonstrate in our first experiment that unchelated Gd is present in precipitates in the skin of animals treated with Omniscan . Studies to measure the time course of Gd retention in the skin are currently being conducted, but results are not yet available.
To summarize the data obtained in this investigation (given the limitations of the experimental setting), non-ionic linear Omniscan seems clearly to be the agent with the highest risk of releasing Gd ions in vivo (the situation is slightly improved with the addition of more excess ligand, as in OptiMARK), while the risk is significantly reduced with ionic linear agents, such as Magnevist and MultiHance, and even further reduced with macrocyclic agents, such as Gadovist and Dotarem.
Although in our preclinical setting NSF-like skin lesions were noted to occur only in the Omniscan treatment group, cases of NSF reported to date in humans have been associated with the use, not only of Omniscan, but also of other GBCAs as well (for latest information refer to the websites of health authorities such as the FDA). Furthermore, since residual Gd concentrations were found in this experiment for the non-Omniscan animals, the risk for NSF can not be excluded for the other agents.
In conclusion, our preclinical experiments suggest that the different in vitro stabilities of the Gd-containing contrast agents result in different propensities to release Gd, particularly in the skin. The findings of this investigation support the conclusion that the complex stability of GBCAs is correlated with the likelihood of releasing Gd ions in vivo. It remains to be seen whether these findings correlate with a different risk of NSF.
