Introduction

Alzheimer’s disease (AD) is the most common neurodegenerative disorder and can only be diagnosed with certainty by post-mortem examination of brain tissue. The disease is characterised by extracellular deposition of senile (amyloid) plaques, intracellular neurofibrillary tangles (NFT), synaptic loss and neurodegeneration. The amyloid plaques contain insoluble fibrils of the amyloid-beta (Aβ) fragment of a larger precursor protein (amyloid precursor protein [APP]), whereas intracellular NFT consist of hyperphosphorylated tau protein [1, 2]. Mutations in presenilin 1 (PS1), presenilin 2 (PS2) and APP genes have been associated with familial forms of AD and have been shown to alter normal processing of APP by proteases (secretases) causing the extracellular accumulation of amyloid plaques [3–7]. Cross-sectional studies on individuals with AD or elderly controls have contributed to the current understanding of the disease but are limited by the fact that analyses can only be performed in post-mortem brain. Therefore, the advantages of mouse models are as follows: (1) analysing the disease-specific pathophysiological mechanisms, (2) understanding the genetic alterations or interactions, as well as (3) testing therapeutic interventions at definite timepoints. Nowadays, these mouse models of AD are typically transgenic (tg) mice carrying mutations in the APP, PS1 or PS2 gene. Several tg mouse models have been generated, which are reviewed by Higgins and Jacobsen [8]. Some of them, e.g., the tg mouse models Tg2576 or APP23 overexpress the human APP (hAPP) in combination with distinct mutations like the ‘Swedish’ mutation (APPK670N, M671L [9, 10]) or in case of the PDAPP mouse model the ‘London’ mutation (APPV717F [11]). Others like the PS1 M146L or M146V model express mutant PS1 [12] or, by crossing, the tg animals create double-tg mice (PS1/APP), carrying two of these mutations in the mouse genome [13]. Except for the PS1 model, these murine models of AD typically express sufficiently high levels of hAPP and Aβ to insure amyloid deposition. Besides being useful tools in the analysis, understanding and possible treatment of the disease based on findings in histology, biochemistry, molecular biology and behavioural testing, these mouse models have been of help in characterisation of amyloid-imaging agents and have been used for non-invasive phenotyping by multi-tracer positron emission tomography (PET).

PET-based imaging in AD

PET allows non-invasive assessment of physiological, metabolic and molecular processes in humans and animals in vivo. With the achievements in detector technology, spatial resolution of PET has been considerably improved (1–2 mm), enabling for the first time investigations in small experimental animals such as mice. With the developments in radiochemistry and tracer technology, a variety of endogenously expressed and exogenously introduced genes can be analysed by PET. This opens up the exciting and rapidly evolving field of molecular imaging, aiming towards the noninvasive localisation of a biological process of interest in normal and diseased cells, both in animal models and humans in vivo. The main and most intriguing advantage of molecular imaging is the kinetic analysis of a given molecular event in the same experimental subject over time. This will allow non-invasive characterisation and “phenotyping” of animal models of human disease at various disease stages, under certain pathophysiological stimuli or after therapeutic intervention, respectively.

PET allows the quantitative localisation of expression of genes coding for membrane receptors and transporters or cellular enzymes. By measuring (a) the binding of the respective receptor ligand, (b) the transport of a specific compound or (c) the accumulation of the specific enzyme substrate, quantitative analysis can be performed. Important endogenous enzymes and receptors in the field of neurodegeneration, with special focus on AD, which are non-invasively assessed already on a routine basis in the clinical application by specific probes and PET are:

  • Cellular hexokinase by 2-[18F]fluoro-2-deoxy-d-glucose ([18F]FDG);

  • Acetylcholine esterase (AchE) by [11C]-N-methyl-4-piperidinylacetate ([11C]MP4A);

  • Benzodiazepine receptors by [11C]flumazenil ([11C]FMZ).

These tracers are clinically applied for early detection of AD ([18F]FDG, [11C]MP4A) and in the assessment of neuronal integrity after stroke ([11C]FMZ, [18F]FDG) [14, 15]. The overall attractive goal in neuroscience research is that, with the advent of μPET, these tracers can be applied in animal models for AD for non-invasive phenotyping of these models as well as in the development of experimental therapeutics, such as growth factor administration, gene therapy and cell transplantation. Animal PET will serve as a platform to test these therapies in a relatively efficient manner, allowing a more rapid progression from pre-clinical to clinical studies. Most importantly, the same in vivo imaging parameters can be used pre-clinically and clinically, enabling a direct comparison when translating experimental molecular imaging markers into clinical application.

To date, the cerebral glucose metabolism as measured by [18F]FDG-PET is a sensitive non-invasive surrogate marker for the diagnosis of AD [16, 17]. Typically, [18F]FDG-PET shows reduced glucose metabolism in posterior cingulate, temporoparietal and prefrontal association cortex with preservation of primary sensorimotor cortex and basal ganglia. The largest reduction is found in the posterior cingulate cortex [18], and this metabolic alteration becomes even apparent before the onset of cognitive impairment in persons at genetic risk for AD [19]. Even very mild probable AD patients (defined by Mini Mental Score greater than 24) can be diagnosed with a 84% sensitivity and 93% specificity [16]. Moreover, degeneration of cholinergic neurons located in basal ganglia, particular in the nucleus basalis of Meynert and subsequent alteration of cortical acetylcholine esterase activity is one of the central features in AD and Lewy body dementia, which can be assessed by [11C]MP4A-PET. After passing the blood–brain barrier, [11C]MP4A is hydrolysed by AChE and trapped within the brain proportional to regional AChE activity [20]. Currently, the value of [11C]MP4A-PET is being investigated in the differential diagnosis of AD from other forms of dementia [21–24]. [11C]FMZ binds to central benzodiazepine receptors, and, as measured by PET, it is an early indicator of preserved cortical neuronal integrity [15]. [18F]FDG together with [11C]FMZ was shown to be also helpful in the diagnosis of other forms of dementia including variants of Creutzfeld–Jakob disease [25].

Although [18F]FDG-, [11C]MP4A- and [11C]FMZ-PET reveal direct molecular information on glucose metabolism, AChE activity and binding to benzodiazepine receptors, they can only serve as surrogate markers for cellular density or neuronal integrity and thus as indirect surrogate measures of presence and progression of AD. Therefore, a further imaging marker that permits direct detection of the disease process, such as neurofibrillary tangles or Aβ plaques in vivo, would be very helpful. Direct imaging of these neuropathological changes would improve early diagnostic certainty of the disease, rather than waiting until behavioural manifestations can be detected. Most importantly, repetitive imaging of senile plaques in combination with glucose and acetylcholine metabolism as surrogate markers would provide a readout of the efficacy of experimental therapeutics aimed at removing these neuropathologic lesions. So far, invasive direct imaging of Aβ plaques has been developed by using fluorescein-labelled Aβ, anti-Aβ antibodies and fluorescent derivatives of thioflavin T and Congo red as specific targeting agents and multiphoton microscopy in live tg mice [26–28]. Although multiphoton microscopy requires craniotomy, these studies indicated that exogenous fluorescent targeting agents bind to existing plaques in vivo if delivery to the brain is sufficient. Intriguingly, this imaging method has been successfully used to follow plaque-directed immunotherapy in the same experimental animal over time [26].

Direct AD plaque imaging by PET

Based on findings with the amyloid-binding compound thioflavin, neutral benzothiazoles were further modified and investigated as potential PET agents. Klunk et al. [29] described the first human study using the PET radiotracer N-methyl-[11C]2-(4′-methylaminophenyl)-6-hydroxybenzothiazole ([11C]6-OH-BTA-1) also named “Pittsburgh Compound B” ([11C]PIB) and could demonstrate two- to threefold higher retention of the radio-labelled compound in areas of association cortex in patients with AD as compared to healthy controls. An Aβ-binding compound, which can be radio-labelled by 18F, has also been developed. 2-(1-(6-[(2-[18F]fluoroethyl)(methyl)amino]-2-naphthyl)ethylidene)malononitrile labelled senile plaques in tissue sections from AD brain; however, its in vivo specificity is not clarified yet due to its low clearance from white matter [30, 31].

Direct imaging of Aβ plaques in tg mouse models has been performed using the PIB compound. Toyama et al. [32] used the Tg2576 mouse model of AD to evaluate the feasibility of μPET imaging using the radio-labelled compound [11C]6-OH-BTA-1 to image and quantify Aβ plaques in vivo. Interestingly, they found excellent brain uptake of radioactivity in tg and wild-type mice but no specific binding of the labelled compound to Aβ plaques in tg animals compared with the wild type, although histochemical staining with thioflavin S showed numerous Aβ plaque deposits in the tg animals but not in the wild type. Similar findings have been reported by Klunk et al. [33, 34] in PIB μPET studies using the PS1/APP mouse model. To further consolidate these findings and to compare the differences in binding of PIB in human versus tg mouse brain, they performed in vivo, ex vivo and post-mortem in vitro studies with brain tissue from PS1/APP tg mice [34]. Similar to the Tg2576 murine model, PS1/APP mice showed extensive plaque staining [34, 35], but no significant difference in the retention of [11C]PIB. Ex vivo studies (with increased sensitivity as compared to in vivo μPET) analysing the binding capacity of [11C]PIB in brains of 15-month-old PS1/APP mice did not show any significant difference either. Comparison of in vitro [3H]PIB binding to human AD brain as well as PS1/APP brain demonstrated a high affinity [3H]PIB-binding site in AD brains but not in PS1/APP mouse brain. The B max for binding of [3H]PIB to PS1/APP brain was more than 1,000-fold lower than the B max for binding of [3H]PIB to AD brain. A possible explanation for this suggests that there is low efficiency for forming high affinity PIB-binding sites during plaque deposition in tg mice, which may be due to differences in the time course of Aβ deposition or the presence of tissue-specific factors during deposit formation.

Imaging of AD characteristic changes by μPET

Besides the direct measurement of Aβ plaques, μPET imaging can help in the characterisation and phenotyping of animal models of AD by taking advantage of radiotracers already implemented in the clinical application for diagnosis in AD like, e.g., [18F]FDG, [11C]MP4A or [11C]FMZ. As already pointed out, non-invasive small animal PET imaging allows the assessment of AD imaging parameters at definite times and this repetitively over time within the same animal. In a knock-out mouse model for the brain/neuron-specific insulin receptor (NIRKO), Schubert et al. [36] investigated the influence of neuronal insulin resistance in neurodegeneration and could demonstrate reduced Akt and GSK3β phosphorylation and hyperphosphorylation of tau protein in NIRKO mice as compared to controls. Speculations on the regulative role of neuronal insulin receptors on cerebral glucose metabolism led to the performance of μPET analyses with NIRKO mice in vivo with [18F]FDG in collaboration with our group. In this study, tg and control animals underwent [18F]FDG-PET as well as in vivo high-resolution μMRI for co-registration aspects to differentiate distinct brain regions and hypermetabolic active harderian glands and to ensure proper region-of-interest analysis. Brain-to-background ratios for [18F]FDG uptake in NIRKO mice did not show any significant difference as compared to control animals (Fig. 1) suggesting that, in this specific study, insulin signalling did not have a substantial influence on basal brain glucose metabolism detectable by μPET.

Fig. 1
figure 1

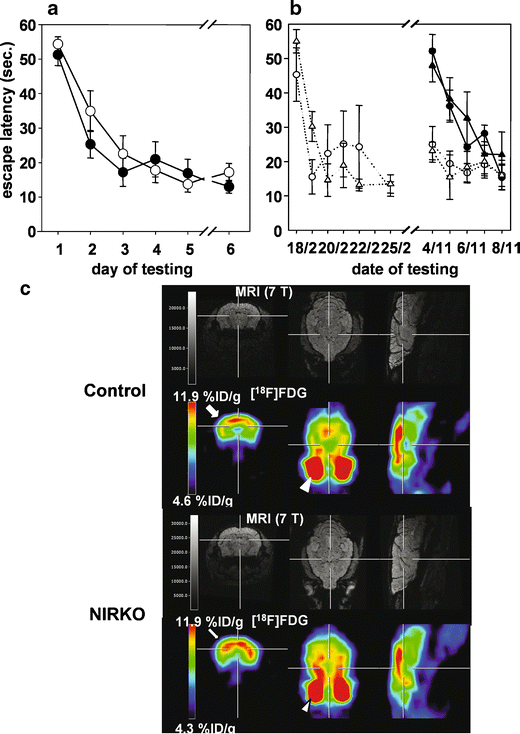

Unaltered spatial learning, long-term memory and brain glucose metabolism in NIRKO mice. a Escape latency to find the platform after exposure to the water maze for 7-week-old control (open circles) and NIRKO (filled circles) mice. Data presented per session represent the mean of four trials per session and the mean of seven animals of each genotype±SEM. b Escape latency to find the platform after exposure to the water maze for 11-month-old control (circles) and NIRKO (triangles) mice. Data are separated for mice having performed a Morris water maze task at the age of 7 weeks (experienced mice, open symbols) and those that have not before encountered a Morris water maze task (naive mice, filled symbols). Data presented per session represent the mean of four trials per session and the mean of four to seven animals of each genotype±SEM. c. Shown are representative high-resolution MRI (upper) and matched [18F]FDG-μPET images (lower) through the brain of a representative control mouse (upper) and a representative NIRKO mouse (lower) [transaxial (left), coronal (center), and sagittal (right)]. ROI were placed in a transaxial plane (arrow). Distinction between brain and hypermetabolic harderian glands (arrowhead) is made by co-registration with MRI (from Schubert et al. [36] with permission, copyright 2004 by the National Academy of Science)

Full size image

A subsequent study included multi-tracer PET imaging in an AD mouse model in collaboration with Heneka et al. [37]. Using APP23 tg mice, Heneka et al. [37] investigated the effect of locus ceruleus (LC) degeneration [by induction with N-(2-chloroethyl)-N-ethyl-bromo-benzylamine (dsp4)] and its contribution to AD pathogenesis. Biochemical and histological findings demonstrated loss of LC neurons, depletion of noradrenaline (NA), increase in microglial and astroglial activation and an increase in amyloid plaques in specific brain regions after dsp4 treatment. The loss of NA was also associated with increased cognitive deficits in APP23 tg animals. To investigate the effect of LC degeneration in this mouse model, we performed multi-tracer μPET imaging assessing cerebral glucose metabolism, acetylcholine esterase activity and FMZ binding. For this purpose, three different sets of animals have been analysed performing [18F]FDG-, [11C]MP4A- and [11C]FMZ-PET. The different sets compared (1) non-treated APP23 with wild-type mice at 10 and 13 months of age, (2) dsp4- and control-treated tg as well as wild-type mice 4 weeks after treatment and (3) APP23 tg mice with and without dsp4-treatment 4 and 12 weeks after dsp4-application. The results showed no significant differences in the non-treated APP23 tg versus wild-type animals at baseline or after aging. Most importantly, tg mice receiving the dsp4-treatment differed significantly from non-treated tg animals 4 weeks after the treatment in FMZ binding and acetylcholine esterase activity. Moreover, 12 weeks after LC degeneration, significant differences for all three radiotracers ([18F]FDG-, [11C]MP4A- and [11C]FMZ) could be detected indicating that LC degeneration and inflammatory reaction contributes significantly to AD pathogenesis (Fig. 2).

Fig. 2
figure 2

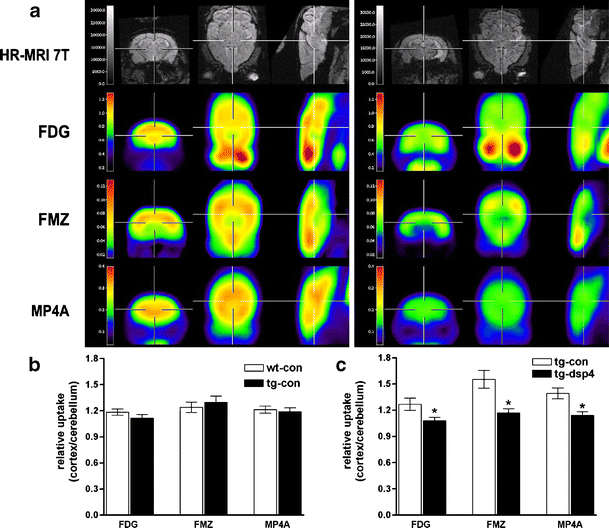

Altered cerebral glucose metabolism, neuronal integrity and cholinergic function detected in vivo after noradrenergic depletion of APP23 mice. a Representative high-resolution MRI (first row) and matched representative [18F]FDG, [11C]FMZ and [11C]MP4A μPET images (second–fourth rows, coronar is left; transaxial, middle; sagittal, right) through the brain of saline-treated (left panel) and dsp4-treated APP23 (right panel). b Quantification of [18F]FDG, [11C]FMZ and [11C]MP4A uptake in saline-treated wild-type (wt-con) and saline-treated APP23 (tg-con) mice at 13 months of age. No significant differences were detected. c Quantification of [18F]FDG, [11C]FMZ and [11C]MP4A uptake in saline-injected (tg-con) and dsp4-treated (tg-dsp4) APP23 tg mice at the same age revealed a decrease in all parameters after LC degeneration (mean±SEM; n = 4 animals per group; Student’s t test; *p < 0.05; from Heneka et al. [37] with permission, copyright 2006 by the Society for Neuroscience)

Full size image

Summary

Our results demonstrate the usefulness of radiotracers originally applied to show a characteristic pattern of altered brain glucose metabolism, acetylcholine esterase activity or neuronal integrity in patients with AD, also in multi-modal μPET imaging for characterisation and non-invasive phenotyping of mouse models of AD. However, it should be pointed out that μPET imaging in mice still has major limitations with regards to spatial resolution of currently available μPET scanners, attenuation correction and correct quantification, as well as anesthesia-induced changes of radiotracer uptake. These technical considerations have to be taken appropriately into account and further elaborated to enable μPET-based phenotyping of mouse models of brain disease as a tool to investigate the dynamics of disease-specific molecular alterations in vivo.
