Abstract

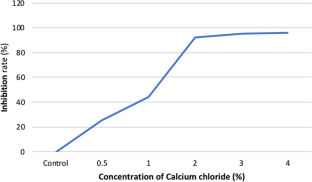

Bacterial wilt incited by Ralstonia pseudosolanacearum (Rps) race 4 biovar 3 is a serious threat to ginger (Zingiber officinale Rosc.) cultivation throughout the ginger growing tracts and warrants effective remedial measures since most of the strategies failed at field level implementation. After a series of experiments, calcium chloride was found to be effective against Rps both in vitro and in planta and its prophylactic effect has been successfully demonstrated under field conditions. CaCl2 at a concentration of > 2% significantly inhibited Rps under in vitro conditions. Calcium is an important nutritional element imparts a major role in plant disease resistance, and numerous studies have demonstrated the mitigating effect of calcium for disease management. CaCl2 being inhibitory to Rps, the mechanism of inhibition by CaCl2 against Rps was elucidated by a series of in vitro assays including swarming motility and biofilm formation. Direct inhibition was also studied using Scanning Electron Microscopy (SEM). The minimum bactericidal concentration and minimum inhibitory concentration were found to be around 3% while the EC 90 value was found to be 2.25%. The SEM analysis revealed the destruction of cell structure by making perforations on the cell surface. CaCl2 at the targeted concentrations inhibited biofilm formation as well as swarming motility of Rps. These findings suggest that CaCl2 exhibits strong antibacterial activity against Rps and has the potential to be used as an effective bactericide for Rps in managing bacterial wilt in ginger.
Similar content being viewed by others
References
Arthur C, Takhtadzhian AL (1981) An integrated system of classification of flowering plants. Columbia University Press, pp 1157–1172
Bateman DF, Lumsden RD (1965) Relation of calcium content and nature of the pectic substances in bean hypocotyls of different ages to susceptibility to an isolate of Rhizoctonia solani. Phytopathol 55:734–738
Berry SZ, Madumadu GG, Uddin MR (1988) Effect of calcium and nitrogen nutrition on the bacterial canker disease of tomato. Plant Soil 112:113–120
Bhai RS, Prameela TP, Vincy K, Biju CN, Srinivasan V, Babu KN (2019) Soil solarization and amelioration with calcium chloride or Bacillus licheniformis-an effective integrated strategy for the management of bacterial wilt of ginger incited by Ralstonia pseudosolanacearum. Eur J Plant Pathol 154:903–917
Bogino P, Oliva M, Sorroche F, Giordano W (2013) The role of bacterial biofilms and surface components in plant-bacterial associations. Int J Mol Sci 14:15838–15859
Brown DG, Allen C (2004) Ralstonia solanacearum genes induced during growth in tomato: an inside view of bacterial wilt. Mol microbiol 53:1641–1660
Bush DS (1995) Calcium regulation in plant cells and its role in signalling. Annu rev of Plant biol 46:95–122
Clough SJ, Flavier AB, Schell MA, Denny TP (1997) Differential expression of virulence genes and motility in Ralstonia (Pseudomonas) solanacearum during exponential growth. Appl Environ Microbiol 63:844–850
Colburn-Clifford JM, Scherf JM, Allen C (2010) Ralstonia solanacearum Dps contributes to oxidative stress tolerance and to colonization of and virulence on tomato plants. Appl Environ Microbiol 76:7392–7399
Conway WS, Gross KC, Boyer CD, Sams CE (1988) Inhibition of Penicillium expansum polygalacturonase activity by increased apple cell wall calcium. Phytopathol 78:1052–1055
Dake GN (1995) Diseases of ginger (Zingiber officinale Rosc.) and their management. J Sp Aromat Crops 4:40–48
Elsas JDV, Kastelein P, de Vries PM, van Overbeek LS (2001) Effects of ecological factors on the survival and physiology of Ralstonia solanacearum bv. 2 in irrigation water. Can J Microbiol 47:842–854
Englert DL, Jayaraman A, Manson MD (2009) Microfluidic techniques for the analysis of bacterial chemotaxis. Methods Mol Biol 571:1–23. https://doi.org/10.1007/978-1-60761-198-1_1
Eraslan F, Akbas B, Tarakcioglu IAC (2007) Effects of foliar sprayed calcium sources on tomato mosaic virus (ToMV) infection in tomato plants grown in greenhouses. Phytoparasitica 35:150
French GL (2006) Bactericidal agents in the treatment of MRSA infections—the potential role of daptomycin. J Antimicrob Chemother 58:1107–1117
Gelli A, Higgins VJ, Blumwald E (1997) Activation of plant plasma membrane Ca2+-permeable channels by race-specific fungal elicitors. Plant Physiol 113:269–279
Genin S, Denny TP (2012) Pathogenomics of the Ralstonia solanacearum species complex. Annu Rev Phytopathol 50:67–89
Haware MP, Joshi LK (1973) Basal rot of ginger (Zingiber officinale) caused by Sclerotium rolfsii from Madhya Pradesh. Indian Phytopathol 26(3):575–576
Hayward AC (1991) Biology and epidemiology of bacterial wilt caused by Pseudomonas solanacearum. Annu Rev Phytopathol 29:65–87
Hayward AC (2005) Research on bacterial wilt: a perspective on international linkages and access to the literature bacterial wilt diseasethe ralstonia solanacearum species complex Allen C, Prior P, Hayward AC Eds The American phytopathological society St. Paul MN 1–8
Huber DM, Graham RD (1999) The role of nutrition in crop resistance and tolerance to disease. In: Rengel Z (ed) Mineral nutrition of crops fundamental mechanisms and implications. Food Product Press, New York, pp 205–226
Ishihara A, Miyagawa H, Kuwahara Y, Ueno T, Mayama S (1996) Involvement of Ca2+ ion in phytoalexin induction in oats. Plant Sci 115:9–16
Kelman A (1954) The relationship of pathogenicity of Pseudomonas solanacearum to colony appearance in a tetrazolium medium. Phytopathology 44(12):693–695
Kumar A, Hayward AC (2005) Bacterial diseases of ginger and their control. In: Ravindran PN, Nirmal Babu K (eds) Ginger: the genus Zingiber. CRC Pres, New York, pp 341–365
La Storia A, Ercolini D, Marinello F, Di Pasqua R, Villani F, Mauriello G (2011) Atomic force microscopy analysis shows surface structure changes in carvacrol-treated bacterial cells. Res Microbiol 162:164–172
Li X, Yan Z, Xu J (2003) Quantitative variation of biofilms among strains in natural populations of Candida albicans. Microbiol 149:353–362
Li S, Yu Y, Chen J, Guo B, Yang L, Ding W (2016) Evaluation of the antibacterial effects and mechanism of action of protocatechualdehyde against Ralstonia solanacearum. Molecules 21(6):754
Liu HL, Kang YW, Genin S, Schell MA, Denny TP (2001) Twitching motility of Ralstonia solanacearum requires a type IVpilus system. Microbilogy 147:3215–3229
Liu H, Zhang S, Schell MA, Denny TP (2005) Pyramiding unmarked deletions in Ralstonia solanacearum shows that secreted proteins in addition to plant cell-wall-degrading enzymes contribute to virulence. Mol Plant Microbe In 18:1296–1305
Lopez D, Vlamakis H, Kolter R (2010) Biofilms. Cold Spring Harb Perspect Biol 2(7):a000398. https://doi.org/10.1101/cshperspect.a000398
McGarvey JA, Denny TP, Schell MA (1999) Spatial-temporal and quantitative analysis of growth and EPS I production by Ralstonia solanacearum in resistant and susceptible tomato cultivars. Phytopathol 89:1233–1239
Morris CE, Monier JM (2003) The ecological significance of biofilm formation by plant-associated bacteria. Annu Rev Phytopathol 41:429–453
O'May C, Tufenkji N (2011) The swarming motility of Pseudomonas aeruginosa is blocked by cranberry proanthocyanidins and other tannin-containing materials. Appl Environ Microbiol 77:3061–3067
Paulo L, Oleastro M, Gallardo E, Queiroz J, Domingues F (2001) Antimicrobial properties of resveratrol: a review. In science against microbial pathogens: communicating current research and technological advances; formatex research center Badajoz. Spain 1:1225–1235
Prameela TP (2017) Studies on biovar specific diagnostics for Ralstonia solanacearum Yabuuchi (Smith) infecting ginger (Zingiber officinale Rosc.) and evaluation of apoplastic microbes for biocontrol. Mangalore University, Karnataka
Prameela TP, Suseela Bhai R, Anandaraj M, Kumar A (2017) Development of real-time loop-mediated isothermal amplification for detection of Ralstonia pseudosolanacearum race4 in rhizomes and soil". Australa Plant Pathol 46:547–549
Rashid MH, Kornberg A (2000) Inorganic polyphosphate is needed for swimming, swarming, and twitching motilities of Pseudomonas aeruginosa. Proc Natl Acad Sci 97:4885–4890
Raz V, Fluhr R (1992) Calcium requirement for ethylene-dependent responses. Plant Cell 4:1123–1130
Rose S, Parker M, Punja ZK (2003) Efficacy of biological and chemical treatments for control of Fusarium root and stem rot on greenhouse cucumber. Plant Dis 87:1462–1470
Salanoubat M, Genin S, Artiguenave F, Gouzy J, Mangenot S, Arlat M, Chandler M (2002) Genome sequence of the plant pathogen Ralstonia solanacearum. Nature 415:497–502
Schober BM, Vermeulen T (1999) Enzymatic maceration of witloof chicory by the soft rot bacteria Erwinia carotovora subsp. carotovora: the effect of nitrogen and calcium treatments of the plant on pectic enzyme production and disease development. European J Plant Pathol 105:341–349
Sugawara S, Inamoto Y, Ushijima M (1981) Resolution and some properties of acid phosphatase isozymes bound to the cell wall of potato tubers. Agric Biol Chem 45:1767–1773
Tans-Kersten J, Huang H, Allen C (2001) Ralstonia solanacearum needs motility for invasive virulence on tomato. J Bacteriol 183:3597–3605
Tans-Kersten J, Brown D, Allen C (2004) Swimming motility, a virulence trait of Ralstonia solanacearum, is regulated by FlhDC and the plant host environment. Mol Plant Microbe In 17:686–695
Tran TM, MacIntyre A, Hawes M, Allen C (2016) Escaping underground nets: extracellular DNases degrade plant extracellular traps and contribute to virulence of the plant pathogenic bacterium Ralstonia solanacearum. PLoS Pathog 12:e1005686
Vasse J, Frey P, Trigalet A (1995) Microscopic studies of intercellular infection and protoxylem invasion of tomato roots by Pseudomonas solanacearum. MPMI- Mol Plant Microbe In 8:241–251
Volpin H, Elad Y (1991) Influence of calcium nutrition on susceptibility of rose flowers to Botrytis blight. Phytopathol 81:1390–1394
Wallace A, Frolich E, Lunt OR (1966) Calcium requirements of higher plants. Nature 209:634
Yamazaki H (2001) Relation between resistance to bacterial wilt and calcium nutrition in tomato seedlings. JARQ 35:163–169
Yamazaki H, Hoshina T (1995) Calcium nutrition affects resistance of tomato seedlings to bacterial wilt. Hort Sci 30:91–93
Yang TPB, Poovaiah BW (2002) Hydrogen peroxide homeostasis: activation of plant catalase by calcium/calmodulin. Proc Natl Acad Sci 99:4097–4102
Acknowledgements
The authors are thankful to Director, ICAR-IISR for providing the facilities, NIT Kozhikode for SEM analysis and Mr. Jayarajan for statistical analysis
Author information
Authors and Affiliations
Corresponding author
Ethics declarations
Conflict of interest
The authors declare that there is no conflict of interests regarding the publication of this paper.
Human and animal rights
Authors declared that this manuscript have not published elsewhere. All the authors have read very carefully and approved the current version of this manuscript. All authors also declared that the data or images have not manipulated. This article does not contain any experiments with human participants or animals.
Additional information
Communicated by Erko stackebrandt.
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Electronic supplementary material
Below is the link to the electronic supplementary material.
Rights and permissions
About this article
Cite this article
Rajamma, S.B., Raj, A., Kalampalath, V. et al. Elucidation of antibacterial effect of calcium chloride against Ralstonia pseudosolanacearum race 4 biovar 3 infecting ginger (Zingiber officinale Rosc.). Arch Microbiol 203, 663–671 (2021). https://doi.org/10.1007/s00203-020-02052-1
Received:
Revised:
Accepted:
Published:
Issue Date:
DOI: https://doi.org/10.1007/s00203-020-02052-1
