Preliminary yield estimation of the 2020 Beirut explosion using video footage from social media

Abstract

Rapid, accurate assessment of the yield of a large-scale urban explosion will assist in implementing emergency response plans, will facilitate better estimates of areas at risk of high damage and casualties, and will provide policy makers and the public with more accurate information about the event. On 4 August 2020, an explosion occurred in the Port of Beirut, Lebanon. Shortly afterwards, a number of videos were posted to social media showing the moment of detonation and propagation of the resulting blast wave. In this article, we present a method to rapidly calculate explosive yield based on analysis of 16 videos with a clear line-of-sight to the explosion. The time of arrival of the blast is estimated at 38 distinct positions, and the results are correlated with well-known empirical laws in order to estimate explosive yield. The best estimate and reasonable upper limit of the 2020 Beirut explosion determined from this method are 0.50 kt TNT and 1.12 kt TNT, respectively.

Introduction

On 4 August 2020, a series of explosions occurred in the Port of Beirut, Lebanon, widely reported to have been caused by detonation of a large quantity of ammonium nitrate (approximately 2750 tonnes) following a fire in the warehouse where it was being stored. The final and largest explosion caused considerable damage to the surrounding area and at the time of writing resulted in at least 181 deaths and over 6000 injuries.

Shortly after the explosion, social media users began sharing videos showing the initial fire, detonation, and propagating blast wave. In many of these videos, the moment of detonation and blast wave time of arrival ($t_\mathrm {a}$) at the observer’s position and/or recognisable landmarks are clearly discernible from the footage and audio. Thus, these videos make it possible to approximately determine the time of arrival of the shock front at different distances from the source of the explosion.

In this article, we examine 16 videos posted online [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16]¹ at various locations across the city of Beirut (Fig. 1). We correlate the calculated distance–time relationship with well-known semi-empirical laws [17] in order to estimate the approximate yield of the 2020 Beirut explosion by minimising the mean absolute error between the data and semi-empirical predictions.

Fig. 1

Filming locations of the 16 videos [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16] used to estimate the yield of the 2020 Beirut explosion. Satellite imagery from Google Earth (January 2020)

There is a pressing need for rapid, accurate assessment of the size of the explosive yield in such events, both to inform first responders of the likely injuries and structural damage at various distances from the explosion and to provide a factual context for political and media discussion.

Determination of arrival time from video footage

The videos we analysed in this article were selected having met the following criteria:

• Direct line-of-sight from the filming location to the source of the explosion in order to determine the moment of detonation², as shown in Fig. 2. This was taken as the start of the frame in which the flash was first visible;

• Identifiable location;

• Synchronised audio and video;

• Filming began before the moment of detonation and continued until after arrival of the blast wave.³

The approximate positioning of each video was determined by cross-referencing recognisable buildings and road configurations with Google Street View and satellite images from Google Earth. The distance from the point of detonation (assumed to be the centre of the warehouse) was calculated using the “measure distance” feature in Google Earth. This was taken as the “map distance” rather than “ground distance” (which accounts for changes in elevation) as the height of the filming location was unknown. Owing to uncertainties associated with determining the exact filming location, we present a “best estimate” value as well as a “reasonable upper limit” for each distance (Table 1). Note: videos filmed from a high-rise building have a higher uncertainty in position due to parallax in the satellite images. All distances are measured at street level.

In total, 38 data points were collected from analysis of the social media footage. Three techniques were used for determining time of arrival:

• 1. Audio In all 16 videos, the arrival of the blast wave could be identified, either as a clear, sharp increase in amplitude of the audio signal (Fig. 2), or by examining the video frame-by-frame for those with higher levels of background noise.

• 2. Visual In eight videos, the arrival of the blast wave at identifiable intermediate locations was determined by inspecting the video frame-by-frame (15 data points), again see Fig. 2.

• 3. Fireball In five videos, the size of the detonation product fireball was estimated for a small number of frames after detonation using the nearby grain silo to calibrate the scale of the images. This provided seven additional close-in data points to supplement the distance–time relationship.

Fig. 2

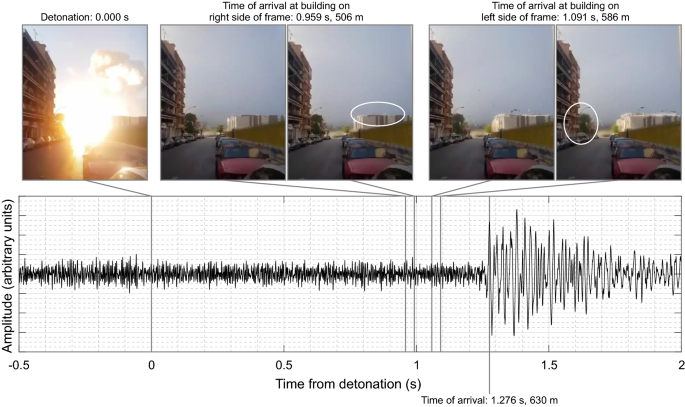

Example of Visual (top) and Audio (bottom) diagnostics used to determine time of arrival at various locations in video [5]. Note: video stills have been cropped to aid clarity of presentation

Figure 2 shows, as an example, how three arrival times were determined from [5]. The two Visual data points correspond to the time at which the blast was judged to have reached the buildings on the right-hand side and left-hand side of the frame, respectively (506 m and 586 m from the source). The Audio data point was taken as the time to the first local peak in the audio signal. Table 1 provides a summary of the diagnostic techniques used for each video. Again, we present a best estimate and reasonable upper limit on the arrival times calculated using these methods. The associated timing error was specified as one frame for the Audio method and two frames for Visual and Fireball methods. The frame rate of the videos varied between 24 and 30 fps, with resulting minimum and maximum errors of 0.033 s (1/30 s) and 0.083 s (2/24 s), respectively.

Table 1 Summary of videos analysed and diagnostic techniques used for each

Estimation of yield from distance–time relationship

Kingery and Bulmash [17] present semi-empirical relationships between scaled time of arrival, $t_\mathrm {a}/W^{1/3}$, and scaled distance, $Z=R/W^{1/3}$, where R is the distance from the source (in m) and W is the TNT-equivalent mass of the explosive (in kg). The relationships were derived from the compilation of a large number of experiments which used hemispheres of TNT between 1 and 400,000 kg, detonated on the ground surface and allowed to propagate unobstructed through free air. We present a simplified polylogarithmic function derived by the current authors from the data presented in [17],⁴ with $t_\mathrm {a}$ in ms:

$$\begin{aligned} \log (t_\mathrm {a}/W^{1/3})= & {} 0.0717(\log Z)^5 - 0.0567(\log Z)^4 \nonumber \\&- 0.3192(\log Z)^3 + 0.1495(\log Z)^2 \nonumber \\&+ 1.8165\log Z - 0.3215. \end{aligned}$$

(1)

Equation (1) was solved for $W=0.01{-}10\,\hbox {kt}$ TNT in increments of 0.01 kt.⁵ For each fit, the mean absolute error (MAE) was calculated, with the predicted yield given as the charge mass at the minimum MAE. To allow for direct comparison with the semi-empirical predictions, we have assumed that the explosives were formed into a hemisphere⁶ and that attenuation of the blast wave by the urban environment was negligible. The regression analysis was performed twice: once with the unmodified data (to find the best estimate) and once with the positioning error added to location (including a 10 m provision for uncertainty in determining the true detonation location) and timing error subtracted from the recorded arrival time, in order to find the reasonable upper limit.

Fig. 3

Collated time of arrival vs distance from analysis of social media video footage, with the best estimate (0.50 kt TNT) and reasonable upper limit (1.12 kt TNT) curves determined from regression analysis. Also shown are curves for 0.01, 0.1, and 10 kt TNT for reference. Note: error bars are not distinguishable at this scale

Figure 3 shows the compiled data extracted from social media video footage (the radius-time data are also provided as electronic supplementary material) as well as the best estimate (0.50 kt TNT) and reasonable upper limit (1.12 kt TNT) curves determined from the regression analysis. These agree remarkably well with the 0.5–1.1 kt range determined from analysis of infrasonic, hydroacoustic, and seismic signals [18]. Also shown are curves for 0.01, 0.1, and 10 kt TNT to show the effect of order-of-magnitude variations in explosive yield on time of arrival. The Audio and Visual data points broadly follow the same trend line, which gives confidence in both approaches.

Closing remarks

This article presents a method for rapidly determining explosive yield. Here, we extracted time of arrival data from careful examination of video footage uploaded to social media shortly after the 2020 Beirut blast. Despite the videos originating from a range of sources and being located at various points across the city, the resulting distance–time relationship shows a clear trend and is well represented by established semi-empirical predictions for 0.50 kt TNT. In order to account for the uncertainties associated with determining precise locations and timings, the results have also been analysed by taking a reasonable upper limit, which is well represented by semi-empirical predictions for 1.12 kt TNT.

Our initial estimates of explosive yield were 1.0–1.5 kt TNT [19], based on preliminary analysis of the available footage at the time. It was subsequently discovered that some of these videos dropped frames when transferring to or from social media. As more video footage became available, we were able to perform more accurate blast yield predictions with an improved error estimation. This demonstrates the importance of understanding and quantifying sources of error and uncertainty, particularly when considering data with relatively low precision.
