Theoretical and Applied Genetics

, Volume 130, Issue 10, pp 2069–2090 | Cite as

QTL associated with resistance to cassava brown streak and cassava mosaic diseases in a bi-parental cross of two Tanzanian farmer varieties, Namikonga and Albert

  • E. A. Masumba
  • F. Kapinga
  • G. Mkamilo
  • K. Salum
  • H. Kulembeka
  • S. Rounsley
  • J. V. Bredeson
  • J. B. Lyons
  • D. S. Rokhsar
  • E. Kanju
  • M. S. Katari
  • A. A. Myburg
  • N. A. van der Merwe
  • M. E. Ferguson
Open Access
Original Article

Abstract

Key message

QTL consistent across seasons were detected for resistance to cassava brown streak disease induced root necrosis and foliar symptoms. The CMD2 locus was detected in an East African landrace, and comprised two QTL.

Abstract

Cassava production in Africa is compromised by cassava brown streak disease (CBSD) and cassava mosaic disease (CMD). To reduce costs and increase the precision of resistance breeding, a QTL study was conducted to identify molecular markers linked to resistance against these diseases. A bi-parental F1 mapping population was developed from a cross between the Tanzanian farmer varieties, Namikonga and Albert. A one-step genetic linkage map comprising 943 SNP markers and 18 linkage groups spanning 1776.2 cM was generated. Phenotypic data from 240 F1 progeny were obtained from two disease hotspots in Tanzania, over two successive seasons, 2013 and 2014. Two consistent QTLs linked to resistance to CBSD-induced root necrosis were identified in Namikonga on chromosomes II (qCBSDRNFc2Nm) and XI (qCBSDRNc11Nm) and a putative QTL on chromosome XVIII (qCBSDRNc18Nm). qCBSDRNFc2Nm was identified at Naliendele in both seasons. The same QTL was also associated with CBSD foliar resistance. qCBSDRNc11Nm was identified at Chambezi in both seasons, and was characterized by three peaks, spanning a distance of 253 kb. Twenty-seven genes were identified within this region including two LRR proteins and a signal recognition particle. In addition, two highly significant CMD resistance QTL (qCMDc12.1A and qCMDc12.2A) were detected in Albert, on chromosome 12. Both qCMDc12.1A and qCMDc12.2A lay within the range of markers reported earlier, defining the CMD2 locus. This is the first time that two loci have been identified within the CMD2 QTL, and in germplasm of apparent East African origin. Additional QTLs with minor effects on CBSD and CMD resistance were also identified.

Introduction

Cassava (Manihot esculenta Crantz) (2n = 36), a starchy root crop, is widely grown in many parts of sub-Saharan Africa, with the major producers being Nigeria, Democratic Republic of Congo, Angola, Ghana, Mozambique, Uganda, and Tanzania (FAOSTAT 2015). In these regions, cassava provides the primary food source for millions of people (FAO 2010) and is strategically grown for food security and income generation (El-Sharkawy 2004; Legg et al. 2014). Cassava has the largest productivity per unit area of any crop grown in Africa (FAOSTAT 2017) and accounts for over 55% of the total world production (FAOSTAT 2015; Legg et al. 2014). The crop is consumed boiled, or dried and pounded into a flour which is known as ‘gari’ in Nigeria. It is also used as an industrial raw material for starch and bio-ethanol as well as for animal feed (Balagopalan 2002; Ceballos et al. 2010; Maziya-Dixon et al. 2006).

Tanzania is the second largest producer of cassava in East Africa after Uganda (FAOSTAT 2015) with average yields of 5.5 tha−1 (FAOSTAT 2015). This is far below the estimated yield potential of cassava in East Africa (50–60 tha−1) (Fermont et al. 2009), and represents a dramatic yield decline from 1996, in which 10.5 tha−1 was reported (FAOSTAT 2015). Among other biotic and abiotic factors such as increased whitefly and cassava green mite populations (Campo et al. 2011) and low external inputs (Howeler et al. 2013), cassava mosaic (CMD) and cassava brown streak (CBSD) diseases are major contributors to this decline (Hillocks et al. 2001; Legg et al. 2007). Both diseases were first recognized in northeastern coastal areas of Tanzania, CMD in 1894 (Thresh 2003) and CBSD in the early 1930s (Storey 1936). CMD is widely distributed across the African continent and Indian sub-continent (Alabi et al. 2011; Hillocks 1997), whereas CBSD was initially restricted to low-altitude areas of East Africa along the Indian Ocean (Hillocks and Jennings 2003; Jennings 2003), but later reported from high-altitude areas (>1000 meters above sea level) (Ntawuruhunga and Legg 2007). These areas include those surrounding Lake Victoria in northwestern Tanzania, western Kenya and central Uganda (Alicai et al. 2007; Ntawuruhunga and Legg 2007), Burundi (Bigirimana et al. 2011), and some areas of the Democratic Republic of Congo (Mulimbi et al. 2012). Further spread of CBSD towards West Africa, the largest cassava-producing region in Africa, is projected (Legg et al. 2014; Patil et al. 2014).

CBSD and CMD are caused by different groups of viruses, but are transmitted by a common vector, Bemisia tabaci (whitefly) (Maruthi et al. 2005). Two virus species have been reported to cause CBSD, namely cassava brown streak virus (CBSV) and Ugandan cassava brown streak virus (UCBSV), both belonging to the genus Ipomovirus (family Potyviridae) (Mbanzibwa et al. 2009, 2011; Winter et al. 2010). In this publication, we use CBSVs to imply both CBSV and UCBSV. Since these viruses have only recently been recognized, descriptions of further CBSD-causing viruses can be expected (Ndunguru et al. 2015).

Symptoms of CBSD occur throughout the plant, on leaves, stems and roots (Hillocks and Thresh 2000). It is manifested on leaves by various leaf chlorosis patterns, starting from the leaf veins towards the entire leaf surface (Hillocks and Jennings 2003). Symptoms on stems lead to the occurrence of purplish brown lesions (Hillocks and Thresh 2000). In severe cases, the stem symptoms cause death of the axillary buds (Hillocks and Jennings 2003) leading to a condition known as ‘dieback’ (Hillocks and Thresh 2000). Root symptoms are the most economically damaging, appearing as yellow to brown corky necrotic patches in the storage roots rendering them inedible (Hillocks and Thresh 2000; Ntawuruhunga and Legg 2007).

Efforts to control CBSD and CMD were initiated in the early 1930s at the East African Cassava Research Institute at Amani in northeastern Tanzania (Jennings 1976, 2003; Nichols 1950). Due to a lack of resistance in cassava, breeders resorted to introgression of disease resistance through interspecific crosses with wild Manihot species (Nichols 1950). The breeding work successfully developed several hybrids including 46106/27, which showed high levels of field resistance to CBSD (Hillocks and Jennings 2003; Jennings 2003). Many of these hybrids dissipated into local farming systems. It has been shown that hybrid 46106/27, known as Amani in Tanzania, is closely related to, but not identical to, a Tanzanian local cultivar Namikonga (Kulembeka 2010; Pariyo et al. 2013). Namikonga is, therefore, suspected to be an interspecific hybrid from the Amani program that was subsequently adopted by the farming communities and given a local name. At present, Namikonga still expresses field resistance to CBSD and is used as one of the best sources of CBSD resistance in conventional breeding programs (Jennings 2003; Kanju et al. 2010; Kaweesi et al. 2014; Maruthi et al. 2014; Pariyo et al. 2013; Rwegasira and Rey 2012). The variety is grown by farmers to a limited extent in southeastern Tanzania, although the yield is low. More recently, breeders have been exploiting other natural sources of CBSD resistance (Kawuki et al. 2016); however, immunity to virus infection has so far been elusive. Genetic engineering has generated immunity to CBSVs in the model cassava cultivar 60444 (Vanderschuren et al. 2012).

Analysis of whole genome shotgun sequencing by Bredeson et al. (2016) revealed a parent–offspring relationship of Namikonga with a Nigerian landrace TME117. Namikonga shares an entire haplotype with TME117. One explanation for this is that, prior to interspecific hybridization, many M. esculenta varieties from different cassava-growing regions of the world, including West Africa, were evaluated for virus resistance at Amani (Nichols 1947). It is suspected that TME117 was amongst these varieties as it was presumably used as a parent in the Amani breeding program (Jennings 2015). Evidence that Namikonga was derived from the Amani breeding program comes from the fact that 14.4% of the Namikonga genome was of the M. glazioviiM. esculenta hybrid type, and it contains an indicative introgression segment on chromosome 1 (Bredeson et al. 2016). A diallel analysis conducted by Kulembeka et al. (2012) found that CBSD resistance in Namikonga was due to two or more genes with additive effects.

Albert, another Tanzanian local cultivar and putative full-sib of TME117 (Bredeson et al. 2016), is extremely susceptible to CBSD, although it shows high levels of field resistance to CMD (Maruthi et al. 2014; Mtunda et al. 2003; Rwegasira and Rey 2012). Two known sources of CMD resistance are recognized, one largely influenced by a genomic region known as CMD2 discovered in a Nigerian landrace TME3 (Akano et al. 2002; Rabbi et al. 2014), and a more quantitative source of CMD resistance called CMD1, derived from an Amani interspecific cross, now known as TMS 30572 (now TMS-I30572) (Fregene et al. 2000; Mohan et al. 2013). A third putative source of resistance, known as CMD3, has also been described (Okogbenin et al. 2012). Novel sources and additional information on the genetic basis of CBSD and CMD resistance is urgently needed by breeding programs in Africa.

Most cassava breeding programs in Africa use purely conventional breeding methods that are hindered by long breeding cycles, genotype x environment interactions and large, expensive field trials (Ceballos et al. 2004, 2015). The use of molecular markers in breeding for disease resistance has yielded successful results in wheat (Kuchel et al. 2007), regardless of logistical challenges (Heffner et al. 2009; Xu and Crouch 2008). Selection based on molecular markers that define a quantitative trait locus (QTL) can effectively increase the heritability of the associated trait by negating environmental influence. Marker-assisted selection (MAS) enables selection of progeny at the seedling stage, meaning that only individuals with the preferred allelic composition are planted for further evaluation. Through increases in heritability, it is likely that a reduced number of breeding cycles may be necessary in the varietal development process.

In cassava, MAS has not been widely adopted but has been used to a limited extent to introgress the CMD2 locus into Latin American germplasm using Simple Sequence Repeat (SSR) and Sequence Characterized Amplified Regions (SCAR) markers (Ceballos et al. 2015; Egesi et al. 2006; Okogbenin et al. 2007). Additionally, the identification of molecular markers associated with CBSD resistance would enable pre-emptive breeding through MAS for CBSD resistance in those countries not yet affected, but threatened, by the disease. The current study aimed at the identification of QTL associated with CBSD and CMD resistance in the Tanzanian landraces Namikonga and Albert, and the characterization of QTL genomic regions associated with CBSD resistance in Namikonga.

Materials and methods

Varieties Namikonga and Albert differ in terms of their response towards CBSVs infection (Kaweesi et al. 2014; Maruthi et al. 2014; Rwegasira and Rey 2012). A filial 1 (F1) mapping population was developed from a cross between Namikonga, a CBSD-tolerant but CMD-susceptible variety, and Albert which contrastingly is CBSD susceptible and CMD resistant. Namikonga was used as the female parent and Albert, a prolific pollen producer, as the male parent. Stakes of parental genotypes were collected from farmers’ fields and research stations and planted in two crossing blocks at Kibaha and Naliendele research centers in eastern and southern Tanzania, respectively. The two sites were selected based on the adaptation of the parental genotypes to the hot, humid conditions of coastal Southeast Tanzania (Kanju et al. 2010). To facilitate movement during pollination, stakes were planted at a spacing of 1 m by 2 meters as intra-row and inter-row spacing, respectively. Pollinations were performed by hand. Each morning before pollination, transparent mesh bags were used to cover mature female flowers on Namikonga to avoid pollen contamination. Pollen was collected from the male parent Albert and stored in a perforated and well-aerated paper container. Pollinations were performed from around midday by uncovering the mature female flowers and dusting the stigma with the collected pollen. All non-mature flowers were detached from the inflorescence immediately after pollination and the pollinated inflorescence was labeled with the date of crossing, names of the parents and the number of pollinated flowers. About four weeks after pollination the mature fruits were bagged in well-aerated seed collection bags as fruits undergo biocidal dehiscence (Chavarriaga-Aguirre and Halsey 2005). Mature seeds were harvested from 75 to 90 days after pollination (Alves 2002) and stored for a dormancy period of about 2 to 3 months prior to germination. Seeds were germinated in seed trays in a clean disinfected screen house and seedlings transplanted into a CBSD and CMD free site at Makutupora research station (5.97°S:3, 5.76°E) in central Tanzania for production of planting stakes. At three months after planting (MAP), leaf samples were collected from 569 vigorous individuals for DNA extraction and subsequent analysis.

Validation of true crosses using simple sequence repeat markers

Due to the outcrossing nature of cassava, and the fact that parental stakes were partly derived from farmers’ fields, the integrity of the putative mapping population was assessed for ‘off-types’ and ‘selfs’ (which are synonymous with outcross progeny derived from two identical genotypes of this clonally propagated crop) using SSR fingerprinting. Genomic DNA was extracted using a Miniprep extraction protocol, a modification of Dellaporta et al. (1983). DNA quantity and quality was assessed using NanoDrop (NanoDrop® ND-1000 Spectrophotometer) and confirmed using 1% agarose gel electrophoresis (Treseder-laboratory 2007) stained with GelRedTM nucleic acid gel stain (Biotium) (Warren 2007). Reaction conditions were according to Kawuki et al. (2013). SSR markers that were polymorphic between the two parents were identified and 15 primer pairs which produced unambiguous amplification products (SSRY9, 19, 27, 44, 55, 165, 185, 229, 253, 282, 32, 122, 151, NS160 and NS909) (Mba et al. 2001) were used to select F1 true-cross progeny. Amplification products were resolved using capillary electrophoresis on an ABI 3730 and scored using GeneMapper v4.1 software.

Genotyping-by-sequencing (GBS) library preparation, sequencing and variant calling

Genotyping of the population was performed using a reduced representation approach, namely genotyping-by-sequencing (GBS) (Elshire et al. 2011) with modifications (International Cassava Genetic Map Consortium 2015) at the University of California, Berkeley. Due to the presence of highly repetitive sequences in the cassava genome (Prochnik et al. 2012), sites with an average read depth exceeding 120 reads per individual were excluded. High-quality read data, free from adapter sequences, were trimmed using a custom BWA-like trimming script. Burrows Wheeler Aligner (BWA) (Li and Durbin 2009) suitable for short-read alignment was used to align individual genomes to the cassava reference assembly version 5.1. Single nucleotide polymorphic markers (SNPs) were extracted using the HaplotypeCaller tool from the Genome Analysis Toolkit (GATK) (v2.7-2) (International Cassava Genetic Map Consortium 2015). Stringent filtering of the variant sites was performed and variant sites with P < 0.05 segregation distortion were excluded. SNP markers were named according to the chromosome number (Roman numerals in v5.1 of the cassava genome assembly) and base pair (bp) position.

Construction of genetic linkage maps

Genotyping data of the F1 progeny obtained from GBS were used for linkage mapping. Markers and individuals with more than 20% missing data were excluded from the analysis. SNP data were formatted according to the cross-pollinated (CP) option in JoinMap® 4.1. (van Ooijen 2006), which is appropriate for outcrossing species in which both parents are heterozygous and the linkage phase is unknown. Bi-allelic and tri-allelic SNP data provided segregation types lmxll, nnxnp, hkxhk, and efxfg. Tetra-allelic SNPs were excluded from the analysis, together with markers with 99% or greater similarity. The remaining SNP data with less than 20% missing values were used to generate a one-step high-density genetic linkage map using JoinMap® version 4.1 (van Ooijen 2006). Linkage groups were established using a minimum LOD of 5.0 per group and marker order was defined using the regression mapping algorithm (Wu et al. 2014) and Kosambi’s mapping function (van Ooijen 2009). The linkage groups were named according to the corresponding chromosome as defined by the International Cassava Genetic Map Consortium (2015). Using the high-density mapping results, a low-density, high-confidence framework map with markers approximately 5 centiMorgans (cM) apart was generated (Darvasi et al. 1993). The order of the markers for both the high-density and framework maps was consistent with that of version 5.1 of the cassava genome sequence (International Cassava Genetic Map Consortium 2015) [http://www.cassavabase.org/cview/map.pl?map_id=3] [http://portal.nersc.gov/dna/plant/cassava_wgs/assmV5.1/]. The framework map was initially used for QTL detection, but in an attempt to close a large inter-marker distance at a CBSD resistance QTL, and to obtain more resolution at a CMD locus, the high-density map was also used (Stange et al. 2013). As most of the markers are not completely informative, including all markers in a linkage group may improve the power and accuracy of estimates, especially in outbreeding populations (Knott et al. 1997).

Phenotypic data analysis and detection of QTL associated with CBSD and CMD resistance

Cassava stakes (cuttings) were collected from F1 individuals previously maintained and bulked at Makutupora research center, a CBSD- and CMD-free site. Phenotyping trials were established in CMD and CBSD hot spot areas at Naliendele (10.38°S, 40.16°E) and Chambezi (6.55°S, 38.91°E) research centers in the southern and eastern coastal areas of Tanzania. Genotypes were evaluated in two consecutive seasons, namely 2013 and 2014. The site–season combinations were designated as experiments N1 and N2 for Naliendele in season 1 and 2, and experiments C1 and C2 for Chambezi for the same seasons. The number of genotypes to be evaluated per trial per season was determined by the number of individuals having sufficient stakes (cuttings) to establish a trial. Therefore, 223 genotypes were evaluated in 2013 and 280 genotypes in 2014. Due to the large number of individuals being evaluated, an alpha lattice experimental design with incomplete blocks was used (Kashif et al. 2011). Five plants per genotype were used per plot, in two or three replications, and planted at 1 m x 1 m spacing. To increase the disease pressure and the chance that all plants were equally exposed to the diseases, spreader rows with infected plants were planted adjacent to each row and surrounding the trial. Cuttings planted for spreaders were taken from plants that clearly showed CMD and CBSD symptoms. These were obtained from farmer fields close to the experimental sites. Separate phenotypic data for CMD and CBSD (both leaf and root) symptoms were scored on a scale of 1–5 (Fig. 1) (Hillocks and Thresh 2000; National Cassava Research 2006). Measurements for foliar symptoms of CBSD and CMD were taken at 3-month intervals at 3, 6 and 9 MAP, whereas CBSD root necrosis measurements were taken at harvest (12 MAP). Shapiro–Wilk normality (SWILK) (Shapiro and Wilk 1965), incorporated in the Genetic Analysis of Clonal F1 and Double Cross population (GACD v 1.1) mapping software (Zhang et al. 2015), was used to determine the normality of the trait frequency distributions across the locations in both seasons.
Fig. 1

CBSD and CMD symptom scoring scale (1–5)

Detection of CBSV and UCBSV in experimental sites

To ascertain the relative incidence of CBSV and UCBSV in the experiments, leaf samples were taken from 26 to 30 randomly selected genotypes from Chambezi and Naliendele, respectively, each genotype having three replications. The genotypes included individuals that scored class 1 (no symptom), class 3 (mild symptoms on leaves and stem), and class 5 (severely infected) on the CBSD severity scale. In each selected plant, the second fully expanded central leaf from the shoot apex was picked and press dried on herbarium newspaper (GLCI 2010). Total RNA was extracted using a pine tree RNA extraction method (Chang et al. 1993), with modifications adopted from Moreno et al. (2011). The quantity and quality of each RNA sample was assessed using NanoDrop (NanoDrop ® ND-1000 Spectrophotometer). Real-time reverse transcription polymerase chain reaction (RT-PCR) assays based on Taqman chemistry was used to detect and distinguish the two virus species (CBSV and UCBSV) on a GeneAmp PCR System 9700 (Applied Biosystems) (Adams et al. 2013).

QTL analysis

QTL analysis to identify genomic regions that associate with CBSD resistance in Namikonga based on both foliar and root symptoms, and CMD resistance in Albert was performed through interval mapping (IM) and inclusive composite interval mapping (ICIM) using low- and high-SNP density maps initially generated by JoinMap ® 4.1. software (van Ooijen 2006). QTL mapping by IM was performed by MapQTL® 6 QTL mapping software (van Ooijen 2009) and ICIM by GACD (v 1.1) (Zhang et al. 2015). ICIM using a high-density map was done to increase the mapping resolution and help to identify multiple loci associated with the traits. A regression mapping algorithm was applied for both mapping methods. The significance threshold levels of the logarithm of odds (LOD) scores (P ≤ 0.05) were assigned both by permutation tests in IM and manually assigned at a threshold of 3.0 in ICIM. Flanking markers, LOD scores, and percentage phenotypic variance explained (PVE%) are reported from the .RIC output file. QTL was named as q for QTL followed by the trait abbreviation, c for chromosome and the number of the chromosome. If more than one QTL was defined per chromosome for a specific trait then a point followed by a sequential number was used. A suffix ‘Nm’ was added to specify that the QTL was identified in Namikonga, or ‘A’ for Albert. All QTLs and markers are in version 5.1 of the cassava genome sequence, unless indicated.

Identification of additional SNPs in the qCBSDRNc11 QTL region

To further investigate a QTL region of interest on chromosome XI, Namikonga and Albert whole genome sequence raw reads as available from Sequence Read Archive (SRA) of the National Centre for Biotechnology Information (NCBI) database were retrieved. Sequence quality was verified by FastQC and the quality-passed reads (in FastQ format) were aligned against version 6.1 of the cassava reference assembly [http://phytozome.jgi.doe.gov/pz/portal.html#!info?alias=Org_Mesculenta] using Bowtie2 genome alignment tool (Langmead et al. 2009). Alignment results were obtained in Sequence Alignment/Map (SAM) format and compressed into a Binary Alignment/Map (BAM) format using SamTools (Li et al. 2009). Markers defining the QTL region on chromosome XI were identified using BLASTn on v6.1 of the assembly (Supplementary Note 1). Genome annotation of the QTL region was done using vcf-annotate in the VCTtools package. Inferred protein-coding genes were characterized based on PFAM, PANTHER, KOG, KEGGORTH, GO, and TAIR domains. In addition, further SNPs were identified within the QTL region and SNP variation was characterized between Namikonga and Albert using a Genome Analysis Toolkit (GATK v3.3.0) (https://www.broadinstitute.org/gatk/) (Auwera et al. 2014). To provide confidence in SNP calling between the two genotypes, sequences from four additional genotypes (Kiroba, Muzege, Nachinyaya and AR37-80) were included.

Results

Population development and full sibling validation

A total of 10,238 pollinations were made in both crossing blocks from April to October 2010. From these pollinations, 2844 seeds were obtained, but only 876 seeds (30.8%) germinated. From the germinated seedlings, 806 were transplanted at Makutupora research center for bulking of the planting materials. Due to the outcrossing nature of cassava, each plant represented an independent genotype (Ceballos et al. 2004). At 3 MAP, 569 surviving individuals were genotyped using SSRs, and 305 individuals, which were confirmed to be Namikonga–Albert true progeny, were further genotyped by GBS. The remaining plants were off-types (98) and self (148) individuals.

Construction of a genetic linkage map

GBS generated 3123 well-supported SNP markers across 252 Namikonga–Albert F1 progeny, after exclusion of three off-types (open pollination crosses) and nine self-derived individuals (S1), which had been further identified by GBS. In addition, 12 F1 individuals with more than 20% missing data were removed, leaving a population of 240 F1 individuals, which were used in the analysis. A high-density map with a length of 1776.2 cM consisting of 943 SNP markers was obtained with the highest marker density on chromosome IV (average 0.88 cM between markers) and the lowest on chromosome VIII (average 3.41 cM between markers) (Table 1; Supplementary Note 2). The average marker density was 1.88 SNPs per cM (Table 1). In addition, a framework genetic linkage map consisting of 243 SNP markers was generated (Supplementary Note 2). This map spanned 1784.0 cM, with an overall average marker interval ranging from 6.97 to 9.85 cM per linkage group (Supplementary Note 2). Both maps had 18 linkage groups, which corresponded to the 18 chromosomes of cassava (Table 1) (International Cassava Genetic Map Consortium 2015).
Table 1

Summary of a high-density genetic linkage map based on cassava genome assembly version 5.1 using the Namikonga × Albert mapping population

Chromosome (v5.1)

Number of mapped loci

Map length (cM)

Average distance between markers (cM)

I

58

131.7

2.27

II

86

122.5

1.42

III

44

91.4

2.08

IV

54

47.7

0.88

V

53

135.2

2.55

VI

56

77.7

1.39

VII

43

106.2

2.47

VIII

28

95.5

3.41

IX

63

99.1

1.57

X

64

111.5

1.74

XI

46

129.5

2.82

XII

41

108.3

2.64

XIII

44

76.0

1.73

XIV

43

65.7

1.53

XV

58

109.9

1.89

XVI

62

107.0

1.73

XVII

55

76.0

1.38

XVIII

45

85.5

1.90

Phenotypic evaluation for response to CBSD and CMD

The two experimental locations, namely Chambezi and Naliendele, differed in CBSD severity. Experiments C1 and C2 (Chambezi) showed a much higher CBSD root necrosis mean score than N1 and N2 (Naliendele) (Supplementary Note 3). A similar trend was observed in the case of CMD (Supplementary Note 3). Within the same growing season, severity scores for CBSD root necrosis indicated high population means of 3.82 and 3.24 (i.e., 26–50% range of root necrotic area) in C1 and C2, as compared to 2.63 and 2.12 (i.e., less than 25% of root necrotic area) in N1 and N2, respectively (Table 2). For the case of CBSD foliar symptoms, the mean severity was low 1.14 (N1–3) (Naliendele season 1, 3 MAP) to 2.67 (C2–9), indicating mild expression of the symptoms (Table 2). An exception was observed at C1–6 where a higher mean severity score of 3.27 was obtained, and a non-significant (P > 0.05) normality test (W = 0.959) was obtained (Table 2). SWILK test results from GACD (v 1.1) basic statistics of the phenotypes revealed a highly significant normal distribution (P ≤ 0.001) (W ≥ 0.908 ≤ 0.941) for CBSD root necrosis mean scores in all experiments N1, N2, C1, and C2 (Table 2).
Table 2

GACD results showing basic statistics of the phenotypes, CBSDRN, CBSDF, and CMD obtained from the phenotyping experiments N1, N2, C1, and C2

Traita

Experimentb

Population mean (15 scale)

Variance

SEc

SWILK normality (w)

P value

CBSDRN

N1

2.63

0.82

0.90

0.941

0.000***

N2

2.12

0.82

0.91

0.908

0.000***

C1

3.82

0.78

0.89

0.922

0.000***

C2

3.24

1.19

1.09

0.940

0.000***

CBSDF

C1-3

1.04

0.01

0.11

0.487

0.000***

C1-6

3.27

0.88

0.94

0.959

0.500*

C1-9

1.91

0.62

0.79

0.892

0.000***

N1-3

1.14

0.12

0.35

0.475

0.000***

N1-6

1.29

0.26

0.51

0.632

0.000***

N1-9

1.50

0.48

0.69

0.746

0.000***

C2-3

1.19

0.08

0.28

0.727

0.000***

C2-6

1.38

0.21

0.46

0.788

0.000***

C2-9

2.67

1.18

1.08

0.942

0.000***

N2-3

1.72

0.55

0.74

0.850

0.000***

N2-6

1.52

0.62

0.79

0.697

0.000***

N2-9

2.17

1.28

1.13

0.867

0.000***

CMD

C1-3

1.92

0.44

0.66

0.939

0.000***



C1-6

2.32

0.63

0.80

0.938

0.000***



C1-9

3.93

0.74

0.86

0.918

0.000***



N1-3

2.31

0.97

0.98

0.928

0.000***



N1-6

2.38

0.96

0.98

0.935

0.000***



N1-9

2.04

0.75

0.87

0.894

0.000***



C2-3

1.87

1.06

1.03

0.654

0.000***



C2-6

2.29

1.30

1.14

0.885

0.000***



C2-9

2.60

1.96

1.40

0.858

0.000***



N2-3

1.95

0.92

0.96

0.832

0.000***



N2-6

1.76

0.90

0.95

0.759

0.000***



N2-9

1.64

0.61

0.78

0.783

0.000***

a CBSDRN—CBSD root necrosis, CBSDF—CBSD foliar symptoms

b N1 = Naliendele 2013, N2 = Naliendele 2014, C1 = Chambezi 2013, C2 = Chambezi 2014, -3 = 3MAP, -6 = 6MAP, and -9 = 9MAP

c SE = standard error, * P ≤ 0.05; ** P ≤ 0.01; *** P ≤ 0.001

For CMD, Chambezi also had relatively high means of 3.93 (C1–9) and 2.60 (C2–9), while lower mean severity scores of 2.38 (N1–6) and 1.95 (N2–3) were observed at Naliendele at different time points (Table 2). SWILK normality tests revealed a moderate to highly significant normal CMD frequency distribution in all experiments N1, N2, C1, and C2 (P ≤ 0.001) (0.654 ≤ W ≤ 0.939) (Table 2). The parental genotype Namikonga expressed mild CBSD symptoms on leaves and roots with a maximum mean score of less than 2.0 across sites/seasons (less than 10% CBSD necrotic area), while Albert was highly affected with sites/seasons mean scores above class 3.0 (>26% CBSD necrotic area). The opposite was observed for CMD as Namikonga had a minimum mean score of 2.0 (2013) and maximum mean score of 5.0 (2014), while Albert showed milder symptoms with mean scores between 1.0 and 2.0 (Table 2).

Both CBSV and UCBSV were detected by qRT-PCR in plants that were randomly sampled from experiments C1 and N1 (Table 3). Results indicated that CBSV was more prevalent across the sites than UCBSV, although in most cases both viruses appeared as co-infections (Table 3). In Chambezi, 88.5% (69 out of 78 plants) of the tested plants were infected by at least one virus and in the rest of the tested plants (11.5%) neither virus was detected. A smaller proportion of plants (76.6%; 69 out of 90) were infected, according to diagnostics, in Naliendele as compared to Chambezi (Table 3). In addition, a few of the CBSV-negative plants were also free of CBSD foliar and root symptoms (16.7%) at N1, indicating possible escapes. At C1 all plants were either virus positive and/or had CBSD symptoms, indicating no escapes within the sample.
Table 3

Detection of CBSD-causing viruses in the sampled plants collected from C1 and N1

Experiment

CBSD score

Number of plants (%)



Number of plants tested

CBSV (%)

UCBSV (%)

CBSVs Co-infection (%)

CBSVs negative (%)

Possible CBSVs escapes* (%)

C1

1

6

3

0

3

0

0

3

36

9

6

21

0

0

5

36

3

0

24

9

0

All

78

15 (19.2)

6 (7.7)

48 (61.5)

9 (11.5)

0 (0)

N1

1

36

9

3

9

15

15

3

36

11

0

22

3

0

5

18

6

0

9

3

0

All

90

26 (28.9)

3 (3.3)

40 (44.4)

21 (23.3)

15 (16.7)

* Plants which were CBSD symptom free and CBSV or UCBSV negative according to real-time RT-PCR

Identification of QTL associated with CBSD and CMD resistance

QTL associated with resistance to CBSD root necrosis

Mapping for resistance to root necrosis induced by CBSD infection in Namikonga identified two QTL with consistent flanking markers across seasons on chromosomes XI and II, qCBSDRNc11Nm and qCBSDRNFc2Nm, respectively (Fig. 2a, b; Table 4). A putative QTL was also detected on chromosome 18, qCBSDRNc18Nm, although the flanking markers at this QTL were less consistent across sites and seasons. qCBSDRNc11Nm was identified in both years in Chambezi under high disease pressure. The qCBSDRNc11Nm region stretched between two flanking markers, namely cXI:4502175 and cXI:4760631 (18.75 cM apart), corresponding to 5507842 and 5761172 bp in the v 6.1 cassava assembly. Three neighboring QTL peaks could be discerned within this region, although only one was consistent across seasons: qCBSDRNc11.1Nm (cXI:4527454–cXI:4617294 (v5.1)) (C2 only) with the highest LOD score, qCBSDRNc11.2Nm (cXI:4502175–cXI:4527454 (v5.1)) with the second largest LOD score (C1 and C2 only), and qCBSDRNc11.3Nm (cXI:4617294–cXI:4760631 (v5.1)) (C1 only) (Fig. 2b; Table 4). The highest LOD of 7.5 was detected at qCBSDRNc11.1Nm in experiment C2 with a percentage phenotypic variance explained (PVE) by the QTL of 17.39% in C2. Corresponding v6.1 markers, detected using BLASTn, can be found in Supplementary Note 1. Although the physical map distance between these markers (cXI:4527454–cXI:4617294 (v5.1)) was reasonably small (89.8 Kb), a relatively large distance on the genetic map was observed (6.2 cM)(14.5 kb/cM). In addition, between markers cXI:4502175 and cXI:4527454 at qCBSDRNc11.2Nm, there was a physical gap of 25.3 kb with a relatively large genetic map-based distance of 11.5 cM (2.2 kb/cM) (Fig. 2b; Supplementary Note 4). At qCBSDRNc11.3Nm, there was 143.3 Kb between markers (cXI:4617294–cXI:4760631 (v5.1)), yet a small genetic map distance of 1.05 cM (136.5 kb/cM). The theoretical distance is 434 kb/cM based on the current map distance and a genome size of 770 Mb (Awoleye et al. 1994). When the low-density map was used, although a QTL was detected in the same region in C1, C2, and N1, with maximum LOD 5.2, the map could not be extended below cXI:4527454 and there was a large gap between these markers and cXI:6227716 (Supplementary Note 5).
Fig. 2

GACD LOD profile showing major QTL associated with resistance to CBSD root necrosis a qCBSDRNFc2Nm (N1 and N2) and b qCBSDRNc11Nm (C1 and C2); CBSD foliar symptoms c qCBSDRNFc2Nm (N1 and C1) and d qCBSDRNFc2Nm (N2 and C2); CMD symptoms e qCMDc12A (N1 and C1) and f qCMDc12A (N2 and C2). Arrows point to the QTL position

Table 4

QTL putatively associated with CBSD root necrosis resistance in ‘Namikonga’ consistently identified using phenotyping data in Chambezi and Naliendele field experiments during seasons 2013 and 2014

QTL name

Chromo.

Experimenta

Flanking markers (v 5.1)

Position (cM)

Parental effects

LOD

Unadjusted PVE (%)



Left marker

Right marker

F

M

FM



qCBSDRNFc2Nm

II

N1

cII:3454303

cII:3552915

22.1–23.7

0.30

0.32

0.50

4.76

47.38

qCBSDRNFc2Nm

II

N2

cII:3454303

cII:3552915

22.1–23.7

−0.44

0.26

0.27

3.24

42.46

qCBSDRNc11.1Nm

XI

C2

cXI:4527454

cXI:4617294

47.8–54.0

−0.34

0.24

0.21

7.50

17.39

qCBSDRNc11.2Nm

XI

C2

cXI:4502175

cXI:4527454

36.3–47.8

0.00

0.30

−0.02

3.81

7.54

qCBSDRNc11.2Nm

XI

C1

cXI:4502175

cXI:4527454

36.3–47.8

0.11

0.17

0.05

3.35

5.19

qCBSDRNc11.3Nm

XI

C1

cXI:4617294

cXI:4760631

54.0–55.0

−0.03

−0.04

0.20

3.60

5.32

qCBSDRNc18.1Nm

XVIII

C2

cXVIII:8650285

cXVIII:8943971

70.0–75.9

0.10

0.01

0.64

5.10

36.83

qCBSDRNc18.2Nm

XVIII

C2

cXVIII:3106706

cXVIII:3705640

23.8–27.8

0.18

0.15

0.42

3.99

16.10

qCBSDRNc18.3Nm

XVIII

N2

cXVIII:6320754

cXVIII:6502253

38.0–41.4

0.01

0.08

0.56

3.31

37.00

SNP marker names are as per Manihot esculenta v5.1 reference genome. Effect F is the estimated additive effect of the female parent (Namikonga). Effect M is the estimated additive effect of the male parent (Albert). Effect FM is the dominance effect between male and female markers

a N1 = Naliendele 2013, N2 = Naliendele 2014, C1 = Chambezi 2013, C2 = Chambezi 2014 and PVE = % phenotypic variation explained

The estimated additive effect of the female parent (Namikonga) at qCBSDRNc11.1Nm was highest at −0.335 and that of the male parent (Albert) 0.2411 (Table 4). A negative additive effect was expected as the disease scoring scale was 1 (no symptoms) to 5 (maximum symptoms); therefore, the effect of resistant female parent should tend to reduce scores. The mean value of different QTL genotypes showed the largest difference between M(AC) 3.3832 and M(AD) 2.4715, where A and D are segregating in the female parent (Supplementary Note 6). The estimated additive effect of Namikonga at qCBSDRNc11.2Nm was 0.1136 (C1) and −0.0021 (C2), and for qCBSDRNc11.3Nm −0.0291 (C1) (Table 4).

A QTL, qCBSDRNFc2Nm, was consistently identified for resistance to root necrosis in both years at Naliendele under lower disease pressure with a maximum LOD = 4.76 (PVE = 13.36%), which was obtained in the N1 experiment (Table 4; Fig. 2a). qCBSDRNFc2Nm was flanked by markers cII:3454303 and cII:3552915 with 1.6 cM between the markers (Table 4). Interestingly, the additive effects of Namikonga and Albert were not consistent across locations at this QTL. An interesting putative QTL was detected on chromosome XVIII, qCBSDRNc18Nm, with two peaks detected towards the end of the left arm of the chromosome in C2, and another peak, located between them, detected in N2 (Table 4). Furthermore, additional putative QTLs were also identified on chromosomes III, IV, V, VI, VII, X, XII, XV, and XVI (Supplementary Notes 4 and 6).

QTL associated with resistance to CBSD foliar symptoms

QTL analysis to identify genomic regions that associate with resistance to CBSD foliar symptoms, on a high-density map, revealed several QTL on all chromosomes (Supplementary Note 7). The most interesting QTL was on chromosome 2, namely qCBSDRNFc2Nm. This QTL was detected using all site/season combinations and had a highest LOD = 17.81 (PVE = 4.6) detected at N1 (Fig. 2c, d; Table 5). It co-locates with the QTL for root necrosis, being flanked by the same markers (cII:3454303 and cII:3552915) and thus has both traits, root necrosis and foliar symptoms, indicated in its name (qCBSDRNFc2Nm). Additional QTL, namely qCBSDFc14Nm and qCBSDFc17Nm, were consistently identified in three out of the four experiments (Table 5). Inconsistent QTL associated with this resistance were identified on chromosomes III (qCBSDFc3Nm), VI (qCBSDFc6Nm), VIII (qCBSDFc8Nm), XI (qCBSDFc11Nm), XII (qCBSDFc12Nm), XVI (qCBSDFc16Nm), and XVIII (qCBSDFc18Nm) (Supplementary Note 7). Inconsistent QTLs were also identified when IM was performed on a low-density map (Supplementary Note 8).
Table 5

QTLs putatively associated with CBSD foliar resistance in ‘Namikonga’ consistently identified using phenotypic data from Chambezi and Naliendele field experiments during seasons 2013 and 2014

QTL

Chromosome

Experiment

Flanking markers (v5.1)

Position (cM)

Parental effects

LOD

Unadjusted PVE (%)

Left marker

Right marker

F

M

FM

qCBSDRNFc2Nm

II

N1-6

cII:3454303

cII:3552915

22.1–23.7

−0.33

0.31

0.31

17.81

74.39

qCBSDRNFc2Nm

II

C1-3

cII:3454303

cII:3552915

22.1–23.7

0.08

0.08

0.08

8.69

58.52

qCBSDRNFc2Nm

II

C2-3

cII:3454303

cII:3552915

22.1–23.7

−0.13

0.13

0.14

6.05

49.38

qCBSDRNFc2Nm

II

C2-6

cII:3454303

cII:3552915

22.1–23.7

−0.17

0.18

−0.19

3.34

35.54

qCBSDRNFc2Nm

II

N2-3

cII:3454303

cII:3552915

22.1–23.7

0.23

0.28

0.34

3.03

44.65

qCBSDRNFc2Nm

II

N2-6

cII:3454303

cII:3552915

22.1–23.7

−0.33

−0.35

0.35

4.08

45.34

qCBSDRNFc2Nm

II

N2-9

cII:3454303

cII:3552915

22.1–23.7

−0.36

−0.40

0.66

4.50

58.20

qCBSDFc14Nm

XIV

C1-3

cXIV:7870761

cXIV:8305501

31.8–35.7

0.12

0.12

0.11

14.32

58.65

qCBSDFc14Nm

XIV

N1-3

cXIV:7870761

cXIV:8305501

31.8–35.7

−0.26

−0.25

0.26

8.98

45.98

qCBSDFc14Nm

XIV

N1-9

cXIV:7870761

cXIV:8305501

31.8–35.7

−0.29

−0.22

0.30

3.90

31.80

qCBSDFc14Nm

XIV

C1-6

cXIV:7870761

cXIV:8305501

31.8–35.7

−0.32

−0.06

−0.06

3.19

10.40

qCBSDFc14Nm

XIV

C2-6

cXIV:7870761

cXIV:8305501

31.8–35.7

−0.32

−0.06

−0.06

4.77

26.89

qCBSDFc17Nm

XVII

N1-6

cXVII:15341988

cXVII:15982729

46.5–53.8

−0.33

−0.31

0.35

17.98

71.61

qCBSDFc17Nm

XVII

C2-3

cXVII:15341988

cXVII:15982729

46.5–53.8

−0.13

−0.14

0.18

4.13

52.43

qCBSDFc17Nm

XVII

N2-6

cXVII:15341988

cXVII:15982729

46.5–53.8

−0.31

−0.34

0.45

3.94

47.05

SNP marker names are as per Manihot esculenta v5.1 reference genome. Effect F is the estimated additive effect of the female parent (Namikonga). Effect M is the estimated additive effect of the male parent (Albert). Effect FM is the dominance effect between male and female markers

** N1 = Naliendele 2013; N2 = Naliendele 2014; C1 = Chambezi 2013; C2 = Chambezi2014; PVE = % explained variation

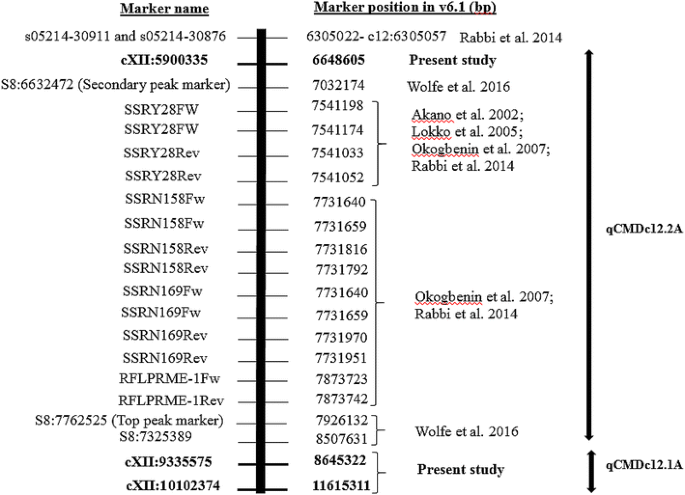

QTL associated with CMD resistance

Albert, a parent of the bi-parental mapping population, is resistant to CMD and several significant QTLs associated with CMD resistance were detected. A major multiple QTL (qCMDc12A) was consistently detected on chromosome XII, in all site/season combinations and using phenotyping data collected at all time points: 3, 6, and 9 MAP (Fig. 2e, f). Initially, using a low-density map and IM in MapQTL v 6.0, qCMDc12A was thought to be a single QTL which spanned across a very large region of approximately 6.75 Mbp (30.53 cM) between markers cXII:3352898 and cXII:10102374 (Supplementary Note 9); however, greater resolution was achieved when using a high-density map and ICIM approach, as multiple QTL were detected. The qCMDc12A QTL had two peaks, designated as qCMDc12.1A and qCMDc12.2A. qCMDc12.1A was flanked by markers cXII:9335575 and cXII:10102374 having a maximum LOD = 15.92 (PVE = 16.43%), obtained in C2 at 3 MAP (Table 6). The second peak (qCMDc12.2A) was flanked by markers cXII:5900335 and cXII:9335575 and had a peak LOD of 10.95 (PVE = 13.51%) obtained at C1 at 6 MAP. In addition, ICIM reduced the total length of the qCMDc12A QTL, covering both QTL qCMDc12.1A and qCMDc12.2A, between cXII:5900335 and cXII:10102374, to 4.97 Mbp (~15.8 cM) (Fig. 3; Supplementary Note 10). Based on v6.1 of the cassava genome assembly, the qCMDc12.1A QTL region lies between 8645322 and 11615311 bp and qCMDc12.2A between 6648605 and 8645322 bp (Fig. 3). Estimated additive effects of the male and female parents and dominance effects between the male and female parents can be found in Supplementary Note 6.
Table 6

QTLs putatively associated with CMD resistance identified using phenotypic data from Chambezi and Naliendele field experiments during seasons 2013 and 2014

QTL

Chromosome

Experiment

Flanking markers (v5.1)

LOD

Unadjusted PVE (%)

Left marker

Right marker

qCMDc12.1A

XII

N1-9

cXII:9335575

cXII:10102374

12.68

23.84

qCMDc12.1A

XII

C1-3

cXII:9335575

cXII:10102374

9.39

15.00

qCMDc12.1A

XII

N2-3

cXII:9335575

cXII:10102374

15.92

27.01

qCMDc12.1A

XII

C2-9

cXII:9335575

cXII:10102374

15.29

27.33

qCMDc12.1A

XII

C2-6

cXII:9335575

cXII:10102374

11.90

19.01

qCMDc12.2A

XII

C1-6

cXII:5900335

cXII:9335575

10.95

14.32

qCMDc12.2A

XII

N1-3

cXII:5900335

cXII:9335575

10.83

20.38

qCMDc12.2A

XII

N1-6

cXII:5900335

cXII:9335575

10.32

20.61

qCMDc12.2A

XII

N2-6

cXII:5900335

cXII:9335575

8.20

16.32

qCMDc12.2A

XII

N2-9

cXII:5900335

cXII:9335575

6.03

14.04

qCMDc12.2A

XII

C2-3

cXII:5900335

cXII:9335575

4.90

4.46

qCMDc12.3A

XII

C2-3

cXII:10022137

cXII:11747091

16.00

50.37

qCMDc10.1A

X

N2-3

cX:109425

cX:690891

3.12

6.56

qCMDc10.2A

X

C1-9

cX:1986981

cX:2500662

5.93

10.15

qCMDc10.3A

X

N2-6

cX:8151902

cX:8859608

4.30

17.35

qCMDc10.3A

X

N2-9

cX:8151902

cX:8859608

3.53

23.90

qCMDc10.4A

X

C1-3

cX:8859608

cX:9048199

3.57

5.93

qCMDc1.1A

I

N2-9

cI:12617571

cI:14956077

3.07

7.66

qCMDc1.2A

I

N2-9

cI:15891396

cI:16140931

3.64

7.97

qCMDc1.3A

I

C2-9

cI:16444969

cI:17133348

3.25

5.18

qCMDc6A

VI

N2-3

cVI:14734153

cVI:18400898

4.78

19.27

qCMDc6A

VI

N2-6

cVI:14734153

cVI:18400898

4.25

11.22

qCMDc5.1A

V

N1-3

cV:6374034

cV:6348932

3.70

11.17

qCMDc5.1A

V

N2-3

cV:6374034

cV:6348932

5.39

7.60

qCMDc5.2A

V

C2-9

cV:7989459

cV:8525487

3.11

4.44

qCMDc5.3A

V

C1-6

cV:9268941

cV:10924271

9.71

14.05

qCMDc3A

III

C2-6

cIII:20233083

cIII:17215597

7.92

16.33

qCMDc3A

III

C2-9

cIII:20233083

cIII:17215597

4.10

10.67

qCMDc2.1A

II

C2-3

cII:4722413

cII:6114475

3.68

7.03

qCMDc2.2A

II

N2-3

cII:13956600

cII:14143547

3.41

5.47

Only QTL on chromosomes that are significant at more than one sampling time or site are given

Information for additional putative QTL is given in Supplementary Note 6

** N1 = Naliendele 2013, N2 = Naliendele 2014, C1 = Chambezi 2013, C2 = Chambezi 2014, -3 = 3MAP, -6 = 6MAP, -9 = 9MAP and PVE = % phenotypic variation explained

With the exception of the qCMDc5A (chromosome V), which was identified at Naliendele in both seasons, thirteen additional putative QTL associated with CMD resistance in Albert were detected in one site and season only: chromosomes I (qCMDc1A), II (qCMDc2A), III (qCMDc3A), IV (qCMDc4A), VI (qCMDc6A), VIII (qCMDc8A), IX (qCMDc9A), X (qCMDc10A), XIII (qCMDc13A), XV (qCMDc15A), XVI (qCMDc16A), XVII (qCMDc17A), and XVIII (qCMDc18A) (Supplementary Note 10). The additional regions were inconsistently identified across sites/seasons.

Relationship between qCMDc12A and the CMD2 locus

To compare the position of qCMDc12A with previously identified CMD QTL, BLASTn was used to position SSR markers (SSRY28, SSRY106, SSRN198, SSRN158, SSRN169); a SCAR marker, namely RFLPRME-1 (Akano et al. 2002; Lokko et al. 2005; Okogbenin et al. 2007; Rabbi et al. 2014) and SNP markers (s05214:30911 and s05214:30876) (Rabbi et al. 2014) reported earlier to be associated with CMD2, on v6.1 of the cassava genome sequence (Fig. 3). The genomic regions associated with moderate and strong CMD resistance, recently reported by Wolfe et al. (2016) were also included. The QTL identified here spanned the majority of these markers, although the peak at 8645322 bp (v6.1) was within 150 kb of a Wolfe et al. (2016) flanking marker S8:7325389 at 8507631 bp (v6.1) (Fig. 3). In addition RFLPRME-1 reverse SCAR primer was only 0.77 Mbp from cXII:9335575 (v5.1) positioned at 8645322 bp (v6.1), which is the left flanking marker of qCMDc12.1A and the right flanking marker of qCMDc12.2A (Fig. 3).
Fig. 3

Positions of the earlier identified RFLP and SSR markers that tag the CMD resistance locus (CMD2) in West African germplasm with multiple QTL CMD resistance (qCMDc12.1A and qCMDc12.1A) identified in a Tanzanian landrace Albert (bolded) on chromosome 12 of the v6.1 cassava assembly

Sequence variation between Namikonga and Albert in genomic regions associated with CBSD root necrosis

Identification of additional SNP markers in the qCBSDRNc11Nm QTL region

After alignment of the six genotypes to the reference genome (v6.1) and SNP calling using GATK, 1,338,691 genome-wide SNP markers were identified, of which 26,320 (~2.0%) were located on chromosome XI, where the main CBSDRN QTL is located (Fig. 4a). Of these SNPs only 1.36% (i.e., only 359 SNPs of the total genome-wide SNPs) were identified within the qCBSDRNc11Nm region, between cXI:4502175 and cXI:4760631, corresponding to 5507873–5761172 bp (v6.1) (Supplementary Note 11). Approximately 51.5% (185 out of 359) of SNPs identified in the qCBSDRNc11Nm region were polymorphic between the closely related target parental genotypes Namikonga and Albert (Supplementary Note 11) [hpc.ilri.cgiar.org/emasumba/Genotypes2015_filter_only.vcf], among which only 46.3% (124 SNPs) were genic SNPs linked to 24 annotated genes (Fig. 5).
Fig. 4

SNP density a across chromosome 11 (27 Mb) and b qCBSDRNc11Nm region between 5507842 and 5761172 bp (v6.1)

Fig. 5

Genes that are linked to SNPs polymorphic between Namikonga and Albert in the qCBSDRNc11Nm region

Estimation of SNP density within the qCBSDRNc11Nm QTL region

SNP density was higher at both ends of chromosome 11, as opposed to the centromeric region (Fig. 4a). However, the low density of polymorphic SNPs between Namikonga and Albert appeared to extend into the region between 4.0 and 16.0 Mbp, with a moderate increase in SNP density in the qCBSDRNc11Nm region from 5.5 to 5.8 Mbp (v6.1) (Fig. 4a). A closer examination of the qCBSDRNc11Nm QTL region revealed nearly twice the density of SNP markers (0.07 SNPs/100 bp; 210 SNPs across 0.3 Mbp) polymorphic between the parental genotypes Namikonga and Albert (Fig. 4b), compared to the overall mean SNP density on chromosome 11 (0.03 SNPs/100 bp; 8738 SNPs across 28.0 Mbp).

Genic SNPs within the qCBSDRNc11Nm region, their characteristics and association with disease resistance

A total of 27 genes were identified within the qCBSDRNc11Nm QTL region (5507842–5761172 bp v6.1) (Supplementary Note 12) with 24 containing SNPs that were polymorphic between Namikonga and Albert. Of these 24 genes, two were leucine-rich repeat (LRR) protein-coding genes that are annotated as non-host-specific defense-related processes (Torii 2004). These genes were Manes.11G057100.v6.1 and Manes.11G057200.v6.1 (Fig. 5, Supplementary Note 12) and contain nine SNPs polymorphic between Albert and Namikonga (Table 7). These genes contribute towards signal transduction and virus recognition activity, which are amongst the most important roles of R proteins of the LRR–NBS type (Supplementary Note 13) (Belkhadir et al. 2004; Forsthoefel et al. 2005). Nine of the ten R-gene-linked SNPs (loci) identified in the qCBSDRNc11Nm region were heterozygous (0/1) for Namikonga and homozygous (1/1) for Albert (Table 7). In addition, another gene (Manes.11G058200) which encodes a signal recognition protein (SRP) was linked to one of the polymorphic SNP markers positioned at 5583187 bp in the qCBSDRNc11Nm QTL region (Fig. 5) (Supplementary Note 13). Only two of the ten SNPs, one in each of the LRR genes, were non-synonymous, having moderate effect (Table 7).
Table 7

Characteristics and position of polymorphic SNPs between Namikonga and Albert within R-genes in the qCBSDRNc11Nm QTL region

SNP position in bp (v6.1)

Gene

Encoding protein

Genic region

Segregation type

Effect prediction

Predicted effect strength

Predicted change

Namikonga

Albert

c11:5574099

Manes.11G057100

LRR

CDS

0/1

1/1

Coding; non-synonymous, missense

Moderate

Ttc±/Ctc; F23L

c11:5574320

Manes.11G057100

LRR

CDS

0/1

1/1

Coding; synonymous, silent

Low

gaC/gaT; D96

c11:5574671

Manes.11G057100

LRR

CDS

0/1

1/1

Coding; synonymous, silent

Low

aaA/aaG; K213

c11:5579072

Manes.11G057200

LRR NB-ARC

5′ UTR

0/1

1/1

Non-coding

c11:5579208

Manes.11G057200

LRR NB-ARC

5′ UTR

0/1

1/1

Non-coding

c11:5579409

Manes.11G057200

LRR NB-ARC

Intron

0/1

1/1

Non-coding

c11:5579541

Manes.11G057200

LRR NB-ARC

Intron

0/1

1/1

Non-coding

c11:5579630

Manes.11G057200

LRR NB-ARC

Intron

0/1

1/1

Non-coding

c11:5583187

Manes.11G057200

LRR NB-ARC

CDS

1/1

0/0

Coding; Non-synonymous, missense

Moderate

Gat/Aat; D740 N

c11:5663225

Manes.11G058200

Signal recognition particle

Intron

0/1

1/1

Non-coding

Discussion

A relatively large population of 240 F1 individuals, phenotyped across two sites in two successive seasons, was used to identify QTL associated with the two most devastating virus diseases of cassava in South, East, and Central Africa. Two QTLs and a third putative QTL associated with CBSD root necrosis resistance were identified in the Tanzanian cassava variety Namikonga. In addition, three consistent QTLs associated with CBSD foliar symptom resistance were identified. Once validated, markers underlying these QTLs could be used in genomic breeding approaches to preemptively select for CBSD resistance in West Africa ahead of the disease pandemic front, with important implications for food security in the region. These markers could also be used for marker-assisted breeding in regions such as South, East, and Central Africa which are already affected by CBSD. Here we also identified SNP markers linked to two closely positioned QTLs associated with CMD resistance, one of which co-locates with the previously identified CMD2 locus detected in West African germplasm. This is the first time that the CMD2 locus has been detected in an East African landrace.

Cassava is a highly heterozygous and heterogeneous outcrossing crop with a breeding cycle of one year (Ceballos et al. 2004). It is known to have a large deleterious genetic load and suffers high levels of inbreeding depression (Ceballos et al. 2010). For these reasons, QTL mapping is largely done in F1 populations (Hayashi and Awata 2004), although occasionally F2 populations have been generated (Tong et al. 2012). The advantages of an F1 population are that it is relatively quick to generate (one season/year) and a reasonable population size can be obtained, although it is difficult to detect purely recessive QTL that requires the homozygous state for expression.

Poor germination rates were achieved, which was likely due to high diurnal temperature ranges in the screen house (over 50 °C day temperatures and 19 °C night temperatures). Germination was attempted in pots on benches, thereby unintentionally allowing the soil temperatures to fluctuate more easily with air temperatures. Once pots were placed on the ground, protecting the soil, higher germination rates were achieved. This could have imposed some bias on the population. The population was further reduced when a large number of off-types and self-individuals were detected. This is likely due to the fact that flowers were not covered (bagged) for up to 3 days following pollination, thereby allowing unintended pollinations.

Both CBSVs were detected in both phenotyping sites; however, CBSD-related trait mean scores indicated that the disease pressure was much lower in N1 and N2 compared to C1 and C2 (Table 2). No significant departure from a normal distribution was detected for CBSD-related traits with adequate segregation in both sites. This indicates a lack of complete dominance or recessiveness in genetic control, or that multiple genes are involved. The QTL qCBSDRNc11Nm associated with resistance to CBSD root necrosis was consistently detected at Chambezi in both seasons, but not in Naliendele, whereas qCBSDRNFc2Nm was associated with root necrosis resistance in Naliendele but not Chambezi. This discrepancy could be attributed to differences in disease pressure and/or differences in virus strains. In fact, a new CBSV sub-population, tentatively called CBSV-Tanzania (CBSV-TZ), has been identified predominantly in southern Tanzania (including the Naliendele phenotyping site) and in Malawi (Mbewe et al. 2017). It is interesting to note that qCBSDRNFc2Nm was associated with resistance to CBSD foliar symptoms in all four environments (sites and seasons) (Supplementary Note 7), a trait which gave inconsistent results when a low-density map was used with IM (Supplementary Note 8). The highest LOD for this trait was 17.8 explaining 74.39% PVE.

The QTL qCBSDRNc11.2Nm on chromosome 11 associated with resistance to CBSD root necrosis had the highest LOD score of 7.50, explaining 17.3% of the phenotypic variation. Although three QTLs are indicated in this region, further analysis is required to confirm this observation. It is interesting to note that a large genetic distance is indicated for a small physical distance. Although there is no constant ratio to convert cM to bp, cM is an estimate of the likelihood of recombination within an interval, so here we expect a high rate of recombination, or ‘recombination hotspot’ or alternatively an error in the map, although marker order is consistent with the integrated map for cassava (International Cassava Genetic Map Consortium 2015).

Kulembeka (2010) using SSR markers and a different Namikonga x Albert F1 population with phenotyping in Chambezi and Naliendele over two seasons found an association of the SSR marker NS945 with CBSD root necrosis. NS945 is positioned on chromosome 4 from 565803 to 566195 bp (v6.1). Further SNP genotyping using a Goldengate assay (Illumina) (Rabbi et al. 2012) and QTL analysis using IM in MapQTL v6 (van Ooijen 2009) and using the same phenotyping data, on only 60 genotypes, identified a QTL with a peak defined by flanking markers Me.MEF.c.1513 (LOD 4.11, PVE27.8) and Me.MEF.c.2120 (LOD 4.09, PVE 27.7) (Ferguson, per. comm.) which are located at 5551588 and 5508564 bp (v6.1) on chromosome 11 (Supplementary note 15). These markers which span 43 kb lie within the 122-kb region of qCBSDRNc11.1Nm and qCBSDRNc11.2Nm, supporting results of the current study. It is interesting to note that chromosomes 4 and 11 are homeologous chromosomes (Bredeson et al. 2016).

Besides qCBSDRNc11Nm and qCBSDRNFc2Nm, a putative QTL was identified on chromosome XVIII associated with root necrosis. This QTL occurred over a rather dispersed area with two peaks detected in C2 between 3106706 and 3705640 bp, and 8650285 and 8943971 bp, and a third peak, between the other two, in N2 between 6320754 and 6502253 bp (Table 3). Although the peaks detected are inconsistently positioned, they are close enough to warrant attention. Additional inconsistently positioned peaks with minor effects on CBSD root necrosis resistance in Namikonga were identified on chromosomes III, IV, V, VI, VII, X, XII, XV, and XVI. Results here are consistent with a diallel study conducted by Kulembeka et al. (2012) which indicated that CBSD resistance was quantitative, being controlled by at least two genes of minor effect which are additive in nature.

When parental genotypes Albert and Namikonga were first selected, the genetic relationship between these varieties was unknown. It later became apparent from the alignment of whole genome sequence that these genotypes are genetically related. Albert is a putative full-sib of the Nigerian cassava landrace TME117 and Namikonga has a parent–offspring relationship with the same genotype, TME 117 (Bredeson et al. 2016). Despite the overall low density of polymorphic SNPs between Namikonga and Albert, an increase in SNP density was observed at a region close to the most significant qCBSDRNc11Nm locus, cXI:4527454. Almost 52.6% (210 out of 399 SNPs) of the GATK-based SNPs which were identified in the qCBSDRNc11Nm region between 5.5 and 5.7 Mbp (v6.1) were polymorphic between the parental genotypes clustered in this region, indicating past recombination events. Of the 27 genes found within this region (Supplementary Note 11 and 12), 24 contained SNPs that were polymorphic between Namikonga and Albert. Three annotated cassava genes, Manes.11G057100, Manes.11G057200, and Manes.11058200, were of particular interest in terms of potentially contributing to the observed CBSD root necrosis resistance. Manes.11G057100 and Manes.11G057200 encode LRR proteins that are associated with signal transduction in plant defense-related processes and each contains one non-synonymous SNP (Forsthoefel et al. 2005; Torii 2004). The third gene, Manes.11G058200, encodes SRP, which in eukaryotes binds to the signal sequence of a newly synthesized peptide as it emerges from the ribosome. This binding leads to “elongation arrest”, which is a slowing down of protein synthesis. This warrants further investigation as reduced CBSV load has been recognized in Namikonga, which indicates inhibition of viral replication (Kaweesi et al. 2014; Maruthi et al. 2014) and the fact that disruptive binding of elongation initiation factors (EIf) is the most common form of resistance to Potyviruses (Truniger and Aranda 2009). The majority of genic polymorphic SNPs segregated in the female parent, Namikonga. These could efficiently be used in MAS either for controlled or open-pollinated populations, as their allelic segregation in Namikonga facilitates segregation in F1 which is the generation at which most cassava breeders do selections.

To date, three loci associated with CMD resistance have been reported: CMD1 (Fregene et al. 2000), CMD2 (Akano et al. 2002; Lokko et al. 2005; Rabbi et al. 2014), and CMD3 (Okogbenin et al. 2012). The CMD2 locus was identified in West African cassava landraces TME3 and TME7 (now TMEB3 and TMEB7, respectively) (Akano et al. 2002; Lokko et al. 2005; Rabbi et al. 2014) and validated in other West African improved genotypes, namely TMS-97/2205 and TMS-98/0505 (now TMS-I972205 and TMS-I980505, respectively) (Okogbenin et al. 2012). CMD2 was initially referenced by several SSR (SSRY28, SSRY158 and SSRY169) and SCAR (RFLPRME-1) markers, and more recently by SNP markers (Rabbi et al. 2014; Wolfe et al. 2016). CMD3, which co-locates with SSR marker NS198, was also identified in IITA improved genotypes TMS 97/2205 and TMS 98/0505 (Okogbenin et al. 2012). BLASTn positioned the genomic regions that are associated with both CMD2 and CMD3 loci on chromosome 12 (v6.1) of the cassava genome assembly. The present study detected a highly consistent QTL, qCMDc12A, associated with CMD resistance in the East African variety, Albert, located on the same chromosome. The largest peak of qCMDc12A is very close to marker cXII:9335575 positioned at 8645322 bp (v6.1). This marker is only 0.77 Mbp away from the SCAR marker RFLPRME1-Rev identified earlier as tagging CMD2 (Akano et al. 2002; Lokko et al. 2005) (Fig. 3), indicating that these loci are likely to be the same. The CMD3 marker, NS198, is located over 5.0 Mbp (between 1353175 and 1353375 bp v6.1) from qCMDc12A (Supplementary Note 14). The field performance of Albert in Tanzania (Mtunda et al. 2003; Rwegasira and Rey 2012) is consistent with strong field resistance to CMD infection, which is characteristic of the CMD2 locus. This is the first time that this locus has been identified in an East African landrace. However, it is possible that the resistance was originally derived from West African germplasm, as Albert is a full-sib of West African landrace TME117 or closely related genotype (Bredeson et al. 2016), although TME117 is susceptible to CMD. Cassava clones were brought to the Amani breeding program in Tanzania, from all over the world, including West Africa (Nichols 1947). This could explain the early movement of the CMD2 locus from West Africa to East Africa.

Wolfe et al. (2016), through a large genome-wide association study (GWAS), identified one genomic region of large effect at S8:7762525 (7926132 bp; v6.1) and a second closely located and interacting region from S8:6632472 (7032174 bp; v6.1) to S8:4919667 (4953572 bp; v6.1). It appears that the large genomic region covered by qCMDc12A identified in this study [~4.97 Mb; 6648605 bp to 11615311 bp (v6.1)] encompasses two very closely positioned QTL, supporting the findings of Wolfe et al. (2016). qCMDc12.1A has flanking markers cXII:9335575 [8645322 bp (v6.1)] and cXII:10102374 [11615311 bp (v6.1)] close to the Wolfe et al. (2016) main peak marker at 7926132 bp (v6.1). The second QTL, qCMDc12.2A, is flanked by cXII:5900335 [6648605 bp (v6.1)] and the same marker as qCMDc12.1A, cXII:9335575 [8645322 bp (.v6.1)] qCMDc12.2A, is just 0.89 Mb from one of the CMD2 tagging markers, SSRY28, earlier reported by Akano et al. (2002) and 0.34 Mb from the two GBS-SNPs s05214:30911 and s05214:30876 identified by Rabbi et al. (2014). The identification of two QTLs within the CMD2 region could indicate the presence of two loci or reflect different allelic forms of the same locus. In addition, as in this study, Wolfe et al. (2016) identified a number of other QTL of small effect, distributed across many chromosomes.

In conclusion, a significant QTL associated with resistance to CBSD-induced root necrosis, qCBSDRNc11Nm, was detected on chromosome XI and was consistent across two seasons in a high-CBSD pressure site at Chambezi in coastal Tanzania. A second QTL on chromosome II (qCBSDRNFc2Nm), associated with resistance to both CBSD root and foliar symptoms, was detected in a second site, Naliendele, in southeastern Tanzania. Results indicate that QTL affecting root necrosis and foliar symptoms may be different, although not exclusively so. Once validated, markers underlying these QTL will be useful for genomic-based approaches to breeding, including MAS, both in CBSD-affected areas as well as in a pre-emptive manner in areas yet unaffected. Interestingly, the peak of the qCBSDRNc11Nm QTL coincided with a region of unexpectedly high SNP density and polymorphism between the two closely related parents, Namikonga and Albert, indicating a region of past recombination. A number of candidate resistance genes were identified within this region, including two LRR genes and a gene encoding a signal recognition protein. These should be further investigated for causative effect. In addition, for the first time, two QTL which co-locate with the earlier identified CMD2 locus, namely qCMDc12.1A and qCMDc12.2A, have been identified, and these have been found in an East African landrace, Albert.

Author contribution statement

EAM: conducted the study, collected phenotyping data, analyzed the data and drafted the manuscript; FK: assisted with phenotyping data collection; GM: project manager from Agriculture Research Institute, Tanzania, financial and logistical support; SK: assisted with phenotyping data collection; HK: planning of phenotyping trials; SR: provided scientific and bioinformatics support; JVB: filtering and calling of SNP data, identification of off-types, and selfs; JBL: conducted genotyping-by-sequencing; DSR: technical advice on GBS, manager of UC-Berkeley/JGI project component; EK: advice on the selection of genotypes and phenotyping trials; MSK: training and technical support on bioinformatics analyses; AAM: scientific guidance; NAvdM: advice and editorial support; MEF: conceived the study, coordinated research activities, and provided technical, analytical and editorial support.

Notes

Acknowledgements

The authors would like to thank the Bill and Melinda Gates Foundation for funding under Contract ID OPPGD1016. The authors would also like to thank Trushar Shah (IITA) for advice with bioinformatics and QTL mapping.

Compliance with ethical standards

Conflict of interest

The authors declare that they have no conflict of interest.

Ethical standards

As far as the authors are aware, the research reported complies with all ethical standards required by the journal.

Supplementary material

122_2017_2943_MOESM1_ESM.xlsx (21 kb)
Note 1: BLASTn results - qCBSDRNc11Nm, qCBSDRNFc2Nm and qCMDc12A flanking markers (v5.1) to (v6.1) (XLSX 21 kb)
122_2017_2943_MOESM2_ESM.xlsx (994 kb)
Note 2: Map and genotype data of the low- and high-density maps (XLSX 993 kb)
122_2017_2943_MOESM3_ESM.docx (191 kb)
Note 3: Frequency distributions and basic statistics of the traits CBSDRN, CBSDFOL and CMD obtained from the phenotyping experiments N1, N2, C1 and C2 (DOCX 191 kb)
122_2017_2943_MOESM4_ESM.docx (561 kb)
Note 4: GACD based LOD profiles showing the QTL regions associated with CBSD root necrosis resistance in ‘Namikonga’ (DOCX 560 kb)
122_2017_2943_MOESM5_ESM.docx (50 kb)
Note 5: MapQTL Profiles showing the QTL regions putatively associated with CBSDRN resistance in ‘Namikonga’ based on N1, N2, C1 and C2 phenotyping experiments (DOCX 50 kb)
122_2017_2943_MOESM6_ESM.xlsx (23 kb)
Note 6: GACD outputs presenting QTL that are associated with the resistance to CBSD-induced root necrosis (qCBSDRN) and CMD (qCMD) in Namikonga and Albert (XLSX 23 kb)
122_2017_2943_MOESM7_ESM.xlsx (25 kb)
Note 7: GACD outputs presenting QTL that are associated with the resistance to CBSD foliar symptoms (qCBSDRNF and qCBSDF) in ‘Namikonga’ (XLSX 25 kb)
122_2017_2943_MOESM8_ESM.docx (98 kb)
Note 8: MapQTL outputs showing QTL associating with CBSD foliar symptoms resistance in ‘Namikonga’ (DOCX 98 kb)
122_2017_2943_MOESM9_ESM.docx (86 kb)
Note 9: MapQTL Profiles showing QTL putatively associated with CMD resistance in ‘Albert’ (DOCX 86 kb)
122_2017_2943_MOESM10_ESM.docx (1.5 mb)
Note 10: GACD LOD Profiles showing the genomic regions in Namikonga-Albert F1 individuals that are associated with CMD resistance (DOCX 1563 kb)
122_2017_2943_MOESM11_ESM.xlsx (62 kb)
Note 11: List of SNPs identified in qCBSDRNc11Nm QTL region (XLSX 61 kb)
122_2017_2943_MOESM12_ESM.xlsx (15 kb)
Note 12:List of genes linked to SNPs identified in a narrowed qCBSDRNc11Nm QTL region on a high density map (XLSX 14 kb)
122_2017_2943_MOESM13_ESM.xlsx (16 kb)
Note 13:Functional annotation of genes linked to SNPs identified in qCBSDRNc11Nm QTL region (XLSX 16 kb)
122_2017_2943_MOESM14_ESM.xlsx (19 kb)
Note 14:BLASTn results showing the relationship between monogenic CMD resistance CMD2 and the newly identified quantitative CMD resistance (qCMDc12A) (XLSX 19 kb)
122_2017_2943_MOESM15_ESM.xlsx (13 kb)
Note 15: BLASTn results showing positions, LOD and PVE (%) of the previously identified SNP markers associated with CBSD resistance in Namikonga (Kulembeka, Unpublished work) (XLSX 12 kb)

References

  1. Adams IP, Abidrabo P, Miano DW, Alicai T, Kinyua ZM, Clarke J, Macarthur R, Weekes R, Laurenson L, Hany U, Peters D, Potts M, Glover R, Boonham N, Smith J (2013) High throughput real-time RT-PCR assays for specific detection of cassava brown streak disease causal viruses, and their application to testing of planting material. Plant Pathol 62:233–242CrossRefGoogle Scholar
  2. Akano O, Dixon A, Mba C, Barrera E, Fregene M (2002) Genetic mapping of a dominant gene conferring resistance to cassava mosaic disease. Theor Appl Genet 105:521–525CrossRefPubMedGoogle Scholar
  3. Alabi OJ, Kumar PL, Naidu RA (2011) Cassava mosaic disease: a curse to food security in Sub-Saharan Africa. APSnet Features. doi:10.1094/APSnetFeature-2011-0701 Google Scholar
  4. Alicai T, Omongo CA, Maruthi MN, Hillocks RJ, Baguma Y, Kawuki R, Bua A, Otim-Nape GW, Colvin J (2007) Re-emergence of cassava brown streak disease in Uganda. Plant Dis 91:24–29CrossRefGoogle Scholar
  5. Alves AAC (2002) Cassava botany and physiology. In: Hillocks RJ, Thresh JM, Belloti AC (eds) Cassava: biology, production and utilization. CABI Publishers, New York, pp 67–90CrossRefGoogle Scholar
  6. Auwera GA, Carneiro MO, Hartl C, Poplin R, del Angel G, Levy-Moonshine A, Jordan T, Shakir K, Roazen D, Thibault J (2014) From FastQ data to high-confidence variant calls: the genome analysis toolkit best practices pipeline. Curr Protoc Bioinform 11:1–43Google Scholar
  7. Awoleye F, Mv Duren, Dolezel J, Novak F (1994) Nuclear DNA content and in vitro induced somatic polyploidization cassava (Manihot esculenta Crantz) breeding. Euphytica 76:195–202CrossRefGoogle Scholar
  8. Balagopalan C (2002) Cassava utilization in food, feed and industry. In: Hillocks RJ, Thresh JM, AC Bellotti (eds) Cassava: biology production and utilization. CABI Publishers, Wellingford, Oxan, UK, pp 301–318Google Scholar
  9. Belkhadir Y, Subramaniam R, Dang JL (2004) Plant disease resistance protein signaling: NBS–LRR proteins and their partners. Plant Biol 7:391–399Google Scholar
  10. Bigirimana S, Barumbanze P, Ndayihanzamaso P, Shirima R, Legg JP (2011) First report of cassava brown streak disease and associated Ugandan cassava brown streak virus in Burundi. New Dis Rep 24:26CrossRefGoogle Scholar
  11. Bredeson JV, Lyons JB, Prochnik SE, Wu GA, Ha CM, Edsinger-Gonzales E, Grimwood J, Schmutz J, Rabbi IY, Egesi C, Nauluvula P, Lebot V, Ndunguru J, Mkamilo G, Bart RS, Setter TL, Gleadow RM, Kulakow P, Ferguson ME, Rounsley S, Rokhsar DS (2016) Sequencing wild and cultivated cassava and related species reveals extensive interspecific hybridization and genetic diversity. Nat Biotechnol 34:562–570CrossRefPubMedGoogle Scholar
  12. Campo BVH, Hyman G, Bellotti A (2011) Threats to cassava production: known and potential geographic distribution of four key biotic constraints. Springer Science+Business Media BV & International Society for. Plant Pathol 3(3):329–345Google Scholar
  13. Ceballos H, Iglesias CA, Perez JC, Dixon AG (2004) Cassava breeding: opportunities and challenges. Plant Mol Biol 56:503–516CrossRefPubMedGoogle Scholar
  14. Ceballos H, Okogbenin E, Pérez JC, Augusto L, López-Valle B, Debouck D (2010) Cassava. In: Bradshaw JE (ed) Root and tuber: handbook of plant breeding. Springer Science and Business Media, New York, pp 53–96CrossRefGoogle Scholar
  15. Ceballos H, Kawuki RS, Gracen VE, Yencho GC, Hershey CH (2015) Conventional breeding, marker-assisted selection, genomic selection and inbreeding in clonally propagated crops: a case study for cassava. Theor Appl Genet 128:1647–1667CrossRefPubMedPubMedCentralGoogle Scholar
  16. Chang S, Puryear J, Cairney J (1993) A simple and efficient method for isolating RNA from pine trees. Plant Mol Biol Rep 11:113–116CrossRefGoogle Scholar
  17. Chavarriaga-Aguirre P, Halsey M (2005) Cassava (Manihot esculenta Crantz): Reproductive biology and practices for confinement of experimental field trials. Report prepared for the Program for Biosafety Systems. Program for Biosafety Systems, Washington DC, p 20Google Scholar
  18. Darvasi A, Weinreb A, Minke V, Weller J, Soller M (1993) Detecting marker-QTL linkage and estimating QTL gene effect and map location using a saturated genetic map. Genetics 134:943–951PubMedPubMedCentralGoogle Scholar
  19. Dellaporta SL, Wood J, Hicks JB (1983) A plant DNA minipreparation: version II. Plant Mol Biol Rep 1:19–21CrossRefGoogle Scholar
  20. Egesi C, Mbanaso E, Ogbe F, Okogbenin E, Fregene M (2006) Development of cassava varieties with high value root quality through induced mutations and marker-aided breeding. NRCRI Umudike Annu Rep 2006:2–6Google Scholar
  21. El-Sharkawy MA (2004) Cassava biology and physiology. Plant Mol Biol 56:481–501CrossRefPubMedGoogle Scholar
  22. Elshire RJ, Glaubitz JC, Sun Q, Poland JA, Kawamoto K, Buckler ES, Mitchell SE (2011) A robust, simple genotyping-by-sequencing (GBS) approach for high diversity species. PLoS One 6:e19379CrossRefPubMedPubMedCentralGoogle Scholar
  23. FAO (2010) Cassava diseases in Africa: a major threat to food security. Cassava disease in central, eastern and southern Africa (CACESA), 2nd edn. FAO, Rome, p 39Google Scholar
  24. FAOSTAT (2015) Food and Agriculture Organization of the United Nations: Statistics Division. FAOSTAT domains. Production/Crops. FAOSTAT, RomeGoogle Scholar
  25. FAOSTAT (2017) Food and Agriculture data. FAOSTAT domain. FAO, RomeGoogle Scholar
  26. Fermont AM, Van Asten PJ, Tittonell P, Van Wijk MT, Giller KE (2009) Closing the cassava yield gap: an analysis from smallholder farms in East Africa. Field Crops Research 112:24–36CrossRefGoogle Scholar
  27. Forsthoefel NR, Cutler K, Port MD, Yamamoto T, Vernon DM (2005) PIRLs: a novel class of plant intracellular leucine-rich repeat proteins. Plant Cell Physiology 46:913–922CrossRefPubMedGoogle Scholar
  28. Fregene M, Bernal A, Duque M, Dixon A, Tohme J (2000) AFLP analysis of African cassava (Manihot esculenta Crantz) germplasm resistant to the cassava mosaic disease (CMD). Theor Appl Genet 100:678–685CrossRefGoogle Scholar
  29. GLCI (2010) Cassava disease surveillance surveys 2009: mapping report. In: International institute of tropical agriculture and catholic relief services, Ibadan, NigeriaGoogle Scholar
  30. Hayashi T, Awata T (2004) Efficient method for analysis of QTL using F1 progenies in an outcrossing species. Genetica 122:173–183CrossRefPubMedGoogle Scholar
  31. Heffner EL, Sorrells ME, Jannink J-L (2009) Genomic selection for crop improvement. Crop Sci 49:1–12CrossRefGoogle Scholar
  32. Hillocks RJ (1997) Cassava virus and their control with special reference to southern Tanzania. Integr Pest Manag Rev 2:125–138CrossRefGoogle Scholar
  33. Hillocks RJ, Jennings DL (2003) Cassava brown streak disease: a review of present knowledge and research needs. Int J Pest Manag 49:225–234CrossRefGoogle Scholar
  34. Hillocks RJ, Thresh JM (2000) Cassava mosaic and cassava brown streak diseases in Africa: a comparative guide to symptoms and aetiologies. Roots 7:1–8Google Scholar
  35. Hillocks RJ, Raya MD, Mtunda K, Kiozia H (2001) Effects of brown streak virus disease on yield and quality of cassava in Tanzania. Phytopathology 149:389–394CrossRefGoogle Scholar
  36. Howeler R, Lutaladio N, Thomas G (2013) Cassava a 21st century crop. Save and Grow. Cassava. FAO Publications, RomeGoogle Scholar
  37. International Cassava Genetic Map Consortium (2015) High-resolution linkage map and chromosome-scale genome assembly for cassava (Manihot esculenta Crantz) from 10 populations. G3: Genes|Genomes|. Genetics 5:133–144Google Scholar
  38. Jennings D (1976) Breeding for resistance to African cassava mosaic disease: Progress and prospects. Interdisciplinary Workshop. IDRC, MugugaGoogle Scholar
  39. Jennings DL (2003) Historical perspective on breeding for resistance to cassava brown streak virus disease. In: Legg JP, Hillocks RJ (eds) Cassava brown streak virus disease: past, present and future. Natural Resource Institute, Aylesford, pp 55–57 (27–30 October 2002, Mombasa, Kenya) Google Scholar
  40. Jennings DL (2015) Further studies in breeding cassava for virus resistance. East Afr Agric J 22:213–219Google Scholar
  41. Kanju EE, Mkamilo G, Mgoo V, Ferguson ME (2010) Statistical evidence linking the zigzag stem habit with tolerance to cassava brown streak disease. Roots 12:4–6Google Scholar
  42. Kashif M, Khan M, Arif M, Anwer M, Ijaz M (2011) Efficiency of alpha lattice design in rice field trials in Pakistan. J Sci Res 3:91–95Google Scholar
  43. Kaweesi T, Kawuki R, Kyaligonza V, Tusiime G, Ferguson ME (2014) Field evaluation of selected cassava genotypes for cassava brown streak disease based on symptom expression and virus load. Virol J 11:1–14CrossRefGoogle Scholar
  44. Kawuki R, Herselman L, Labuschagne M, Nzuki I, Ralimanana I, Bidiaka M, Kanyange M, Gashaka G, Masumba E, Mkamilo G, Gethi J, Wanjala B, Zacarias A, Madabula F, Ferguson ME (2013) Genetic diversity of cassava (Manihot esculenta Crantz) landraces and cultivars from southern, eastern and central Africa. Plant Genet Res 11:170–181CrossRefGoogle Scholar
  45. Kawuki RS, Kaweesi T, Esuma W, Pariyo A, Kayondo IS, Ozimati A, Kyaligonza V, Abaca A, Orone J, Tumuhimbise R, Nuwamanya E, Abidrabo P, Amuge T, Ogwok E, Okao G, Wagaba H, Adiga G, Alicai T, Omongo C, Bua A, Ferguson M, Kanju E, Baguma Y (2016) Eleven years of breeding efforts to combat cassava brown streak disease. Breed Sci 66:560–571CrossRefPubMedPubMedCentralGoogle Scholar
  46. Knott SA, Neale DB, Sewell MM, Haley CS (1997) Multiple marker mapping of quantitative trait loci in an outbred pedigree of loblolly pine. Theor Appl Genet 94:810–820CrossRefGoogle Scholar
  47. Kuchel H, Fox R, Reinheimer J, Mosionek L, Willey N, Bariana H, Jefferies S (2007) The successful application of a marker-assisted wheat breeding strategy. Mol Breed 20:295–308CrossRefGoogle Scholar
  48. Kulembeka HPK (2010) Genetic linkage mapping of field resistance to cassava brown streak disease in cassava (Manihot esculenta Crantz) landraces from Tanzania. Department of Plant Sciences (Plant Breeding). University of the Free State, Bloemfontein, p 258Google Scholar
  49. Kulembeka H, Ferguson M, Herselman L, Kanju E, Mkamilo G, Masumba E, Fregene M, Labuschagne M (2012) Diallel analysis of field resistance to brown streak disease in cassava (Manihot esculenta Crantz) landraces from Tanzania. Euphytica 187:277–288CrossRefGoogle Scholar
  50. Langmead B, Trapnell C, Pop M, Salzberg SL (2009) Ultrafast and memory-efficient alignment of short DNA sequences to the human genome. Genome Biol 10:R25CrossRefPubMedPubMedCentralGoogle Scholar
  51. Legg J, Gibson R, Hughes JDA (2007) Virus diseases of root crops in Africa: an overview. In: Kapinga R, Kingamkono R, Msabaha M, Ndunguru J, Lemaga B, Tusiime G (eds) 13th ISTRC Symposium. ISTRC, Arusha, pp 318–331 (10–14 November, 2003) Google Scholar
  52. Legg J, Somado EA, Barker I, Beach L, Ceballos H, Cuellar W, Elkhoury W, Gerling D, Helsen J, Hershey C, Jarvis A, Kulakow P, Kumar L, Lorenzen J, Lynam J, McMahon M, Maruthi G, Miano D, Mtunda K, Natwuruhunga P, Okogbenin E, Pezo P, Terry E, Thiele G, Thresh M, Wadsworth J, Walsh S, Winter S, Tohme J, Fauquet C (2014) A global alliance declaring war on cassava viruses in Africa. Food Security 6:231–248CrossRefGoogle Scholar
  53. Li H, Durbin R (2009) Fast and accurate short read alignment with Burrows–Wheeler transform. Bioinformatics 25:1754–1760CrossRefPubMedPubMedCentralGoogle Scholar
  54. Li H, Handsaker B, Wysoker A, Fennell T, Ruan J, Homer N, Marth G, Abecasis G, Durbin R (2009) The sequence alignment/map format and SAMtools. Bioinformatics 25:2078–2079CrossRefPubMedPubMedCentralGoogle Scholar
  55. Lokko Y, Danquah E, Offei S, Dixon AG, Gedil M (2005) Molecular markers associated with a new source of resistance to the cassava mosaic disease. Afr J Biotech 4:873–881Google Scholar
  56. Maruthi MN, Hillocks RJ, Mtunda K, Raya MD, Muhanna M, Kiozia H, Rekha AR, Colvin J, Thresh JM (2005) Transmission of cassava brown streak virus by Bemisia tabaci (Gennadius). Phytopathology 153:307–312CrossRefGoogle Scholar
  57. Maruthi MN, Bouvaine S, Tufan HA, Mohammed IU, Hillocks RJ (2014) Transcriptional response of virus-infected cassava and identification of putative sources of resistance for cassava brown streak disease. PLoS One 9:e96642CrossRefPubMedPubMedCentralGoogle Scholar
  58. Maziya-Dixon B, Dixon AGO, Adebowale AA (2006) Targeting different end uses of cassava: genotypic variations for cyanogenic potentials and pasting properties. Int J Food Sci Technol 2007:969–976Google Scholar
  59. Mba REC, Stephenson P, Edwards K, Melzer S, Nkumbira J, Gullberg U, Apel K, Gale G, Tohme J, Fregene M (2001) Simple Sequence Repeat (SSR) markers survey of the cassava (Manihot esculenta Crantz) genome: towards an SSR-based molecular genetic map of cassava. Theor Appl Genet 102:21–31CrossRefGoogle Scholar
  60. Mbanzibwa DR, Tian YP, Tugume AK, Mukasa SB, Tairo F, Kyamanywa S, Kullaya A, Valkonen JPT (2009) Genetically distinct strains of Cassava brown streak virus in the Lake Victoria basin and the Indian Ocean coastal area of East Africa. Adv Virol 154:353–359Google Scholar
  61. Mbanzibwa DR, Tian YP, Tugume AK, Patil BL, Yadav JS, Bagewadi B, Abarshi MM, Alicai T, Changadeya W, Mkumbira J, Muli MB, Mukasa SB, Tairo F, Baguma F, Kyamanywa S, Kullaya A, Maruthi MN, Fauquet CM, Valkonen JP (2011) Evolution of cassava brown streak disease associated viruses. J Gen Virol 92:974–987CrossRefPubMedGoogle Scholar
  62. Mbewe W, Tairo F, Sseruwagi P, Ndunguru J, Duffy S, Mukasa S, Benesi I, Sheat S, Koerbler M, Winter S (2017) Variability in P1 gene redefines phylogenetic relationships among cassava brown streak viruses. Virol J 14:118–124CrossRefPubMedPubMedCentralGoogle Scholar
  63. Mohan C, Shanmugasundaram P, Maheswaran M, Senthil N, Raghu D, Unnikrishnan M (2013) Mapping new genetic markers associated with CMD resistance in cassava (Manihot esculenta Crantz) using simple sequence repeat markers. J Agric Sci 5:57Google Scholar
  64. Moreno I, Gruissem W, Vanderschuren H (2011) Reference genes for reliable potyvirus quantitation in cassava and analysis of Cassava brown streak virus load in host varieties. J Virol Methods 177:49–54CrossRefPubMedGoogle Scholar
  65. Mtunda KJ, Muhanna M, Raya MD, Kanju EE (2003) Current status of cassava brown streak disease in Tanzania. In: Legg JP, Hillocks RJ (eds) Cassava brown streak virus disease: past, present and future. Natural Resource Institute, Aylesford, pp 7–11 (27–30 October, 2002, Mombasa, Kenya) Google Scholar
  66. Mulimbi W, Phemba X, Assumani B, Kasereka P, Muyisa S, Ugentho H, Reeder R, Legg JP, Laurenson L, Weekes R, Thom FEF (2012) First report of Ugandan cassava brown streak virus on cassava in Democratic Republic of Congo. New Dis Rep 26:11CrossRefGoogle Scholar
  67. National Cassava Research (2006) Occurence of cassava brown streak disease in Uganda. Namulonge Agriculture and animal Production Research Institute, Kampala, p 16Google Scholar
  68. Ndunguru J, Sseruwagi P, Tairo F, Stomeo F, Maina S, Djinkeng A, Kehoe M, Boykin LM (2015) Analyses of twelve new whole genome sequences of cassava brown streak viruses and Ugandan cassava brown streak viruses from East Africa: diversity, supercomputing and evidence for further speciation. PLoS One 10:e0139321CrossRefPubMedPubMedCentralGoogle Scholar
  69. Nichols R (1947) Breeding cassava for virus resistance. East Afr Agric J 12:184–194Google Scholar
  70. Nichols RFW (1950) The brown streak disease of Cassava. Distribution, climatic effects and diagnostic symptoms. East Afr Agric J 15:154–160Google Scholar
  71. Ntawuruhunga P, Legg J (2007) New spread of cassava brown streak virus disease and its implications for the movement of cassava germplasm in east and central African region. USAID, Crop Crisis Control Project (C3P), p 8Google Scholar
  72. Okogbenin E, Porto MCM, Egesi C, Mba C, Espinosa E, Santos LG, Ospina C, Marín J, Barrera E, Gutiérrez J, Ekanayake I, Iglesias C, Fregene MA (2007) Marker-assisted introgression of resistance to cassava mosaic disease into Latin American germplasm for the genetic improvement of cassava in Africa. Crop Sci 47:1895–1904CrossRefGoogle Scholar
  73. Okogbenin E, Egesi C, Olasanmi B, Ogundapo O, Kahya S, Hurtado P, Marin J, Akinbo O, Mba C, Gomez H (2012) Molecular marker analysis and validation of resistance to cassava mosaic disease in elite cassava genotypes in Nigeria. Crop Sci 52:2576–2586CrossRefGoogle Scholar
  74. Pariyo A, Tukamuhabwa P, Baguma Y, Kawuki RS, Alicai T, Gibson P, Kanju E, Wanjala BW, Harvey J, Nzuki I, Rabbi IY, Ferguson M (2013) Simple sequence repeats (SSR) diversity of cassava in South, East and Central Africa in relation to resistance to cassava brown streak disease. Afr J Biotech 12:4453–4464CrossRefGoogle Scholar
  75. Patil BL, Legg JP, Kanju E, Fauquet CM (2014) Cassava brown streak disease: a threat to food security in Africa. J Gen Virol 96:956–968CrossRefGoogle Scholar
  76. Prochnik S, Marri PR, Desany B, Rabinowicz PD, Kodira C, Mohiuddin M, Rodriguez F, Fauquet C, Tohme J, Harkins T (2012) The cassava genome: current progress, future directions. Trop Plant Biol 5:88–94CrossRefPubMedPubMedCentralGoogle Scholar
  77. Rabbi IY, Kulembeka HP, Masumba E, Marri PR, Ferguson M (2012) An EST-derived SNP and SSR genetic linkage map of cassava (Manihot esculenta Crantz). Theor Appl Genet 125:329–342CrossRefPubMedGoogle Scholar
  78. Rabbi IY, Hamblinb MT, Kumara PL, Gedila MA, Ikpana AS, Jannink JL, Kulakow PA (2014) High-resolution mapping of resistance to cassava mosaic geminiviruses in cassava using genotyping-by-sequencing and its implications for breeding. Virus Res 186:87–96CrossRefPubMedGoogle Scholar
  79. Rwegasira GM, Rey CM (2012) Response of selected cassava varieties to the incidence and severity of cassava brown streak disease in Tanzania. J Agric Sci 4:237–245Google Scholar
  80. Shapiro SS, Wilk MB (1965) An analysis of variance test for normality (complete samples). Biometrika 52:591–611CrossRefGoogle Scholar
  81. Stange M, Utz HF, Schrag TA, Melchinger AE, Würschum T (2013) High-density genotyping: an overkill for QTL mapping? Lessons learned from a case study in maize and simulations. Theor Appl Genet 126:2563–2574CrossRefPubMedGoogle Scholar
  82. Storey HH (1936) Virus diseases on East African plants: a progress report on studies of diseases of cassava. East Afr Agric J 2:34–39Google Scholar
  83. Thresh J (2003) Brief history of cassava brown streak virus disease. In: Legg JP, Hollocks RJ (eds) Cassava brown streak virus disease: past, present, and future. Natural Resources International Limited, Aylesford, pp 5–6 (27–30 October, 2002, Mombasa, Kenya) Google Scholar
  84. Tong C, Zhang B, Li H, Shi J (2012) Model selection for quantitative trait loci mapping in a full-sib family. Genet Mol Biol 35:622–631CrossRefPubMedPubMedCentralGoogle Scholar
  85. Torii KU (2004) Leucine-rich repeat receptor kinases in plants: structure, function, and signal transduction pathways. Int Rev Cytol 234:1–46CrossRefPubMedGoogle Scholar
  86. Treseder-laboratory (2007) Agarose Gel Electrophoresis. Treseder Laboratory, IrvineGoogle Scholar
  87. Truniger V, Aranda M (2009) Recessive resistance to plant viruses. Adv Virus Res 75:119–159CrossRefPubMedGoogle Scholar
  88. van Ooijen JW (2006) JoinMap 4: software for the calculation of genetic linkage maps in experimental populations. Kyazma BV. Wageningen, NetherlandsGoogle Scholar
  89. van Ooijen JW (2009) MapQTL ® 6: Software for the mapping of quantitative trait loci in experimental populations of diploid. Kyazma B. V., Wageningen, pp 1–60Google Scholar
  90. Vanderschuren H, Moreno I, Anjanappa RB, Zainuddin IM, Gruissem W (2012) Exploiting the combination of natural and genetically engineered resistance to cassava mosaic and cassava brown streak viruses impacting cassava production in Africa. PLoS One 7:e45277CrossRefPubMedPubMedCentralGoogle Scholar
  91. Warren K (2007) A comparative study of the electrophoretic efficiencies of the Invitrogen E-Gel® pre-cast agarose electrophoresis system, the Cambrex FlashGel™ system, and the GelRed™ nucleic acid gel stain. St Martins Univ Biol J 2:1–28Google Scholar
  92. Winter S, Koerbler M, Stein B, Pietruszka A, Paape M, Butgereitt A (2010) Analysis of cassava brown streak viruses reveals the presence of distinct virus species causing cassava brown streak disease in East Africa. J Gen Virol 91:1365–1372CrossRefPubMedGoogle Scholar
  93. Wolfe MD, Rabbi IY, Egesi C, Hamblin M, Kawuki R, Kulakow P, Lozano R, Carpio DPD, Ramu P, Jannink J-L (2016) Genome-wide association and prediction reveals genetic architecture of cassava mosaic disease resistance and prospects for rapid genetic improvement. Plant Genome 9:1–13CrossRefGoogle Scholar
  94. Wu J, Li L-T, Li M, Khan MA, Li X-G, Chen H, Yin H, Zhang S-L (2014) High-density genetic linkage map construction and identification of fruit-related QTLs in pear using SNP and SSR markers. J Exp Bot 65:5771–5781CrossRefPubMedPubMedCentralGoogle Scholar
  95. Xu Y, Crouch JH (2008) Marker-assisted selection in plant breeding: from publications to practice. Crop Sci 48:391–407CrossRefGoogle Scholar
  96. Zhang L, Meng L, Wu W, Wang J (2015) GACD: integrated software for genetic analysis in Clonal F1 and double cross populations. J Hered 106:741–744PubMedGoogle Scholar

Copyright information

© The Author(s) 2017

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors and Affiliations

  • E. A. Masumba
    • 1
    • 8
    • 9
  • F. Kapinga
    • 2
  • G. Mkamilo
    • 2
  • K. Salum
    • 3
  • H. Kulembeka
    • 3
  • S. Rounsley
    • 4
  • J. V. Bredeson
    • 5
  • J. B. Lyons
    • 5
  • D. S. Rokhsar
    • 5
  • E. Kanju
    • 6
  • M. S. Katari
    • 7
  • A. A. Myburg
    • 8
  • N. A. van der Merwe
    • 8
  • M. E. Ferguson
    • 9
  1. 1.Sugarcane Research InstituteKibahaTanzania
  2. 2.Naliendele Agricultural Research InstituteMtwaraTanzania
  3. 3.Ukiriguru Agricultural Research InstituteMwanzaTanzania
  4. 4.Genus plcDeForestUSA
  5. 5.Molecular and Cell Biology DepartmentUniversity of CaliforniaBerkeleyUSA
  6. 6.International Institute of Tropical Agriculture (IITA)Dar es SalaamTanzania
  7. 7.New York UniversityNew YorkUSA
  8. 8.Department of Genetics, Forestry and Agricultural Biotechnology Institute (FABI)University of PretoriaHatfieldSouth Africa
  9. 9.IITANairobiKenya

Personalised recommendations
