Abstract
Precision medicine in the form of molecularly-targeted therapies are now the frontline in the treatment of cancer, buoyed by tangible improvements in treatment tolerability and outcomes (Teicher in Mol Cancer Ther, pp. 7–40, 2005 [1]). Nonetheless, drug resistance against targeted therapies almost inevitably arises eventually after several treatment cycles.
Reproduced with permission from the Royal Society of Chemistry.
This is a preview of subscription content, log in via an institution to check access.
Access this chapter
Tax calculation will be finalised at checkout
Purchases are for personal use only
References
Teicher, B.A.: Molecular cancer therapeutics: will the promise be fulfilled? Mol. Cancer Ther., 7–40 (2005)
Shah, M.A., Schwartz, G.K.: Cell cycle-mediated drug resistance: an emerging concept in cancer therapy. Clin. Cancer Res. 7, 2168–2181 (2001)
Siddik, Z.H.: Cisplatin: mode of cytotoxic action and molecular basis of resistance. Oncogene 22, 7265–7279 (2003)
Gerlinger, M., Rowan, A.J., Horswell, S., Larkin, J., Endesfelder, D., Gronroos, E., Martinez, P., Matthews, N., Stewart, A., Tarpey, P., Varela, I., Phillimore, B., Begum, S., McDonald, N.Q., Butler, A., Jones, D., Raine, K., Latimer, C., Santos, C.R., Nohadani, M., Eklund, A.C., Spencer-Dene, B., Clark, G., Pickering, L., Stamp, G., Gore, M., Szallasi, Z., Downward, J., Futreal, P.A., Swanton, C.: Intratumor heterogeneity and branched evolution revealed by multiregion sequencing. N. Engl. J. Med. 366, 883–892 (2012)
Galluzzi, L., Vitale, I., Vacchelli, E., Kroemer, G.: Cell death signaling and anticancer therapy. Front. Oncol. 1 (2011)
Dinnen, R.D., Drew, L., Petrylak, D.P., Mao, Y., Cassai, N., Szmulewicz, J., Brandt-Rauf, P., Fine, R.L.: Activation of targeted Necrosis by a p53 Peptide: a novel death pathway that circumvents apoptotic resistance. J. Biol. Chem. 282, 26675–26686 (2007)
Hu, X., Xuan, Y.: Bypassing cancer drug resistance by activating multiple death pathways—a proposal from the study of circumventing cancer drug resistance by induction of necroptosis. Cancer Lett. 259, 127–137 (2008)
Rubin, I., Yarden, Y.: The basic biology of HER2. Ann. Oncol. 12, S3–S8 (2001)
Jorgensen, J.T., Hersom, M.: HER2 as a prognostic marker in gastric cancer—a systematic analysis of data from the literature. J. Cancer 3, 137–144 (2012)
Claret, F.X., Vu, T.T.: Trastuzumab: updated mechanisms of action and resistance in breast cancer. Front. Oncol. 2 (2012)
Park, B.-W., Zhang, H.-T., Wu, C., Berezov, A., Zhang, X., Dua, R., Wang, Q., Kao, G., O’Rourke, D.M., Greene, M.I., Murali, R.: Rationally designed anti-HER2/neu peptide mimetic disables P185HER2/neu tyrosine kinases in vitro and in vivo. Nat. Biotech. 18, 194–198 (2000)
Berezov, A., Zhang, H.-T., Greene, M.I., Murali, R.: Disabling erbB receptors with rationally designed exocyclic mimetics of antibodies: structure−function analysis†. J. Med. Chem. 44, 2565–2574 (2001)
Chin, C.F., Wong, D.Y.Q., Jothibasu, R., Ang, W.H.: Anticancer platinum (IV) prodrugs with novel modes of activity. Curr. Top. Med. Chem. 11, 2602–2612 (2011)
Zhang, J.Z., Wexselblatt, E., Hambley, T.W., Gibson, D.: Pt (IV) analogs of oxaliplatin that do not follow the expected correlation between electrochemical reduction potential and rate of reduction by ascorbate. Chem. Commun. 48, 847–849 (2012)
Wong, D.Y.Q., Lau, J.Y., Ang, W.H.: Harnessing chemoselective imine ligation for tethering bioactive molecules to platinum(iv) prodrugs. Dalton Trans. 41, 6104–6111 (2012)
Wong, D.Y.Q., Yeo, C.H.F., Ang, W.H.: Immuno-chemotherapeutic platinum(IV) prodrugs of cisplatin as multimodal anticancer agents. Angew. Chem. Int. Ed. 53, 6752–6756 (2014)
Zhang, J.Z., Bonnitcha, P., Wexselblatt, E., Klein, A.V., Najajreh, Y., Gibson, D., Hambley, T.W.: Facile preparation of mono-, di- and mixed-carboxylato platinum(IV) complexes for versatile anticancer prodrug design. Chem. Eur. J. 19, 1672–1676 (2013)
Wilken, J., Webster, K., Maihle, N.: Trastuzumab sensitizes ovarian cancer cells to EGFR-targeted therapeutics. J. Ovarian Res. 3, 7 (2010)
Boulikas, T., Vougiouka, M.: Cisplatin and platinum drugs at the molecular level (review). Oncol. Rep. 10, 1663–1682 (2003)
Martin, S.J., Reutelingsperger, C.P., McGahon, A.J., Rader, J.A., van Schie, R.C., LaFace, D.M., Green, D.R.: Early redistribution of plasma membrane phosphatidylserine is a general feature of apoptosis regardless of the initiating stimulus: inhibition by overexpression of Bcl-2 and Abl. J. Exp. Med. 182, 1545–1556 (1995)
Denecker, G., Dooms, H., Van Loo, G., Vercammen, D., Grooten, J., Fiers, W., Declercq, W., Vandenabeele, P.: Phosphatidyl serine exposure during apoptosis precedes release of cytochrome c and decrease in mitochondrial transmembrane potential. FEBS Lett. 465, 47–52 (2000)
Ziegler, U., Groscurth, P.: Morphological features of cell death. News Physiol. Sci. 19, 124–128 (2004)
Smardová, J., Pavlová, S., Svitáková, M., Grochová, D., Ravcuková, B.: Analysis of p53 status in human cell lines using a functional assay in yeast: Detection of new non-sense p53 mutation in codon 124. Oncol. Rep. 14, 901–907 (2005)
Lewis Phillips, G.D., Li, G., Dugger, D.L., Crocker, L.M., Parsons, K.L., Mai, E., Blättler, W.A., Lambert, J.M., Chari, R.V.J., Lutz, R.J., Wong, W.L.T., Jacobson, F.S., Koeppen, H., Schwall, R.H., Kenkare-Mitra, S.R., Spencer, S.D., Sliwkowski, M.X.: Targeting HER2-positive breast cancer with trastuzumab-DM1, an antibody-cytotoxic drug conjugate. Cancer Res. 68, 9280–9290 (2008)
Hanahan, D., Weinberg, R.: Hallmarks of cancer: the next generation. Cell 144, 646–674 (2011)
Maskey, D., Yousefi, S., Schmid, I., Zlobec, I., Perren, A., Friis, R., Simon, H.-U.: ATG5 is induced by DNA-damaging agents and promotes mitotic catastrophe independent of autophagy. Nat. Commun. 4 (2013)
Fuertes, M.A., Alonso, C., Perez, J.M.: Biochemical modulation of cisplatin mechanisms of action: enhancement of antitumor activity and circumvention of drug resistance. Chem. Rev. 103, 645–662 (2003)
Wang, D., Lippard, S.J.: Cellular processing of platinum anticancer drugs. Nat. Rev. Drug Discov. 4, 307–320 (2005)
Burgos, A., Ellames, G.J.: Synthesis of [3H2]-(R, R)-1,2-diaminocyclohexaneoxalatoplatinum(II), [3H2]-Oxaliplatin. J. Labelled Compd. Radiopharm. 41, 443–449 (1998)
Fulmer, G.R., Miller, A.J.M., Sherden, N.H., Gottlieb, H.E., Nudelman, A., Stoltz, B.M., Bercaw, J.E., Goldberg, K.I.: NMR chemical shifts of trace impurities: common laboratory solvents, organics, and gases in deuterated solvents relevant to the organometallic chemist. Organometallics 29, 2176–2179 (2010)
Gill, S.C., von Hippel, P.H.: Calculation of protein extinction coefficients from amino acid sequence data. Anal. Biochem. 182, 319–326 (1989)
Park, G.Y., Wilson, J.J., Song, Y., Lippard, S.J.: Phenanthriplatin, a monofunctional DNA-binding platinum anticancer drug candidate with unusual potency and cellular activity profile. Proc. Natl. Acad. Sci. 109, 11987–11992 (2012)
Author information
Authors and Affiliations
Corresponding author
Supplementary Information
Supplementary Information
Supplementary Scheme

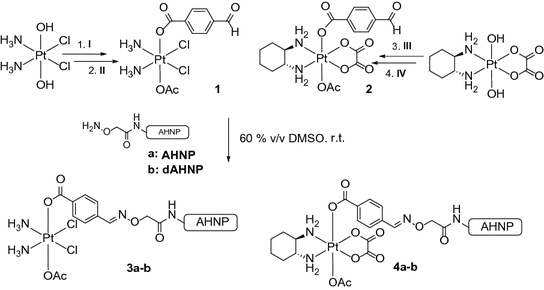

Synthesis of platinum(IV)-AHNP conjugates. Reaction conditions: (I) succinimidyl 4-formylbenzoate, in DMSO, r.t. (II) acetic anhydride in DMF, r.t. (III) H2O2 in acetic acid, r.t. (IV) 4-formyl-benzoyl chloride in acetone, pyridine, reflux. AHNP: H2N-YC*DGFYAC*YMDVGGKK(aminooxy)-CONH2; dAHNP: fC*DGFYAC*yMDVGGKK(aminooxy)-CONH2 (*—Linked disulfide bridge)
Supplementary Table

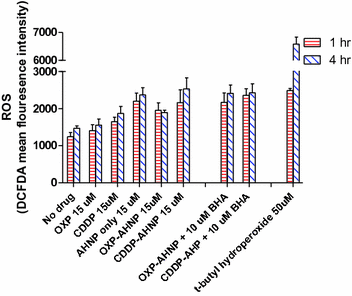

Measurements of cellular ROS on NCI-N87 after drug-treatment using 2′,7′–dichlorofluorescein diacetate (DCFDA) which measures general oxidative stress. In some cases, cells were co-treated with butylated hydroxyanisole (BHA), an antioxidant. t-butyl hydroperoxide-treated cells was included as a positive control

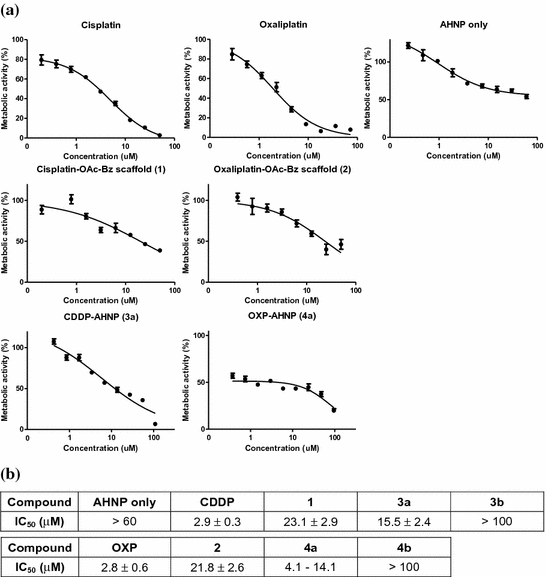

Intermediate-term potency of the drug conjugates as determined by MTT measurements of cellular metabolic activity after 72 h drug treatment against the NCI-N87 gastric cancer cell line. a Representative dosage-response curves. b Table of absolute IC50 (µM). Platinum concentrations were calibrated by ICP-OES
Visual flouresence microscopy monitoring of drug-treated NCI-N87 over time. NCI-N87 was drug-treated (15 μM for 24 h and then allowed to recover in fresh media). Nuclear morphology were visualized by Hoechst 3342 staining. There were substantial floating dead cells in drug-treated cells in the initial 24 h drug-treatment period (not shown here). When allowed to recover after 24 h drug-treatment, 4a-treated cells undergoes a transient phase of cell-profileration, as evidenced by a decrease in empty space at 144 h. The cells exhibited increasingly abnormal nuclear morphology over time, implying that continued long-term profileration was unviable

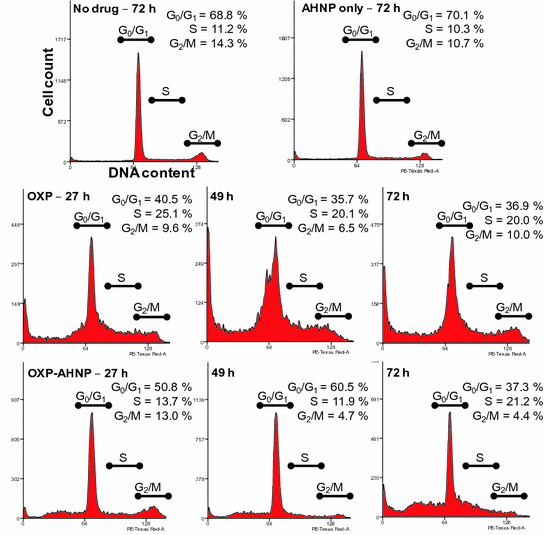

Cell-cycle distribution of drug-treated NCI-N87 cells over time. Drug-treated cells were permeabilized with 70% v/v ethanol and stained with propodium iodide to determine DNA content
Representative photos of clonogenic assay on NCI-N87 to assess the long-term proliferation ability of drug-treated cells. Single cells were seeded in a 6-well plate, drug-treated for 24 h and allowed to recover in fresh complete media for a further 15 d before counting the number of colonies formed. The number of single cells seeded per well is written on the plates
Characterisation of Compounds
See Figs. S4.6a, b, c, 4.7a, b, S4.8a, b, S4.9a, b, S4.10a, b.

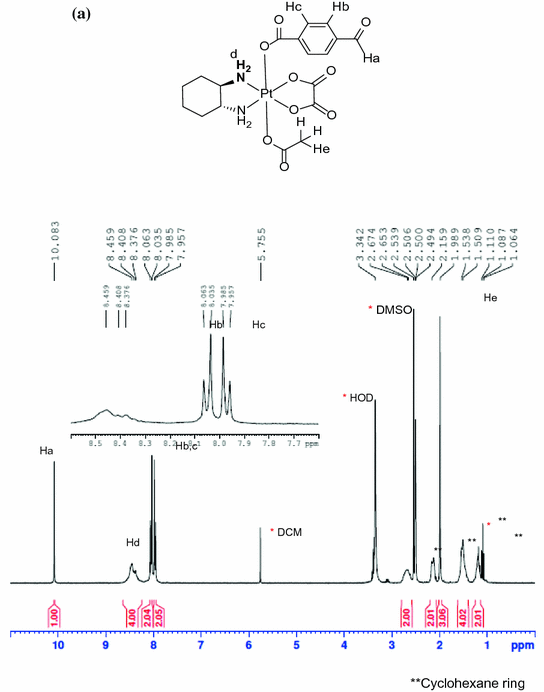

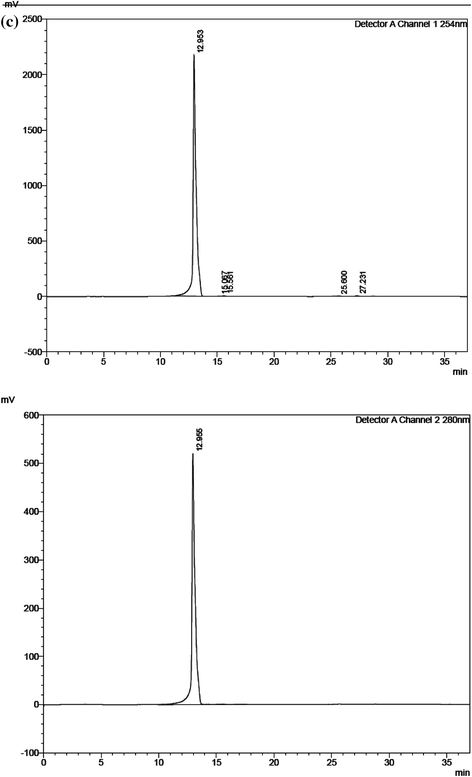

a 1H NMR of oxaliplatin(IV)-benzaldehyde scaffold 2 in DMSO-d6. b ESI-MS (−) characterisation of 2: Fullscan, zoom scan (isotopic pattern) and MS/MS (top to bottom). m/z: Calculated 604.5 [M−H]−, found 604.0. c RP-HPLC purity assessment of 2 dissolved in MeCN-H2O using Shimpack VP-ODS column (150 × 5.60 mm i.d). Elution condition: 8–30% solvent B for 10 min, 30% solvent B for 8 min and finally 30–80% solvent B for 7 min

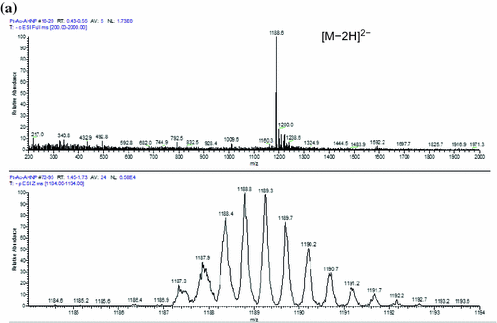

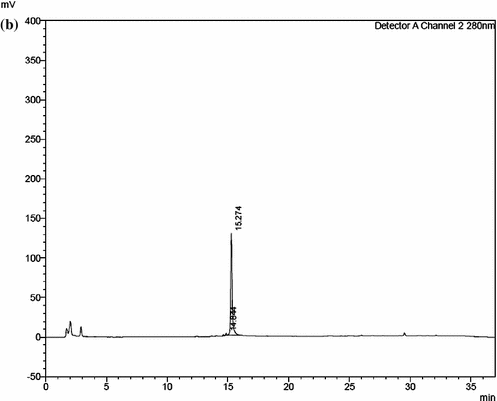

a ESI-MS (−) characterisation of cisplatin(IV)-AHNP conjugate 3a: Fullscan and zoom scan (isotopic pattern) m/z: calculated 1189.1 [M−2H]2−, found 1188.6. b HPLC chromatogram of cisplatin(IV)-AHNP conjugate 3a. The purity of the compound was assessed using Shimpack VP-ODS column (150 × 5.60 mm i.d). Elution Condition: 8–30% solvent B for 10 min, 30% solvent B for 8 min and finally 30–80% solvent B for 7 min

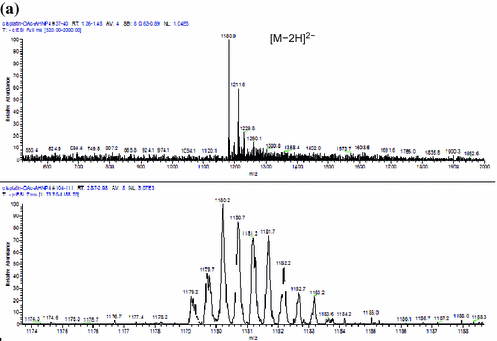

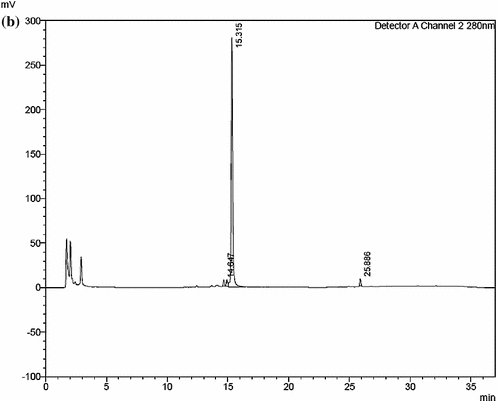

a ESI-MS (−) characterisation of cisplatin(IV)-dAHNP conjugate 3b: Fullscan and zoom scan (isotopic pattern) m/z: calculated 1181.1 [M−2H]2−, found 1180.9. b HPLC chromatogram of cisplatin(IV)-dAHNP conjugate 3b. The purity of the compound was assessed using Shimpack VP-ODS column (150 × 5.60 mm i.d). Elution Condition: 8–30% solvent B for 10 min, 30% solvent B for 8 min and finally 30–80% solvent B for 7 min

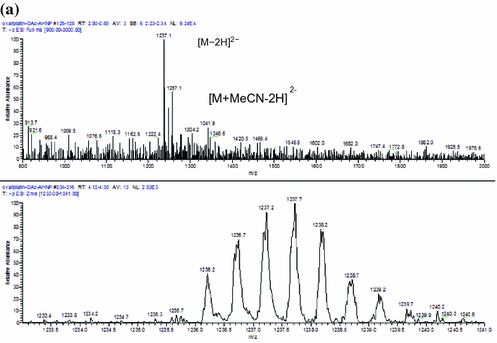

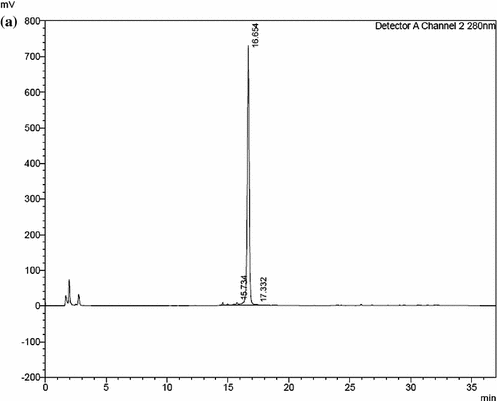

a ESI-MS (−) characterisation of oxaliplatin(IV)-AHNP conjugate 4a: Fullscan and zoom scan (isotopic pattern) m/z: calculated 1237.8 [M−2H]2−, found 1237.1. b HPLC chromatogram of oxaliplatin(IV)-AHNP conjugate 4a. The purity of the compound was assessed using Shimpack VP-ODS column (150 × 5.60 mm i.d). Elution Condition: 8–30% solvent B for 10 min, 30% solvent B for 8 min and finally 30–80% solvent B for 7 min

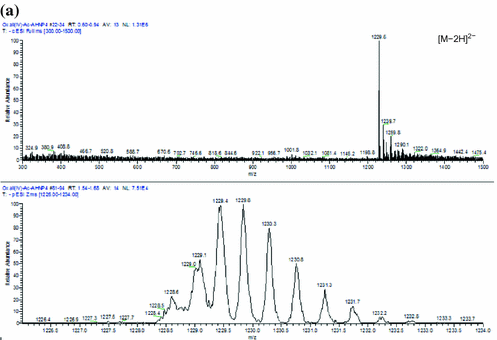

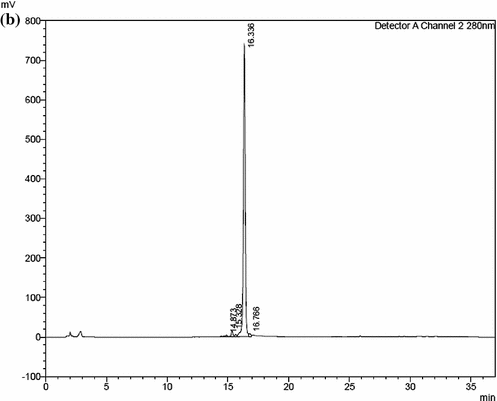

a ESI-MS (−) characterisation of oxaliplatin(IV)-dAHNP conjugate 4b: Fullscan and zoom scan (isotopic pattern) m/z: calculated 1229.8 [M−2H]2−, found 1229.6. b HPLC chromatogram of oxaliplatin(IV)-dAHNP conjugate 4b. The purity of the compound was assessed using Shimpack VP-ODS column (150 × 5.60 mm i.d). Elution Condition: 8–30% solvent B for 10 min, 30% solvent B for 8 min and finally 30–80% solvent B for 7 min
