The Early Hercynian paleo-karstification in the Block 12 of Tahe oilfield, northern Tarim Basin, China

  • Original Article
  • Published:
Carbonates and Evaporites Aims and scope Submit manuscript

Abstract

It is indicated in this paper that the karstification occurred in Block 12 of Tahe oilfield during Early Hercynian stage on the basis of identification features obtained through the latest research on seismology, petrology, and geochemistry. Distinguishable markers of the paleo-karstification mainly include: the lost strata and unconformable contact occurring between Lower–Middle Ordovician carbonates and Lower Carboniferous Bachu Formation, the occurrence of collapse breccias and fillings in subsurface stream, the evident difference between cave-fill calcite and matrix carbonate in the Sr/Ba ratio, and the log response for cavernous formations. The paleo-geomorphology of Early Hercynian karstification can be divided into four units: karst highland, I- and II-level karst slope, and karst basin in Tahe area, and the Block 12 was basically located in II-level karst slope. Three karst cycles developed in the Block 12 according to Early Hercynian tectonism characterized by multiphase pulse-type uplift movement and three sets of cavernous formation formed. II- and III-level cavernous formations mainly developed in Block 12. The Early Hercynian karstification is distributed on the north area of the pinch-out line of Upper Ordovician Sangtamu Formation in the plane, and is vertically developed in the Lower–Middle Ordovician carbonates. The karstification is essentially controlled by the paleo-geomorphology and fault. Fissures and caves formed by the karstification are the keys to affecting reservoir quality. The evolution model of Early Hercynian karstification has been established on the basis of the synthesis of the above-mentioned research results. It can be divided into three stages: rapidly uplifting and denudation stage, three episodes of uplifting and karstification, and subsiding and reworking stage.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1
Fig. 2

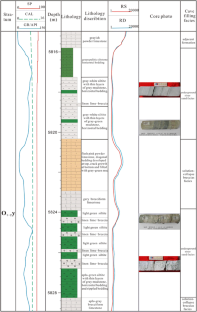

Fig. 3

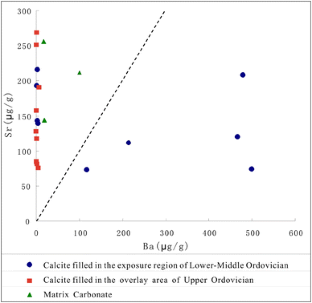

Fig. 4
Fig. 5

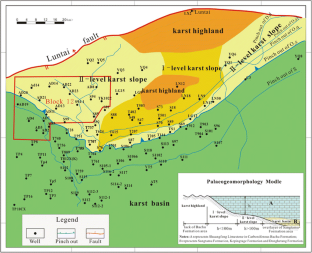

Fig. 6
Fig. 7
Fig. 8
Fig. 9

Similar content being viewed by others

References

  • Chen HD, Zhang JQ, Ye DS (1994) Paleo-karst reservoir characteristic and its oil controlling effect in Northern Tarim Basin, Xinjiang. Chengdu University of science and technology press, Chengdu, pp 27–77 (in Chinese)

  • Chen XS, Yi WX, Lu WZ (2004) The Paleo-karst Reservoirs of oil/gas fields in China. Acta Sedimentol Sin 22:245–247 (in Chinese with English Abstract)

    Google Scholar

  • Chen JS, Li Z, Wang ZY (2007) Paleo-karstification and reservoir distribution of Ordovician carbonates in Tarim basin. Acta Sedimentol Sin 25:858–868 (in Chinese with English Abstract)

    Google Scholar

  • Dai DS, Wang LS (2000) Condition of fracture-vug system of carbonate reservoir in Sichuan basin. Mar Orig Petrol Geol 2:89–97

    Google Scholar

  • Deng SW, Huang ZB, Jing XC (2008) Unconformities in the Ordovician of Western Tarim basin, NW China. Geol Rev 54:741–747 (in Chinese with English Abstract)

    Google Scholar

  • Hammes U, Lucia FJ, Kerans C (1996) Reservoir heterogeneity in karst-related reservoirs: lower Ordovician Ellenberger Group, Precambrian-Devonian geology of the Franklin Mountains, West Texas,-Analogs for exploration and production in Ordovician and Silurian karst reservoirs in the Permian Basin. Annual West Texas Geology Society Field Trip (MIDLAND, TX)

  • Handford CR (1995) Prediction of paleo-cave of reservoirs through seismic modeling of analogs. AAPG International Conference (NICE, FRANCE, 9/10-13/95) PAP, AAPG Bulletin 79(8):1220

  • Handford CR (1995) Stratigraphic geometry of cavern collapse and seismic modeling: a predictive tool for exploration. Annual AAPG-SEPM-EMD-DPA-DEG CONV (HOUSTON, 3/5-8/95) PAP Abstract 38

  • Jia ZY, Cai ZX, Xiao YR (1995) Paleo-weathering crust: an important reservoir (body) type of carbonate rocks. Earth Sci (J China Univ Geosci) 20:283–289 (in Chinese)

    Google Scholar

  • Jin ZK, Zhou YR, Jiang CL, You WF (2001) Distribution and controlling factors of Ordovician karst reservoirs in Dagang region. Acta Sedimentol Sin 19:530–535 (in Chinese with English Abstract)

    Google Scholar

  • Kang YZ (2007) Reservoir rock characteristics of paleozoic marine facies carbonate rock in the Tarim basin. Petrol Geol Exp 29:217–223 (in Chinese with English Abstract)

    Google Scholar

  • Li HJ, Ding Y, Zhou XG (2010) Study on Hercynian and middle Caledonian karstification of Ordovician in the Tahe oilfield, Tarim Basin. Geol Rev 56:413–424 (in Chinese with English Abstract)

    Google Scholar

  • Lin ZM (2002a) Carbonate rock reservoir features and oil-gas accumulating conditions in the Ordovician of Tahe oilfield in Northern Tarim basin. Acta Petrolei Sinica 23:23–26 (in Chinese with English Abstract)

    Google Scholar

  • Lin ZM (2002b) Formation condition of large-scale oil-gas pool in Ordovician carbonate rock in the Tahe oil field, Tarim basin. Geol Rev 48:372–376 (in Chinese with English Abstract)

    Google Scholar

  • Liu CG, Li GR, Zhang YW (2007) Application of strontium isotope to the study of paleo-karst: a case from Ordovician in the Tahe oilfield, Tarim basin. Acta Geologica Sinica 81:1398–1404 (in Chinese with English Abstract)

    Google Scholar

  • Liu XF, Cai ZX, Yun L (2009) Element geochemistry characteristic response for karstification in the Tahe oilfield. Petrol Geol Exp 31:271–274 (in Chinese with English Abstract)

    Google Scholar

  • Loucks RG (1999) Origin and attributes of paleocave carbonate reservoirs (in Karst modeling; proceedings of the symposium). Karst Waters Institute Special Publication pp 559–564

  • Loucks RG (1999b) Paleocave carbonate reservoirs: origins, burial-depth modifications, spatial complexity, and reservoir implication. AAPG Bull 83:1795–1834

    Google Scholar

  • Lu XB, Cai ZX (2010) A study of the paleo-cavern system in fractured-vuggy carbonate reservoirs and oil/gas development-taking the reservoirs in Tahe oilfield as an example. Oil Gas Geol 31:22–27

    Google Scholar

  • Lv HT, Zhang DJ, Yang YC (2009) Stages of Paleo-karstic hypergenesis in Ordovician reservoir, Tahe oilfield. Geol Sci Tech Inf 28:71–75

    Google Scholar

  • Mcmechan GA, Zeng X, Loucks RG, Mescher P (1998) Ground penetrating radar imaging of a collapsed paleocave system in the Ellenburger dolomite, central Texas. J Appl Geophys 39(1):1–10

    Article  Google Scholar

  • Qi LX, Yun L (2010) Development characteristics and main controlling factors of the Ordovician carbonate karst in Tahe oilfield. Oil Gas Geol 31:1–12 (in Chinese with English Abstract)

    Google Scholar

  • Wang XZ, Huang JX, Hou FH (1996) The Relations between Paleo-karst and reservoir porosity in denying formation, Sinian of Ziyang and neighboring area, Sichuan. J Mineral Petrol 26:47–56 (in Chinese with English Abstract)

    Google Scholar

  • Xiao YR, He FY, Sun YH (2003a) Reservoir characteristics of paleocave carbonates—a case study of Ordovician paleocave in Tahe oilfield, Tarim basin. Oil Gas Geol 24:75–80 (in Chinese with English Abstract)

    Google Scholar

  • Xiao YR, Wang DZ, Shen SP (2003b) The characteristics of paleocave carbonate reservoir and its control factors in Ordovician of the Tahe oilfield in the Tarim basin, Xinjiang. Geoscience 17:92–98 (in Chinese with English Abstract)

    Google Scholar

  • Yan XB, Li TJ, Zhang T (2005) Differences between formation conditions of Ordovician karstic reservoirs in Tazhong and Tahe areas. Oil Gas Geol 26:202–207 (in Chinese with English Abstract)

    Google Scholar

  • Yan W, Wang XZ, Zhang TS (2011) Investigations of the karst during the episode III of the mid-caledonian in the Tahe oilfield. Acta Petrolei Sinica 32:411–416 (in Chinese with English Abstract)

    Google Scholar

  • Yu RL, Fu H (2006) Influence of tectonic movement on Ordovician carbonates of Tahe oilfield. Natural Gas Explor Develop 29:1–5 (in Chinese with English Abstract)

    Google Scholar

  • Yuan DX (1993) China karstology. Geology press, Beijing, pp 4–8 (in Chinese)

  • Zhang K (1999) The discovery of Tahe oilfield and its geologic implication. Oil Gas Geol 20:120–124 (in Chinese)

    Google Scholar

  • Zhang K (2001) The characteristics of Tahe oilfield and its oil gas exploration direction in the carbonates of Tarim basin. Acta Petrolei Sinica 22:1–6 (in Chinese with English Abstract)

    Google Scholar

  • Zhang DJ, Lv HT, Zhang T (2007) Characteristics of Caledonian karstification reservoir in Tahe oilfield and its distribution. Acta Sedimentol Sin 25:214–222 (in Chinese with English Abstract)

    Google Scholar

Download references

Acknowledgments

The authors express their deep gratitude to Professor Jingshan Chen, Professor Shuguang Mu and Wei Yan for their help during the research and paper construction process. This study was supported by the China National Science and Technology Project (2008ZX05049-01-002).
