Abstract
Purpose
The optimal design for a cemented femoral stem remains a matter of debate. Over time, the shape, surface finish and collar have all been modified in various ways. A clear consensus has not yet emerged regarding the relative merits of even the most basic design features of the stem. We undertook a prospective randomised trial comparing surface finish and the effect of a collar on cemented femoral component subsidence, survivorship and clinical function.
Methods

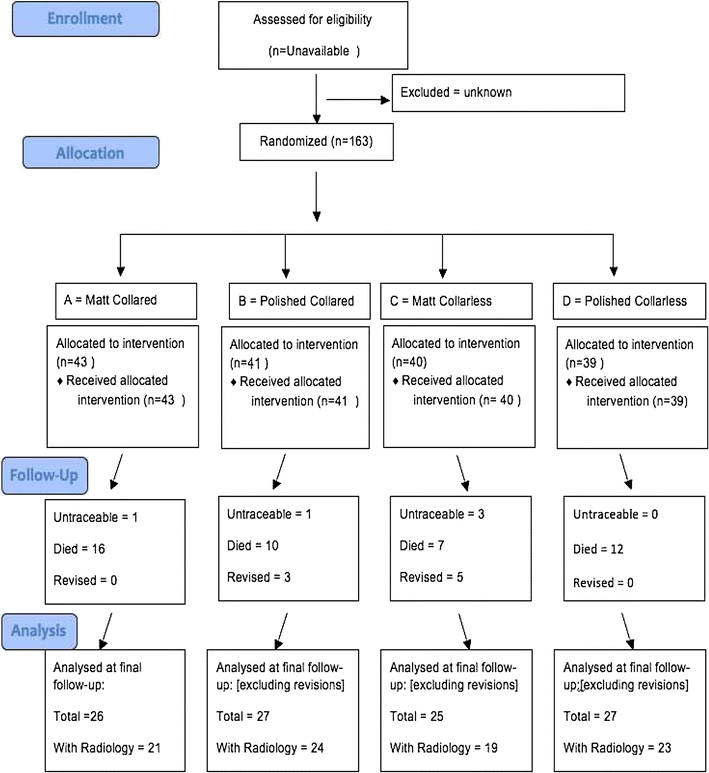

One hundred and sixty three primary total hip replacement patients were recruited prospectively and randomised to one of four groups to receive a cemented femoral stem with either a matt or polished finish, and with or without a collar.
Results
At two years, although there was a trend for increased subsidence in the matt collarless group, this was not statistically significant (p = 0.18). At a mean of 10.1 years follow-up, WOMAC scores for the surviving implants were good, (Range of means 89–93) without significant differences. Using revision or radiographic loosening as the endpoint, survivorship of the entire cohort was 93 % at 11 yrs, (CI 87–97 %). There were no significant differences in survivorship between the two groups with polished stems or the two groups with matt stems. A comparison of the two collarless stems demonstrated a statistically significant difference in survivorship between polished (100 %) and matt (88 %) finishes (p = 0.02).
Conclusions
In the presence of a collar, surface finish did not significantly affect survivorship or function. Between the two collarless groups a polished surface conferred an improved survivorship.
Similar content being viewed by others
References
Mulroy RD, Harris WH (1990) The effect of improved cementing techniques on component loosening in total hip replacement. An 11-year radiographic review. J Bone Joint Surg Br 72:757–760
Barrack RL (2000) Early failure of modern cemented stems. J Arthroplasty 15:1036–1050. doi:10.1054/arth.2000.16498
Shen G (1998) Femoral stem fixation. An engineering interpretation of the long-term outcome of Charnley and Exeter stems. J Bone Joint Surg Br 80:754–756
Scheerlinck T, Casteleyn P-P (2006) The design features of cemented femoral hip implants. J Bone Joint Surg Br 88:1409–1418. doi:10.1302/0301-620X.88B11.17836
Mohler CG, Callaghan JJ, Collis DK, Johnston RC (1995) Early loosening of the femoral component at the cement-prosthesis interface after total hip replacement. J Bone Joint Surg Am 77:1315–1322
Jewett BA, Collis DK (2006) Radiographic failure patterns of polished cemented stems. Clin Orthop Relat Res 453:132–136
Anthony PP, Gie GA, Howie CR, Ling RS (1990) Localised endosteal bone lysis in relation to the femoral components of cemented total hip arthroplasties. J Bone Joint Surg Br 72:971–979
Howie DW, Middleton RG, Costi K (1998) Loosening of matt and polished cemented femoral stems. J Bone Joint Surg Br 80:573–576
Kwong KS (1990) The biomechanical role of the collar of the femoral component of a hip replacement. J Bone Joint Surg Br 72:664–665
Crowninshield RD, Brand RA, Johnston RC, Pedersen DR (1981) An analysis of collar function and the use of titanium in femoral prostheses. Clin Orthop Relat Res 270–277
Lewis JL, Askew MJ, Wixson RL et al (1984) The influence of prosthetic stem stiffness and of a calcar collar on stresses in the proximal end of the femur with a cemented femoral component. J Bone Joint Surg Am 66:280–286
Markolf KL, Amstutz HC, Hirschowitz DL (1980) The effect of calcar contact on femoral component micromovement. A mechanical study. J Bone Joint Surg Am 62:1315–1323
Settecerri JJ, Kelley SS, Rand JA, Fitzgerald RH (2002) Collar versus collarless cemented HD-II femoral prostheses. Clin Orthop Relat Res 146–152
Gruen TA, McNeice GM, Amstutz HC (1979) “Modes of failure” of cemented stem-type femoral components: a radiographic analysis of loosening. Clin Orthop Relat Res 17–27
Rothman KJ (1978) Estimation of confidence limits for the cumulative probability of survival in life table analysis. J Chronic Dis 31:557–560
Murray DW, Carr AJ, Bulstrode C (1993) Survival analysis of joint replacements. J Bone Joint Surg Br 75:697–704
Kärrholm J, Garellick G, Herberts P (2008) Annual Report 2008: Swedish Hip Arthroplasty Register. http://www.secca.es/registros/AnnualReport-2008-eng.pdf. Accessed 21 July 2013
Issack PS, Botero HG, Hiebert RN et al (2003) Sixteen-year follow-up of the cemented spectron femoral stem for hip arthroplasty. J Arthroplasty 18:925–930
Yates PJ, Burston BJ, Whitley E, Bannister GC (2008) Collarless polished tapered stem: clinical and radiological results at a minimum of ten years’ follow-up. J Bone Joint Surg Br 90-B:16–22. doi:10.1302/0301-620X.90B1.19546
Berli BJ, Schäfer D, Morscher EW (2005) Ten-year survival of the MS-30 matt-surfaced cemented stem. J Bone Joint Surg Br 87:928–933. doi:10.1302/0301-620X.87B7.16149
Lachiewicz PF, Kelley SS, Soileau ES (2008) Survival of polished compared with precoated roughened cemented femoral components. A prospective, randomized study. J Bone Joint Surg Am 90:1457–1463. doi:10.2106/JBJS.G.01043
Vaughn BK, Fuller E, Peterson R, Capps SG (2003) Influence of surface finish in total hip arthroplasty. J Arthroplasty 18:110–115
Vail TP, Goetz D, Tanzer M et al (2003) A prospective randomized trial of cemented femoral components with polished versus grit-blasted surface finish and identical stem geometry. J Arthroplasty 18:95–102
Sherfey JJ, McCalden RW (2006) Mid-term results of Exeter vs Endurance cemented stems. J Arthroplasty 21:1118–1123. doi:10.1016/j.arth.2006.01.008
Della Valle AG, Zoppi A, Peterson MGE, Salvati EA (2005) A rough surface finish adversely affects the survivorship of a cemented femoral stem. Clin Orthop Relat Res 158–163
Collis DK, Mohler CG (2002) Comparison of clinical outcomes in total hip arthroplasty using rough and polished cemented stems with essentially the same geometry. J Bone Joint Surg Am 84-A:586–592
Hamadouche M, Baqué F, Lefevre N, Kerboull M (2008) Minimum 10-year survival of Kerboull cemented stems according to surface finish. Clin Orthop Relat Res 466:332–339. doi:10.1007/s11999-007-0074-6
Gonzalez Della Valle A, Comba F, Zoppi A, Salvati EA (2006) Favourable mid-term results of the VerSys CT polished cemented femoral stem for total hip arthroplasty. Int Orthop 30:381–386. doi:10.1007/s00264-006-0077-z
Kelley SS, Fitzgerald RH, Rand JA, Ilstrup DM (1993) A prospective randomized study of a collar versus a collarless femoral prosthesis. Clin Orthop Relat Res 114–122
Meding JB, Ritter MA, Keating EM et al (1999) A comparison of collared and collarless femoral components in primary cemented total hip arthroplasty: a randomized clinical trial. J Arthroplasty 14:123–130
Grose A, Gonzalez Della Valle A, Bullough P et al (2006) High failure rate of a modern, proximally roughened, cemented stem for total hip arthroplasty. Int Orthop 30:243–247. doi:10.1007/s00264-005-0066-7
Acknowledgments
The authors thank William Twyman for his assistance with digitising and analysis of radiographs.
Conflicts of Interest and Funding
Johnson and Johnson (now Depuy, IN, USA) provided funding for the implants used in the study and for a research nurse over a 2-year period. None of the authors have any other financial disclosures relevant to this study.
Author information
Authors and Affiliations
Corresponding author
Appendix
Appendix
Rights and permissions
About this article
Cite this article
Hutt, J., Hazlerigg, A., Aneel, A. et al. The effect of a collar and surface finish on cemented femoral stems: a prospective randomised trial of four stem designs. International Orthopaedics (SICOT) 38, 1131–1137 (2014). https://doi.org/10.1007/s00264-013-2256-z
