Modular Termination Verification for Non-blocking Concurrency

  • Pedro da Rocha PintoEmail author
  • Thomas Dinsdale-Young
  • Philippa Gardner
  • Julian Sutherland
Part of the Lecture Notes in Computer Science book series (LNCS, volume 9632)

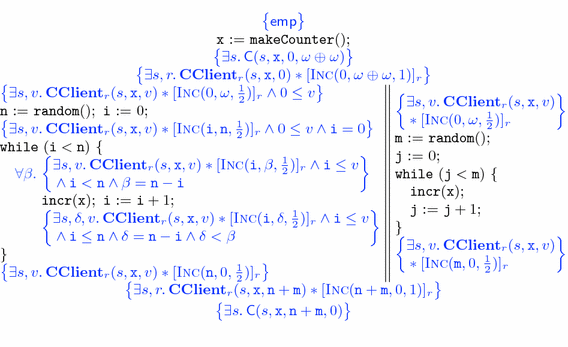

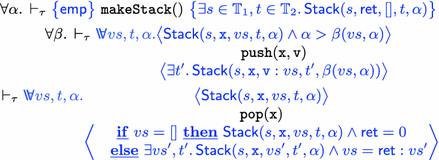

We present Total-TaDA, a program logic for verifying the total correctness of concurrent programs: that such programs both terminate and produce the correct result. With Total-TaDA, we can specify constraints on a thread’s concurrent environment that are necessary to guarantee termination. This allows us to verify total correctness for non-blocking algorithms, e.g. a counter and a stack. Our specifications can express lock- and wait-freedom. More generally, they can express that one operation cannot impede the progress of another, a new non-blocking property we call non-impedance. Moreover, our approach is modular. We can verify the operations of a module independently, and build up modules on top of each other.


Program Logic Loop Iteration Concurrent Program Read Operation Total Correctness
These keywords were added by machine and not by the authors. This process is experimental and the keywords may be updated as the learning algorithm improves.



We thank Bart Jacobs, Hongjin Liang, Peter Müller and the anonymous referees for useful feedback. This research was supported by EPSRC Programme Grants EP/H008373/1 and EP/K008528/1, by the “ModuRes” Sapere Aude Advanced Grant from The Danish Council for Independent Research for the Natural Sciences (FNU) and the “Automated Verification for Concurrent Programs” Individual Postdoc Grant from The Danish Council for Independent Research for Technology and Production Sciences (FTP).


  1. 1.
    Boström, P., Müller, P.: Modular verification of finite blocking in non-terminating programs. In: Boyland, J.T. (ed.) 29th European Conference on Object-Oriented Programming, vol. 37, pp. 639–663. Schloss Dagstuhl-Leibniz-Zentrum fuer Informatik, Dagstuhl (2015)Google Scholar
  2. 2.
    Boyland, J.: Checking interference with fractional permissions. In: Cousot, R. (ed.) Static Analysis. LNCS, vol. 2694, pp. 55–72. Springer, Heidelberg (2003)CrossRefGoogle Scholar
  3. 3.
    Cantor, G.: Beiträge zur begründung der transfiniten mengenlehre. Mathematische Annalen 49(2), 207–246 (1897). MathSciNetCrossRefzbMATHGoogle Scholar
  4. 4.
    Dinsdale-Young, T., Birkedal, L., Gardner, P., Parkinson, M., Yang, H.: Views: compositional reasoning for concurrent programs. In: POPL, pp. 287–300 (2013)Google Scholar
  5. 5.
    Dinsdale-Young, T., Dodds, M., Gardner, P., Parkinson, M.J., Vafeiadis, V.: Concurrent abstract predicates. In: D’Hondt, T. (ed.) ECOOP 2010. LNCS, vol. 6183, pp. 504–528. Springer, Heidelberg (2010)CrossRefGoogle Scholar
  6. 6.
    Floyd, R.W.: Assigning meanings to programs. In: Proceedings of the American Mathematical Society Symposia on Applied Mathematics, vol. 19, pp. 19–31 (1967)Google Scholar
  7. 7.
    Gotsman, A., Cook, B., Parkinson, M., Vafeiadis, V.: Proving that non-blocking algorithms don’t block. In: POPL, pp. 16–28 (2009)Google Scholar
  8. 8.
    Herlihy, M.: Wait-free synchronization. ACM Trans. Program. Lang. Syst. 13(1), 124–149 (1991)CrossRefGoogle Scholar
  9. 9.
    Hessenberg, G.: Grundbegriffe der Mengenlehre. Abhandlungen der Fries’schen Schule / Neue Folge. Vandenhoeck & Ruprecht, Göttingen (1906)zbMATHGoogle Scholar
  10. 10.
    Hoffmann, J., Marmar, M., Shao, Z.: Quantitative reasoning for proving lock-freedom. In: 2013 28th Annual IEEE/ACM Symposium on Logic in Computer Science (LICS), pp. 124–133. IEEE (2013)Google Scholar
  11. 11.
    Jung, R., Swasey, D., Sieczkowski, F., Svendsen, K., Turon, A., Birkedal, L., Dreyer, D.: Iris: monoids and invariants as an orthogonal basis for concurrent reasoning. In: POPL, pp. 637–650 (2015)Google Scholar
  12. 12.
    Liang, H., Feng, X., Shao, Z.: Compositional verification of termination-preserving refinement of concurrent programs. In: Proceedings of the Joint Meeting of the Twenty-Third EACSL Annual Conference on Computer Science Logic (CSL) and the Twenty-Ninth Annual ACM/IEEE Symposium on Logic in Computer Science (LICS), p. 65. ACM (2014)Google Scholar
  13. 13.
    Massalin, H., Pu, C.: A lock-free multiprocessor os kernel. SIGOPS Oper. Syst. Rev. 26, 108 (1992)CrossRefGoogle Scholar
  14. 14.
    Parkinson, M., Bierman, G.: Separation logic and abstraction. In: POPL, pp. 247–258 (2005)Google Scholar
  15. 15.
    Reynolds, J.C.: Separation logic: a logic for shared mutable data structures. In: 2002 Proceedings 17th Annual IEEE Symposium on Logic in Computer Science, pp. 55–74. IEEE (2002)Google Scholar
  16. 16.
    da Rocha Pinto, P., Dinsdale-Young, T., Gardner, P.: Tada: a logic for time and data abstraction. In: Jones, R. (ed.) ECOOP 2014. LNCS, vol. 8586, pp. 207–231. Springer, Heidelberg (2014)Google Scholar
  17. 17.
    da Rocha Pinto, P., Dinsdale-Young, T., Gardner, P.: Steps in modular specifications for concurrent modules (invited tutorial paper). Electron. Notes Theor. Comput. Sci. 319, 3–18 (2015)MathSciNetCrossRefGoogle Scholar
  18. 18.
    da Rocha Pinto, P., Dinsdale-Young, T., Gardner, P., Sutherland, J.: Modular termination verification for non-blocking concurrency. Technical report, Imperial College London (2016)Google Scholar
  19. 19.
    Svendsen, K., Birkedal, L.: Impredicative concurrent abstract predicates. In: Shao, Z. (ed.) ESOP 2014 (ETAPS). LNCS, vol. 8410, pp. 149–168. Springer, Heidelberg (2014)CrossRefGoogle Scholar
  20. 20.
    Treiber, R.K.: Systems programming: coping with parallelism. Technical report RJ 5118, IBM Almaden Research Center, April 1986Google Scholar
  21. 21.
    Turing, A.M.: Checking a large routine. In: Report of a Conference on High Speed Automatic Calculating Machines, pp. 67–69 (1949).
  22. 22.
    Turon, A., Dreyer, D., Birkedal, L.: Unifying refinement and hoare-style reasoning in a logic for higher-order concurrency. In: ICFP, pp. 377–390 (2013)Google Scholar
