Abstract

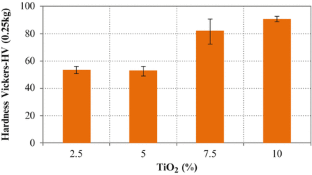

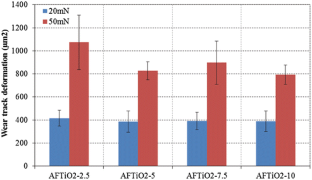

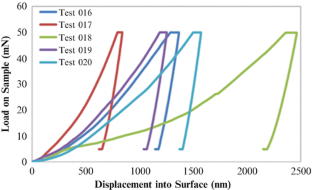

In this work, scrap Aluminium Matrix Composites (AMCs) reinforced with 10 wt% nano iron oxide (Fe3O4) were produced and the influence of doping Fe3O4 with TiO2 at 2.5 %, 5 %, 7.5 % and 10 % wt%, was studied. For the dispersion of the reinforcement and the study of the matrix/reinforcement, interface was evaluated by Scanning Electron Microscopy (SEM). Density and microhardness of the composites were measured and compared. Wear and creep response of the composites were evaluated by a nanoindenter, Furthermore modulus and hardness of the composites were calculated using the unloading data from the nanoindentation tests. Relatively homogenous distribution of the constituents, with a good bond between matrix and the reinforcements was observed. It was also observed that wear behaviour improved with the increase in the TiO2 content.
Keywords
- Scrap Al matrix composites
- Iron oxide (Fe3O4)
- Microstructural analysis
- Mechanical performance
- Magnetic saturation
This is a preview of subscription content, access via your institution.
Buying options
Tax calculation will be finalised at checkout
Purchases are for personal use only
Learn about institutional subscriptions
References
Tita, V., de Carvalho, J., Vandepitte, D.: A study of the dynamic behavior for low velocity impact on thin composite laminates. In: DINAME-2007, ABCM, Proceedings of the XII International Symposium on Dynamic Problems of Mechanics, Ilhabela, 26 Feb–2 Mar 2007
Gottesman, T., Girshovich, S.: Impact damage assessment and mechanical degradation of composites. Key Eng. Mater. 141(1), 3–18 (1998)
Bayraktar, E., Ayari, F., Tan, M.J., Tosun Bayraktar, A., Katundi, D.: Manufacturing of aluminum matrix composites reinforced with iron-oxide nanoparticles: Microstructural and mechanical properties. Metall. Mater. Trans. B 45B(26), 352–362 (2014)
Kurşun, A., Bayraktar, E., Robert, M.H.: Low cost manufacturing of aluminium-alumina composites. J. Adv. Mater. Process. Technol. 1(3–4), 515–528 (2015). doi:10.1080/2374068X.2016.1143212
Mondal, D.P., Das, S.: High stress abrasive wear behavior of aluminum hard particle composites: Effect of experimental parameters, particle size and volume fraction. Tribol. Int. 39, 470–478 (2006)
Panuwar, R.S., Pandey, O.P.: Analysis of wear track and debris of stir cast LM13/Zr composite at elevated temperatures. Mater Charact 75, 200–213 (2013)
Kolhatkar, A.G., Jamison, A.C., Litvinov, D., Wilson, R.C., Lee, T.R.: Tuning the magnetic properties of nanoparticles. Int. J. Mol. Sci. 14(8), 15977–16009 (2013)
Haug, E., de Rouvray, A.: Crash response of composite structures. In: Proceedings on Structural Crashworthiness and Failure, pp. 237–294. Elsevier, London (1993)
Michael Hogan, C.: Density of states of an insulating ferromagnetic alloy. Phys. Rev. 188(2), 870 (1969). doi:10.1103/PhysRev.188.870
Zhang, X.Y., Suhl, H.: Spin-wave-related period doublings and chaos under transverse pumping. Phys. Rev. A 32(4), 2530–2533 (1985)
Kursun, A., Enginsoy, H., Bayraktar, E.: Effect of impactor shapes on the low velocity impact damage of sandwich composite plate: Experimental study and model. Composites Part B 86, 143–151 (2016)
Kursun, A., Enginsoy, H., Bayraktar, E.: Experimental and numerical study of alumina reinforced aluminum matrix composites: Processing, microstructural aspects and properties. Composites Part B 90, 302–314 (2016)
Ferreira, L.P., Robert, M.-H., Bayraktar, E.: Production of aluminum composites/SiC/NiAl2O4 MMCs by thixoforming of recycled chips. Solid State Phenom. 217–218, 286–293 (2015)
Dong, S., Hou, P., Cheng, H., et al.: Fabrication of intermetallic NiAl by self-propagating high-temperature synthesis reaction using aluminium nanopowder under high pressure. J. Phys. Condens. Matter 14, 11023–11030 (2002)
Shin, J.H., Choi, H.J., Cho, M.K., Bae, D.H.: Effect of the interface layer on the mechanical behavior of TiO2 nanoparticle reinforced aluminum matrix composites. J. Compos. Mater. 48(1), 99–106 (2014)
Ferreira, L.-M.-P., Bayraktar, E., Miskioglu, I., Robert, M.-H.: Effect of the reinforcement particles on the microstructure and electrical properties of aluminium matrix composites (AMCs). In: AMPT-2015, International Conference of, Advanced Materials Processing Technologies, Madrid, 14–17 Dec 2015
Shi, Z., Yang, J.M., Lee, J.C.: The interfacial characterization of oxidized SiC/2014 Al composites. Mater. Sci. Eng. A 303, 46–53 (2001)
Yu, Z., Wu, G., Jiang, L.: Effect of coating Al2O3 reinforcing particles on the interface and mechanical properties of 6061 alloy aluminium matrix composites. Mater. Lett. 59, 2281–2284 (2005)
Ferreira, L.-M.-P., Bayraktar, E., Robert, M.-H., Miskioglu, I.: Influence of nano particulate and fiber reinforcements on the wear response of multiferroic composites processed by powder metallurgy. In: AMPT-2015, International Conference of, Advanced Materials Processing Technologies, Madrid, 14–17 Dec 2015
Foo, K.S., Banks, W.M., Craven, A.J.: Interface characterization of an SiC particulate/6061 aluminium alloy composites. Composites 25, 677–683 (1994)
Author information
Authors and Affiliations
Corresponding author
Editor information
Editors and Affiliations
Rights and permissions
Copyright information
© 2017 The Society for Experimental Mechanics, Inc.
About this paper
Cite this paper
Ferreira, L.F.P., Miskioglu, I., Bayraktar, E., Robert, M.H. (2017). Aluminium Matrix Composites Reinforced by Nano Fe3O4 Doped with TiO2 by Thermomechanical Process. In: Ralph, W., Singh, R., Tandon, G., Thakre, P., Zavattieri, P., Zhu, Y. (eds) Mechanics of Composite and Multi-functional Materials, Volume 7 . Conference Proceedings of the Society for Experimental Mechanics Series. Springer, Cham. https://doi.org/10.1007/978-3-319-41766-0_30
