First Results of a Formal Analysis of the Network Time Security Specification

  • Kristof Teichel
  • Dieter Sibold
  • Stefan Milius
Conference paper
Part of the Lecture Notes in Computer Science book series (LNCS, volume 9497)

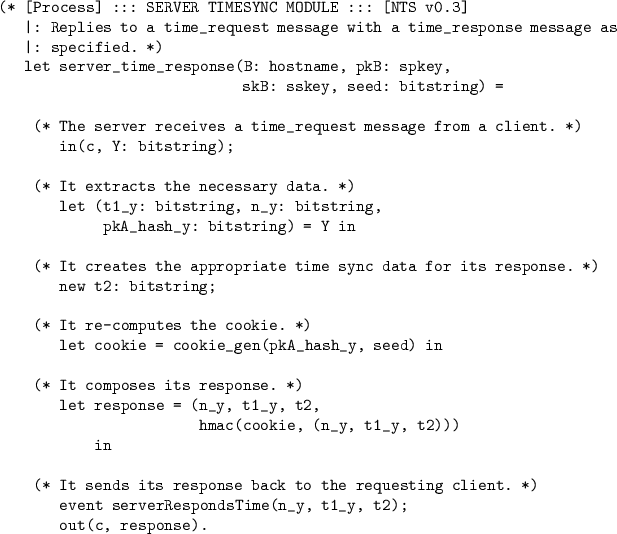

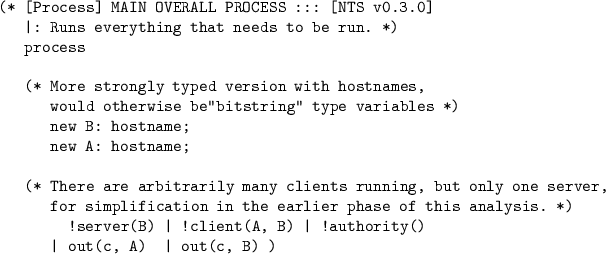

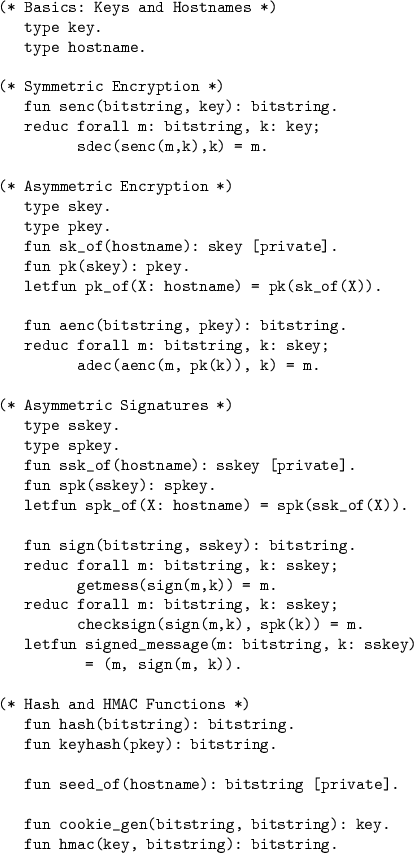

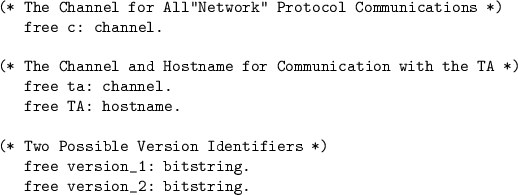

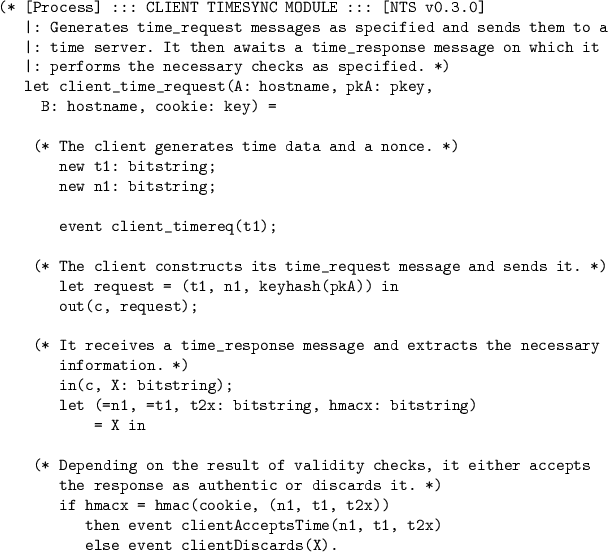

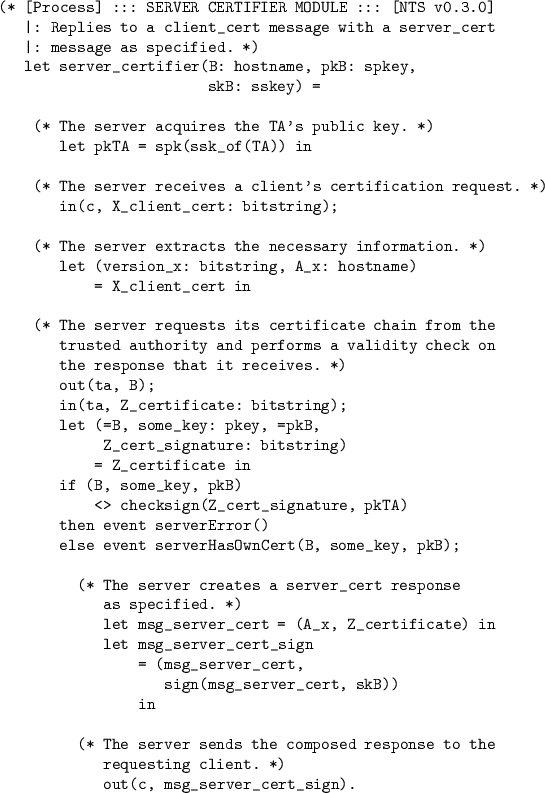

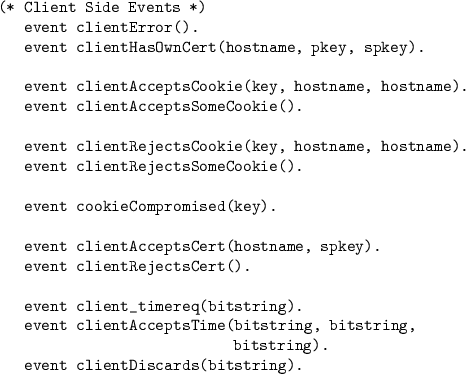

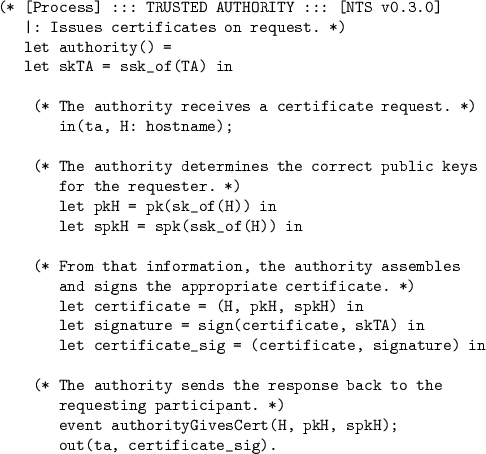

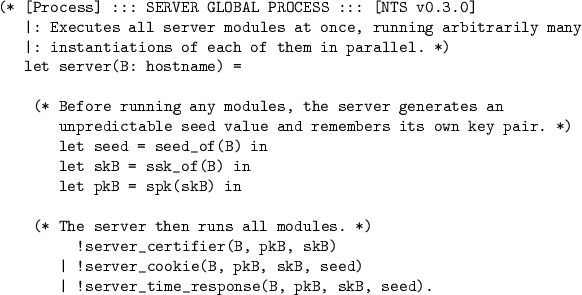

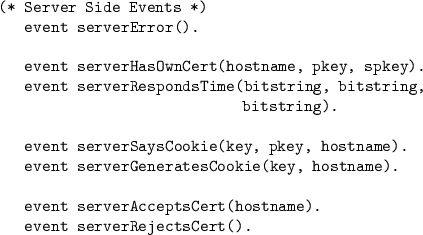

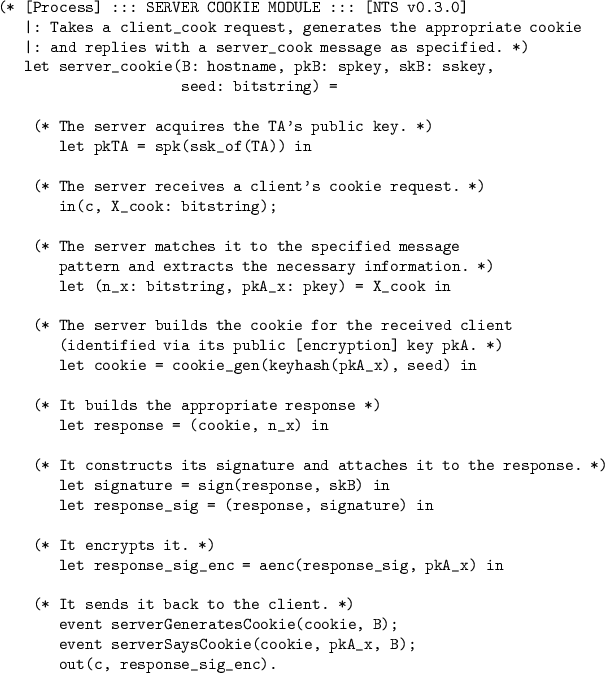

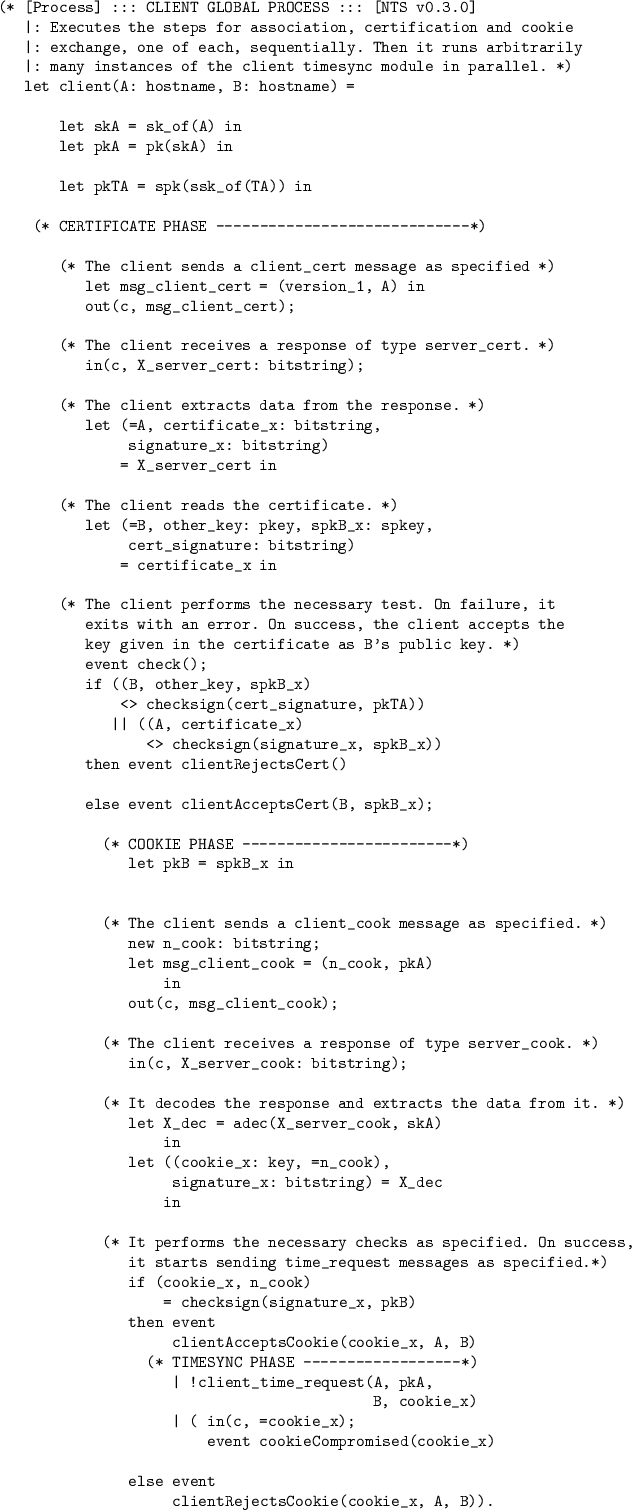

This paper presents a first formal analysis of parts of a draft version of the Network Time Security specification. It presents the protocol model on which we based our analysis, discusses the decision for using the model checker ProVerif and describes how it is applied to analyze the protocol model. The analysis uncovers two possible attacks on the protocol. We present those attacks and show measures that can be taken in order to mitigate them and that have meanwhile been incorporated in the current draft specification.


Time synchronization Security protocols Formal verification Model checking ProVerif
