Abstract

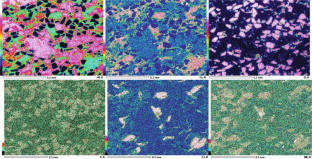

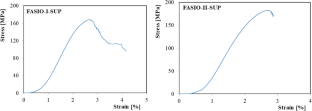

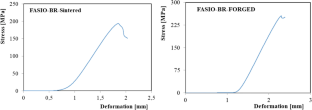

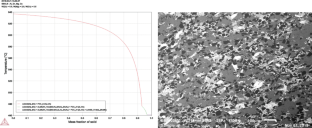

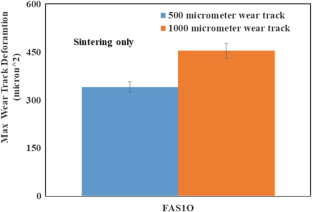

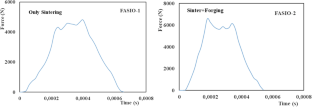

The present work, reviews the mechanical and microstructural analyses, of copper and silicon carbide reinforced recycled aluminium matrix (Alumix 431) composites manufactured by sinter+forging technique. Static compression, impact tests and also scratch damage tests were carried out. Detail analyses of Scanning Electron Microscopy (SEM) supported by XRD, thermal and electrical conductivity measurements have been carried out on the specimens before and after the tests.
The results exposed that, the composites have homogeneous structure without porosity and very homogeneous distribution of fine silicon carbide (SiC) particles. The failure damage in composites occurs in both matrix and particles implying good chemical bonding diffusion between matrix and particles. This composite will be applied on the pieces with high thermal conductivity and high surface damage resistant.
Keywords
- Hybrid composites
- Copper-aluminium
- Thermal conductivity
- SEM analyses
- Fracture analyses
This is a preview of subscription content, access via your institution.
Buying options
Tax calculation will be finalised at checkout
Purchases are for personal use only
Learn about institutional subscriptions
References
Reddy, M.P., Manakari, V., Parande, G., Shakoor, R.A., Mohamed, A.M.A., Gupta, M.: Structural, mechanical and thermal characteristics of Al-Cu-Li particle reinforced Al-matrix composites synthesized by microwave sintering and hot extrusion. Compos. Part B. 164, 485–492 (2019)
Kurşun, A., Bayraktar, E., Enginsoy, H.M.: Experimental and numerical study of alumina reinforced aluminium matrix composites: processing, microstructural aspects and properties. Compos. Part B. 90, 302–314 (2016)
Mann, R.E.D., Hexemer Jr., R.L., Donaldson, I.W., Bishop, D.P.: Hot deformation of an Al–Cu–Mg powder metallurgy alloy. Mater. Sci. Eng. A. 528, 5476–5483 (2011)
Ferreira, L.F.P., Bayraktar, E., Robert, M.H., Miskioglu, I.: Particles Reinforced Scrap Aluminium Based Composites by Combined Processing Sintering + Thixoforming, pp. 145–152, chapter 17. SEM-Springer-USA (2016). ISBN 978-3-319-41766-0
Dashwood, R.J., Schaffer, G.B.: Powder forging of a sintered Al–3.8Cu–1Mg–0.8Si–0.1Sn alloy. Mater. Sci. Eng. A323, 206–212 (2002)
Li, R.T., Wang, Z.Y., Sun, W., Hu, H.L., Khor, K.A., Wang, Y., Dong, Z.L.: Microstructure and strengthening mechanisms in the Al/Al–Cu–Cr–Fe composites consolidated using spark plasma sintering. Mater. Charact. 157, 109917 (2019)
Bayraktar, E., Ayari, F., Tan, M.-J., Bayraktar, A.T., Katundi, D.: Manufacturing of aluminum matrix composites reinforced with iron-oxide nanoparticles: microstructural and mechanical properties. Metall. Mater. Trans. B. 45B(26), 352–362 (2014)
Tunçay, M.M., Muniz-Lerma, J.A., Bishop, D.P., Brochu, M.: Spark plasma sintering and spark plasma upsetting of an Al-Zn-Mg-Cu alloy. Mater. Sci. Eng. A. 704, 154–163 (2017)
Hall, B.J., Schaffer, G.B.: Statistical experimental design of Al–Cu–Mg–Si P/M alloys. J. Light. Met. 2, 229–238 (2002)
Alshammari, Y., Yang, F., Bolzoni, L.: Low-cost powder metallurgy Ti-Cu alloys as a potential antibacterial material. J. Mech. Behav. Biomed. Mater. 95, 232–239 (2019)
Ferreira, L.F.P., Bayraktar, E., Miskioglu, I., Katundi, D.: Design of Hybrid Composites from Scrap Aluminium Bronze Chips, pp. 131–138, chapter 15. SEM-Springer-USA (2016). ISBN 978-3-319-41766-0
Fathy, A., Shaker, A., Hamid, M.A., Megahed, A.A.: The effects of nano-silica/nanoalumina on fatigue behavior of glass fiber-reinforced epoxy composites. J. Compos. Mater. 51(12), 1667–1679 (2017)
Katundi, D., Ferreira, L.P., Bayraktar, E., Miskioglu, I., Robert, M.H.: Design of magnetic aluminium (A356) based composites through combined method of sinter + forging. SEM Mech. Compos. Multi-funct Mater. 6, 89–101 (2017)
Need, R.F., Alexander, D.J., Field, R.D., Livescu, V., Papin, P., Swenson, C.A., Mutnick, D.B.: The effects of equal channel angular extrusion on the mechanical and electrical properties of alumina dispersion-strengthened copper alloys. J. Mater. Sci. Eng. A. 565, 450–458 (2013)
Enginsoy, H.M., Gatamorta, F., Bayraktar, E., Robert, M.H., Miskioglu, I.: Numerical study of Al-Nb2Al composites via associated procedure of powder metallurgy and thixoforming. Compos. Part B Eng. 162, 397–410 (2019)
Acknowledgements
This work has been carried out on the frame of research collaboration between Supmeca/Paris-FRANCE and UNICAMP-FEM/CAMPINAS-SP/BRAZIL and Michigan Technical University/Houghton-MI-USA. Authors acknowledge and appreciate so much Dr. G. ZAMBELIS from Airbus-Helicopter-Paris/FR for supplying materials and for technical help. We acknowledge technical staff of Supmeca/Paris, Mr. Christophe BEN BRAHIM for mechanical tests and data acquisition system analyses and installation of electronic measurement devices.
Author information
Authors and Affiliations
Corresponding author
Editor information
Editors and Affiliations
Rights and permissions
Copyright information
© 2021 The Society for Experimental Mechanics, Inc.
About this paper
Cite this paper
Enginsoy, H.M., Gatamorta, F., Bayraktar, E., Miskioglu, I., Larbi, A. (2021). Design of Copper and Silicon Carbide (SiC) Reinforced Recycled Aluminium Matrix Composites Through Sintering + Forging. In: Singh, R.P., Chalivendra, V. (eds) Mechanics of Composite, Hybrid and Multifunctional Materials , Volume 6. Conference Proceedings of the Society for Experimental Mechanics Series. Springer, Cham. https://doi.org/10.1007/978-3-030-59868-6_7
