Abstract
Niobium is the best and excellent metal for many different industrial applications. Europe has not a Niobium reserve whereas Brazil has a major Niobium mining and produce %90 of the Niobium in the world as a raw material.
However, the processing of this metal beginning from mining up to the advance processing for the real manufacturing engineering applications is very expensive and require a sophisticated equipment and investment. However, very huge amount of scraps of the niobium coming from manufacturing of the pieces is not reprocessed efficiently as valuable and economic way because quasi all of the scarps goes to the waste. The niobium scraps as an important secondary source of the raw materials should be evaluated for the manufacturing of the new composite design. As not possible to extract in an economical way, the recycling of niobium could be a sustainable occasion for the industrial applications.

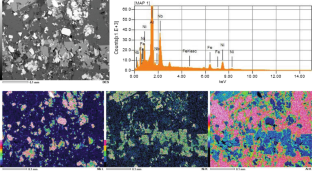

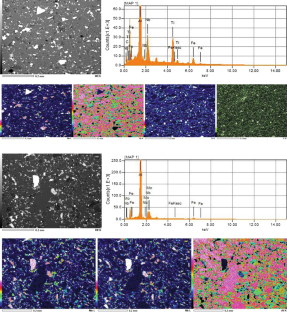

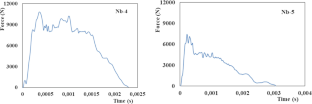

The present work review of the efficient and sustainable recycling of the fresh scraps of niobium metal in the frame of the common research project carried out between UNICAMP-Brazil and SUPMECA-France. In this work, aluminium (AA 7075) matrix composites were designed by using the combined method, sinter + forging through the powder metallurgy route. Niobium powder obtained fresh scrap by using high energy milling were used as main reinforcement element for the present work. As secondary reinforcements, fine Ni–Al intermetallic, TiB2, TiC, B4C and Mo powders were added in the matrix in order to prepare five different compositions. This process consists of the mixing, blending by high energy milling and compacting of the final composition through the combined method, sinter + forging. In the final stage, material parameters were optimized for improving physical and mechanical properties of these composites. Damping capacities and damage were analyzed by drop weight and quasi static compression, scratch wearing tests, etc. Microstructures were analyzed by the Scanning Electron Microscope (SEM).
Keywords
- AMMCs
- Powder metallurgy
- Nb/Ni-Al
- Scratch wear
- Compression
- Impact
- Scanning Electron Microscopy (SEM)
This is a preview of subscription content, access via your institution.
Buying options
Tax calculation will be finalised at checkout
Purchases are for personal use only
Learn about institutional subscriptions
References
ASM International Handbook Committee, ASM Handbook, vol. 2–4, 10th Ed, 1990
Katundi, D., Miskioglu, I., Bayraktar, E.: Design of Intermetallic Mg (Recycled Ti-Al) Based Composites Through Semi Powder Metallurgy Method, − Mechanics of Composite and Multi-functional Materials, vol. 5, pp. 27–34. Springer (2019). https://doi.org/10.1007/978-3-030-30028-9_4
Zenghu, H., Xiaoping, H., Jiawan, T., Geyang, L., Gu, M.: Magnetron sputtered NbN thin films and mechanical properties. Surf. Coat. Technol. 179, 188–192 (2004)
Zhitomirsky, V.N., Grimberg, I., Rapoport, L., Travitzky, N.A., Boxman, R.L., Goldsmith, S., et al.: Structure and mechanical properties of vacuum arc-deposited NbN coatings. Thin Solid Films. 326, 134–142 (1998)
Bayraktar, E., Miskioglu, I., Katundi, D., Gatamorta, F.: Manufacturing of Recycled Aluminum Matrix Composites Reinforced of TiC/MoS2/Al2O3 Fiber Through Combined Method: Sintered + Forging, Mechanics of Composite and Multi-functional Materials, vol. 5, pp. 15–26. Springer (2019). https://doi.org/10.1007/978-3-030-30028-9_3
Wang, W.-B., Zhong, X., He, Z.-Y., Wang, Z.-X., Zhang, P.-Z.: Chin. J. Aeronaut. 20, 111–114 (2007)
Enginsoy, H., Gatamorta, F., Bayraktar, E., Robert, M., Miskioglu, I.: Experimental and numerical study of Al-Nb2Al composites via associated procedure of powder metallurgy and thixoforming. JCOMB Composit. Part B Eng. 162, 397–410 (2019). https://doi.org/10.1016/j.compositesb.2018.12.138
John, J.H.: Niobium alloys and high temperature applications. In: Niobium Science & Technology: Proceedings of the International Symposium Niobium 2001, Orlando, Florida, USA (2001)
Gatamorta, F., Katundi, D., Bayraktar, E., Ferreira, L.M.P., Melo, M.L.N.M.: Magnetic Shape Memory Composite (MSMC) Design from Intermetallic Cu-NiTi-MnAl-Fe3O4 Alloy as an Alternative Replacement for Actuators Mechanics of Composite and Multi-functional Materials, vol. 5, pp. 47–54. Springer (2019). https://doi.org/10.1007/978-3-030-30028-9_7
Jha, P., Gautam, R.K., Tyagi, R.: Friction and wear behavior of Cu–4 wt.% Ni–TiC composites under dry sliding conditions. Friction. 5(4), 437–446 (2017)
Bolzoni, L., Ruiz-Navas, E.M., Neubauer, E., Gordo, E.: Inductive hot-pressing of titanium and titanium alloy powders. Mater. Chem. Phys. 131(3), 672–679 (2012)
Gatamorta, F., Miskioglu, I., Bayraktar, E., Melo, M.L.N.M.: Recycling of Aluminium-431 by High Energy Milling Reinforced with TiC-Mo-Cu for New Composites in Connection Applications, Mechanics of Composite and Multi-functional Materials, vol. 5, pp. 41–46. Springer (2019). https://doi.org/10.1007/978-3-030-30028-9_6
Bewlay, B.P., Jackson, M.R., Zhao, J.-C., Subramanian, P.R.: A review of very-high-temperature Nb-silicide–based composites. Metall. Mater. Trans. A. 34A, 2043–2555 (2003)
Kurşun, A., Bayraktar, E., Enginsoy, H.M.: Experimental and numerical study of alumina reinforced aluminium matrix composites: Processing, microstructural aspects and properties. Compos. Part B. 90, 302–314 (2016)
Ferreira, L.F.P.: Bayraktar, E., Robert, M.H., Miskioglu, I.: Particles Reinforced Scrap Aluminium Based Composites by Combined Processing Sintering + Thixoforming, pp. 145–152, Chapter 17. SEM-Springer-USA (2016) ISBN 978–3–319-41766-0
Katundi, D., Ferreira, L.P., Bayraktar, E., Miskioglu, I., Robert, M.H.: Design of magnetic aluminium (A356) based composites through combined method of sinter + forging. SEM Mech. Compos. Multi-Funct. Mater. 6, 89–101 (2017)
Lieblich, M., Gonzales-Carrasco, J.L., Garcia-Cano, F.: Asymmetrical phase growth in a PM Al/Ni3Al composite. J. Mater. Sci. Lett. 18, 905–908 (1999)
Ferreira, L.M.P., Robert, M.H., Bayraktar, E.: Production of aluminium/SiC/NiAl2O4 MMCs by thixoforming of recycled chips. Solid State Phenom. 217-218, 286–293 (2015)
Diaz, C., Gonzalez-Carrasco, J.L., Caruana, G., Lieblich, M.: Ni3Al intermetallic particles as wear-resistant for al-based composites processed by powder reinforcement metallurgy. Metall. Mater. Trans. A. 27, 3259–3266 (1996)
Kusaka, K., Fujine, M., Okabe, M., Endo, H.: Mechanical properties of Nb3Al-based intermetallics prepared by a ceramic mold-HIP process. Mater. Trans., JIM. 40(7), 571–577 (1999)
Acknowledgements
This work has been carried out on the frame of research collaboration between Supmeca/Paris-FRANCE and UNICAMP-FEM/Campinas-SP/BRAZIL and Michigan Technical University/Houghton-MI-USA. Authors want to thank financial support from CNPq – Conselho Nacional de Desenvolvimento Científico e Tecnológico (Brazil); Program French Catedra UNICAMP/French Embassy in Brazil.
Author information
Authors and Affiliations
Corresponding author
Editor information
Editors and Affiliations
Rights and permissions
Copyright information
© 2021 The Society for Experimental Mechanics, Inc.
About this paper
Cite this paper
Bayraktar, E., Gatamorta, F., Enginsoy, H.M., Polis, J.E., Miskioglu, I. (2021). New Design of Composites from Fresh Scraps of Niobium for Tribological Applications. In: Singh, R.P., Chalivendra, V. (eds) Mechanics of Composite, Hybrid and Multifunctional Materials , Volume 6. Conference Proceedings of the Society for Experimental Mechanics Series. Springer, Cham. https://doi.org/10.1007/978-3-030-59868-6_6
