A Provably Good Global Routing Algorithm in Multilayer IC and MCM Layout Designs

  • Conference paper

  • 1304 Accesses

Part of the Operations Research/Computer Science Interfaces book series (ORCS,volume 47)

Abstract

Given a multilayer routing area, we consider the global routing problem of selecting a maximum set of nets, such that every net can be routed entirely in one of the given layers without violating the physical capacity constraints. This problem is motivated by applications in multilayer IC and multichip module (MCM) layout designs. The contribution of this paper is threefold. First, we formulate the problem as an integer linear program (ILP). Second, we modify an algorithm by Garg and Könemann for packing linear programs to obtain an approximation algorithm for the global routing problem. Our algorithm provides solutions guaranteed to be within a certain range of the optimal value, and runs in polynomial-time even if all, possibly exponentially many, Steiner trees are considered in the formulation. Finally, we demonstrate that the complexity of our algorithm can be significantly reduced in the case of identical routing layers.

This is a preview of subscription content, access via your institution.

Chapter
EUR   29.95
Price includes VAT (Netherlands)
  • DOI: 10.1007/978-0-387-88843-9_23
  • Chapter length: 12 pages
  • Instant PDF download
  • Readable on all devices
  • Own it forever
  • Exclusive offer for individuals only
  • Tax calculation will be finalised during checkout
eBook
EUR   189.99
Price includes VAT (Netherlands)
  • ISBN: 978-0-387-88843-9
  • Instant PDF download
  • Readable on all devices
  • Own it forever
  • Exclusive offer for individuals only
  • Tax calculation will be finalised during checkout
Softcover Book
EUR   249.61
Price includes VAT (Netherlands)
Hardcover Book
EUR   249.61
Price includes VAT (Netherlands)
Learn about institutional subscriptions

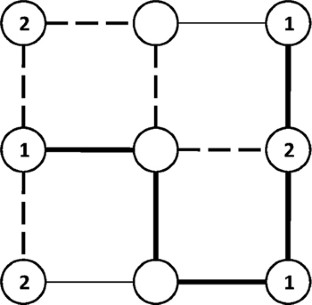

Fig. 1

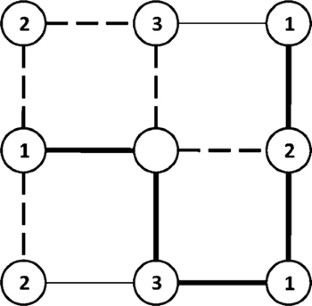

Fig. 2
