Stability Analysis for a Class of Caputo Fractional Time-Varying Systems with Nonlinear Dynamics

Yuxiang Guo; Baoli Ma

doi:10.1007/978-981-10-6496-8_36

CISC 2017: Proceedings of 2017 Chinese Intelligent Systems Conference pp 383-395 | Cite as

Stability Analysis for a Class of Caputo Fractional Time-Varying Systems with Nonlinear Dynamics

Authors
Authors and affiliations

Yuxiang Guo
Baoli Ma

Conference paper

First Online: 21 September 2017

380 Downloads

Part of the Lecture Notes in Electrical Engineering book series (LNEE, volume 459)

Abstract

This paper investigates mainly stability problem of equilibrium points for a class of Caputo fractional time-varying systems with nonlinear dynamics. By employing Gronwall-Bellman’s inequality, Laplace transform and estimates of Mittag-Leffler functions, when the fractional-order belongs to the interval (0, 2), several stability criterions for fractional time-varying system described by Caputo’s definition are presented. Besides, some problems about the stability of fractional time-varying systems in existing literatures are pointed out. Finally, an example and corresponding numerical simulations are presented to show the validity and feasibility of the proposed stability criterions.

Keywords

Fractional calculus Fractional time-varying systems Mittag-leffler function Gronwall-Bellman inequality Stability

This is a preview of subscription content, to check access.

Notes

Acknowledgements

This work was supported by the National Nature Science Foundation (No. 61327807, No. 61573034).

Appendix

Let us modify the system (12) as the following system, where $\alpha =0.95$.

$$\begin{aligned} \left\{ \begin{aligned}&\frac{d^{\alpha }x_1(t)}{dt^{\alpha }}=-x_{1}(t)+10x_{2}(t)+0.1x_1(t)x_2(t),\\&\frac{d^{\alpha }x_2(t)}{dt^{\alpha }}=(-1+0.9\cos (5t))x_{1}(t)+0.95x_{2}(t), \end{aligned} \right. \end{aligned}$$

(13)

where $\frac{d^{\alpha }}{dt^{\alpha }}$ stands for Caputo fractional derivative operator, $x(t)=[x_{1}(t),x_{2}(t)]^T$ is the pseudo-state vector of the system. Subsequently, one gets

Open image in new window

By the equations $\det (\lambda I-\bar{A})=0$ and Open image in new window

, one can calculate the corresponding eigenvalues as:

$$\begin{aligned} {\lambda _{1,2}} = \frac{{ - 0.05 \pm 0.89303i}}{2} \; \mathrm {and} \; {\tilde{\lambda } _{1,2}} = \frac{{ - 0.05 \pm 8.49691i}}{2}. \end{aligned}$$

Then, $|{\arg ({\lambda _i}(\bar{A}))}|=1.6267$ and Open image in new window

, which implies that Open image in new window

. Consequently, it is easy to calculate that $\Vert {\bar{A}}\Vert =10.0952$, Open image in new window

, Open image in new window

, $\alpha \Vert {\bar{A}}\Vert = 9.5904$, Open image in new window

, and ${\mathop {\lim }\limits }_{x \rightarrow 0} \frac{{\left\| {f(x(t))} \right\| }}{{\left\| {x(t)} \right\| }} = {\mathop {\lim }\limits }_{x \rightarrow 0} {\frac{0.1\sqrt{{{({x_{1}}{x_{2}})}^{2}}}}{\sqrt{x_{1}^{2} + x_{2}^{2}}}} \le 0.05 {\mathop {\lim }\limits }_{x \rightarrow 0} \sqrt{x_{1}^{2} + x_{2}^{2}} = 0$.

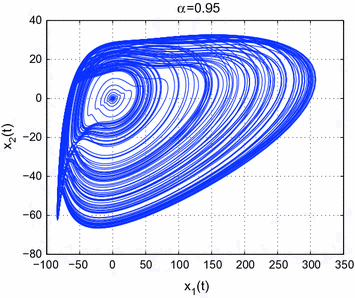

Obviously, the system (13) satisfies the three conditions which are shown in the literature [10]. However, the state of system (13) cannot converge to zero as time t tends to infinity. In the following, Adams-Bashforth-Moulton predictor-corrector algorithm [14] is employed to the numerical calculation of fractional system. When the initial condition $(x_1(0), x_2(0))=(0.1, 0.1)$, the system (13) can generate subharmonic, harmonic or almost-periodic oscillation and even yield a chaotic trajectory. Its chaotic figure is shown in Fig. 3, while Fig. 4 depicts the evolution of the trajectories $x_1(t)$ and $x_2(t)$ of system (13). Therefore, the proposed results of paper [10] are not correct. Since the matrix A(t) of system may depend on time t, we cannot select the lower and upper boundaries of the time matrix A(t) to determine the stability of the zero solution of the time-varying system with integer-order or fractional-order differential operator. Meanwhile, the stability criterions of our presented paper is not used to check the convergence and divergence of the system (13) as well; it will be our future topic of research.

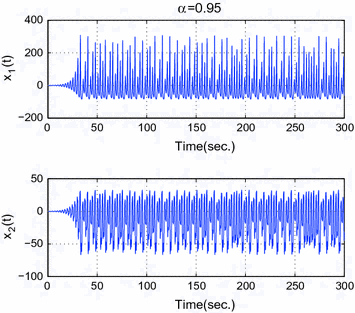

Fig. 4
Evolution of the state $x_{1}(t)$ and $x_{2}(t)$ of the system

References

1.
Podlubny I. Fractional differential equations. NewYork: Academic; 1999.MATHGoogle Scholar
2.
Zhou Y (2014) Basic theory of fractional differential equations, World Scientific Publishing Co. Pte. Ltd., Hackensack, NJGoogle Scholar
3.
Matignon D. Stability results for fractional differential equations with applications to control processing. Comput Eng Syst Appl. 1996;2:963–8.Google Scholar
4.
Trigeassou J, Maamri N, Sabatier J, Oustaloup A. A Lyapunov approach to the stability of fractional differential equations. Signal Process. 2011;91(3):437–45.CrossRefMATHGoogle Scholar
5.
Li Y, Chen Y, Pudlubny I. Mittag-Leffler stability of fractional order nonlinear dynamic systems. Automatica. 2009;45(8):1965–9.MathSciNetCrossRefMATHGoogle Scholar
6.
Chen L, Chai Y, Wu R, Yang J. Stability and stabilization of a class of nonlinear fractional-order systems with Caputo derivative. IEEE Trans Circuits Syst II, Express Briefs. 2012;59(9):602–6.Google Scholar
7.
Ge F, Kou C. Stability analysis by Krasnoselskii’s fixed point theorem for nonlinear fractional differential equations. Appl Math Comput. 2015;257:308–16.MathSciNetMATHGoogle Scholar
8.
Li C, Zhang F. A survey on the stability of fractional differential equations. Eur Phys J Spec Top. 2011;193:27–47.CrossRefGoogle Scholar
9.
Gallegos J, Duarte-Mermoud M. Boundedness and convergence on fractional order systems. J Comput Appl Math. 2016;296:815–26.MathSciNetCrossRefMATHGoogle Scholar
10.
Huang S, Zhang R, Chen D. Stability of nonlinear fractional-order time varying systems. ASME J Comput Nonlinear Dyn. 2016;11(3):031007.CrossRefGoogle Scholar
11.
Sabatier J, Farges C, Oustaloup A. Fractional systems state space description: some wrong ideas and proposed solution. J Vib Control. 2014;20(7):1076–84.MathSciNetCrossRefGoogle Scholar
12.
Wen X, Wu Z, Lu J. Stability analysis of a class of nonlinear fractional-order systems. IEEE Trans Circuits Syst II, Express Briefs. 2008;55(11):1178–82.CrossRefGoogle Scholar
13.
Zhang R, Tian G, Yang S, Cao H. Stability analysis of a class of fractional order nonlinear systems with order lying in (0, 2). ISA Trans. 2015;56:102–10.CrossRefGoogle Scholar
14.
Diethelm K, Ford NJ, Freed AD. A predictor-corrector approach for the numerical solution of fractional differential equations. Nonlinear Dyn. 2002;29(1–4):3–22.MathSciNetCrossRefMATHGoogle Scholar
