The New Albany Shale of Indiana is one of several Devonian to Mississippian-age shales that are locally enriched in organic matter and a suite of metals. Previous studies of metal enrichment in black shales have been numerous. Mechanisms of metal concentration in the black shales have been shown to be variable, ranging from primary syngenetic metal enrichment, through diagenetic and hydrothermal (epigenetic) processes of concentration. End-member environments may be viewed as those related to syngenetic metal enrichment through sedimentary processes with no evidence of thermal anomalies or hydrothermal fluid infiltration, to those where the organic-rich shales have played a major role in the localization of mineralization that originated from hot, and generally oxidized, metal-bearing brines. Shales from the Devonian-Mississippian Appalachian and Illinois Basins in the United States (e.g. Levanthal, 1987, Ripley et al., 1990; Figure 1) are examples of the former, whereas the Mississippian black shales that host the giant Red Dog Pb/Zn deposit in Alaska (Moore et al., 1986; Warner et al., 1996) provide an example of the latter. Given this wide range of geological environments where metal enrichment may occur, the role of organic material in metal localization may range from that of primary concentrator to a flow inhibitor and local reducing agent for metal precipitation from hydrothermal fluids. In this communication we will review the nature of metal enrichment in the New Albany Shale of Indiana, where processes such as sedimentation rate, degree of anoxia in the basin, and organic matter type appear to be the primary controls of metal concentration. We will contrast two members of the New Albany Shale with different degrees of metal enrichment, but whose geological and geochemical signatures suggest deposition under euxinic or at least low oxygen conditions.

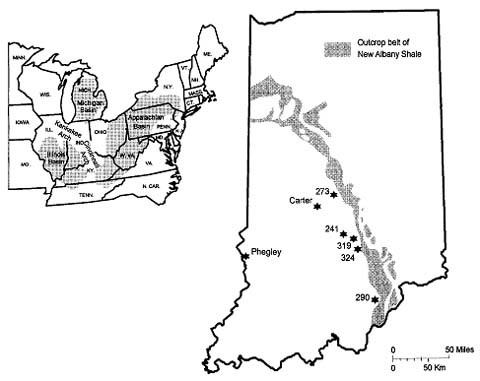

Location of the Illinois, Appalachian, and Michigan Basins. Also shown is the outcrop belt of the New Albany Shale in Indiana, and location of drill-holes referenced in this report.
Keywords
Black Shale Metal Enrichment Pyrite Formation Michigan Basin Organic Matter Type
These keywords were added by machine and not by the authors. This process is experimental and the keywords may be updated as the learning algorithm improves.
This is a preview of subscription content, log in to check access.
Anderson, T.F., Kruger, J., and Raiswell, R. (1987) C-S-Fe relationships and the isotopic composition of pyrite in the New Albany Shale of the Illinois Basin, USA. Geochim. Cosmochim. Acta. 51: 2795–2805.CrossRefGoogle Scholar
Andersson, A., Dahlman, B., Gee, D. and Snäll, S. (1985) The Scandinavian Alum Shales. Sver. Geol. Unders. Ser Ca, NR56, Uppsala, 1–50.Google Scholar
Barrows, M.H. and Cluff, R.M. (1984) New Albany Shale Group (Devonian—Mississippian) source rocks and hydrocarbon generation in the Illinois Basin. AAPG Mem. 35: 111–139.Google Scholar
Beier, J.A. and Hayes, J.M. (1989) Geochemical and isotopic evidence for paleoredox conditions during deposition of the Devonian—Mississippian New Albany Shale, southern Indiana. Geol. Soc. Am. Bull. 101: 774–782.CrossRefGoogle Scholar
Berner, R.A. and Raiswell, R. (1983) Burial of organic carbon and pyrite sulfur in sediments of Phanerozoic time: a new theory. Geochem. Cosmochim. Acta. 47: 855–862.CrossRefGoogle Scholar
Beveridge, T.J. and Murray, R.G.E. (1976) Uptake and retention of metals by cells walls of Baccillus subtilis. J. Bacteriol. 127: 1502–1528.Google Scholar
Beveridge, T.J. and Murray, R.G.E. (1980) Sites of metal deposition in the cell wall of Baccillus subtilis. J. Bacteriol. 141: 876–887.Google Scholar
Brown, M.J. and Lester, J.N. (1979) Metal removal in activated sludge: the role of bacterial extracellular polymers. Water Res. 13: 817–837.CrossRefGoogle Scholar
Cluff, R.M. (1980) Paleoenvironment of the New Albany Shale Group (Devonian—Mississippian) of Illinois. J. Sediment Petrol. 50: 767–780.Google Scholar
Cross, A.T. and Hoskins, J.H. (1951) Paleobotany of the Devonian—Mississippian black shales. J. Paleo. 25: 713–728.Google Scholar
Degens, E.T. and Ittekkot, V. (1982) Insitu metal staining of biological membranes in sediments. Nature. 298: 262–268.CrossRefGoogle Scholar
Fein, J.G., Baily, J.F., Daughney, J.C., Davis, T.A., Wightman, P., Yane, L.S., and Nee, N. (1996) The thermodynamics of metal adsorption onto bacterial surfaces. Geol. Soc. Am. Abstr. Prog. 28: A-29.Google Scholar
Gayshin, V.M. and Zakharov, V.A. (1996) Geochemistry of the Upper Jurassic—Lower Cretaceous Bazhenov Formation, West Siberia. Econ. Geol. 91: 122–134.CrossRefGoogle Scholar
Giordano, T.H. (1996) Effects of calcium and magnesium metal-organic complexing on ore metal transport. Geol. Soc. Am. Abstr. Prog. 28: A-84.Google Scholar
Glikson, M., Chappell, B.W., Freeman, R.S. and Webber, E. (1985) Trace elements in oil shales, their source and organic association with particular reference to Australian deposits. Chem. Geol. 53: 155–174.CrossRefGoogle Scholar
Hasenmueller, N.R. and Bassett, J.L. (1981) Stratigraphy. In: N.R. Hasenmueller and G.S. Woodard (eds). Studies of the New Albany Shale and Equivalent Strata in Indiana. Indiana Geological Survey, Bloomington, pp. 5–32.Google Scholar
Hasenmueller, N.R. and Leininger, R.K. (1987) Oil shale prospects for the New Albany Shale in Indiana. Indiana Geol. Surv. Sp. Rep. 40: 30 pp.Google Scholar
Lechler, P.J., Hasenmueller, N.R., Bassett, J.L., and Leininger, R.K. (1979) Distribution and geochemical characterization of the Hannibal Member of the New Albany Shale in Indiana. Proc. 1979 Eastern Gas Shales Symp. 511–526.Google Scholar
Levanthal, J.S. (1979) Chemical analysis and geochemical associations in Devonian black shales core samples from Martin County, Kentucky; Carroll and Washington Counties, Ohio; Wise County, Virginia; and Overton County, Tennessee. US Geol. Surv. Open-file Rep. 79–1503: 52 pp.Google Scholar
Levanthal, J.S. (1981) Pyrolysis gas chromatography-mass spectrometry to characterize organic matter and its relationship to uraniam content of Appalachian Devonian black shales, Geochim. Cosmochim. Acta. 45: 883–889.CrossRefGoogle Scholar
Levanthal, J.S. (1983) An interpretation of carbon and sulfur relationships in Black Sea sediments as indicators of environments of deposition. Geochim. Cosmochim. Acta. 47: 133–137.CrossRefGoogle Scholar
Levanthal, J.S. (1987) Carbon and sulfur relationships in Devonian Shales from the Appalachian Basin as an indicator of environment of deposition. Am..1. Sci. 287: 33–49.CrossRefGoogle Scholar
Lineback, J.A. (1970) Stratigraphy of the New Albany Shale in Indiana. Dep. Nat. Res. Indiana Geol. Surv. Bull. 44: 73 pp.Google Scholar
Moore, D.W., Young, L.E., Modene, J.S., and Plahuta, J.T., (1986) Geologic setting and genesis of the Red Dog zinc—lead—silver deposit, Western Brooks Range, Alaska. Econ. Geol. 81: 1696–1727.CrossRefGoogle Scholar
Raiswell, R. and Berner, R.A. (1985) Pyrite formation in euxinic and semi-euxinic sediments. Am. J. Sci. 285: 710–724.CrossRefGoogle Scholar
Ripley E.M., Shaffer, N.R., and Gilstrap, M.S. (1990) Distribution and geochemical characteristics of metal enrichment in the New Albany Shale (Devonian—Mississippian), Indiana. Econ. Geol. 85: 1790–1807.CrossRefGoogle Scholar
Shaffer, N.R. and Chen, P.Y. (1981) Mineralogy and petrology of the New Albany Shale. In: N.R. Hasenmuller and G.S. Woodard (eds). Studies of the New Albany Shale (Devonian and Mississippian) and Equivalent Strata in Indiana. Bloomington, Indiana Geological Survey, pp. 33–34.Google Scholar
Shaffer, N.R., Leininger, R.K., Ripley, E.M., and Gilstrap, M.S. (1981) Heavy metals in organic-rich New Albany Shale of Indiana. Geol. Soc. Am. Abstr. 13: 551.Google Scholar
Shaffer, N.R., Leininger, R.K., Ripley, E.M., and Yates, M.G. (1983) Sulfur isotopes in organic-rich New Albany Shale. Geol. Soc. Am. Abstr. Prog. 15: 684.Google Scholar
Shotyk, W. (1984) Metal-organic species in natural waters. In: M.E. Fleet (ed.) Short Course in Environmental Geochemistry. Mineralogical Association of Canada, 10: 45–66.Google Scholar
Tissot, B., Durand, B., Espitalie, J., and Combaz, A. (1974) Influence of the nature and diagenesis of organic matter in the formation of petroleum. Am. Assoc. Petrol. Geol. Bull. 58: 499–506.Google Scholar
Warner, M., Pratt, L.M., and Kulas, J. (1996) Hydrothermal petroleum as reductant for the black-shale hosted Zn-Pb deposit at Red Dog Mine, Western Brooks Range, Alaska. Geol. Soc. Am. Abstr. Prog. 23: A-84.Google Scholar
Zaback, D.A., Pratt, L.M., and Hayes, J.R. (1993) Transport and reduction of sulfate and immobilization of sulfide in marine black shale. Geology 21: 141–144.CrossRefGoogle Scholar
