Investigation of Radiocesium Translation from Contaminated Sediment to Benthic Organisms

The Fukushima Dai-ichi Nuclear Power Plant (FNPP) accident in March 2011 released a large amount of anthropogenic radionuclides into the marine environment. Although most of the short-lived radionuclides soon decayed to a level below the detection limit, two isotopes of radiocesium (¹³⁴Cs and ¹³⁷Cs), which have relatively long half-lives (2.07 years and 30.1 years, respectively), have been continually detected in the environment. Tsumune et al. (2012) estimated that 3.5 ± 0.7 × 10¹⁵ Bq of ¹³⁷Cs was released directly into the ocean from 26 March 2011 to the end of May 2011. The discharged radiocesium from the FNPP gradually associated with suspended material and settled to the sea bottom around Fukushima. Ambe et al. (2014) reported that the radiocesium concentrations in the surface sediment layer (0–1 cm) collected off the coast of Fukushima in 2012 and 2013 were mainly in the range of dozens to several hundred Bq/kg-dry (see Sect.  2.1). Moreover, the particularly highly contaminated (¹³⁷Cs concentration = 40,152 ± 3,998 Bq/kg-wet) area that is extremely small, encompassing only a few square meters of the seafloor, was confirmed near the FNPP in February 2013 (Thornton et al. 2013). It is thought that demersal fish and benthic organisms take in radiocesium from highly contaminated sediments through the benthic food web (Buesseler 2012; Tateda et al. 2013; Sohtome et al. 2014). High radiocesium concentrations were detected from some sedentary demersal fish species, such as fat greenling (Hexagrammos otakii), marbled flounder (Pseudopleuronectes yokohamae), slime flounder (Microstomus achne), and Japanese rockfish (Sebastes cheni), off the coast of Fukushima (Wada et al. 2013).

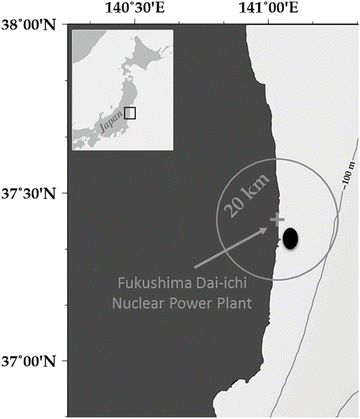

The radiocesium concentrations in benthic organisms off the coast of Fukushima range from several to dozens Bq/kg-wet (Sohtome et al. 2014). According to a previous experimental study on the concentration ratio (CR) of ¹³⁷Cs between contaminated sediments and marine polychaetes (CR = 0.179) (Ueda et al. 1977), this level of contamination in benthic organisms off the coast of Fukushima is reasonable. However, the current transfer efficiency of radiocesium from contaminated sediments to the benthic organisms along the sea bottom off the coast of Fukushima is unclear. In this section, we discuss the results of our measurements of radiocesium concentrations in benthic organisms caught off the coast of Fukushima in October 2013 and the results of experiments rearing a benthic polychaete (Perinereis aibuhitensis) on highly contaminated sediments collected at the station 1 km off the FNPP in August 2013 (Fig. 7.1). Through our field investigations and the rearing experiment, we estimated the radiocesium translation from contaminated sediments to benthic organisms off the coast of Fukushima.

Open image in new window

Benthic organisms in the southern coastal waters of Fukushima were collected using a dredge on the R/V Taka-maru of the Fisheries Research Institute of Fisheries Engineering in October 2013 (Fig. 7.1). We sorted benthic organisms into major taxonomic groups and measured radiocesium concentrations of whole-body specimens, which included digestive system contents (Fig. 7.2). The specimens were packed tightly in plastic cylindrical containers, and specific gamma rays of ¹³⁴Cs (605 and 796 keV) and ¹³⁷Cs (662 keV) were measured with a high-purity germanium (HPGe) semiconductor detector (ORTEC, GEM30-70-LB-C, 1.85 Kev/1.33 MeV of resolution) with a multichannel analyzer.

Open image in new window

The radiocesium concentrations in benthic organisms were typically measured for whole-body specimens, which contained the contaminated sediments within and around their body. Ono et al. (in press, 2015) reported that organic matter in marine sediments had a higher radiocesium concentration than did mineral substances. Therefore, it is thought that the feeding habitats of benthic organisms influence radiocesium concentrations within the organisms. In this investigation, we observed internal sediments in the Flabelligeridae specimens, which had the highest radiocesium concentration. Species belonging to Flabelligeridae, Terebellidae, and Opheliidae are categorized as filter feeders or surface deposit feeders (Fauchald and Jumars 1979). Except for the Opheliidae specimens, radiocesium concentrations in deposit feeder polychaetes were comparatively higher than in other benthic organisms. In contrast, species with low radiocesium concentration (Glyceridae, Eunicidae, and Polynoidae) are categorized as carnivore or herbivore feeders. The reason for low contamination levels in Opheliidae specimens was unclear. Additional and continuous investigations are required to reveal the relationship between radiocesium contamination and feeding habitats of benthic organisms off the coast of Fukushima.

Contaminated sediments from near the FNPP (37°24.850′N–141°02.330′E) were collected using a Smith-Mclntyre grab sampler on the R/V Takusui of the Fukushima Prefectural Fisheries Experimental Station in August 2013. After removing impurity particles using a 2-mm sieve, we agitated the contaminated sediment for equalization. Before initiating the rearing experiments, we confirmed noncontamination of the marine polychaete (Perinereis aibuhitensis) specimens with an HPGe semiconductor detector. The specimens of P. aibuhitensis were reared for 5 weeks in four tanks (450 mm × 300 mm × 330 mm) with the contaminated sediments, and then P. aibuhitensis were reared for 2 weeks without sediments (seawater only). The ¹³⁷Cs concentrations of living P. aibuhitensis in plastic cylindrical containers were measured with an HPGe semiconductor detector, and then the specimens were returned to the rearing tank. The sediment samples were dried at 60 °C for 7 days, and the dry weight was converted into wet weight concentrations using the percentage of lost water content. Because organic matter in contaminated sediments has a high preference for radiocesium (Ono et al. in press, 2015), an ignition loss test was employed to determine the sediment content in each of the four tanks. The sediment samples were heated in a muffle furnace at 750 °C for 1 h.

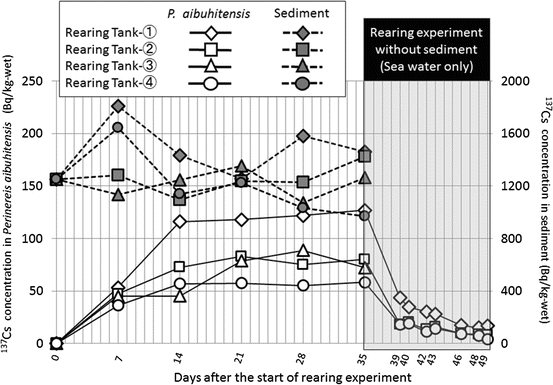

Figure 7.3 shows the time-series trends of ¹³⁷Cs concentrations for contaminated sediments and P. aibuhitensis in each tank. At the start of the rearing experiment, the ¹³⁷Cs concentration in the contaminated sediments was 1,250 Bq/kg-wet. However, ¹³⁷Cs concentrations in the contaminated sediments fluctuated with time. During the rearing period with contaminated sediments, the geometric mean of ¹³⁷Cs concentration for sediments in tank 1, tank 2, tank 3, and tank 4 were 1,500 Bq/kg-wet, 1,250 Bq/kg-wet, 1,210 Bq/kg-we,t and 1,180 Bq/kg-wet, respectively. Insufficient agitation of the initial contaminated sediments and the burrowing activity of P. aibuhitensis could have caused the variation of ¹³⁷Cs concentration among the tanks. In contrast, the organic matter content in the contaminated sediments for each tank was approximately equal during the rearing period (Table 7.2).

Open image in new window

Table 7.2

Temporal trend of organic matter contents (%) in sediments for each rearing tank

Tank		Days after the start of rearing experiment
		7 days	14 days	21 days	28 days	35 days
Rearing tank-①	Initial value 5.9	5.1	5.1	4.9	4.5	5.1
Rearing tank-②		4.2	4.8	4.7	4.6	4.5
Rearing tank-③		5.3	5.4	5.8	4.4	4.3
Rearing tank-④		4.9	4.7	5.5	4.4	4.9

The ¹³⁷Cs concentrations of P. aibuhitensis reached the maximum value after approximately 2 weeks, and conspicuous fluctuations were not observed during the next 3 weeks. On the 35th day after the start of the experiment, the CR for ¹³⁷Cs between P. aibuhitensis and sediments (wet/wet) was less than 0.10 (tank 1 = 0.087, tank 2 = 0.056, tank 3 = 0.057, tank 4 = 0.060). Meanwhile, the ¹³⁷Cs concentrations in P. aibuhitensis varied among the tanks. On the 14th day after the start of the experiment, the ¹³⁷Cs concentrations in tank 1, tank 2, tank 3, and tank 4 were 116 Bq/kg-wet, 72.5 Bq/kg-wet, 45.1 Bq/kg-wet, and 56.8 Bq/kg-wet, respectively. Four days after separation from the contaminated sediments, the ¹³⁷Cs concentration in P. aibuhitensis rapidly decreased, to 23–34 % of the concentration on the 35th day. The ¹³⁷Cs concentration in P. aibuhitensis eventually decreased to less than 20 Bq/kg-wet in all tanks. These results suggest that the ¹³⁷Cs concentrations in P. aibuhitensis are associated with the sediment contamination level in each tank. We assumed that the observed radiocesium concentration in P. aibuhitensis include measurements of contaminated sediments in their digestive systems.

Our rearing experiments determined that the CR for radiocesium between P. aibuhitensis and contaminated sediments (wet/wet) was less than 0.10. Otosaka and Kobayashi (2013) calculated that the amount of bioavailable ¹³⁷Cs in the surface sediment layer (0–3 cm) off the coast of Ibaraki Prefecture (approximately 70 km south of the FNPP) was only about 20 % of the total sedimentary ¹³⁷Cs because more than 75 % of the ¹³⁷Cs was incorporated into lithogenic fractions that were not bioavailable to marine products. Therefore, most of the sedimentary radiocesium in the digestive system of benthic organisms would be excreted with their wastes. Moreover, the ability of osmoconformation in invertebrates would influence the rapid excretion of internally absorbed radiocesium. The results of our study indicate that the intake of radiocesium through the benthic food web is limited for benthic organisms and demersal fish species, despite high contamination of the surrounding sediments.
