Three-Dimensional Distribution of Radiocesium in Sea Sediment Derived from the Fukushima Dai-ichi Nuclear Power Plant

Open Access
Chapter

Abstract

This section introduces results of an investigation for radiocesium (134Cs and 137Cs) in sea sediment. The three-dimensional spatial distributions of radiocesium in sea sediment to a 14-cm core depth were surveyed from off the northern part of Ibaraki Prefecture to off Fukushima Prefecture with 5-min horizontal resolution in July 2012, approximately 16 months after the Fukushima Dai-ichi Nuclear Power Plant (FNPP) accident. A high concentration band was observed along the 100-m isobaths where the concentration of the 137Cs reached 1,240 Bq/kg-dry at the maximum and where vertical profiles of the concentration generally had an exponential-type decline with depth. The concentrations were very low at the area shallower than 100 m of depth north from the FNPP, where vertical concentration peaks often occurred in deeper layers. These horizontal and vertical distribution patterns are suggested to be mainly determined by the supplied amount of radiocesium from the radiocesium-contaminated bottom seawater and the ability of radiocesium adsorption as dependent on the grain size of the sediment.

Keywords

Radiocesium Sea sediment Grain size Organic matter Bottom seawater
Download chapter PDF

4.1 Introduction

The Fukushima Dai-ichi Nuclear Power Plant (FNPP) accident associated with the Great Earthquake and ensuing tsunami that occurred east of Japan on March 11, 2011 caused a serious discharge of anthropogenic radionuclides directly into the sea environment from that site. Although a large part of the FNPP-derived radiocesium (134Cs and 137Cs) released directly into the ocean, which was one of the main discharged radionuclides (TEPCO 2012), was transported and diffused to the open ocean by ocean currents (Buesseler et al. 2011; Aoyama et al. 2012; Tsumune et al. 2012; Kaeriyama et al. 2013, 2014), the radiocesium remained with relatively high concentration levels in sea sediment off East Japan (Kusakabe et al. 2013).

Because 134Cs and 137Cs have long half-lives, about 2.06 years and 30.17 years, respectively, these isotopes are of concern about their affects on the marine benthic ecosystems. A report of marine organism monitoring (Wada et al. 2013) indicated that the radiocesium concentrations in demersal fishes tended to have a higher and slower decline than those in pelagic fish. Therefore, evaluation of the impact of the radiocesium in the sea bottom environment on marine benthic ecosystems is strongly and socially required, but detailed distribution of the radiocesium on the sea bottom and its features had been unclear. In this chapter, the three-dimensional distribution of the radiocesium concentration in sea sediment on July 2012, which was reported by Ambe et al. (2014), is introduced. They revealed the detailed spatial distribution of radiocesium in sediments off the northern part of Ibraki Prefecture to Fukushima Prefecture, with 5-min horizontal resolution (Fig. 4.1). Furthermore, they also obtained the vertical structures of radiocesium in sediment to a 14-cm depth from the sea bottom by tube-type sediment core sampling (Fig. 4.2). (For details of the collecting and analyses for the sediment samples, please see the original article.) The discussion by Amber et al. for formative factors of the distribution of radiocesium in sediment is also introduced here.
Fig. 4.1

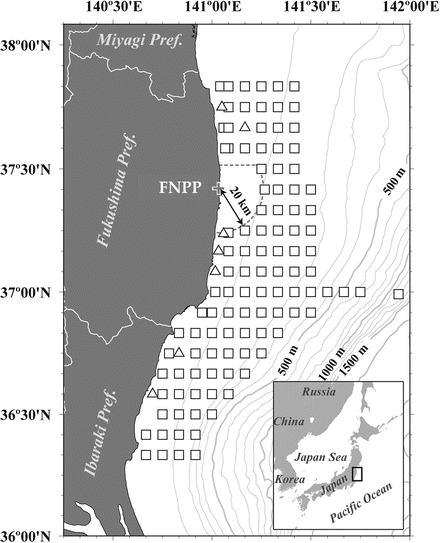

Location of survey for radiocesium concentration in sea sediment in July 2012. Sediments were sampled with a tube-type core sampler (squares) and a Smith–McIntyre grab sampler (triangles). Contour lines indicate water depth at an interval of 100 m. Cross indicates the location of the Fukushima Dai-ichi Nuclear Power Plant (FNPP). Dotted line indicates a caution zone that had been established during the survey period by the Japanese government

Fig. 4.2

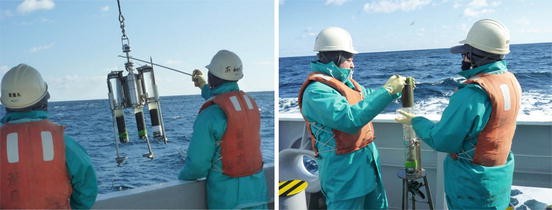

Photographs of collecting sea sediment by a tube-type core sampler

4.2 Horizontal Distribution of Radiocesium

Figure 4.3 shows the obtained distributions of 134Cs and 137Cs concentrations in the 0–1, 1–2, 2–4, 4–6, 6–10, and 10–14 cm layers on July 2012 by Ambe et al. (2014). The 134Cs concentrations were detected at all sampled locations to the 2–4 cm layer, indicating that radioactive contamination reached this depth by 16 months after the FNPP accident. Although the obtained data were sparse in the deeper layer because of the absence of sediment samplings, they indicated some interesting features of horizontal patterns of radiocesium concentration throughout those sediment layers.
Fig. 4.3

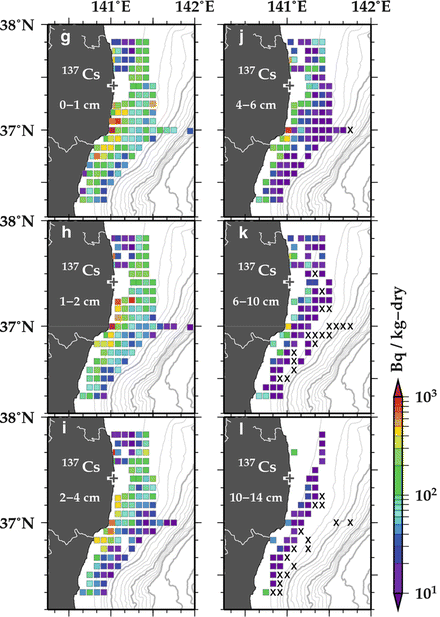

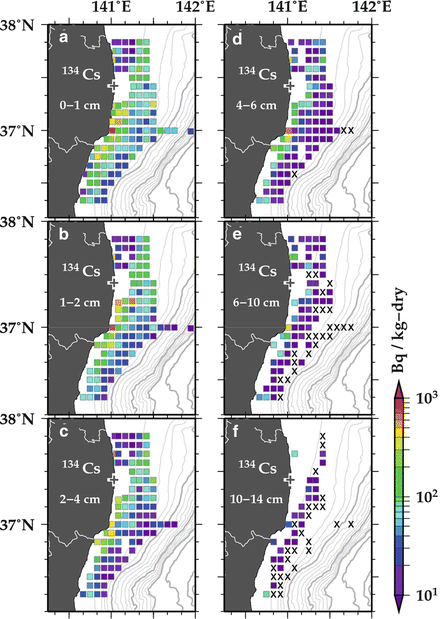

Spatial distributions of 134Cs (a–f) and 137Cs (g–l) concentrations in sediment in July 2012. The respective nuclide and layer are indicated at the upper left side of each map. “X” mean that radiocesium was not detected (concentration was less than the lower limit of detection, which was from 0.63 to 3.0 Bq/kg-dry). Blank tiles mean data missing where no sample was collected. Contour lines indicate water depth at an interval of 100 m. Cross indicates the location of the FNPP

One point is that sediments with relatively high concentrations were distributed along and near the coast and and in 100-m isobaths. For example, concerning the 137Cs concentrations in the 0–1 cm sediment layer (Fig. 4.3g), where the geometric mean of the concentration value was 100 Bq/kg-dry in the whole area with a value range from 8.8 to 1,240 Bq/kg-dry, most of the concentrations higher than 150 Bq/kg-dry were distributed in these areas. It can be also seen that the high-concentration bands were divided into two in the northern part of Fukushima Prefecture, associated with the 100-m isobath that goes away from the coast there.

Another significant feature is that sediments with relatively low concentrations were found between the two high-concentration bands in the northern part of Fukushima Prefecture. The concentration value less than approximately 20 Bq/kg-dry was locally concentrated in this area. Furthermore, a narrow minimal concentration band of 30–60 Bq/kg-dry in the 0–1 cm sediment layer also seemed to exist near the 200-m isobaths in about 20–30 km east from the high-concentration band in the south of the FNPP. Because this low band did not quite range over plural grid points from east to west, the band width was probably less than 15 km (for instance, a longitudinal 5-min grid interval is approximately 7.4 km at 37°N). These results indicate that radiocesium concentration does not simply decrease toward offshore.

4.3 Vertical Distribution of Radiocesium

Figure 4.4 shows all the acquired vertical profiles of the 137Cs concentrations in the sea sediment in July 2012. Although the 137Cs concentration values ranged widely over two orders of magnitude in each layer, the values from the 25 to 75 percentiles ranged less than one order of magnitude. The median value was the highest in the uppermost layer from the surface (0–1 cm), and generally exponentially decreased in deeper layers; the median values were 102, 78.3, 46.8, 19.3, 13.1, and 6.54 Bq/kg-dry in the 0–1, 1–2, 2–4, 4–6, 6–10, and 10–14 cm layers, respectively. Cases wherein the highest concentration was found in the surfacemost layer occupied 53 % of all the profiles. In the remaining cases, the concentration peaks were found in layers deeper than 0–1 cm.
Fig. 4.4

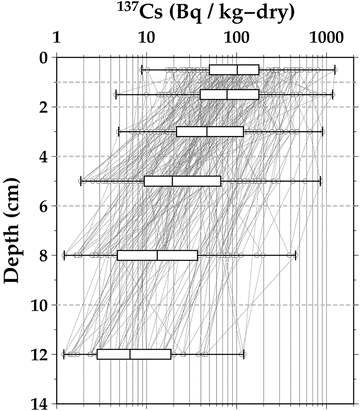

All obtained vertical profiles (gray lines with circles) of 137Cs concentration in July 2012. The box-and-whisker plot shows the minimum value, the 25th, 50th, and 75th percentiles, and the maximum value, respectively, in each layer

To detect areas with concentration peaks in the deeper layers, all the 137Cs concentration data were converted to relative ratios to 137Cs concentration in the 0–1 cm layer at each location (Fig. 4.5). It can be seen that relatively high ratios were found near the coast. Ambe et al. (2014) suggested resuspension and redeposition processes of sediment as possible causes for this factor; that is, in the coastal region, the sea bottom is easily disturbed by ocean waves and bottom currents in general. Therefore, sediment contaminated by radiocesium at the surface and that uncontaminated in deep layers can be mixed or overturned. However, they also suggested another process can operate at the area north of the FNPP where the radiocesium concentrations were very low (Fig. 4.3); the relative ratios were especially high in the deeper layers there. In this regard, a possible factor is introduced with the grain size of sea sediment in the following section.
Fig. 4.5

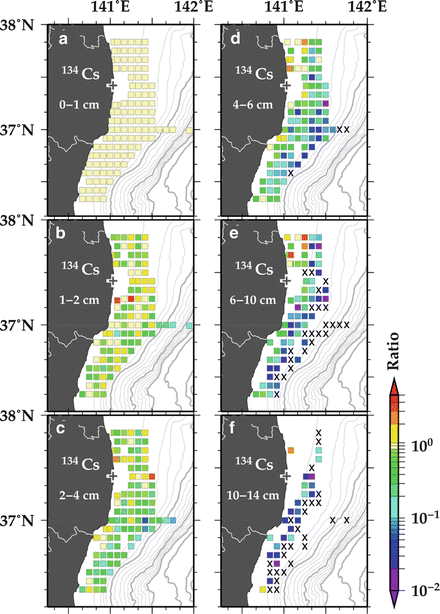

Relative magnitude of 134Cs (a–f) and 137Cs (g–l) concentration compared with in the surface-most (0–1 cm) sediment at each location in July 2012. The respective layer is indicated at the side of each map

4.4 Grain-Size Distribution and Relationship with Radiocesium Concentrations in Sediment

Figure 4.6 shows the horizontal distribution of the median grain sizes of sediments in the surface layer (0–1 cm). Relatively large grain sizes were distributed in the north of the FNPP where the radiocesium concentrations were very low (Fig. 4.3), whereas a band of very small grain sizes, less than 100 μm diameter, was found around the 100-m isobaths where the radiocesium concentrations were high (Fig. 4.3). Ambe et al. (2014) further showed a significant correlation between 137Cs concentration and median grain size: the correlation coefficient is −0.38 (p < 0.01) (Fig. 4.7a). It is well known that Cs has strong affinity with fine minerals, especially illite minerals (Børrentzen and Salbu 2012; Comans et al. 1991; Comans and Hockley 1992; Sakuma and Kawamura 2011). Indeed, by sieving and dividing the surface sediment samples into three grain-size fractions (<106, 106–250, and > 250 μm), we also obtained similar results, that is, the finer-size fraction of the sediment samples had higher radiocesium concentrations than the bulk sediment in most cases (Fig. 4.8). Thus, the probable grain size-dependent adsorption capability of cesium is strongly suggested as one of the factors that determines the spatial distribution pattern of radiocesium concentration. In addition, as the proportional relationship between the permeability and grain size of sediment is also well known (Shepherd 1989), dissolved radiocesium can migrate downward with seawater through large-grained sediments. Therefore, it can be considered that higher radiocesium concentrations than those in the surface sediment existed in deeper layers at the area north from the FNPP, as indicated in the previous section.
Fig. 4.6

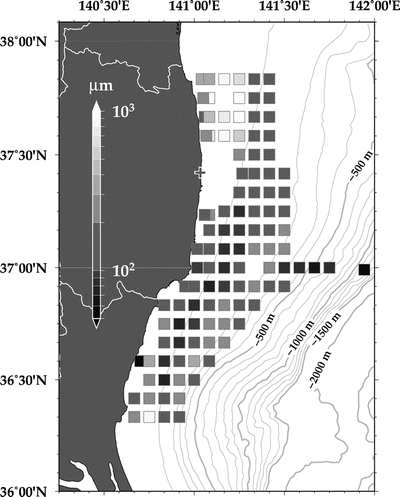

Spatial distribution of median particle grain size of the surface-most sediment in July 2012

Fig. 4.7

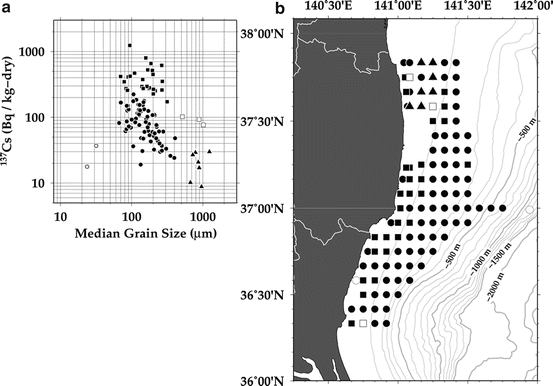

(a) Comparison between 137Cs concentration and median grain size in the most-surface sediment. The symbols for the scatter plot show the clusters segmented into five types by the group average method; the corresponding locations of those types are projected in (b)

Fig. 4.8

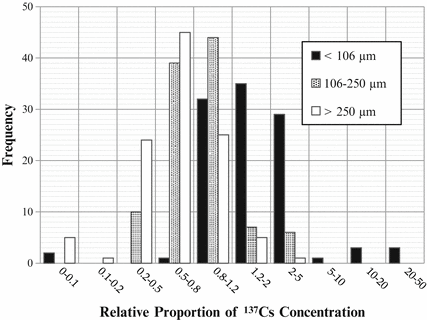

Histograms of relative magnitude of 137Cs concentration in each diameter class of the surface-most sediment compared with the concentration in bulk sediment. Diameter classes are indicated at upper right

Ambe et al. (2014) also indicated that the quantity of radiocesium supplied to the sea bottom from seawater is another factor to determine the distribution of the radiocesium concentration in sea sediment. The concentrations ranged over more than one order of magnitude in each similar grain-size class, but the samples could be divided into five clusters (symbols in Fig. 4.7a) by cluster analysis based on the group average method (Romesburg 2004), using the distance on the coordinate between the median grain size and 137Cs concentration. Accordingly, three types of clusters by geographic dependence were detected (Fig. 4.7b): (1) large grain sizes and low radiocesium concentrations, distributed at depths shallower than 100 m in the region north from the FNPP (indicated by filled triangles in the figure); (2) small grain sizes with high radiocesium concentrations, distributed mainly at depths shallower than 100 m, excepting the area of cluster (1) (indicated by filled squares); and (3) small grain sizes with low radiocesium concentrations, mainly in the area deeper than 100 m (filled circles). The division of cluster (1) from others can be attributed mainly to the low adsorption capability of large-grain-size sediment for cesium, as already mentioned. On the other hand, the radiocesium concentration in bottom seawater could be more than twice or one order higher in the area shallower than 100 m than in the area at 100–300 m depth by monitoring data (Oikawa et al. 2013) and numerical study (Bailly du Bois et al. 2014), for division between the clusters (2) and (3).

4.5 Organic Matter Content and Relationship with Radiocesium Concentration in Sediment

Ambe et al. (2014) also investigated the horizontal distribution of the organic matter content in the surface sediment (as shown in Fig. 4.9a). Although notably higher values, up to almost 10 %, existed along the 100-m isobaths where the radiocesium concentrations were very low, the content was relatively low north of the FNPP where the radiocesium concentrations were high. These patterns highly corresponded to those of the median grain size. Therefore, the organic matter content also was correlated with the 137Cs concentration (r = 0.38, p < 0.01) and the median grain size (r = −0.76, p < 0.01) (Fig. 4.9b). This result seems superficially to indicate that organic content also can determine radiocesium concentration. However, a report for radiocesium concentration in the coastal area of Ibaraki Prefecture after the FNPP accident (Otosaka and Kobayashi 2013) indicated that the lithogenic fraction contained most of the 137Cs in the sediment. The contribution of organic matter to the radiocesium concentration in sea sediment is also small by chemical leaching for the samples of Ambe et al. (2014) (as seen in the next chapter). Thus, the organic matter might not be the constitutive factor that determines radiocesium concentration in sea sediment more than 1 year after the FNPP accident. The grain size of sediment could determine the distributions of both the 137Cs concentration and the organic matter content in sediment.
Fig. 4.9

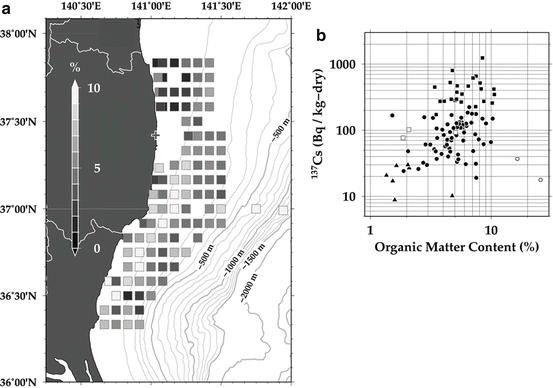

(a) Spatial distribution of organic matter content of the surface-most sediment in July 2012. (b) Comparison between 137Cs concentration and organic matter content in the surface sediment. Symbols correspond to the result of cluster analysis in Fig. 4.7a
