Temporal Changes in ¹³⁷Cs Concentration in Zooplankton and Seawater off the Joban–Sanriku Coast, and in Sendai Bay, After the Fukushima Dai-ichi Nuclear Accident

After the magnitude 9.0 Great East Japan Earthquake and subsequent tsunami on March 11, 2011, a loss of electric power at the Fukushima Dai-ichi Nuclear Power Plant (hereafter FNPP) resulted in an overheated reactor and hydrogen explosions. Enormous quantities of radionuclides were then released into the ocean through atmospheric fallout as well as direct release and leaking of the heavily contaminated coolant water (Chino et al. 2011; Buesseler et al. 2011). Because of its relatively long half-life (2.07 years for ¹³⁴Cs and 30.07 years for ¹³⁷Cs), evaluation of this radioactive Cs in the marine environment is important for addressing risks both to marine ecosystems and to public health through consumption of fisheries products. The Japanese government conducted intensive monitoring of ¹³¹I, ¹³⁴Cs, and ¹³⁷Cs concentrations in seawater offshore near the FNPP (Nuclear Regulation Authority 2014) and in fisheries products in a wide area around Japan to ensure the safety of fishery products (Fisheries Agency 2014). In the western North Pacific, the dispersion pattern of FNPP-derived radioactive cesium from just after the FNPP accident was studied by means of direct observations and simulation models (see  Chap. 2). The FNPP-derived radioactive Cs was dispersed eastward in the surface seawater in a wide area of the northern Kuroshio Extension, and a part of the FNPP-derived radioactive Cs contamination intruded into the southern area of the Kuroshio Extension with mode water and was transported westward far south of the Japan Islands (see  Chap. 2).

Wada et al. (2013) demonstrated the temporal change in ¹³⁴Cs and ¹³⁷Cs concentrations as total radioactive cesium (¹³⁴Cs + ¹³⁷Cs), which is limited to 100 Bq/kg-wet by Japanese authorities, in numerous species of marine organisms collected around Fukushima Prefecture and clarified the difference in the decrease rate of radioactive cesium among species. The decrease in rates of radioactive Cs in demersal fish was slower than that of pelagic fish (Wada et al. 2013; Iwata et al. 2013; Buesseler 2012), mainly because of a high concentration of FNPP-derived radioactive cesium in the marine sediments offshore near the FNPP (Kusakabe et al. 2013;  Chap. 4). Even though temporal changes of many fisheries products were clarified from the monitoring data, the mechanism controlling the concentrations of radioactive Cs in each marine organism is still unknown (Wada et al. 2013; Iwata et al. 2013; Buesseler 2012). One of the most important factors controlling the amount of radioactive Cs in marine organisms is the uptake of radioactive Cs through food (Yoshida and Kanda 2012). Unfortunately, information concerning FNPP-derived radioactive Cs in the prey of fisheries products such as zooplankton and benthos is limited to those of zooplankton collected from the open ocean after the FNPP accident (Buesseler et al. 2012; Kitamura et al. 2013). Before the FNPP accident, several studies reported the concentration of ¹³⁷Cs in zooplankton around the Japanese coast (Tateda 1998; Kaeriyama et al. 2008a). Kaeriyama et al. (2008a) reported that the concentration of ¹³⁷Cs in zooplankton collected before the FNPP accident off the coast of Aomori Prefecture ranged from 0.01 to 0.02 Bq/kg-wet.

The concentration ratio (CR) (concentration in organisms relative to that in media) under equilibrium conditions is a useful environmental parameter, used in mathematical models to estimate the level of radionuclides present in the organisms in comparison to the surrounding environment such as soil, sediments, water, or air (IAEA 2004; Tagami and Uchida 2013; Howard et al. 2013). The recommended CR values for ¹³⁷Cs in marine zooplankton, fish, and crustaceans are 40, 100, and 50, respectively (IAEA 2004). In this chapter, we did not calculate CR under equilibrium conditions; therefore, the CR value was referred to as the “apparent CR (aCR)” and was compared to the pre-FNPP CR.

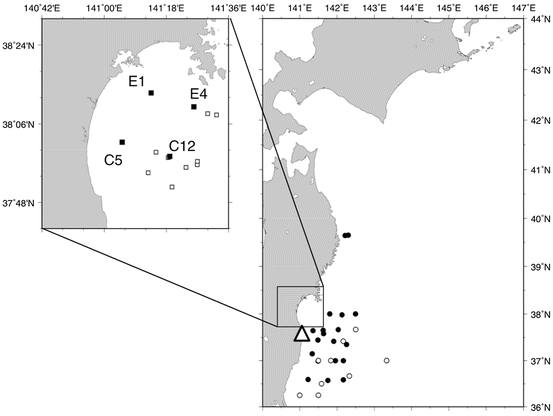

In June 2011, only 3 months after the FNPP accident, the Fisheries Research Agency initiated a monitoring program to measure the environmental concentration of FNPP-derived radioactive Cs in different marine ecosystems, such as seawater, sediments, zooplankton, benthos, and fishes, in the most severely affected area off the coasts of Fukushima, Miyagi, and Ibaraki Prefectures (hereafter Joban–Sanriku coast) and in Sendai Bay (Fig. 3.1). In this chapter, we describe temporal changes in the concentrations of ¹³⁷Cs in seawater and zooplankton off the Joban–Sanriku coast and in Sendai Bay that occurred from June 2011 to December 2013 based on data from Kaeriyama et al. (2014). Although ¹³⁴Cs was also determined, the decreasing trend of ¹³⁴Cs during more than 2 years was strongly affected by the physical decay of ¹³⁴Cs. Thus, only ¹³⁷Cs is presented (¹³⁴Cs data were reported in Kaeriyama et al. 2014). The fate of FNPP-derived radioactive Cs in seawater and zooplankton is also discussed in regard to the atomic ¹³⁷Cs/stable Cs ratio and the relationship between ¹³⁷Cs in seawater and ¹³⁷Cs aCR of zooplankton.

Open image in new window

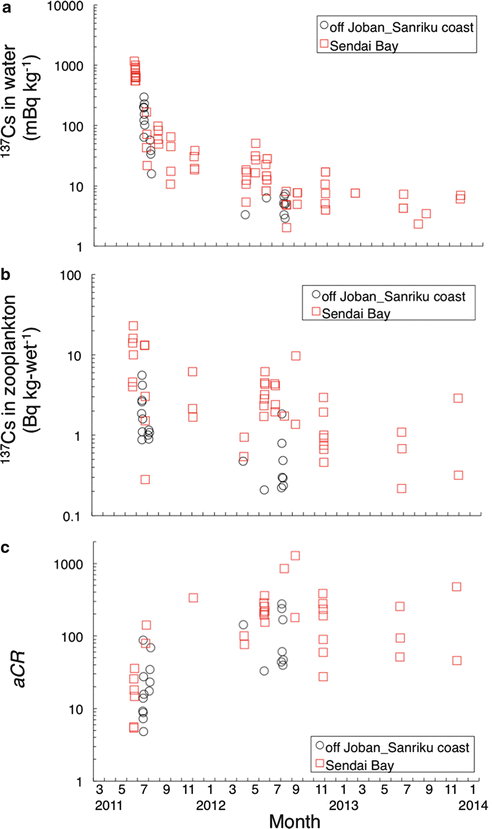

After the FNPP accident, environmental ¹³⁷Cs concentrations increased in seawater and zooplankton in the area off the Joban–Sanriku coast and in Sendai Bay. Off the Joban–Sanriku coast, the concentration of ¹³⁷Cs decreased drastically by one order of magnitude between 2011 and 2012 (Fig. 3.2a). Generally, the behavior of cesium is thought to be conservative. Cesium is a soluble substance (<1 % is attached to marine particles) (Buesseler et al. 2011), and it is dispersed primarily by ocean currents. In fact, FNPP-derived radioactive Cs was dispersed eastward rapidly in the North Pacific, with an estimated speed of 8 cm/s, following predominant water currents (Aoyama et al. 2013). According to Kaeriyama et al. (2013), ¹³⁴Cs and ¹³⁷Cs concentrations in surface seawaters at 144°E decreased by one or two orders of magnitude between July 2011 and July 2012. The fate of ¹³⁷Cs off the Joban–Sanriku coast also mainly depends on seawater dilution. In Sendai Bay, the ¹³⁷Cs monthly average value measured in seawater drastically decreased from 770 mBq/kg in June to 30 mBq/kg in December 2011. Subsequently, the decreasing trend continued, although moderately, until the concentration reached 7 mBq/kg in November–December 2013 (Fig. 3.2a). The residence time of seawater in Sendai Bay has been estimated to be 40 days (Kakehi et al. 2012) even for calm ocean conditions; therefore, the rapid decrease in ¹³⁷Cs observed during the first year following the FNPP accident might have been influenced by the level of water exchange in this bay. ¹³⁷Cs peaked in surface waters between June and September 2011 at the E1, E4, and C5 sampling stations, although the vertical differences in ¹³⁷Cs concentrations were not obvious in December 2011 for the same stations (Fig. 3.3). The depth of the seasonal mixed layer may also influence the seasonal variation observed in the seawater ¹³⁷Cs vertical profile. In April 2012, the differences observed in ¹³⁷Cs concentrations between the surface and the middle or bottom waters were reduced in comparison with the differences observed during June and September 2011. During 2011–2012, winter mixing led to a homogeneous vertical distribution of ¹³⁷Cs in this bay.

Open image in new window

Open image in new window

In contrast to the rapid decrease of FNPP-derived radioactive Cs measured in seawater, the concentration of ¹³⁷Cs in zooplankton showed only a gradual decrease over the course of this study. ¹³⁷Cs concentration in zooplankton ranged from 0.21 to 23 Bq/kg-wet (Fig. 3.2b). Off the Joban–Sanriku coast, the median ¹³⁷Cs concentration in zooplankton decreased from 1.4 to 0.39 Bq/kg-wet between July–August 2011 and August 2012 (Fig. 3.2b). Although these data varied considerably among stations, the ¹³⁷Cs concentrations in zooplankton differed significantly between July–August 2011 and August 2012 (Wilcoxon rank-sum test, p < 0.05). In Sendai Bay, ¹³⁷Cs concentrations in zooplankton did not differ significantly between zooplankton collected using a Bongo net and a sledge net (Wilcoxon rank-sum test, p > 0.05). The temporal change in the ¹³⁷Cs concentration of zooplankton, in terms of the median value calculated for each sampling period, clearly decreased from June 2011 to April 2012, slightly increased and fluctuated between June and September 2012, and then decreased again between September 2012 and June 2013 (Fig. 3.2b). The median ¹³⁷Cs value measured in zooplankton in November 2013 was 13 % of that measured in June 2011.

The concentration of radioactive Cs in marine organisms is mainly influenced by the rate of excretion of the organism and its intake of radioactive Cs from the prey and the surrounding seawater. Iwata et al. (2013) estimated the “ecological half-life” (T_eco) for marine organisms collected off the Fukushima prefecture. T_eco is defined as the time required for the radionuclides concentration to decline by 50 % in a natural population. This value is influenced by both abiotic factors (such as temporal changes in the concentration of radioactive Cs in seawater, extension of the contaminated area, temperature, and salinity) and biotic factors (such as life stages, feeding habitat, and population migration range). The T_eco for the zooplankton samples collected in Sendai Bay and off the Joban–Sanriku coast was estimated to be 263 ± 48 days (T_eco ± SE, p < 0.0001) and 178 ± 31 days (p < 0.0001), respectively. The difference in T_eco values between Sendai Bay and the Joban–Sanriku coast may result from the difference in the decreasing rate of ¹³⁷Cs in the surrounding seawater. The time required for a 50 % decline of ¹³⁷Cs in seawater in Sendai Bay (122 ± 10 days, p < 0.0001) was longer than that of the Joban–Sanriku coast (85 ± 8 days, p < 0.0001). The ratios of T_eco of zooplankton to the time required for 50 % decline in seawater in Sendai Bay and off the Joban–Sanriku coast are almost comparable (2.2 vs. 2.1), suggesting that the decreasing rate of ¹³⁷Cs in zooplankton was strongly affected by the decreasing rate of ¹³⁷Cs in ambient seawater.

In contrast to T_eco (see Sect. 3.2), the biological half-life (T_b) of zooplankton was reported as 13 days (Vives i Batlle et al. 2007). The T_b of zooplankton strongly suggests that dynamic equilibrium should have been attained during this study. Because the zooplankton samples contained multiple species (such as copepods, euphausiids, amphipods, chaetognath), including those with gut contents, the concentration of radioactive Cs in zooplankton may have been affected by interspecies variability in radioactive Cs concentrations in this study. The species-specific difference in stable Cs content was less than one order of magnitude (Kaeriyama et al. 2008b; Masuzawa et al. 1988; Marumo et al. 1998). Thus, the difference in species composition should not be a major factor influencing radioactive Cs in zooplankton. The gut contents of zooplankton may contain suspended particles and/or clay particles; clay particles have higher radioactive Cs than organic particles such as phytoplankton (Kusakabe et al. 2013). In addition, high concentrations of ¹³⁴Cs and ¹³⁷Cs were observed in fecal pellets of zooplankton soon after the Chernobyl accident (Fowler et al. 1987). The stable Cs contents in this study were almost comparable with previous studies based on samples containing gut contents (Kaeriyama et al. 2008b). Thus, the high radioactive Cs in gut contents likely did not affect the concentration of radioactive Cs in zooplankton. At present, it is difficult to determine the reason for the slow decrease in the rate of ¹³⁷Cs in zooplankton observed in this study. Laboratory experiments on the uptake and excretion of radioactive Cs by zooplankton under unstable conditions, such as radioactive Cs in seawater/prey that increases/decreases with time, would provide insights on the time-dependent concentration of radioactive Cs in seawater and the corresponding time-dependent concentration of radioactive Cs in zooplankton.

The ¹³⁷Cs aCR in zooplankton collected off the Joban–Sanriku coast varied from 5 to 276, and the median value increased with time from 12, measured in July 2011, to 29, measured in August 2011, and to 115, measured in August 2012 (Fig. 3.2c). In Sendai Bay, the aCR varied between 5 and 1,280 throughout the study period. Because of the large variation in ¹³⁷Cs concentrations among zooplankton samples, aCR also varied within each sampling period in Sendai Bay. The aCR monthly median value increased from 16, measured in June 2011, to 335 in December 2011 and fluctuated by more than 80, up to 854 in August 2012 and 730 in September 2012. The ¹³⁷Cs aCR of zooplankton increased over time, although it varied significantly between months (Fig. 3.2c). In November–December 2013, the median aCR value (262) was more than one order of magnitude higher than CR values obtained before the FNPP accident, which ranged from 6 to 14 (Kaeriyama et al. 2008a). The increase in aCR was mainly associated with differences in the rate of decrease of ¹³⁷Cs in seawater and zooplankton, as was clearly observed in Sendai Bay. The continuous uptake of ¹³⁷Cs by zooplankton may lead to a slow rate of decrease of ¹³⁷Cs in zooplankton.

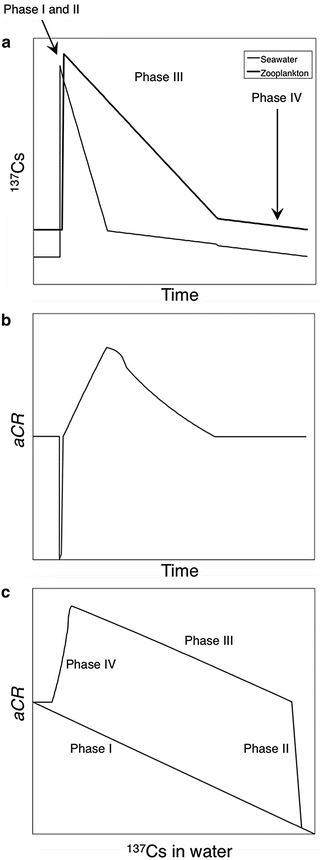

Figure 3.4a conceptually shows the temporal change in ¹³⁷Cs expected in seawater and zooplankton following a release of large quantities of ¹³⁷Cs, similar to the FNPP accident. The concentration of ¹³⁷Cs in seawater is expected to increase soon after the release, and the increase in ¹³⁷Cs in zooplankton is observed after that (phase I). A sharp peak of ¹³⁷Cs is observed in seawater samples, followed by an exponential decrease with time (phase II). On the other hand, the maximum concentration of ¹³⁷Cs in zooplankton is expected to be delayed from the peak of ¹³⁷Cs concentration in seawater and to gradually decrease with time (phase III). A time lag in the ¹³⁷Cs concentration between seawater and zooplankton leads to temporal changes in aCR observed in zooplankton (Fig. 3.4b). Eventually, the rate of decrease of ¹³⁷Cs in seawater and zooplankton equalizes, and the zooplankton aCR reaches the same level as the CR before the release of ¹³⁷Cs to the environment (phase IV). The dynamic equilibrium of ¹³⁷Cs between zooplankton and the surrounding seawater is attained during phase IV. Figure 3.4c shows the relationship between seawater ¹³⁷Cs and aCR in zooplankton resulting from the temporal changes shown in Fig. 3.4a, b. The relationship between seawater ¹³⁷Cs concentration and ¹³⁷Cs zooplankton aCR in this study along with those obtained from previous studies conducted off the east of Japan in June 2011 (Buesseler et al. 2012) revealed that the pattern observed in Fig. 3.4c corresponds with the aCR increasing phase under dynamic nonequilibrium conditions (phase III; Fig. 3.5). Figure 3.5 also shows data obtained under dynamic equilibrium conditions before the FNPP accident (Kaeriyama et al. 2008a). The time lag expected during the elevation phase (phase I and II) should have occurred during the few months following the FNPP accident; however, this phase is not shown in Fig. 3.5 because these data were not available. On the other hand, the fate of the FNPP-derived ¹³⁷Cs in seawater and zooplankton varied throughout the 3 years between the FNPP accident and this study, which resulted in the negative correlation shown in Fig. 3.5. Although the ¹³⁷Cs aCR in zooplankton has steadily increased, the concentration of ¹³⁷Cs in seawater has remained nearly constant since before the FNPP accident (Fig. 3.5; 1–2 mBq/kg). If no more ¹³⁷Cs is added to the environment, the aCR in zooplankton would reach the decreasing phase (phase IV), and ¹³⁷Cs concentration in zooplankton would reach pre-FNPP accident levels in the near future. Based on the T_eco of zooplankton off the Joban–Sanriku coast, the ¹³⁷Cs concentration in zooplankton will reach the pre-FNPP accident level (0.015 Bq/kg-wet) after 2.6 years. Although the data were limited, the observed relationship between ¹³⁷Cs concentration in seawater and the aCR value measured in zooplankton accurately describes the progression of ¹³⁷Cs contamination in zooplankton from the beginning of the FNPP accident (dynamic nonequilibrium state) to the restoration phase (dynamic equilibrium state).

Open image in new window

Open image in new window

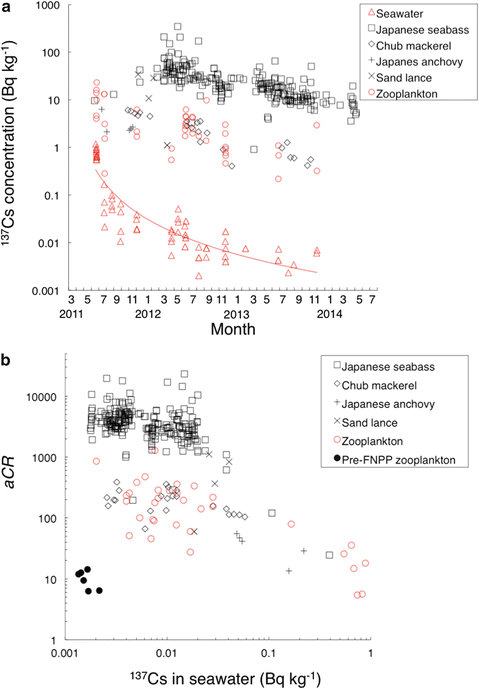

The concept just mentioned could also be applicable to other marine organisms, in particular to pelagic fishes that prey on zooplankton. Figure 3.6a shows the temporal changes in ¹³⁷Cs concentration in pelagic fish collected from Sendai Bay and off the Miyagi Prefecture (Fisheries Agency 2014) compared to the seawater and zooplankton concentrations in Sendai Bay shown in Fig. 3.2a, b. The two planktivorous fishes, the sand lance Ammodytes personatus and the Japanese anchovy Engraulis japonica, together with two carnivorous fishes, the chub mackerel Scomber japonicus and the Japanese sea bass Lateolabrax japonicas, were selected for this analysis. Figure 3.6b shows the scatter plots between ¹³⁷Cs in seawater and the aCRs of four fish species in relationship to the ¹³⁷Cs concentrations measured in zooplankton from Sendai Bay. The concentrations of radioactive Cs in fish published by the Fisheries Agency in 2011 were the total of two radionuclides, ¹³⁴Cs and ¹³⁷Cs. The activity ratio of ¹³⁴Cs to ¹³⁷Cs just after the FNPP accident is considered to be approximately 1.0 (Chino et al. 2011; Buesseler et al. 2011), and the concentrations of ¹³⁷Cs, including physical decay, in fish in 2011 were estimated from this ratio. To calculate the ¹³⁷Cs aCR in fish, the concentration of ¹³⁷Cs in seawater was estimated from the exponential relationship between the concentrations of ¹³⁷Cs measured in Sendai Bay and the days since March 11, 2011 (Fig. 3.6a).

Open image in new window

The concentration of ¹³⁷Cs and aCR of planktivorous fishes, sand lance, and Japanese anchovy were similar to those measured for zooplankton. On the other hand, Japanese sea bass showed a higher concentration of ¹³⁷Cs and aCR than other fish and zooplankton. The species-specific difference in utilization of the environment, both for pelagic and benthic food webs and those from brackish environments in the case of the Japanese sea bass (Kosaka 1969), may have led to the observed difference in ¹³⁷Cs concentrations and aCRs for the Japanese sea bass and other fish and zooplankton. At present, understanding of the relationship between ¹³⁷Cs in seawater and the aCR in fish and their change with time is limited. Further analysis that includes ¹³⁷Cs data from prey items such as benthic organisms and seawater samples covering broader areas is required to completely understand the evolution of ¹³⁷Cs concentrations in food webs. In addition, ecological/biological features of target fish species, including spatiotemporal distribution, life cycles, and feeding habitats, would provide further insights regarding the effect of the FNPP accident on pelagic ecosystems in coastal areas off the FNPP.
