Identifying Critical Positions Based on Conspiracy Numbers

Mohd Nor Akmal Khalid; E. Mei Ang; Umi Kalsom Yusof; Hiroyuki Iida; Taichi Ishitobi

doi:10.1007/978-3-319-27947-3_6

International Conference on Agents and Artificial Intelligence

ICAART 2015: Agents and Artificial Intelligence pp 100-127 | Cite as

Identifying Critical Positions Based on Conspiracy Numbers

Authors
Authors and affiliations

Mohd Nor Akmal Khalid
E. Mei AngEmail author
Umi Kalsom Yusof
Hiroyuki Iida
Taichi Ishitobi

Conference paper

First Online: 19 December 2015

Part of the Lecture Notes in Computer Science book series (LNCS, volume 9494)

Abstract

Research in two-player perfect information games has been one of the focuses of computer-game related studies in the domain of artificial intelligence. However, focus on an effective search program is insufficient to give the “taste” of actual entertainment in the gaming industry. Instead of focusing on effective search algorithm, we dedicate our study in realizing the possibility of applying strategy changing technique. However, quantifying and determining this possibility is the main challenge imposed in this study. For this purpose, the Conspiracy Number Search algorithm is considered where the maximum and minimum conspiracy numbers are recorded in the test bed of simple Tic-Tac-Toe and Othello game application. We analysed these numbers as the measures of critical position identifier which determines the right moment for possibility of applying strategy changing technique. For Tic-Tac-Toe game, the conspiracy numbers are analysed through operators formally defined in this article as \(\uparrow tactic\) and \(\downarrow tactic\) while variance of the conspiracy numbers are analysed in Othello game. Interesting results are obtained with convincing evidences but future works are still needed in order to further strengthen our hypothesis.

Keywords

Tic-Tac-Toe Othello Conspiracy numbers

This is a preview of subscription content, to check access.

Notes

Acknowledgement

This research is funded by a grant from the Japan Society for the Promotion of Science, in the framework of the Grant-in-Aid for Challenging Exploratory Research (grant number26540189).

A Appendix

Experiment Design

This Othello study is conducted by the default opening position on 8\(\,\times \,\)8 board with 64 squares as shown in Fig. 7. Figure 8 denotes the significant squares that are given special names.

C-squares are adjacent to the corner D while X-squares are diagonally adjacent to the corner D. A-squares and B-squares are the edges of the board [23]. E-squares are adjacent to A-squares and B-squares. The evaluation function is defined as follows (Fig. 9):

Table 8.

Fitness value of each significant square.

Squares on board	Fitness value
Corner D	40
C-squares	\(-40\)
X-squares	\(-40\)
A-squares	\(-30\)
B-squares	\(-30\)
E-squares	\(-20\)

*d+2: the initial search depth deepens by 2 on a critical position by referring to Eqs. 5 and 6.

D-squares are good and high priority positions.
C-squares and X-squares are bad positions which may give chances to the opponent player accessing corner D.
A-squares are good positions if there exist no opponent’s discs at the adjacent squares.
B-squares are bad positions where the opponent player might has chances to access to A-squares.

Table 8 shows the fitness values that have been assigned to each significant square on board.

B Appendix

Game Analysis using CN Variance and Position Scoring

*Applicable to all the figures

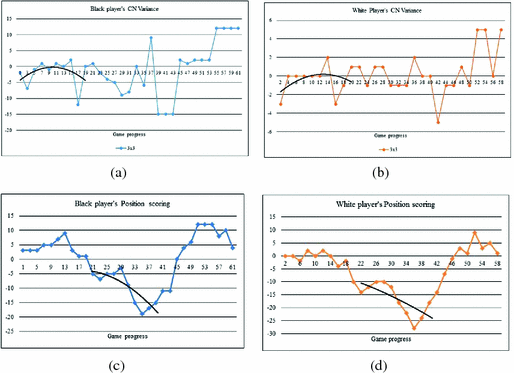

Fig. 10.
Game set 1 (a) Black player’s Conspiracy numbers variance (b) White player’s Conspiracy numbers variance (c) Black player’s position scoring (d) White player’s position scoring. A trend line is drawn in each figure.

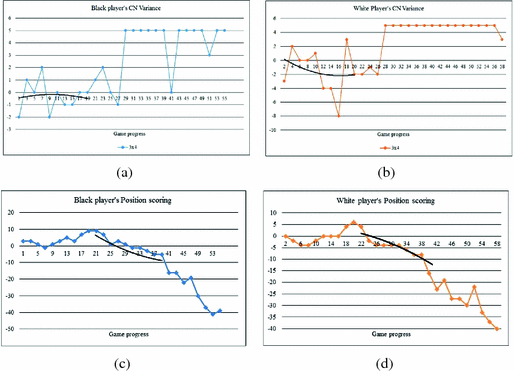

Fig. 11.
Game set 2 (a) Black player’s Conspiracy numbers variance (b) White player’s Conspiracy numbers variance (c) Black player’s position scoring (d) White player’s position scoring. A trend line is drawn in each figure.

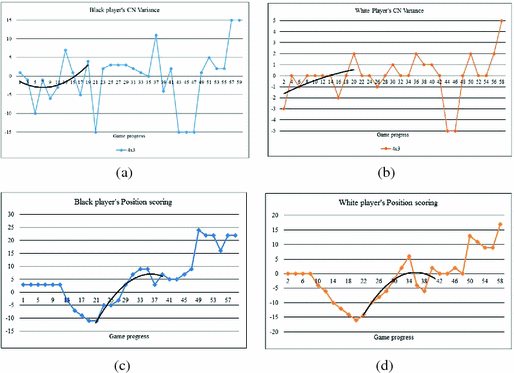

Fig. 12.
Game set 3 (a) Black player’s Conspiracy numbers variance (b) White player’s Conspiracy numbers variance (c) Black player’s position scoring (d) White player’s position scoring. A trend line is drawn in each figure.

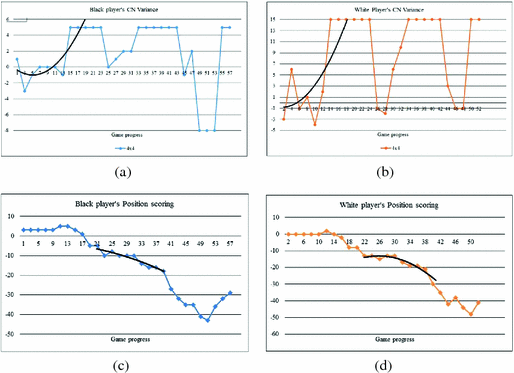

Fig. 13.
Game set 4 (a) Black player’s Conspiracy numbers variance (b) White player’s Conspiracy numbers variance (c) Black player’s position scoring (d) White player’s position scoring. A trend line is drawn in each figure.

The trend line drawn in position scoring Figs. 10(c), 11(c), 12(c) and 13(c) is closely related to the CN\(_{\tiny \textit{variance}}\) trend line at Figs. 10(a), 11(a), 12(a) and 13(a) whereas the trend line drawn in position scoring Figs. 10(d), 11(d), 12(d) and 13(d) is closely related to the CN\(_{\tiny \textit{variance}}\) trend line at Figs. 10(b), 11(b), 12(b) and 13(b). CN\(_{\tiny \textit{variance}}\) trend line in Figs. 10(a), (b), 11(a), (b), 12(a), (b) and 13(a), (b) can be used to predict the trend of position scoring in Figs. 10(c), (d), 11(c), (d), 12(c), (d) and 13(c), (d).

Increasing CN\(_{\tiny \textit{variance}}\) trend line in Figs. 10(a), (b), 11(a), (b), 12(a), (b) and 13(a), (b) will lead to decreasing trend in position scoring which can be observed by Figs. 10(c), (d), 11(c), (d), 12(c), (d) and 13(c), (d). However, trend line observation is not applicable when there are infinity CN\(_{\tiny \textit{variance}}\) values.

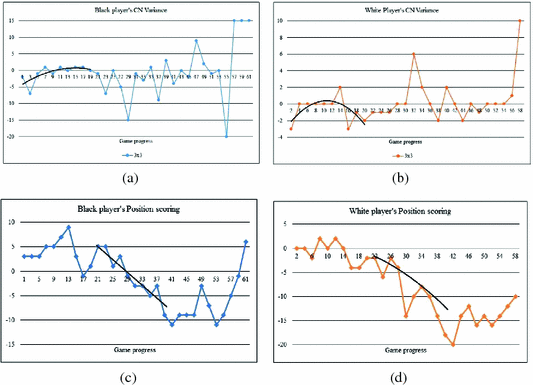

Fig. 14.
Game set 1 (a) Black player’s Conspiracy numbers variance (b) White player’s Conspiracy numbers variance (c) Black player’s position scoring (d) White player’s position scoring. A trend line is drawn in each figure.

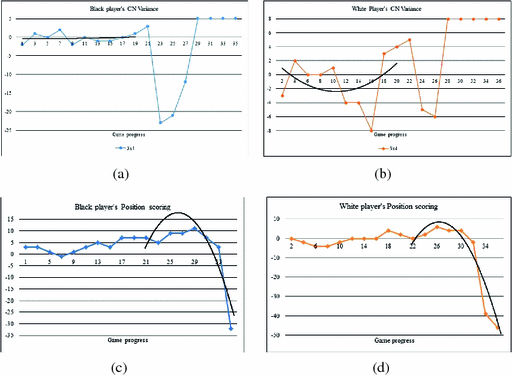

Fig. 15.
Game set 2 (a) Black player’s Conspiracy numbers variance (b) White player’s Conspiracy numbers variance (c) Black player’s position scoring (d) White player’s position scoring. A trend line is drawn in each figure.

C Appendix

Incorporating Strategy Changing for Black or White Player Only

*Applicable to all the figures

The trend line drawn in position scoring Figs. 14(c), 15(c), 16(c) and 17(c) is closely related to the CN\(_{\tiny \textit{variance}}\) trend line at Figs. 14(a), 15(a), 16(a) and 17(a) whereas the trend line drawn in position scoring Figs. 14(d), 15(d), 16(d) and 17(d) is closely related to the CN\(_{\tiny \textit{variance}}\) trend line at Figs. 14(b), 15(b), 16(b) and 17(b). CN\(_{\tiny \textit{variance}}\) trend line in Figs. 14(a), (b), 15(a), (b), 16(a), (b) and 17(a), (b) can be used to predict the trend of position scoring in Figs. 14(c), (d), 15(c), (d), 16(c), (d) and 17(c), (d).

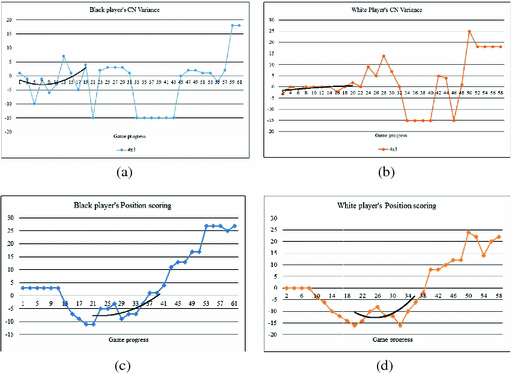

Fig. 16.
Game set 3 (a) Black player’s Conspiracy numbers variance (b) White player’s Conspiracy numbers variance (c) Black player’s position scoring (d) White player’s position scoring. A trend line is drawn in each figure.

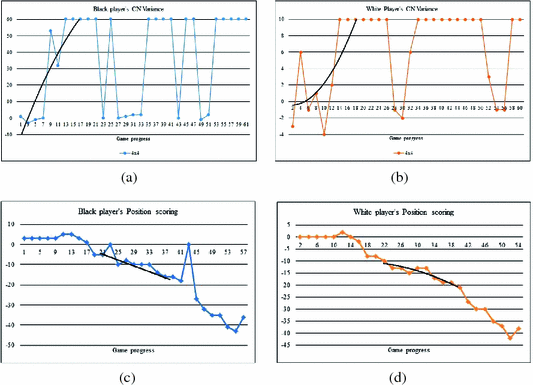

Fig. 17.
Game set 4 (a) Black player’s Conspiracy numbers variance (b) White player’s Conspiracy numbers variance (c) Black player’s position scoring (d) White player’s position scoring. A trend line is drawn in each figure.

Increasing CN\(_{\tiny \textit{variance}}\) trend line in Figs. 14(a), (b), 15(a), (b), 16(a), (b) and 17(a), (b) will lead to decreasing trend in position scoring which can be observed by Figs. 14(c), (d), 15(c), (d), 16(c), (d) and 17(c), (d). However, trend line observation is not applicable when there are infinity CN\(_{\tiny \textit{variance}}\) values.

References

1.
van den Herik, H.J., Donkers, H., Spronck, P.H.: Opponent modelling and commercial games. In: Proceedings of the IEEE 2005 Symposium on Computational Intelligence and Games (CIG05), pp. 15–25 (2005)Google Scholar
2.
Iida, H., Uiterwijk, J., van den Herik, H.J., Herschberg, I.: Potential applications of opponent-model search: Part 1. The domain of applicability. ICCA J. 16, 201–208 (1993)Google Scholar
3.
Carmel, D., Markovitch, S.: Learning models of opponent’s strategy in game playing. Technion-Israel Institute of Technology, Center for Intelligent Systems (1993)Google Scholar
4.
Iida, H., Uiterwijk, J., van den Herik, H.J., Herschberg, I.: Potential applications of opponent-model search. Part 2: risks and strategies. ICCA J. 17, 10–14 (1994)Google Scholar
5.
Lorenz, U., Rottmann, V., Feldmann, R., Mysliwietz, P.: Controlled conspiracy number search. ICCA J. 18, 135–147 (1995)Google Scholar
6.
Schaeffer, J., van den Herik, H.J.: Games, computers, and artificial intelligence. Chips Challenging Champions Games Comput. Artif. Intell. 134, 1–8 (2002)MATHGoogle Scholar
7.
Kishimoto, A., Winands, M.H., Müller, M., Saito, J.T.: Game-tree search using proof numbers: the first twenty years. ICGA J. 35, 131–156 (2012)CrossRefGoogle Scholar
8.
Jansen, P.: Using knowledge about the opponent in game-tree search. Ph.D. thesis, Carnegie Mellon University (1992)Google Scholar
9.
Donkers, J.: Nosce Hostem: Searching with Opponent Models. Ph.D. thesis, Universiteit Maastricht (2003)Google Scholar
10.
Ramon, J., Jacobs, N., Blockeel, H.: Opponent modeling by analysing play. In: Proceedings of Workshop on Agents in Computer Games. Citeseer (2002)Google Scholar
11.
McAllester, D.A.: A new procedure for growing min-max trees. Technical report, Artificial Intelligence Laboratory, MIT, Cambridge, MA, USA (1985)Google Scholar
12.
McAllester, D.A.: Conspiracy numbers for min-max search. Artif. Intell. 35, 287–310 (1988)MathSciNetCrossRefMATHGoogle Scholar
13.
Schaeffer, J.: Conspiracy numbers. Adv. Comput. Chess 5, 199–218 (1989)Google Scholar
14.
Elkan, C.: Conspiracy numbers and caching for searching and/or trees and theorem-proving. In: IJCAI, pp. 341–348 (1989)Google Scholar
15.
Schaeffer, J.: Conspiracy numbers. Artif. Intell. 43, 67–84 (1990)CrossRefGoogle Scholar
16.
van der Meulen, M.: Conspiracy-number search. ICCA J. 13, 3–14 (1990)Google Scholar
17.
Allis, L.V., van der Meulen, M., van den Herik, H.J.: Proof-number search. Artif. Intell. 66, 91–124 (1994)MathSciNetCrossRefMATHGoogle Scholar
18.
Neumann, L.J., Morgenstern, O.: Theory of Games and Economic Behavior, vol. 60. Princeton University Press Princeton, NJ (1947)MATHGoogle Scholar
19.
Shannon, C.E.: Xxii. programming a computer for playing chess. Philos. Mag. 41, 256–275 (1950)MathSciNetCrossRefMATHGoogle Scholar
20.
McAllester, D.A., Yuret, D.: Alpha-beta-conspiracy search (1993)Google Scholar
21.
Buro, M.: From simple features to sophisticated evaluation functions. In: van den Herik, H.J., Iida, H. (eds.) CG 1998. LNCS, vol. 1558, pp. 126–145. Springer, Heidelberg (1999) CrossRefGoogle Scholar
22.
Rosenbloom, P.S.: A world-championship-level othello program. Artif. Intell. 19, 279–320 (1982)CrossRefMATHGoogle Scholar
23.
Landau, T.: Othello: Brief & basic. US Othello Association 920, pp. 22980–23425 (1985)Google Scholar
24.
Ishitobi, T., Cincotti, A., Iida, H.: Shape-keeping technique and its application to checkmate problem composition. In: Ninth Artificial Intelligence and Interactive Digital Entertainment Conference (2013)Google Scholar
