Responses of the Human Inner Ear to Low-Frequency Sound

  • Markus Drexl
  • Eike Krause
  • Robert Gürkov
  • Lutz Wiegrebe
Open Access
Conference paper
Part of the Advances in Experimental Medicine and Biology book series (AEMB, volume 894)

Abstract

The perceptual insensitivity to low frequency (LF) sound in humans has led to an underestimation of the physiological impact of LF exposure on the inner ear. It is known, however, that intense, LF sound causes cyclic changes of indicators of inner ear function after LF stimulus offset, for which the term “Bounce” phenomenon has been coined.

Here, we show that the mechanical amplification of hair cells (OHCs) is significantly affected after the presentation of LF sound. First, we show the Bounce phenomenon in slow level changes of quadratic, but not cubic, distortion product otoacoustic emissions (DPOAEs). Second, Bouncing in response to LF sound is seen in slow, oscillating frequency and correlated level changes of spontaneous otoacoustic emissions (SOAEs). Surprisingly, LF sound can induce new SOAEs which can persist for tens of seconds. Further, we show that the Bounce persists under free-field conditions, i.e. without an in-ear probe occluding the auditory meatus. Finally, we show that the Bounce is affected by contralateral acoustic stimulation synchronised to the ipsilateral LF sound. These findings clearly demonstrate that the origin of the Bounce lies in the modulation of cochlear amplifier gain. We conclude that activity changes of OHCs are the source of the Bounce, most likely caused by a temporary disturbance of OHC calcium homeostasis. In the light of these findings, the effects of long-duration, anthropogenic LF sound on the human inner ear require further research.

Keywords

Cochlea Calcium homeostasis Cochlear amplifier Outer hair cells Inner hair cells Bounce phenomenon Otoacoustic emissions

1 Introduction

For decades, low-frequency sound, i.e. sound with frequencies lower than 250 Hz (Berglund et al. 1996), has been considered to largely bypass the inner ear even at intense levels, simply because human hearing thresholds for frequencies below 250 Hz are relatively high. Recent evidence from animal models shows that physiological cochlear responses to LF sound are even larger than those evoked by equal-level, higher frequencies in the more sensitive range of hearing (Salt et al. 2013). No data for human subjects are available, but, considering the higher sensitivity of humans for LF sounds, similar results can be expected (Salt et al. 2013).

Hirsh and Ward (1952) observed temporary deteriorations of human absolute thresholds about 2 min after presenting subjects with an intense, non-traumatic LF tone. Later on, the term ‘Bounce’ was used to describe bimodal changes in absolute thresholds starting with a sensitisation period followed by an about equal-duration temporary desensitisation (Hughes 1954).

Perceptual thresholds essentially reflect the sensitivity of inner hair cells (IHCs), which are functionally coupled to inner ear fluids (Nowotny and Gummer 2006; Guinan 2012). IHCs are therefore sensitive to basilar-membrane velocity, which decreases with decreasing frequency. OHCs, in contrast, are mechanically linked to both the basilar membrane and the tectorial membrane. OHCs are therefore sensitive to basilar membrane displacement (Dallos et al. 1982; Dallos 1986), which does not decrease with decreasing stimulus frequency. Thus, OHCs are more sensitive to LF sound than IHCs and it is this difference in LF sensitivity, which contributes to the LF limit of sound perception (Salt and Hullar 2010; Salt et al. 2013). In humans, non-invasive recordings of DPOAEs allow indirect access to OHC function while SOAEs represent, for ears that exhibit them, a more direct and very sensitive marker of OHC function. SOAEs are narrowband acoustic signals which are spontaneously emitted by the inner ear in the absence of acoustic stimulation. Human SOAEs persist over years and are relatively stable in both frequency and level (Burns 2009).

Here, we use both DPOAE and SOAE measurements to assess LF-induced changes of cochlear physiology and active sound amplification. Specifically, we monitored the sound level and frequency of DPOAEs and SOAEs before and after the exposure to a 90 s LF sinusoid with 30 Hz and a level of 80 dBA (120 dB SPL). Both the sound level and the exposure duration were controlled to be within the exposure limits for normal working conditions as regulated by the European Commission Noise at Work Directive 2003/10/EC.

2 Methods

Data were collected from young adult normal hearing subjects. The ethics committee of the University Hospital of the Ludwig-Maximilians University Munich, Germany, in agreement with the Code of Ethics of the World Medical Association (Declaration of Helsinki) for experiments involving humans, approved the procedures, and all subjects gave their written informed consent. An Etymotic Research 10C DPOAE probe system was used for recording of OAEs. The LF tone (30 Hz sine wave, 120 dB SPL, 90 s, including 0.1 s raised-cosine ramps) was supplied by a separate loudspeaker (Aurasound NSW1-205-8A). This loudspeaker was connected via a 50 cm polyethylene tube (inner diameter 1 mm) and the foam ear tip of the ER-10C DPOAE probe so that it faced the tympanic membrane. The loudspeaker was driven by a Rotel RB-960BX power amplifier. Stimulation to the contralateral ear was provided by an Etymotic Research 4PT earphone, which was sealed into the contralateral ear canal with foam ear tips. The earphone was driven by the headphone amplifier of the audio interface (RME audio Fireface UC, fs = 44.1 kHz) which was programmed (using MatLab and the HörTech SoundMexPro audio toolbox) for synchronous stimulation and recording of all required inputs and outputs.

3 Results

3.1 Effect of LF Sound Exposure on DPOAEs

The effect of the 80 dBA LF exposure on quadratic (QDP) and cubic (CDP) OAEs is shown in Fig. 1a and b, respectively. In 14 out of 20 tested subjects, the LF exposure induced a subsequent increase of the QDP level lasting for about 60 to 90 s (see Fig. 1a). QDP levels increased with a median of 3.4 dB. In most cases, this QDP increase was followed by a similar QDP decrease (median: − 2.4 dB), at about 120–150 s post-exposure. This decrease slowly recovered to pre-exposure QDP levels. The median duration of the overall oscillatory change of the QDP level was 214 s.

Fig. 1

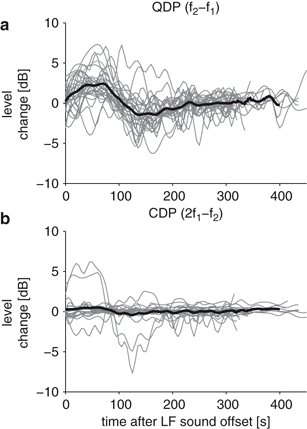

Effect of LF sound exposure on quadratic distortion products (QDP, A, N = 28 from 14 subjects) and cubic distortion products (CDP, B, N = 22 from 11 subjects). QDPs oscillate significantly after LF offset (a) whereas CDPs are rarely affected, bbold black lines represent median DPOAE measures, fine grey lines are individual DPOAE measures. (Modified after Drexl et al. (2014), with permission)

In many cases it was also possible to extract CDP levels from the same recording (albeit f2/f1 ratios were optimized to achieve maximum QDP levels). Typically, we observed no significant changes of CDP level after LF sound exposure (Fig. 1b).

3.2 Effect of LF Sound Exposure on SOAEs

We recorded 80 SOAEs from 27 ears of 16 young, normal-hearing subjects. The median SOAE sound levels were 0.6 dB SPL (first and third quartiles, − 4.5 dB SPL; 4.0 dB SPL) with a signal-to-noise ratio of 16.6 dB (11.6 dB, 23.5 dB).

After LF sound stimulation, 56 of these 80 SOAEs increased in both sound level and frequency. This increase was followed by a decrease of both level and frequency relative to pre-exposure (see Fig. 2a). In 10 of the 80 pre-exposure SOAEs, we observed an inverted pattern with an initial level and frequency decrease, followed by a level and frequency increase.

Fig. 2

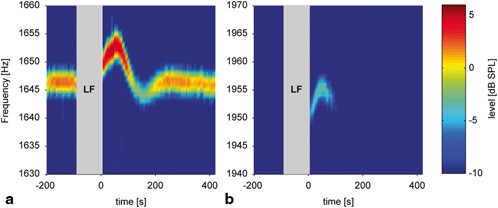

a Exemplary level and frequency changes of an SOAE recorded pre- and post LF sound exposure. The grey bar indicates the presentation of the LF stimulus (30 Hz, 80 dBA, 90 s). b Same as in a, but for a new SOAE which only appears for a short period after LF exposure. (Modified after Kugler et al. (2014), licensed under CC BY 4.0 (https://creativecommons.org/licenses/by/4.0/))

SOAE level- and frequency oscillations were fitted with an (inverted-phase) underdamped sinusoidal oscillation. The period of the fitted sinusoid was 257 s (202 s, 294 s) for the level time course and 252 s (215 s, 367 s) for the frequency time course. The time constant of the damped sinusoid for level changes was 120 s (76 s, 157 s) and for frequency changes 94 s (58 s, 141 s). SOAE frequency changes amounted to 5 Cent (4 Cent, 9 Cent) with peak values of 25 Cent. Relative to the SOAE frequency in the control condition, the frequency showed initial maximum increases of 4 Cent (3 Cent, 7 Cent), followed by maximum decreases of 1 Cent (0 Cent, 2 Cent).

17 of 21 tested subjects revealed an overall of 56 new SOAEs, which had not been measurable before LF stimulation (see Fig. 2b). These new SOAEs were characterized by an initial level and frequency increase, qualitatively similar to the pre-existing SOAEs. Comparable to the enhancing half cycle of Bouncing SOAEs, their level and frequency oscillated before they disappeared into the noise floor. The duration of the level and frequency changes was 67.5 s (47.5 s, 90 s). New SOAEs started to arise within 12.5 s (5 s, 25 s) after LF sound offset and reached a level maximum at 50 s (35 s, 62.5 s) after LF offset. The maximum SOAE level was − 0.3 dB SPL (− 4.1 dB SPL, 4.9 dB SPL) with a signal to noise ratio of 13.8 dB (11.9 dB, 17.6 dB). The difference between the new SOAE frequency maximum and minimum was 4 Cent (1 Cent, 6 Cent). The time course of level and frequency changes was almost identical and maximum level and frequency changes coincided.

3.3 SOAE Bouncing in the free Sound Field

Although the observed pattern of synchronized SOAE frequency- and amplitude changes is incompatible with the SOAE bouncing being elicited by changes in middle ear impedance, it is conceivable that bouncing may be only seen in the closed sound field where the auditory meatus is blocked by the OAE probe. Here, we recorded SOAEs in the open meatus using an ER10C probe microphone fitted to the meatus via an about 8 cm silicon tube (2.8 mm outer diameter) which did not block the meatus. The tip of the tube was positioned about 10 mm in front of the tympanum. LF exposure was provided by two powerful custom-made subwoofers. Subjects lay on a deck chair in a long basement corridor at a point where standing waves in the corridor maximised the sound level at 30 Hz. LF exposure was 118 dB SPL for 90 s. Photos of LF stimulation apparatus and probe-tube placement are shown in Fig. 3a, b.

Fig. 3

LF free-field stimulation subwoofers (a), and positioning of the SOAE recording probe in the open ear canal (b), Exemplary recordings in the open meatus of a pre-existing SOAE (c), and a transient SOAE (d) after free-field exposure to a 118 dB SPL, 30 Hz, 90 s LF sound (grey bar)

Both ears of 45 young, normal-hearing subjects were screened for SOAEs. 33 subjects showed at least one SOAE in one ear. Overall we could record in the open meatus about 52 % of those SOAEs detectable in a sound-attenuated room and a closed-ear recording technique. The remaining 48 % were not significantly above the much higher noise floor of the free-field, open-meatus measurement.

Exemplary measurements of both permanent and transient SOAEs are shown in Fig. 3c and d in the same format as Fig. 2. Indeed many of those 48 % SOAEs that had been initially identified in the closed-meatus measurements, but could no longer be detected in the open meatus, appeared directly after the LF exposure for a short time period, before falling again below the noise floor (Fig. 3d). These data clearly show that Bouncing of SOAEs can indeed be elicited by free-field exposure to LF sound sources of natural or anthropogenic origin.

3.4 Effect of Contralateral Acoustic Stimulation (CAS)

Patuzzi (2011) suggested that large receptor-potentials elicited by low-frequency stimulation produce a net Ca2+ influx. The Bounce presumably reflects an underdamped, homeostatic readjustment of increased Ca2+ concentrations and related gain changes after low-frequency sound offset. Here, we tested this hypothesis by activating the medial olivocochlear (MOC) efferent system during presentation of the Bounce-evoking LF sound. The MOC system is known to modulate OHC Ca2+ concentrations (Sridhar et al. 1997) and receptor potentials (Fex 1967) and therefore it should modulate the characteristics of the Bounce. Here, CAS was provided simultaneously to the (ipsilateral to the observed SOAE) LF exposure. The CAS consisted of a 90 s, bandpass-filtered Gaussian noise (100 Hz—8 kHz) presented at 65 or 70 dB SPL.

CAS is well known to suppress ipsilaterally recorded SOAEs during presentation and SOAEs quickly recover after CAS offset within less than 1 s (Zhao and Dhar 2010, 2011). Due to the duration of our analysis segments (5 s), the SOAEs already fully recovered from the CAS exposure within the first analysis segment. Consequently, we found no SOAEs fulfilling our criteria for the Bounce or indeed any other significant changes in the CAS control recordings. When the CAS was presented simultaneously with the ipsilateral LF tone, however, Bouncing of permanent SOAEs after LF offset changed significantly. Exemplary time courses of a preexisting and a transient SOAE are shown in Fig. 4a and b, respectively. While in the reference recording (red) the preexisting SOAE showed a significant biphasic Bounce, presentation of a 65 dB SPL (blue) or 70 dB SPL (green) CAS together with the ipsilateral LF tone clearly affected the magnitude of the Bounce.

Fig. 4

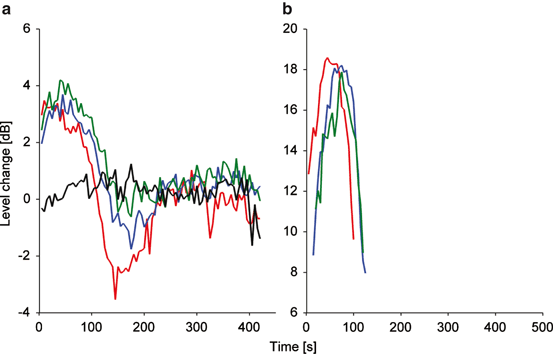

A preexisting SOAE (a), and a new, transient SOAE (b) after LF exposure (red) and after LF exposure witch simultaneous CAS at 65 dB SPL (blue) or 70 dB SPL (green), and after CAS exposure alone (black)

Overall, temporary level reductions of preexisting SOAEs were less pronounced with CAS than without (Wilcoxon signed rank test, p = 0.085 and 0.007 for CAS levels of 65 and 70 dB, respectively), while the SOAE level increases remained fairly unchanged. This resulted in a less symmetrical shape of the SOAE Bounce compared to the reference recording. Consequently, the time constants of the fitted function with CAS shortened significantly.

4 Discussion

The current biophysical experiments reveal a significant effect of LF sound exposure on the inner ear, and specifically on the function of OHCs. The observed effects are reflected in significant changes of quadratic distortion products, but importantly, in changes of SOAEs, which (for the ears that exhibit them) allows for a least-invasive evaluation of inner ear function.

As the low-frequency stimuli used in this study are intense, mechanisms associated with acoustic overexposure and recovery thereof could in principle be responsible for the Bounce phenomenon. Temporary or permanent damage to OHCs represent an unlikely cause, as recovery from acoustic overexposure with sounds in the sensitive range of hearing is typically monotonic, does not oscillate and no hypersensitivity can be seen. It has been shown, however, that intense sound stimulation of the cochlea in the isolated temporal bone preparation increases intracellular Ca2+ level of hair cells and supporting cells (Fridberger et al. 1998; Jacob et al. 2013). Acoustic injury consists of a plethora of structural and metabolic changes to the cochlea, with structural damage possibly masking more subtle (and possibly oscillating) metabolic changes of cochlear sensitivity caused by the rise of intracellular Ca2+ levels.

The observed effects support the hypothesis that OHC Ca2+ homeostasis is the source of the Bounce: Patuzzi (2011) suggested that the Bounce is a direct result of OHC activation by LF sound, rather than a secondary effect caused by modulation of stria vascularis activity, as the LF sound-induced endocochlear potential modulation during the Bounce (Kirk and Patuzzi 1997) could suggest. Patuzzi (2011) hypothesized that large, LF-induced receptor potentials in OHCs are the underlying cause of cochlear sensitivity oscillations associated with the Bounce phenomenon. These LF OHC receptor potentials are not attenuated by the low-pass characteristic of the OHC membrane. Patuzzi (2011) postulated that large, LF receptor potentials activate voltage-sensitive, L-type Ca2+ channels in the OHC membrane. This results in an increase of intracellular Ca2+ in OHCs. Ca2+-induced Ca2+ release and -uptake mechanisms, with different time courses, can then cause slow, underdamped oscillations of OHC cytosolic Ca2+ concentrations, modulating the gain of the cochlear amplifier (Patuzzi 2011).

The increased damping (corresponding to decreased decay time constants) we observed in the CAS experiments indicates that processes re-adjusting the Ca2+ overshoot may accelerate due to the activation of the medial olivo-cochlear bundle by the CAS. Even while the LF sound is on, the LF-induced Ca2+ concentration changes presumably also undergo oscillations (Patuzzi 2011). In contrast, the slow efferent effect (Sridhar et al. 1997) can cause a constant Ca2+ release from OHC internal stores, the lateral cisternae, while CAS is on. We hypothesize that this constant influx of Ca2+ may help to accelerate Ca2+-dependent Ca2+-uptake and thus, a quicker recovery of the system.

In summary, the current experiments reveal a pronounced effect of LF exposure on the active mechanisms in the inner ear, as they are mediated by OHCs. Considering that the current LF exposure was limited to 90 s, it is unclear how a longer-duration LF exposure may affect the system.

5 Acknowledgments

The authors wish to acknowledge the contributions of Margarete Überfuhr, David Laubender and Kathrin Kugler, who carried out the experimental procedures this chapter is based on.

This work was funded by a grant (EO 0901) from the German Ministry of Science and Education to the German Center for Vertigo and Balance Disorders (IFB), project TR-F9.
