Assessment of Levothyroxine Sodium Bioavailability

Recommendations for an Improved Methodology Based on the Pooled Analysis of Eight Identically Designed Trials with 396 Drug Exposures

Clinical Pharmacokinetics volume 43, pages 1037–1053 (2004)Cite this article

Abstract

Background

Assessment of dosage form performance in delivering endogenous compounds, such as hormones, in vivo requires a specific approach.

Objectives

Assessment of relative bioavailability of levothyroxine sodium (L-T4) from eight solid preparations, compared with a liquid formulation, by using pharmacological doses, and critical evaluation of trial methodology based on the pooled analysis of individual data.

Design

Eight open-label, randomised, single-dose, crossover phase I studies using eight solid L-T4 dosage forms (25, 50, 75, 100, 125, 150, 175, 200μg per tablet; administered total doses 600, 625 or 700μg) and a liquid formulation; assessment of relative bioavailability by 90% confidence intervals for the relative area under the concentration-time curve (AUC) of total thyroxine (TT4), i.e. protein-bound plus free thyroxine, calculated by using the recommended log AUC four-way analysis of variance models for crossover designs. For the pooled analysis, general linear models were applied to assess the validity of model assumptions, to identify potential sources of effect modification, to discuss alternative modelling approaches with respect to endogenous hormone secretion and to give recommendations for future designs and sample sizes.

Participants

One hundred and sixty-nine healthy males; 29 of these individuals participating in two studies.

Interventions

Single oral doses of L-T4 tablets and the liquid formulation administered after fasting, separated by at least 6 weeks; a total of 396 drug exposures.

Main outcome measures

TT4 AUC from 0 to 48 hours and peak plasma concentration with and without baseline correction.

Results

Each study demonstrated equivalence of the tablets to the drinking solution, independent of the chosen analysis model. Sequence effects that could devalidate the chosen crossover approach were not found. Period effects with changing directions that could best be explained by seasonal variation were detected. While the pre-specified method of baseline correction of simply subtracting individual time-zero TT4 values was disadvantageous, the analysis of total AUC could be improved considerably by covariate adjustment for baseline TT4. With this approach, sample sizes could have been substantially reduced or, alternatively, the recommended equivalence ranges could be reduced to ±6%. Conclusion: Using a single pharmacological dose of L-T4 in two-period crossover designs is a safe and reliable procedure to assess L-T4 dosage form performance. With an adequate statistical modelling approach, the design is efficient and allows general conclusions with moderate sample sizes.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

49,54 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Table I
Fig. 1
Table II
Table III
Table IV

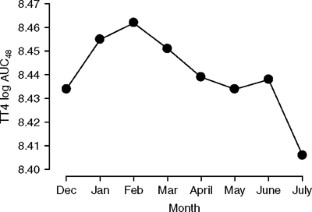

Fig. 2

Notes

  1. The use of trade names is for product identification purposes only and does not imply endorsement.

References

  1. Cooper DS. Subclinical hypothyroidism. N Engl J Med 2001; 345: 260–5

    CAS  Article  PubMed  Google Scholar

  2. Toft AD. Thyroxine therapy. N Engl J Med 1994; 331: 174–80

    CAS  Article  PubMed  Google Scholar

  3. Fish LH, Schwartz HL, Cavanaugh J, et al. Replacement dose, metabolism, and bioavailability of levothyroxine in the treatment of hypothyroidism. N Engl J Med 1987; 316: 764–70

    CAS  Article  PubMed  Google Scholar

  4. Olveira G, Almaraz MC, Soriguer F, et al. Altered bioavailability due to changes in the formulation of a commercial preparation of levothyroxine in patients with differentiated thyroid carcinoma. Clin Endocrinol 1997; 46: 707–11

    CAS  Article  Google Scholar

  5. Lee M. Equivalence of levothyroxine tablets [letter]. Drug Intell Clin Pharm 1983; 17: 265

    CAS  PubMed  Google Scholar

  6. Ramos-Gabatin A, Jacobson JM, Young RL. In vivo comparison of levothyroxine preparations. JAMA 1982; 247: 203–5

    CAS  Article  PubMed  Google Scholar

  7. Jacobson JM, Ramos-Gabatin A, Young RL, et al. Nonequality of brand name thyroxine preparations [letter]. JAMA 1980; 243: 733

    CAS  Article  PubMed  Google Scholar

  8. Stoffer SS. Drug substitution [letter]. JAMA 1979; 242: 1257

    CAS  Article  PubMed  Google Scholar

  9. Stoffer SS. Substitution of levothyroxine products [letter]. JAMA 1979; 241: 1229

    CAS  Article  PubMed  Google Scholar

  10. Drug Bioequivalence Study Panel. Drug bioequivalence: recommendations to the Office of Technology Assessment, Congress of the United States. J Pharmacokinet Biopharm 1974; 2: 433–66

    Article  Google Scholar

  11. Barr WH. Bioavailability of oral solid dosage forms and clinical response to drug therapy. In: Swarbrick J, editor. Current concepts in the pharmaceutical sciences: dosage form design and bioavailability. Philadelphia (PA): Lea & Febiger, 1973: 31–75

    Google Scholar

  12. Ball P, Klinger W, Strubelt O. Untersuchungen zur relativen Bioverfügbarkeit von Laevothyroxin-Na nach oraler Gabe. Nuc-Compact 1987; 18: 92–6

    Google Scholar

  13. Berg JA, Mayor GA. A study in normal human volunteers to compare the rate and extent of levothyroxine absorption from Synthyroid® and Levoxine®. J Clin Pharmacol 1993; 33: 1135–40

    Google Scholar

  14. Spencer CA, LoPresti JS, Nicoloff JT, et al. Multiphasic thyrotropin responses to thyroid hormone administration in man. J Clin Endocrinol Metab 1995; 80: 854–9

    CAS  PubMed  Google Scholar

  15. Wenzel KW, Kirschsieper HE. Aspects of the absorption of oral L-thyroxine in normal man. Metabolism 1977; 26: 1–8

    CAS  Article  PubMed  Google Scholar

  16. Wenzel KW, Meinhold H. Evidence of lower toxicity during thyroxine suppression after a single 3-mg l-thyroxine dose: comparison to the classical 1-triiodothyronine test for thyroid suppressibility. J Clin Endocrinol Metab 1974; 38: 902–5

    CAS  Article  PubMed  Google Scholar

  17. Wallack MS, Adelberg HM, Nicoloff JT. A thyroid suppression test using a single dose of L-thyroxine. N Engl J Med 1970; 283: 402–5

    CAS  Article  PubMed  Google Scholar

  18. European Union guideline. Investigation of bioavailability and bioequivalence [online]. Available from URL: http://pharmacos.eudra.org/F2/eudralex/vol-3/pdfs-en/3cc15aen.pdf [Accessed 2004 Oct 7]

  19. The European Agency for the Evaluation of Medicinal Products, Committee for Proprietary Medicinal Products (CPMP). Note for guidance on the investigation of bioavailability and bioequivalence [online]. Available from URL: http://www.emea.eu.int/pdfs/human/ewp/140198en.pdf [Accessed 2004 Oct 7]

  20. US Department of Health and Human Services, Food and Drug Administration, Center for Drug Evaluation and Research (CDER). Guidance for industry: levothyroxine sodium tablets: in vivo pharmacokinetic and bioavailability studies and in vitro dissolution testing [online]. Available from URL: http://www.fda.gov/cder/guidance/3645fnl.pdf [Accessed 2004 Oct 7]

  21. US Department of Health and Human Services, Food and Drug Administration, Center for Drug Evaluation and Research (CDER). Guidance for industry: bioavailability and bioequivalence studies for orally administered drug products: general considerations [online]. Available from URL: http://www.fda.gov/cder/guidance/4964dft.pdf [Accessed 2004 Oct 7]

  22. US Department of Health and Human Services, Food and Drug Administration, Center for Drug Evaluation and Research (CDER). Guidance for industry: statistical approaches to establishing bioequivalence [online]. Available from URL: http://www.fda.gov/cder/guidance/361fnl.htm [Accessed 2004 Oct 7]

  23. Piketty ML, d’Herbomez M, Le Guillouzic D, et al. Clinical comparison of three labelled-antibody immunoassays of free triiodothyronine. Clin Chem 1996; 42: 933–41

    CAS  PubMed  Google Scholar

  24. Price A, Bennett K, Giles M, et al. The ACS: 180 as a thyroid function test analyzer. Clin Chem Enzym Comm 1995; 6: 373–84

    CAS  Google Scholar

  25. Liewendahl K, Melamies L, Helenius T, et al. Automated and manual serum free thyroxine assays evaluated with equilibrium dialysis. Scand J Clin Lab Invest 1994; 54: 347–51

    CAS  Article  PubMed  Google Scholar

  26. Stewart LA, Clarke MJ. Practical methodology of meta-analyses (overviews) using updated individual patient data. Stat Med 1995; 14: 2057–79

    CAS  Article  PubMed  Google Scholar

  27. Senn S. Cross-over trials in clinical research. Chichester: Wiley, 1993

    Google Scholar

  28. Goeggelmann C, Clanget C, Ding R, et al. Bioequivalence assessment of endogenous compounds like hormones: eight levothyroxine (L-T4) formulations [abstract]. Eur J Clin Pharmacol 2002; 58: S94

    Google Scholar

  29. Vaisman M, Spina LDC, Eksterman LF, et al. Comparative bioavailability of two oral L-thyroxine formulations after multiple dose administration in patients with hypothyroidism and its relation with therapeutic endpoints and dissolution profiles. Arzneimittel Forschung 2001; 51: 246–52

    PubMed  Google Scholar

  30. Förster G, Hansen C, Morsch F, et al. Bioäquivalenz eines Kombinationspräparates aus Levothyroxin und Jodid im Vergleich zum Monopräparat Levothyroxin. Med Klin (Munich) 1998; 93: 401–6

    Article  Google Scholar

  31. Dong BJ, Hauck WW, Gambertoglio JG, et al. Bioequivalence of generic and brand-name levothyroxine products in the treatment of hypothyroidism. JAMA 1997; 277: 1205–13

    CAS  Article  PubMed  Google Scholar

  32. Hennessey JV, Evaul JE, Tseng YC, et al. L-thyroxine dosage: a re-evaluation of therapy with contemporary preparations. Ann Intern Med 1986; 105: 11–5

    CAS  Article  PubMed  Google Scholar

  33. Hennessey JV, Burman KD, Wartowsky L. The equivalency of two L-thyroxine preparations. Ann Intern Med 1985; 102: 770–3

    CAS  Article  PubMed  Google Scholar

  34. Wenzel KW, Mehrländer U. Wirksamkeitsunterschiede von Levothyroxin-Präparaten. Dtsch Med Wochenschr 1988; 113: 53–8

    Article  Google Scholar

  35. Klein I. Evaluation of bioequivalence and efficacy of L-thyroxine preparations in the treatment of human thyroid disease [online]. Available from URL: http://www.fda.gov/ohrms/dockets/ac/03/briefing/3926B2_03_King%20Pharmaceutical-Backgrounder.pdf [Accessed 2004 Oct 7]

  36. DeGroot L. Letter presented at the FDA Advisory Committee for Pharmaceutical Science Meeting scheduled for March 13, 2003 [online]. Available from URL: http://www.fda.gov/ohrms/dockets/ac/03/briefing/3926OPH2_10_DeGroot.pdf [Accessed 2004 Oct 7]

  37. Hershman JM. Letter presented at the FDA Advisory Committee for Pharmaceutical Science Meeting scheduled for March 13, 2003 [online]. Available from URL: http://www.fda.gov/ohrms/dockets/ac/03/briefing/3926OPH2_11_Hershman.pdf [Accessed 2004 Oct 7]

  38. Baskin HJ. Letter presented at the FDA Advisory Committee for Pharmaceutical Science Meeting scheduled for March 13, 2003 [online]. Available from URL: http://www.fda.gov/ohrms/dockets/ac/03/briefing/3926OPH2_16_Baskin.pdf [Accessed 2004 Oct 7]

  39. Trantow T, Herzog R, Fuder H, et al. A pilot study on the determination of the relative bioavailability of levo-thyroxine. Methods Find Exp Clin Pharmacol 1995; 17: 333–43

    CAS  PubMed  Google Scholar

  40. Behall KM, Scholfield DJ, Hallfrisch JG, et al. Seasonal variation in plasma glucose and hormone levels in adult men and women. Am J Clin Nutr 1984; 40: 1352–6

    CAS  PubMed  Google Scholar

  41. Levine M, Duffy L, Moore DC, et al. Acclimation of a nonindigenous sub-artic population: seasonal variation in thyroid function in interior Alaska. Comp Biochem Physiol 1995; 111A: 209–14

    CAS  Article  Google Scholar

  42. Smals AGH, Ross HA, Kloppenborg PWC. Seasonal variation in serum T3 and T4 levels in man. J Clin Endocrinol Metab 1977; 44: 998–1001

    CAS  Article  PubMed  Google Scholar

  43. Hegediis L, Rasmussen N, Knudsen N. Seasonal variation in thyroid size in healthy males. Horm Metab Res 1987; 19: 391–2

    Article  Google Scholar

  44. The European Agency for the Evaluation of Medicinal Products, Committee for Proprietary Medicinal Products (CPMP). Points to consider on adjustment for baseline covariates [online]. Available from URL: http://www.emea.eu.int/pdfs/human/ewp/286399en.pdf [Accessed 2004 Oct 7]

  45. Food and Drug Administration, Advisory Committee for Pharmaceutical Science. Transcript of meeting on bioequivalence/bioavailability of endogenous products, March 13, 2003 [online]. Available from URL: http://www.fda.gov/ohrms/dockets/ac/03/transcripts/3926T2.htm [Accessed 2004 Oct 7]

  46. Stockigt J. Testing the bioavailability of oral 1-thyroxine by studying its absorption: smoke or mirrors? Thyroid 2004; 14: 167–8

    Article  PubMed  Google Scholar

Download references

Acknowledgments

The study series was funded by Henning Berlin GmbH, succeeded by Sanofi-Synthelabo, now part of the Aventis Group. The pooled analysis was investigator initiated. The sponsor had no influence on the study conduct or on the analysis and publication of the data.

Dr J. Pfeilschifter reports having received lecture fees from Henning Berlin GmbH, succeeded by Sanofi-Synthelabo, now part of the Aventis Group.

Drs C. Clanget, R. Ding, C. Goeggelmannm, V. Hinke, M. Lang, Y. Tayrouz, I. Walter-Sack and K. Wegscheider have no conflicts of interest directly relevant to the content of this study.

The authors thank Mrs Karin Arnold, Mrs Andrea Deschlmayr, Mrs Jutta Kocher, Mrs Magdalena Longo and Mrs Gisela Schwahn for their excellent technical assistance, and Walter E. Haefeli, Professor of Medicine and Clinical Pharmacology, for his helpful discussions and assistance in reviewing the manuscript.
