Population Pharmacokinetic Model to Predict Steady-State Exposure to Once-Daily Cyclosporin Microemulsion in Renal Transplant Recipients

Clinical Pharmacokinetics volume 41, pages 59–69 (2002)Cite this article

Abstract

Background

The microemulsion formulation of cyclosporin (CsA-ME) has a less variable absorption profile than the standard formulation (CsA-S), but only limited information is available about once-daily administration of CsA-ME.

Objective

To develop a population pharmacokinetic model for once-daily CsA-ME that enables the prediction of individual steady-state area under the concentration-time curve (AUC) on the basis of blood concentration measurements and patient covariates.

Patients and method

The steady-state pharmacokinetics of once-daily cyclosporin were studied in 60 stable renal transplant recipients before and after conversion from CsA-S to CsA-ME. For each formulation, 7 blood samples were collected from 50 patients (group A) at sparse timepoints over 2 weeks, and 10 blood samples were collected from 10 patients (group B) at fixed timepoints over 24 hours. A 2-compartment population model assuming time-lagged first-order oral absorption was fitted to the data from group A, using nonlinear mixed effects modelling (NONMEM). The data from group B were used to evaluate the predictive performance of the model.

Results

Mean [± SD; coefficient of variation (%CV)] CsA-S doses of 245mg (±92) resulted in cyclosporin blood concentrations of 214 µg/L (± 70) after 12 hours and 108 µg/L (± 23) after 24 hours; the mean estimated AUC to 24 hours was 7658 µg · h/L (30%). With mean CsA-ME doses of 206mg (± 59), cyclosporin blood concentrations were 212 µg/L (± 33) and 132 µg/L (25%) after 12 and 24 hours, respectively, and the mean estimated AUC24 was 9357 µg · h/L (23%). A strong correlation between 12-hour concentrations and AUC24 was observed for CsA-ME (r = 0.95, p < 0.001), but not for CsA-S (r = 0.59, nonsignificant); the correlation between 24-hour trough concentrations and AUC24 was weaker for both formulations (r = 0.64, p < 0.05 and r = 0.37, nonsignificant, respectively). On the basis of the population model derived from group A, the single best timepoint to predict AUC24 from blood cyclosporin concentration was at 8 hours [AUC24 µg · h/L) = 19.6 · cyclosporin concentration at 8 hours µg/L) + 3035], resulting in a prediction error of 8.3 + 6.6% when applied to the measured AUC24 of group B. Adverse events were observed after conversion in 18 patients; these events generally resolved spontaneously or after dosage reduction, but twice-daily administration was required in some patients.

Conclusions

Switching from once-daily CsA-S to CsA-ME results in more consistent and predictable cyclosporin pharmacokinetics. Adjustment of dosage or regimen may be required in some patients.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

49,54 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Table I

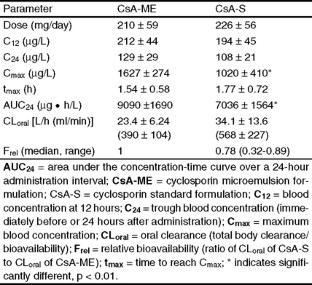

Table II

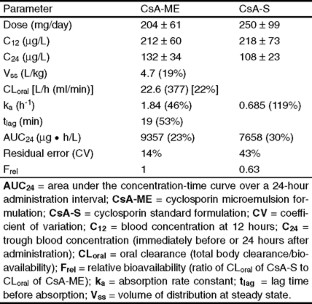

Table III
Fig. 1

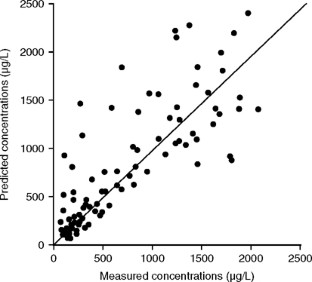

Fig. 2

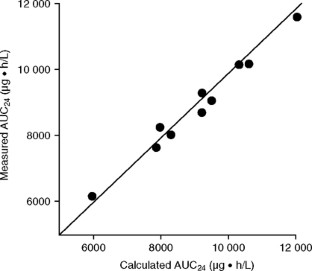

Fig. 3
Table IV

Notes

  1. Use of tradenames is for product identification only and does not imply endorsement.

References

  1. Sketris I, Yatscoff R, Keown P, et al. Optimizing the use of cyclosporine in renal transplantation. Clin Biochem 1995; 28: 195–211

    CAS  PubMed  Article  Google Scholar

  2. Kahan BD, Welsh M, Rutzky LP. Challenges in cyclosporine therapy: the role of therapeutic monitoring by area under the curve monitoring. Ther Drug Monit 1995; 17(6): 621–4

    CAS  PubMed  Article  Google Scholar

  3. Frey FJ, Horber FF, Frey BM. Trough levels and concentration time curves of cyclosporine in patients undergoing renal transplantation. Clin Pharmacol Ther 1988; 43(1): 55–62

    CAS  PubMed  Article  Google Scholar

  4. Dumont RJ, Ensom MH. Methods for clinical monitoring of cyclosporin in transplant patients. Clin Pharmacokinet 2000; 38(5): 427–47

    CAS  PubMed  Article  Google Scholar

  5. Kahan BD, Welsh M, Schoenberg L, et al. Variable oral absorption of cyclosporine. A biopharmaceutical risk factor for chronic renal allograft rejection. Transplantation 1996; 62(5): 599–606

    CAS  PubMed  Article  Google Scholar

  6. Lindholm A, Kahan BD. Influence of cyclosporine pharmacokinetics, trough concentrations, and AUC monitoring on outcome after kidney transplantation. Clin Pharmacol Ther 1993; 54(2): 205–18

    CAS  PubMed  Article  Google Scholar

  7. Barone G, Chang CT, Choc MG, et al. The pharmacokinetics of a microemulsion formulation of cyclosporine in primary renal allograft recipients. The Neoral Study Group. Transplantation 1996; 61(6): 875–80

    CAS  PubMed  Article  Google Scholar

  8. Keown P, Landsberg D, Halloran P, et al. Arandomized, prospective multicenter pharmacoepidemiologic study of cyclosporine microemulsion in stable renal graft recipients. Report of the Canadian Neoral Renal Transplantation Study Group. Transplantation 1996; 62(12): 1744–52

    CAS  PubMed  Article  Google Scholar

  9. Kahan BD, Dunn J, Fitts C, et al. Reduced inter- and intrasubject variability in cyclosporine pharmacokinetics in renal transplant recipients treated with a microemulsion formulation in conjunction with fasting, low-fat meals, or high-fat meals. Transplantation 1995; 59: 505–11

    CAS  PubMed  Article  Google Scholar

  10. Mueller EA, Kovarik JM, van Bree JB, et al. Influence of a fat-rich meal on the pharmacokinetics of a new oral formulation of cyclosporine in a crossover comparison with the market formulation. Pharm Res 1994; 11: 151–5

    CAS  PubMed  Article  Google Scholar

  11. Mueller EA, Kallay Z, Kovarik JM, et al. Bile-independent absorption of cyclosporine from a microemulsion formulation in liver transplant patients. Transplantation 1995; 60: 515–7

    CAS  PubMed  Article  Google Scholar

  12. Chapman JR, O’Connell PJ, Bovington KJ, et al. Reversal of cyclosporine malabsorption in diabetic recipients of simultaneous pancreas and kidney transplant using a microemulsion formulation. Transplantation 1996; 61(12): 1699–704

    CAS  PubMed  Article  Google Scholar

  13. Storck M, Mickley V, Steinbach G, et al. Cyclosporine resorption in diabetic patients after simultaneous pancreas and kidney transplantation. Transplant Proc 1995; 27(6): 3094–5

    CAS  PubMed  Google Scholar

  14. Akhtar K, Deardon D, Cranley JJ, et al. Comparison of the absorption pharmacokinetics of Sandimmune and Neoral following porcine small bowel transplantation. Transplant Proc 1996; 28(2): 882–5

    CAS  PubMed  Google Scholar

  15. Meier-Kriesche HU, Kaplan B, Brannan P, et al. A limited sampling strategy for the estimation of eight-hour Neoral areas under the curve in renal transplantation. Ther Drug Monit 1998; 20(4): 401–7

    CAS  PubMed  Article  Google Scholar

  16. Beutler D, Molteni S, Zeugin T, et al. Evaluation of instrumental, nonisotopic immunoassays (fluorescence polarization immunoassay and enzyme-multiplied immunoassay technique) for cyclosporine monitoring in whole blood after kidney and liver transplantation. Ther Drug Monit 1992; 14: 424–32

    CAS  PubMed  Article  Google Scholar

  17. Bergan S, Rugstad HE, Stokke O, et al. Cyclosporine A monitoring in patients with renal, cardiac, and liver transplants: a comparison between fluorescence polarization immunoassay and two different RIA methods. Scand J Clin Lab Invest 1993; 53(5): 471–7

    CAS  PubMed  Article  Google Scholar

  18. Gibaldi M, Perrier D. Pharmacokinetics. 2nd ed. New York and Basel: Marcel Dekker Inc, 1982

    Google Scholar

  19. NONMEM Users Guide, Parts I-V. San Francisco: University of California, 1990

  20. Yamaoka K, Nakagawa T, Uno T. Application of Akaike’s information criterion (AIC) in the evaluation of linear pharmacokinetic equations. J Pharmacokinet Biopharm 1978; 6(2): 165–75

    CAS  PubMed  Article  Google Scholar

  21. Beal SL, SheinerL. The NONMEM system. Am Stat 1980; 34: 118–9

    Article  Google Scholar

  22. Kovarik JM, Mueller EA, van Bree JB, et al. Cyclosporine pharmacokinetics and variability from a microemulsion formulation — a multicenter investigation in kidney transplant patients. Transplantation 1994; 58: 658–63

    CAS  PubMed  Article  Google Scholar

  23. Friman S, Backman L. A new microemulsion formulation of cyclosporin: pharmacokinetic and clinical features. Clin Pharmacokinet 1996; 30(3): 181–93

    CAS  PubMed  Article  Google Scholar

  24. Gaspari F, Anedda MF, Signorini O, et al. Prediction of cyclosporine area under the curve using a three-point sampling strategy after Neoral administration. J Am Soc Nephral 1997; 8: 647–52

    CAS  Google Scholar

  25. Serafinowicz A, Gaciong Z, Majchrzak J, et al. Abbreviated kinetic profiles to estimate exposure to CyA in renal allograft recipients treated with Sandimmun-Neoral. Transplant Proc 1997; 29(1–2): 277–9

    CAS  PubMed  Article  Google Scholar

  26. Sindhi R, Shah J, Foley L, et al. Abbreviating area under the curves further: a practical approach to monitoring extended pharmacokinetics with Neoral. Transplant Proc 1998; 30(4): 1197–8

    CAS  PubMed  Article  Google Scholar

  27. Cantarovich M, Besner JG, Barkun JS, et al. Two-hour cyclosporine level determination is the appropriate tool to monitor Neoral therapy. Clin Transplant 1998; 12(3): 243–9

    CAS  PubMed  Google Scholar

  28. Lemire J, Capparelli EV, MacDonald D, et al. Estimated areaunder-the-curve monitoring of Neoral in a stable pediatric renal transplant population: one-year experience. Transplant Proc 1998; 30(5): 1983–4

    CAS  PubMed  Article  Google Scholar

  29. Charlebois JE, Lum BL, Cooney GF, et al. Comparison and validation of limited sampling equations for cyclosporine area-under-the-curve monitoring calculations in pediatric renal transplant recipients [see comments]. Ther Drug Monit 1997; 19(3): 277–80

    CAS  PubMed  Article  Google Scholar

  30. Dalere GM, Lum BL, Cooney GF, et al. Comparison of three methods for cyclosporine area under the curve monitoring calculations. Ther Drug Monit 1995; 17(3): 305–7

    CAS  PubMed  Article  Google Scholar

  31. Amante AJ, Kahan BD. Abbreviated AUC strategy for monitoring cyclosporine microemulsion therapy in the immediate posttransplant period. Transplant Proc 1996; 28(4): 2162–3

    CAS  PubMed  Google Scholar

  32. Filler G, Mai I, Filler S, Ehrich JH. Abbreviated cyclosporine AUCs on Neoral — the search continues! Pediatr Nephrol 1999; 13(2): 98–102

    CAS  PubMed  Article  Google Scholar

  33. Wacke R, Rohde B, Engel G, et al. Comparison of several approaches of therapeutic drug monitoring of cyclosporin A based on individual pharmacokinetics. Eur J Clin Pharmacol 2000; 56(1): 43–8

    CAS  PubMed  Article  Google Scholar

  34. Warrens AN, Waters JB, Salama AD, et al. Improving the therapeutic monitoring of cyclosporin A. Clin Transplant 1999; 13(2): 193–200

    CAS  PubMed  Article  Google Scholar

  35. Grevel J, Kahan BD. Abbreviated kinetic profiles in area-under-the-curve monitoring of cyclosporine therapy. Clin Chem 1991; 37(11): 1905–8

    CAS  PubMed  Article  Google Scholar

  36. Frey FJ. Pharmacokinetic determinants of cyclosporin and prednisone in renal transplant patients. Kidney Int 1991; 39: 1034–50

    CAS  PubMed  Article  Google Scholar

Download references

Acknowledgements

This work was supported by grant no. 32-49585.96 from the Swiss National Science foundation and by a grant from Novartis (formerly Sandoz).

Author information

Affiliations

  1. Division of Nephrology and Hypertension, University of Berne, Freiburgstrasse, 3010, Berne, Switzerland

    Franziska Schädeli, Hans-Peter Marti, Felix J. Frey &  Dominik E. Uehlinger

Authors
  1. Franziska Schädeli
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Hans-Peter Marti
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Felix J. Frey
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Dominik E. Uehlinger
    View author publications

    You can also search for this author in PubMed Google Scholar

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Schädeli, F., Marti, HP., Frey, F.J. et al. Population Pharmacokinetic Model to Predict Steady-State Exposure to Once-Daily Cyclosporin Microemulsion in Renal Transplant Recipients. Clin Pharmacokinet 41, 59–69 (2002). https://doi.org/10.2165/00003088-200241010-00005

Download citation

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.2165/00003088-200241010-00005

Keywords

  • Cyclosporin
  • Renal Transplant Recipient
  • Trough Concentration
  • Population Pharmacokinetic Model
  • Microemulsion Formulation
