Background

Marjolin’s ulcer (MU) refers to a rare but highly aggressive ulcerating squamous cell carcinoma (SCC) that is most often presented in an area of chronic burn wounds [1]. However, it is also associated with chronic inflammatory states, as in non-healing wounds, venous ulcers, lupus vulgaris, vaccination scars, snake bite scars, pressure sores, osteomyelitis zones, pilonidal abscess, and radiotherapy areas [2–4]. Celsus first described the malignant transformation of the thermal burn scar from his observations dating back to the 1st century A.D. [5]. In the 19th century, the French surgeon Jean-Nicholas Marjolin demonstrated the cellular changes of ulcerated lesions in scar tissue [6], but it was not until Robert Smith in 1850 that a detailed description of the pathology was published and named “Marjolin’s ulcer” [7, 8].

Although it has been more than 160 years since the eponym was first used, the disagreement on the use of the term “Marjolin’s ulcer” synonymously with burn scar carcinoma still exists [9]. The classic definition of MU only applies to the squamous cell variant [1, 10, 11], whereas the term “scar tissue carcinoma” is used for all malignancies arising in scars (Figure 1) [12]. Although some authors hold that MU may also refer to the latter in a broad sense [13–16], the use of this term as a name for different clinical entities may not be appropriate. As numerous skin carcinomas have been found, their onset, signs, clinical features, progression, and treatments can be completely different.

Figure 1
figure 1

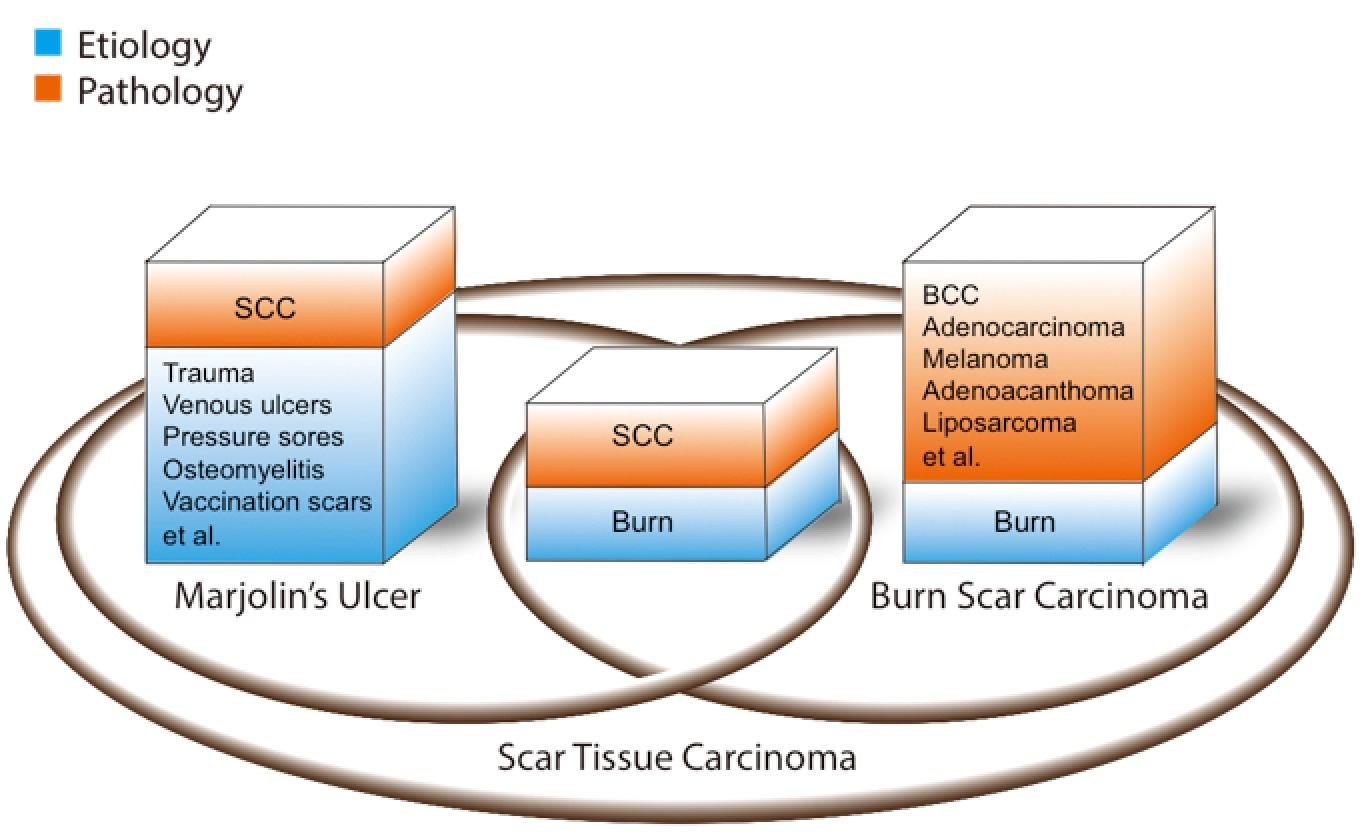

Comparison of the concepts of MU, burn scar carcinoma, and scar tissue carcinoma. The intersection between MU and burn scar carcinoma represents the etiology and pathological outcome in common. SCC = squamous cell carcinoma; BCC = basal cell carcinoma.

Full size image

During the course of MU, the latency period is defined as the time between initial injury and the confirmation of a pathologic diagnosis of malignancy [1]. In our study, we divided the latency period into two parts: a “pre-ulceration period” referring to the period from initial injury to the appearance of an ulcerated lesion, and “post-ulceration period” referring to the period from ulceration to the diagnosis of SCC by a positive biopsy (Figure 2). By analyzing data of 17 cases, we aimed to reveal the role of the latency period in the prevention and early detection and treatment of MU.

Figure 2
figure 2

Various paths to malignancy during the latency period. Ulcer formation is a key step between initial injury and final malignant transformation.

Full size image

Methods

In the period from June of 2005 and December 2011, 2,984 patients with scars of different causes and no previous history of cancer were seen in the plastic surgery division, at Peking Union Medical College Hospital, China. All scars, regardless of appearance, underwent biopsy/pathological examination leading to the diagnosis of 17 cases of MU. The majority of patients that were diagnosed complained of chronic, disfiguring, non-healing ulcers. Our therapeutic regimes were planned according to available guidelines, clinical evaluation, biopsy results, surgical expertise, and radiologic findings in a multidisciplinary approach with other departments from our hospital.

Ten male and seven female patients ranging from 34 to 87 years old were diagnosed with MU. Characteristics and areas of ulcers were recorded. These patients were followed-up for an average of 2.9 years (1 to 6 years) after treatment. Their medical records were reviewed and stratified retrospectively. Demographic and relevant clinical information is presented in Table 1, including etiology, the latency period, pre- and post-ulceration periods, and outcome.

Table 1 Demographic characteristics of all the 17 MU cases
Full size table

All statistical algorithms were developed using the R Project for statistical computing. Two-tailed Spearman correlation was used, and P <0.05 was considered statistically significant.

The retrospective study was approved by the Institutional Review Board of Peking Union Medical College Hospital. Written informed consent was obtained from each patient involved in this study.

Results

Patient history

Marjolin’s ulcer was diagnosed in patients with a mean age of 62 years (34–87, SD = 15). In 82% of cases, more than 10 years elapsed during the latency period, with an average time of 29 years (SD = 19). However, an acute form of presentation was seen in one patient (6%) diagnosed 1 year after the initial injury. The mean pre-ulceration period was 21 years (SD = 22). The mean post-ulceration period was 8 years (SD = 10).

Statistical analysis revealed a negative correlation (r = −0.8) between the age of patients at which the initial injury occurred and the length of the latency period (P <0.01) (Figure 3). Similarly, a negative correlation (r = −0.7) was found between the pre- and post-ulceration periods (P <0.01) (Figure 4).

Figure 3
figure 3

Relationship between the age of patients at initial injury and the length of the latency period.

Full size image
Figure 4
figure 4

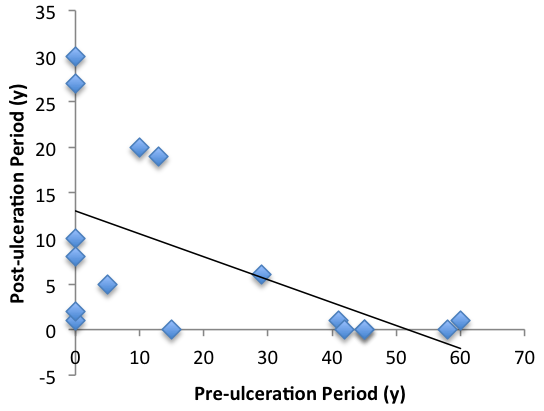

Relationship between the pre- and post-ulceration periods.

Full size image

The main etiology was post-burn scars, which resulted from flame (29%), steam (12%), and oil (6%) injuries. The other diverse sources were trauma (29%), skin infections (18%), and venous ulcers (6%). The most affected sites were the scalp (24%), lower limbs (24%), upper limbs (18%), and gluteal region (18%). Infection was reported in seven patients (41%) and Staphylococcus aureus was isolated in cultures.

Treatment

Surgical treatment was given to all patients. Wide excision with 3 cm of free margins to the border/base of the ulcer was performed in every case. Reconstruction was performed with split-thickness skin grafts (71%) or musculocutaneous/cutaneous flaps (29%) depending on the wound condition after excision (Figures 5, 6, and 7). Excision of the external lamina was carried out for one patient with skull invasion. Radiotherapy was applied for advanced cases with ulcers of a diameter >10 cm, as suggested by the oncology-radiotherapy department. Regional lymph nodes were all carefully assessed by palpation and superficial inguinal lymph node dissection was performed in one clinically suspicious case. The pathological result was negative.

Figure 5
figure 5

Anterolateral thigh (ALT) flap reconstruction. (A) A 56-year-old male MU patient burned his left leg at the age of 29. (B) Preoperative design of a reverse-flow ALT flap. (C) Reverse-flow ALT flap measured 20 cm × 10 cm, was elevated during operation. (D) Area of ulceration widely excised and reconstructed with ALT flap three years postoperatively.

Full size image
Figure 6
figure 6

Superior gluteal artery perforator (SGAP) flap reconstruction. (A) A 68-year-old male gluteal MU patient injured at the age of 58. (B) Preoperative design of bilateral inferior gluteal artery perforator flaps. (C) Area of ulceration widely excised and covered with good results.

Full size image
Figure 7
figure 7

Anterolateral thigh (ALT) flap reconstruction. (A) A 35-year-old female MU patient had her scalp burned at the age of 6. (B) Anterior and lateral views of the patient, one year after wide excision and reconstruction with ALT flap.

Full size image

Follow-up/recurrence

During follow-up, three patients were lost to follow-up and eight cases remained tumor-free. Four cases died within one year after operation due to recurrence and metastasis. Local recurrence was found in two cases; one had MU on the left hand, and experienced another ulceration of SCC on the left foot. The other presented a new ulcerated mass, 4 cm away from the previous grafted region. Both patients were re-admitted and treated with wide re-excision and skin grafting.

Discussion

MU is a rare and aggressive cutaneous malignant transformation with an incidence of 0.1% to 2.5% after a long-term inflammatory or traumatic insult to the skin [16, 17]. The main etiology tends to be post-burn scars and traumatic wounds [1]. Even though several theories have been postulated to elucidate the mechanisms generating this process, none can fully explain it [18]. Nevertheless, there is a consensus on the importance of chronic irritation. Repeated ulceration to the scar and subsequent initiation of re-epithelialization provides a prolonged stimulus for cellular proliferation and may increase the rate of spontaneous mutations [17, 19, 20].

An association between latency period and malignant transformation was first suggested by Lawrence [21]. Along our practice, we realized that a typical latency period of MU could be divided into two parts: pre- and post-ulceration periods, both of which have been considered to correlate in some way during the course of MU. Patient observations have also supported that the length of the pre- and post-ulceration periods may vary from one case to another.

After a certain period of existence of a chronic scar, early stages of MU usually present with symptoms of burning and itching, followed by blisters and prurigo. During this period, which we called the “pre-ulceration period”, the surface of the scars remains intact. The duration of the pre-ulceration period, or “the age of the scar”, may be important for the prognosis of MU [22].

A new ulcer forms whenever the integrity of skin is compromised by spontaneous rupture, scratching, or lack of self-care. After ulceration, some patients will experience repeated cycles of healing followed by rupturing of skin, which is called repeated ulceration period [7]. At this stage, ulcers protrude and deepen, accompanied with severe pain, purulent discharge, foul odor, and bleeding. Malignant transformation of chronic ulcers is closely related to the duration of ulceration. This means that the longer the ulcer duration, the higher the risk of dysplasia [23]. Moreover, young patients tend to have a course of cycling between skin breakdown and repair before developing malignancy [21].

In our study, six patients (35%) reported that a small portion of their initial injury never completely healed, which means they experienced repeated ulceration shortly after the initial injury. Therefore, the length of the post-ulceration period was almost as long as that of the latency period. While SCC can arise from these kinds of unhealed chronic ulcers, it is not an uncommon source for MU [9, 24].

We found that the shorter the pre-ulceration period, the longer the post-ulceration period will be, and vice versa. Moreover, a chronic scar has a higher likelihood of developing carcinoma at the first ulceration. Prolonged healing of the primary injury, that is, a prolonged post-ulceration period is also a major potential risk factor for the development of MU. Since biopsy remains the gold standard for the diagnosis of MU [25, 26], it should be applied for suspicious lesions that have not healed in 3 months.

A customized treatment regime should be designed after carefully considering the clinical evaluation, pathologic, and imaging results [27]. MU is more aggressive than primary skin tumors, therefore nodal assessment and wide surgical excision are recommended [28]. As recurrence of MU is higher than normal SCC (11–37%), 2–4 cm of free margins should be resected [2, 3, 7, 29]. Frozen biopsy during the operation is helpful, for MU always occurs in varying depth [22, 30]. Lifelong follow-ups should be conducted according to our experience.

Moreover, since the majority of MUs occur in long-duration unstable scars of ungrafted full-thickness burns [31], the joint regions, especially flexion creases, are more commonly involved due to predisposition to activity-related repeated ulceration [1, 7, 32]. Early surgical management could also achieve a possible prevention strategy.

Conclusions

MU is a rare but highly aggressive ulcerating SCC. The formation of an ulcer in the latency period plays an important role in the course of MU. Based on the different length of the pre- and post-ulceration periods during the latency period, skin breakdown on chronic scars and chronic unhealed ulcers are two main sources of MU. This potentially fatal complication may be preventable and treatable by surgical management of initial injuries and early diagnosis and treatment of unhealed ulcers. Patients should be followed-up for the rest of their life, as MU is more aggressive than initial skin carcinomas.
