Introduction

Insects are one of the most diverse group of animals with over a million described species representing 75 percent of the world's documented fauna (Stork 1999; Engel and Grimaldi 2004; Grimaldi and Engel 2005). They also display a greater diversity, especially in the tropics (Engel and Grimaldi 2004; Grimaldi and Engel 2005). Furthermore, insects are central to human livelihoods both as friends and foes (Snow et al. 1999; van Huis 2003).

The International Journal of Tropical Insect Science (Int J Trop Insect Sci) is a peer-reviewed journal established in 1980 to promote insect science mainly in the tropics (McKelvey 1980; Odhiambo 1980). The journal’s first impact factor was 0.419 (Kelemu 2015), and in 2019 it achieved a five-year impact factor of 0.748. The journal was ranked 76 out of 92 journals in entomology in the InCites™ Journal Citation Reports® (JCR) of the Web of Science™ (Kelemu 2015) and is ranked 87 out of 101 journals in the entomology category. The journal publishes all aspects of insect science, such as pest and vector management research (McKelvey 1980; Odhiambo 1980). It stands out in its multi-disciplinary approach that covers a broad spectrum of disciplines including environmental physiology; regulation of development and production; population modelling; chemical ecology; natural products chemistry; plant resistance; host/insect relations; behaviour of tropical pest species; epidemiology of tropical diseases; vector biology; pest and vector management; ento-meteorology; insects in relation to farming systems; forest entomology; insect pathology; social insects and arthropods; and uses of insects (Odhiambo 1980). At present the journal is indexing in most of the prestigious journal databases. Since the establishment of the International Journal of Tropical Insect Science, there has been little or no studies to assess the journal's impact in generating new knowledge continent-wide and globally. Despite its relevance, there has been little effort to assess the quality of science and the knowledge structure and such studies are essential to indicate the gaps.

Bibliometric analysis is a literature review method that statistically and quantitatively analyses published studies (Broadus 1987) and has received a lot of attention (Liang and Liu 2018). Bibliometric analysis is useful for examining the knowledge structure and development of specific research fields (Ellegaard and Wallin 2015). Recently, this approach has enabled researchers to comprehensively quantify and delineate the most prolific researchers, institutions, because the approach is deemed to be more objective and reliable than other common methods of literature review techniques (Aria and Cuccurullo 2017). The strength of bibliometrics relies on robust transparency and reproducibility (Aria and Cuccurullo 2017). Bibliometrics includes several descriptive statistics of citation data and network analysis of authors, journals, universities, countries, and keywords based on citations and frequency analysis techniques. Bibliometrics supports the identification of research clusters, provides insights into current research interests, and reveals trends for emerging topics in a field. Therefore, this study adopts a bibliometric approach to systematically evaluate the vast literature published over 9 years (2012–2020, ending September 2020) in the International Journal of Tropical Insect Science.

Materials and methods

To collect relevant bibliography data from the International Journal of Tropical Insect Science, a keyword search (“International Journal of Tropical Insect Science”) was performed in October 2020 on the Web of Science (WoS, http://www.webofknowledge.com) academic database. Publication records for 9 years, from 2012 to September 2020, were retrieved from the International Journal of Tropical and Insect Science.

All analyses on the collected bibliography data were conducted using the open-source R programming software called Bibliometrix 3.0. Co-citation analysis, bibliographic coupling, and keyword co-occurrence (van Eck and Waltman 2010; Zupic and Čater 2015) were performed.

Although Bibliometrix offers a few alternatives, the multi-dimensional scaling (MDS) method (Tzeng et al. 2008) was selected for information visualisation and the Louvain clustering algorithm (Blondel et al. 2008) was selected to detect communities in networks. The Louvain clustering algorithm allows networks of unprecedented size to be accessible to computational analysis and outperforms all the other methods of computation time, memory-efficient manner, and quality of the communities detected (Blondel et al. 2008). The bibliographic coupling approach, introduced by Kessler (1963), was used to identify the underlying research cluster and map contemporary research developments. When two or more published studies share at least one common citation, they are bibliographically coupled (Kessler 1963). Lotka’s Law, a bibliometric measure of authorship concentration that describes the authors' frequency of scientific publication, was also used.

In cluster analysis, normalisation approaches compensate for different occurrence levels among items, and MDS also benefits from normalisation (Tzeng et al. 2008). Thus, the bibliographic coupling data was normalised using the ‘association’ measure (van Eck and Waltman 2010).

Results and discussion

Scientific production

Over 488 research products were produced in the International Journal of Tropical Insect Science between 2012 and September 2020 from 1653 authors, with an average citation per document of 1.885. All documents were published in English; at least 1726 authors participated in the publication of the retrieved papers. Therefore, the minimum average number of authors per paper was 1.7.

The annual production of scientific papers was found to fluctuate, with 2020 seeming to be the most productive year, despite the records ending in September 2020 (Fig. 1). This could be attributed to global lockdowns for COVID-19, when the scientific community potentially had time to process the scientific backlog of papers and manuscripts (Müller et al. 2020). Other reasons could be the growing impact of research published by the International Journal of Tropical Insect Science, a trend that was noted by Kelemu (2015) back in 2015. Furthermore, the transition from manual submission system with Cambridge University Press to online under Springer Nature Switzerland AG may have contributed to the increase. Out of the 488 papers, 451 (93.6%) were original research papers, and 14 (2.8%) were review papers.

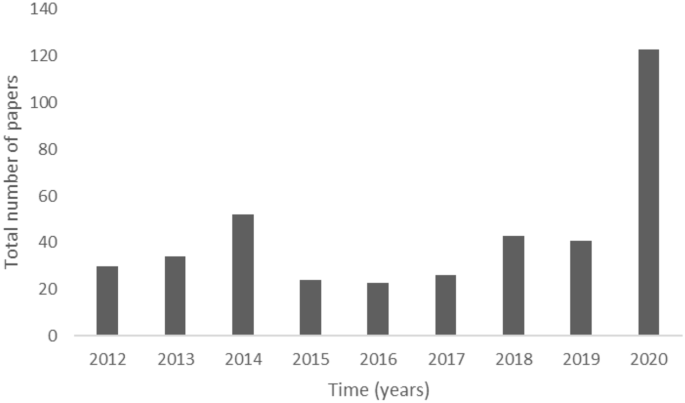

Fig. 1
figure 1

Total number of papers published in International Journal of Tropical Insect Science per year

Full size image

Top cited papers

The top 10 cited papers in the International Journal of Tropical Insect Science 2012–2020 were considered. The papers have citations ranging from 10 to 25 and a citation average ranging from 1.6 to 3 per year. Nine (9) of the most cited papers are full research publications, and 1 was a review paper by Saha and Mukhopadhyay (2013). The study by Lezama-Gutiérrez et al. (2012), which used entomopathogenic fungi as biocontrol agents, received the highest citations. The second most highly cited paper is by Saha and Mukhopadhyay (2013), where they reviewed a paper on insecticide resistance (Table 1); moreover, the most cited paper of the journal since inception is a review of uses of insects for food by van Huis (2003) with over 200 citations; however, this paper was outside of the range of the study.

Table 1 Top 10 cited papers in the International Journal of Tropical Insect Science, as extracted from the WOS (n = 488) during the period from 2012 to September 2020
Full size table

The present study only investigated the recent 9 years, and this is reflected in the citation index of papers, which is only expected to increase with time (Bartneck and Kokkelmans 2011). The 10 most cited papers were published within the first 4 years of the study period (Table 1), as envisaged by McKelvey (1980). It is reported that citations accumulate with time, and papers published earlier have a higher probability of receiving more citations than recent publications, making this an important issue when the citation count is used for ranking of individual papers (Bartneck and Kokkelmans 2011). Intra-Africa collaborations are also encouraged in order to develop regional capacity (Asubiaro 2019).

Most productive authors

The 20 most productive authors were considered (Table 2). The most productive author over the 9 years study period was Somnath Roy, who penned 11 papers, followed by Sunday Ekesi, Sevgan Subramanian, and Manuele Tamo, with 9 papers each. The first paper by Somnath Roy was published in 2012, titled “insecticide susceptibility and activity of major detoxifying enzymes in female Helopeltis theivora (Heteroptera: Miridae) from sub-Himalayan tea plantations of North Bengal, India” by S Roy and colleagues (Saha et al. 2012), and the more recent paper was first published online in October 2020, titled “Biodiversity of soil arthropods with emphasis on oribatid mites in three different tea agro-ecosystem with three different agronomical practices in Assam, India” (Roy et al. 2020). The first paper by Sunday Ekesi titled “Effect of fungicides used for powdery mildew disease management on the African weaver ant, Oecophylla longinoda (Hymenoptera: Formicidae), a biocontrol agent of sap-sucking pests in cashew crops in Tanzania” (Olotu et al. 2013) was published in 2013. A more recent paper was published in August 2020, titled “The African citrus triozid Trioza erytreae Del Guercio (Hemiptera: Triozidae): Temporal dynamics and susceptibility to entomopathogenic fungi in East Africa” (Aidoo et al. 2020). Sevgan Subramanian’s first paper appeared in 2014 titled, “Resistance to Iris yellow spot virus and onion thrips among onion varieties grown in Kenya” (Birithia et al. 2014), and the latest paper in 2017 was titled “Impact of introduced parasitoid Cotesia vestalis (Hymenoptera: Braconidae) on Plutella xylostella (Lepidoptera: Plutellidae) and its parasitoid guild on kale in semi-arid areas in Kenya” (Kahuthia-Gathu et al. 2017). Lastly, the papers by Manuele Tamo first appeared in 2012 titled, “Interaction between the aphid parasitoid Lysiphlebus testaceipes (Hymenoptera: Aphidiidae) and its hyperparasitoid Syrphophagus africanus (Hymenoptera: Encyrtidae)” (Ganyo et al. 2012), and the latest paper appeared in August 2020 titled, “Bioactivity of essential oils of Cymbopogon citratus (DC) Stapf and Cymbopogon nardus (L.) W. Watson from Benin against Dinoderus porcellus Lesne (Coleoptera: Bostrichidae) infesting yam chips” (Loko et al. 2020).

Table 2 The top 20 most productive authors in the International Journal of Tropical Insect Science, 2012–2020
Full size table

Co-authorship

Co-authorship is one factor considered in evaluating scientific collaboration among researchers, institutions, and countries (Tabatabaei-Malazy et al. 2016). A co-authorship country network map was created using the R package Bibliometrix 3.0. (Aria and Cuccurullo 2017), with a minimum number of documents for a country set at 5. The dominant countries are India, Kenya, the USA, and China (Figs. 2 and 3). There were co-author connections between the USA and 4 African countries, while Kenya had co-author connections with Tanzania, Germany, France, and Uganda (Fig. 3). A robust collaborative link was observed between South Africa and the USA, based on the closeness of the nodes or circles and the thickness of the connecting lines on the map (Fig. 3).

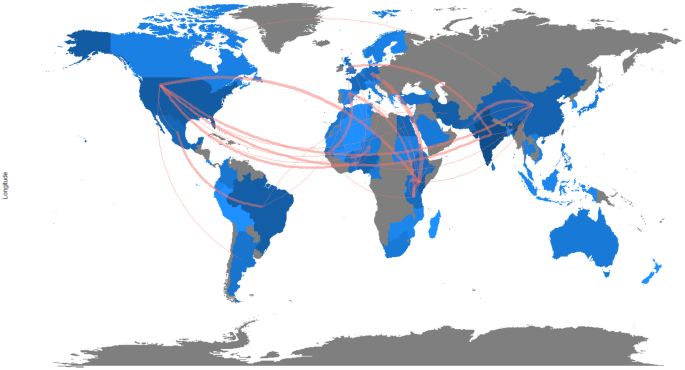

Fig. 2
figure 2

Country network map based on country of affiliation of authors publishing in the International Journal of Tropical Insect Science, 2012–2020

Full size image

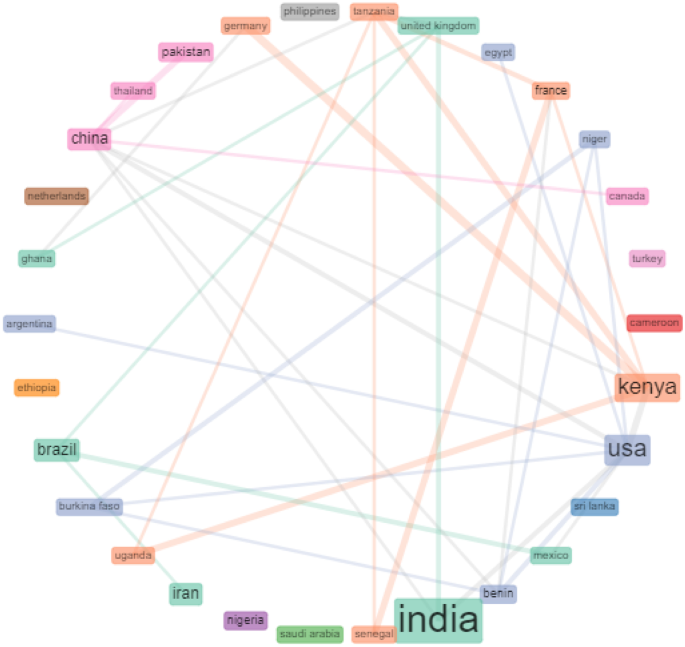

Fig. 3
figure 3

Co-author network map showing linkages and collaboration between various countries

Full size image

The historiographic map is used to provide a chronological network map of direct citation (Garfield 2004). There was a disconnected evolution of direct citation from 2012 to 2020. We can identify 3 nodes: first, it evolved from Saha et al. (2012), then in 2014, a new node developed from Muvea et al. (2014) that persisted for 4 years until a recent node evolved from Bande-Borujeni et al. (2018) through to 2020 (Fig. 4).

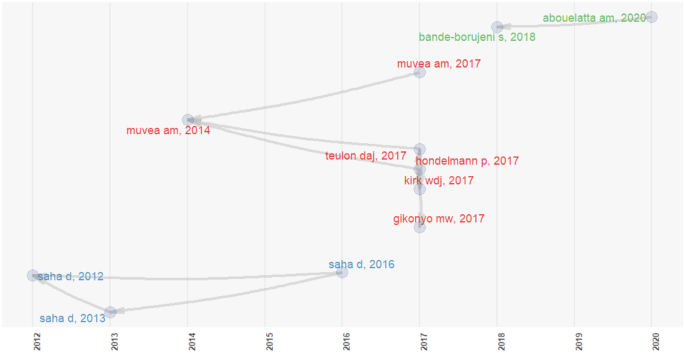

Fig. 4
figure 4

Historiographical representation of direct citation networks

Full size image

The direction of current trends, as shown by keywords, provides an insight into future research directions (Ravikumar et al. 2015). There was a general growth in keywords from 2012 to 2020. Ten (10) common keywords (Figs. 5 and 6) were being frequently used, with the word “resistance” showing the most apparent growth followed by “Homoptera” (Fig. 5). For example, “resistance” is an important topic for the management of pests and other common weeds, and the research on resistance is concerned by insect resistance (Samal and Kumar 2020) to pesticides and plant resistance to insect herbivory (Baliddawa 1985; Makkar et al. 2019). The emergence of biological control and management as keywords is directly in line with the journal's objective, as set out by Odhiambo (1980).

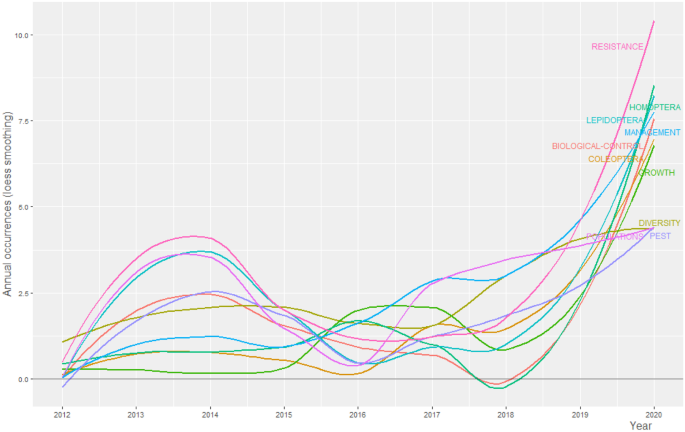

Fig. 5
figure 5

Growth of keywords per year in the International Journal of Tropical Insect Science, 2012–2020

Full size image

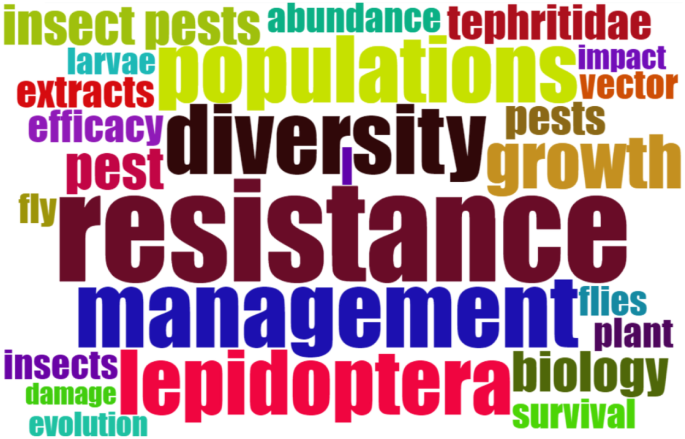

Fig. 6
figure 6

Wordcloud of keywords (max 50) from research published in the International Journal of Tropical Insect Science, 2012–2020

Full size image

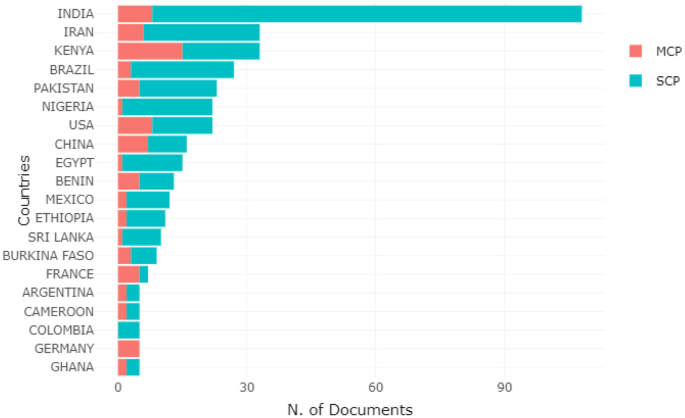

Fig. 7
figure 7

The global contribution by country of corresponding author's country in the International Journal of Tropical Insect Science, 2012–2020. SCP = Single country publications (SCP) and MCP = Multiple country publications (MCP)

Full size image

Collaborations

Multiple country collaborations tend to create channels that facilitate knowledge dissemination and access to funding for organizations that may not afford high-end technology (Rawlings and McFarland 2011; Leone Sciabolazza et al. 2020). As a result, this increased knowledge dissemination improves the quality of the research outputs (Lee and Bozeman 2005; Abramo et al. 2009; Bikard et al. 2015; Ceballos et al. 2017). Although there are several ways for measuring collaboration, the common method is the use of research publication co-authorships (Ferligoj et al. 2015). Co-authorship is used because it is a sufficiently objective and straightforward way to gauge scientific cooperation. Furthermore, Multiple Country Publications (MCP) is beneficial because papers have more citations than papers from Single Country Publications (SCP) (Prieto-Gutierrez and Segado-Boj 2019). We found that all papers from Germany are MCP, while papers from Colombia are SCP (Fig. 7).

India and Iran were the most productive countries with SCP, and Kenya was the most productive with MCP (Fig. 7). There is an increase in multi-authored papers (Crase and Rosato 1992), a pattern observed across several areas of specialities (MacNeil 2019). This trend has a direct impact on the volume of MCP (Wagner and Leydesdorff 2005). In essence, this trend promotes MCP papers across all spectrums (Luukkonen et al. 1992).

Conclusion

This study aimed to give an overview of insect research articles published in the journal IJTIS, using publications from the International Journal of Tropical Insect Science as a case study. Bibliometric analysis is a statistical tool used to assess the quantity and quality of publications and the extent of success and achievements accomplished on a specific topic (Ellegaard and Wallin 2015). Bibliometric analysis reveals vibrant collaboration between African and Western countries and active publication of multi-country authored articles. Although there was research attention on biological control, which is somewhat branch of invasion biology, we feel that since the threat from invasive species is well established (Pyšek et al. 2020). The numbers are only increasing (Seebens et al. 2017); we recommend that future studies investigate the invasion from insects, particularly on the African continent, because of the projected influx and increase of invasive arthropods (Seebens et al. 2020). This increase may be attributed to climate change, which will benefit invasive arthropods such as Bemisia tabaci on the African continent (Mudereri et al. 2021).
