Fig. 6

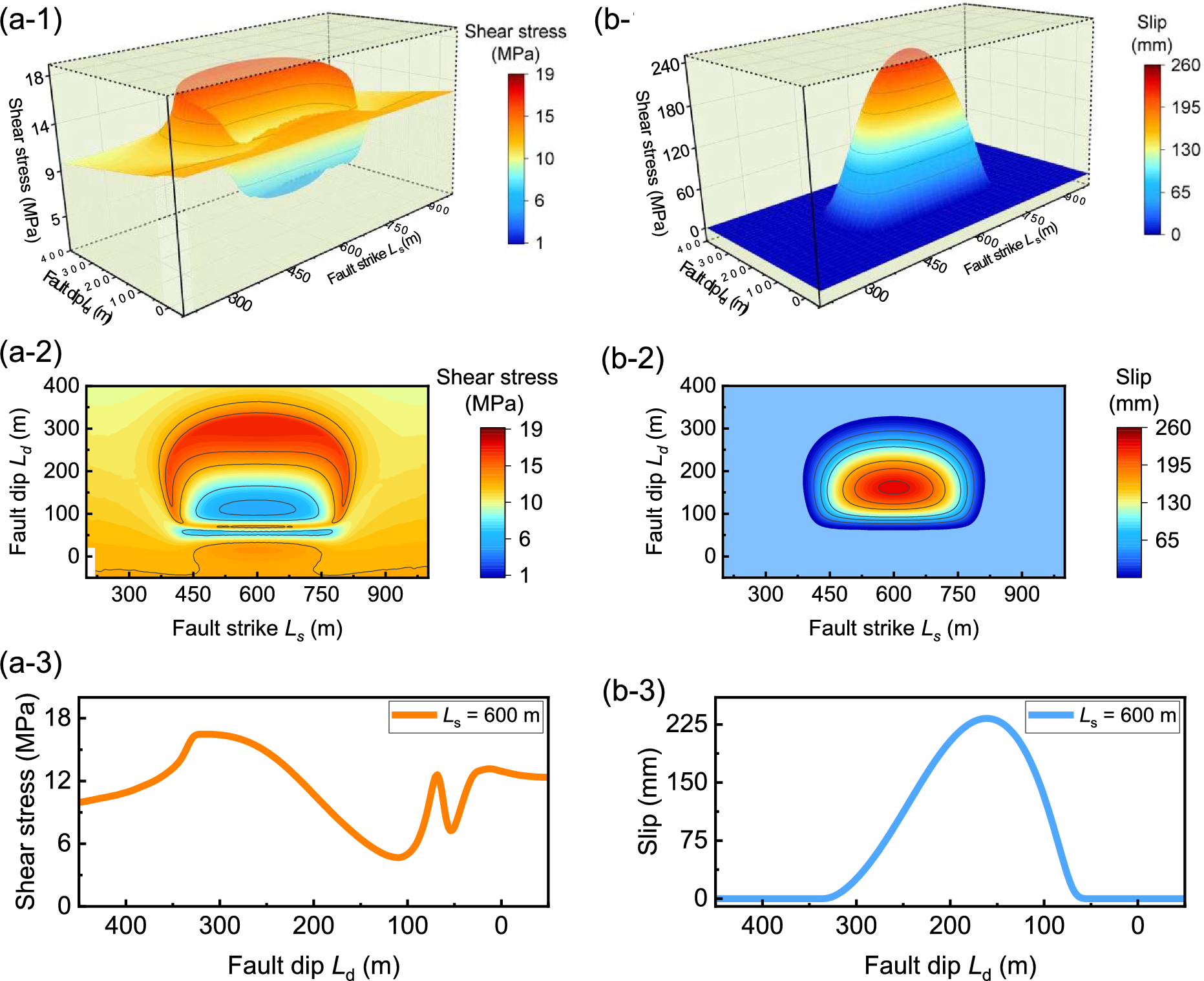

Shear stress and slip distribution on the fault plane with Dm = − 60 m. a shear stress analysis: a-1 3-D distribution of shear stress; a-2 2-D projection of shear stress; a-3 shear stress curve at Ls = 600 m; b Slip analysis: b-1 3-D distribution of slip; b-2 2-D projection of slip; b-3 slip curve at Ls = 600 m
