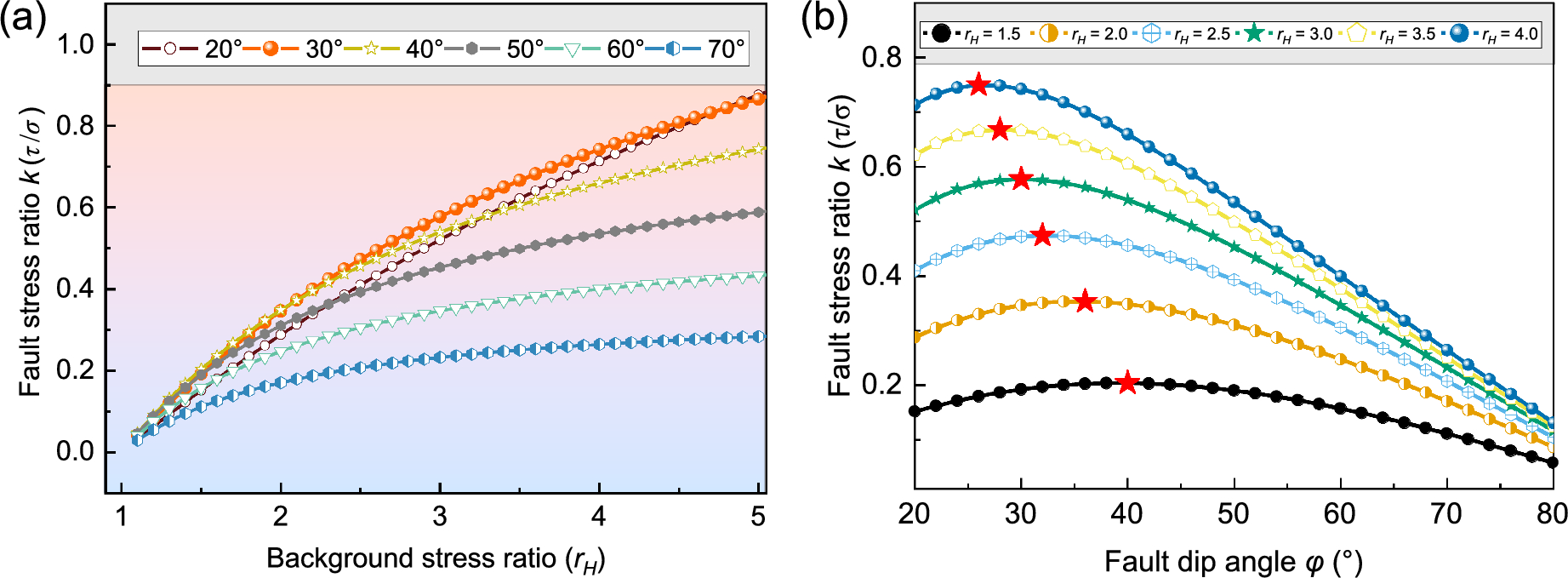

Fig. 11

Distribution of k as a function of r_H and φ. a Distributions of k as a function of r_H for φ values of 20°, 30°, 40°, 50°, 60°, and 70°; b Distributions of k as a function of φ with r_H ranging from 1.5 to 4.0. Red stars indicate the maximum value of k (k_max)
