Metachronous bilateral segmental testicular infarction: multi-parametric ultrasound imaging with grey-scale ultrasound, Doppler ultrasound, contrast-enhanced ultrasound (CEUS) and real-time tissue elastography (RTE)

Journal of Ultrasound volume 17, pages 233–238 (2014)Cite this article

Abstract

Segmental testicular infarction is a rare cause of acute scrotal pain. The appearances on grey-scale sonography are often indistinguishable from that of a testicular tumour, resulting in unnecessary orchiectomy. We report a case of acute bilateral testicular infarction, of unknown etiology, which was conservatively managed to resolution following a confident diagnosis achieved with the aid of contrast-enhanced ultrasound (CEUS) and real-time tissue elastography (RTE) along with conventional grey-scale and Doppler sonography. The evolving appearances on each of the sonographic modalities are described. We discuss the importance of complementing conventional sonography with CEUS and RTE in order to make a confident diagnosis and avoid unnecessary surgical intervention.

Riassunto

L’infarto testicolare segmentale è una causa rara di dolore scrotale acuto. L’aspetto ecografico, in scala di grigi, è spesso indistinguibile da quello di un tumore testicolare, con conseguenti orchiectomie inutili. Riportiamo un caso di infarto testicolare acuto bilaterale, ad eziologia sconosciuta, gestito in maniera conservativa fino a risoluzione, dopo una diagnosi realizzata con l’ausilio di ecografia con messo di contrasto (CEUS) e elastosonografia tessutale in tempo reale (RTE), ecografia convenzionale in scala di grigi e Doppler. Sono descritti gli aspetti, in ciascuna delle modalità ecografiche, dell’evoluzione delle lesioni. Discutiamo l’importanza della complementarietà dell’ecografia convenzionale con CEUS e RTE per effettuare una diagnosi di certezza ed evitare un inutile intervento chirurgico.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

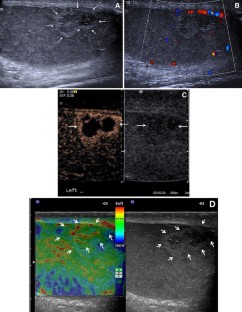

Fig. 1

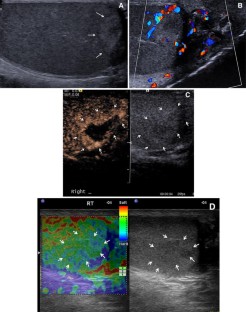

Fig. 2
Fig. 3

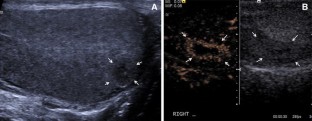

Fig. 4

References

  1. Bilagi P, Sriprasad S, Clarke JL, Sellars ME, Muir GH, Sidhu PS (2007) Clinical and ultrasound features of segmental testicular infarction: six-year experience from a single centre. Eur Radiol 17:2810–2818

    PubMed  Article  Google Scholar

  2. Sriprasad SI, Kooiman GG, Muir GH, Sidhu PS (2001) Acute segmental testicular infarction: differentiation from tumour using high frequency colour Doppler ultrasound. Br J Radiol 74:965–967

    CAS  PubMed  Article  Google Scholar

  3. Piscaglia F, Nolsoe C, Dietrich CF, Cosgrove DO, Gilja OH, BAchmann-Nielsen M, Albrecht T, Barozzi L, Bertolotto M, Catalano O, Claudon M, Weskott HP, Clevert DA, Correas JM, D’Onofrio M, Drudi FM, Eyding J, Giovannini M, Hocke M, Ignee A, Jung EM, Klauser AS, Saftoiu A, Mathis G, Leen E, Lassau N, Seidel G, Sidhu PS, ter Haar G, Timmerman D (2012) The EFSUMB guidelines and recommendations on the clinical practice of contrast enhanced ultrasound (CEUS): update 2011 on non-hepatic applications. Ultraschall Med 32:33–59

    Article  Google Scholar

  4. Bamber JC, Cosgrove DO, Dietrich CF, Fromageau J, Bojunga J, Calliada F, Cantisani V, Correas JM, D’Onofrio M, Drakonaki EE, Fink M, Friedrich-Rust M, Gilja OH, Havre RF, Jenssen C, Klauser AS, Ohlinger R, Saftoiu A, Schaefer F, Sporea I, Piscaglia F (2013) EFSUMB guidelines and recommendations on the clinical use of ultrasound elastography. Part 1: basic principles and technology. Ultraschall in Med 34:169–184

    CAS  Article  Google Scholar

  5. Huang DY, Sidhu PS (2012) Focal testicular lesions: colour Doppler ultrasound, contrast-enhanced ultrasound and tissue elastography as adjuvants to the diagnosis. Br J Radiol 85:S41–S53

    PubMed Central  PubMed  Article  Google Scholar

  6. Shah A, Lung PF, Clarke JE, Sellars ME, Sidhu PS (2010) New ultrasound techniques for imaging of the indeterminate testicular lesion may avoid surgery completely. Clin Radiol 65:496–498

    CAS  PubMed  Article  Google Scholar

  7. Lung PF, Jaffer OS, Sellars ME, Sriprasad S, Kooiman GG, Sidhu PS (2012) Contrast enhanced ultrasound (CEUS) in the evaluation of focal testicular complications secondary to epidiymitis. AJR Am J Roentgenol 199:W345–W354

    PubMed  Article  Google Scholar

  8. Bertolotto M, Derchi LE, Sidhu PS, Serafini G, Valentino M, Grenier N, Cova MA (2011) Acute segmental testicular infarction at contrast-enhanced ultrasound: early features and changes during follow-up. AJR Am J Roentgenol 196:834–841

    PubMed  Article  Google Scholar

  9. Goddi A, Sacchi A, Magistretti G, Almolla J, Salvadore M (2012) Real-time elastography for testicular lesion assesment. Eur Radiol 22:721–730

    PubMed Central  PubMed  Article  Google Scholar

  10. Lock G, Schmidt C, Helmich F, Stolle E, Dieckmann K (2011) Early experience with contrast enhanced ultrasound in the diagnosis of testicular masses; a feasibility study. Urology 77:1049–1053

    PubMed  Article  Google Scholar

  11. Jaffer OS, Sidhu PS (2013) Contrast-enhanced ultrasonography of the testes. Ultrasound Clin North Am 8:509–523

    Article  Google Scholar

  12. Valentino M, Bertolotto M, Derchi L, Bertaccini A, Pavlica P, Martorana G, Barozzi L (2011) Role of contrast enhanced ultrasound in acute scrotal diseases. Eur Radiol 21:1831–1840

    PubMed  Article  Google Scholar

  13. Kantarci M, Olgun DC, Mihmanli I (2012) Shear-wave elastography of segmental infarction of the testis. Korean J Radiol 13:820–822

    PubMed Central  PubMed  Article  Google Scholar

  14. Bayne A, Koslin B, Daneshmand S (2007) Bilateral segmental testicular infarction. TSW. Urology 2:53–57

    Google Scholar

Download references

Conflict of interest

Ketul V. Patel, Dean Y. Huang, Paul S. Sidhu declare no conflict of interest with this case study. The patient gave informed consent to report the case.

Ethical standards

All procedures followed were in accordance with the ethical standards of the responsible committee on human experimentation (institutional and national) and with the Helsinki Declaration of 1975, as revised in 2,000 (5). All patients provided written informed consent to enrolment in the study and to the inclusion in this article of information that could potentially lead to their identification.

Human and animal studies

The study was conducted in accordance with all institutional and national guidelines for the care and use of laboratory animals.

Author information

Affiliations

  1. Department of Radiology, King’s College Hospital, King’s College London, Denmark Hill, London, SE5 9RS, UK

    Ketul V. Patel, Dean Y. Huang & Paul S. Sidhu

Authors
  1. Ketul V. Patel
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Dean Y. Huang
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Paul S. Sidhu
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Paul S. Sidhu.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Patel, K.V., Huang, D.Y. & Sidhu, P.S. Metachronous bilateral segmental testicular infarction: multi-parametric ultrasound imaging with grey-scale ultrasound, Doppler ultrasound, contrast-enhanced ultrasound (CEUS) and real-time tissue elastography (RTE). J Ultrasound 17, 233–238 (2014). https://doi.org/10.1007/s40477-014-0098-1

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s40477-014-0098-1

Keywords

  • Testis
  • Segmental infarction
  • Ultrasonography
  • Contrast-enhanced ultrasound
  • Tissue elastography
