Skip to main content
SpringerLink
Log in

Corrosion Behavior of Selective Laser Melted AlSi10Mg Alloy in NaCl Solution and Its Dependence on Heat Treatment

Acta Metallurgica Sinica (English Letters) Aims and scope

Abstract

This work investigates the corrosion behavior of AlSi10Mg alloy produced by selective laser melting (SLM) and the counterparts heat-treated at 450–550 °C in 3.5 wt% NaCl solution. Electrochemical measurements and weight loss tests together with microstructural characterizations were conducted. The SLM-produced alloy displays a microstructure with a continuous network of Si particles, exhibiting superior corrosion behavior. After heat treatment, the Si particles are coarsened and isolated and Al matrix dissolves into their surrounding area, thereby degrading the corrosion resistance properties. Therefore, the corrosion resistance of AlSi10Mg alloy degrades with increasing the heat treatment temperature.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (France)

Instant access to the full article PDF.

Institutional subscriptions

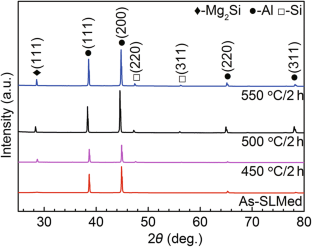

Fig. 1

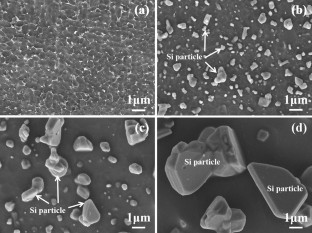

Fig. 2

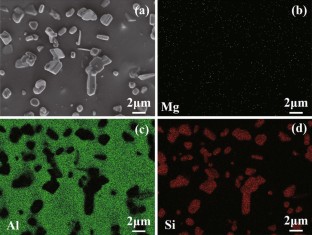

Fig. 3

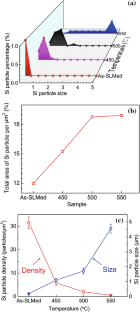

Fig. 4

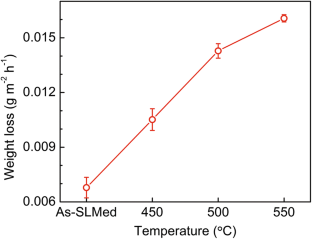

Fig. 5

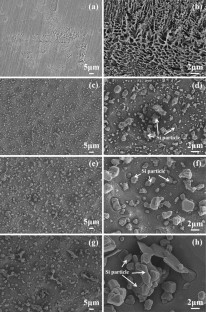

Fig. 6
Fig. 7
Fig. 8

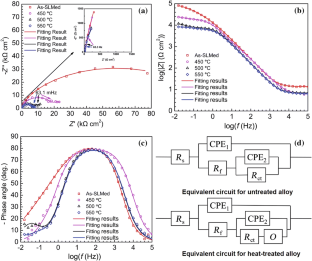

Fig. 9

References

  1. H. Liao, Y. Wu, K. Zhou, J. Yang, Mater. Des. 65, 1091 (2015)

    CAS  Google Scholar

  2. Y.C. Lin, S.C. Luo, J. Huang, L.X. Yin, X.Y. Jiang, Mater. Sci. Eng., A 725, 530 (2018)

    CAS  Google Scholar

  3. M.S. Remøe, K. Marthinsen, I. Westermann, K. Pedersen, J. Røyset, C. Marioara, Mater. Sci. Eng., A 693, 60 (2017)

    Google Scholar

  4. M.J. Roy, D.M. Maijer, Mater. Sci. Eng., A 611, 223 (2014)

    CAS  Google Scholar

  5. N. Read, W. Wang, K. Essa, M.M. Attallah, Mater. Des. 65, 417 (2015)

    CAS  Google Scholar

  6. K.G. Prashanth, B. Debalina, Z. Wang, P.F. Gostin, A. Gebert, M. Calin, M. Kamaraj, S. Scudino, J. Eckert, J. Mater. Res. 29, 2044 (2014)

    CAS  Google Scholar

  7. N.T. Aboulkhair, I. Maskery, C. Tuck, I. Ashcroft, N.M. Everitt, Mater. Des. 104, 174 (2016)

    CAS  Google Scholar

  8. N.T. Aboulkhair, I. Maskery, C. Tuck, I. Ashcroft, N.M. Everitt, Mater. Sci. Eng., A 667, 139 (2016)

    CAS  Google Scholar

  9. E. Brandl, U. Heckenberger, V. Holzinger, D. Buchbinder, Mater. Des. 34, 159 (2012)

    CAS  Google Scholar

  10. N. Kang, P. Coddet, M.R. Ammar, H. Liao, C. Coddet, Mater. Charact. 130, 243 (2017)

    CAS  Google Scholar

  11. S.D. Mcdonald, K. Nogita, A.K. Dahle, Acta Mater. 52, 4273 (2004)

    CAS  Google Scholar

  12. J.G. Jung, S.H. Lee, J.M. Lee, Y.H. Cho, S.H. Kim, W.H. Yoon, Mater. Sci. Eng., A 669, 187 (2016)

    CAS  Google Scholar

  13. K.R. Ravi, S. Manivannan, G. Phanikumar, B.S. Murty, S. Sundarraj, Metall. Mater. Trans. A 42, 2028 (2011)

    CAS  Google Scholar

  14. E. Karaköse, M. Keskin, J. Alloys Compd. 479, 230 (2009)

    Google Scholar

  15. R. Trivedi, F. Jin, I.E. Anderson, Acta Mater. 51, 289 (2003)

    CAS  Google Scholar

  16. A. Knuutinen, K. Nogita, S.D. Mcdonald, A.K. Dahle, J. Light Met. 1, 241 (2001)

    Google Scholar

  17. K. Nogita, S.D. Mcdonald, A.K. Dahle, Mater. Trans. 45, 323 (2004)

    CAS  Google Scholar

  18. F. Wang, Z. Liu, D. Qiu, J.A. Taylor, M.A. Easton, M.X. Zhang, Acta Mater. 61, 360 (2013)

    CAS  Google Scholar

  19. L. Lu, K. Nogita, A.K. Dahle, Mater. Sci. Eng., A 399, 244 (2005)

    Google Scholar

  20. A. Aremu, I. Ashcroft, R. Wildman, R. Hague, C. Tuck, D. Brackett, J. Eng. Manuf. 227, 794 (2013)

    Google Scholar

  21. P. Edwards, M. Ramulu, Mater. Sci. Eng., A 598, 327 (2014)

    CAS  Google Scholar

  22. A. Gebhardt, F.M. Schmidt, J.S. Hötter, W. Sokalla, P. Sokalla, Phys. Procedia 5, 543 (2010)

    Google Scholar

  23. C. Yan, L. Hao, A. Hussein, P. Young, D. Raymont, Mater. Des. 55, 533 (2014)

    CAS  Google Scholar

  24. V. Matilainen, H. Piili, A. Salminen, T. Syvänen, O. Nyrhilä, Phys. Procedia 56, 317 (2014)

    Google Scholar

  25. B.P. Conner, G.P. Manogharan, A.N. Martof, L.M. Rodomsky, C.M. Rodomsky, D.C. Jordan, J.W. Limperos, Addit. Manuf. 1–4, 64 (2014)

    Google Scholar

  26. Y.J. Liu, Z. Liu, Y. Jiang, G.W. Wang, Y. Yang, L.C. Zhang, J. Alloys Compd. 735, 1414 (2018)

    CAS  Google Scholar

  27. Y.J. Liu, S.J. Li, L.C. Zhang, Y.L. Hao, T.B. Sercombe, Scr. Mater. 153, 99 (2018)

    CAS  Google Scholar

  28. L.C. Zhang, H. Attar, Adv. Eng. Mater. 18, 463 (2016)

    CAS  Google Scholar

  29. W. Li, S. Li, J. Liu, A. Zhang, Y. Zhou, Q. Wei, C. Yan, Y. Shi, Mater. Sci. Eng., A 663, 116 (2016)

    CAS  Google Scholar

  30. L.Z. Wang, W.H. Wei, Acta Metall. Sin. (Engl. Lett.) 31, 807 (2018)

    CAS  Google Scholar

  31. H. Attar, M. Bönisch, M. Calin, L.C. Zhang, K. Zhuravleva, A. Funk, S. Scudino, C. Yang, J. Eckert, J. Mater. Res. 29, 1941 (2014)

    CAS  Google Scholar

  32. R. Wauthle, B. Vrancken, B. Beynaerts, K. Jorissen, J. Schrooten, J.P. Kruth, J.V. Humbeeck, Addit. Manuf. 5, 77 (2015)

    CAS  Google Scholar

  33. S.Q. Wu, Y.J. Lu, Y.L. Gan, T.T. Huang, C.Q. Zhao, J.J. Lin, S. Guo, J.X. Lin, J. Alloys Compd. 672, 643 (2016)

    CAS  Google Scholar

  34. B. Vrancken, L. Thijs, J.P. Kruth, J.V. Humbeeck, J. Alloys Compd. 541, 177 (2012)

    CAS  Google Scholar

  35. N.T. Aboulkhair, C. Tuck, I. Ashcroft, I. Maskery, N.M. Everitt, Metall. Mater. Trans. A 46, 3337 (2015)

    CAS  Google Scholar

  36. K.G. Prashanth, S. Scudino, H.J. Klauss, K.B. Surreddi, L. Löber, Z. Wang, A.K. Chaubey, U. Kühn, J. Eckert, Mater. Sci. Eng., A 590, 153 (2014)

    CAS  Google Scholar

  37. P. Ma, K.G. Prashanth, S. Scudino, Y. Jia, H. Wang, C. Zou, Z. Wei, J. Eckert, Metals 4, 28 (2014)

    Google Scholar

  38. P. Qin, Y. Liu, T.B. Sercombe, Y. Li, C. Zhang, C. Cao, H. Sun, L.C. Zhang, A.C.S. Biomater, Sci. Eng. 4, 2633 (2018)

    CAS  Google Scholar

  39. F.L. Zeng, Z.L. Wei, J.F. Li, C.X. Li, X. Tan, Z. Zhang, Z.Q. Zheng, Trans. Nonferrous Met. Soc. China 21, 2559 (2011)

    CAS  Google Scholar

  40. V. Guillaumin, G. Mankowski, Corros. Sci. 42, 105 (2000)

    CAS  Google Scholar

  41. R. Ambat, A.J. Davenport, G.M. Scamans, A. Afseth, Corros. Sci. 48, 3455 (2006)

    CAS  Google Scholar

  42. M.H. Larsen, J.C. Walmsley, O. Lunder, R.H. Mathiesen, K. Nisancioglu, J. Electrochem. Soc. 155, C550 (2008)

    CAS  Google Scholar

  43. G. Svenningsen, J.E. Lein, A. Bjørgum, J.H. Nordlien, Y. Yu, K. Nisancioglu, Corros. Sci. 48, 226 (2006)

    CAS  Google Scholar

  44. G. Svenningsen, M.H. Larsen, J.H. Nordlien, K. Nisancioglu, Corros. Sci. 48, 258 (2006)

    CAS  Google Scholar

  45. Y. Yang, Y. Chen, J. Zhang, X. Gu, P. Qin, N. Dai, X. Li, J.P. Kruth, L.C. Zhang, Mater. Des. 146, 239 (2018)

    CAS  Google Scholar

  46. R.I. Revilla, H. Terryn, I. De Graeve, J. Electrochem. Soc. 165, C532 (2018)

    CAS  Google Scholar

  47. R.I. Revilla, I. De Graeve, J. Electrochem. Soc. 165, C926 (2018)

    CAS  Google Scholar

  48. R.I. Revilla, J. Liang, S. Godet, I. De Graeve, J. Electrochem. Soc. 164, C27 (2016)

    Google Scholar

  49. H.T. Pang, X.Q. Li, J.R. Wang, Mater. Prot. 35, 38 (2002)

    CAS  Google Scholar

  50. X. Xie, J. Shen, L. Cheng, Y. Li, Y. Pu, Mater. Des. 81, 31 (2015)

    CAS  Google Scholar

  51. Y. Chen, J. Zhang, X. Gu, N. Dai, P. Qin, L.C. Zhang, J. Alloys Compd. 747, 648 (2018)

    CAS  Google Scholar

  52. M. Cabrini, S. Lorenzi, T. Pastore, S. Pellegrini, E.P. Ambrosio, F. Calignano, D. Manfredi, M. Pavese, P. Fino, Electrochim. Acta 206, 346 (2016)

    CAS  Google Scholar

  53. C. Brito, T. Vida, E. Freitas, N. Cheung, J.E. Spinelli, A. Garcia, J. Alloys Compd. 673, 220 (2016)

    CAS  Google Scholar

  54. Y. Chen, J. Zhang, N. Dai, P. Qin, H. Attar, L.C. Zhang, Electrochim. Acta 232, 89 (2017)

    CAS  Google Scholar

  55. A. Leon, E. Aghion, Mater. Charact. 131, 188 (2017)

    CAS  Google Scholar

  56. P. Handzlik, K. Fitzner, Trans. Nonferrous Met. Soc. China 23, 866 (2013)

    CAS  Google Scholar

  57. G.J. Brug, A.L.G.V.D. Eeden, M. Sluyters-Rehbach, J.H. Sluyters, J. Electroanal. Chem. 176, 275 (1984)

    CAS  Google Scholar

  58. C.C. Li, X.Y. Guo, S. Shen, P. Song, T. Xu, Y. Wen, H.F. Yang, Corros. Sci. 83, 147 (2014)

    CAS  Google Scholar

  59. M.A. Espinosa-Medina, C.D.L. Torre, H.B. Liu, A. Martínez-Villafañe, J.G. González-Rodriguez, Corros. Sci. 51, 1420 (2009)

    CAS  Google Scholar

  60. N. Dai, L.C. Zhang, J. Zhang, Q. Chen, M. Wu, Corros. Sci. 102, 484 (2016)

    CAS  Google Scholar

  61. N. Dai, L.C. Zhang, J. Zhang, X. Zhang, Q. Ni, Y. Chen, M. Wu, C. Yang, Corros. Sci. 111, 703 (2016)

    CAS  Google Scholar

  62. P. Qin, Y. Chen, Y.J. Liu, J. Zhang, L.Y. Chen, Y. Li, X. Zhang, C. Cao, H. Sun, L.C. Zhang, A.C.S. Biomater, Sci. Eng. 5, 1141 (2019)

    CAS  Google Scholar

  63. M. Gremaud, D.R. Allen, M. Rappaz, J.H. Perepezko, Acta Mater. 44, 2669 (1996)

    CAS  Google Scholar

  64. L.C. Zhang, D. Klemm, J. Eckert, Y.L. Hao, T.B. Sercombe, Scr. Mater. 65, 21 (2011)

    CAS  Google Scholar

  65. Y.T. Pei, J.T.M.D. Hosson, Acta Mater. 48, 2617 (2000)

    CAS  Google Scholar

  66. X.P. Li, X.J. Wang, M. Saunders, A. Suvorova, L.C. Zhang, Y.J. Liu, M.H. Fang, Z.H. Huang, T.B. Sercombe, Acta Mater. 95, 74 (2015)

    CAS  Google Scholar

  67. S.X. Liang, Z. Jia, Y.J. Liu, W. Zhang, W. Wang, J. Lu, L.C. Zhang, Adv. Mater. 30, 1802764 (2018)

    Google Scholar

  68. R.I. Revilla, D. Verkens, G. Couturiaux, L. Malet, L. Thijs, S. Godet, I. De Graeve, J. Electrochem. Soc. 164, C1027 (2017)

    CAS  Google Scholar

  69. R. Huang, Y. Han, Mater. Sci. Eng., C 33, 2353 (2013)

    CAS  Google Scholar

  70. K.D. Ralston, D. Fabijanic, N. Birbilis, Electrochim. Acta 56, 1729 (2011)

    CAS  Google Scholar

  71. N. Dai, J. Zhang, Y. Chen, L.C. Zhang, J. Electrochem. Soc. 164, C428 (2017)

    CAS  Google Scholar

  72. S.S. Wang, I.W. Huang, L. Yang, J.T. Jiang, J.F. Chen, S.L. Dai, D.N. Seidman, G.S. Frankel, L. Zhen, J. Electrochem. Soc. 162, C150 (2015)

    CAS  Google Scholar

Download references

Acknowledgements

This work was supported financially by the Project of Shanghai Science and Technology Commission (No. 14DZ2261000) and the Australian Research Council’s Project funding scheme (No. DP110101653).

Author information

Authors and Affiliations

  1. Shanghai Key Laboratory of Material Protection and Advanced Material in Electric Power, Shanghai University of Electric Power, Shanghai, 200090, China

    Xin-Hui Gu, Jun-Xi Zhang & Xiao-Lei Fan

  2. School of Engineering, Edith Cowan University, 270 Joondalup Drive, Joondalup, Perth, WA, 6027, Australia

    Lai-Chang Zhang

Authors
  1. Xin-Hui Gu
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Jun-Xi Zhang
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Xiao-Lei Fan
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Lai-Chang Zhang
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding authors

Correspondence to Jun-Xi Zhang or Lai-Chang Zhang.

Additional information

Available online at http://link.springer.com/journal/40195

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Gu, XH., Zhang, JX., Fan, XL. et al. Corrosion Behavior of Selective Laser Melted AlSi10Mg Alloy in NaCl Solution and Its Dependence on Heat Treatment. Acta Metall. Sin. (Engl. Lett.) 33, 327–337 (2020). https://doi.org/10.1007/s40195-019-00903-5

Download citation

  • Received:

  • Revised:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s40195-019-00903-5

Keywords

search

Navigation
